Until the 1970s, GM automotive divisions made most of their own engines, leading to a confusing array of completely different engines of similar displacements. For example, Buick, Chevrolet, Oldsmobile, and Pontiac each had “350” V-8s, often with about the same power outputs. Here’s why that was the case.
The first thing I’m going to ask you to do in reading this post is set aside all the marketing claims and received wisdom you may have heard about the alleged superiority (or inferiority) of specific GM engines, or the idea that having unique engines gave each division its own identity. Even if all that were true, it would have nothing at all to do with why the divisions designed and built their own engines and why they mostly continued to do so until a shifting market and a changing regulatory environment began to make it impractical.
If that conventional wisdom is irrelevant, why DID GM have so many distinct but duplicative engines? Why didn’t the divisions all use variations of the same engines, as Ford and Chrysler products often did?
Reason 1: Most Early GM Divisions Were Originally Separate Companies With Their Own Production Facilities.
In its early years, General Motors was really just a holding company through which founder William Crapo Durant acquired an array of automakers and automotive supply firms. Not all of those automakers had complete production facilities — a few made what used to be derisively known as “assembled cars,” with engines and other components made by others — but the most important ones did: Buick Motor Car Company, Olds Motor Works, Oakland Motor Car Company, Cadillac Motor Car Company, and Chevrolet Motor Company. (In the early 1930s, Oakland became Pontiac, a brand Oakland had introduced in 1926 as a cheaper companion make.)
The companies that had the facilities to make their own engines continued to do so after becoming part of GM. Even if the corporation had been inclined to consolidate production operations at that stage, there wasn’t much capital for that, and it was not a priority.
Interestingly, Alfred P. Sloan Jr., who became president of the corporation in 1923, seems to have regarded the automotive divisions’ ability to produce their own engines as a sign of their ability to pull their own weight within the corporation. One of his arguments for getting rid of Scripps-Booth and Sheridan, two early GM automotive divisions that were discontinued in the early 1920s, was that neither division had its own engine. Without that, and without their own strong dealer networks, Sloan felt that “they added nothing but excess baggage to the General Motors car line.”
Reason 2: GM Believed in Decentralized Management (Sort Of).
Early GM acquisitions remained subsidiary companies — they didn’t even formally become GM divisions until August 1917 — and it wasn’t until the early 1920s that there was a serious effort to establish a coherent corporate structure, which was a long, complicated process.
GM gradually established policies, committees, and corporate staff, but the ostensible object was to bring order to areas like inventory, purchasing, and cash flow, while still leaving the actual management of the divisions as decentralized as practical. In a September 1923 memorandum, Sloan declared:
According to General Motors plan of organization, to which I believe we all heartily subscribe, the activities of any specific Operation are under the absolute control of the General Manager of that Division, subject only to very broad contact with the general officers of the Corporation.
“Absolute control” was hyperbole even in the 1920s (division general managers were subjected to new corporate policy edicts almost every month!), but Sloan wanted the individual divisions to handle operational management, with the corporation approving strategies and schedules and trying to keep the divisions from getting too much in each other’s way. (The first iteration of what later became known as the “Sloan ladder” was formulated in April 1921.)
Reason 3: GM Wanted Its Divisions to See Each Other as Customers or Competitors.
Even in the 1920s, GM treated its operational divisions as what we now call profit centers, each with its own separate revenues, profits, and losses. One aspect of this was that if an automotive division wanted to use components from another division — such as when Cadillac used Oldsmobile eights in the 1934–1936 LaSalle — it had to buy them like any other customer, and, at least in principle, the divisions weren’t obligated to deal with each other.
As GM VP Donaldson Brown explained in an address to the American Management Association in February 1927:
No division is required absolutely to purchase product from another division. In their interrelation they are encouraged to deal just as they would with outsiders. The independent purchaser that is buying product from any of our divisions is assured that prices to it are exactly in line with prices charged our own car divisions. Where there are no substantial sales outside, such as would establish a competitive basis, the buying division determines the competitive picture,—at times partial requirements are actually purchased from outside sources so as to perfect the competitive situation.
As with many high-minded GM policy statements, the reality wasn’t always quite so clear cut. At times, there was definite pressure on the divisions to buy from or sell to each other (albeit not for free). However, the idea was to encourage the divisions to keep their costs and prices competitive, even when dealing internally.
That policy also provided a financial incentive for divisions to build engines and even transmissions in-house if they thought they could do so less expensively. For example, Chevrolet could have bought Hydra-Matic transmissions from Detroit Transmission Division, as Oldsmobile, Pontiac, and Cadillac did, but Chevy opted to build their own Powerglide automatic instead, which was almost certainly cheaper for them over time. Given the huge number of automatic transmissions Chevrolet would eventually need each year, even a modest per-unit savings would have paid off the initial investment in fairly short order.
Reason 4: Most GM Divisions Needed an Enormous Volume of Engines.
Back in the days when GM market share hovered close to 50 percent, the individual volume of most of their automotive divisions was huge. For example, in 1940, Oldsmobile, which at that point had the second-lowest sales of the five domestic passenger car divisions, still sold more than 200,000 cars, almost as many as DeSoto, Hudson, and Nash put together.
At Ford and Chrysler, the more expensive brands accounted for a much smaller chunk of total production and total sales. For example, in 1940, Ford sold more than 706,000 Ford cars and trucks, while Mercury (which hadn’t existed at all before 1938) sold only about 80,000 and Lincoln just 21,000. To give you a better sense of scope, the following chart shows a breakout of GM, Ford, and Chrysler sales by division for the years 1940, 1950, and 1960.
| Manufacturing Group | Car Division | 1940 Registrations | 1950 Registrations | 1960 Registrations |
|---|---|---|---|---|
| Chrysler Corporation | ||||
| Plymouth | 440,093 | 547,367 | 445,590 | |
| Dodge | 197,252 | 300,104 | 356,572 | |
| DeSoto | 71,943 | 115,023 | 0 | |
| Chrysler | 100,117 | 151,300 | 96,112 | |
| Ford Motor Company | ||||
| Ford | 542,755 | 1,166,138 | 1,420,352 | |
| Mercury | 80,418 | 318,217 | 308,239 | |
| Lincoln | 21,004 | 34,318 | 20,711 | |
| General Motors | ||||
| Chevrolet | 853,529 | 1,420,399 | 1,696,925 | |
| Pontiac | 235,815 | 440,528 | 399,646 | |
| Oldsmobile | 201,256 | 372,519 | 355,798 | |
| Buick | 295,513 | 535,807 | 267,837 | |
| Cadillac | 38,564 | 101,825 | 149,593 |
As I mentioned above, each of the GM car divisions had its own engine production facilities, which had been expanded and modernized over the years. In principle, the corporation could have demanded consolidation of engine production at this point, but with the number of engines required, it would have been a huge, costly undertaking to no obvious advantage.
For Chevrolet to supply engines for Pontiac in the 1940s, for example, would have required expanding Chevrolet engine production capacity by at least 20 percent (and also reaching some accommodation on the matter of eight-cylinder engines, which Pontiac then offered and Chevrolet didn’t). Buying engines from Chevrolet would have cost Pontiac more than continuing to build them in-house, which in turn would have driven up retail prices and probably hurt sales.
For the most part, the only exceptions prior to the ’70s were for lower-volume engines. For example, in the mid-’60s, Oldsmobile bought V-6 engines from Buick (and later inline sixes from Chevrolet) for the A-body F-85 because Olds hadn’t built a six-cylinder engine in-house since 1950 and there wasn’t enough demand to justify the tooling costs of creating a new one.
Reason 5: GM Divisions Had Huge Existing Investments in Engine Plants and Tooling.
By far the most expensive aspect of building an engine is the production tooling. In the early days of the automobile, one engineer could conceivably design an entire engine, but setting up the tools to mass-produce it to reasonably high tolerances was quite another matter.

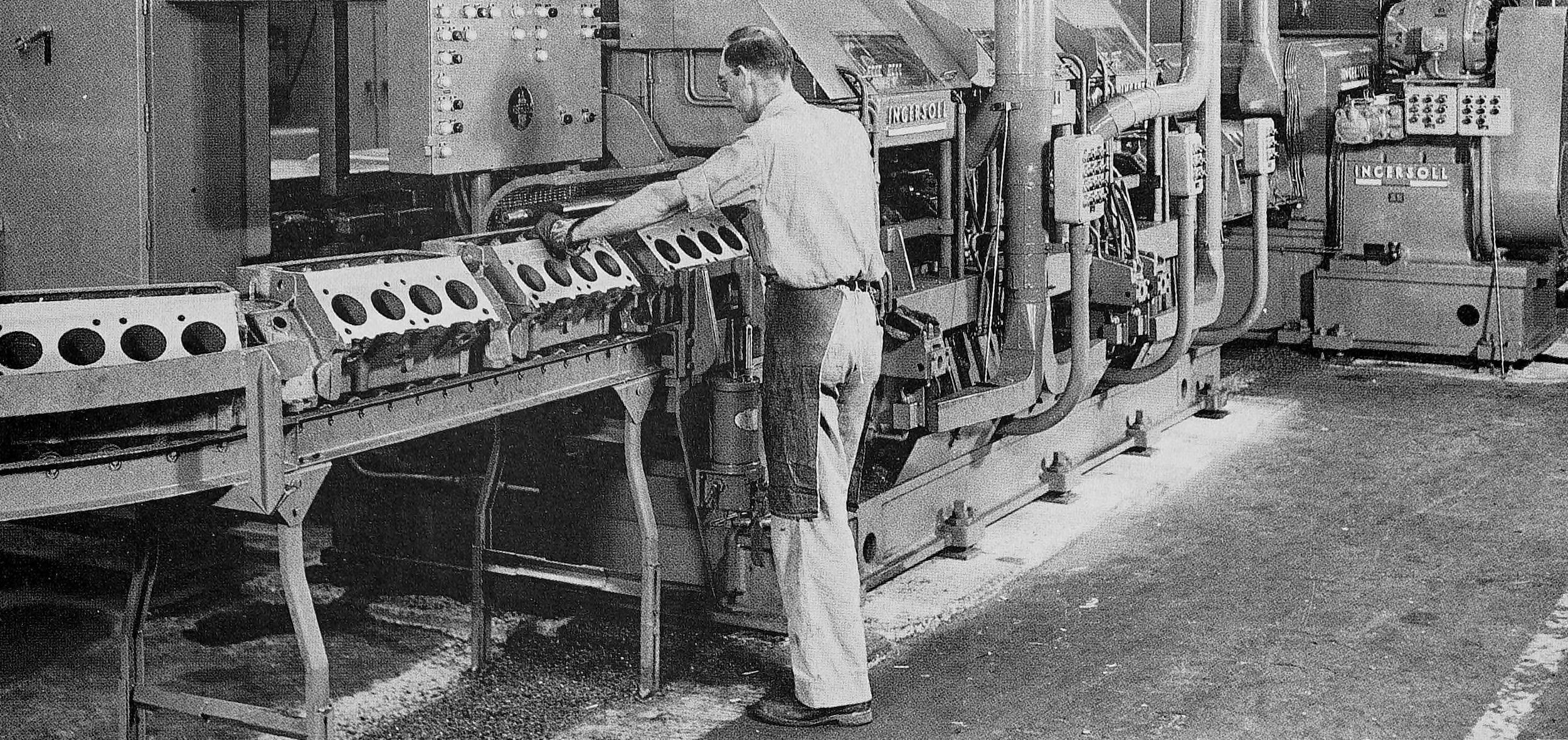

Engine tooling costs greatly escalated after World War 2, as automakers who could afford them made huge investments in automated transfer machinery. A transfer machine is a huge piece of industrial equipment that can automatically perform a series of machining operations on a complex piece like an engine block or a cylinder head. Some transfer machines may combine five or six operations, while others may have 50 or more “stations,” all of which can theoretically be controlled by a single worker. (In practice, there may be whole armies of technicians to keep the transfer machines running, change cutters, etc.) For example, the Ingersoll milling and boring machine pictured below did all the following:
- Mill front surfaces of crankshaft bearings
- Mill rear surfaces of crankshaft bearings
- Mill anchor slots
- Mill oil filter pad
- Mill oil dip stick pad
- Rough bore cylinders
- Chamfer top and bottom of bores
- Turn block 90 degrees
- Rough mill front and rear end of block
- Finish mill front and rear of blocks.

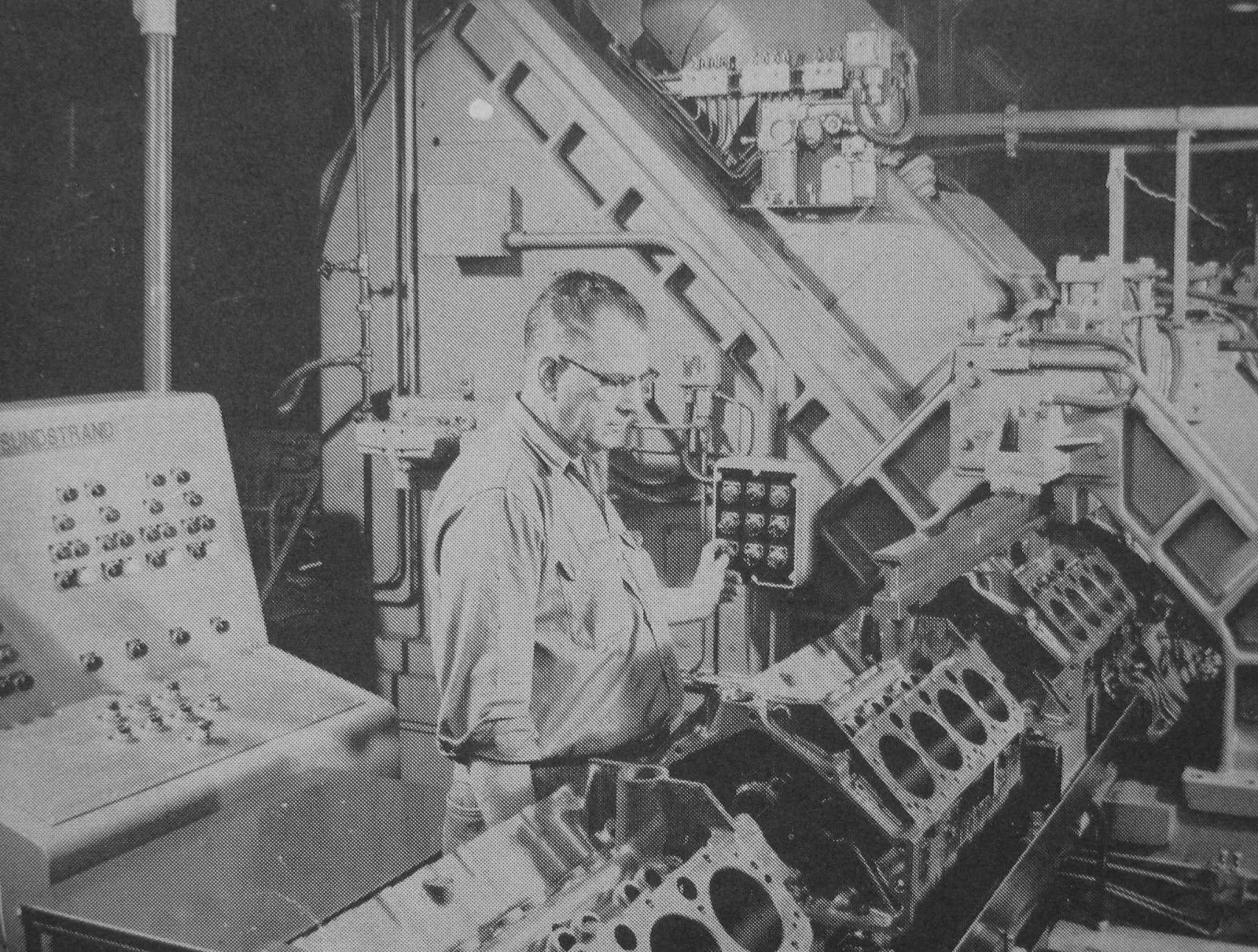

Transfer machines require a much bigger upfront investment than individual tools, and designing them to be flexible enough to accommodate a range of different pieces requires a lot of intensive advance planning. However, transfer machines substantially reduce both the cost per piece and the time per piece (which in an industrial sense are more or less the same thing). By allowing more pieces to be completed per hour and per shift, transfer machines also make the whole plant more economical to operate. Any large factory has enormous overhead and sizable fixed costs, so volume is what determines the difference between an asset and a liability.
Through the 1970s, each GM division that made its own engines was usually individually responsible for the tooling costs. This was better for the corporation: Because the divisions typically introduced new or significantly updated engines at different times, GM never had to absorb the upfront cost of engine retooling for all the divisions at once. In this way, the tooling expense was also closely tied to a division’s anticipated volume, making it relatively easy to assess the return on investment.
Once the divisions had made those big investments, they had little reason to give them up if it could possibly be avoided. Transfer machinery was very expensive (even in the late ’40s and early ’50s, a single transfer machine cost hundreds of thousands of dollars), and the cost had to be amortized over a period of years for tax purposes. A division might add more equipment to expand production, but it was MUCH cheaper to rebuild and refit existing transfer machines than to replace them. This created a strong economic incentive to develop new engines that could be build with existing transfer machinery, or that the existing equipment could be refitted to build. For example, Oldsmobile’s new 330- and 425-cid V-8s, introduced in the mid-’60s, still used much of the same transfer machinery established for the older Rocket V-8. Quite a few “all-new” engine blocks retained the bore spacing of their predecessors, for similar reasons.
In the ’60s, GM began imposing corporate policies limiting maximum engine displacement in certain classes. Rather than commonize engine designs, the divisions each developed their own engines for those classes that could be built using existing tooling. For example, Buick, Chevrolet, Oldsmobile, and Pontiac each ended up with V-8 engines of nominal 350-cid displacement, all of them different. This often strikes casual observers as nonsensical, but for GM to consolidate those designs would have required not only making a massive investment in new tooling, but also writing off the substantial sunk costs of existing tooling, plants, and equipment.
To give you a sense of the scale of the costs involved, a 1977 Department of Transportation report on downsizing to meet 1981–1984 CAFE requirements included the following estimates for production equipment conversion costs, excluding land, buildings, and supporting facilities, and assuming an annual volume of 400,000 units:
| Engine Type | Change | Tooling and Equipment Cost |
|---|---|---|
| V-8 | Rebuild existing equipment to reduce displacement | $90 million to $100 million |
| V-8 | Diesel conversion of existing engine | $90 million to $100 million |
| V-8 | New equipment | $140 million to $150 million |
| L-6 | Rebuild existing equipment to reduce displacement | $63 million to $75 million |
| L-6 | New equipment | $109 million to $114 million |
| L-4 | Rebuild existing equipment to reduce displacement | $56 million to $66 million |
| L-4 | New equipment | $92 million to $96 million |
I should clarify that rebuilding existing equipment to reduce displacement presumes actually scaling down the size of an existing engine in the manner of the Pontiac 301 — simply changing displacement by adjusting bore dimensions in an existing block or using a crankshaft with a different stroke was nowhere near that costly.
Ideal on Paper Is Not Always Ideal in the Real World
You might be thinking, “But wouldn’t it have been cheaper to produce more of one engine than to build four or five similar ones?” In certain respects, it might have been, but it’s clear that those savings would have been outweighed by the much greater tooling and logistical costs involved, since those engines were produced in very large numbers in different plants located in different cities and sometimes different states.
Think of it like this: Let’s say you’re a rich person with a summer house on Cape Cod and a winter house in Palm Springs, and you want to have a vehicle registered and garaged at each house for you to use while you’re there. Is there any compelling economic reason for both of those vehicles to be the same? Probably not — and even if you’d like them to be the same for aesthetic reasons, you might balk at the cost of replacing one or both existing vehicles just so they’ll match.
On paper, the ideal approach might have been for GM to design a single set of corporate engines that would suit the needs of all its automotive divisions, with the flexibility to offer different configurations sharing much of the same tooling. (GM divisions were certainly capable of that; for example, the 1960 GMC V-6 and V-12 engines shared most of the same tooling and more than 90 percent of the same machining operations, while the Buick 90-degree V-6 shared much of the tooling of the aluminum V-8.) However, actually doing that on a large scale was like the old fable about belling the cat: Even if everyone agreed that it was a good idea, who was going to do it, and who was going to pay for it?
When GM finally did begin consolidating its engines, the object was not to achieve some kind of platonic ideal of a rational engine lineup or to play out divisional favoritism. It was done because in the wake of the 1973–1974 OPEC embargo, and the subsequent establishment of CAFE, the divisions’ engine needs were changing more rapidly than they could respond to individually. Between 1973 and 1980, for example, the percentage of domestic cars with V-8 engines fell from about 80 percent to less than 30 percent, and engines over 7 liters, which had been very common in the early ’70s, disappeared completely except on trucks.
As GM commonized engines across divisions, they also decided to shift control of the existing engine plants from the standalone automotive divisions to new “supergroups” (Chevrolet-Pontiac-Canada Powertrain and Buick-Oldsmobile-Cadillac Powertrain), which were then consolidated in the ’90s as GM Powertrain. A lot of the existing engine designs remained in production for years after the initial consolidation, even though they were no longer really under the control of the divisions that originally designed them. Most of those engines were now widely used throughout the corporation, until eventually the concept of division-specific engines had become more or less meaningless except as a historical curiosity.
