In its August 1967 test of a 4-speed 1967 Pontiac Firebird 400, Car Life magazine remarked that the Firebird didn’t really need the 4-speed transmission, and suggested that the standard 3-speed “is more than adequate and costs less.” They didn’t test a Firebird with the 3-speed for comparison, but Motor Trend did. Here’s what they found.
While the conventional wisdom among muscle car fans is that 4-speed manual transmissions were the last word in performance, Car Life came away from their comparison of a 4-speed 1967 Firebird Sprint and a 4-speed Firebird 400 less convinced. They found the Muncie 4-speed transmissions in both cars hard to shift (especially in the Sprint, whose center console seemed to add resistance to the linkage) and quite expensive: In 1967, the 4-speed listed for $184.31 on a Firebird, the inflation-adjusted equivalent of about $2,000 in 2026. The editors questioned whether the cost was worthwhile:
Both the Sprint and 400 engines proved to be very flexible powerplants, with broad torque range. In all-out dragstrip competition, a 4-speed transmission has a slight advantage in keeping an engine near its power peak over a larger portion of the strip. In city traffic operation, however, four gears become a bit redundant, and the driver is likely to find himself skipping one or more ratios. With the flexibility Pontiac engines offer, a 3-speed transmission, is more than adequate and costs less. The 3-speed fully synchronized transmissions installed as standard equipment in all Firebirds are very satisfactory units, with well chosen ratios for each powerplant.

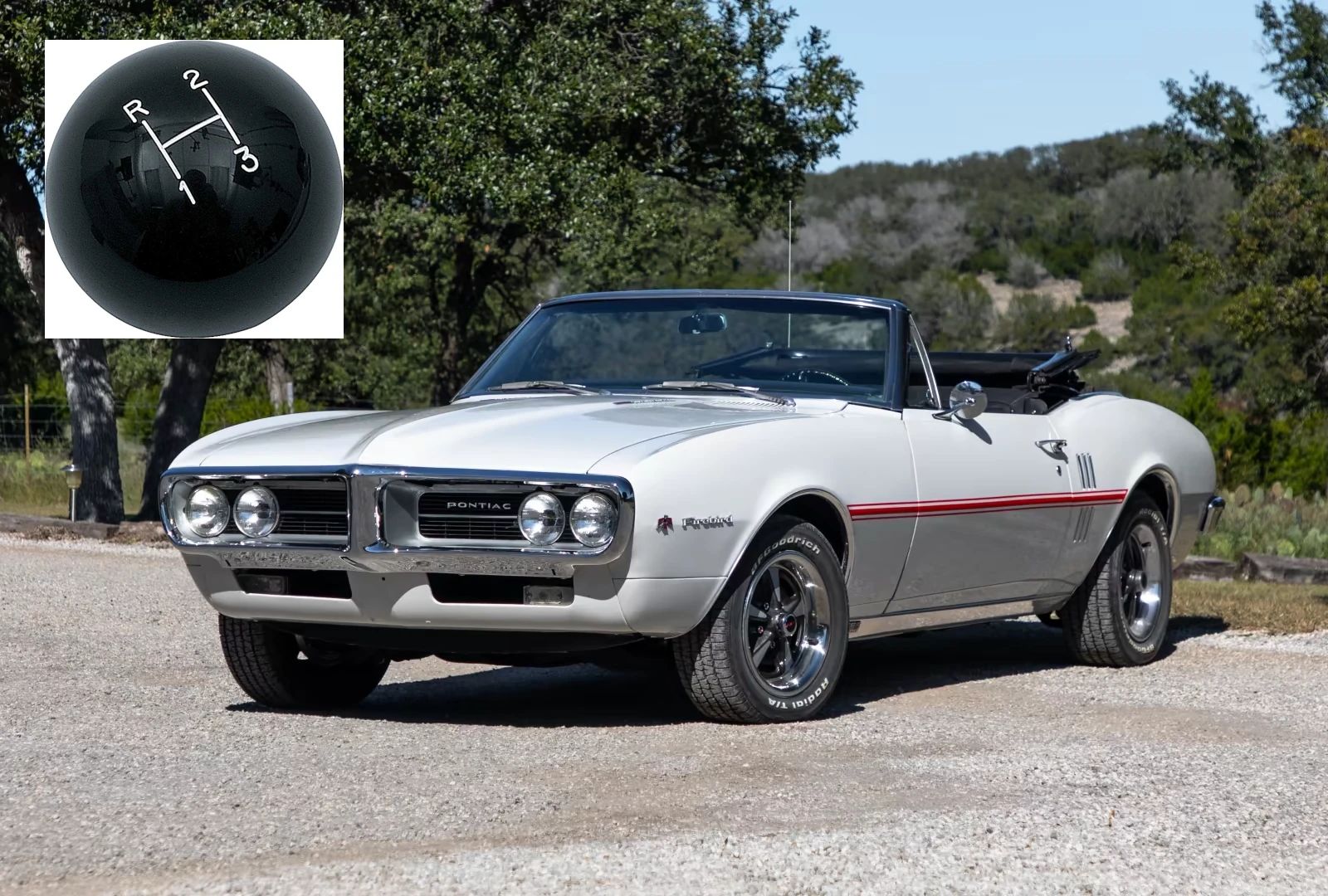

So far as I’ve been able to find, there were no contemporary road tests of a 1967 Firebird Sprint with the 3-speed, although some were built, including the Cameo Ivory Sprint convertible pictured here. However, Motor Trend‘s May 1967 sporty car comparison included acceleration times for no fewer than ten of the available Firebird powertrain combinations, including Firebird 400s with the 3-speed, 4-speed, and Turbo Hydra-Matic (TH400).
Here’s what Motor Trend reported for the Firebird 400:
- Firebird 400/3-speed: 0 to 60 mph: 7.0 sec.; ¼ mile: 14.8 sec. at 98 mph
- Firebird 400/4-speed: 0 to 60 mph: 6.7 sec.; ¼ mile: 14.5 sec. at 99 mph
- Firebird 400/TH400: 0 to 60 mph: 6.7 sec.; ¼ mile: 14.7 sec. at 99 mph
Compared to the 400’s standard heavy-duty 3-speed, the 4-speed manual 400 was 0.3 seconds quicker both to 60 mph and through the standing quarter mile, gaining 1 mph through the lights. Like Car Life said, these fractions would be significant on the dragstrip, but on the street, there was really very little to choose between them.
This may be less surprising if you compare the gear ratios of the Ford-built H-D 3-speed and the wide-ratio 4-speed:
| Transmission | 1st | 2nd | 3rd | 4th |
|---|---|---|---|---|
| 4-speed, wide-ratio | 2.52 | 1.88 | 1.47 | 1.00 |
| 3-speed H-D | 2.41 | 1.59 | 1.00 |
The wide-ratio 4-speed had a slight numerical advantage in 1st, but with so much torque, the Firebird 400 hardly needed it. (With a big engine and street tires, higher numerical gear ratios could actually hurt acceleration by overloading the tires or setting the rear axle hopping, forcing the driver to feather-foot it off the line.) The 3-speed ratios were evenly spaced, which was good for performance, so their main shortcoming compared to the 4-speed was that the 3-speed’s 2nd gear didn’t give as much torque multiplication as 2nd gear in the 4-speed. However, with the standard tires and 3.36 axle ratio, you could stay in 2nd to about 70 mph. Both transmissions had direct top gears, so with the same axle ratios, top-gear performance was identical.
What about the close-ratio 4-speed? There’s a common misconception among enthusiasts that a close-ratio gearbox was essential for any serious performance car, but that was really only true in certain narrow circumstances. Take a look at the ratios of the close-ratio Muncie 4-speed:
| Transmission | 1st | 2nd | 3rd | 4th |
|---|---|---|---|---|
| 4-speed, close-ratio | 2.20 | 1.64 | 1.27 | 1.00 |
In general, lower numerical ratios tend to penalize in-gear performance unless they’re matched with a higher numerical axle ratio, like the 3.90 or 4.33 ratios usually specified with Pontiac’s Ram Air packages.
Even then, the main performance advantage of the close-ratio 4-speed gears was that engine speed didn’t drop as much on the 3–4 shift as it did with the wide-ratio gears, which was useful for highly tuned engines that made most of their power at high rpm.

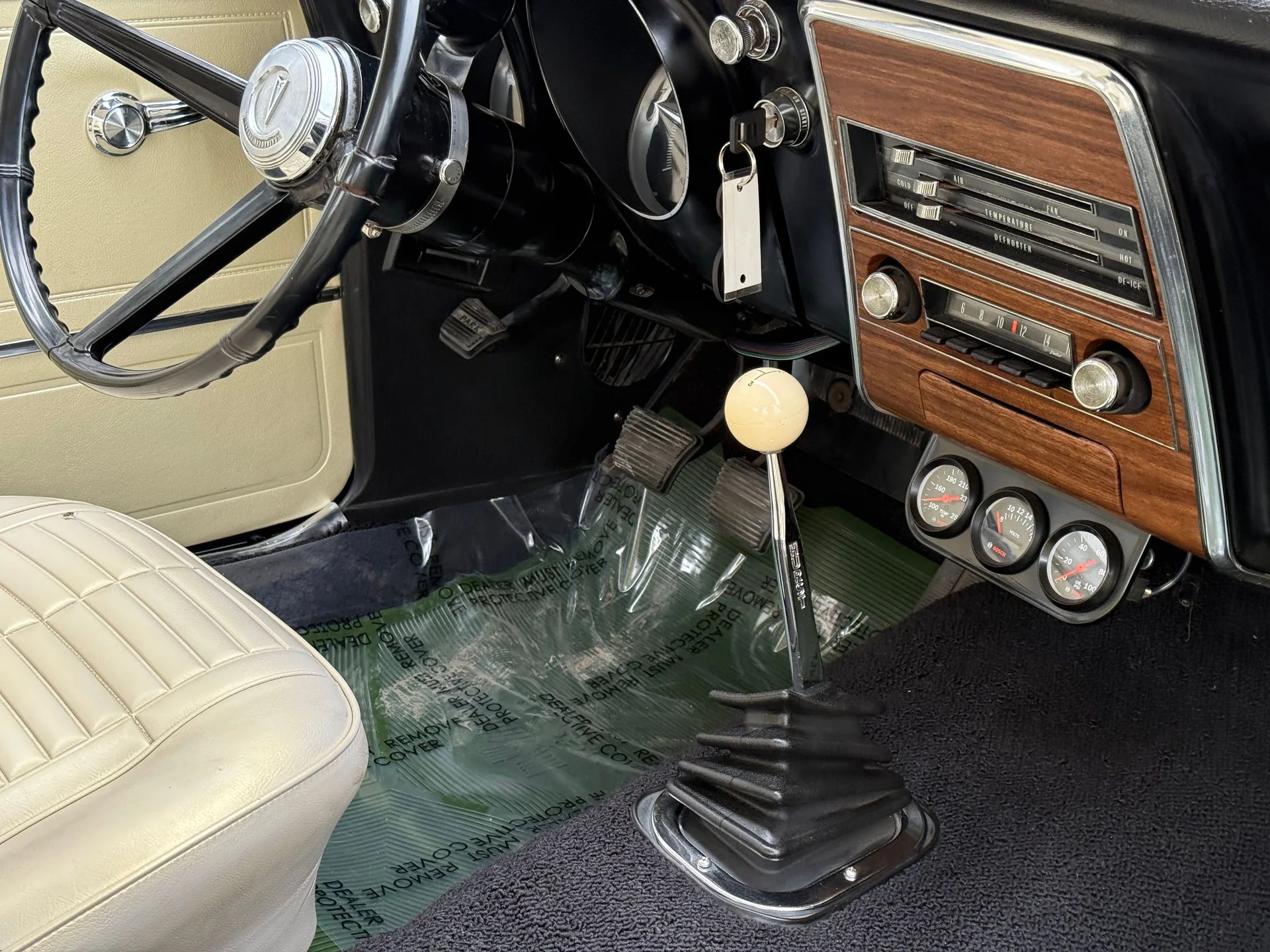

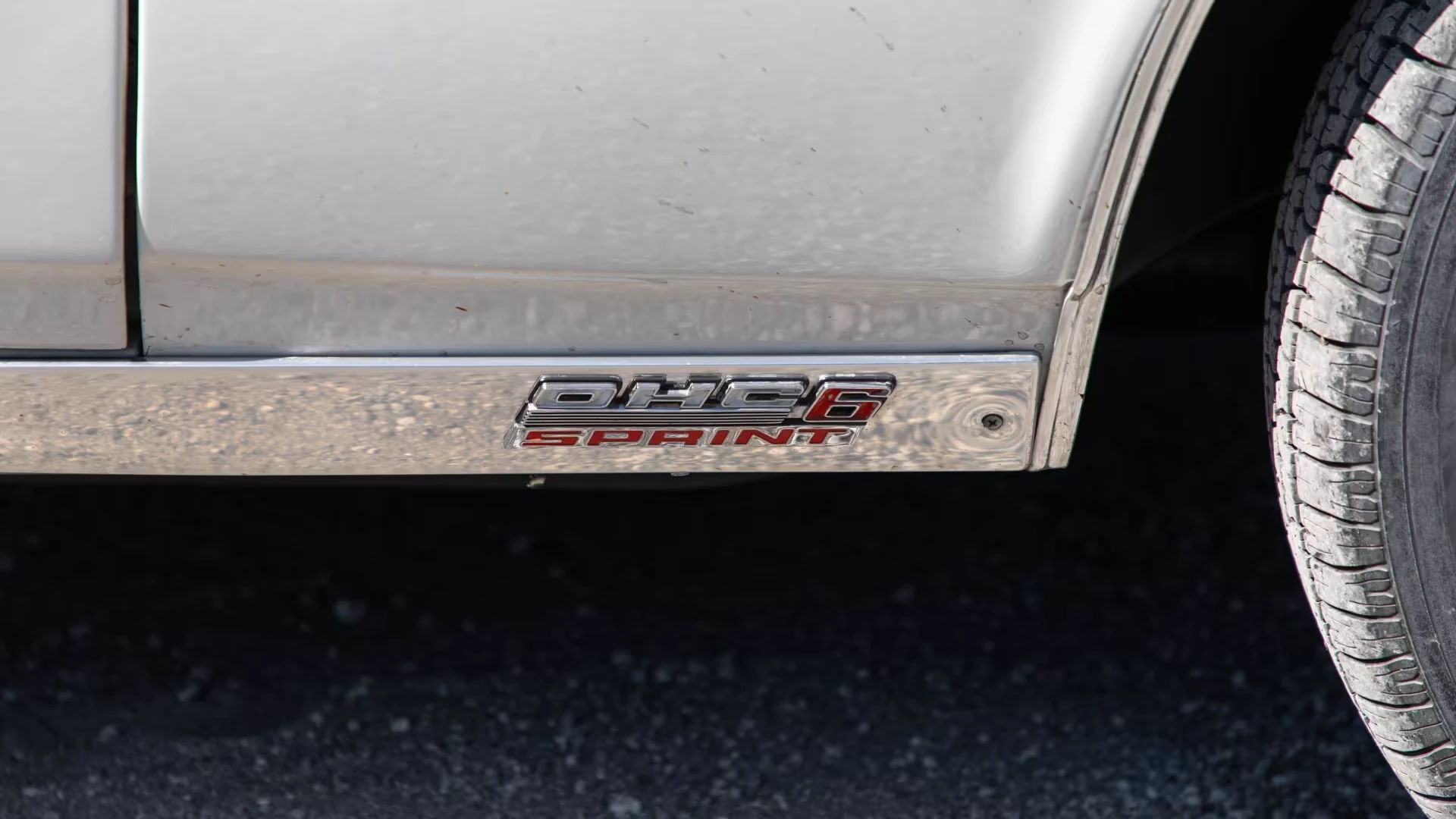

The six-cylinder Sprint is a trickier question. Let’s take a look at the ratios:
| Transmission | 1st | 2nd | 3rd | 4th |
|---|---|---|---|---|
| 4-speed | 3.11 | 2.20 | 1.47 | 1.00 |
| 3-speed | 2.85 | 1.68 | 1.00 |
Obviously, the OHC 6 didn’t have nearly as much torque as the big 400-cid V-8, so for all-out acceleration, it might have benefited from the higher numerical 1st gear and additional intermediate gear. Also, upshifting from 3rd to 4th didn’t drop the revs as much as going from 2nd to 3rd with the 3-speed stick, which would probably be helpful on the dragstrip.
However, the 4-speed ratios used with the six-cylinder engine had a really big gap between 2nd and 3rd, which would probably create moments where you’d have to choose between revving the engine’s guts out in 2nd or lugging in 3rd. Also, with a 2.20 2nd gear and the standard 3.55 axle, you could probably start in 2nd without too much complaint. For around-town driving, the standard 3-speed stick might be a better overall compromise.

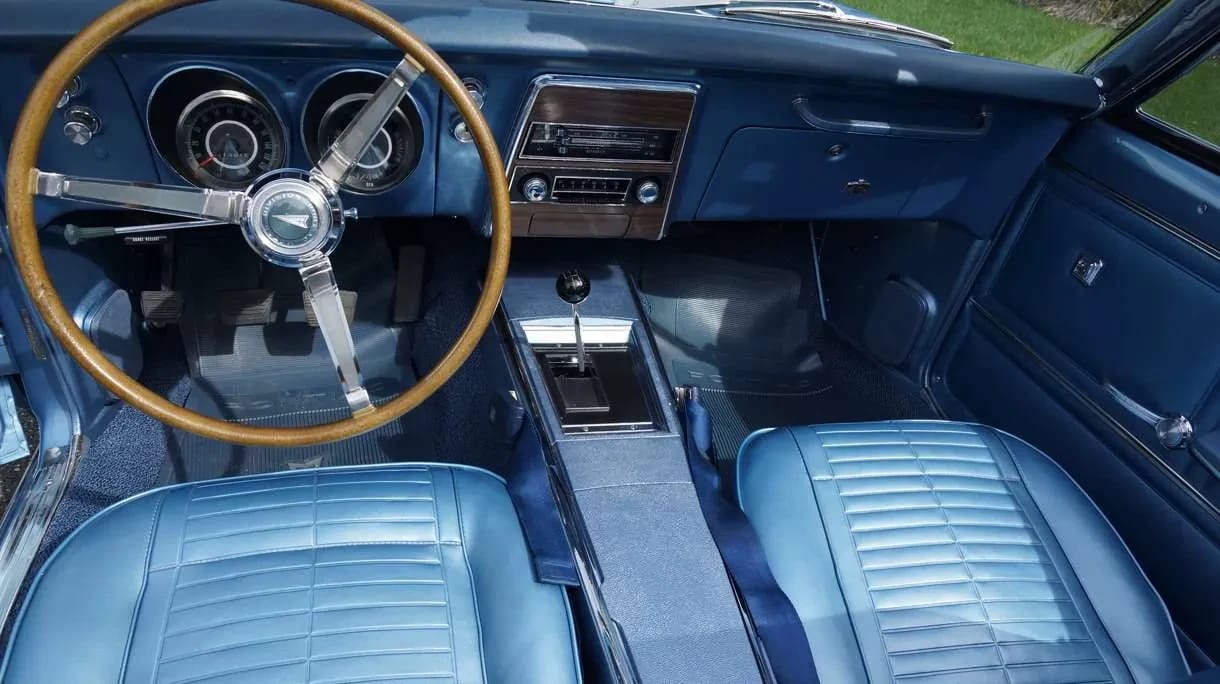

Another consideration, at least in 1967, was that the 4-speed linkage used in the Firebird left a lot to be desired; the problems Car Life experienced were not isolated ones. Testing an experimental Sprint prototype in July 1967, Motor Trend said of the 4-speed linkage:
In short, it’s bad. Funny thing is, they [Pontiac] know it, but haven’t been able to rectify the situation due to a logistics problem. Firebirds are made in Ohio, on the same premise as Chevy’s Camaro, and getting their kind of linkage to that line poses a problem. This problem isn’t exclusive to the trim Sprint package; it involves all their 4-speed Firebirds. Until the time they can get proper linkage in the ‘Birds, buyers would do well to set aside a few extra dollars for a decent setup. The shifter is so non-positive that it caused us to get jammed in traffic a couple times because we couldn’t downshift and move away in another lane.

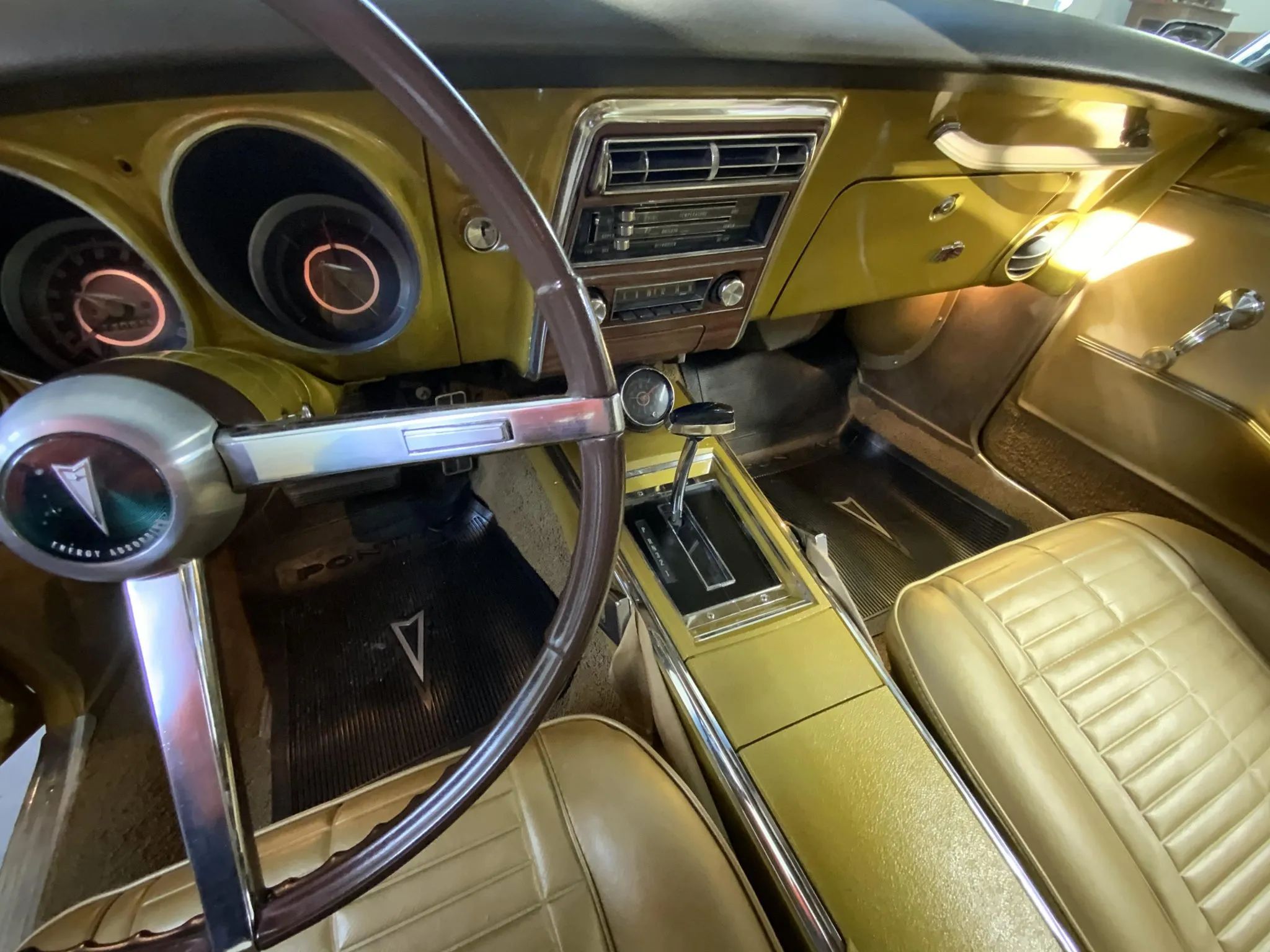

The tempting alternative for Firebird 400 buyers was Turbo Hydra-Matic. This cost cost $226.44, $42.13 more than the 4-speed stick, but it was highly competitive in performance, generally more pleasant to live with, and easier to sell on. Unfortunately, the three-speed automatic was available only with the big engine, which probably needed it least. With the sixes or the 326, you were limited to the two-speed automatic, which seriously penalized the performance of the sixes. (Automatic cost the Sprint over 2 seconds from 0 to 60, a difference you WOULD feel on the street.)
At least for the big-engine Firebird 400, though, Car Life was right: Except on the dragstrip, what you were buying with the 4-speed was more bragging rights than actual performance. The same was true of a lot of muscle cars and hot pony cars of this era: There were a few high-strung examples that really needed a 4-speed (like the original 302-cid Camaro Z28), but unless you expected to spend your weekend with numbers written on your windows in shoe polish, three speeds was usually plenty.
Choosing the 3-speed stick did have one big downside that had nothing to do with performance: resale value. Today, 3-speed manual cars are uncommon enough and novel enough that it may not matter, but the standard stick shift wasn’t a great short-term investment. When these cars were still relatively new, the 3-speed took a big hit in trade-in value compared to the 4-speed or automatic. After late ’60s sporty cars started to become collectible, 4-speed cars were usually worth substantially more. The 4-speed might not have had a meaningful edge on the street, but as long as people still thought of it as the hot ticket, they were prepared to pay a premium for it.
Appendix: Firebird Acceleration Figures from Motor Trend
Here are all the Firebird performance figures published in the May 1967 Motor Trend. An important caveat: The published results don’t specify the axle ratios or the individual curb weights, presumably for space reasons, although it’s clear from the text and accompanying photos that the 326-2V car was the heavier convertible while the 326 H.O. was a hardtop.
All times were recorded with two aboard, typical road test practice at the time.
| Engine | Transmission | 0 to 60 mph, sec. | Quarter mile, sec. | Trap speed |
|---|---|---|---|---|
| OHC 6-1V (165 hp) | 3-speed manual | 13.2 | 19.7 | 74 |
| OHC 6-1V (165 hp) | 2-speed auto | 15.8 | 21.0 | 72 |
| Sprint OHC 6 (215 hp) | 4-speed manual | 9.8 | 16.9 | 83 |
| Sprint OHC 6 (215 hp) | 2-speed auto | 12.2 | 18.8 | 78 |
| 326-2V (250 hp) | 2-speed auto | 10.0 | 18.3 | 82 |
| 326-4V (285 hp) | 2-speed auto | 7.8 | 16.0 | 90 |
| 400-4V (325 hp) | 3-speed manual | 7.0 | 14.8 | 98 |
| 400-4V (325 hp) | 4-speed manual | 6.7 | 14.5 | 99 |
| 400-4V (325 hp) | 3-speed auto | 6.7 | 14.7 | 99 |
| 400 Ram Air | 3-speed auto | 6.4 | 14.3 | 100.3 |
Unfortunately, Motor Trend didn’t test either any stick-shift 326s or the 3-speed Sprint.
