The early ’80s were a grim time to be a Cadillac fan. Cadillac offered a range of different engine choices, none of them very desirable. The least-bad option was one Cadillac was so embarrassed about they actually gave you a credit for ordering it: the 4.1-liter version of the familiar Buick V-6. Here’s how the V-6 compared to its misbegotten alternatives.
This 1981 Cadillac ad is rife with unintended and bitter irony: “enjoy” was a difficult verb to apply to the prospect of “driving and owning” any of the three powertrains offered on the 1981 models.

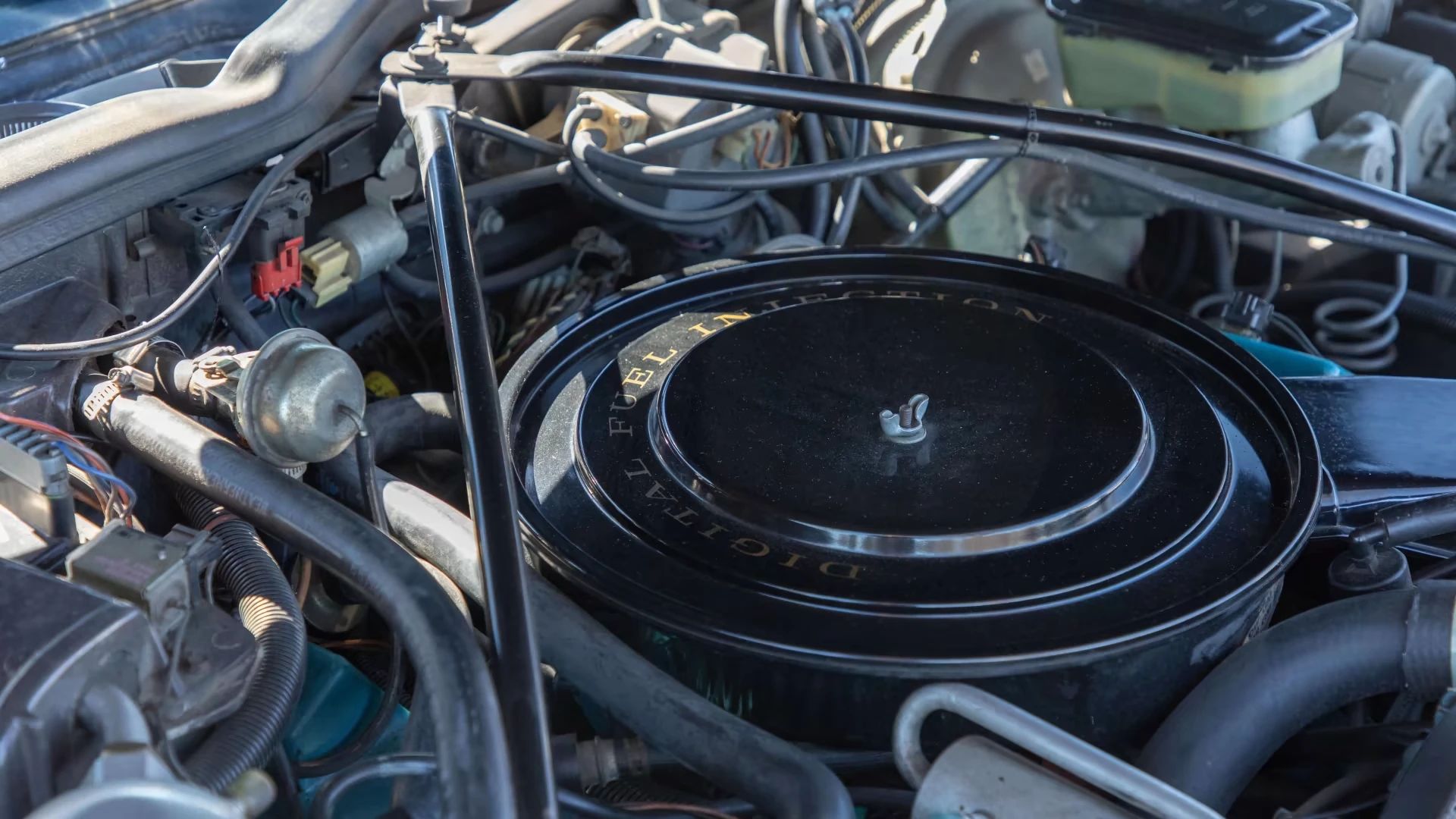

The newly standard choice on the Eldorado and C-body De Ville and Fleetwood, optional on the Seville, was the L62 V8-6-4 Modulated Displacement engine. This was the latest fuel-injected version of the underpowered but basically decent 6.0-liter (368-cid) V-8, saddled with a very troublesome cylinder deactivation system. I’ve previously written at length about the unhappy one-year run of the V8-6-4, but suffice to say that the only people who ended up enjoying it were lawyers.

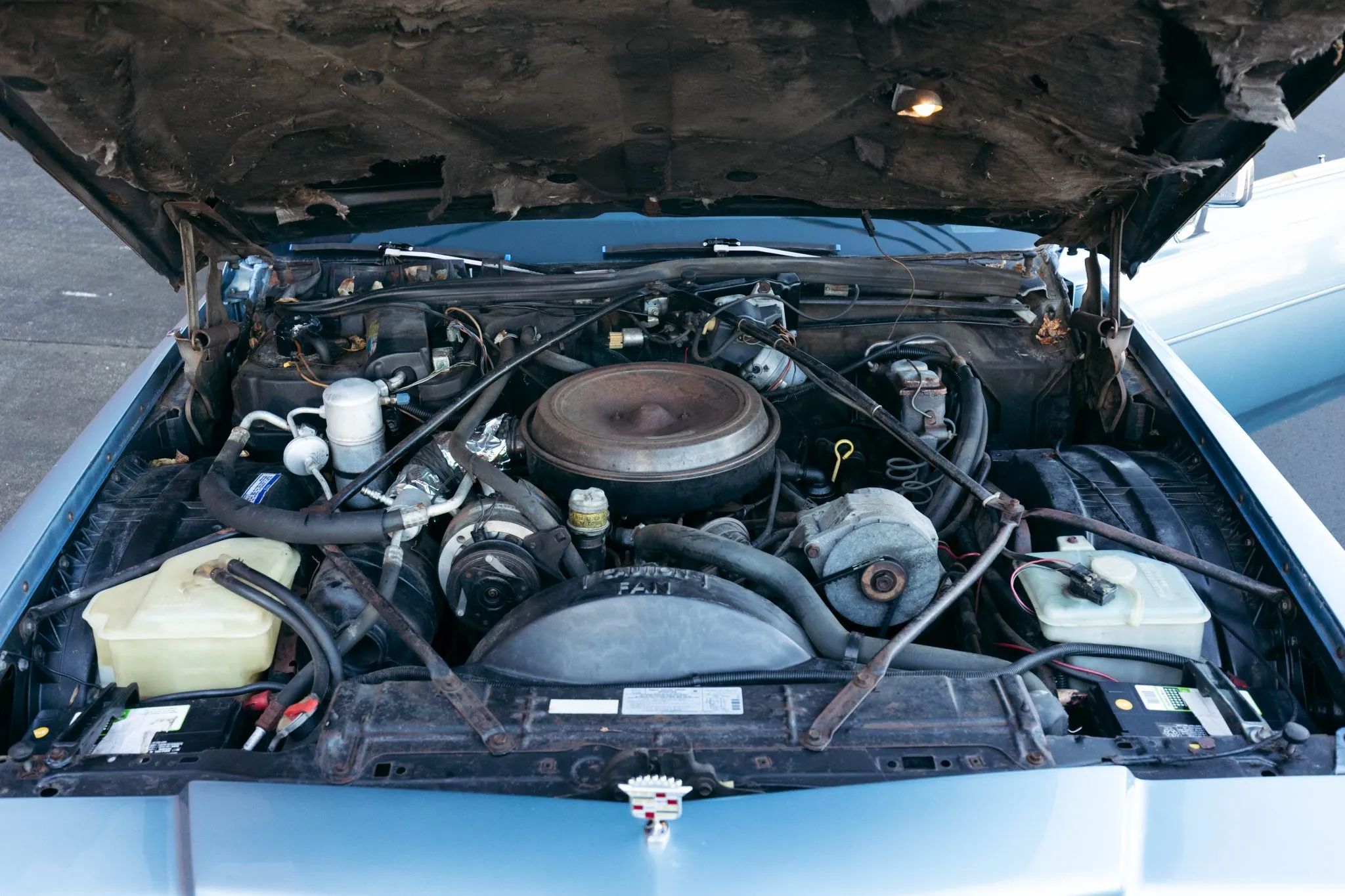

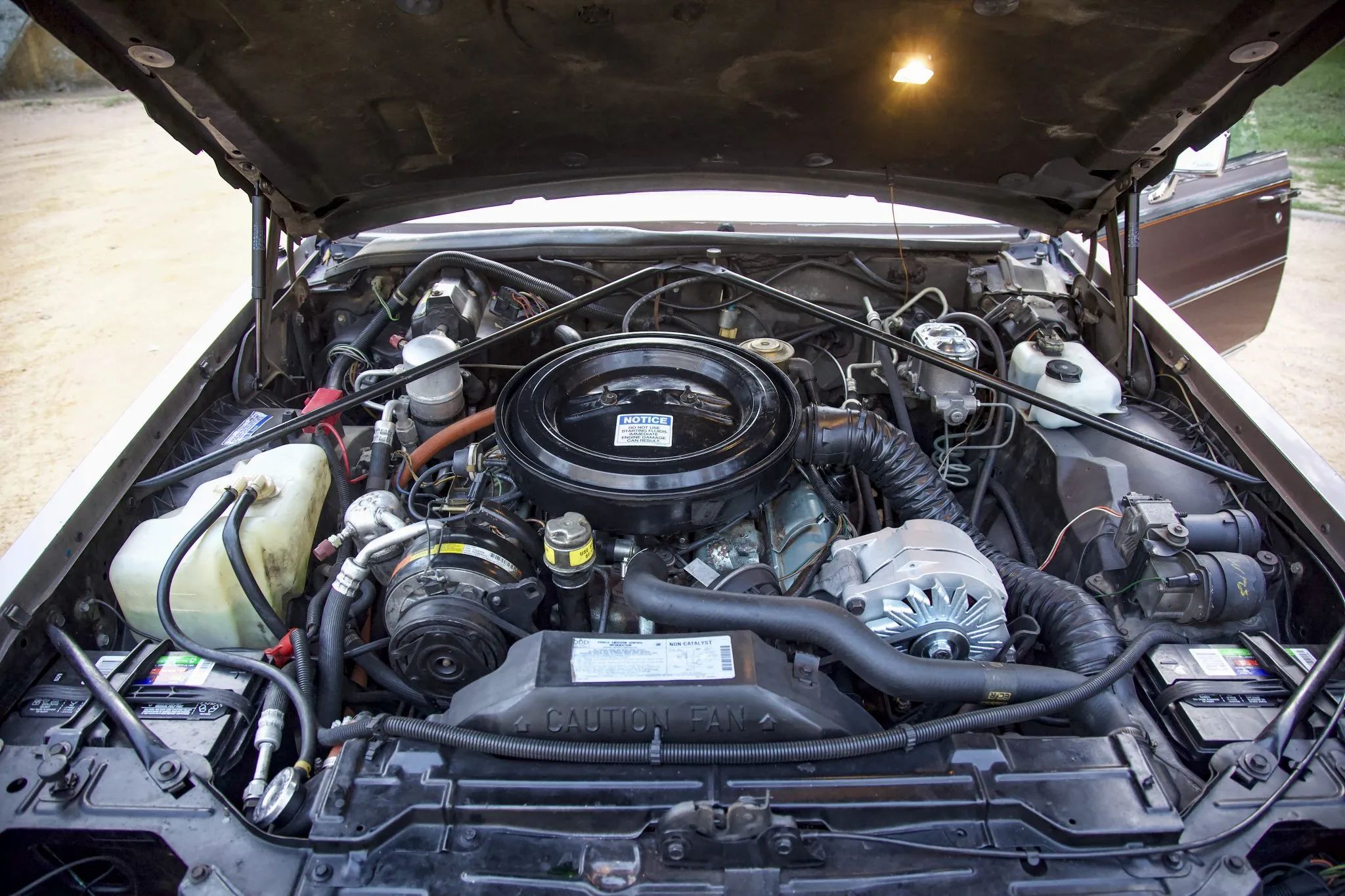

Standard on the awful bustleback Seville and optional on the others was the LF9 5.7-liter (350-cid) Oldsmobile diesel V-8. This normally aspirated diesel could return better than 20 mpg, but the best thing that could be said of its refinement was that a Cadillac was insulated enough that you didn’t have to hear much of the commotion.
The Olds diesel V-8 had also racked up a truly ghastly reliability record, spawning yet more lawsuits. The 1981 and later iterations supposedly addressed most or all of the worst flaws, but the diesel engine couldn’t outrun its bad reputation, which hurt resale values — an area where Cadillac had traditionally been very strong — and made it a risky choice from a financial standpoint, even if it could get 28 mpg on the highway.

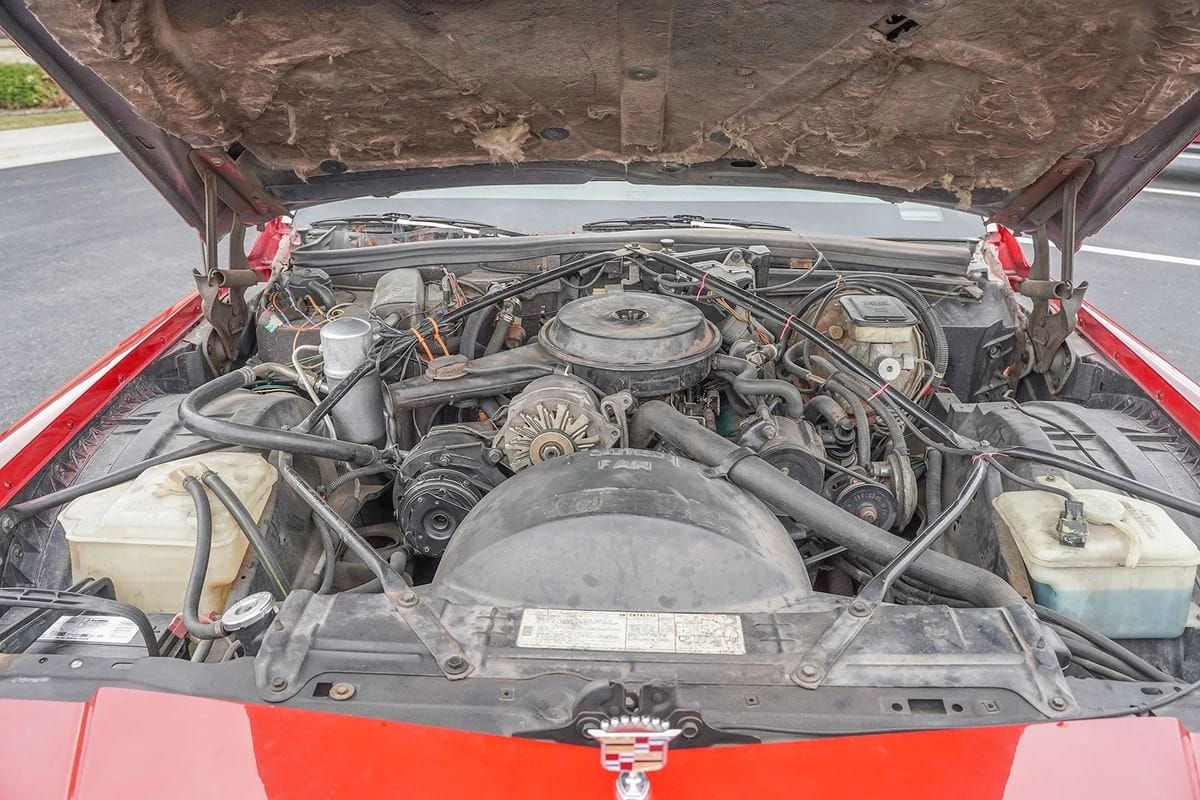

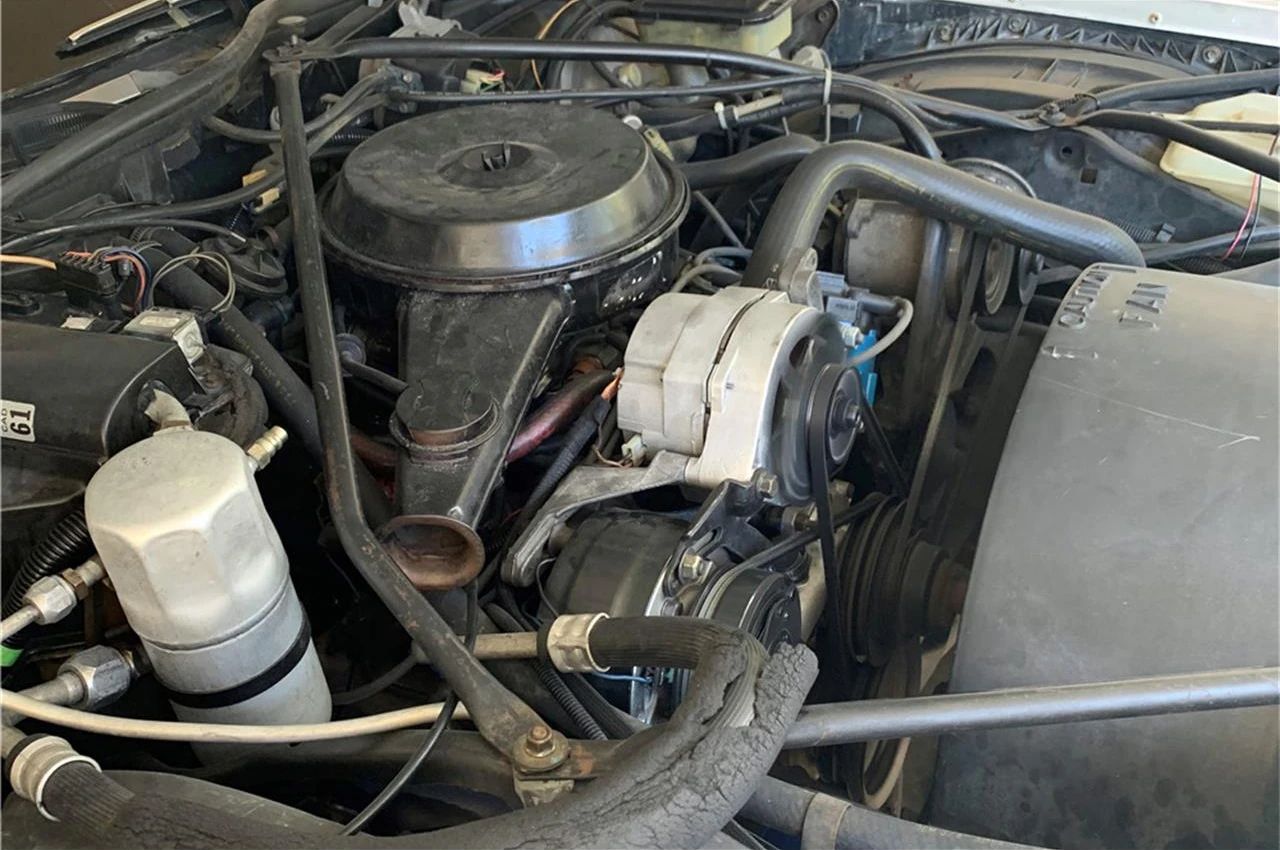

The LC4 4.1-liter (252-cid) V-6 was a Buick engine, something Cadillac was now obliged to point out in the fine print of its brochures. It was essentially the well-known 90-degree Buick “3.8 Litre” engine with a larger cylinder bore. On RWD Cadillacs, it was paired with the new 200-4R four-speed automatic, which had an overdrive top gear. Still, even Cadillac marketing copywriters couldn’t come up with anything very nice to say about the engine itself — the brochure notes noncommittally, “The V6 engine has performance you associate with “V” design, but with two fewer cylinders than a V8.”
Other than the carbureted 6.0-liter engine in the commercial chassis, the four-barrel LC4 V-6 was now the only Cadillac engine without fuel injection (although it did have a “Computer Controlled Combustion” system with electronic spark advance and oxygen sensor feedback control). The feedback control version of the Rochester four-barrel doesn’t have the best reputation, and like a lot of engines of its vintage, its array of vacuum lines can become a headache with age, but it compared to the lawsuit-generating headaches of the V8-6-4 and diesel V-8, the V-6 was relatively painless. It was also a bit lighter, and somewhat cheaper: Ordering it entitled you to a $165 credit. It was, however, very slow.
None of the powertrains offered in these years contributed much to “the pleasures of driving”: The diesel had a grim 105 hp and 200 lb-ft of torque, making for 0 to 60 times in the realm of 20 seconds. Even when it was running on all eight cylinders, the modulated displacement V-8 boasted an uninspiring 140 hp and 265 lb-ft, needing around 12 seconds to hit 60 mph. The V-6 fell in the middle, with 125 hp and 210 lb-ft.
However, in the RWD DeVille and Fleetwood Brougham, the V-6 benefited from a shorter 3.23 axle ratio, compared to 2.41 for the V-8s — figure 0 to 60 in a bit under 15 seconds. (1981 Eldorado and Seville buyers were not so fortunate, having to settle for a compromise 2.93 axle.) These were big, heavy cars, so if you were coming from a pre-1980 car with a 425- or 500-cid engine, any of these engines felt hopelessly slow, but the V-6 was still far more spry than the sluggish diesel.
The V-6 also returned decent gas mileage. In a May 1981 Popular Mechanics owners report, owners reported an average of 17.5 mpg in town and 22 mpg on long trips, where the 6.0-liter V-8 seldom hit 20 mpg even on the highway. Owners were divided on the adequacy of its performance (one called the V-6 “a disaster”), but if you had to buy a Cadillac in 1981, you could have done a whole lot worse.

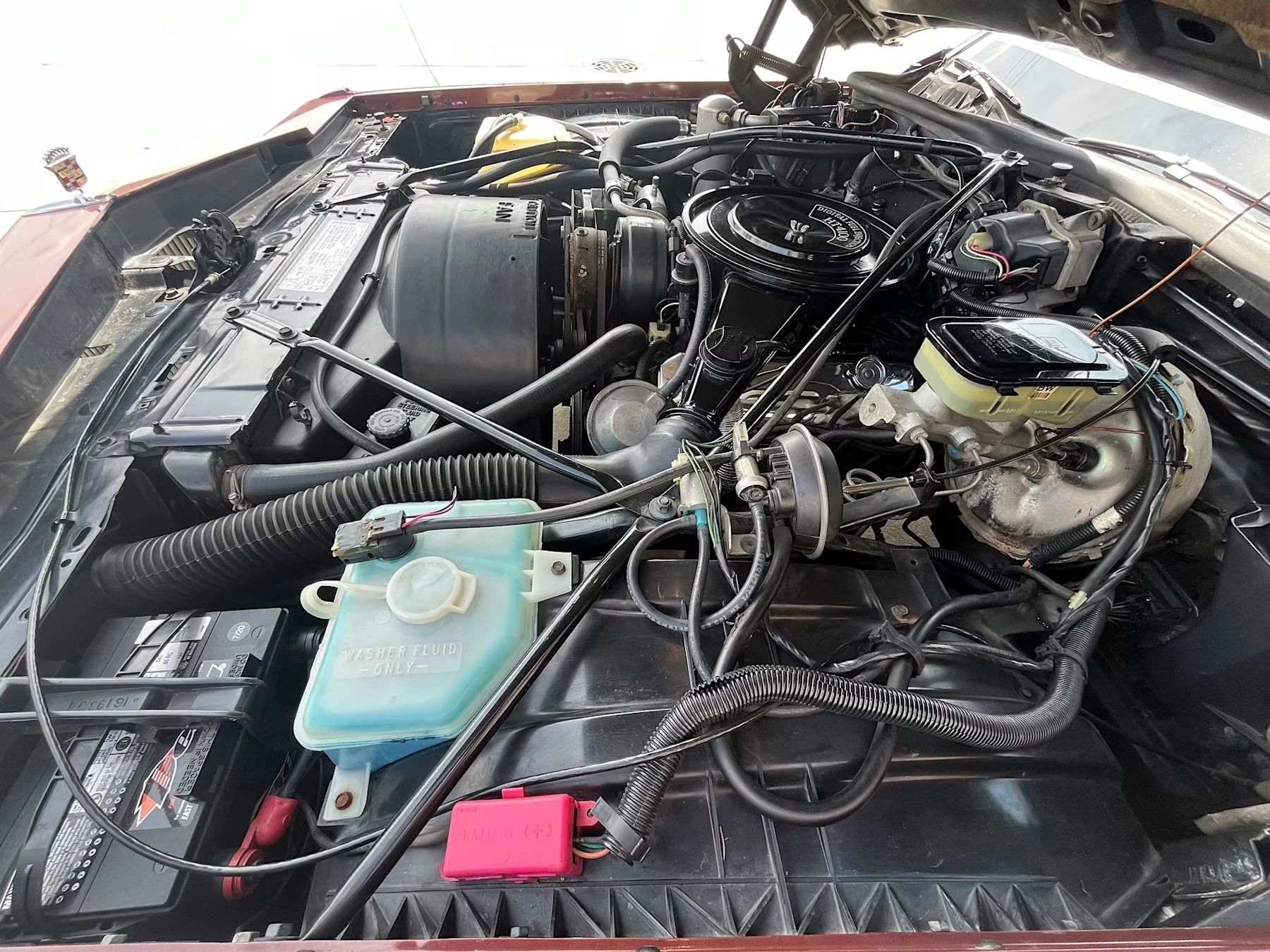

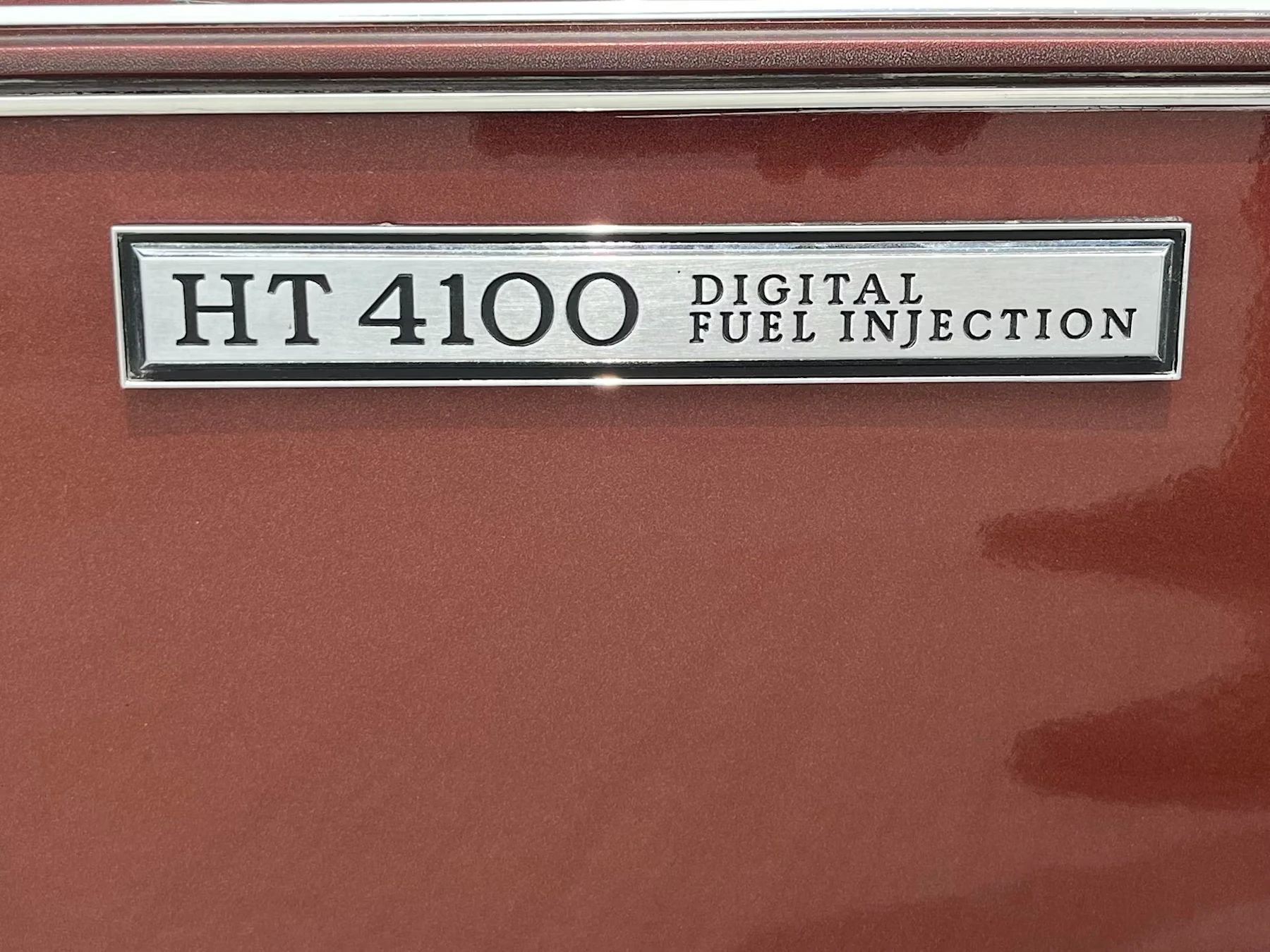

For 1982, Cadillac ditched the 6.0-liter V-8 except for limousines and commercial chassis and introduced its new aluminum block HT4100 V-8 as the new standard engine for all other models. This was initially even MORE of a reliability nightmare than the V8-6-4, and unlike the modulated displacement engine, its problems couldn’t be mitigated by disconnecting the offending system (which many 1981 V8-6-4 owners did, although doing so was dubiously legal, and potentially a federal crime for a mechanic or dealer service department).
The new V-8 was actually even less potent than the V-6, which remained available as a credit option in 1982. Both had a meager 125 hp, but the V-6 had 210 lb-ft of torque, while the V-8 could muster only 190 lb-ft, although the two engines were only 40 cc apart in displacement. The V-8 was smoother than the even-fire Buick V-6, but that was essentially its only virtue. Its 17 mpg EPA city rating was actually 1 mpg lower than the V-6, and Car and Driver‘s 1982 Eldorado V-8 test car needed more than 15 seconds to hit 60 mph.

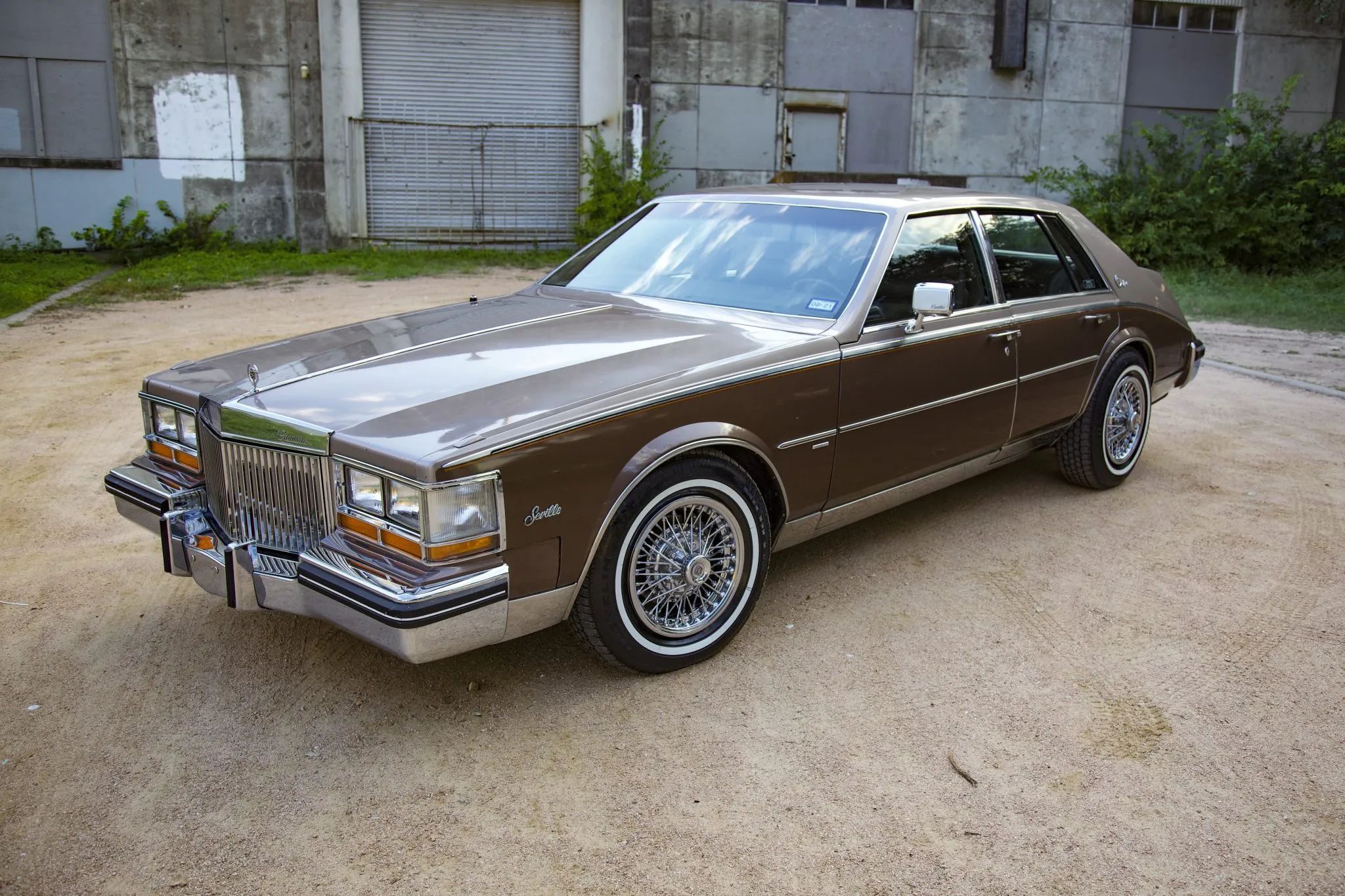

You could still order the diesel in 1982, but interest was diminishing. The diesel V-8 was no longer standard in the Seville, but 2,380 Seville owners ordered it anyway (as a no-cost option), allowing them to offend the ear and the nose as well as the eye.
Both the Seville and these later diesel V-8s still have their defenders, but by 1982, there were less aesthetically and sensorially objectionable ways to get 27–28 highway mpg, especially for this much money.
This again left the V-6 as the closest thing to a sensible choice in the bunch. Consumer Guide recommended it as the best choice for the De Ville, noting that with the HT4100 V-8’s weak performance and mediocre mileage, “Cadillac’s engineering efforts hardly seem worth it.” For better or worse, 1982 would be the last year for the Buick V-6 under Cadillac hoods. Cadillac apparently considered shoehorning it into the Cimarron, which might have been an interesting combination, but that idea went nowhere, as did a more serious plan to create a V-6 derivative of the HT4100 V-8.
The Buick V-6 wasn’t quite as rare in these cars as people seem to think: It went into 30,441 Cadillacs in 1981, 12.1 percent of production, and 17,663 more in 1982, 7.5 percent of production. The V-6 was most common in the De Ville, and was very uncommon in the Seville.
| Model Year | C-Body De Ville/Fleetwood | Eldorado | Seville | Total |
|---|---|---|---|---|
| 1981 | 23,675 | 5,132 | 1,634 | 30,441 |
| 1982 | 13,210 | 3,433 | 1,020 | 17,663 |
Judging by the various sale listings I found, the similarity in displacement and (meager) power between the HT4100 and V-6 seems to have left some owners very confused about which engine their car actually has: I ran into several listings that claimed to have a V-6 that had actually had the 4.1-liter V-8, and the previous owner of the red 1981 Coupe de Ville thought his car had a V-8.
It’s hard to praise any of these engines in anything other than a backhanded way. That the Buick V-6 was the least embarrassing of the lot is itself a pretty damning statement: The V-6 was painfully underpowered in cars this size, and the failure of an all-new clean-sheet fuel-injected V-8 to match its performance, its fuel economy, OR its basic reliability was really just shameful. It was also a distressingly callous way to treat returning Cadillac customers and Cadillac dealers, which cost the brand an immense amount of goodwill throughout the ’80s.
Which would you choose, if you had to pick a Cadillac with one of these four engines?
Related Reading
1985 Cadillac De Ville 4.3 V-6 Diesel: The Most Underpowered Cadillac Since Before WW2 (by me)
The Cadillacs of this era just speak to such a lack of leadership. Great exterior designs on the 1975 Seville and 1977 era cars. Genuinely pioneering engineering with the big diesel and the 8/6/4 engine.
But it’s as though there wasn’t a product lead thinking about the overall piece. A turbocharged, reliable, diesel V8 could’ve been a game changer – likewise a properly working 8/6/4 V8. The product line could’ve survived a few more years with the thirsty V8s imo, but not with these engines.
Not even going to speak about the Cimarron or the FWD ones – but it seems like until you get to the 1992 Seville and the 1991 RWD Fleetwood, nobody had thought about what a client might want.
“The performance you associate with the “V” design” – this is classic!! Every time I see an early 80’s Cadillac still running (and they are still out there, if fairly rare now) I am amazed that the brittle V8s are still chugging. I keep forgetting about the V6, and have to figure that these are probably the ones I am seeing, unless they have had a heart transplant.
I have shared before how Cadillacs of this era were the last Cadillacs for two older lawyers I once worked with. For one, an 81 with the V8-6-4 was his first Cadillac, something he had dreamed about for years. Once he got there, he was disappointed and drove Hondas for the rest of his life. The other had had a few Cadillacs before, but his 84 with the 4.1 sent him into a couple of Town Cars to finish out his driving years.

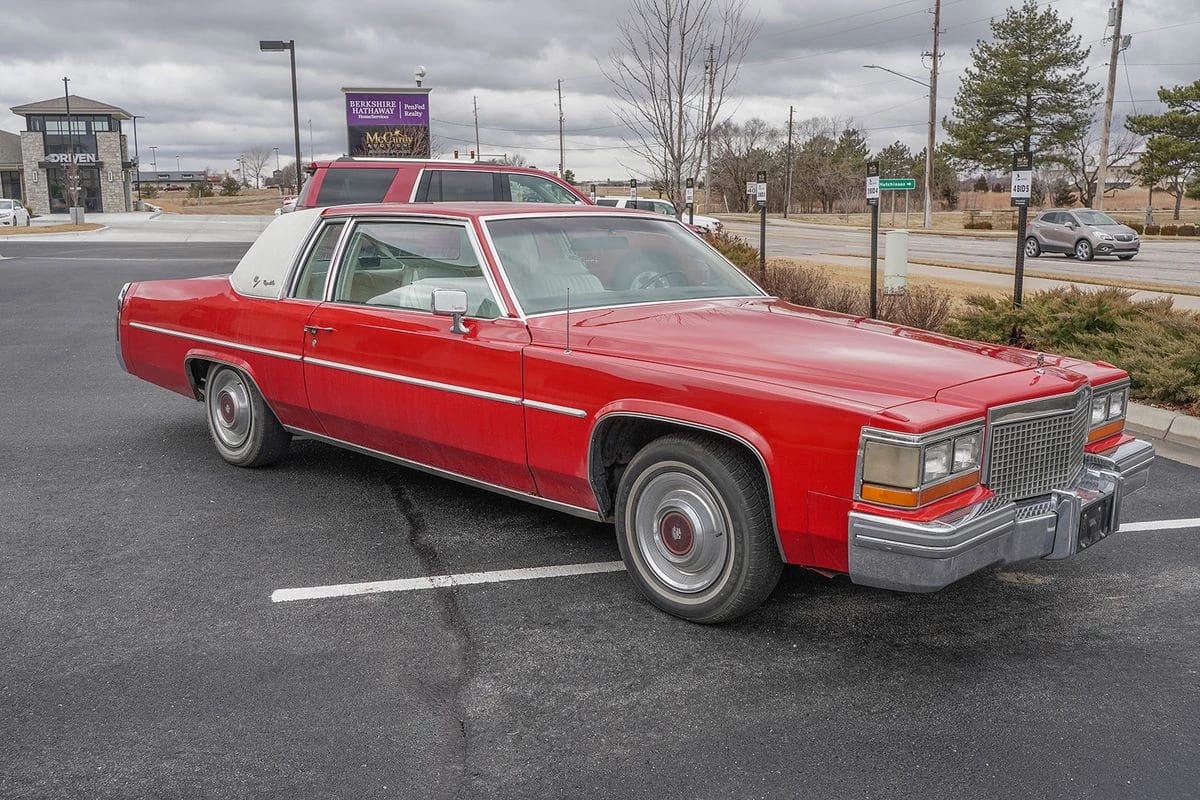

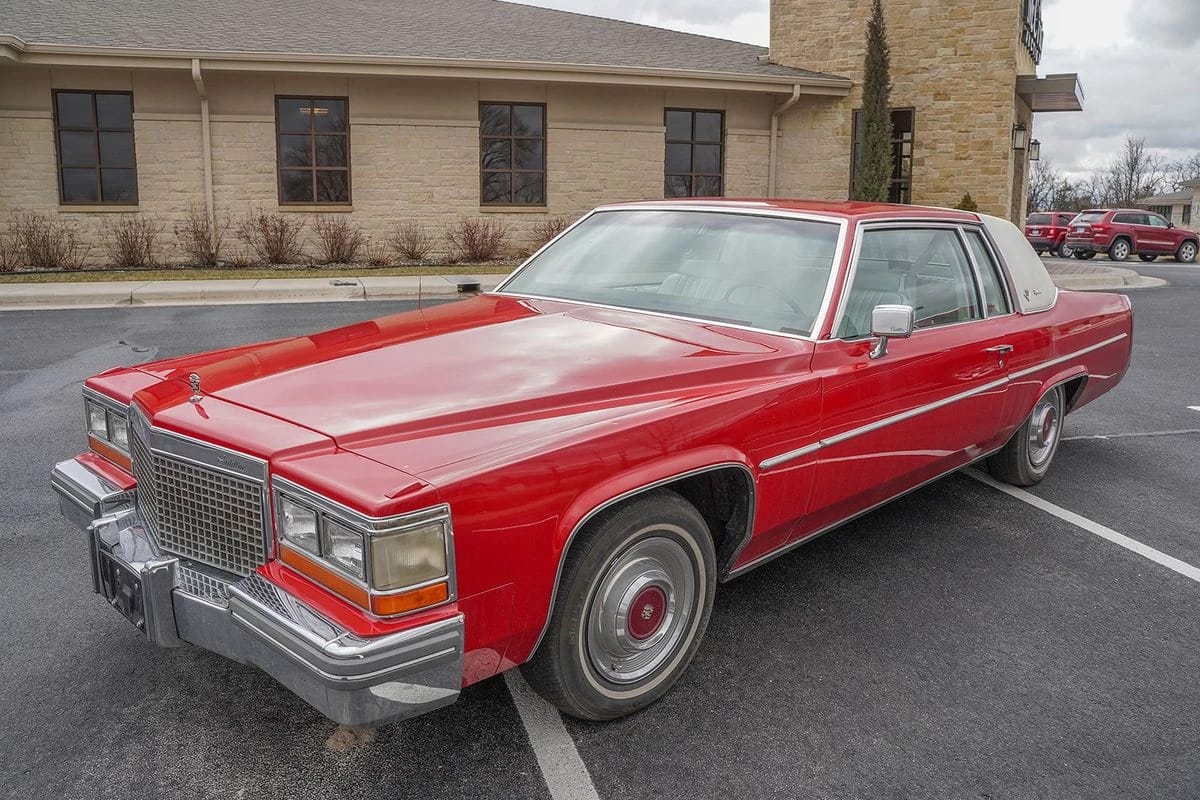

You wonder what kind of person was still ordering a new Cadillac in bright lipstick red in 1981. Especially a Cadillac with a V6. Probably a 70 year old lady who wore outlandish hats and still thought of herself as a siren (and a Cadillac as the ultimate). I might kind of like this car in a more subdued (adult?) color, but this “hey look at me” red is a no-go.
Ha, I think the bright red color is the only thing that makes that car any sort of desirable for me. The sort of bright flashy color a Cadillac would have so proudly in the mid 60s.
The other colors here are all pretty meh
I suspect that the red Coupe de Ville is not wearing its original paint (or was a special order). Cadillac did offer a bright red on the Eldorado in 1981, but it wasn’t this shade, and this car is too even for it to just be sun fade. The auction listing unfortunately didn’t include the tag with the trim code.
I think there’s a fair likelihood that some people ended up buying the V-6 in 1981 because they were wary of the V8-6-4, either because they’d already heard stories or because they just looked at it and thought it was too complicated to be trustworthy.
The fact that the Buick V-6 was superior to the Cadillac V-8 speaks volumes about the state of Cadillac at the turn of the 1980s. Between controversial styling on some models, reliability disasters on the V8s and diesels, it looks like they did everything they could to make customers abandon the brand.
I understand the need of having a V8 in the lineup, but rather than rushing the HT engine, in hindsight putting a Chevy 305 at least for 1982 would have been the best option; perhaps even a Crossfire unit since it had injection
Or an Olds 307, which was offered in the Olds Toronado and Buick Riviera as well as the B-body station wagons.
In hindsight, the 4.1-liter V-6 Would have been a great engine for the downsized FWD Cadillacs that would sully Cadillac showrooms during the mid and late Eighties. I guess GM had to somehow differentiate Cadillac from Electras and Ninety Eights.
Would a 4.1 V6 really have been that quick? Around 15 seconds seems kind of optimistic to me. Consumer Guide has mention of a 1981 Fleetwood, and they clocked 0-60 in 22.6 seconds. However, they also erroneously mention it had a 3-speed automatic and a 2.41:1 axle. And a 4250 lb weight. Isn’t that a bit heavy for the V6?
They also mention an ’81 Electra, coming in at 18.3 seconds. They also list a 3-speed automatic (wasn’t the 4-speed standard with the 4.1, in all the C-bodies?) and a 2.93:1 axle. They have it listed at 3,865 lb.
Here’s where I found this information… https://blog.consumerguide.com/the-10-slowest-cars-of-1981/
Consumer Guide tested a 1985 Fleetwood Brougham, with the 4.1 V8. By that time, it was up to 135 hp/200 ft-lb, in the RWD cars at least. I think it was still 125 hp/195 ft-lb in everything else. It managed to move its 4,034 heft from 0-60 in 14.8 seconds, with a 3.42:1 axle.
The Buick 252 V6 actually performed pretty well, against those under-sized V8’s of the era (Olds 260, Pontiac 265, Chevy 267), and in midsized cars wasn’t bad.
I’ve also heard the Buick 252 was pretty fragile. The 231 itself was pretty bad in those days (it didn’t get its quality reputation until 1985, when it was extensively overhauled). So boring out an already weak block, probably made it even worse!
Consumer Guide and Consumer Reports numbers are not necessarily comparable to the kind of times that the car magazines would get. I’m extrapolating from the Car and Driver figures for the diesel and the initial HT4100.
As for the weight, the Consumer Guide new car guides typically just listed the manufacturer’s base curb weight, which was without optional equipment. Motor Trend frequently did that too; Car and Driver generally actually weighed the cars, and Consumer Reports mostly did as well. So, different combinations of engine or features could make a significant difference.
Never heard of the 252 V6 being fragile, not particularly refined perhaps but it was solid as were the pre-3800 versions as far as I know. I’d certainly take one over any of the small V8s. A 307 Olds with the right axle ratio would have been a better choice than any of the stock offerings, an Olds 350 better yet.

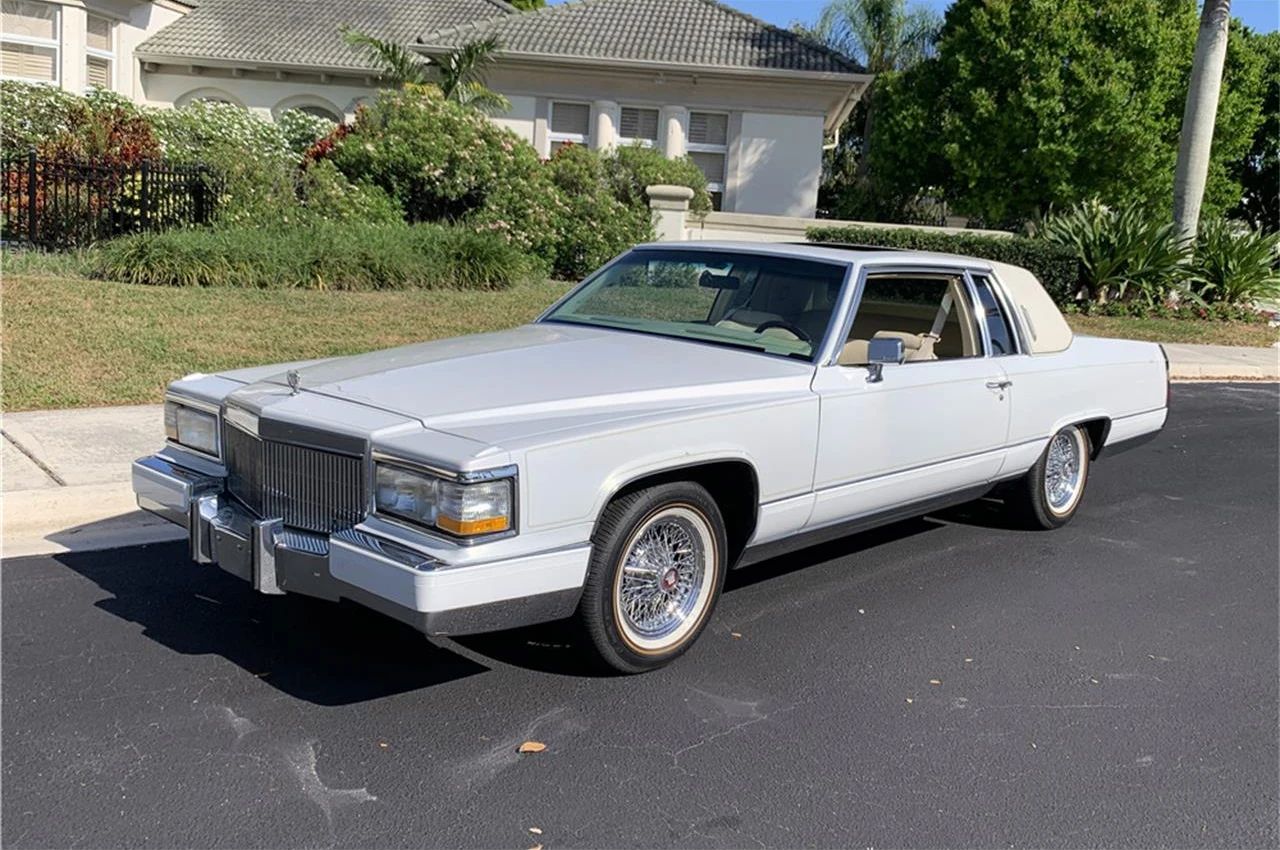

The 1982 CDV in the second-last picture was somebody’s very special project: the front clip and (I think) the side moldings are from a 1991, and the auction ad says there’s a 1991 digital dash as well. If I had gone to all that trouble, I would have upgraded the powertrain too.
