I’ve always thought it was a shame that GM never installed its clever Unitized Power Package front-wheel-drive powertrain in a full-size station wagon rather than just in personal luxury coupes and the massive GMC Motorhome. However, outside coachbuilders did create some wagon conversions of the FWD Cadillac Eldorado, like this odd-looking metallic orange “el Clásico” wagon made by Michigan’s Wisco Corp.

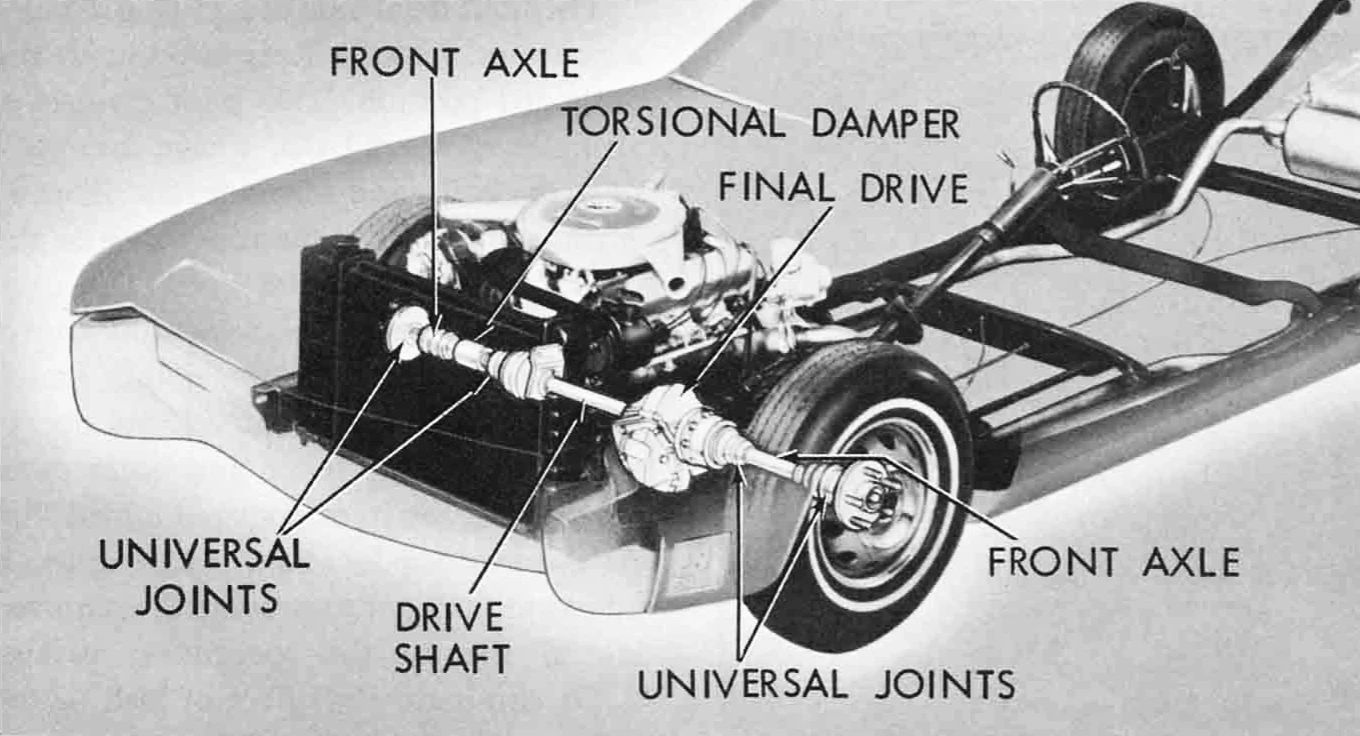

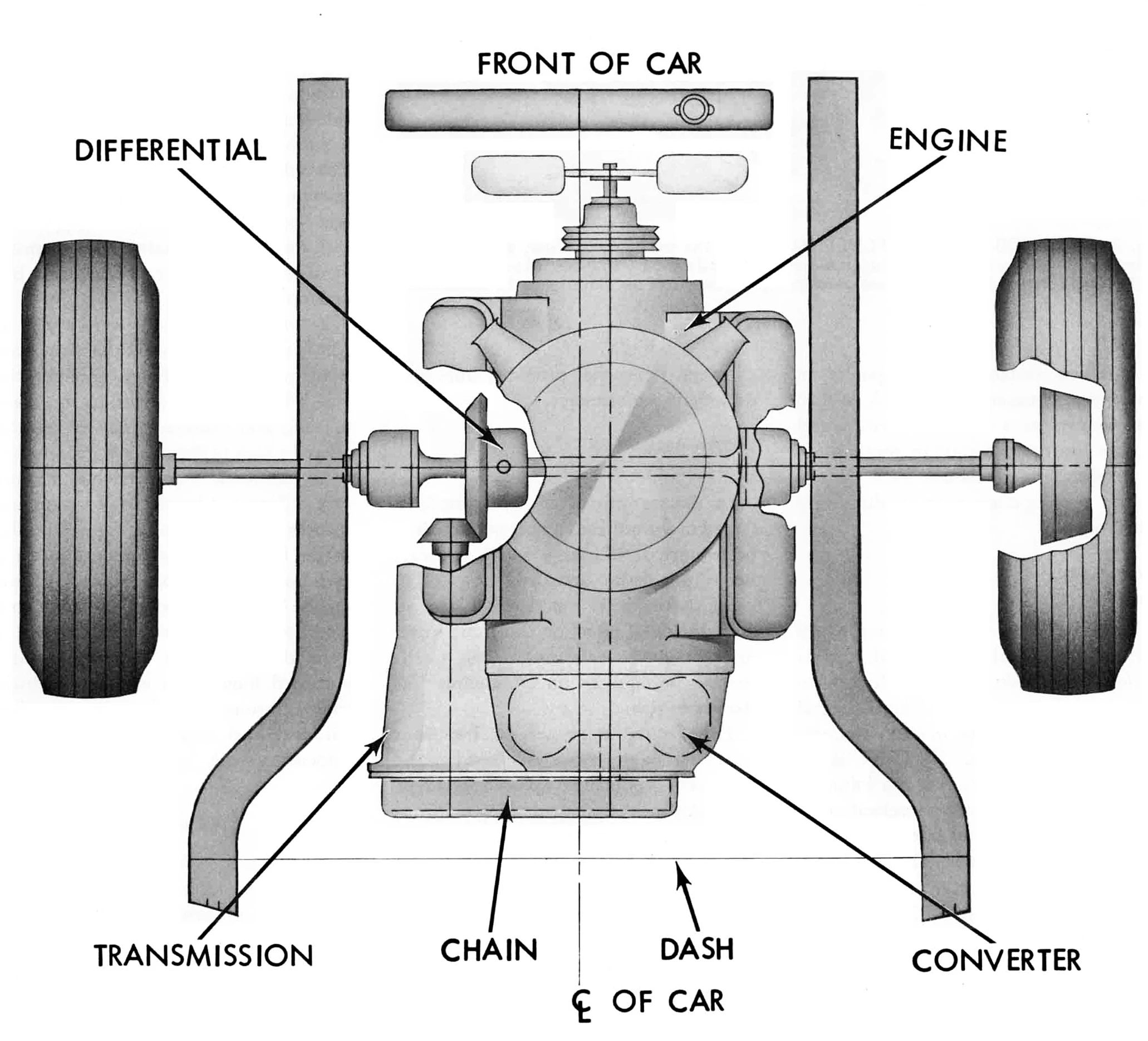

First used on the 1966 Oldsmobile Toronado, the Unitized Power Package (UPP) was one of GM’s cleverest ideas. It took a mostly stock V-8 engine, offset slightly to the right, with a modified Turbo Hydra-Matic transmission rotated 180 degrees and tucked along the left of the engine, driven off the torque converter by a Morse Hi-Vo chain drive. A planetary differential split power between the drive shafts, one of which passed under the engine sump.
The UPP wasn’t cheap, and there were some additional frictional losses from the chain drive, but it was compact, rugged, and didn’t flinch under big block V-8 torque. It would have been ideal for a van or a full-size station wagon designed to take advantage of its tidy packaging efficiency. Unfortunately, the cost of the system discouraged GM from ever offering it on any passenger models other than personal luxury cars (the Toronado, Cadillac Eldorado, and later the Buick Riviera and Cadillac Seville), which needed it least. Between 1974 and 1978, the Toronado powertrain was also used in the GMC Motorhome, but that was much too big for daily chores, and very expensive to boot.

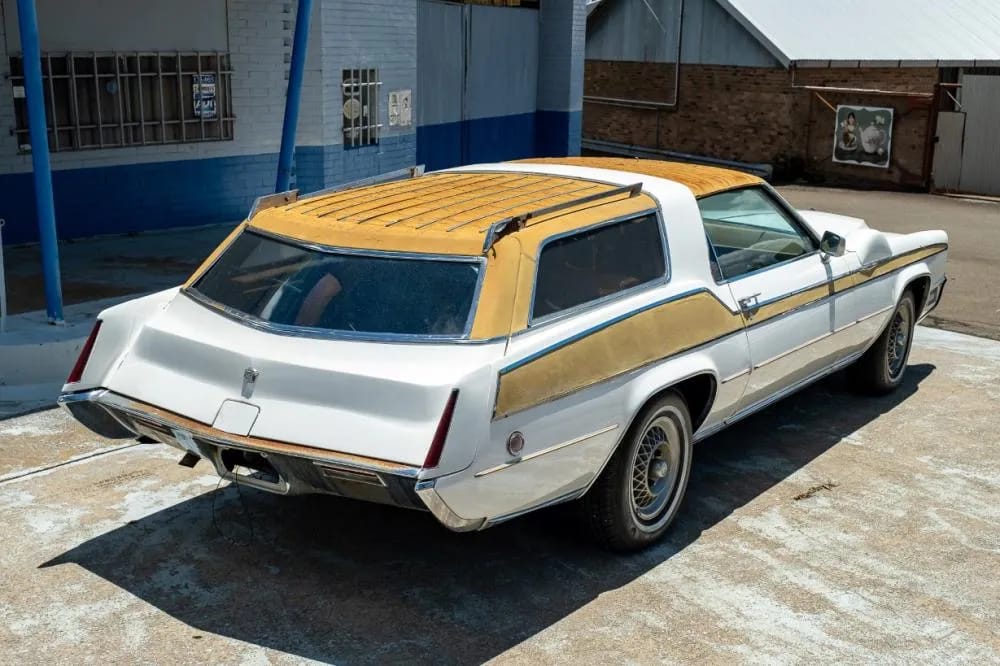

Some affluent owners nonetheless saw the opportunity to turn the big GM personal luxury coupes into posh station wagons. One of the best-known (a very relative term when it comes to coachbuilt custom conversions) was the 1969 Cadillac Eldorado “Casa de Eldorado” [sic] Custom Sport Wagon, created by George Barris (of Batmobile fame) for Dean Martin. (Barris eventually built roughly a dozen of these conversions for well-heeled customers.)
The Martin/Barris car still exists, somewhat the worse for wear, and turned up at Donington Auctions in Australia in February 2024, fetching $9,500 AUD. Although it has some tacky touches, like the body-side vinyl spears and the tacked-on “side mount” humps on the front fenders, its basic shooting brake shape and basket-handle B-pillar are generally pleasing.

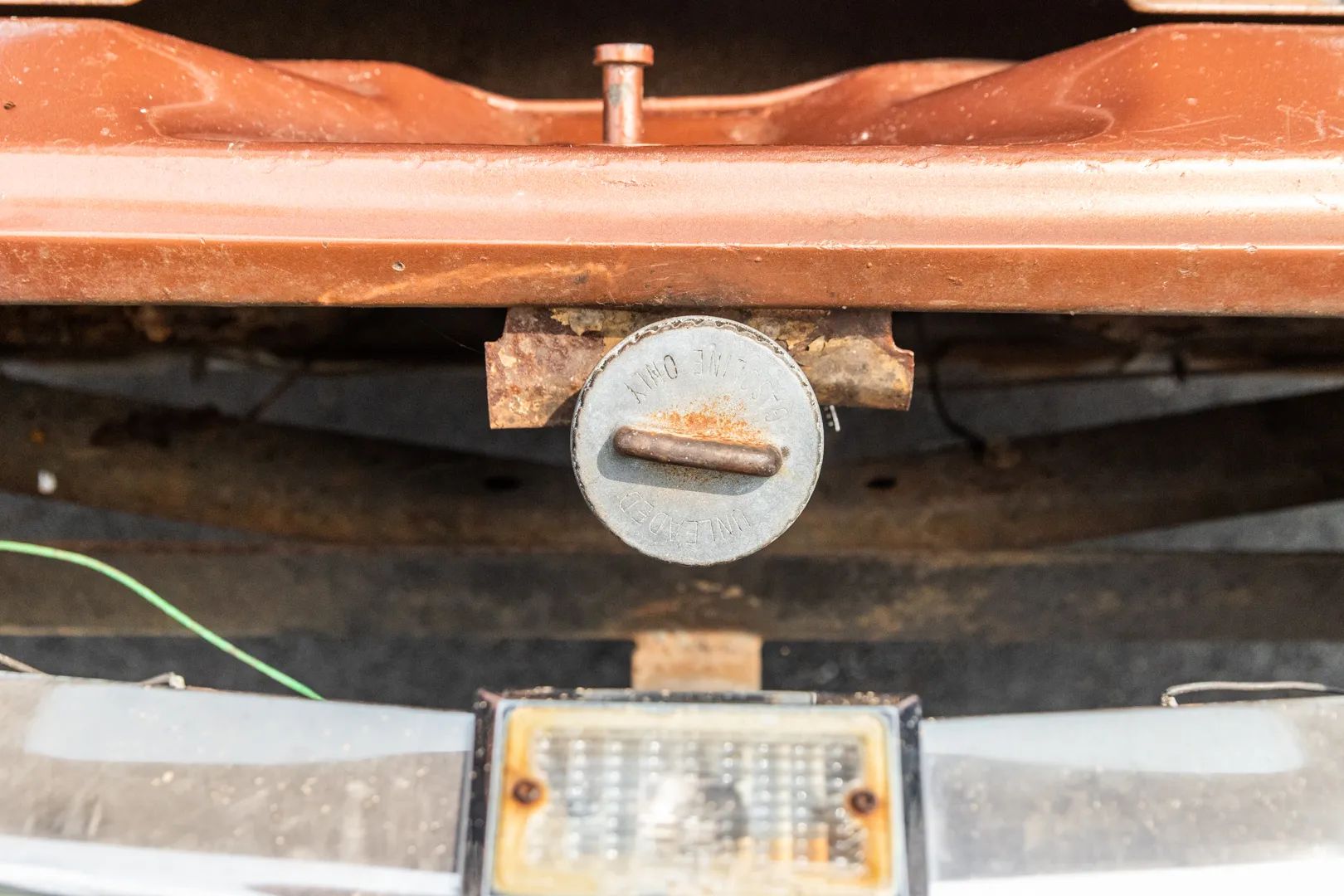

Unfortunately, most of these conversions didn’t score highly in practicality. The Casa de Eldorado wagon was particularly hampered by the intrusive rear fuel filler panel. I assume that the cost of relocating the fuel tank and filler was deemed excessive, even for wealthy customers. Celebrity-commissioned conversions like this were usually fashion statements, to be cast aside when the owner got bored with it.

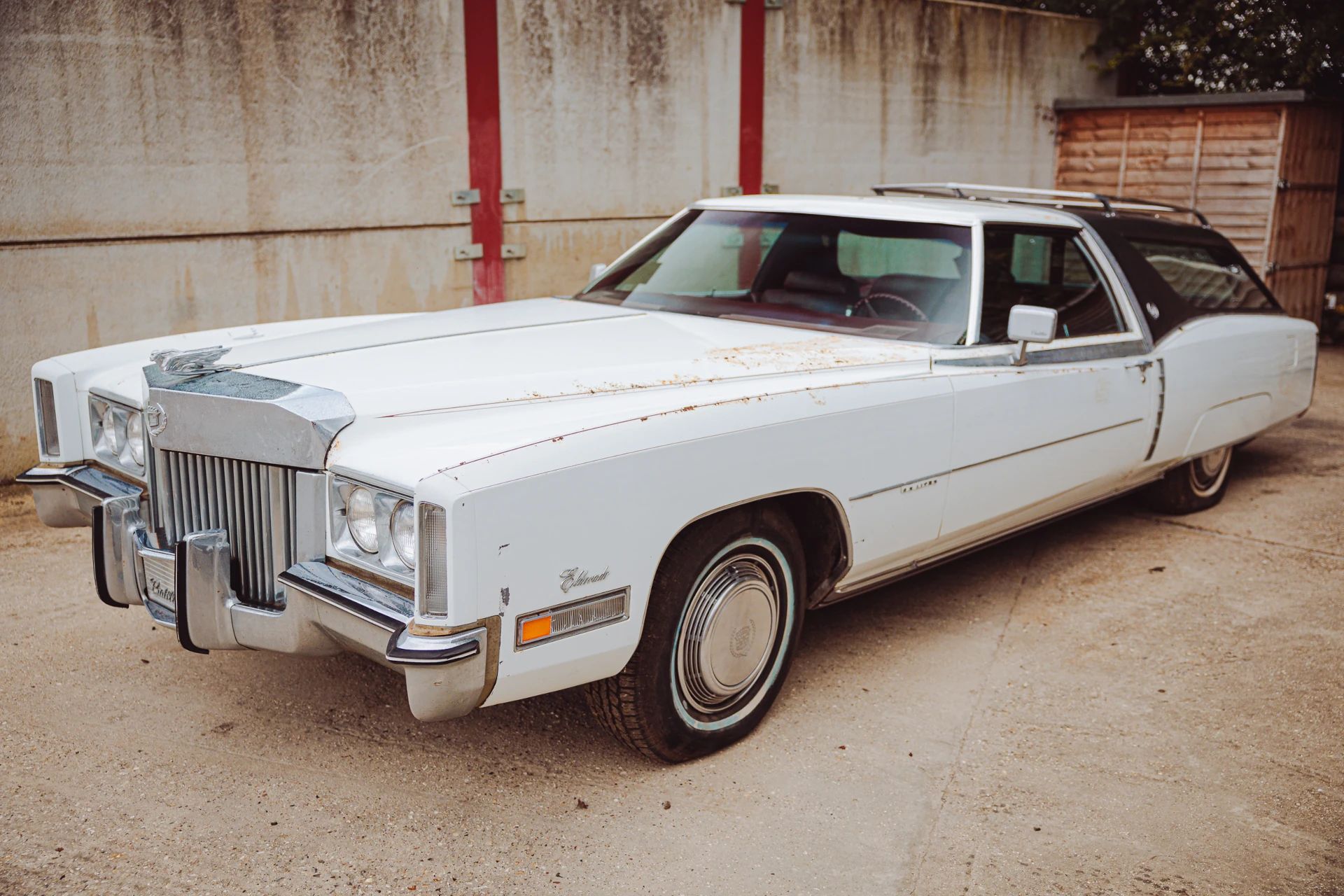

Here’s another conversion, one of about eight performed by the American Sunroof Corporation (ASC) based on the 1972 Eldorado. The white one shown here, which has Montana license plates, was supposedly once owned by stunt performer Evel Knievel. It turned up at Bonhams in October 2023, selling for £6,240.
The seller optimistically claimed there was “just some light surface rust poking through the paint,” but all of the underhood and underbody shots suggested that the whole thing might vanish in a cloud of ferrous oxide dust if someone stomped their feet too hard in its vicinity. Also, while the red leather cabin looked in good shape, there was a suspicious lack of photos of the converted cargo area, which was piled with stray pieces of the non-running engine. Still, as a styling exercise, this ASC wagon was not too bad, marred by a few heavy-handed touches like the absurd Parthenon-like grille.
I’m not going to try to provide a rundown of Eldorado-based customs — the (New) Cadillac Database has a photo gallery, if you want to see more — but the Barris and ASC conversions provide some context for our featured wagon, which was converted by Wisco Corp. in Michigan. I wasn’t able to find a lot of information on Wisco (which should not be confused with the Chinese steel company of the same name), but it was originally based in Roseville, Michigan, north of Detroit, and later moved to 10711 North End Ave. in Ferndale. At some point, it was bought out by ASC and became ASC Wisco Corporation.
Wisco Corp. did a variety of custom work, including the occasional limousine conversion. In 1975, they built a special 1976 Fleetwood Brougham conversion for King Khalid bin Abdulaziz Al Saud of Saudi Arabia, designed with “advisory help” from Dollie Ann Cole, wife of former GM president Ed Cole.
However it seems like a lot of Wisco jobs were less elaborate, the usual array of landau tops and Continental kits so popular with the hey-look-at-me set in the ’70s and early ’80s.

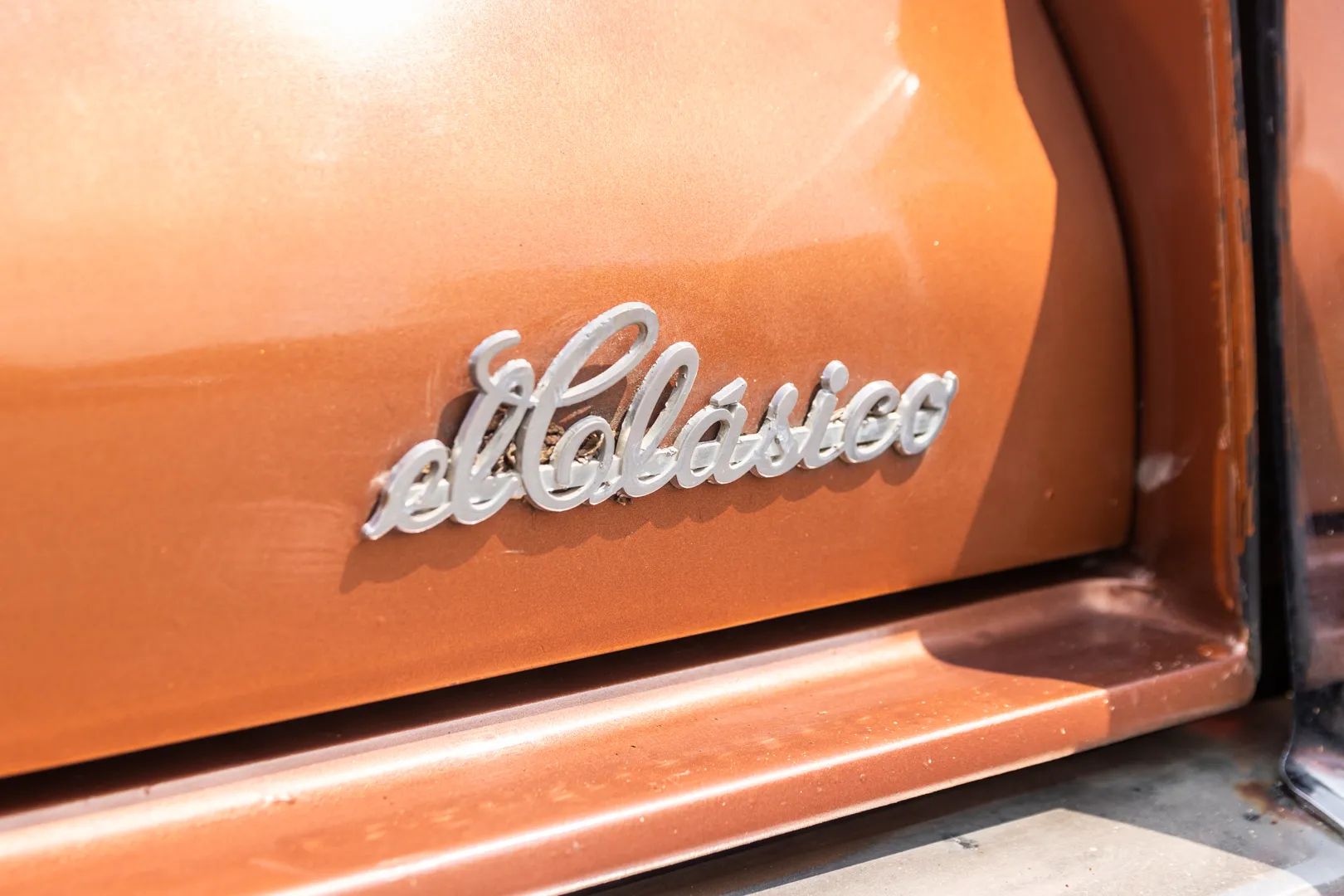

The “el Clásico” badge seems to have been applied generally to Wisco conversions rather than being specific to these wagons.

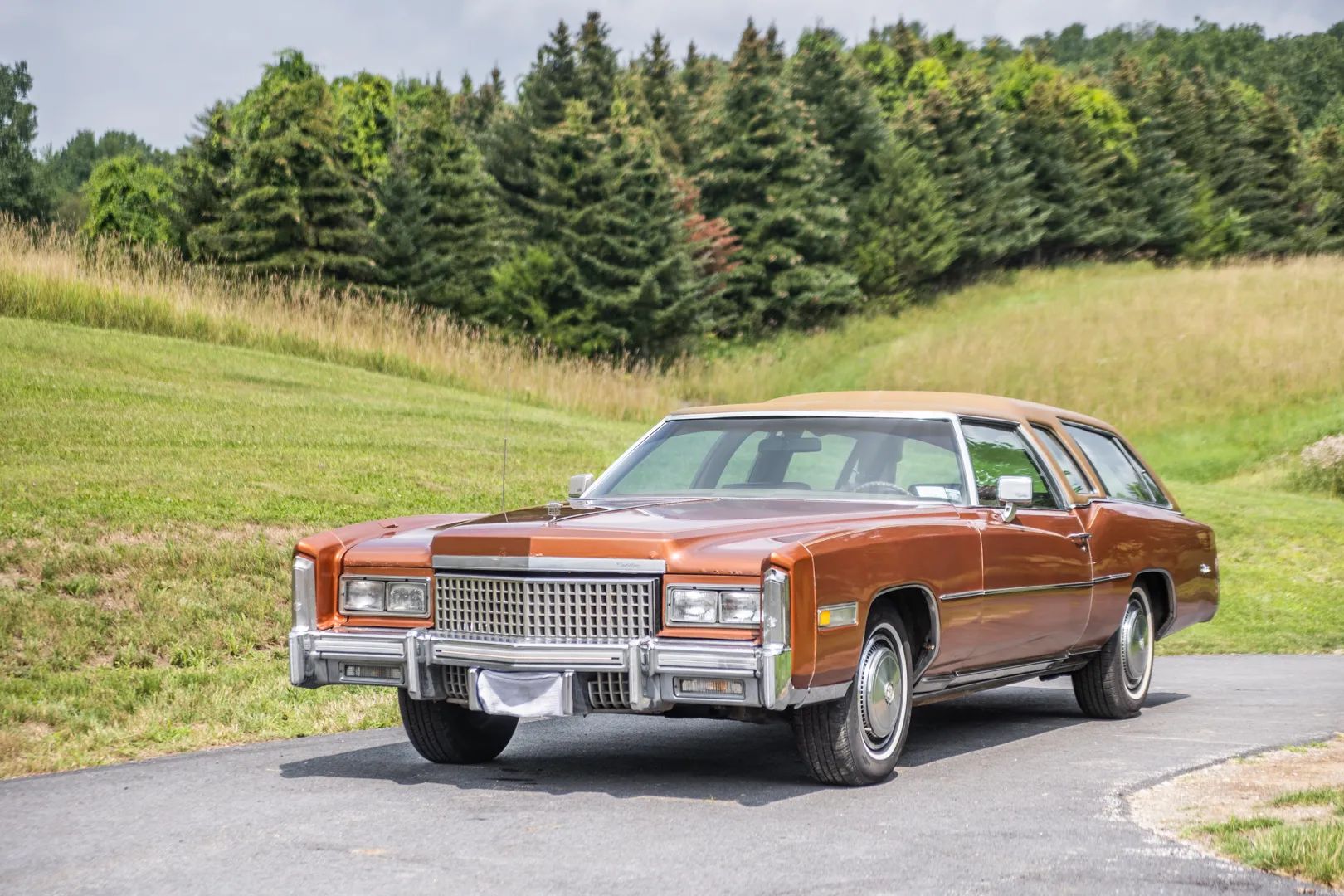

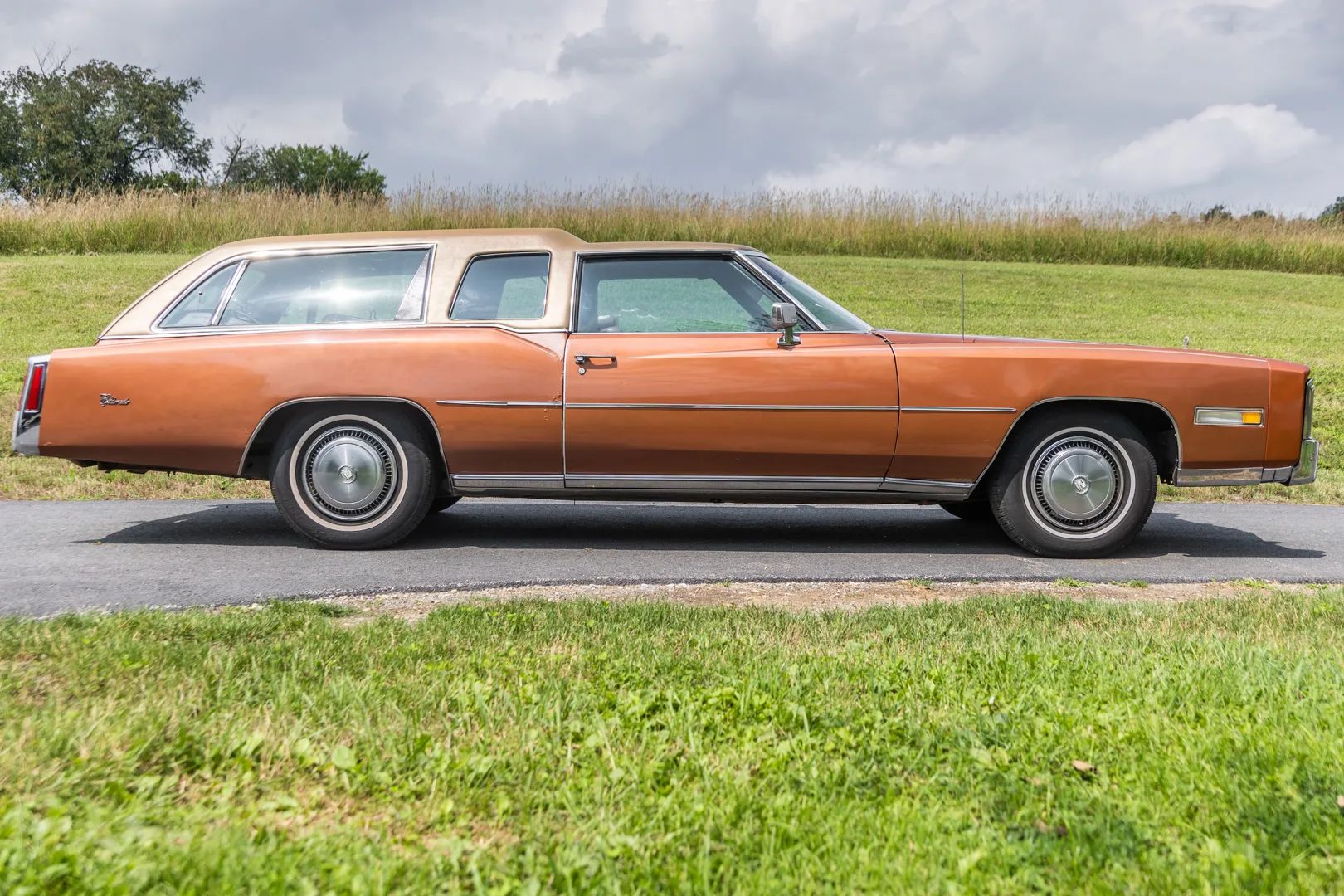

A dealer badge on the rear deck indicates that this Mandarin Orange Eldorado, which was originally a coupe, was purchased from Franklin Cadillac in Cincinnati. The conversion may have been commissioned by the dealer on the buyer’s behalf, not uncommon with this kind of job.
Mandarin Orange, incidentally, was a regular Cadillac paint option in 1975 — I’ve seen several unmodified Cadillacs in this color.

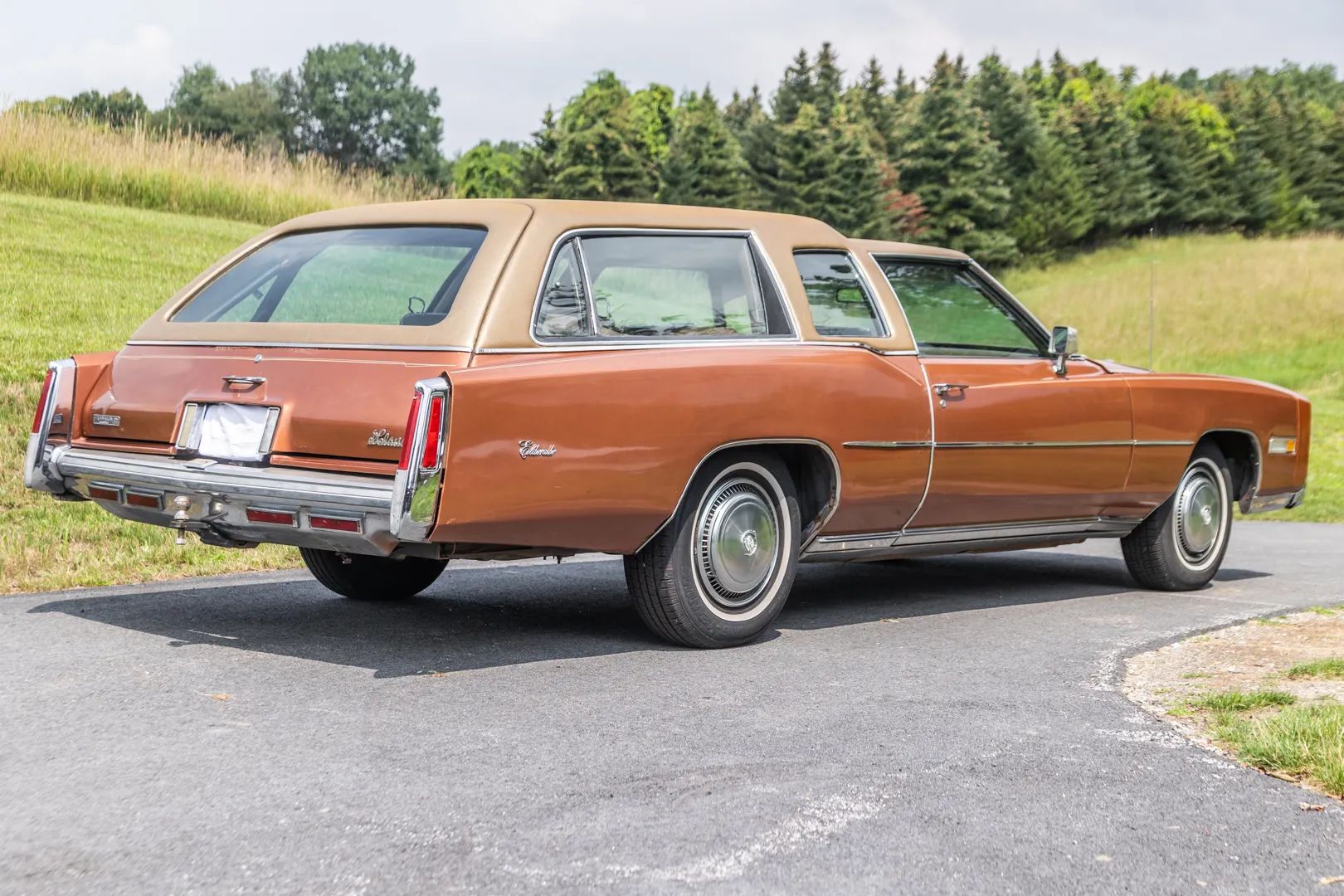

Candidly, I think this is a very awkward-looking wagon, with its camel hump roof and mismatched rear windows. The Barris and ASC conversions, for all their incidental departures from good taste, were palatable enough as basic shapes — were it in better shape, the Barris wagon might even qualify as “jaunty.” The Wisco conversion looks distressingly homemade. Considered as a shooting brake, I’d say Wisco brought a cartoon mallet to a gunfight.

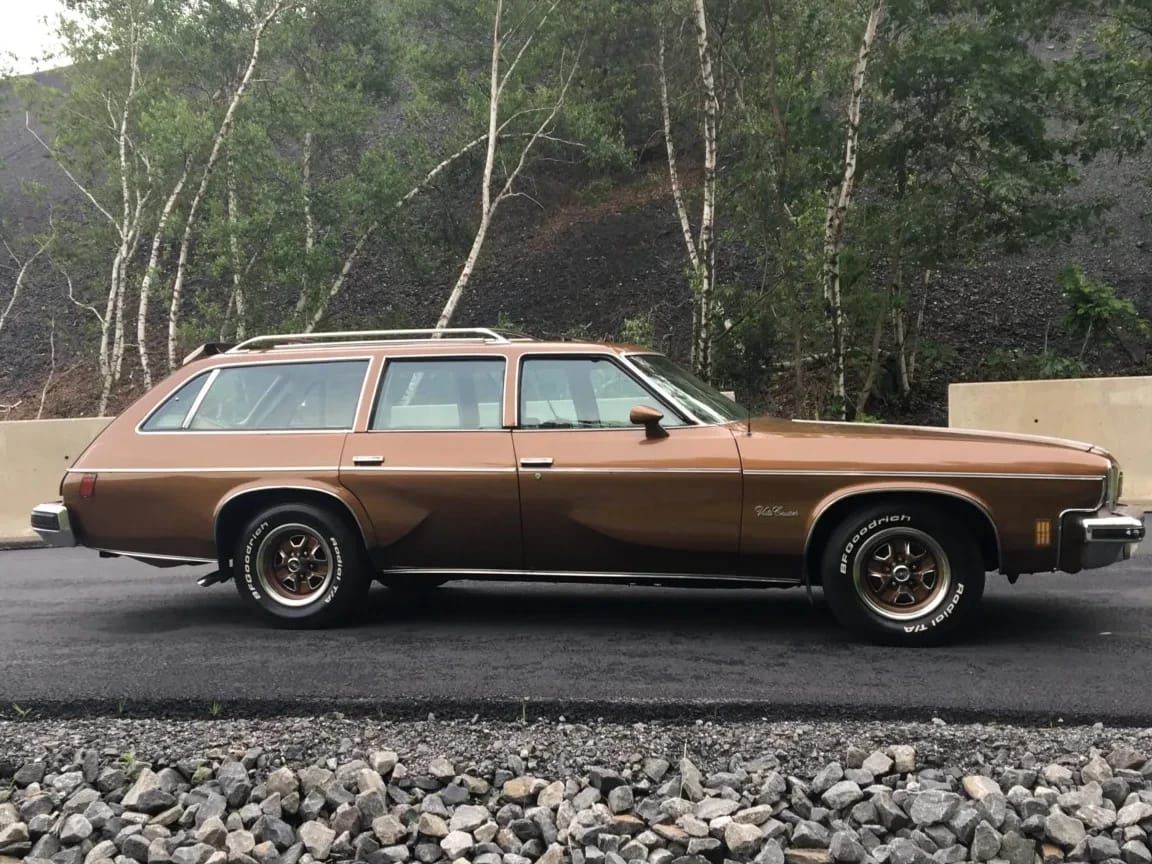

The roof, tailgate, and quarter windows were apparently salvaged from a contemporary GM A-body station wagon, like this 1974 Oldsmobile Vista Cruiser.
One of the weirder elements is the triangular filler plate at the leading edge of each rear side window, which seems to have been necessitated by trying to integrate the roof of the four-door A-body wagon with the Eldorado’s cobbled-together C-pillars. I have no idea how much this wagon conversion originally cost — probably at least $25,000, since a loaded stock Eldorado coupe ran to more than $12,000 in 1975 — but crude details like this made a strong case for just buying a Ford LTD Country Squire.
Unlike the Barris and ASC wagons pictured earlier, the cargo area is in reasonably good condition, but it’s narrow and rather shallow.
Part of the reason the bay is so shallow is that Wisco took the trouble to give this wagon a flip-up rear-facing third seat. This is no doubt a conversation piece, but exactly who or what might condescend to sit back there is another matter. Unlike a typical 8- or 9-passenger wagon, there’s no footwell to speak of, so children would have to crouch with their knees up. Also, even Henri de Toulouse-Lautrec, who was only 4’8″ as an adult, might have been troubled by the proximity of the rear glass to his face, a consequence of the forward slope of the tailgate.

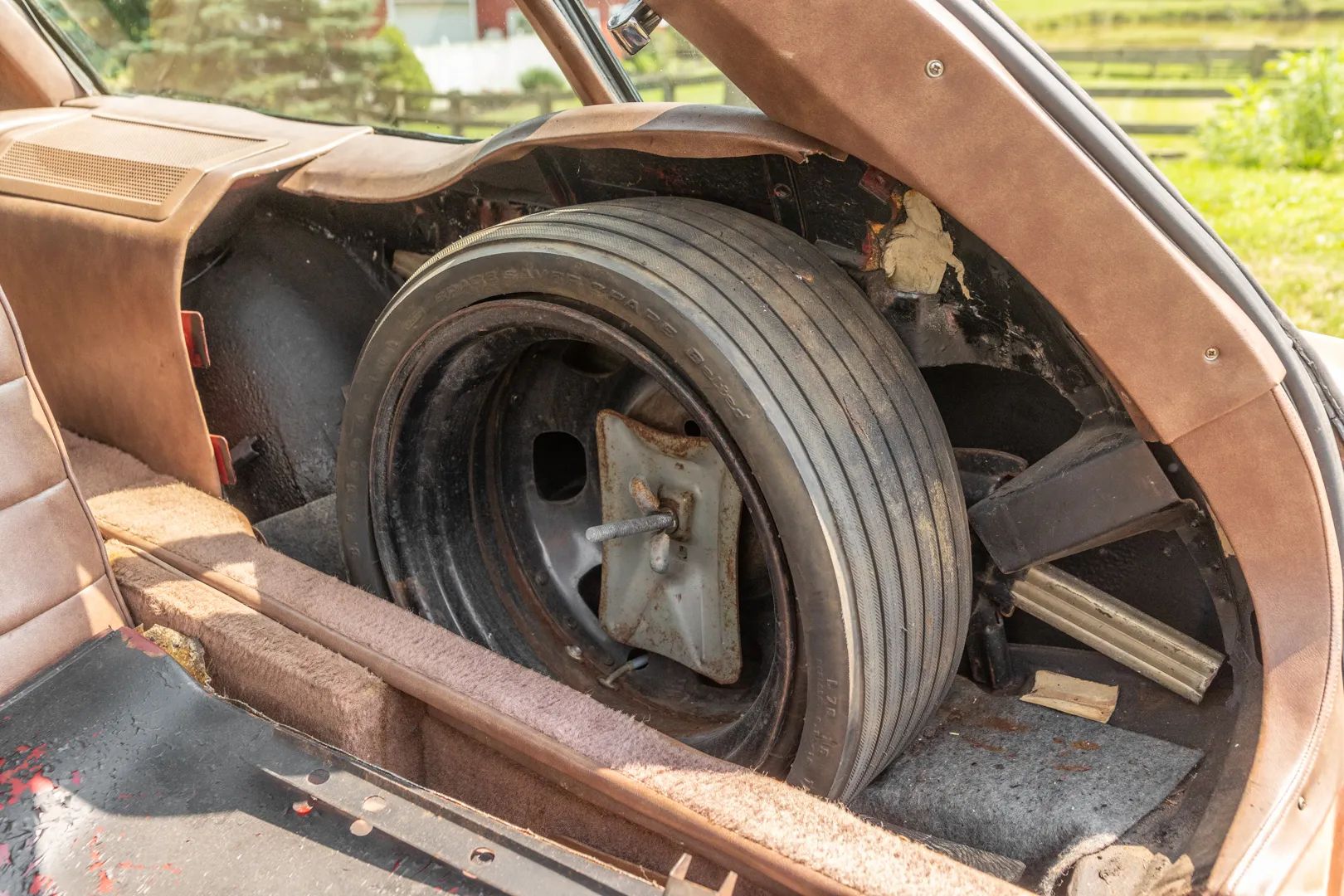

The space saver spare is concealed on the right side, which is sensible.
However, if you really wanted to make a practical wagon out of this platform, you’d need to redesign and/or relocate the Eldorado’s massive 27-gallon fuel tank, which occupies most of the space under the trunk floor, with the filler behind the rear bumper.
If you’re wondering why so many of these wagon conversions have vinyl roofs, the answer is that heavily padded vinyl covers a lot of metalworking scars. I assume if you were to strip away the vinyl and padding, the metal underneath would look like Frankenstein’s monster. Still, the very visible central seam strikes me as another low-rent touch.
I’ve never had a chance to ride in one of these conversions, so I don’t know how the conversion work affects the interior noise level. A ’70s Eldorado was not fast, nimble, or economical, but people normally expected them to be serenely quiet inside.
You can at least see out, although the interior detailing seems clumsy, even accounting for 50+ years of wear and tear.
The 1975 Eldorado had a 500-cid engine, which was why the 27-gallon fuel tank was so necessary. It wasn’t especially powerful for its size, and, embarrassingly, it actually had less torque than the Oldsmobile 455-cid V-8 in the mechanically similar Toronado. However, it did have enough grunt for a wagon like this, which probably weighed upwards of 5,500 lb.
At the time it showed up on Bring a Trailer in 2021, this wagon was a “50-footer,” with some ominous bubbling around the edges, and the underbody looked almost as orange as the paint. The driver’s side door also looks like it’s drooping, which doesn’t inspire confidence on a car that’s had this kind of structural surgery. Except for the bubbling on the tailgate, the actual wagon conversion pieces seem to have held up well, so it seems like Wisco Corp. did their work competently, if not very prettily. Still, the seller seemed to have an exaggerated idea of this wagon’s value — it didn’t sell at a high bid of $9,000 USD.
I don’t imagine there would have been much market for a factory Eldorado station wagon, but I still can’t help thinking there was a missed opportunity here, something between the 5,200 lb 2+2 of the stock Eldorado (or Toronado) coupes and these expensive, often tasteless conversion jobs, that could have taken fuller advantage of the compactness and muscle of the UPP powertrain. I guess we’ll never know.
