Many of us take for granted that we have an understanding of the Otto four-stroke cycle, but we had to learn it somewhere, and wouldn’t it have been easier if we had learned it on an ingenious, sturdy miniature engine that was surprisingly true to form? The W.M. Welch Scientific Company tried to teach students about the combustion engine’s intricacies by using the hands-on approach.

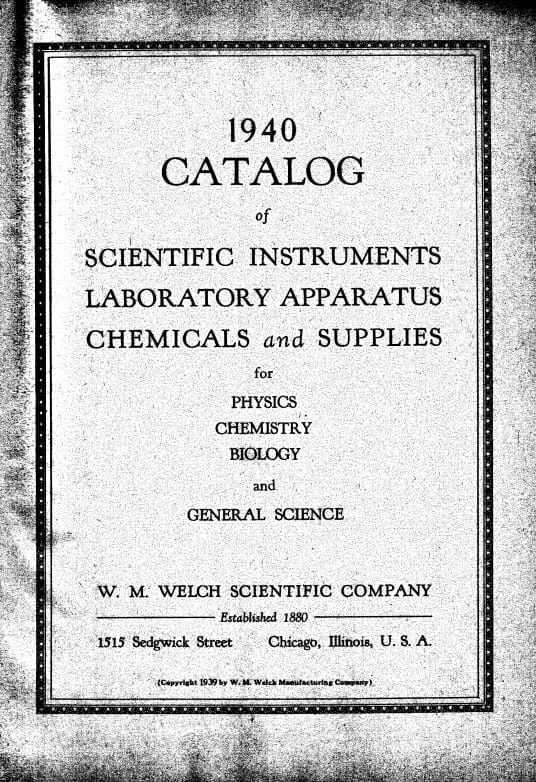

There is surprisingly little background information out there on the W.M. Welch Scientific Company. According to a website called analogweather.com, they were founded in 1880 in Iowa before moving to Chicago in 1906 as the W.M. Welch Manufacturing Company. At some point, they were renamed as the W.M. Welch Scientific Company before merging with the E.H. Sargent Company to become Sargent-Welch. Their website now seems to be owned by Ward’s Science, which sells educational supplies to science educators.
Mr. Welch seems to have published a book called How to Study: A Guide for Self-Improvement in School and Home out of Chicago in 1889, so education was definitely a goal. The company wasn’t limited to school supplies, however, as they also had a “Furniture Factory.”
So how did I end up with this engine about which I can definitively ascertain little? Proving that there are still good people in the world, a friend of mine at work was able to pick it up for free, and seeing my reaction to it, he decided that I would probably give it the best home.

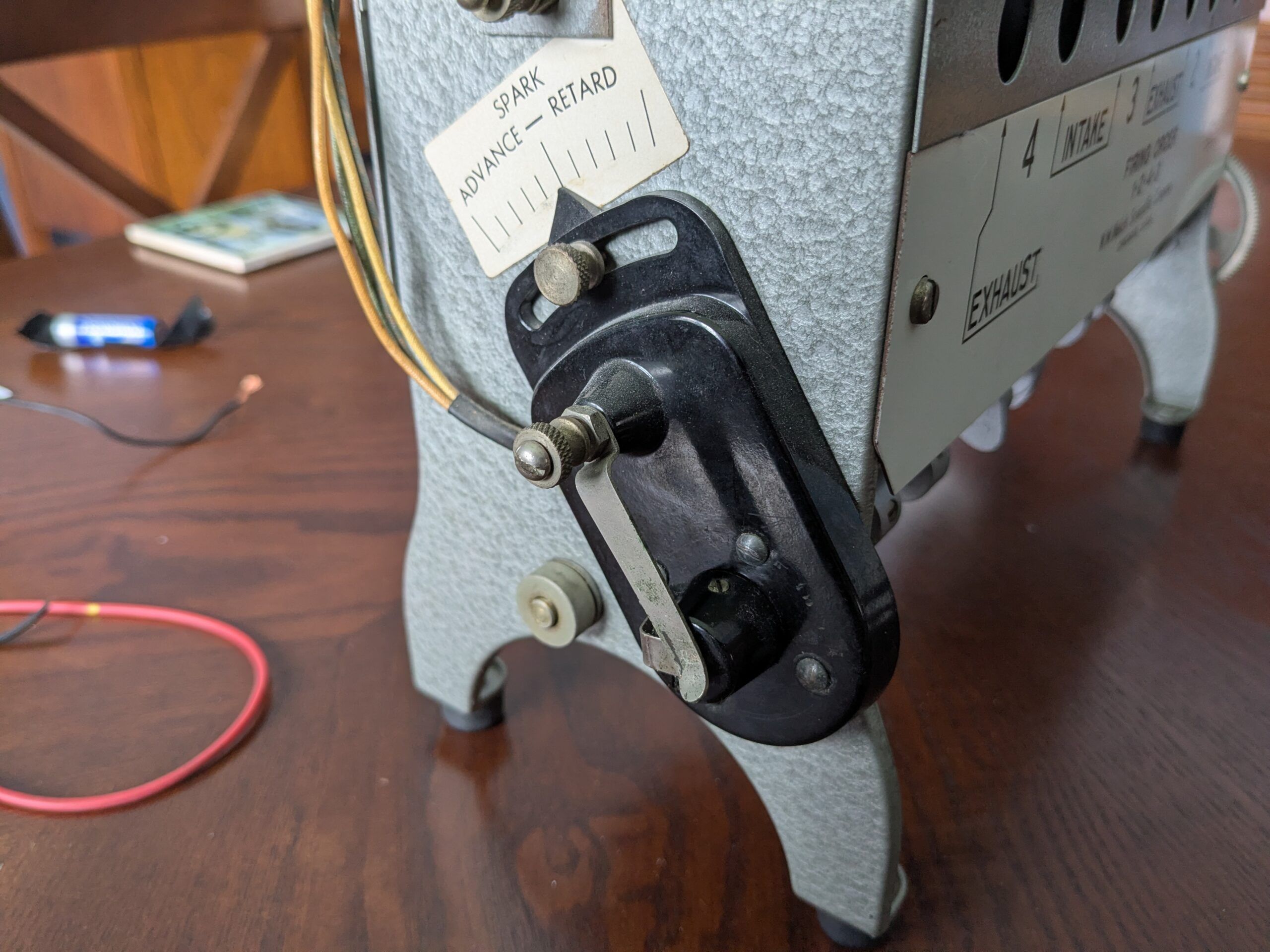

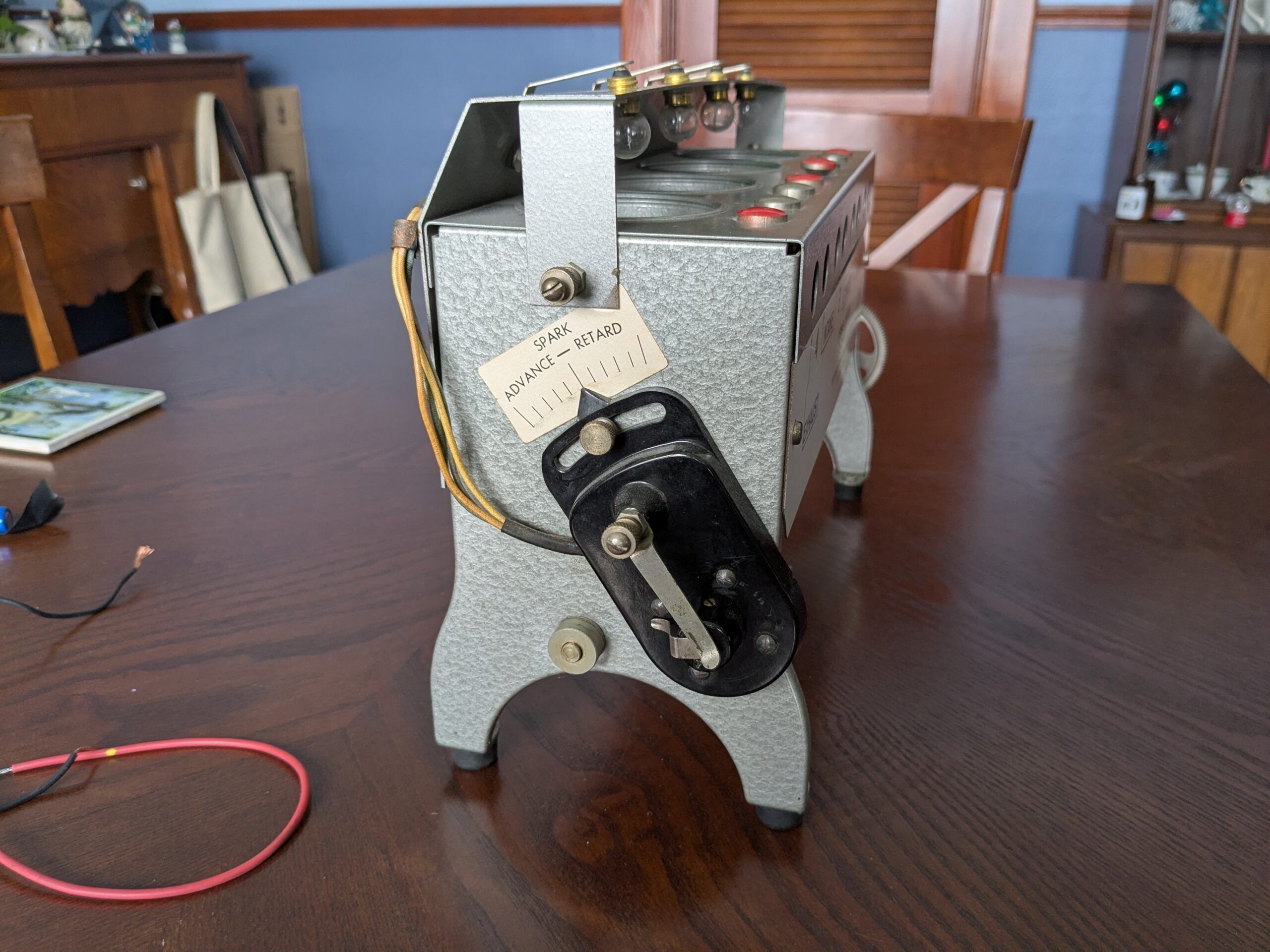

How does it work? It has just about everything a real engine has, including this “distributor.” A positive lead is hooked to the knurled knob that feeds current to the “rotor,” and a negative lead is attached to the block itself as a ground (you can barely see it at the top of the picture). The metal strap that takes current from the positive terminal is attached to a rotor “button.” As the rotor rotates, it makes contact with four metal buttons that are connected to the “spark plug wires,” just as it does in a real distributor. You can even move the timing mark to show how advancing and retarding the ignition affects the spark in relation to the piston as it approaches top dead center.

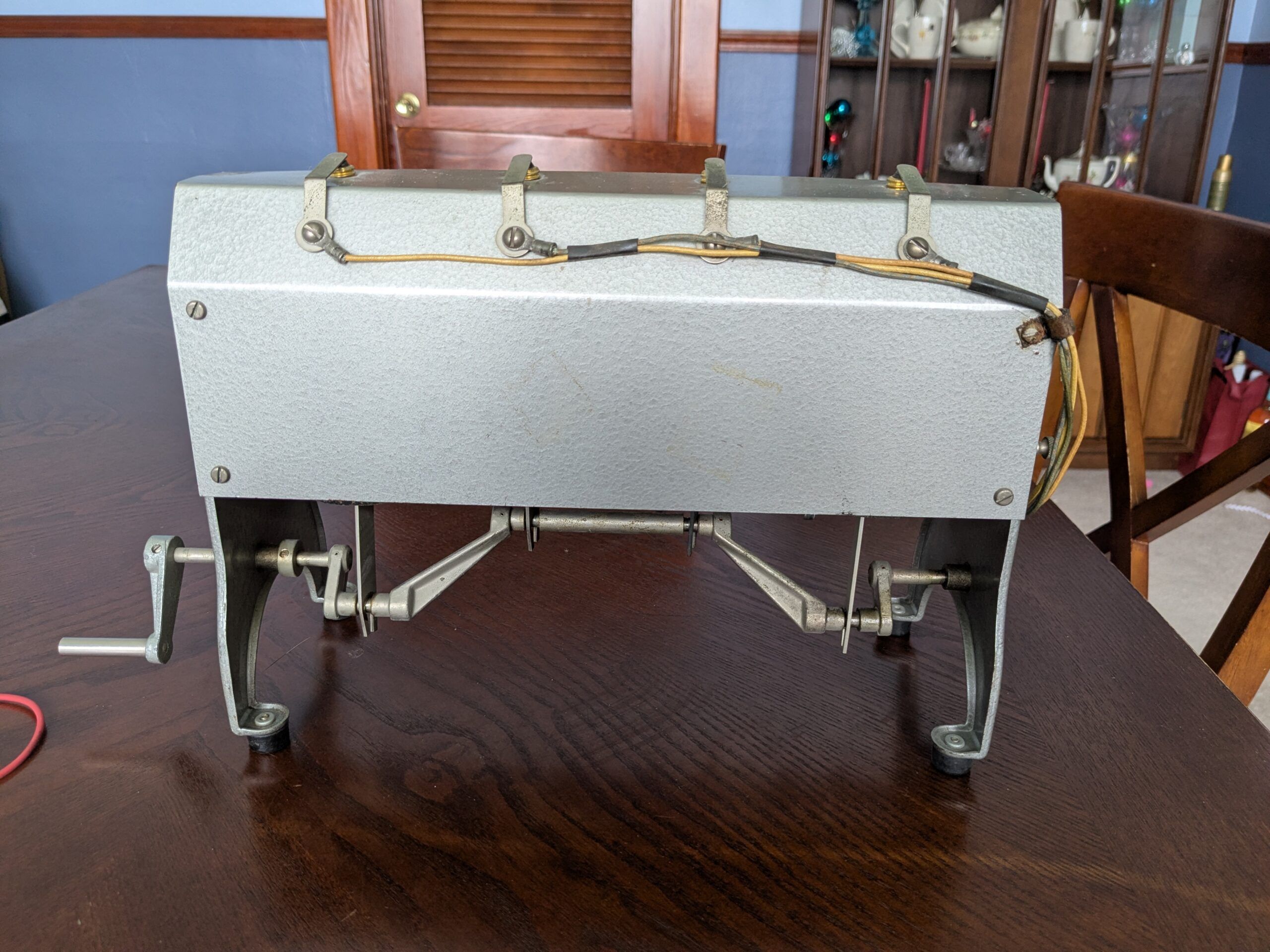

The spark plug wires are each connected to a metal tab that makes contact with a mini bulb. This was the hardest part of bringing this engine back to life; the bulbs were burned out, and they are an extremely odd size (GE 136). Luckily, I found something that would work at a local hardware store that has been open for decades (and merchandise is there until it sells; I’ve bought products that had been for sale since probably the late 1950s). The only rub? If you hold the cylinder at TDC long enough, the bulb will start to flash; that is what the ones I bought were designed to do.

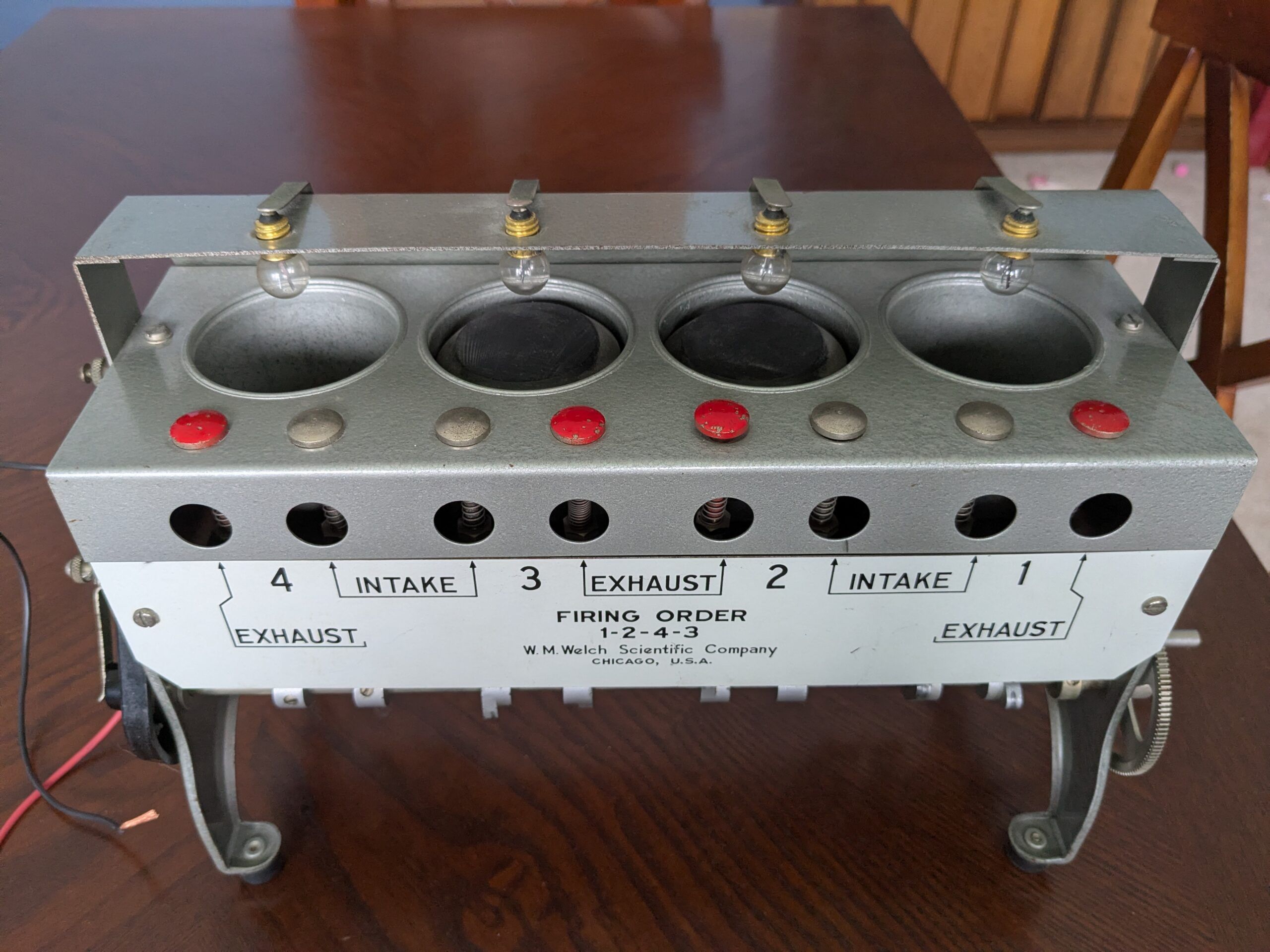

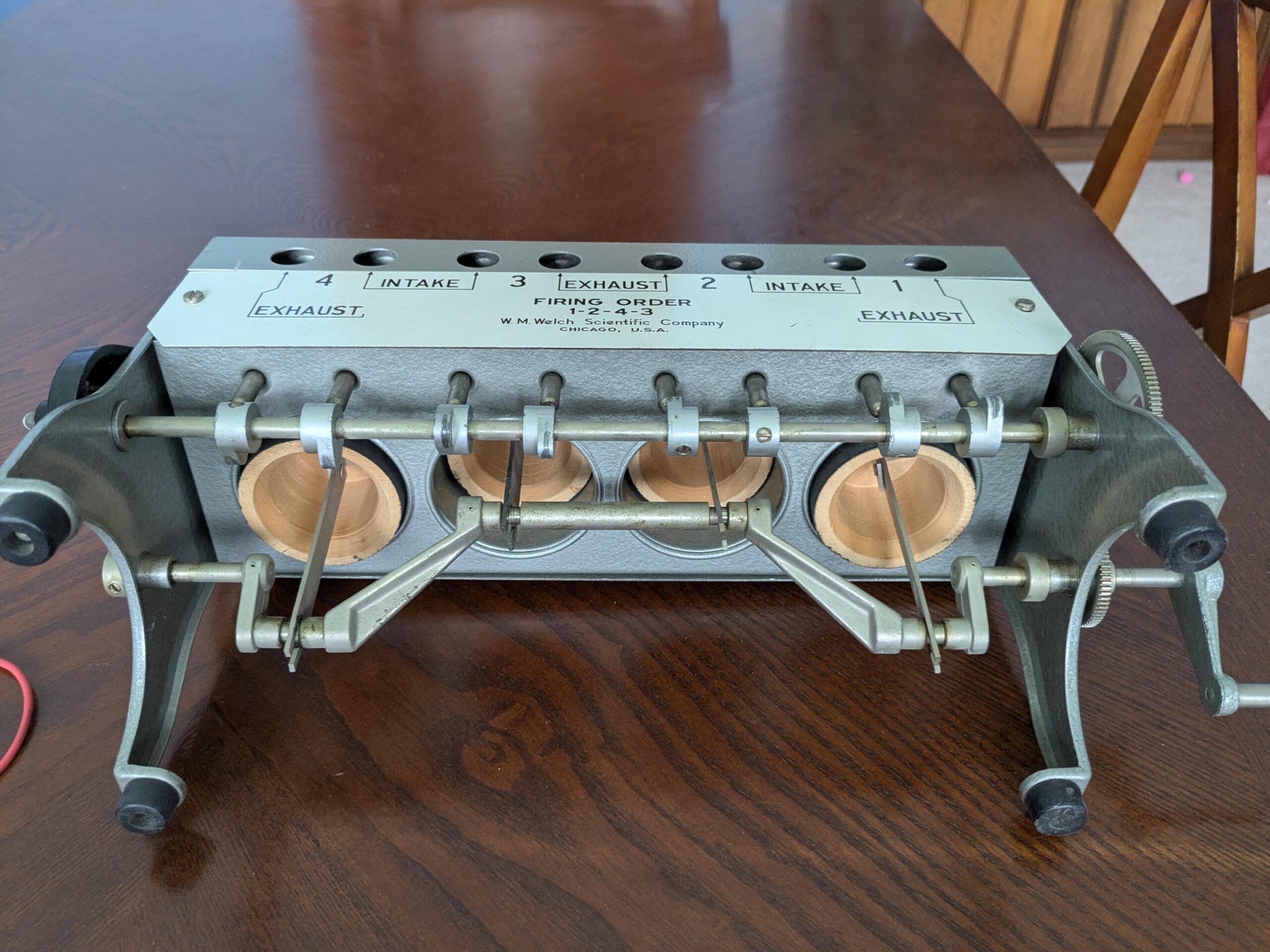

The engine mimics an L-Head four-cylinder with a visible camshaft and valve springs. The exhaust valves are red (because they’re hot, obviously), and you can see the springs through cutouts in the block. If the color doesn’t grab you, the valves themselves (in addition to the cylinder number) are clearly labeled, as is the firing order.

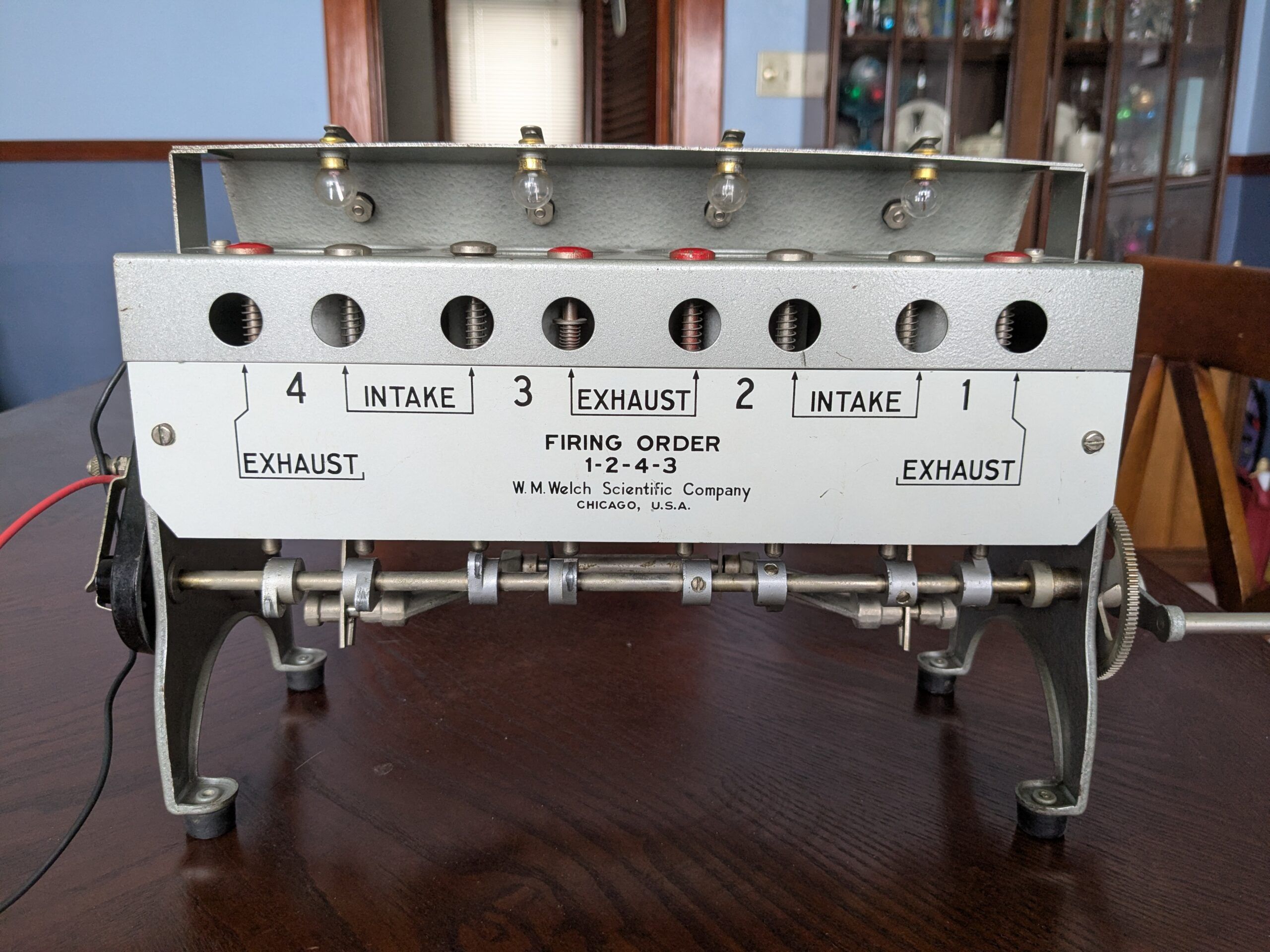

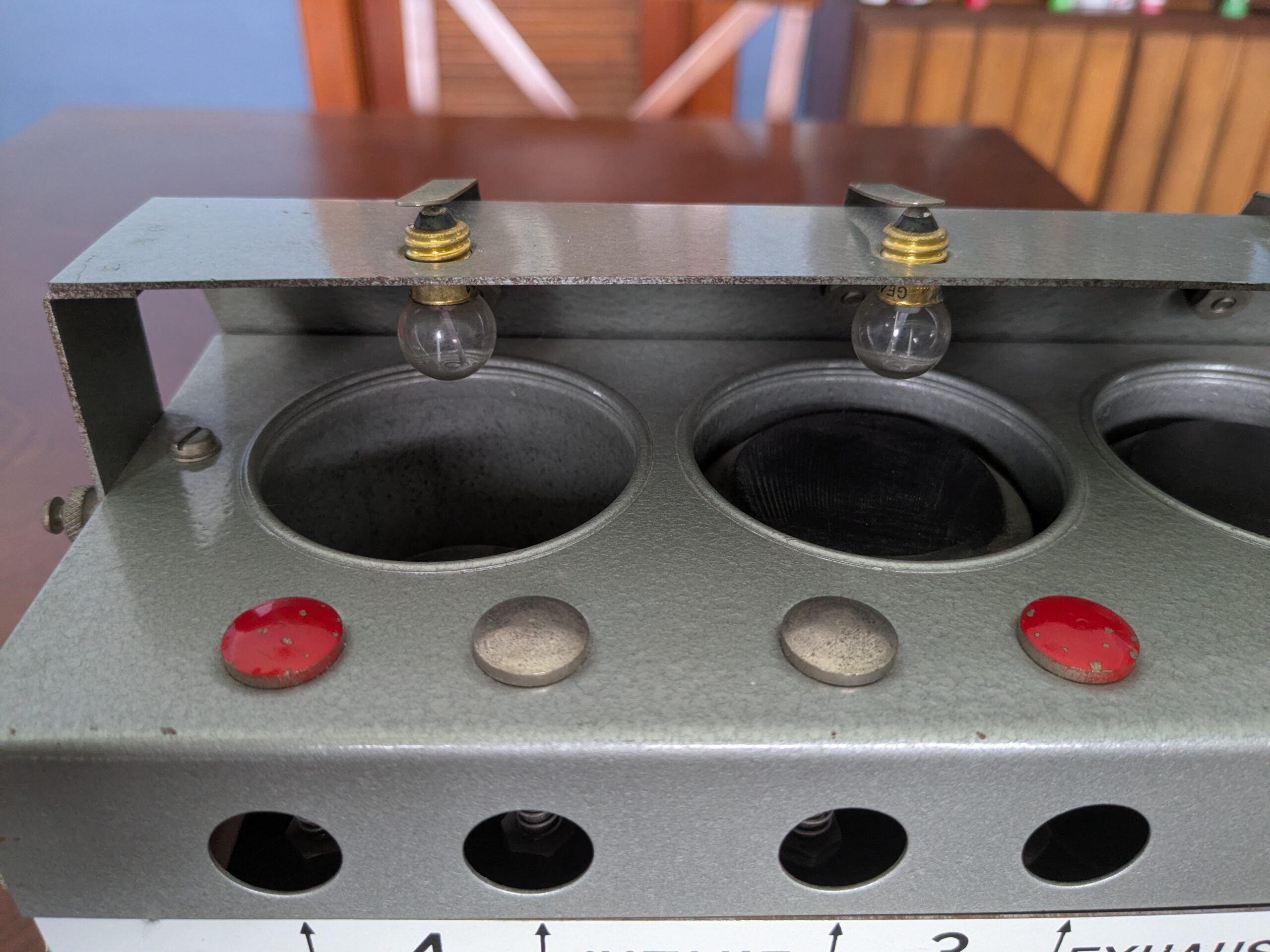

Here’s a closer look at the bulbs, the contacts, and the valves. One of the best parts of the engine is that the pistons are made of wood; you can see them coming up to TDC on cylinders two and three right here.
Another thing that my mild obsessive-compulsive tendencies would not allow to stand was the cam timing. Each lobe is adjustable and locked down with a small set-screw, and they were not even close to being in the correct places. Therefore, I adjusted each one to a position that would allow a minimum of valve overlap at TDC; please don’t tell me if I got something backward.

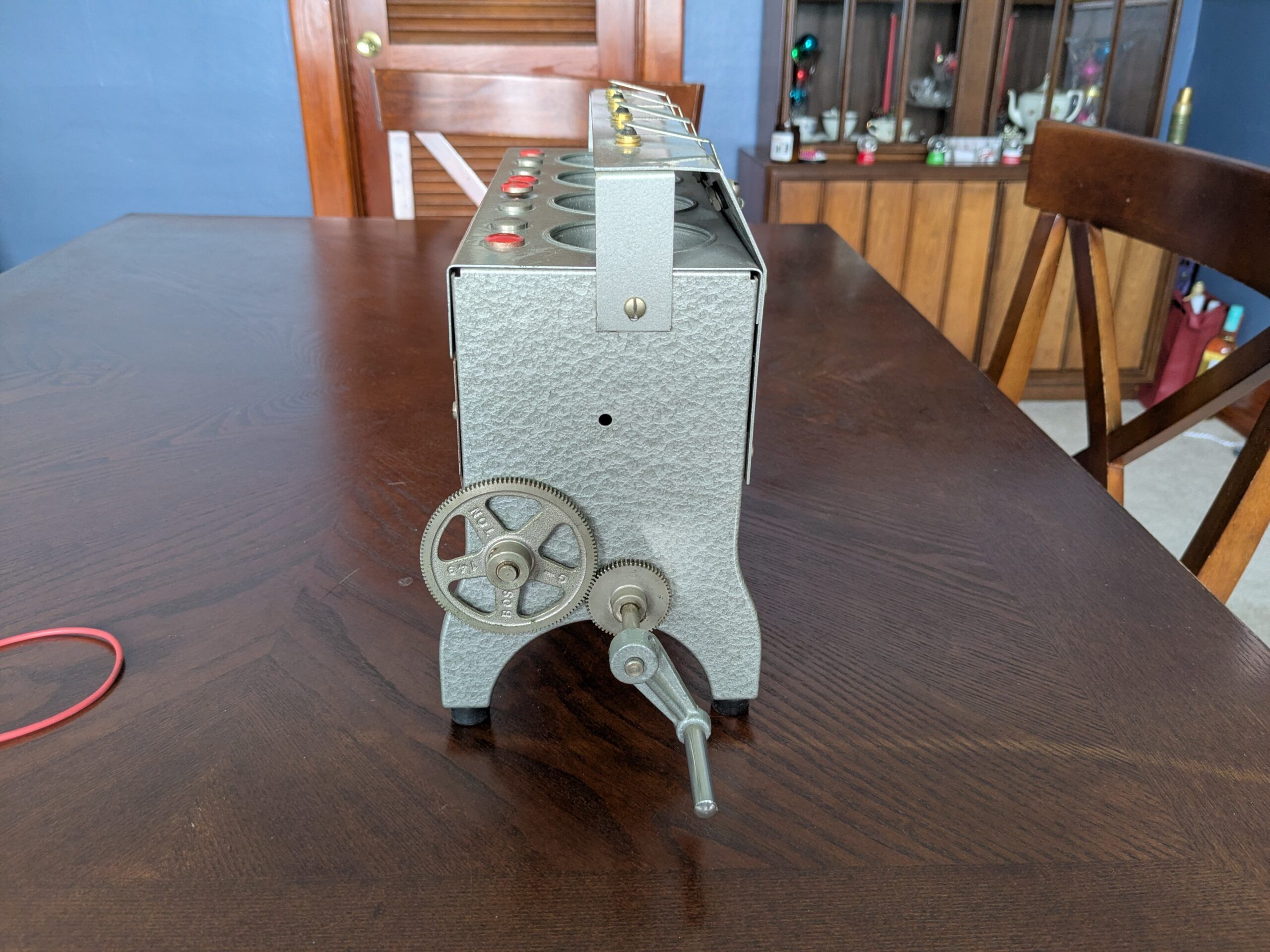

Even the crank gear and the cam gear resemble a real four-cylinder engine’s; the only difference is that you’re driving the crank rather than the crank driving the car.
And this is how it looks when you turn the crank (also notice the distributor rotor turning on the back side of the engine). I use an AA battery to provide power to the bulbs, and that’s all it needs.
What makes me happy is this: There were certainly kids who would have studied this endlessly until they figured out exactly how everything worked, and auto shop teachers would have been able to answer any questions that would arise. It’s just such a simple but effective learning tool that involves a lot of critical thinking; with a little classroom instruction ahead of time on the fundamentals of “suck, squeeze, bang, blow,” the kids could have spent a class period or two figuring it out in their own heads. It’s probably not flashy enough today to work, which is a shame, because no YouTube video would do any better.
