While GM had a first-rate modern 3-speed automatic in the form of Turbo Hydra-Matic 400, a lot of late ’60s GM cars still had 2-speed automatics, which the divisions insisted provided adequate performance at lower cost. It wasn’t until 1969 that Chevrolet and Buick joined forces to create the excellent TH350, the medium-duty 3-speed automatic the corporation had needed for at least five years. This 1969 Skylark Custom sport coupe is one of the first Buick intermediates to get the new automatic.
I’ve said this before, but it bears repeating: many perplexing automotive product decisions make a lot more sense if you look at where and how things were actually produced. One of the surest ways to lose money in manufacturing is to have factories that are underutilized or sitting idle, and the need to make fuller use of that capacity can lead to some peculiar decisions.
Another vital point is that before the 1980s restructuring, GM divisions had quite a bit of their own manufacturing capacity. The car divisions had their own engine plants, and Buick and Chevrolet also built their own automatic transmissions. Neither division used the older fluid coupling Hydra-Matic transmissions, and while they later bought Turbo Hydra-Matic (TH400) from Hydra-Matic Division, they still had big investments in their own transmission production facilities.

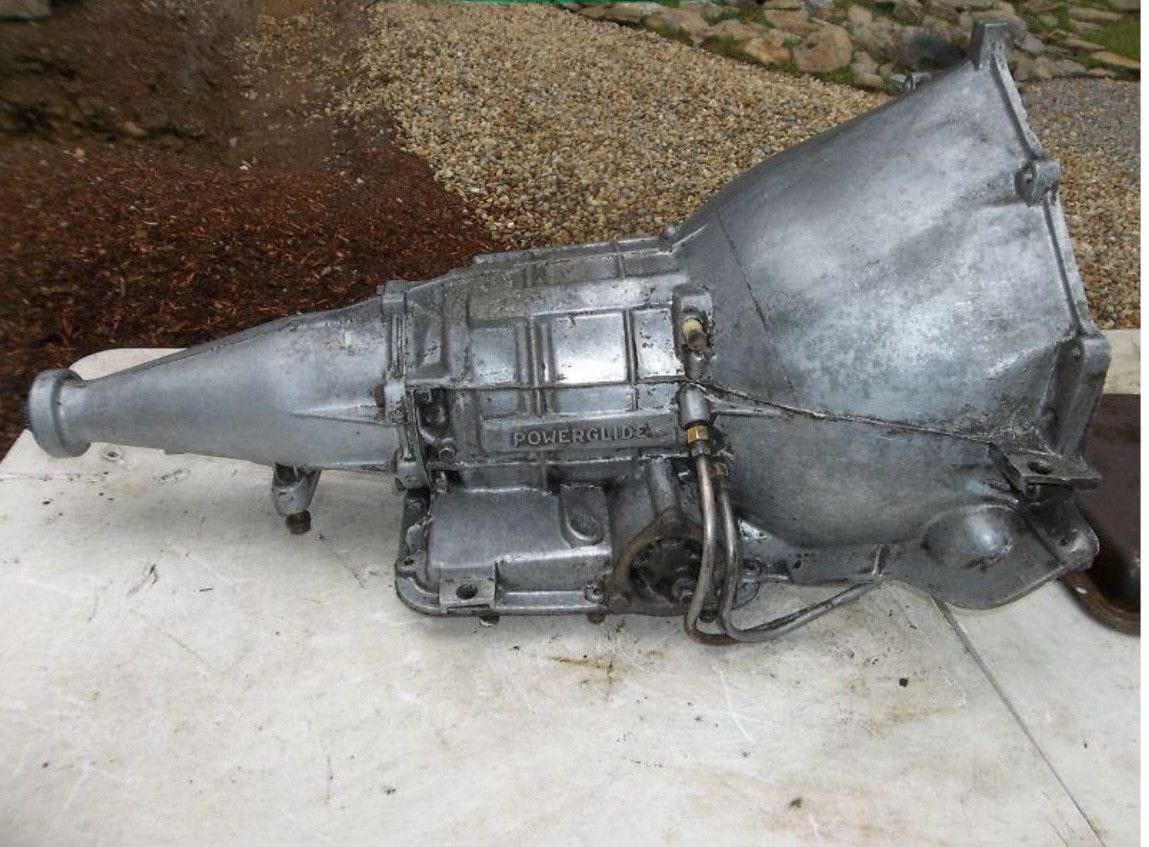

So, Chevrolet continued to use the 2-speed aluminum Powerglide in very large numbers, while Buick converted its transmission plant, which had previously built Turbine Drive and Dual Path Turbine Drive, to manufacture the Powerglide-like 2-speed Super Turbine 300. Buick used that transmission in its midsize and some full-size models, and also sold the transmission to Pontiac and Oldsmobile, which used it in their A-body intermediates, the B-body Oldsmobile Jetstar 88 and Delmont 88, and some versions of the Pontiac Firebird.
GM engineers and executives offered lots of rationalizations for their continued fixation on 2-speed automatics. The 2-speeds had fewer frictional losses than most 3-speeds, so they consumed less power and theoretically returned slightly better fuel economy. An aluminum-case 2-speed also weighed less and took up less space than a 3-speed automatic. Of course, the bigger incentive was that the 2-speeds were cheaper to make and used existing tooling, which was better for the divisions’ bottom line.
However, GM wasn’t the only corporation making cars in the U.S., and by the late ’60s, they were the last 2-speed holdout. Chrysler had phased out its 2-speed PowerFlite by 1962, and by the 1965 model year, Ford had the 3-speed C4 to replace the miserable 2-speed Fordomatic. AMC had only used 3-speed Borg-Warner automatics for years. Nonetheless, if you bought a new GM car, even a full-size Oldsmobile or Buick, you might still get a 2-speed. Chevrolet was such a juggernaut that it didn’t do them any visible commercial harm, but the 2-speed hardly gave the mid-priced divisions a competitive edge.
The divisions slowly expanded the availability of Turbo Hydra-Matic, making TH400 available with the big-engine intermediates and some full-size cars with smaller engines. Behind a Chevrolet 327 or Buick 340, the 3-speed automatic offered much better flexibility, especially with the switch-pitch torque converter used in some applications (dropped after 1967). However, TH400 was arguably overkill with smaller engines, which didn’t need the greater torque capacity, and it cost more than the 2-speed, both to build and to buy.
By the start of the 1968 model year, Chevrolet and Buick had concluded that they needed a better compromise, and belatedly came up with a new 3-speed transmission, sometimes called the CBC 350, for “Chevrolet-Buick Combined.” Although it would be marketed under the Turbo Hydra-Matic name, as the TH350 (or TH-350), the involvement of Hydra-Matic Division was initially minimal; it was something the two car divisions developed to build themselves.

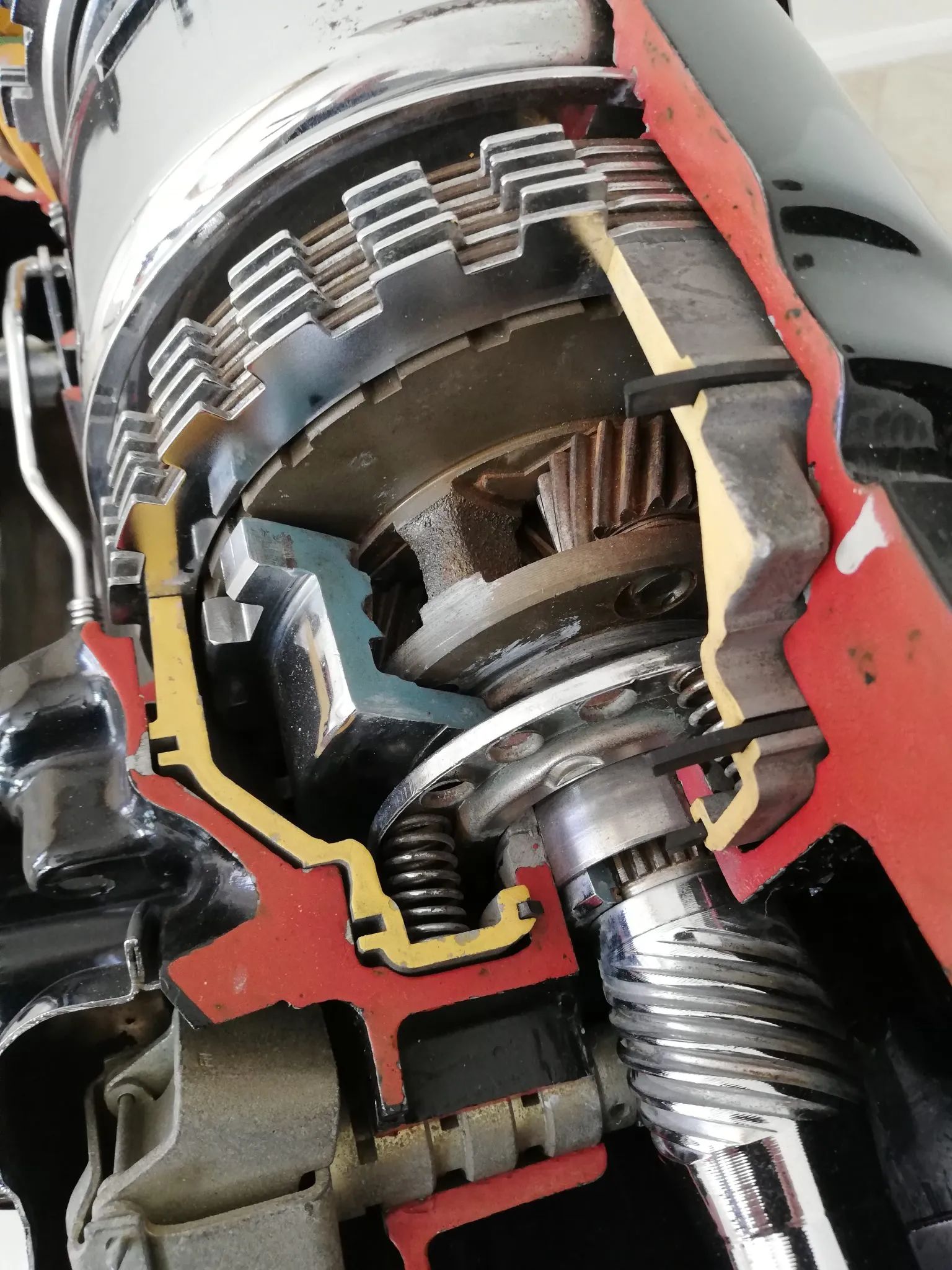

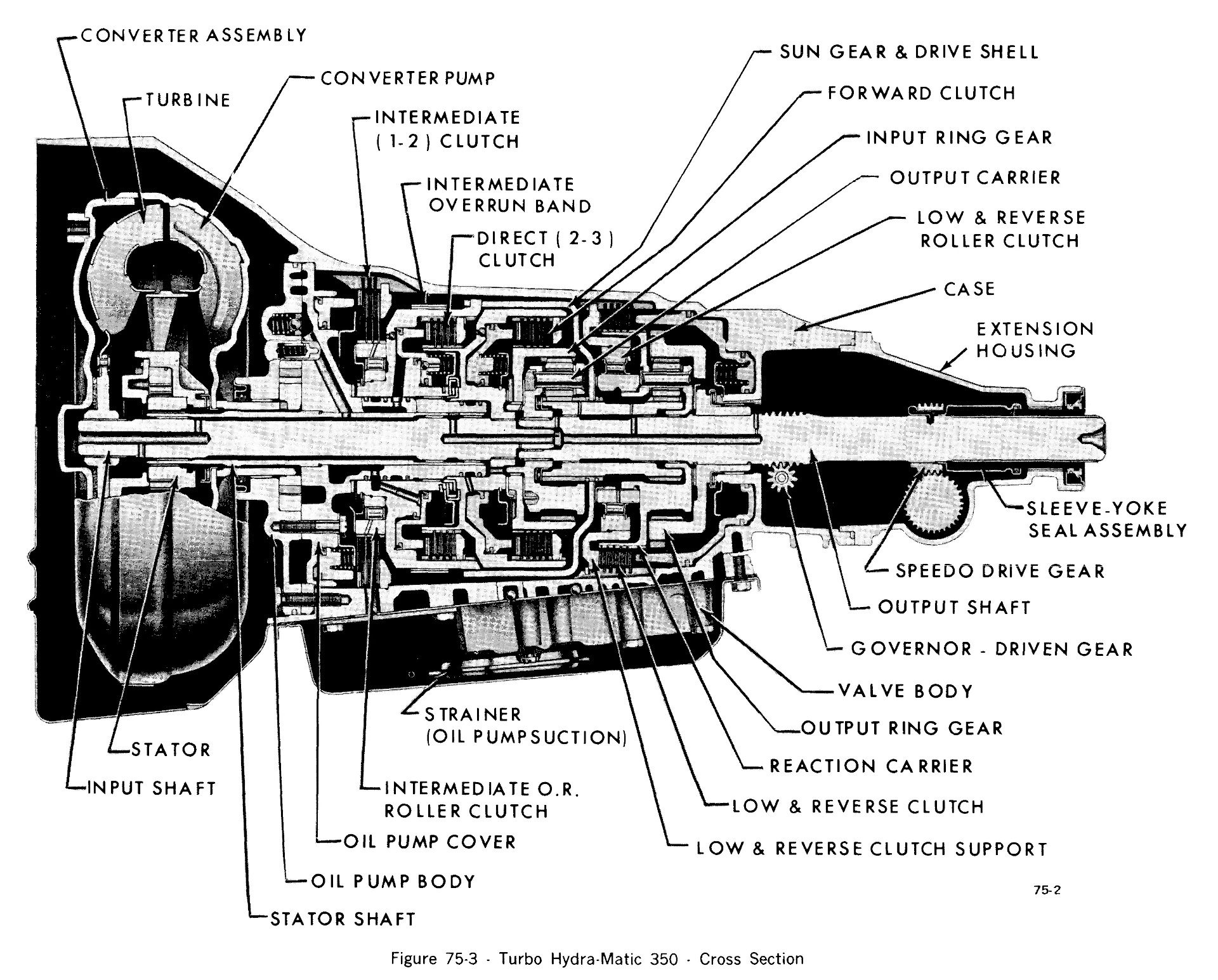

The new TH350 transmission was conceptually a lot like the TH400, with a Simpson gearset (two interconnected planetary gearsets with a common sun gear, taking input through one ring gear and outputting through the other, with equal-size planet gears) operated by a series of multi-disc and sprag clutches. All TH350 applications initially shared an 11.75-inch torque converter with a stall ratio of 2.10 to 1; the TH350 didn’t use the variable-pitch stator that had been fitted to some earlier TH400 and Super Turbine 300 transmissions.

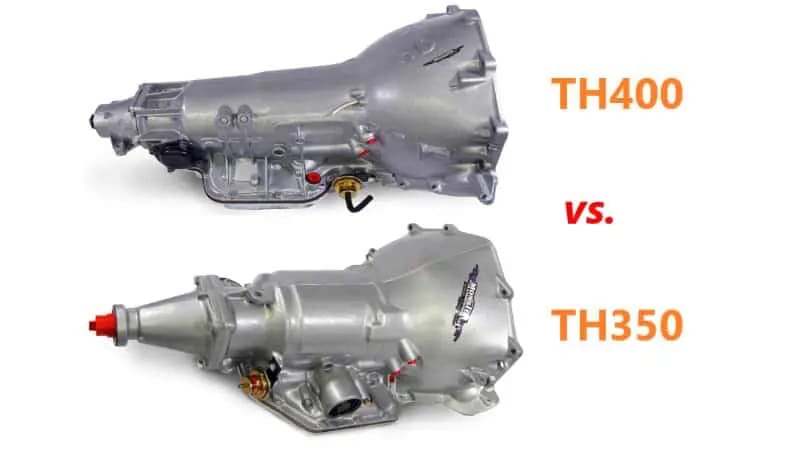

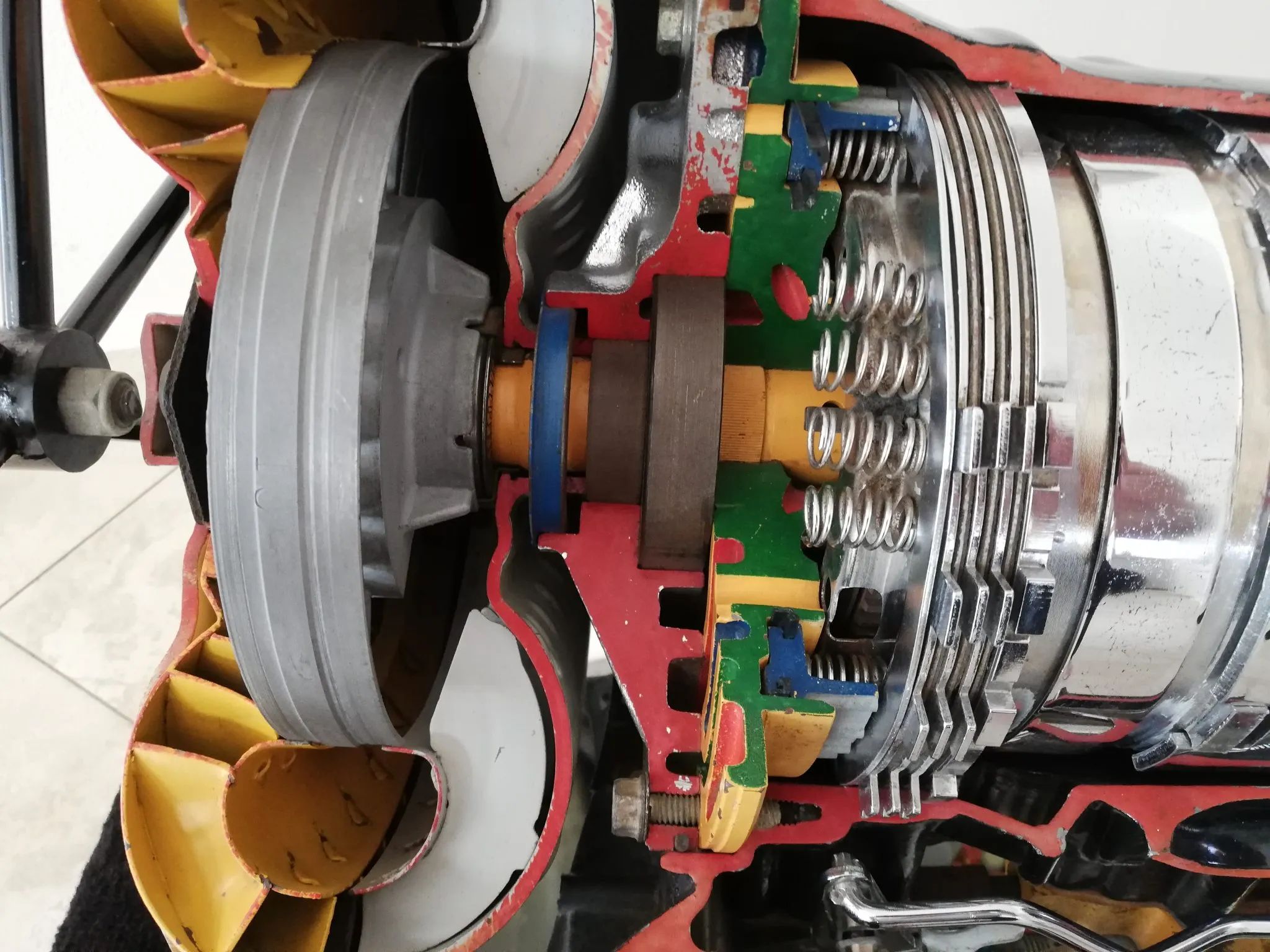

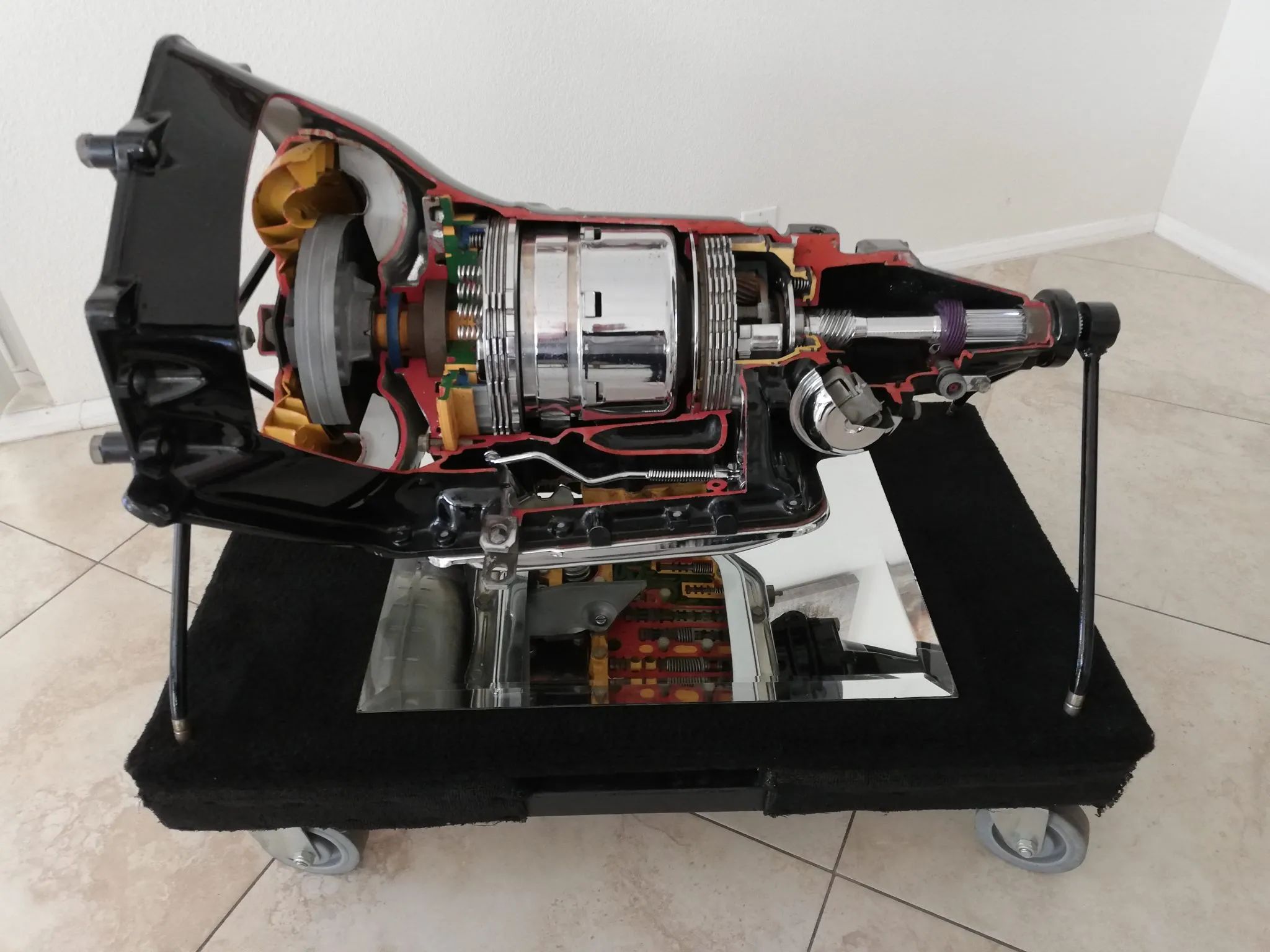

Despite the broad-strokes similarities, the TH350 arranged its various elements differently than the TH400 did. As Chevrolet engineer John Mahoney explained to Motor Trend in 1968, “This transmission is supported from the front and back while the Hydra-Matic has a bulkhead in the center.” The TH350 also had only one overrun band (for intermediate) rather than two. As the “350” designation implied, it theoretically had about 20 percent less input torque capacity than the TH400 (although the TH350 could be and later was beefed up to be almost as strong), but it weighed about 23 pounds less and was a little bit shorter.

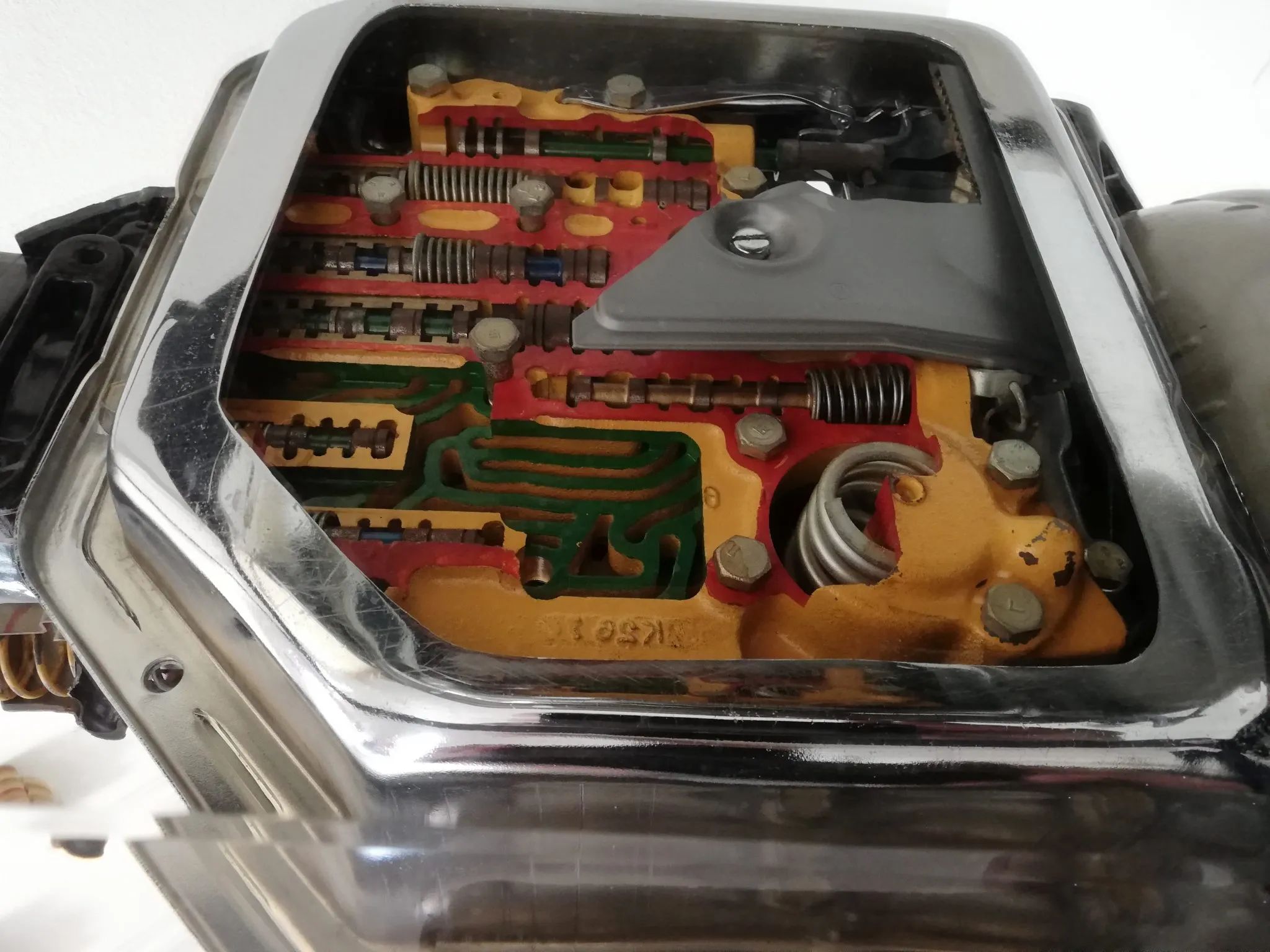

Like the TH400 and Super Turbine 300, the TH350 used a vacuum modulator to vary both shift points and line pressure based on engine torque demand, which was signaled by intake manifold absolute pressure. (The modulator incorporated a spring-loaded anerobic (evacuated) bellows that automatically compensated for variations in atmospheric pressure.) GM had patented some of this control scheme in 1964, but, as with the Turbo Hydra-Matic name, that intellectual property belonged to the corporation rather than the individual divisions, so there was no legal problem with Chevrolet and Buick adopting them.
I’m not going to try explaining the full operation of the TH350 transmission, but if you’re interested in a detailed technical description, I recommend Ron Sessions’ 1985 book Turbo Hydra-Matic 350 Handbook, which explains just about everything you might conceivably need to know.

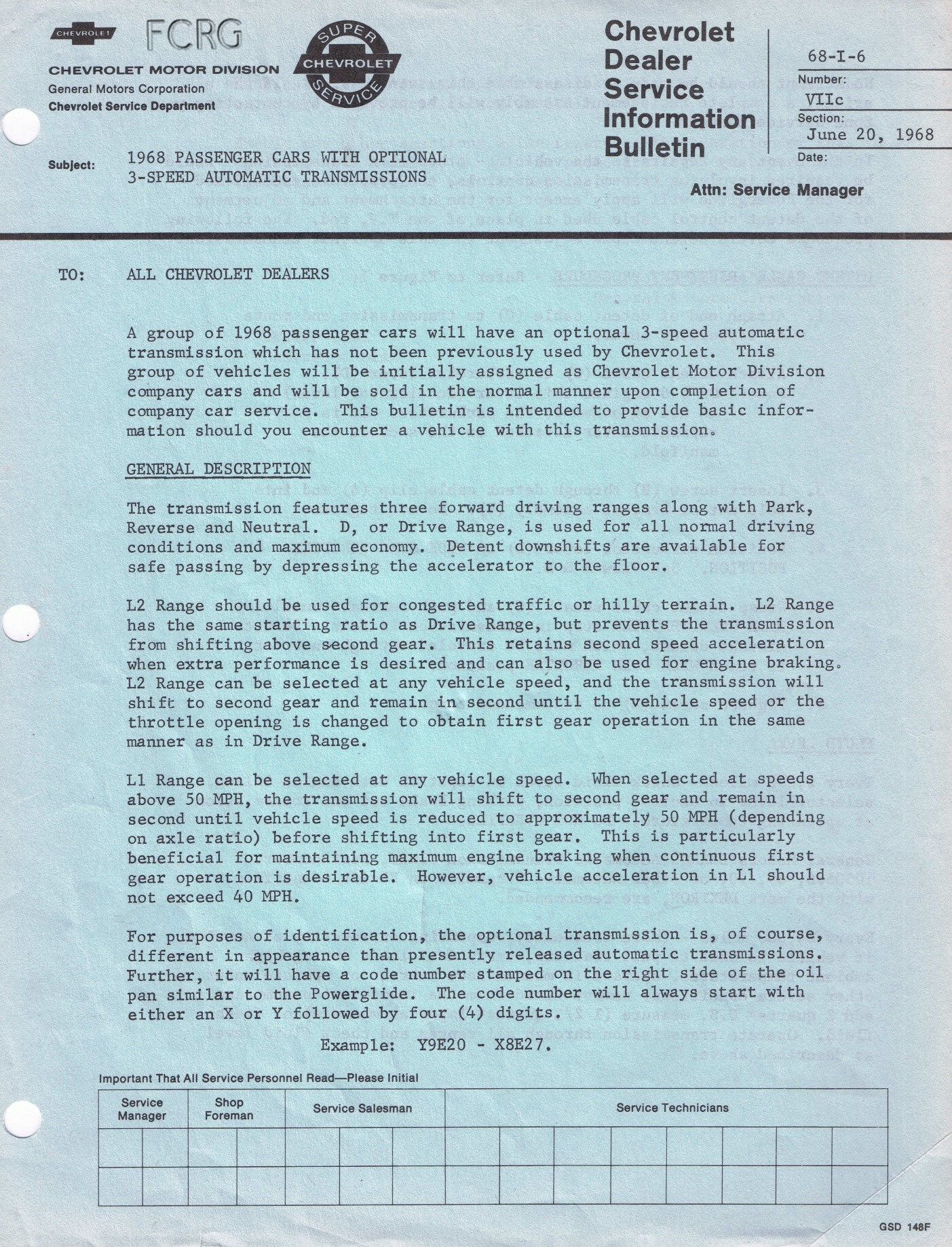

Although the TH350 didn’t officially become available until the 1969 model year, it was fitted to about 2,000 late 1968 Chevrolet cars — including Chevy II, Chevelle, and Camaro as well as some full-size models — on a COPO (Central Office Production Order) basis for evaluation. Many of these cars were retained by the company for staff use, but some were sold to fleet users like taxi companies, and some of the TH350-equipped ’68s did eventually end up in public hands. I don’t know if Buick had a similar 1968 test fleet, but it seems likely.

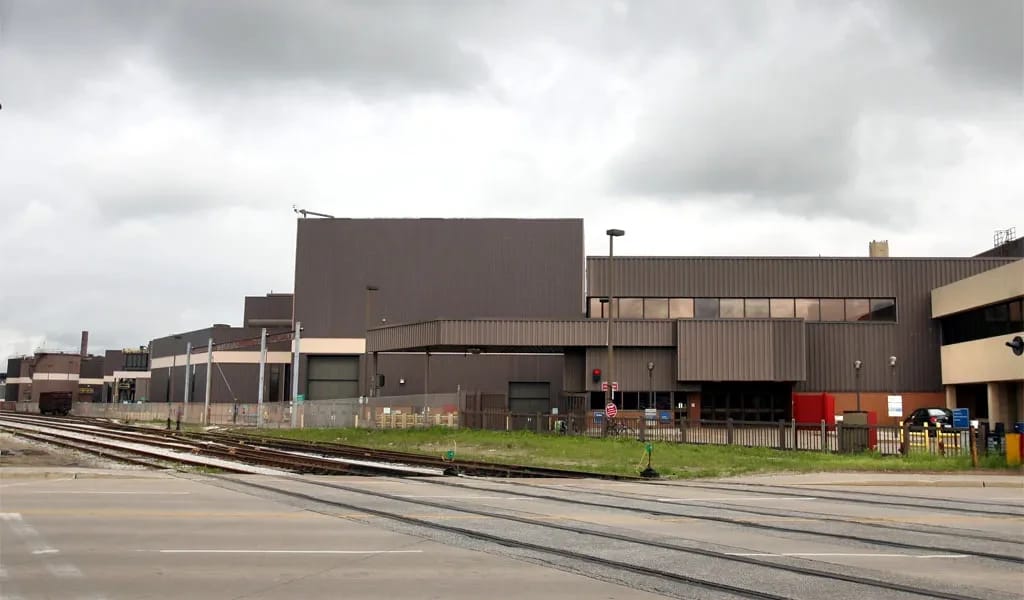

Chevrolet anticipated a demand for at least 1.2 million of the new transmissions a year; they would eventually convert three former Powerglide production lines to build TH350, one in Windsor, Ontario, the others in Parma and Toledo, Ohio. Buick planned to entirely convert its Flint transmission plant by 1970, but the changeover was gradual, so various 1969 models still offered the 2-speed Super Turbine 300. Oldsmobile and Pontiac also used the new TH350 for some models, but they bought it from either Buick or Chevrolet rather than building it themselves.
Because Buick was selling a good chunk of its initial TH350 production to other divisions, the new transmission wasn’t universally available on 1969 Buick cars, even ones that could have used it. TH350 was optional on the Skylark Custom, GS-350, California GS, and the Sportwagon with the 350 cid V-8. It was not yet available on the Special Deluxe (except California GS), base Skylark, or LeSabre (although the LeSabre could still be ordered with the four-barrel 350 and TH400 by specifying the “400” High Performance Group). The automatic GS-400 and 400 cid Sportwagon continued to offer the TH400 instead, as did the full-size Wildcat and Electra 225.

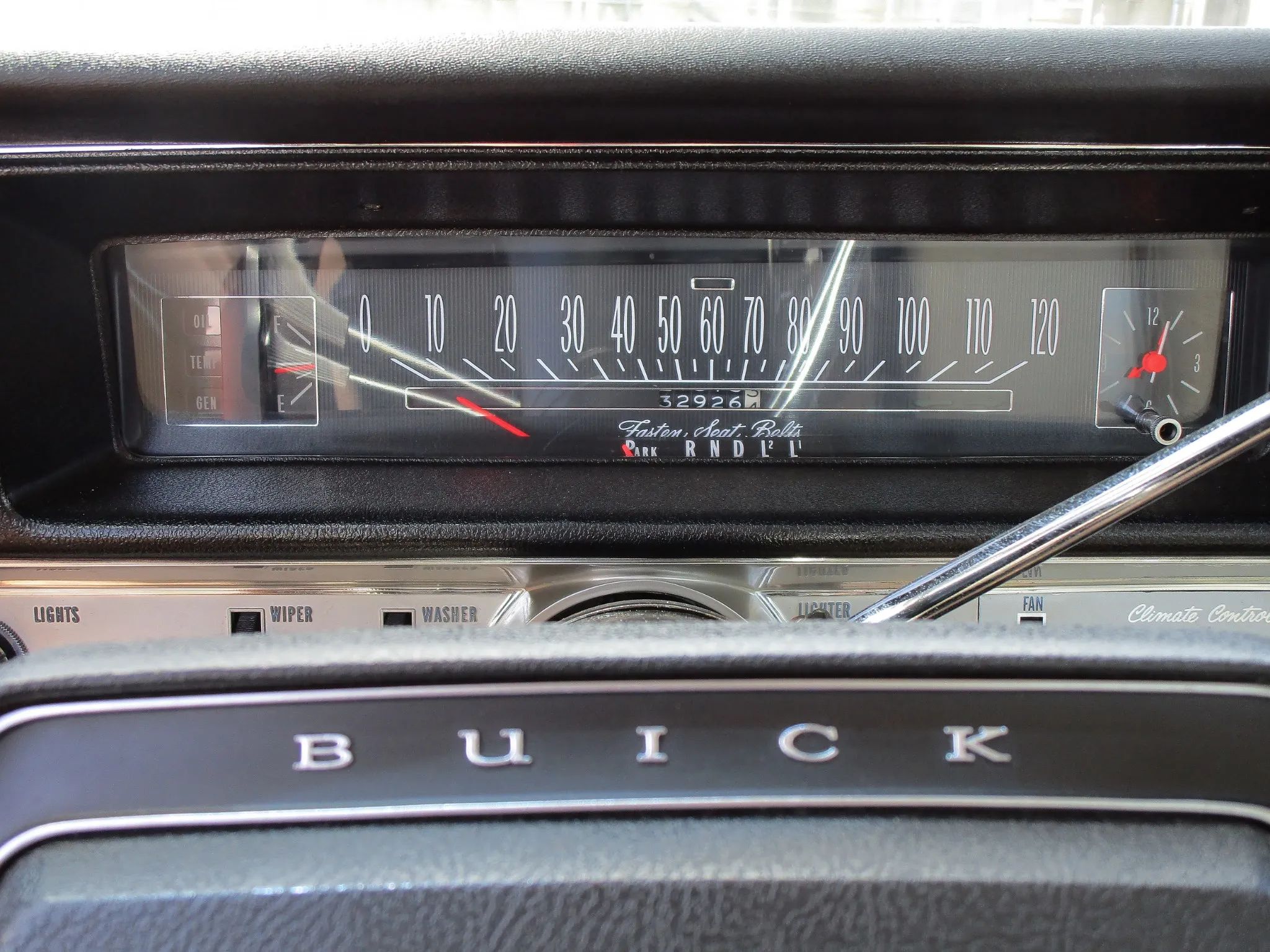

On the models where it was available, the TH350 listed for $205.92, $21.12 more than the 2-speed Super Turbine 300. It was a bargain: The 3-speed automatic’s 2.52 low gear gave much better off-the-line snap even with the 2.56 axle ratio Buick now often specified on cars with automatic. The 1.52 2nd gear also provided a gear for highway passing or mountain driving (up to about 80 mph, depending on axle ratio), something the smaller-engine GM intermediates had needed for years.
I don’t have a breakdown of how many 1969 Buicks had the TH350, but the division built 83,826 cars that could have had it, including 35,639 Skylark Custom sport coupes like this one.

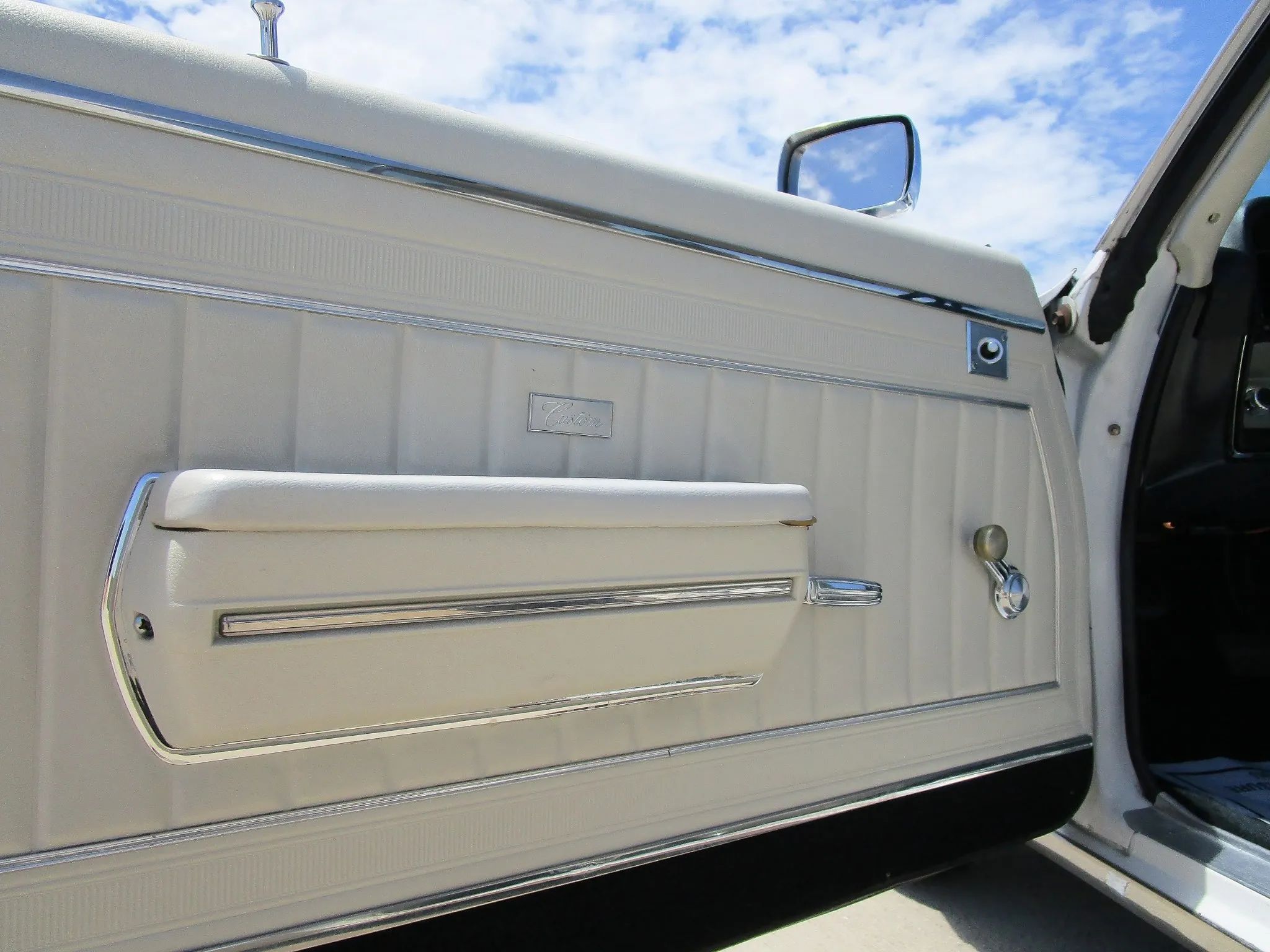

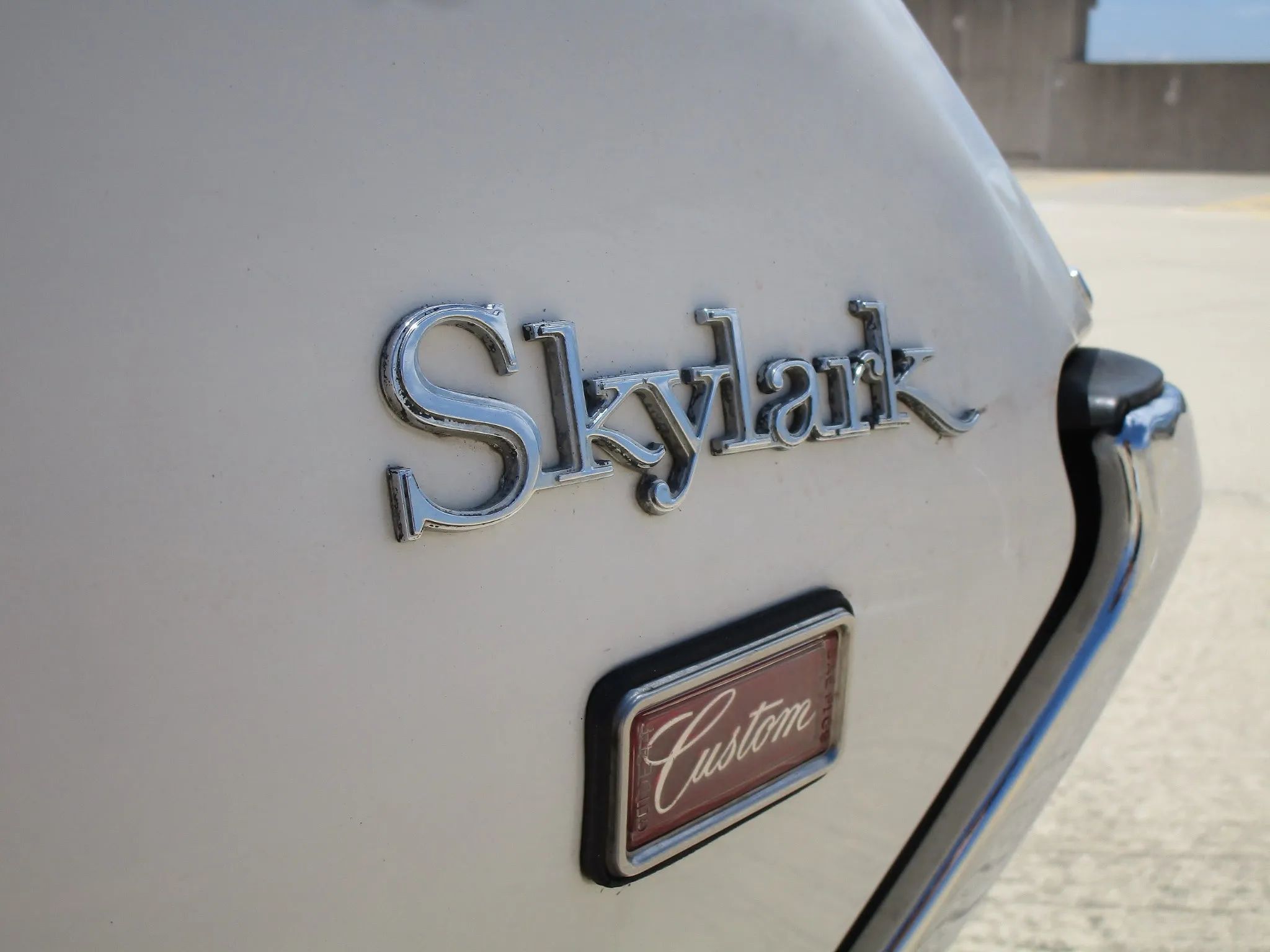

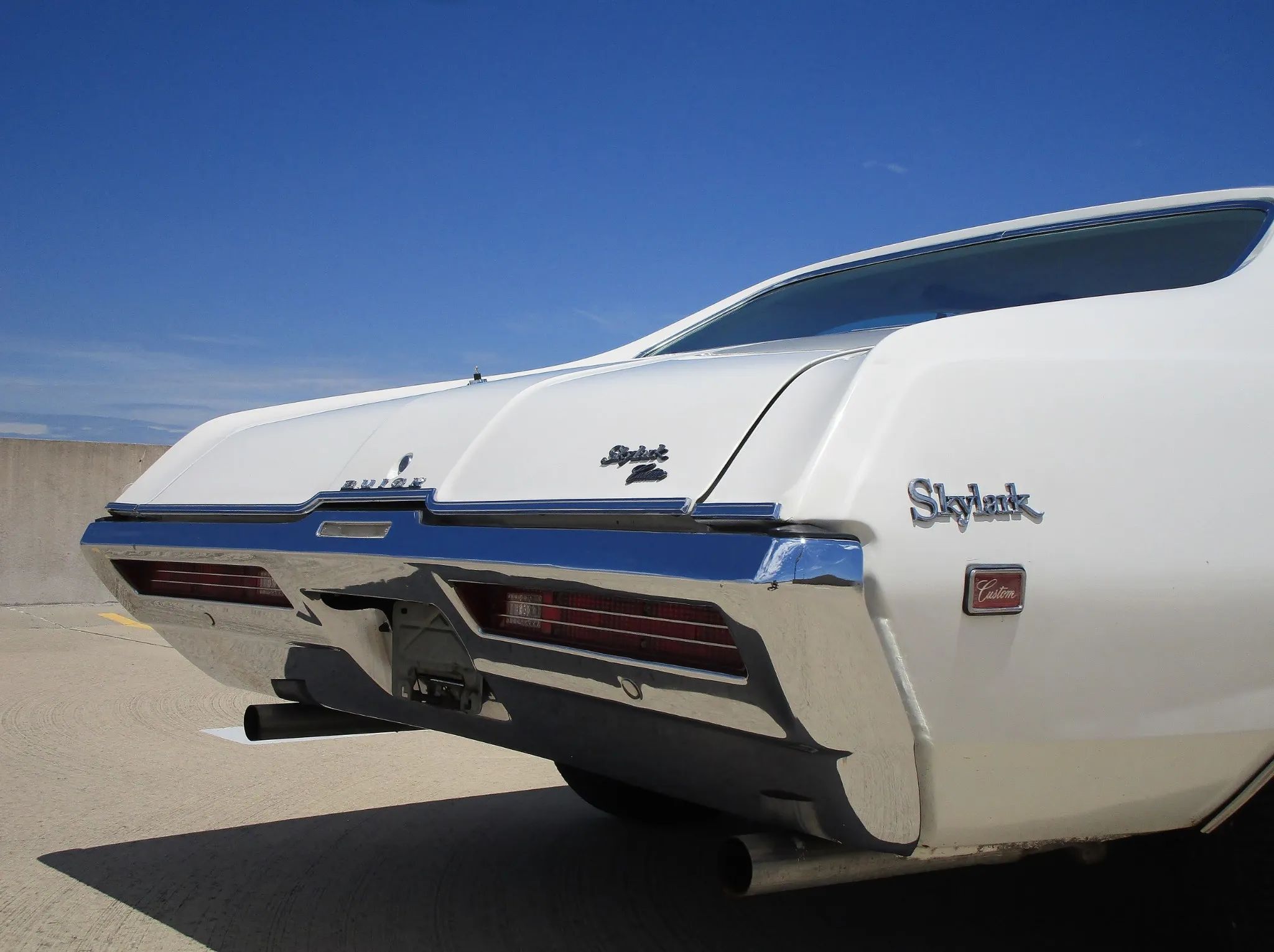

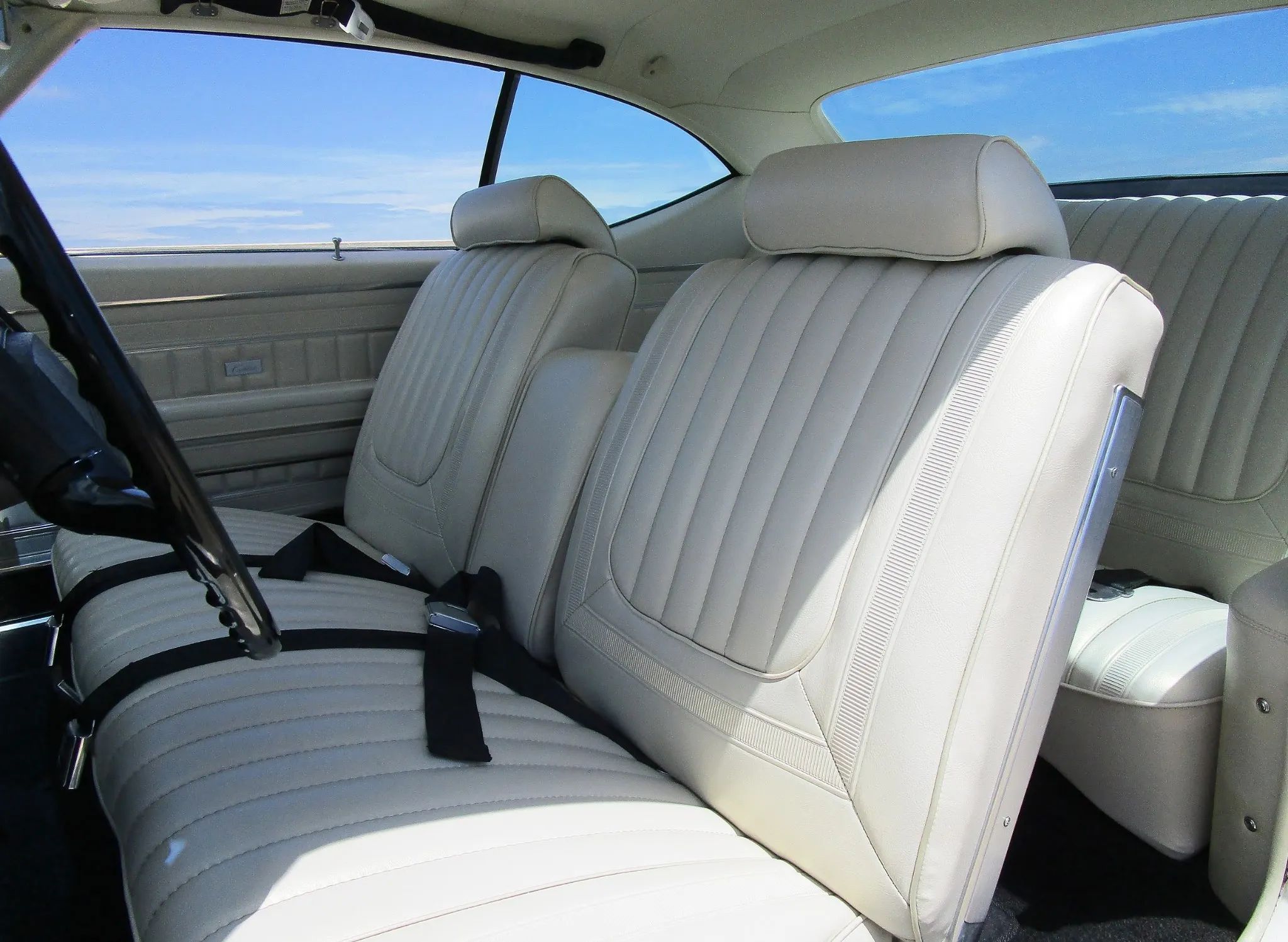

In 1969, the Skylark Custom was the plushest version of the Buick A-body intermediate line, offering a choice of expanded vinyl or Kinross cloth-and-vinyl upholstery, foam seat cushions, and fancier door trims.
I think the primary audience for the Custom was single people, many of them working women, who wanted Buick posh in an easier-to-park package.
Neither Consumer Reports nor Car Life was terribly enthusiastic about the 1969 Skylark. It wasn’t especially roomy even for four, its brakes were mediocre unless you ordered front discs (which few people did), and its fuel economy was unimpressive. Car Life said it had “a lovely ride,” but a total lack of enthusiast-type handling response and very little grip. (Interestingly, 205R14 radial tires were a factory option on the 1969 Skylark, although the test car didn’t have them, and I don’t think they were common.)

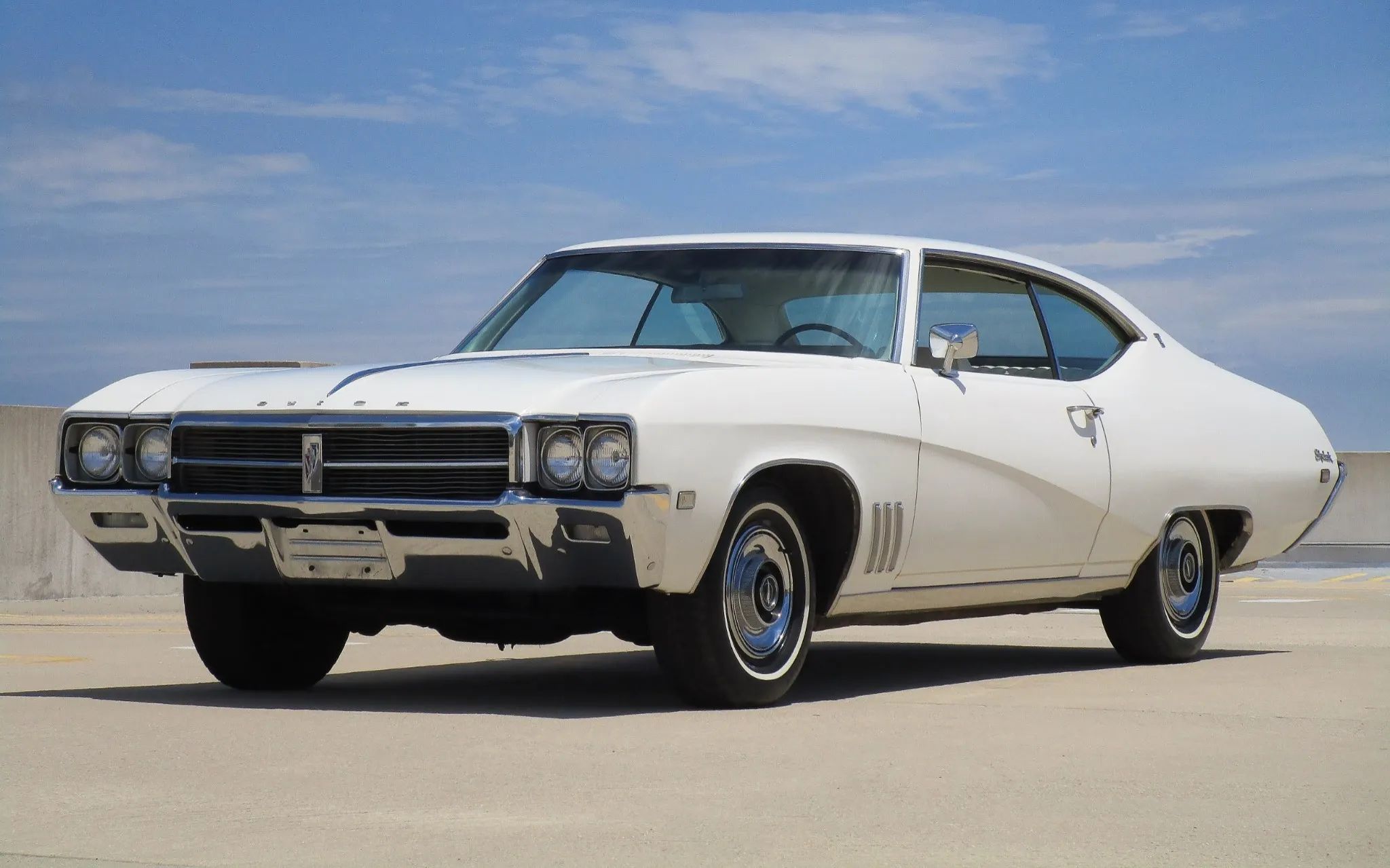

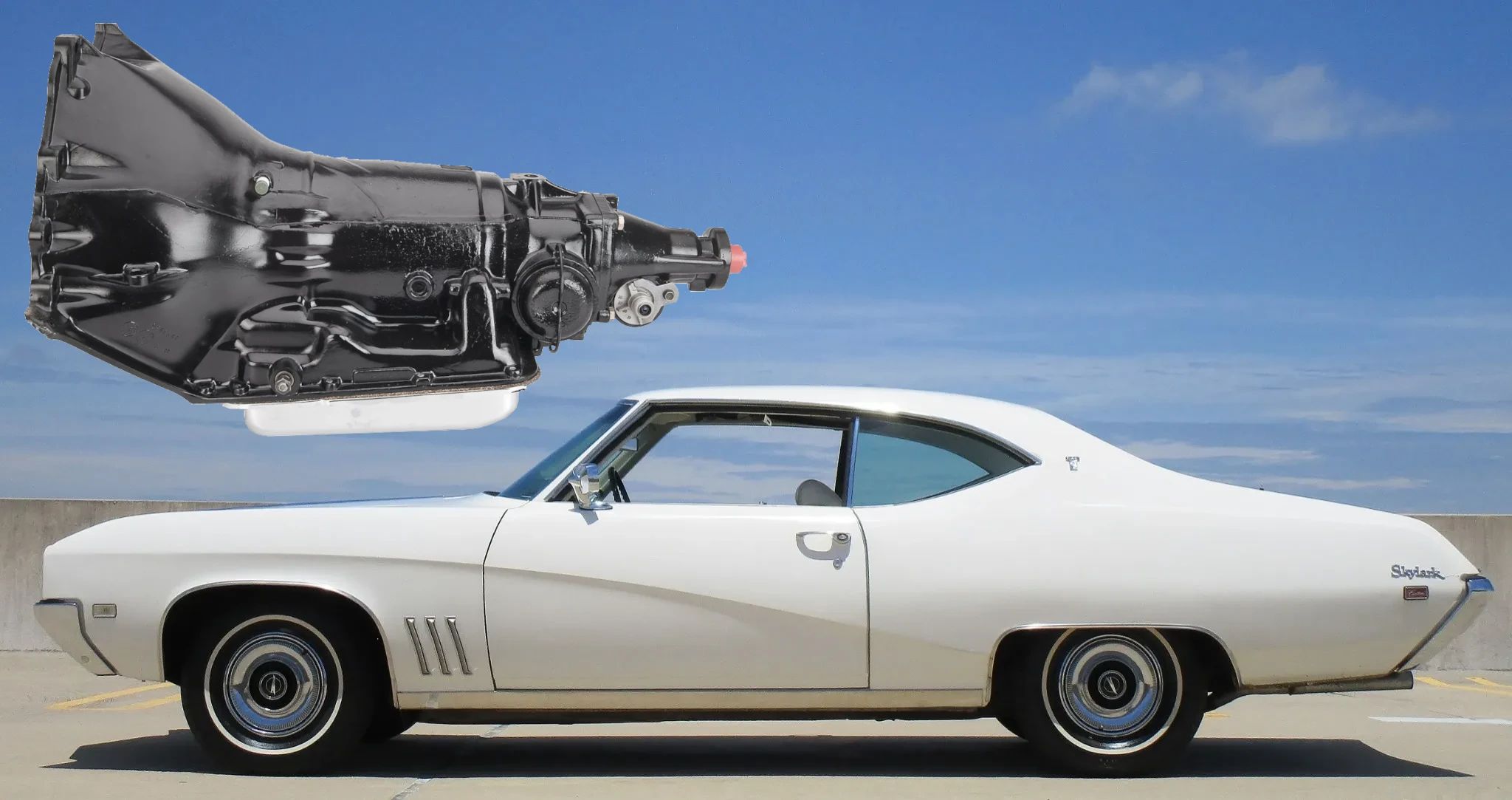

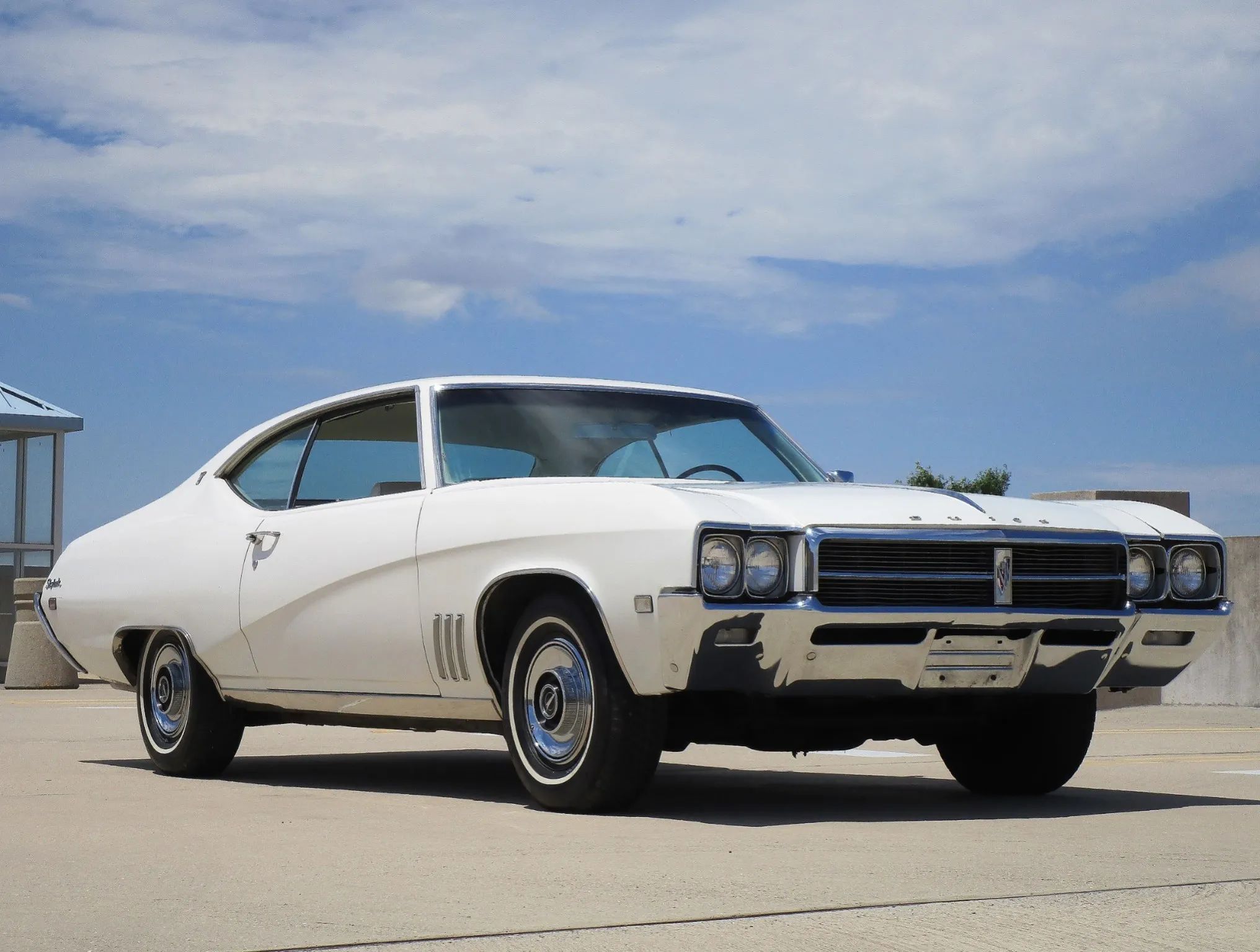

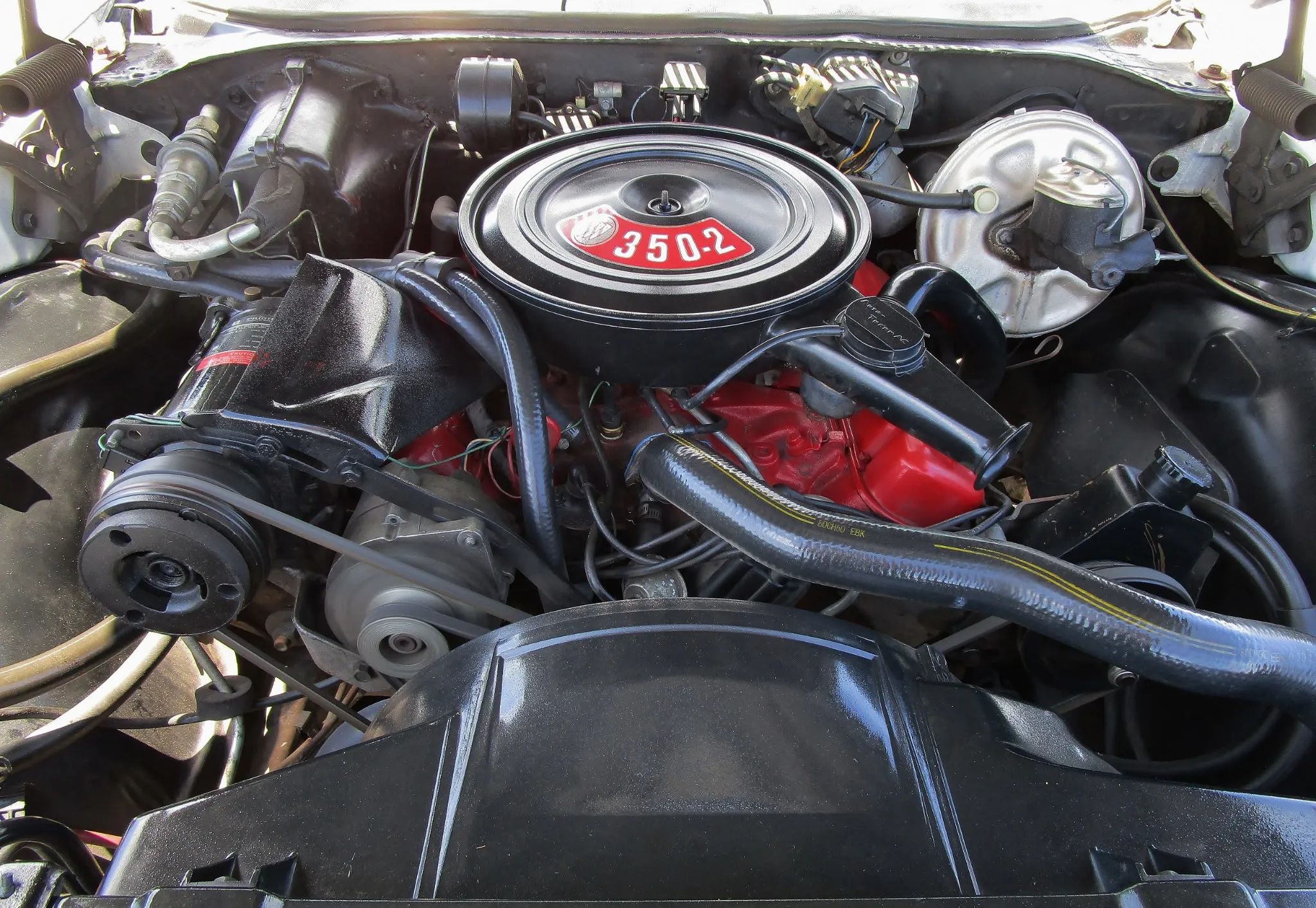

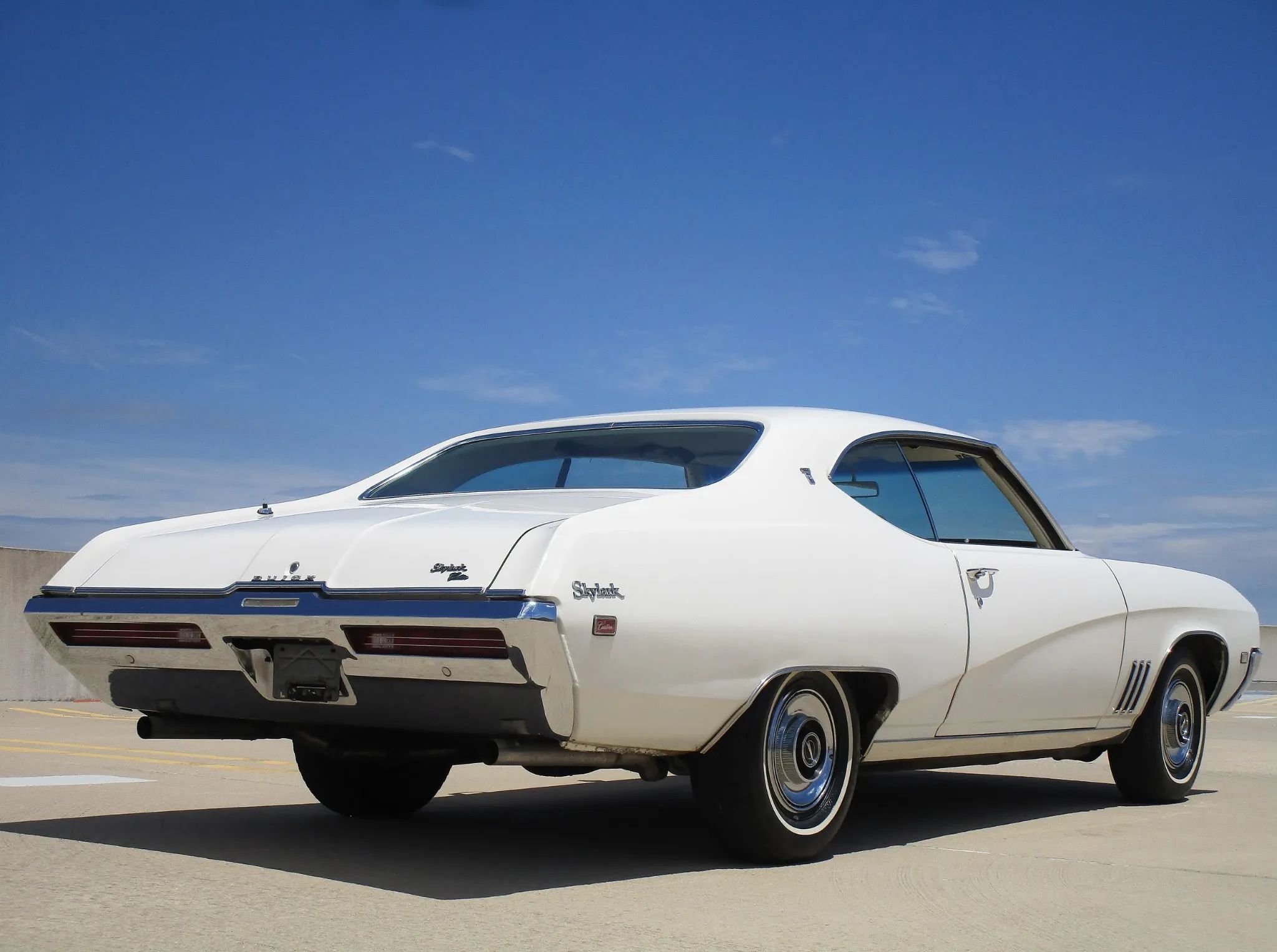

The CL car had the regular fuel 350-2 engine, also fitted to the white car pictured here, but linked to the 2-speed Super Turbine 300, which gave 0 to 60 mph in 11.6 seconds. I’d expect the TH350 to cut something close to a second off that time and allow much more confident highway passing — like I said, a real bargain for $21.12. Consumer Reports recommended it.
For 1970, the Super Turbine 300 was gone, leaving the TH350 as the sole automatic choice for most smaller-engine Buick, Oldsmobile, and Pontiac models. Chevrolet was slower to let go of Powerglide. Their representatives told Motor Trend in 1968 that they didn’t see the 3-speed automatic replacing Powerglide “in the foreseeable future,” even though they expected TH350 to outsell Powerglide by at least 2 to 1. “Market conditions can change, but we have felt there is a place for an economical 2-speed automatic transmission,” they said. I expect the bigger consideration was that Chevrolet wanted to slow-roll the tooling conversion, which was inevitably expensive. Powerglide stuck around on some models through 1973.
In the ’70s, the TH350 became a GM mainstay, used in very large numbers in more than half a dozen variants. Ron Sessions puts total production at something in excess of 32 million transmissions through 1984. The TH350 has a good reputation, and gave solid service in a wide range of applications; later light-duty Turbo Hydra-Matic variants like the TH200 had a much more checkered career.
