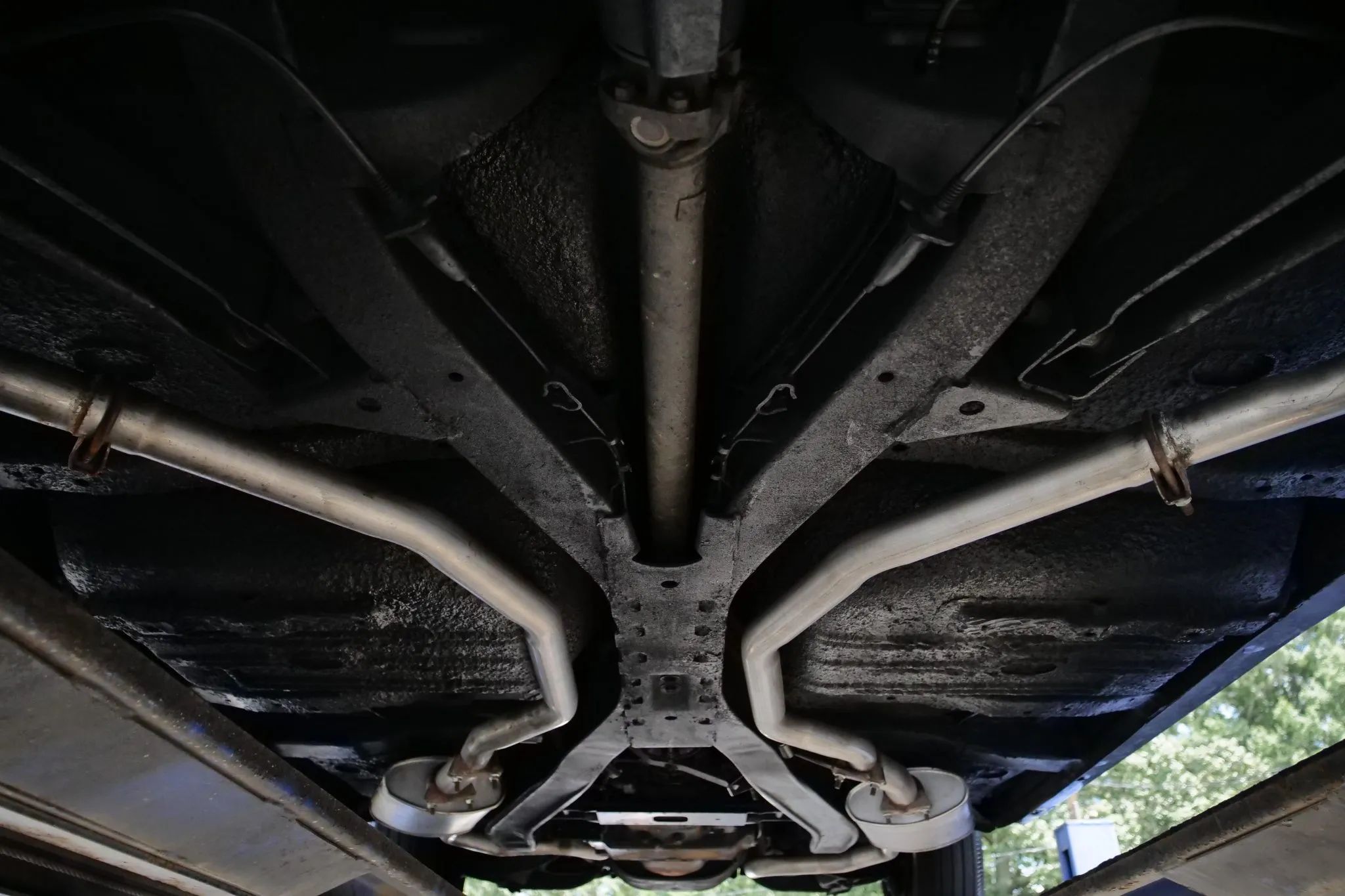

Starting in the ’50s and continuing into the 1970s, many Detroit automakers offered optional dual exhaust systems, often for surprising little money. Though long favored by hot-rodders, dual exhausts never got the same attention or the same marketing push as multiple carburetors, higher compression, and other performance features. Here’s why — and why dual exhausts were a highly worthwhile performance option despite their relative obscurity.

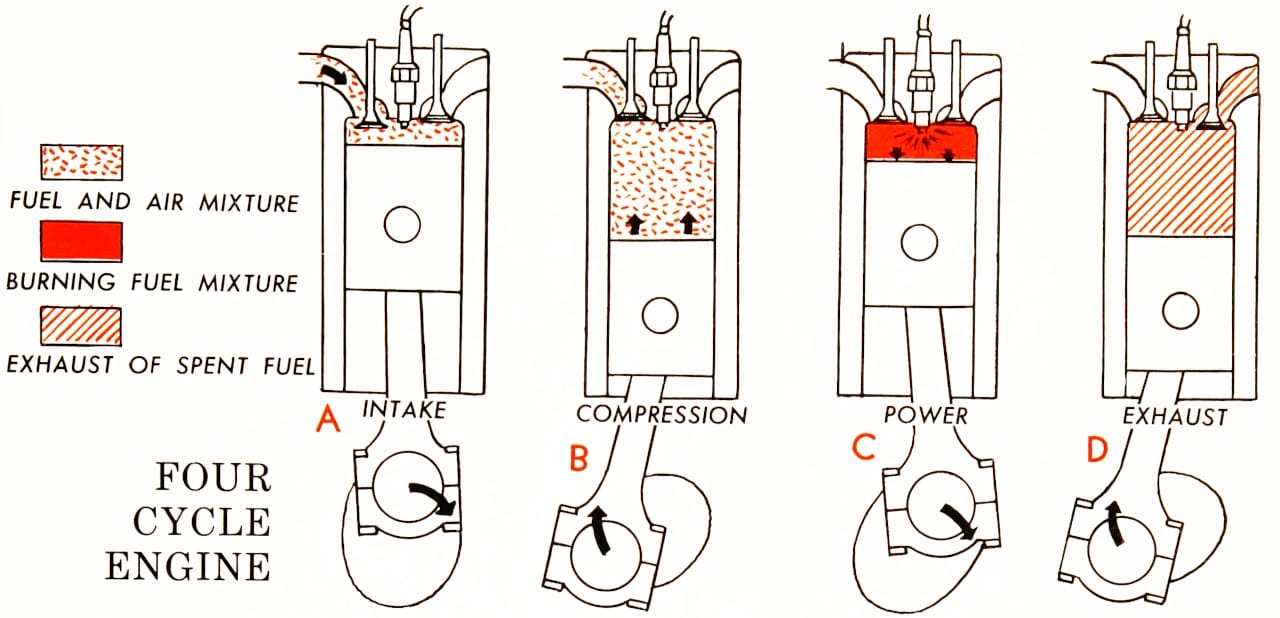

If you have even a vague idea of how internal combustion engines work, you’re probably familiar with the old aphorism that an engine is basically an air pump — the amount of power an engine can produce depends heavily on how well it can breathe. However, there’s also a flip side to that: To produce more usable power, an engine needs to be able to effectively “exhale” exhaust gases as well. Any exhaust system imposes some restriction on the exhaust gases flowing through it, and in a four-stroke engine, the pistons must work against that restriction on each exhaust stroke.

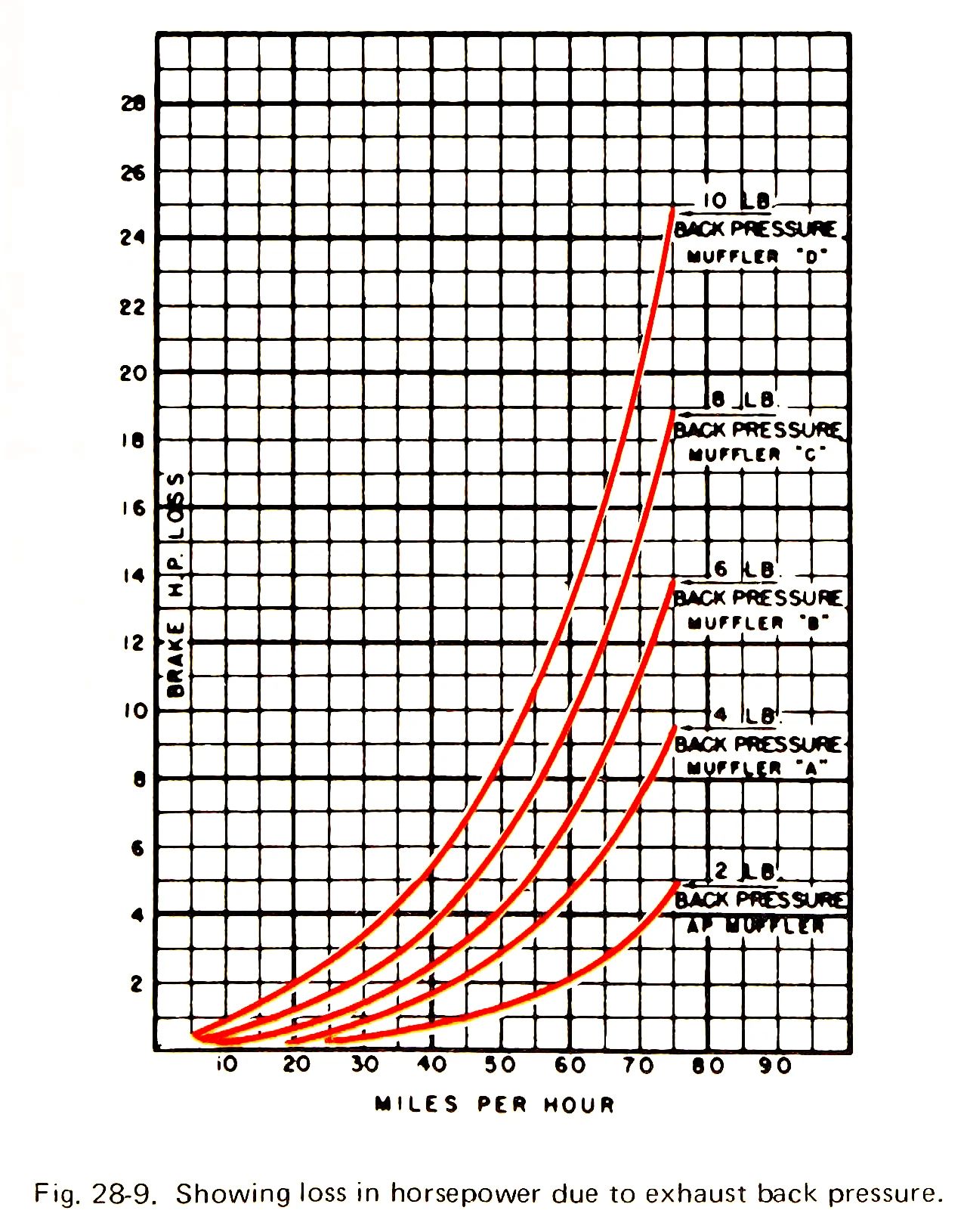

Even straight pipes create some back pressure; mufflers and catalytic converters add more, as do turbocharger turbines. As the above graph illustrates, the cost in horsepower and fuel consumption for a given back pressure increases considerably with speed, so keeping exhaust restriction to a minimum is very important for good overall performance.

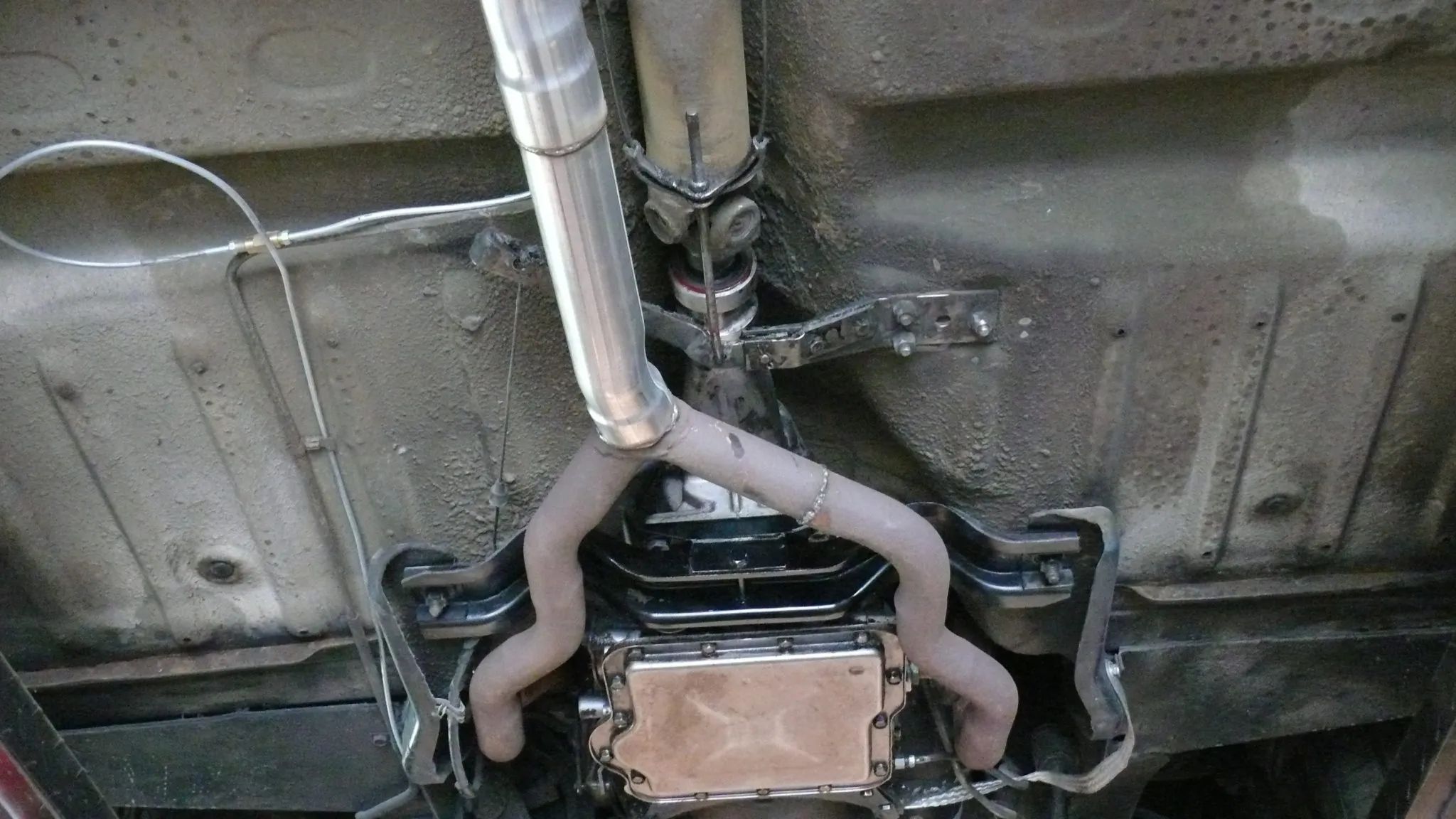

Developing low-restriction exhaust plumbing becomes more complicated with vee or horizontally opposed engines because they have more than one exhaust manifold. For cost and packaging reasons, automakers often connect both manifolds to a common exhaust pipe, which is lighter and cheaper, but imposes more restriction on the outflow of exhaust gases, much like a funnel. Moreover, many engines use an asymmetrical crossover pipe to connect the manifold on one side to an exhaust pipe on the other side, meaning that back pressure is uneven between the cylinder banks.
In general, you get significantly less back pressure if each exhaust manifold has its own exhaust pipe and own muffler(s), which can also have the advantage of allowing both sides of the exhaust system to be as close to symmetrical as possible. Dual exhaust systems are still a compromise (the pipes may still have to snake around or under other underbody components), but overall, they create less restriction than a single exhaust.
Cheap Power, Little Publicity
Dual exhaust systems are more expensive than single exhausts, for obvious reasons, but automakers have not been averse to offering dual exhaust at extra cost for buyers who wanted them, either as part of a “power-pack” package or as a standalone option.
If you ordered duals on a new car, they were often surprisingly inexpensive. For instance, while dual exhausts were standard on the pricey 1962 Oldsmobile Starfire pictured above …

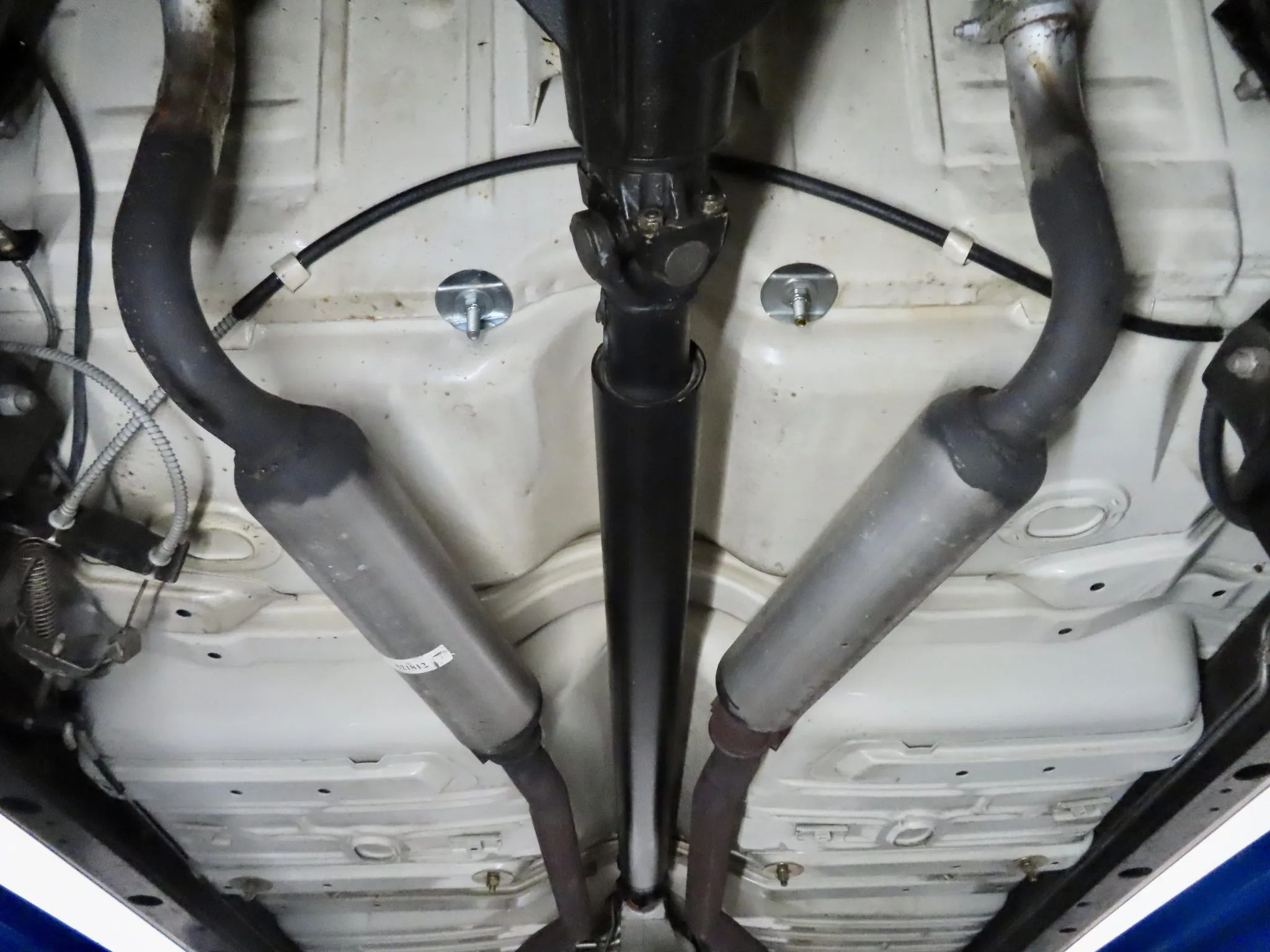

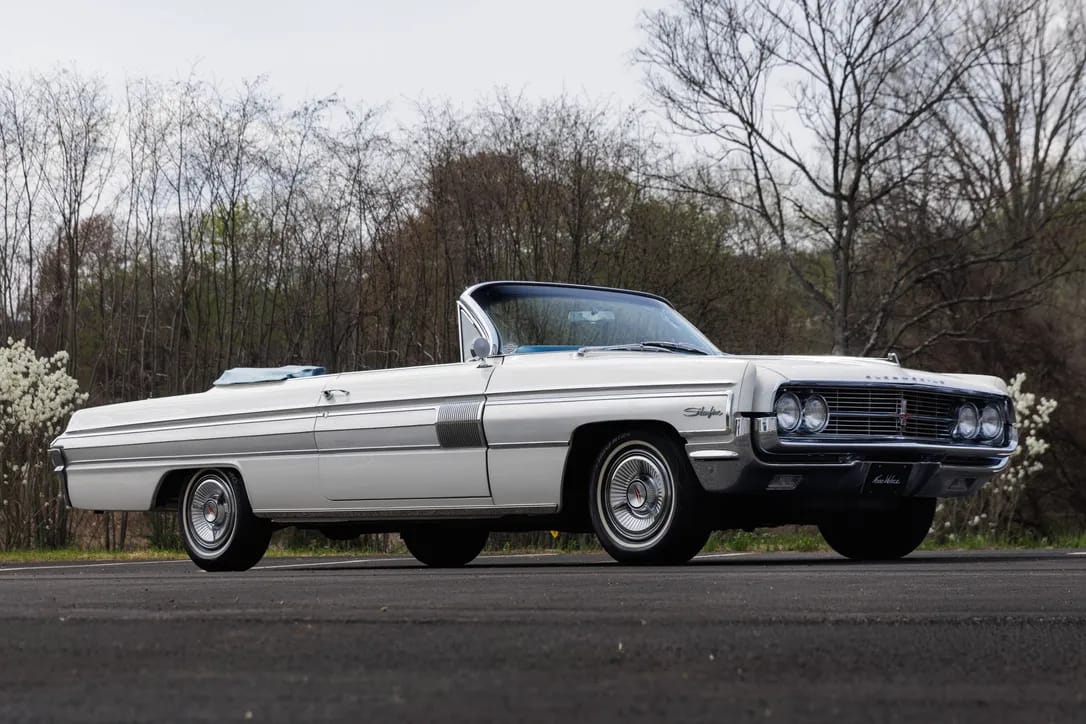

… you could also order the same dual exhaust system on most full-size 1962 Oldsmobiles for a very reasonable $26.47. A decade later, in 1972, Oldsmobile was still charging only $29.70 for the dual exhaust option, while Pontiac charged $30. Not every automaker offered dual exhausts, and they weren’t available on every car or every engine, but where they were, they were often a bargain.

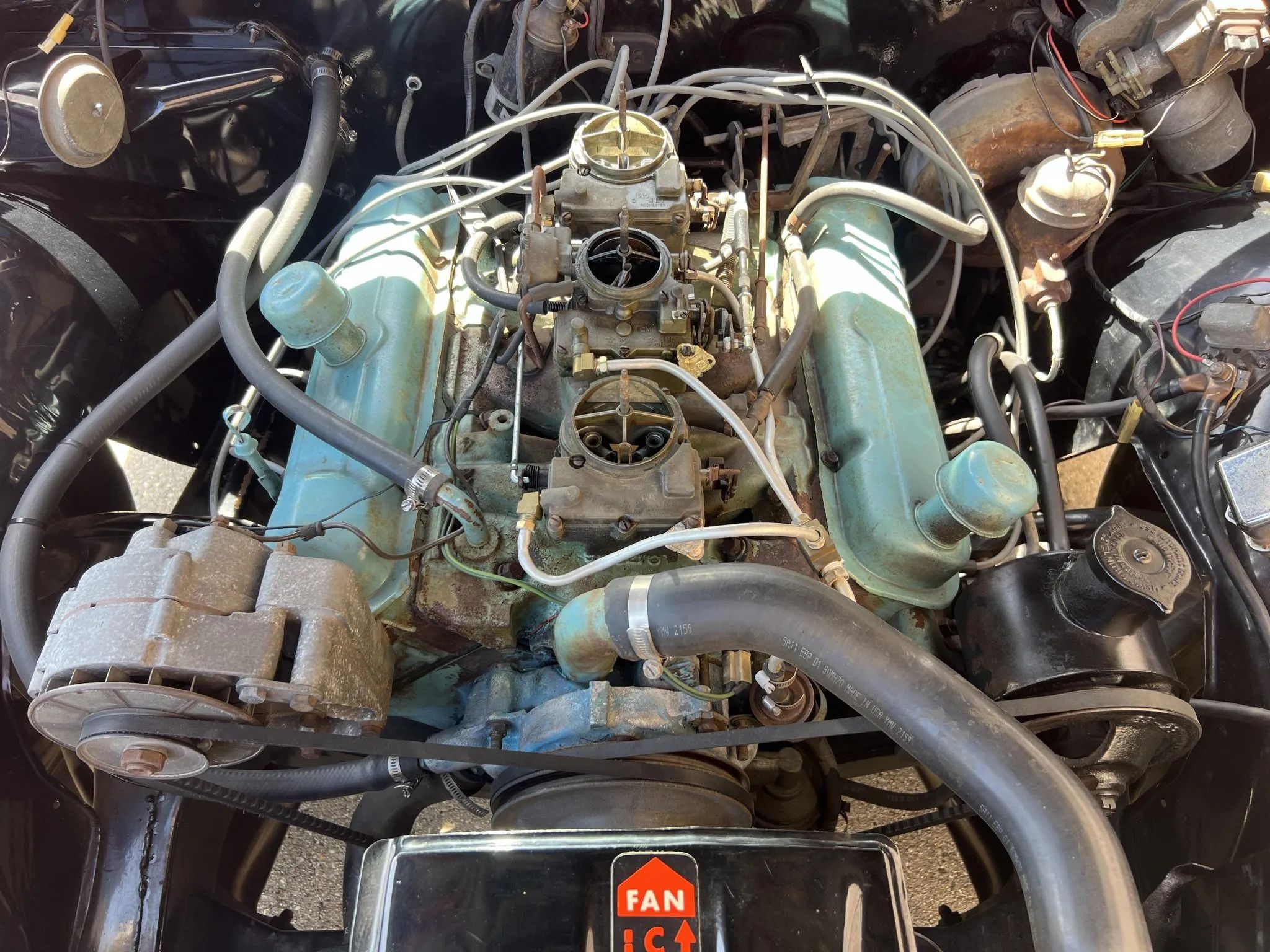

So, why didn’t dual exhausts get more attention? Even fairly casual enthusiasts have heard of special carburetion setups like the old Pontiac Tri-Power system, but I think a lot of people assumed — and still assume — that dual exhausts were basically a cosmetic option, like chrome exhaust tips. There was one big reason for that: Until the early 1970s, the power and torque increases provided by dual exhausts were not reflected in advertised horsepower ratings, at all.
Before 1972, most automakers advertised “gross” horsepower and torque ratings for their U.S. models rather than the as-installed “net” ratings cited for modern engines. Over the years, there have been a number of different engineering procedures for determining an engine’s gross output, but all of them measure power and torque WITHOUT the stock exhaust system and muffler(s). The hottest 1957 Chevrolet fuel injected 283-cid V-8, which Chevrolet famously advertised at 283 gross horsepower (1 hp per cubic inch), came with dual exhausts, but its gross output would have been the same if the “fuelie” engine had included a single exhaust with a crossover pipe, since gross ratings are determined with the stock exhaust system removed. However, single exhaust would definitely have reduced the 283 hp engine’s as-installed net power (which 1957 Chevrolet engineering specifications reveal was 240 hp).
Unfortunately, domestic automakers only rarely released net ratings before a now-obscure California law effectively forced them to, starting in 1972. A few manufacturers did occasionally publish net ratings prior to that — until 1971 (when some automakers published gross and net ratings side by side), the net figures generally weren’t advertised, but you could sometimes find them in the fine print of the detailed specifications. Unfortunately, where earlier net ratings are available, they’re usually for “power-pack” engines that also included different carburetors, higher compression, and/or different camshafts, making it hard to determine exactly how much of their extra net power was due to their dual exhausts.

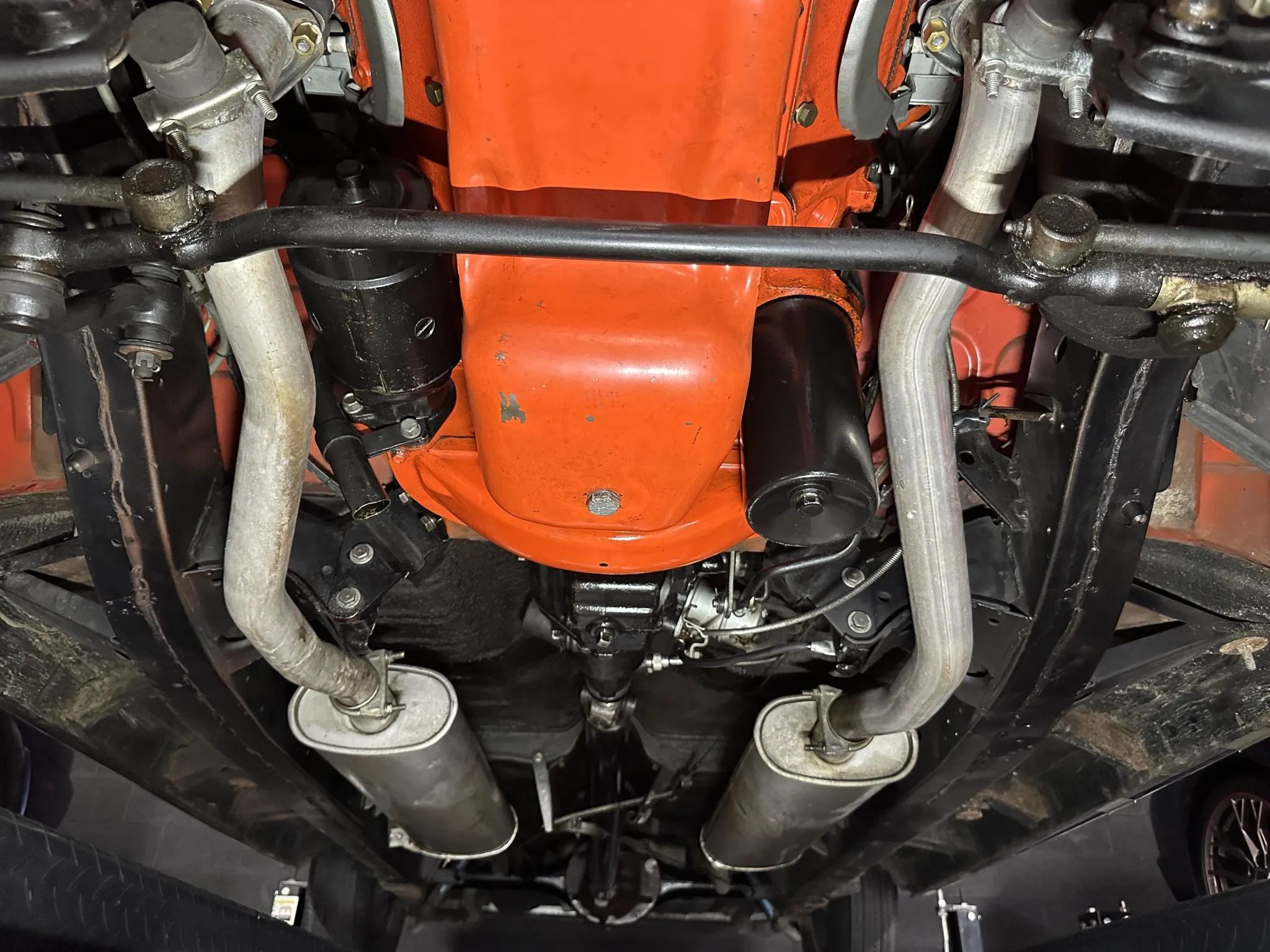

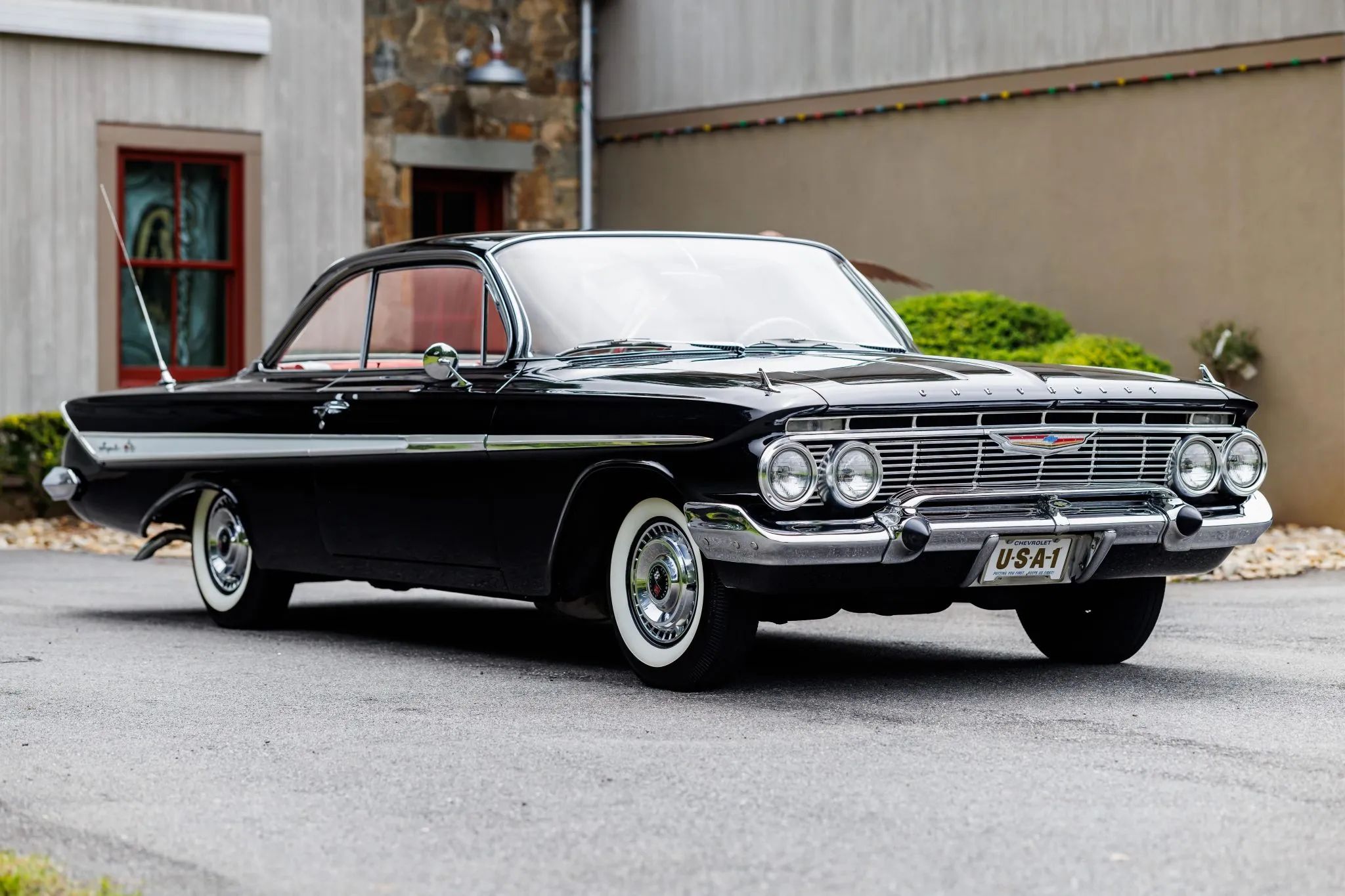

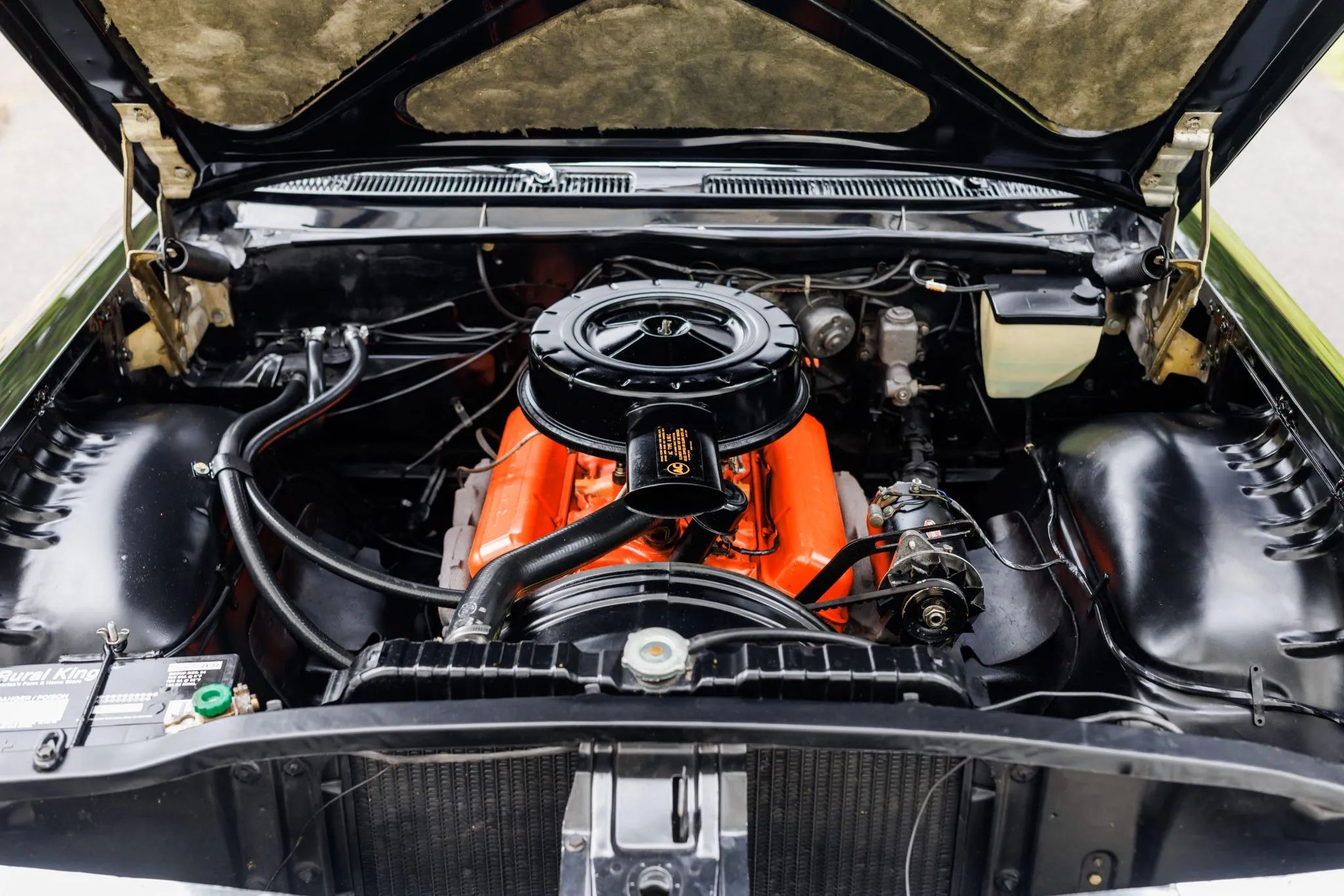

For example, in 1961, Chevrolet offered an optional Super Turbo-Fire 283 V-8 (RPO 410), which included a four-barrel carburetor, a half-point higher compression, and a slightly hotter camshaft. You could order this with dual exhausts (RPO 220) for an extra $19. Either way, Chevrolet advertised the Super Turbo-Fire at 230 gross horsepower, compared to 170 gross hp for the standard two-barrel Turbo-Fire 283. The Chevrolet specifications credit the Super Turbo-Fire engine with 175 net horsepower, compared to just 135 net hp for the standard 283.
It’s very likely that the net ratings Chevrolet published for the Super Turbo-Fire engine were taken with dual exhausts (I don’t think the cam, carburetor, and higher compression would add up to 40 net hp). However, Chevrolet didn’t specify one way or the other, and estimating how much of the RPO 410 engine’s 40 hp edge over the standard two-barrel 283 could be attributed to each of the Super Turbo-Fire engine’s other features is a matter of guesswork.

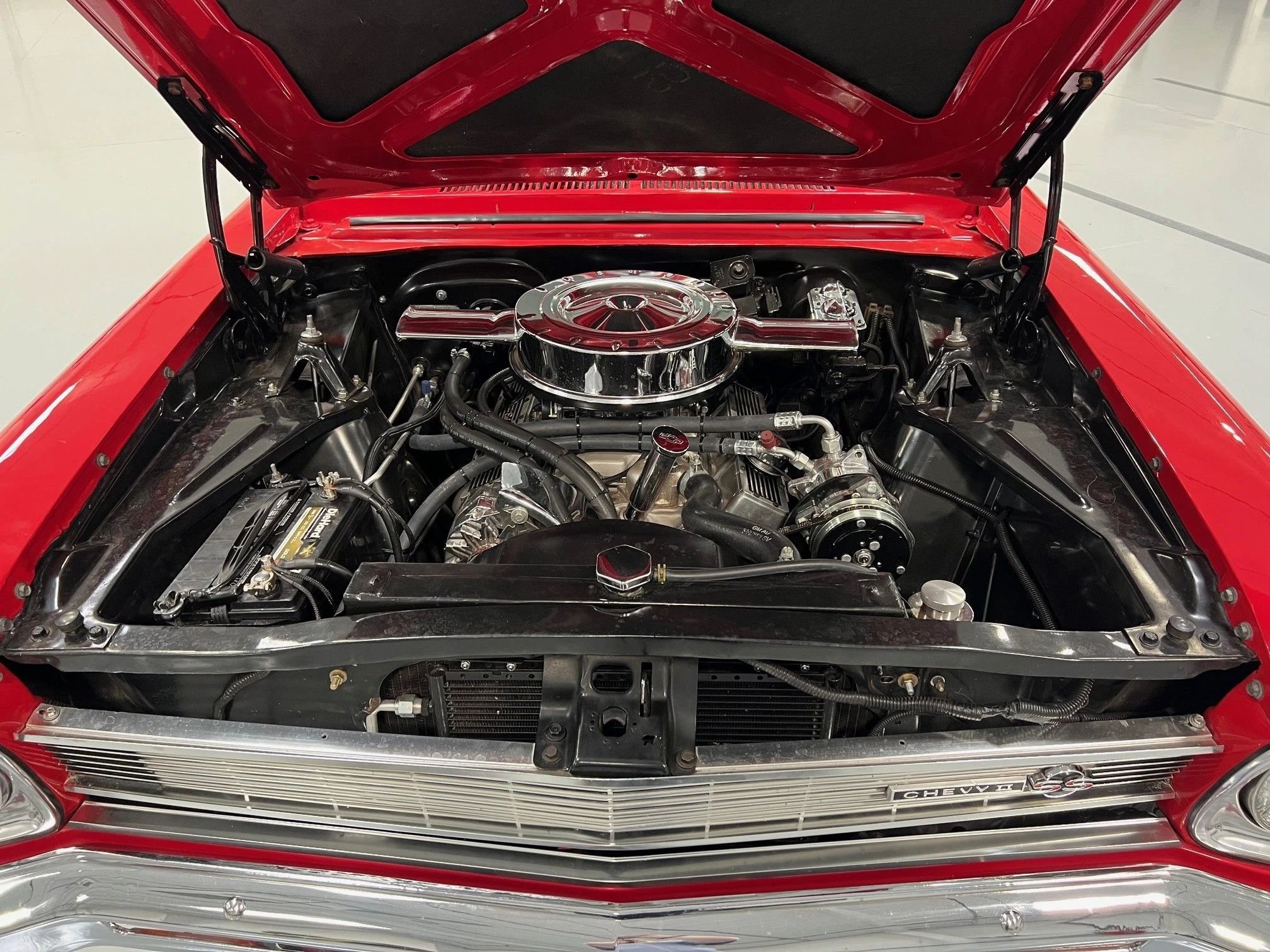

As Paul has previously discussed, the one-year-only 1966 L77 version of the Chevrolet 283-cid V-8 at least reduced this ambiguity. The L77 had the same compression ratio and valve timing as the 1966 two-barrel Turbo-Fire 283 — as far as I can see from the specifications, it really only differed in its four-barrel carburetor and standard dual exhaust system.
Chevrolet advertised the L77 at 220 hp gross, compared to 195 hp for the two-barrel 283, a difference of 25 hp. However, the difference in their net ratings was actually even bigger than that: According to Chevrolet factory data, the L77 had 185 net hp, compared to just 150 net hp for the standard two-barrel engine, a difference of 35 hp. Some of the L77 engine’s advantage was due to the four-barrel carburetor, but in as-installed net terms, the L77 engine was even more powerful than the standard 283 than the advertised ratings suggested, thanks to its dual exhausts.
You can see the dilemma for manufacturers: Dual exhausts provided a significant edge in real-world power, but as long as the industry remained committed to advertising gross ratings, the advantages were basically invisible. Because net ratings are always lower than gross ratings for a given engine, no automaker wanted to be the first or only one to adopt them for advertising purposes.

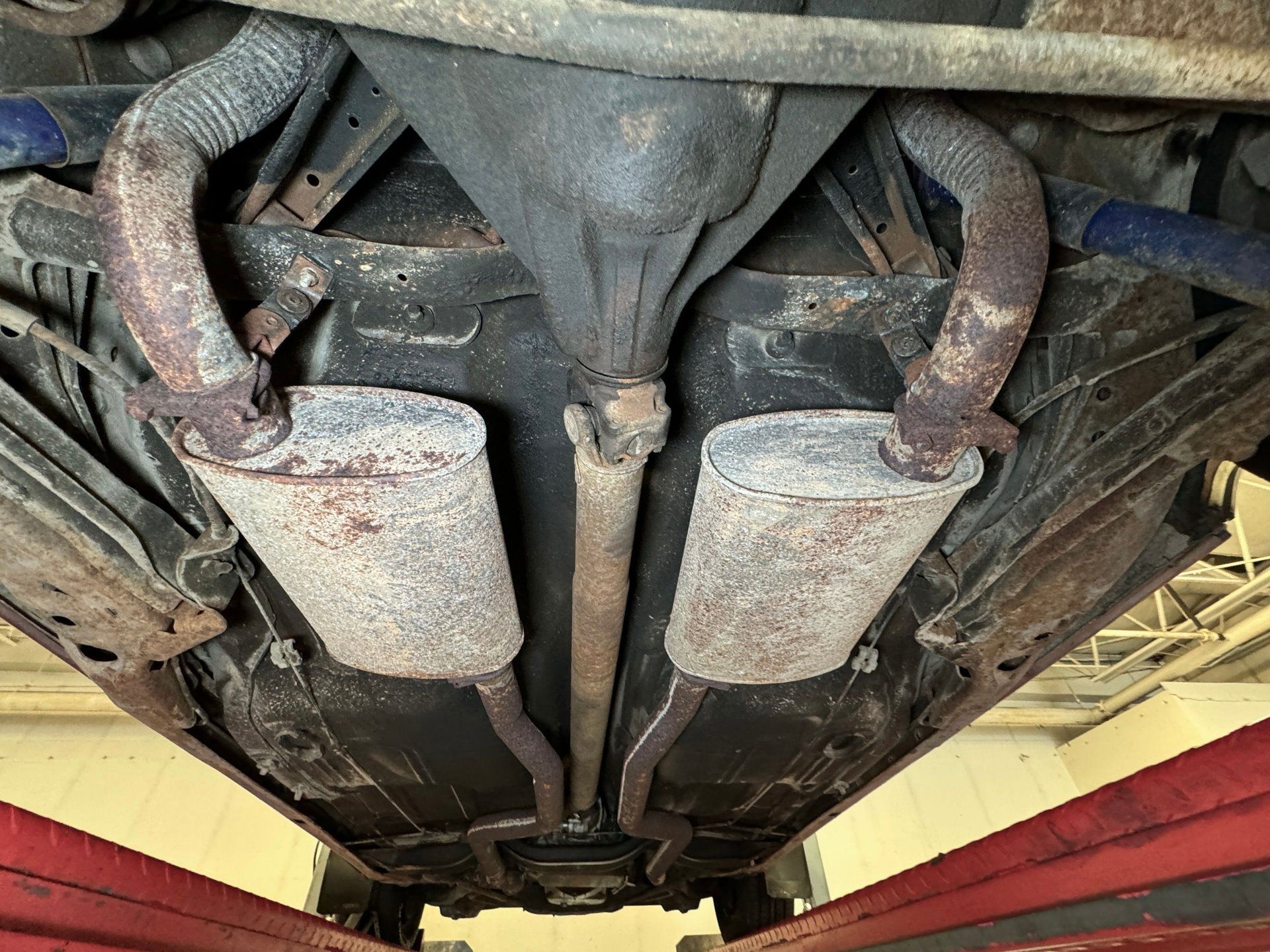

It wasn’t until the industry-wide adoption of net ratings for 1972 that the benefits of dual exhausts became a little clearer. Here are some comparative figures showing how much dual exhausts were worth on some 1973-model GM V-8 engines:
- Buick 350-4V: 175 hp/270 lb-ft single exhaust; 190 hp/285 lb-ft dual exhaust — GAIN: 15 net hp
- Buick 455-4V: 225 hp/360 lb-ft single exhaust; 250 hp/375 lb-ft dual exhaust — GAIN: 25 net hp

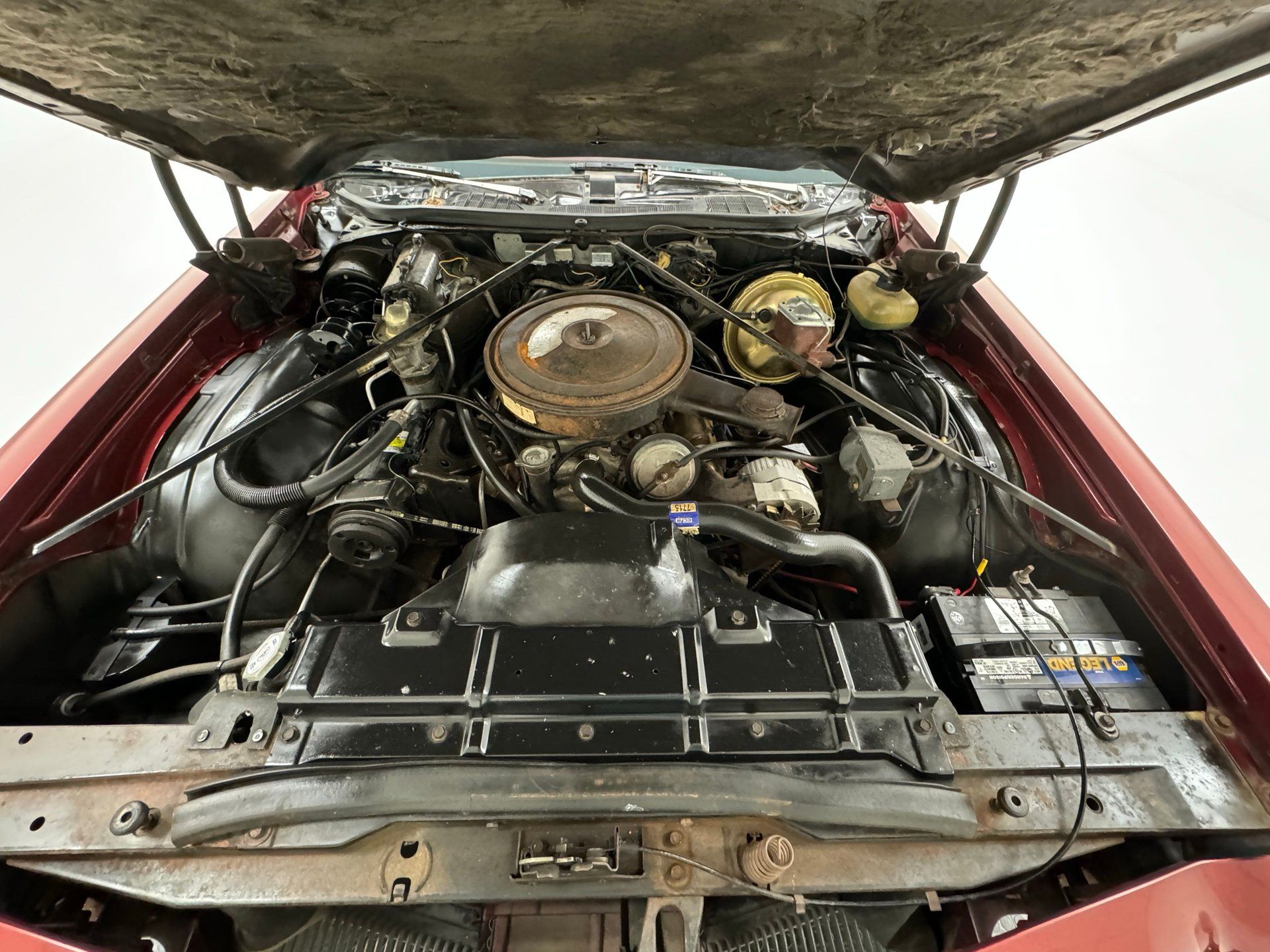

- Oldsmobile 350-4V: 180 hp/275 hp single exhaust; 200 hp/300 lb-ft dual exhaust — GAIN: 20 net hp
- Pontiac 350-2V: 150 hp/270 lb-ft single exhaust; 175 hp/280 lb-ft dual exhaust — GAIN: 25 net hp
- Pontiac 455-4V: 215 hp/350 lb-ft single exhaust; 250 hp/370 lb-ft dual exhaust — GAIN: 25 net hp
Unlike many previous power-pack engines, the power and torque gains listed above were due entirely to the dual exhausts. For an option price of only about $30, you’d be VERY hard-pressed to find a greater performance value than that! While comparable figures for older models are hard to come by for the reasons I explained above, there’s no reason to assume dual exhausts weren’t just as beneficial for earlier engines.
On top of that, dual exhausts were really more useful for normal street use than other common hop-up techniques. For street driving, it’s very easy to end up with way too much carburetion; increasing spark advance or compression can cause ruinous detonation; and without variable valve timing, a hotter camshaft tends to lose at the low end what it gains at higher RPM. Dual exhausts, in contrast, give even mildly tuned engines perceptibly more pep, with few real drawbacks other than a couple of extra pounds, a little more exhaust noise, and the added cost of eventually replacing two rotted-out mufflers rather than one.
Dual Exhausts in the Age of Catalytic Converters
The age of cheap dual exhausts hit a snag in the mid-’70s with the adoption of catalytic converters for emissions control. A catalytic converter, especially an early one, adds some back pressure, but it’s not an insurmountable problem; there are low-restriction catalysts that pose no great performance penalty. The bigger issue is routing the exhaust flow to and from the cat, and deciding whether the market will bear the cost of multiple catalysts. If not, the catalytic converter can become a bottleneck.

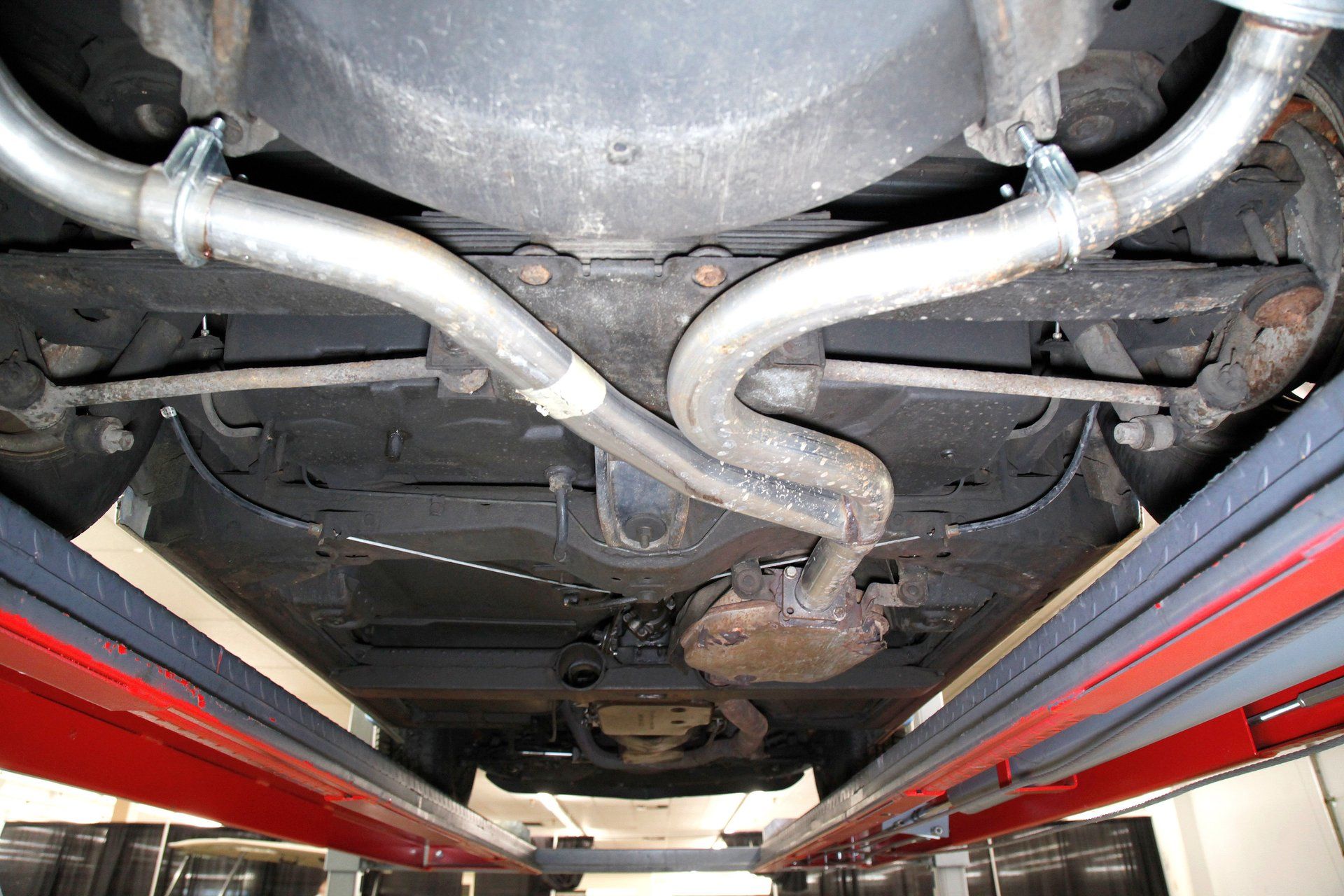

One of the most notorious examples was the 1975 Chevrolet Corvette. Previously, even the mildest Corvette engines had come with dual exhausts, which had given them excellent street performance and enabled them to consistently punch above their weight (and rated gross outputs). For 1975, the ‘Vette got a new single-catalyst exhaust system with a crossover pipe and single exhaust pipe ahead of the catalytic converter, and a single pipe branching out into separate mufflers and outlets behind the cat. Chevrolet still called this dual exhausts, but it wasn’t, and it cut the output of the four-barrel 350-cid L48 engine to a mere 165 net hp for 1975. For subsequent years, Chevrolet was able to make up some of the lost power elsewhere, but the restrictive exhaust system remained through the rest of the C3 generation.
By the mid-1980s, the costs had come down enough that true dual exhaust systems were again available — typically on sportier models, but sometimes in some unexpected places. For instance, the Ford LTD Crown Victoria and Mercury Grand Marquis could have dual exhausts as part of the trailer-towing package. Ford didn’t consistently quote a separate power output for the 302 with duals in these Panther-platform full-size cars, but in the years when they did, the dual exhaust system was worth an extra 15 hp and 15 lb-ft of torque. Dual exhausts were also added to the hotter versions of the 302 offered in the Ford Mustang and Mercury Capri, contributing to that engine’s march past the 200 hp mark.

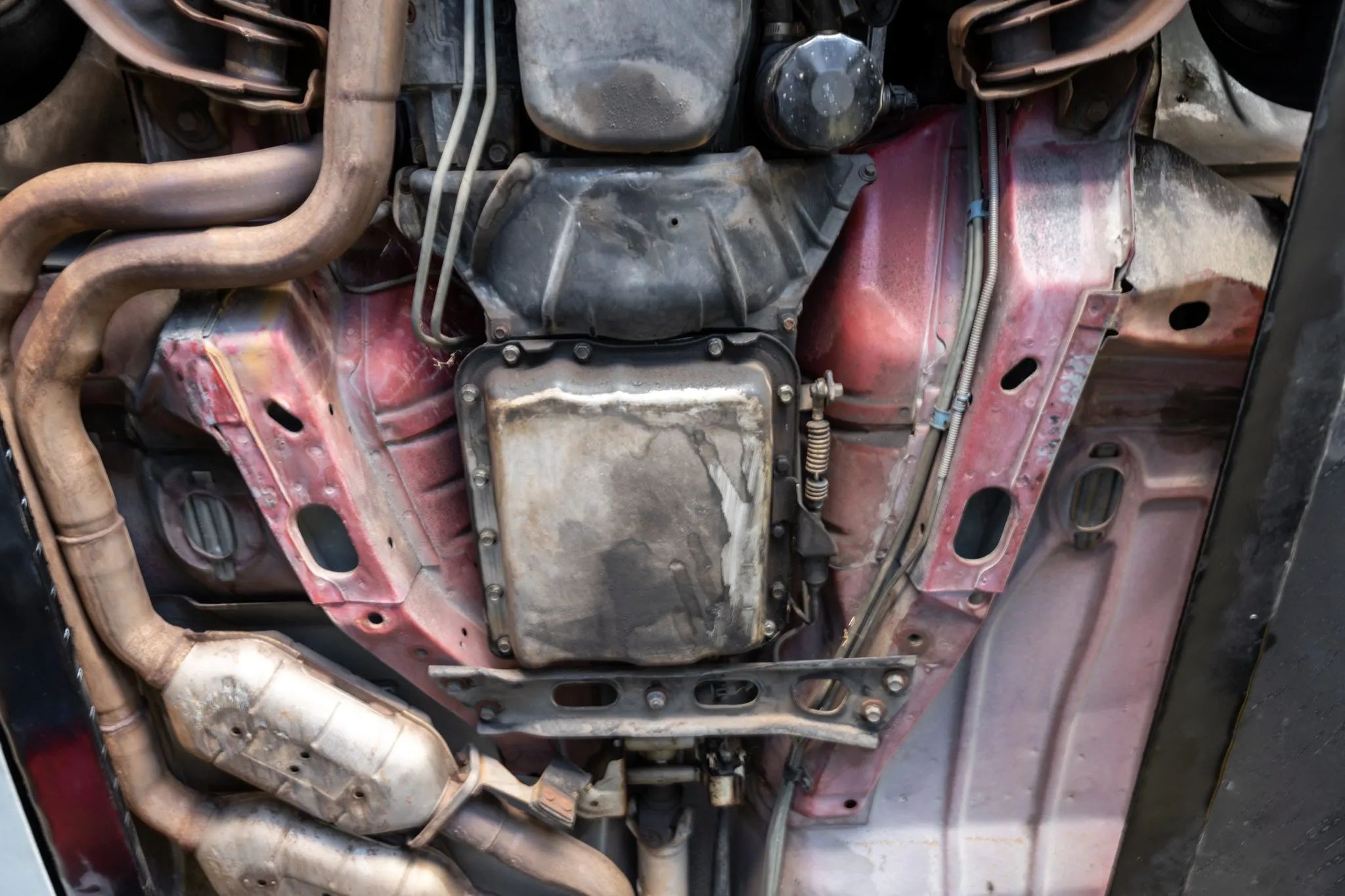

Starting in the late ’80s, some Camaro and Firebird engines also gained a dual converter exhaust system.
The N10 dual converter exhaust system on the F-bodies was theoretically a separate option (costing $155 in 1989, later rolled into option groups that also included features like an engine oil cooler), but it was required with certain of the hottest V-8 engines, frustrating direct comparisons. However, broadly speaking, the duals were worth between 10 and 20 horsepower compared to the earlier single-exhaust versions.

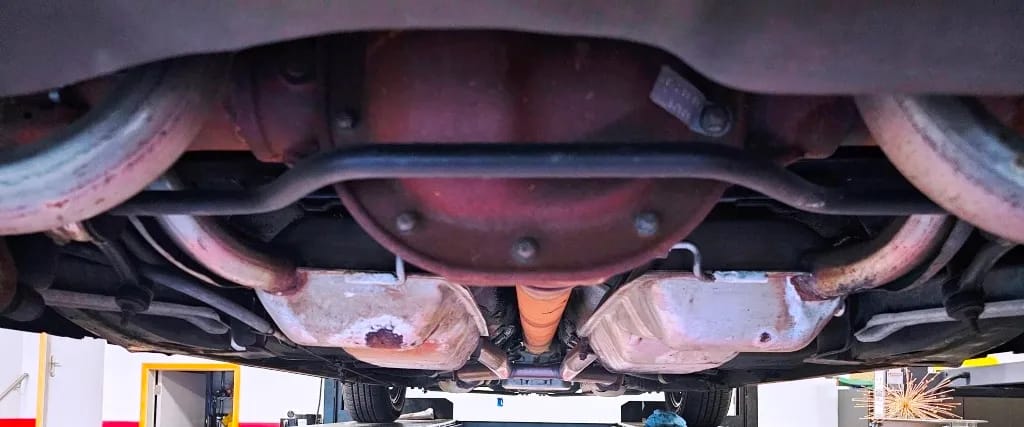

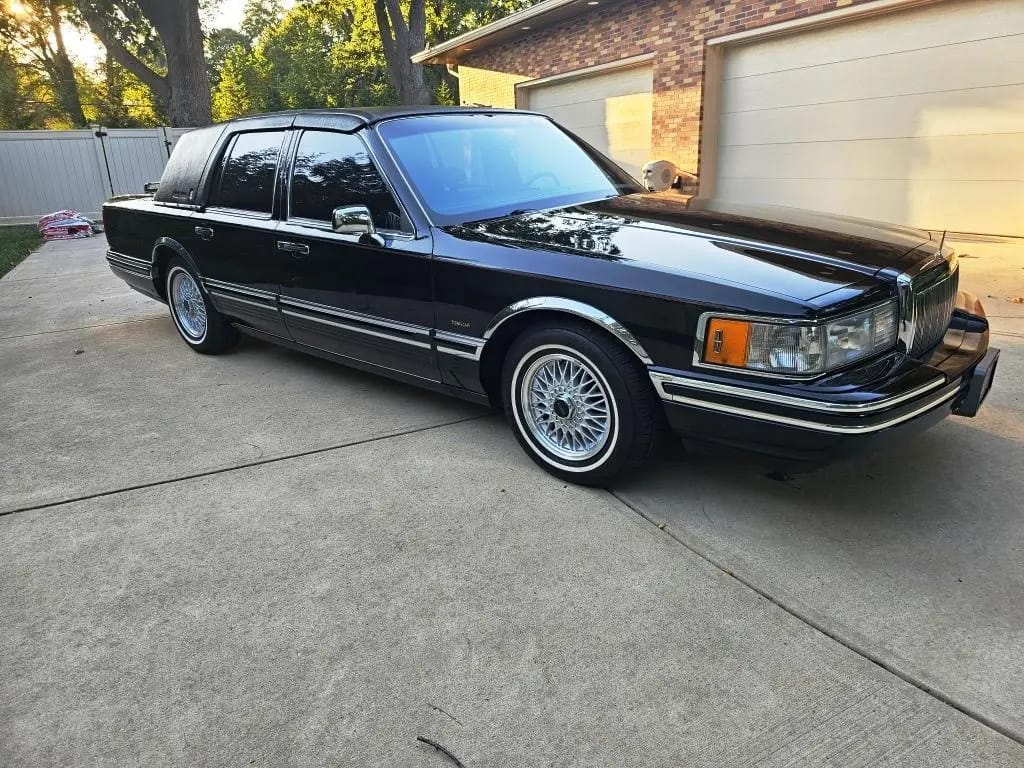

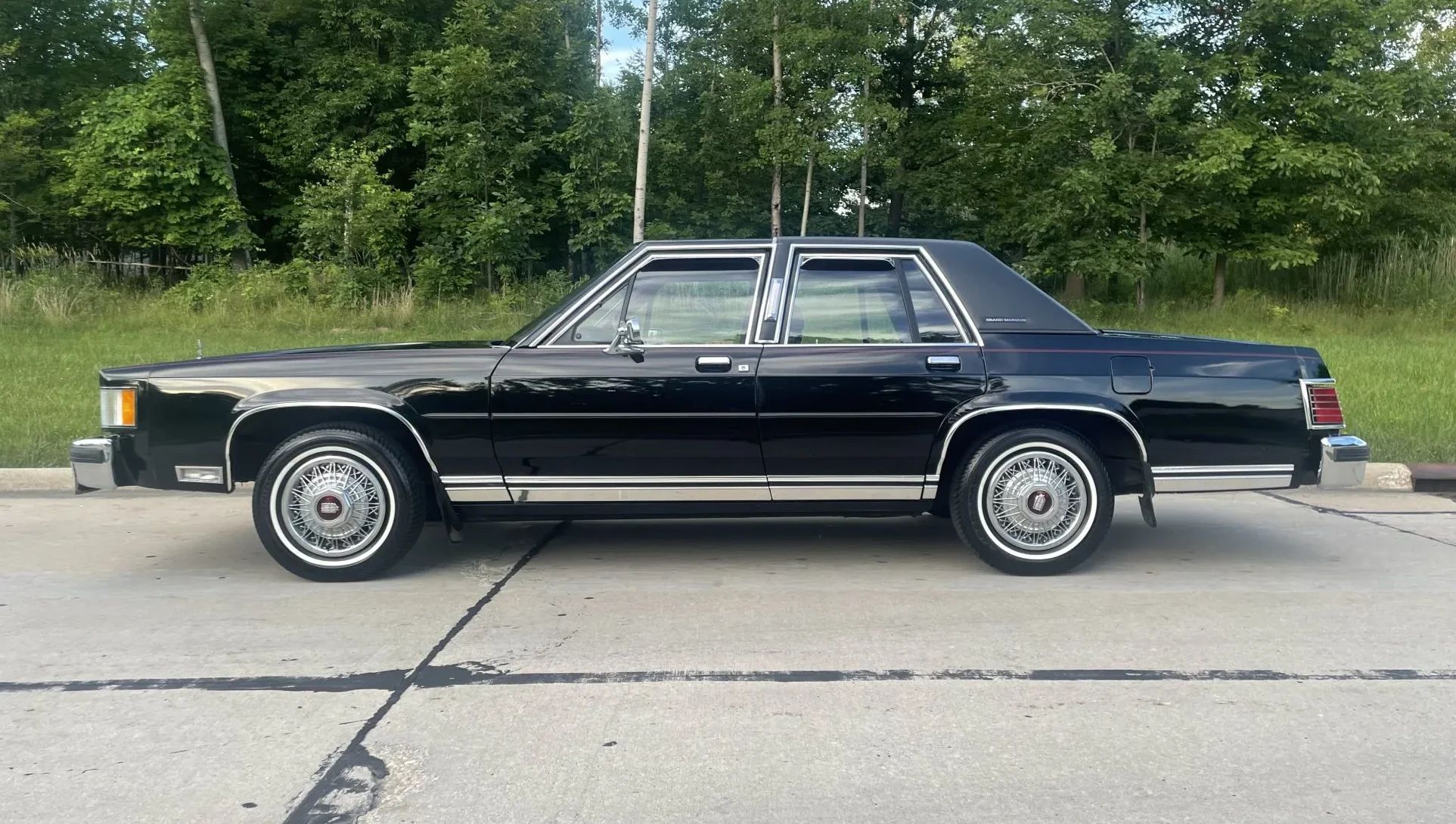

From 1991, the new Ford 4.6-liter modular V-8 in the Town Car could be ordered with either single exhaust, with 190 hp and 260 lb-ft of torque, or dual exhausts, with 210 hp and 270 lb-ft. The dual exhaust system cost a mere $83 on a 1991 or 1992 Town Car. (You could also get dual exhausts on the same engine in the redesigned Ford Crown Victoria and Mercury Grand Marquis starting in 1992, though not as a standalone option.)

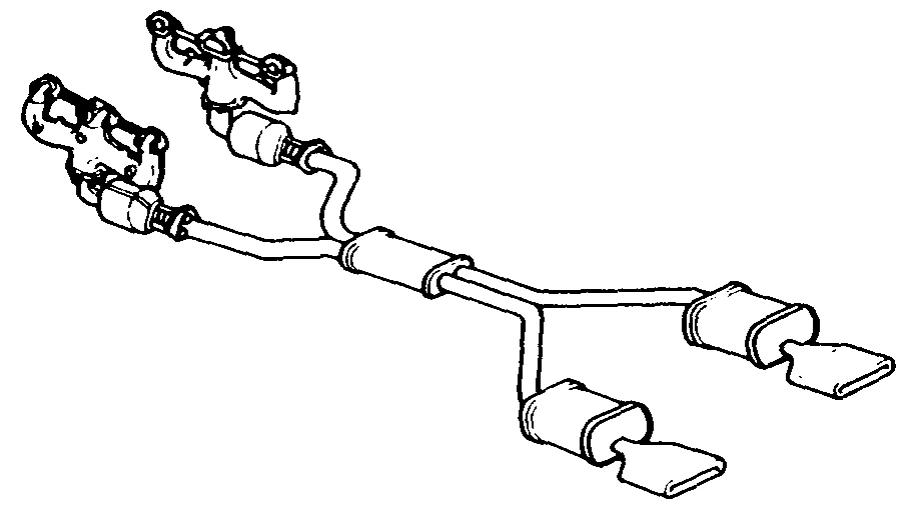

The 1992 GM LT1 5.7-liter V-8 got a new low-restriction exhaust system with symmetrical cast iron exhaust manifolds and dual catalytic converters. (Although the above factory illustration suggests a single central cat, there were actually two close-coupled ones with an integral heat shield.) This and other changes brought the LT1 engine to an even 300 net hp, 50 hp more than the L98 5.7-liter V-8 it replaced.
Automakers still didn’t necessarily make it easy to see at a glance how much power a dual exhaust system was worth. Some engines were still available only with singles or only with duals, and if dual exhausts were buried in the fine print of some heavy-duty towing package, only the most committed buyers might realize the option was available, much less order it. However, even with ’90s engine technology, a good dual exhaust system still typically provided about a 10 percent increase in net power, often for a very reasonable price on a new car.

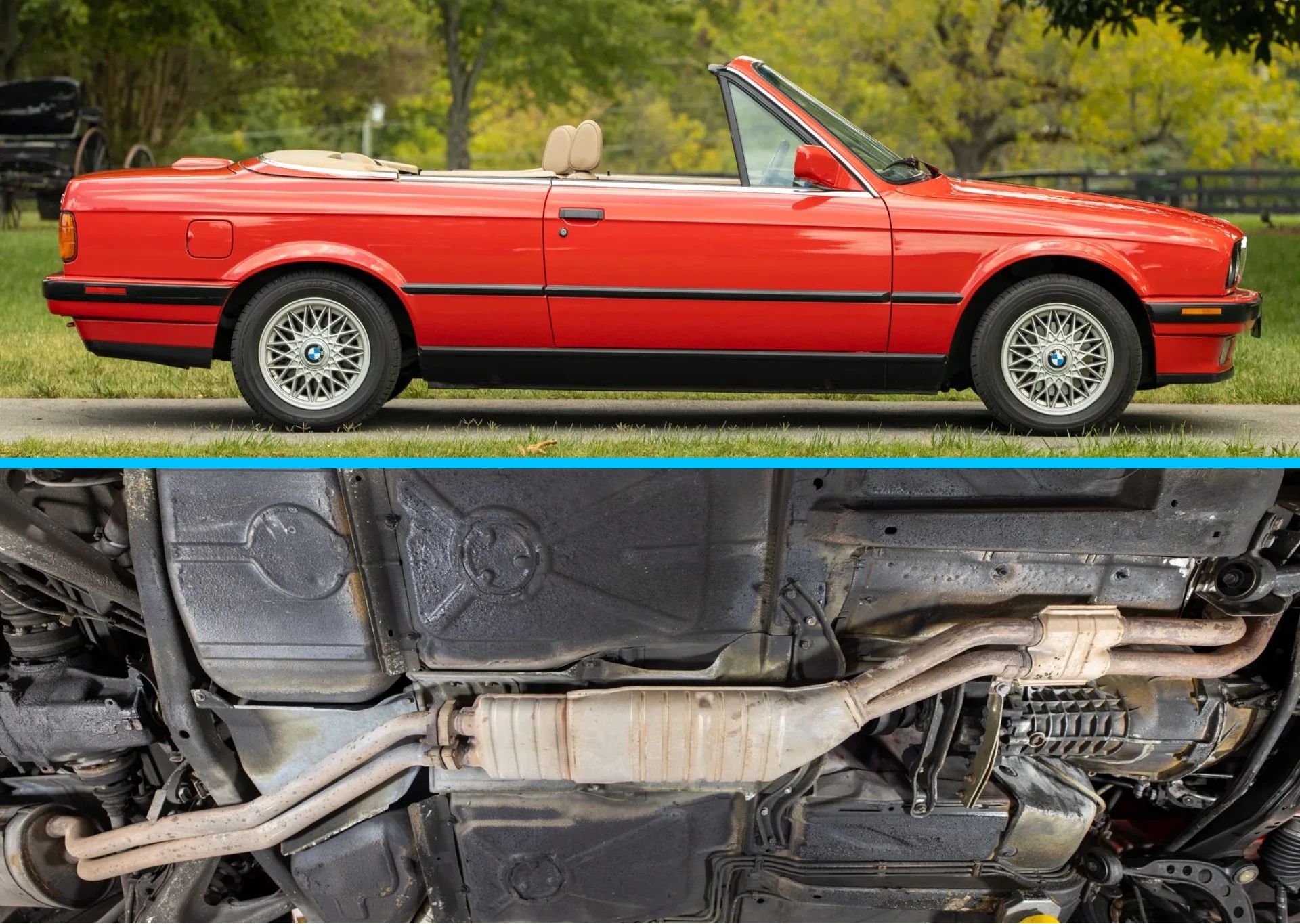

If you’re wondering, inline-four and inline-six engines can and do sometimes use dual exhausts (although they arguably need them less than vee or horizontally engines do).
One last important thing to keep in mind: Getting the performance benefits of dual exhaust really requires true duals: separate pipes all the way from the manifold(s) to the tailpipes. Don’t assume that a car has dual exhausts just because it has separate outlets, or even separate mufflers — some cars have had four or more exhaust outlets even though there was still only one exhaust pipe further upstream! Multiple pipes mean more power; multiple outlets from the same pipe don’t enhance much other than noise and ego.
