Ford Autolite 2100 Two-Barrel Carburetor: A Circuit-By-Circuit Look At Ford’s Better Idea

Maroon 1965 Ford Mustang with an inset of a Ford Autolite 2100 carburetor

Few carburetors are as simple and effective as the Autolite 2100 two-barrel. Introduced in 1957, it uses innovative annular venturi boosters, a float that can be adjusted with the lid off and the engine running, and few enough parts that a teenager could rebuild it.

Image of Ford Autolite 2100 carburetor

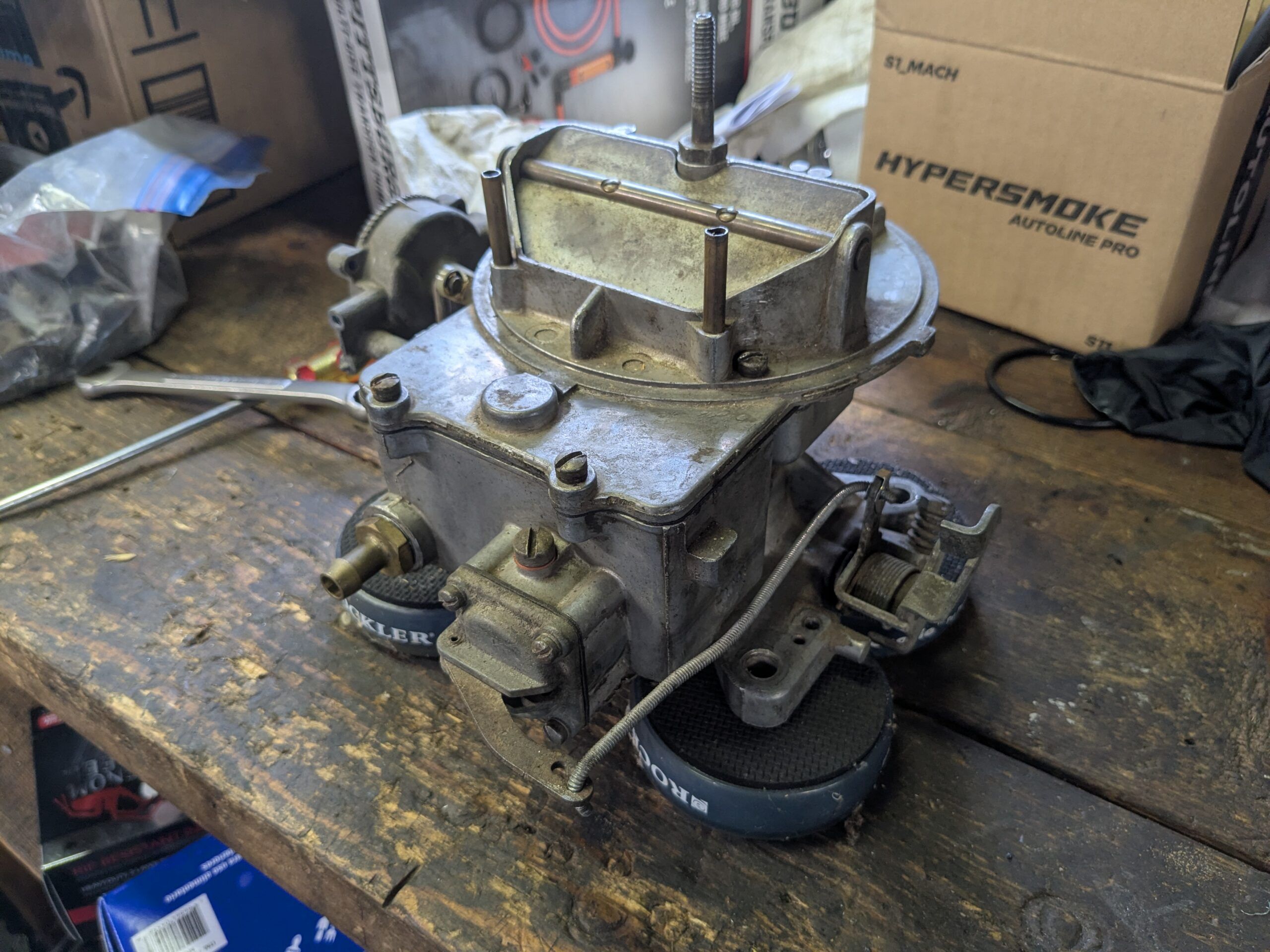

The pictures of actual carburetors in this piece come from the “Autolite box” in my garage, and they’re mementos of my days messing with 2100s, so please excuse the dust. This example is from 1963, and as I’ll point out later, the accelerator pump design was simplified even more soon afterward. The accelerator pump rod was missing when I bought this carburetor for my 1965 Mustang, so I bent a piece of all-thread to replace it, which was the kind of thing I did when I was in my early 20s (and would still do today, 25 years later). At that point, I had been working on 2100s for almost ten years: They’re that simple.

Image of Ford Autolite 2100 carburetor float bowl and venturi cluster

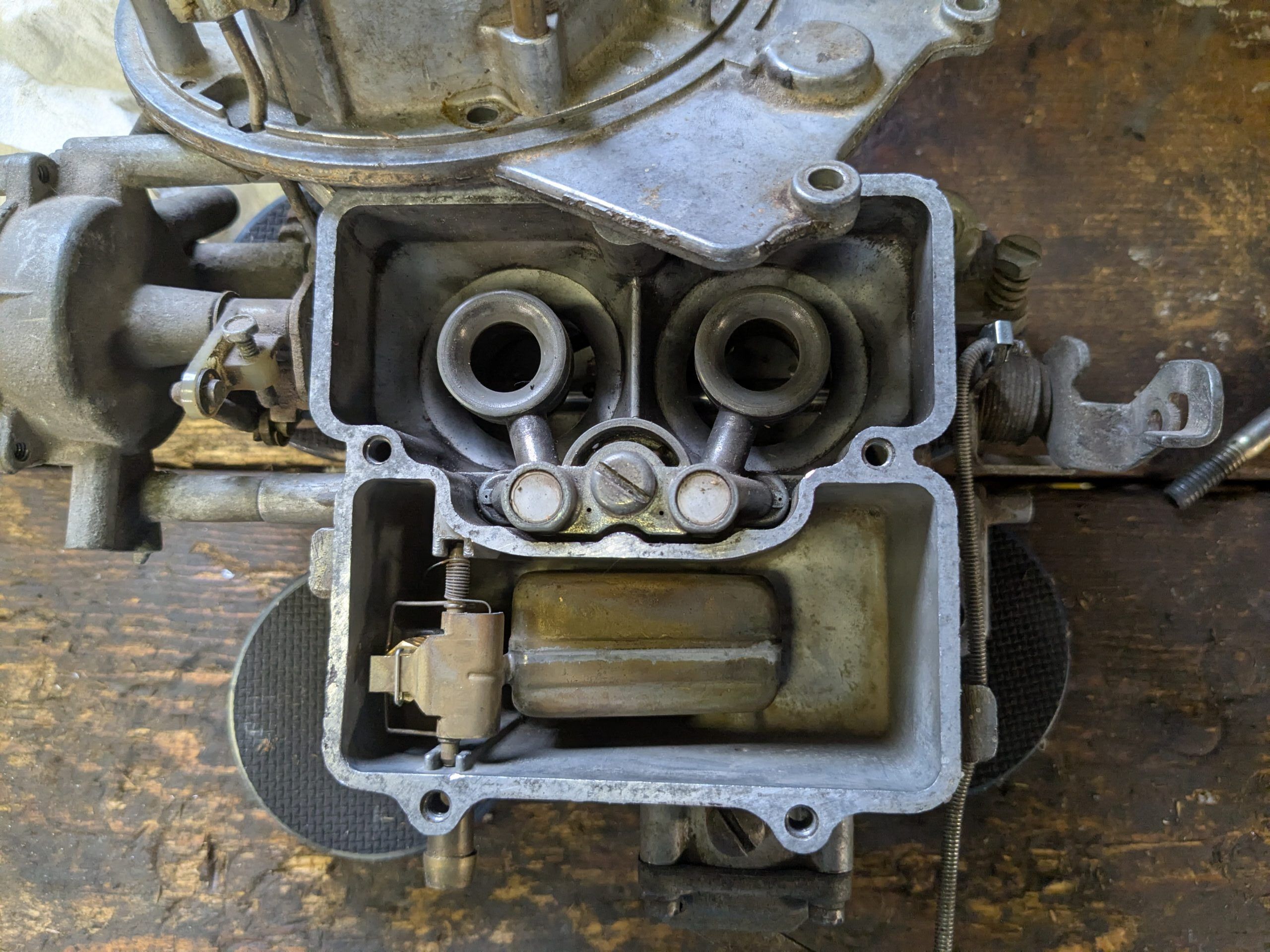

This is what a 2100 looks like with the lid off. By removing four screws and the air cleaner stud, you can not only have access to the float chamber, but you can also start the engine and measure the float “wet,” which is more accurate than a “dry” measurement. Measuring the float “wet” means that you’re measuring down to the actual fuel level in the bowl, rather than a dry measurement where you measure the float height. You can also see the venturi cluster, which is the “brain” of the carburetor, as it directs idle fuel, main fuel, and accelerator pump fuel into the engine.

Top of Autolite 2100 carburetor venturi cluster

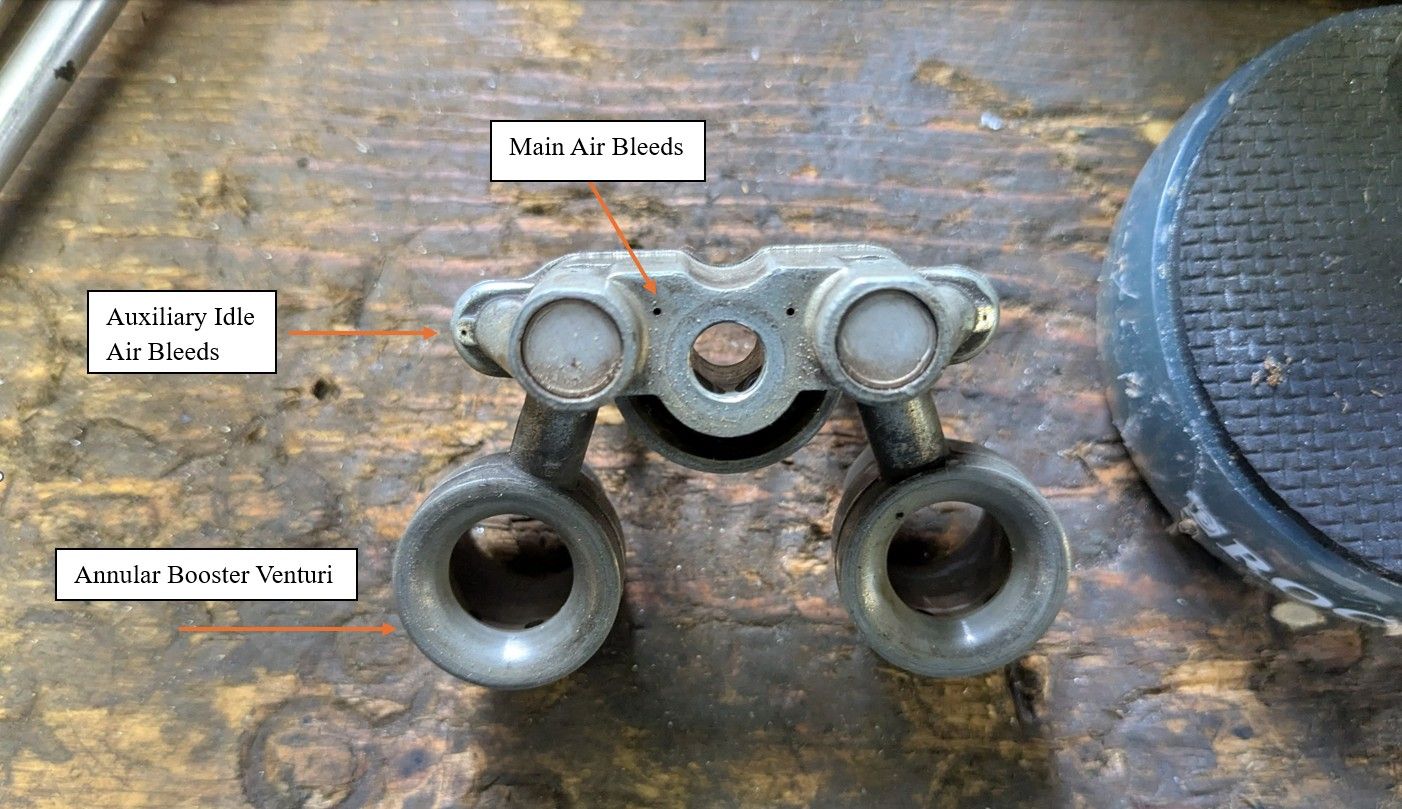

This is the venturi cluster removed from the carburetor, seen from above. You can see the thick “booster venturis,” which use an “annular” style of booster. That means that the fuel is discharged from ports all around the booster’s inner circumference rather than from only one port. (The term “annulus” simply means “ring.”)

Diagram explaining how the venturi effect works
Photo Credit: carbdoc.com

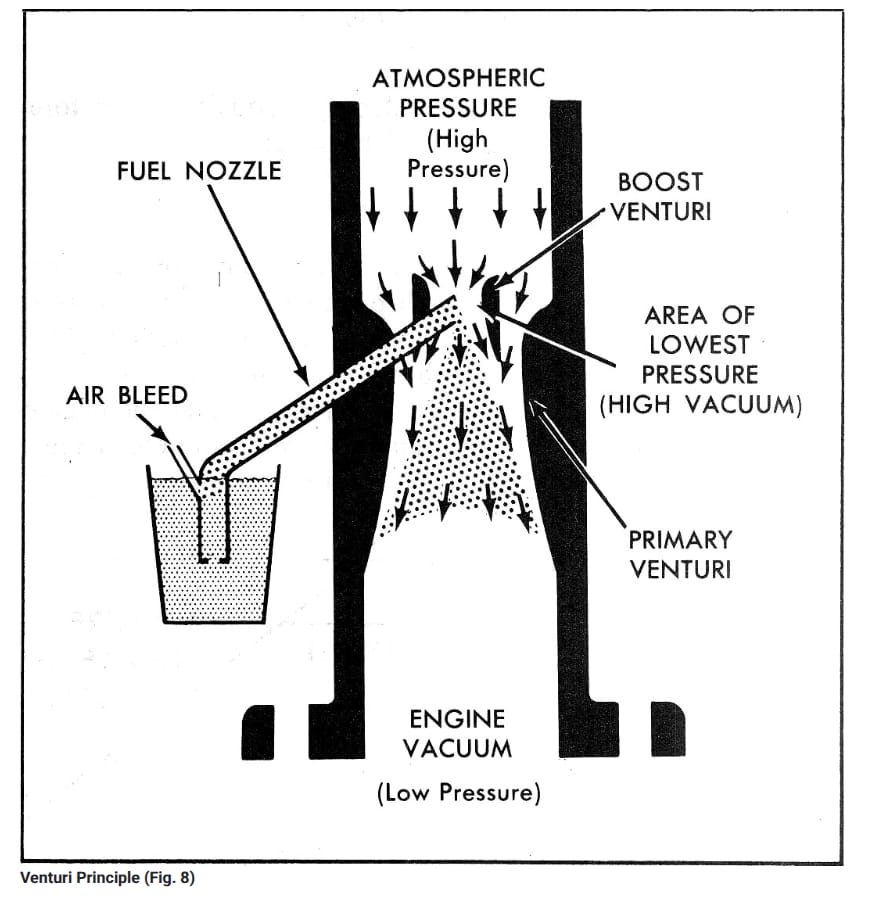

For those of you who haven’t worked on a carburetor lately, the basic concept is this: The carburetor in general works on the venturi principle. When atmospheric pressure is forced into a smaller area, or a venturi, it speeds up, and the pressure goes down. The low pressure in this area allows the atmospheric pressure in the fuel bowl to overcome it, allowing fuel to flow. The faster the air goes through the venturi, the more the fuel is “pulled” from the fuel nozzle. Remember, in an Autolite 2100, the nozzle is an annular booster, so the fuel is being pulled not from one nozzle but ports all around the booster venturi.

Picture showing the differences between an annular booster and a downleg booster
This image shows an annular booster on the left and a downleg booster on the right/Hot Rod Magazine

According to Hot Rod Magazine, annular boosters “create a stronger fuel signal” while presenting a slight airflow restriction compared to a “downleg” booster. The stronger fuel signal provided by annular boosters generally allows leaner main jetting while preserving throttle response.

Image of the rear of an Autolite 2100 venturi cluster

The genius of the Autolite 2100 (and its big brother, the four-barrel 4100) is, once again, in the venturi cluster. Typically, the accelerator pump discharge is handled by a separate “squirter,” which can be unscrewed and replaced. In the 2100, the pump discharge is located right in the booster itself. This makes modifications difficult, but the 2100 was not intended to be a performance carburetor. This also means that every different factory application had different pump discharge sizes, air bleed sizes, etc. Much of the carburetor’s operation is contained in this cluster, which is held to the carburetor with one hollow screw that also assists the accelerator pump operation.

Image of the front of an Autolite 2100 venturi cluster

The fuel pickup tubes are also contained in the venturi cluster, the idle tube neatly fitting inside the main well tubes, which handle the fuel to the venturi cluster’s main boosters.

Main Carb Body

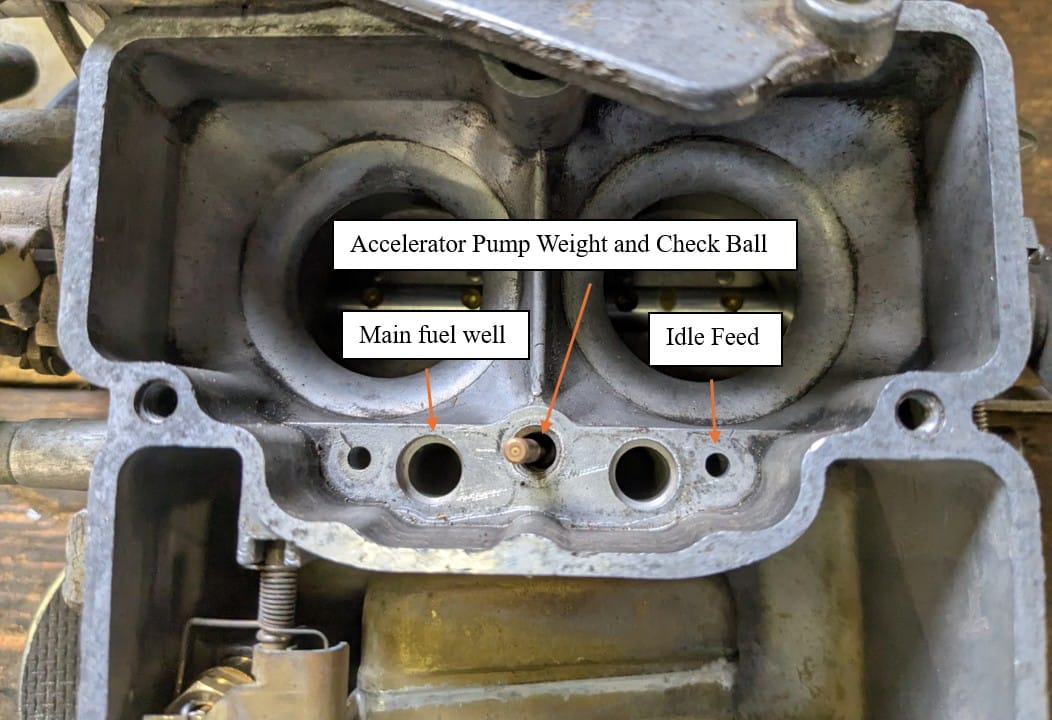

In this picture, we can see where the booster feeds (and is fed) fuel for the idle, main, and accelerator pump circuits. The outside holes feed the idle circuit and transfer ports (more on that in a minute); the larger holes feed fuel to both the idle and main circuits, and the center hole feeds fuel to the accelerator pump discharge “squirters.” The pump weight sits atop a check ball, which keeps the system from sucking in air when the driver takes their foot off the throttle. The hollow booster attachment screw holds the weight in place.

Diagram of the idle system of an Autolite 2100 carburetor

So how does it all work in a 2100? We’ll break it down by system. The idle circuit is operational whenever there’s not enough “signal” in the boosters to activate the main fuel system; therefore, the idle system can still be operational at speeds up to 50-60 miles per hour, because the throttle isn’t open far enough for the “venturi effect” to take place in the boosters. The air simply isn’t traveling fast enough.

Therefore, fuel is fed to the idle circuit. It travels from the float bowl into the main fuel well, where it is picked up by the idle feed tube (the small one in the center) and pulled (pushed?) into the venturi cluster. Passing some idle air bleeds, which allow air to mix with the fuel, emulsifying it, the mixture travels back into the carburetor, down into the idle channels. At curb idle, the high vacuum beneath the throttle plates allows the fuel to flow through the idle discharge, where it can be adjusted by the idle needle valves. Backing out the needle valves allows for more mixture, screwing them in allows less.

As the throttle is lightly opened for light acceleration and cruising, the idle transfer ports are opened to vacuum, and fuel is drawn from them until the main fuel system comes on line.

Float Chamber 1

The main fuel system takes over as the throttle is opened farther. The fuel for the mains is drawn through these main jets, which control the amount of fuel admitted to the main fuel well. These are sized in thousandths of an inch: A typical size is in the .045-.055 range for a 2100.

Diagram of the main fuel system of an Autolite 2100 carburetor

The main fuel system operates on the same principles as the idle system, but the fuel discharge is through the venturi boosters themselves. Fuel is picked up by the main tubes from the main well and drawn past the main air bleeds, which emulsifies the fuel mixture by introducing air, helping the mixture move and atomize more easily. The venturi effect creates a vacuum in the booster venturi, which allows the mixture to flow. The faster the air flows, the higher the vacuum in the booster, drawing more fuel as the engine speeds up. The air bleeds also act as anti-siphon bleeds in an attempt to prevent fuel siphoning when the engine is shut down.

Power Valve 1



Manufacturers usually tuned their engines for best cruising economy, which means that a “power fuel system” is necessary for high load/high speed operation, a system that can provide the additional fuel necessary for those circumstances while still allowing a lean mixture for cruising. Autolite 2100s use a power valve to do this. It’s screwed into the bottom of the float chamber, where it’s fed fuel directly (see the picture of the float chamber earlier in the article). From underneath, the power valve is fed intake manifold vacuum from a port in the base of the carburetor. When intake manifold vacuum (different from venturi vacuum) drops below a predetermined amount (usually 6.5-8.5 inHg), the power valve spring (see inset of the picture above) opens the power valve, feeding fuel from its fuel “window” into the fuel ports seen just above the power valve threads in the carburetor body. When vacuum in the manifold rises as the throttle is closed, it overcomes spring pressure and closes the valve.
A diagram of a power fuel system of an Autolite 2100 carburetor

Here, we can see the path the fuel takes in the power system. Once admitted from the fuel bowl through the power valve, the mixture joins the main fuel system to provide additional fuel and therefore more power.

The accelerator pump diaphragm of a 1963 Autolite 2100 carburetor

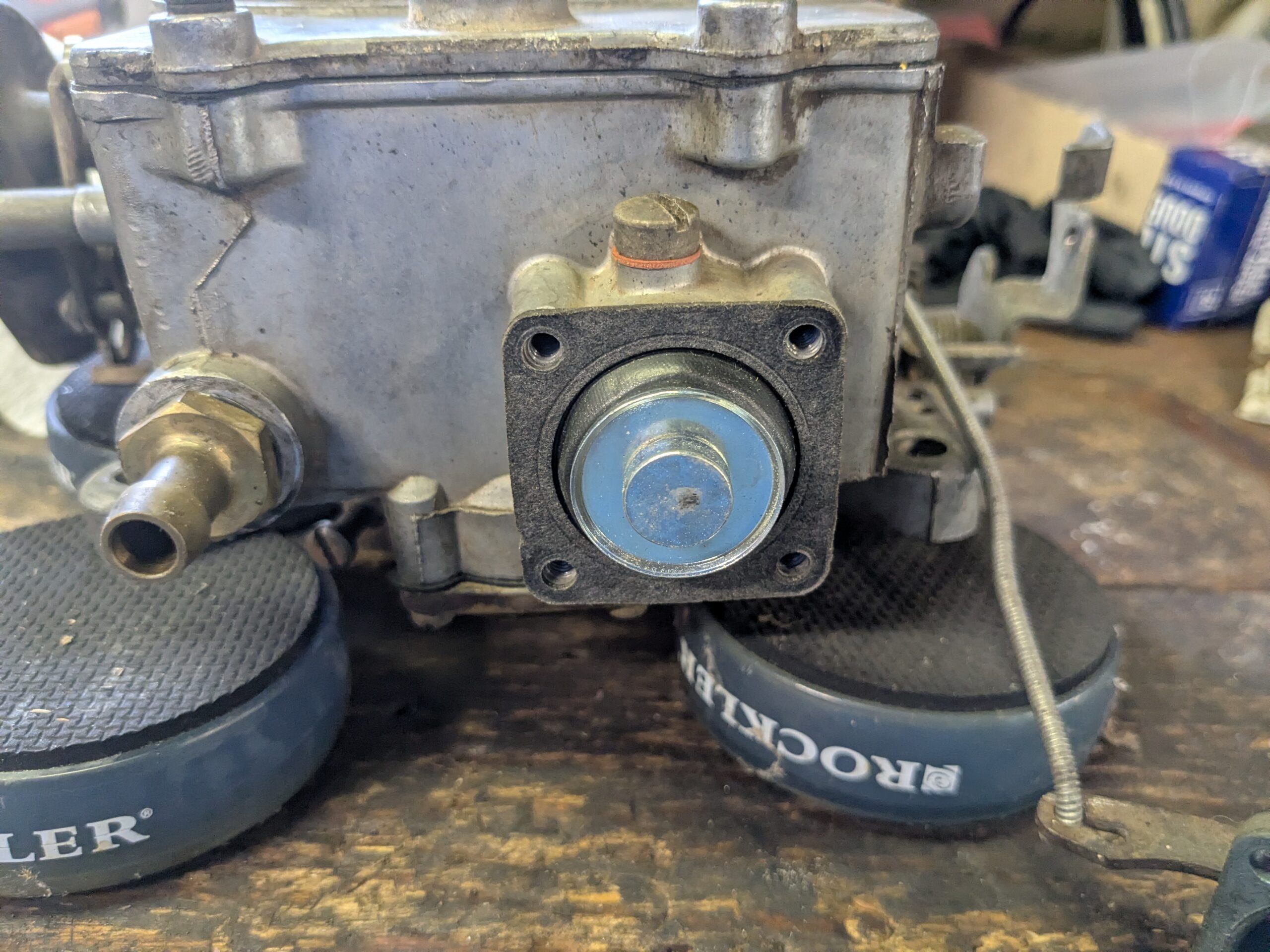

The last major piece is the accelerator pump system, which was simplified over the years. This is the diaphragm on a 1963 carburetor.

PXL 20260509 165945019 scaled

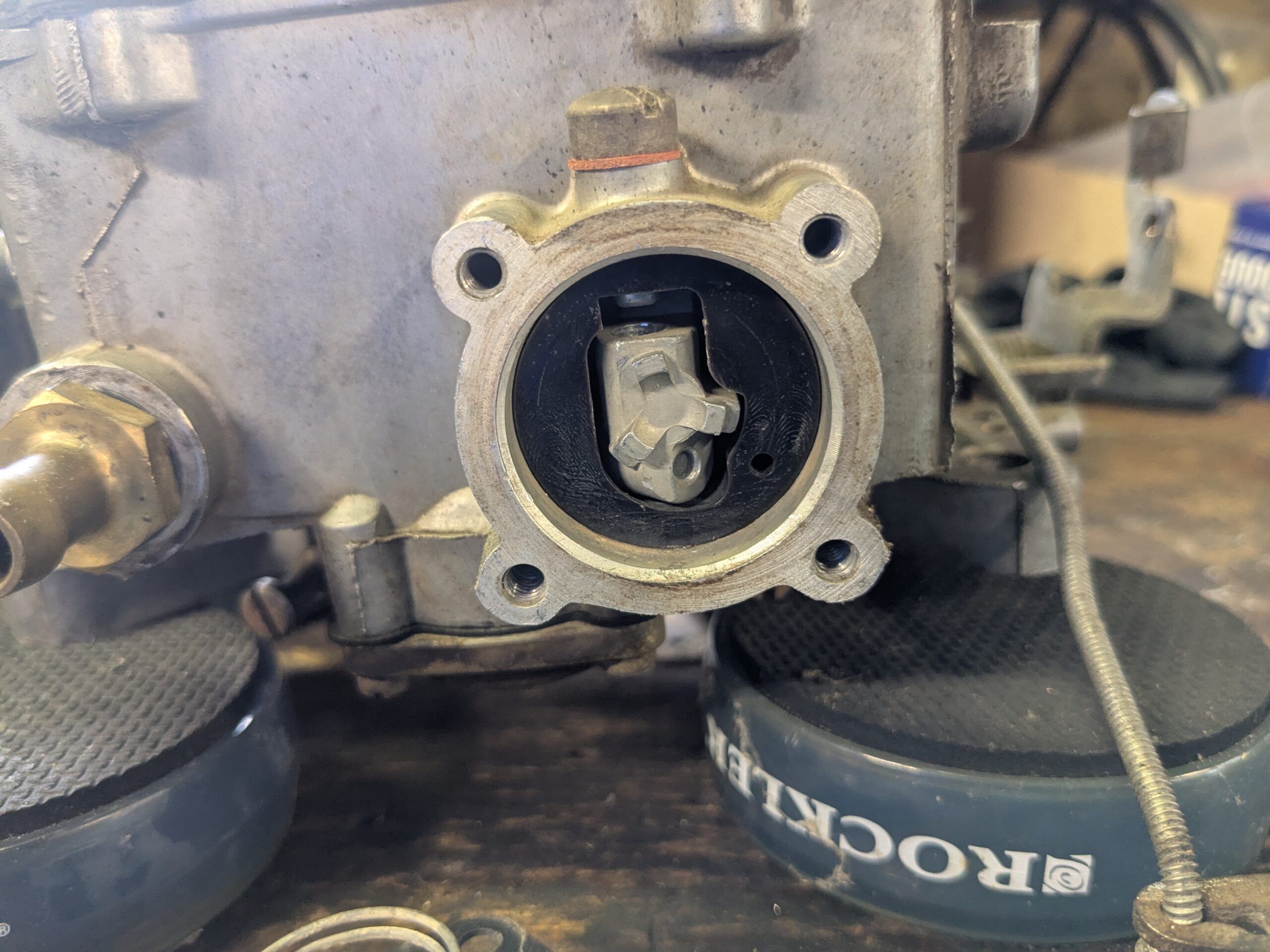

And this is what can be seen behind the diaphragm.

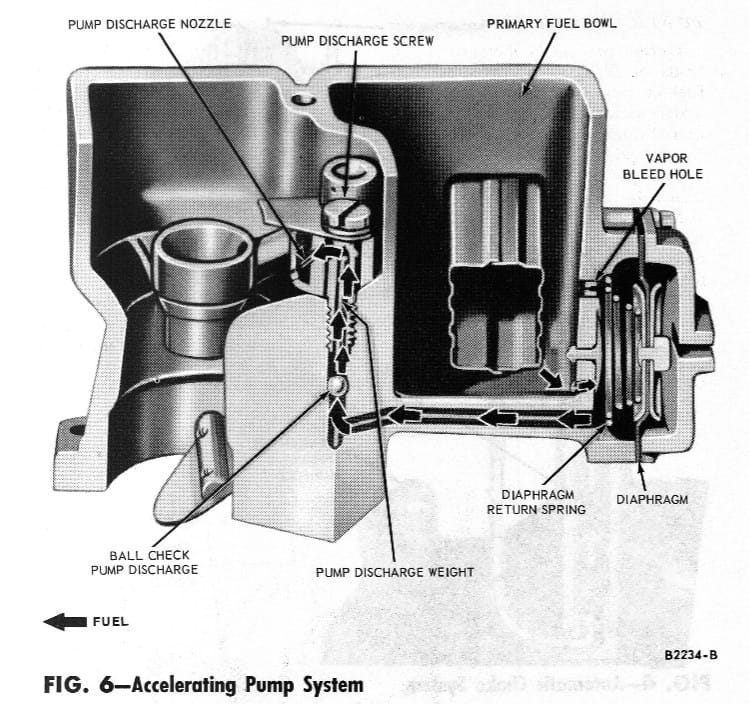

Diagram of the accelerator pump system of a 1962 Autolite 2100 carburetor

An accelerator pump system covers “gaps” in fuel delivery; when the throttle is cracked open quickly, the inrushing air creates a lean condition until extra fuel can be metered through the system. It uses a series of check balls to prevent air from being drawn into the system by the diaphragm. The 1962 system shown here uses two check balls: The inlet check ball rises off its seat as the throttle closes, allowing fuel to be introduced into the accelerator pump channels. Then, the next time the throttle is pushed open, the check ball closes so the fuel doesn’t rush back into the float chamber; rather, it pushes the pump discharge check ball off its seat and allows fuel to be discharged through the squirters in the venturi cluster. When the throttle is closed, the weight on top of the check ball forces it back onto its seat so air can’t enter the system from that end.

1965 Accelerator Pump

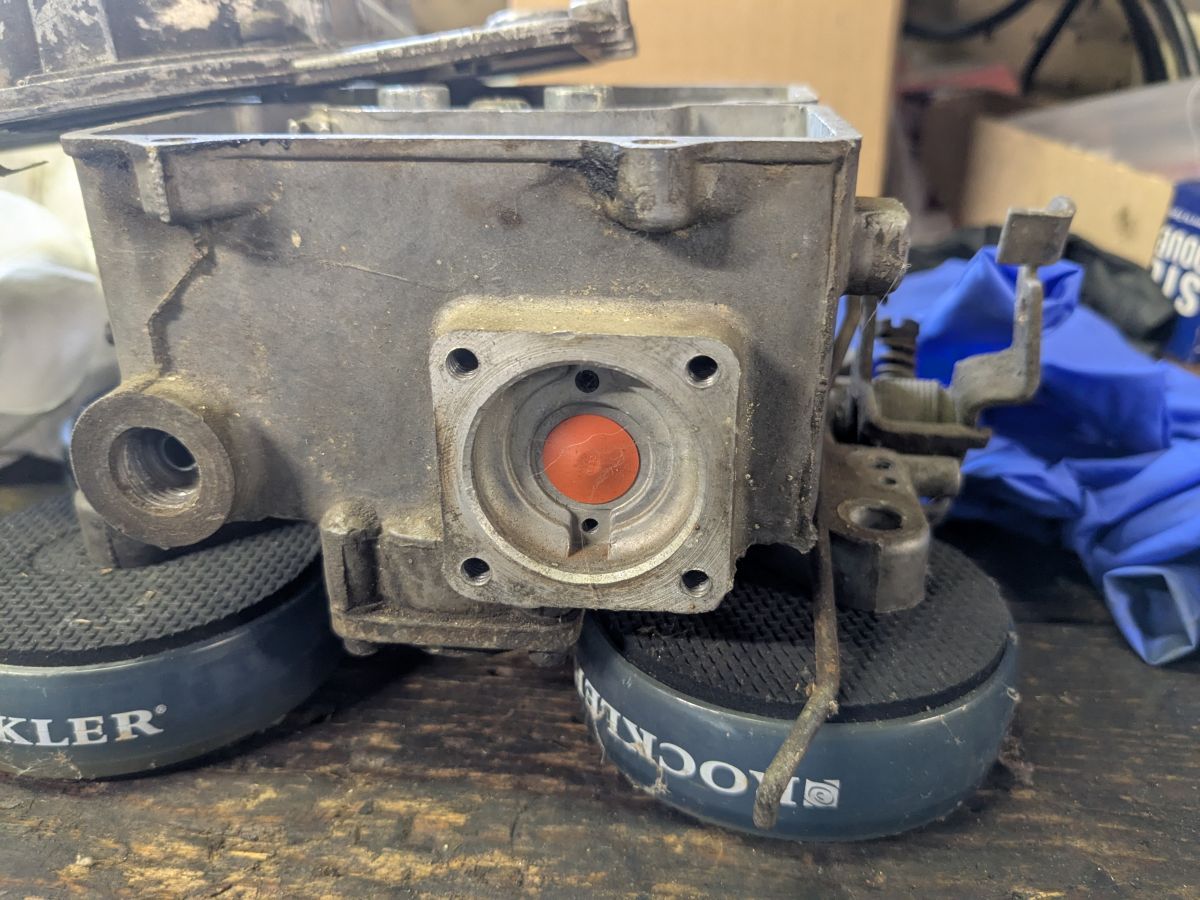

By 1965, this Elastomer valve replaced the inlet check valve; when the throttle is closed, the diaphragm acts on the valve, which uncovers a port that allows fuel to enter the chamber from the float bowl. Then, when the throttle is pressed, fuel is pumped into the lower port (below the Elastomer valve), making its way to the squirters. (The top port is a vapor vent.)

Diagram of the accelerator pump system of an Autolite 2100 carburetor

The rest of the system remained unchanged. A spring returns the diaphragm to its resting position in both systems, drawing fuel back into the chamber.

Image of a Motorcraft 2150 carburetor
Photo Credit: National Carburetors

The 2100 was rebranded as a Motorcraft carburetor in the 1970s (after Ford had to divest themselves of the Autolite brand for antitrust reasons), and it was eventually upgraded as the 2150, a carburetor that gained more features and stayed in production through the 1980s (this example shows electronic feedback equipment and fits a 1983 Ford truck). These carburetors are decidedly more complex than their brilliant forebear, but it shows how adaptable that basic decades-old design was. It’s one of the best two-barrel carburetors ever built.
