In the late 1940s, GM’s Guide Lamp Division began developing the first electronic headlamp controls: the Autronic-Eye (later renamed Guide-Matic), which could automatically dim the lights to avoid dazzling other drivers, and Twilight Sentinel, which could automatically turn on the headlights at dusk. Here’s how these early automatic headlight systems worked.
The Autronic-Eye and Guide-Matic

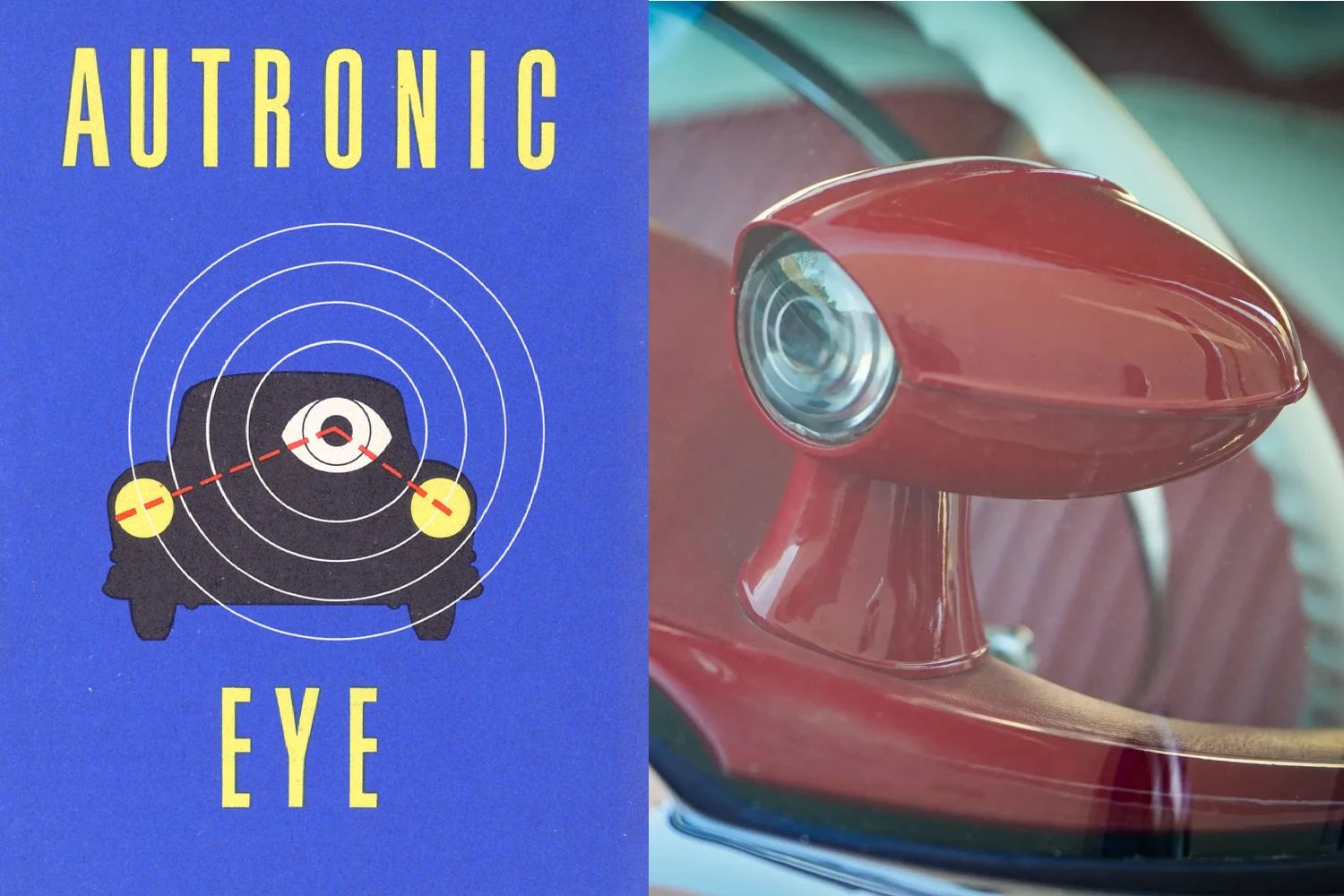

If you’ve ever been to a car show, you’ve undoubtedly seen the small plastic pods atop the dashboards of cars of the ’50s or ’60s, and you might know they were for something called the “Autronic-Eye.” A surprising number of people, including a depressing number of consignment sellers, seem unsure of what it was, or even that that little pod is (or was) a functional feature at all.
The Autronic-Eye Automatic Headlight Control system was developed by GM’s Guide Lamp Division in Anderson, Indiana, which made headlights and taillights for GM cars. Guide Lamp engineers had been working on the idea of automatic headlamp controls at least since the end of WW2; the earliest U.S. patent I could find for the system was filed in July 1948 (US2679616).
Guide Lamp formally announced the system in February 1952, and Autronic-Eye first became available on 1952 Cadillac and Oldsmobile cars for $53.36. It became a Chevrolet and Pontiac option in 1953. (Buick, for whatever reason, didn’t get onboard until 1958.) The “Autronic-Eye” name, which GM took care to register as a trademark, was a portmanteau of “Automatic Electronic.”

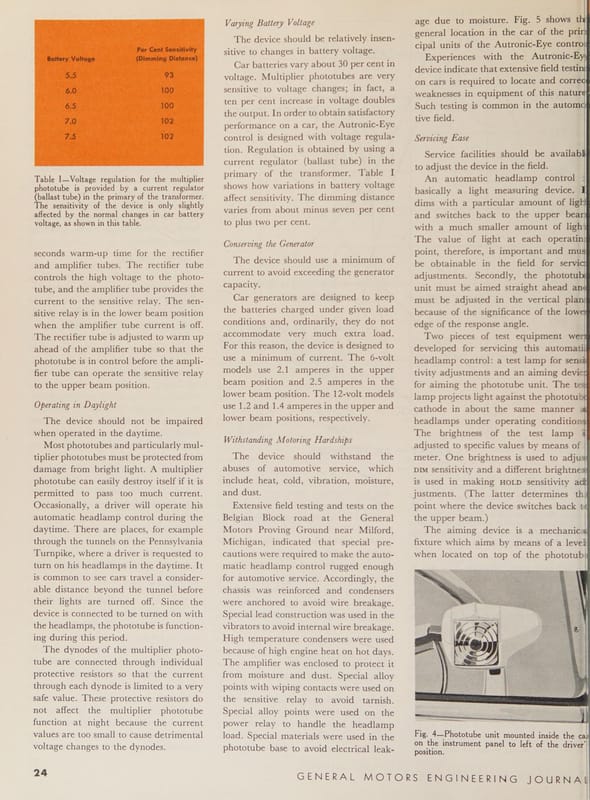

In the September–October 1953 issue of GM Engineering Journal, Guide Lamp engineer George W. Onksen Jr., who was the inventor or co-inventor on most of the early patents, explained the rationale for the Autronic-Eye, how it worked, and some of the challenges it presented. Here’s the whole article if you care to read it; click an image to see the page full-size:
To sum up, Guide Lamp claimed that the automatic headlamp control was both more courteous — making the driver “truly a gentleman of the night highways, dimming always on time” — and safer, because it allowed drivers to use the high beams more than they probably otherwise would on dark roads.

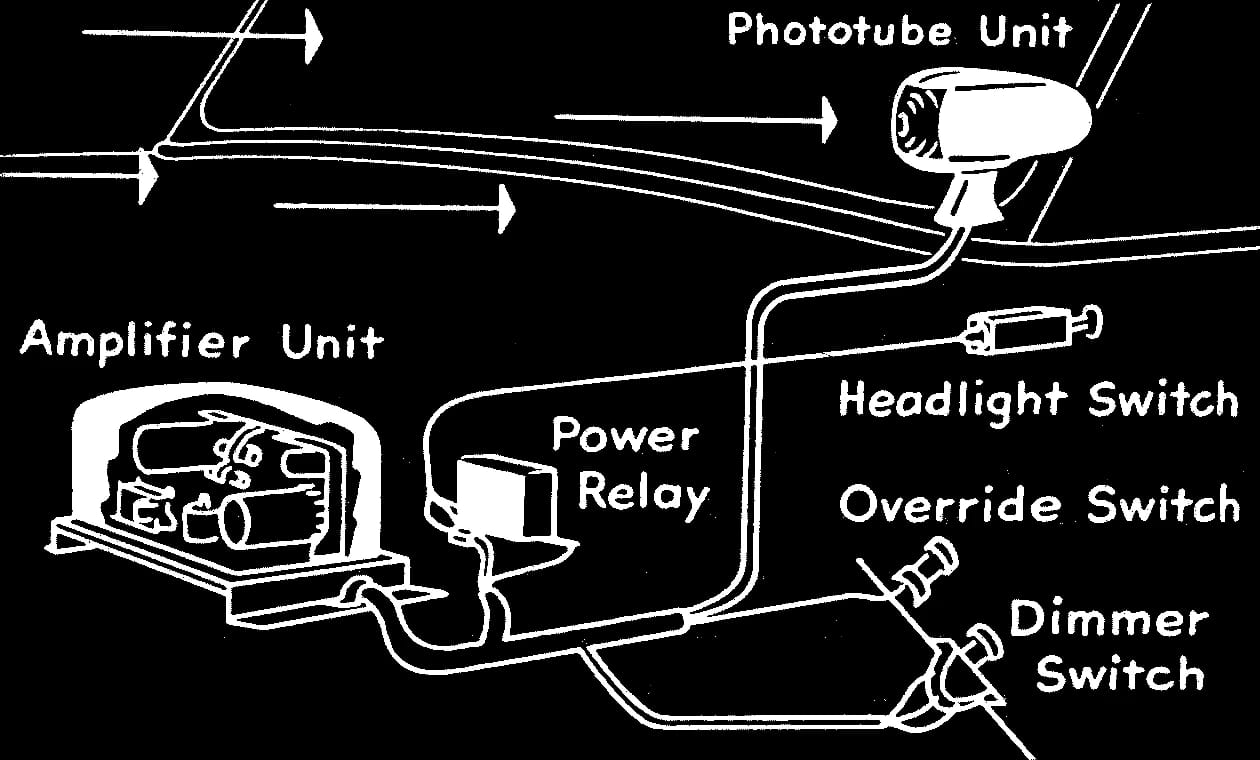

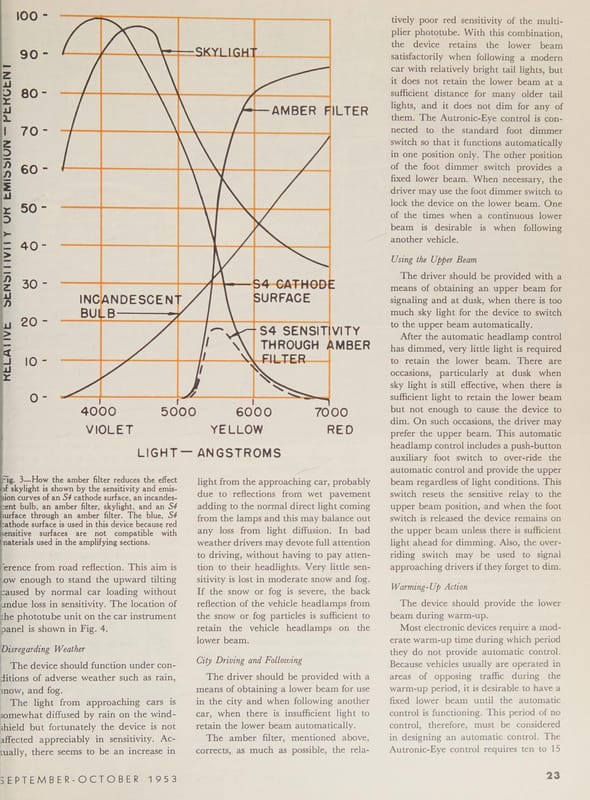

The dashboard pod contained a phototube behind a condensing lens. The phototube had a blue-sensitive cathode surface, which Onksen explained was chosen “because red sensitive surfaces are not compatible with the materials used in the amplifying sections.” An amber filter was installed in front of the cathode to shift the tube’s “effective response toward the red end of the spectrum,” which was supposed to make the system less sensitive to skylight than to the light of incandescent bulbs. There was a sharp cutoff at the bottom to keep the phototube from picking up reflections from the road surface.

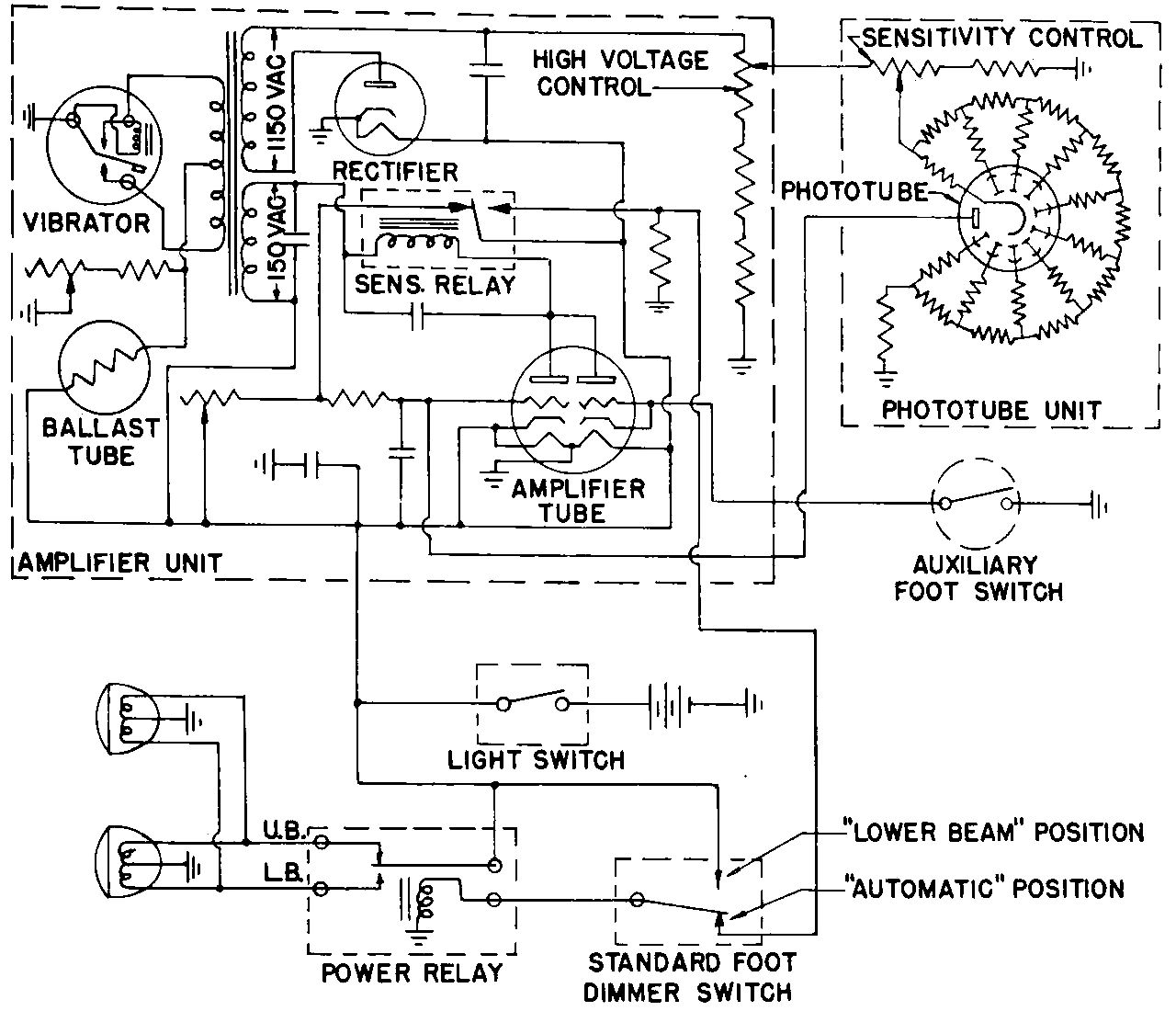

Signals from the phototube were transmitted to an underhood amplifier, which Guide Lamp dubbed the “Autronic Brain.” Sufficient light on the phototube would produce an electronic signal that would automatically operate the power relay that switched the headlights from high beam to low beam.
Guide Lamp claimed that in clear weather, an oncoming car with its high beams on would cause the system to dim the lights at a range of 900 to 1,000 feet, somewhat less if the oncoming car had its low beams on. The driver could override the automatic dimmer with an auxiliary foot switch — for example, to try to signal another driver that they needed to dim their headlights.
One of the biggest engineering challenges was to get the system to hold the low beam after dimming, so it wouldn’t dim for another car’s headlights and then immediately switch back to high beams before the ongoing car had passed. The control circuit had a sensitive relay that added a larger load resistance that Onksen said made the system “about ten times as sensitive in the lower beam position as it is in the upper beam position.”
The Autronic-Eye had two functional limitations that proved harder to overcome. The first was that the system was not great at dimming automatically when following another car — since the phototube had poor sensitivity to red, another car’s taillights wouldn’t reliably trigger the automatic dimmer unless they were fairly bright. The second was that the system often had difficulty dimming early enough if the oncoming car’s headlights were not pointed directly at the car, such as when it was coming around a curve or on the other side of a divided highway. Onksen admitted this was a difficult tradeoff: Making the system more responsive in those situations would also make it more likely to be distracted by lights along the roadside.

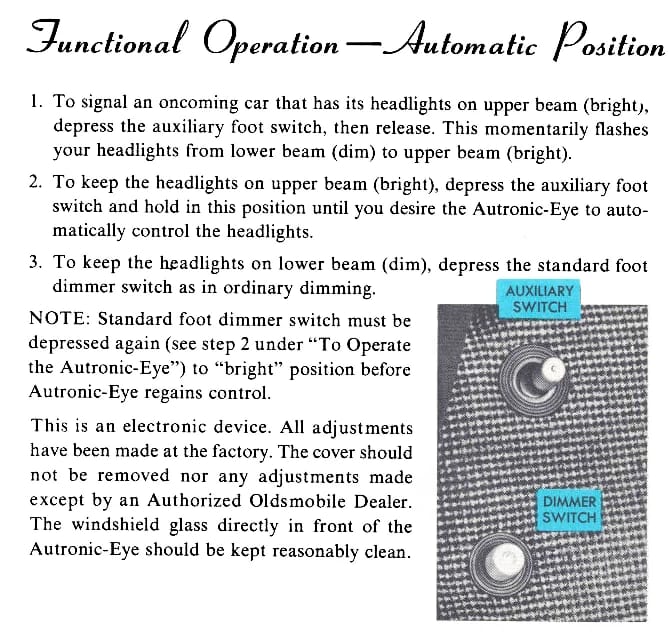

If these issues became too frustrating, you could override the Autronic-Eye using the foot switches, which Motor Trend, testing a 1953 Oldsmobile Super 88, thought was needed too often:
[A]s with most automatic units, a manual safety device has to be added. In this case it is an auxiliary foot switch in conjunction with the standard dimmer switch. Normal night driving requires that you use both switches. Its [automatic] operation leaves something to be desired on curving roads, as it is operated by light beams from an approaching car which have to be directed at you before dimming will be instigated. This is somewhat later than accomplished by manual control. Operating instructions require that the windshield glass directly in front of the Autronic Eye be kept reasonably clean, which will have to be done manually as the unit is just below the arc swept by the wiper blade.
The Autronic-Eye control was probably most useful on unlighted or poorly lighted rural roads, but a lot of Americans drove in such conditions back then. By January 1954, Guide Lamp claimed to have sold more than 300,000 of these systems on GM cars. It probably helped that the option wasn’t outrageously expensive. Suggested retail price on a 1954 Chevrolet was $44.25, less than a radio.
There were a variety of running changes to the system over the next five years, and the Autronic-Eye systems supplied to each GM division were not always identical, although the basic operating principles were the same. For example, in 1955, Oldsmobile added a separate Autronic-Eye switch to the normal light switch (pictured above), allowing the system to be turned completely off. Other divisions were slow to adopt this, probably because it complicated installation.
By 1958, some applications had a small knob in the back of the phototube housing to allow the driver to adjust the sensitivity of the system and how early the lights of an oncoming car would cause the system to dim the headlights.
Starting with the 1957 model year, Guide Lamp made the automatic headlight system available to non-GM automakers. Lincoln began offering it in 1957, although they didn’t use the “Autronic-Eye” trademark. Some Ford and Mercury models also used the GM system, beginning around 1964; it was theoretically available on the 1964–1966 Ford Thunderbird, although it was apparently very rare.
For 1960, Guide Lamp renamed the automatic headlamp control system “Guide-Matic Power Headlight Control.” This had a new slimmer phototube with an amber lens (rather than a separate amber filter) and a sensitivity adjustment knob on the back of the housing.
Guide-Matic initially incorporated a new “Safety Salute” function: Rather than immediately switching the lights from high beam to low beam, it reduced the candlepower of the high beams for about a second before dimming completely, which was supposed to signal other drivers to dim their lights as well. This function proved to be a reliability headache, and it was soon deleted.
Guide-Matic remained available into the mid-1960s, but interest seems to have declined considerably. Most GM divisions other than Cadillac had dropped it from their factory options lists by 1966, although some systems may still have been dealer-installed. However, Guide-Matic remained a popular Cadillac option. From 1964 on, Cadillac moved the phototube to either the leading edge of the front fender or behind the grille, which made the system less sensitive to overhead light, but was harder on the still-delicate phototube than the dash-top mounting.
At the same time, Cadillac incorporated the Guide-Matic sensitivity control to the headlight nacelle on the left side of the speedometer.
Guide-Matic auto-dimming remained a Cadillac option into the 1980s.
Twilight Sentinel
At around the same time the Autronic-Eye became Guide-Matic, Buick debuted the latest Guide Lamp Division brainstorm, an automatic headlight control system called Twilight Sentinel. While it was similar in basic concept to the auto-dimming headlight system, Twilight Sentinel was completely separate; you could order it with Guide-Matic, or specify either option individually. Twilight Sentinel was somewhat cheaper, listing for about $29, compared to about $43 for Guide-Matic. It was initially a Buick exclusive.
Twilight Sentinel was so much simpler than the Autronic-Eye or Guide-Matic that it’s surprising it wasn’t introduced first. It used its own photo-conductive photocell, mounted face up at the base of the windshield, sending an electronic signal to an amplifier unit (originally mounted behind the kick panel on the right A-pillar) that controlled the lights. Where the Autronic/Guide-Matic phototube was designed to limit response to skylight, the Twilight Sentinel photocell was supposed to respond only to ambient light, automatically turning on the car’s lights (including taillights and interior lights) at dusk and turning them off in bright daylight. The amplifier incorporated a delay feature so that it wouldn’t react to momentary changes like going under an overpass.

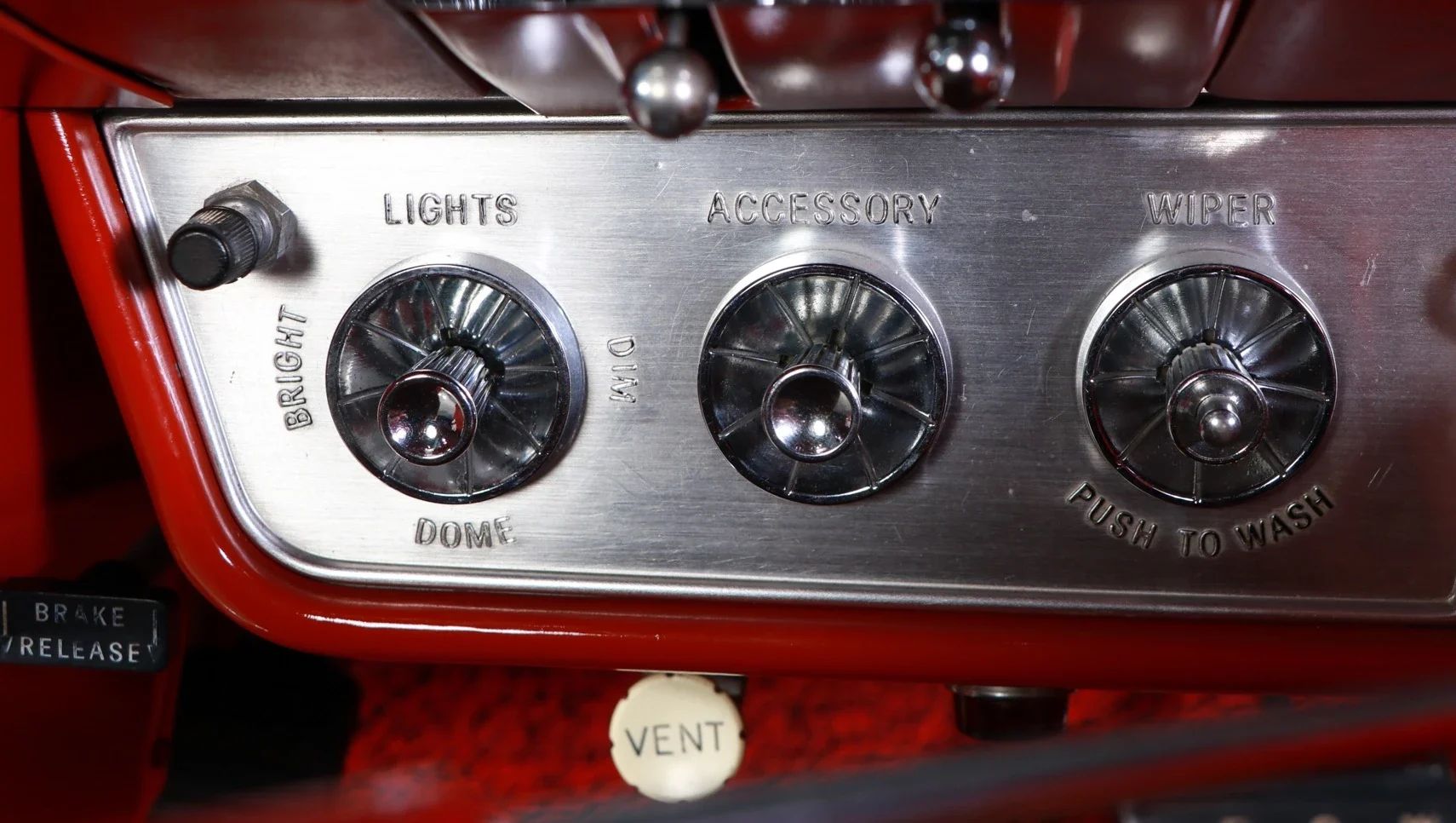

Buick incorporated a separate control knob for Twilight Sentinel above and to the left of the usual light switch. If you needed to turn the lights on in bright daylight for any reason, Twilight Sentinel had to be turned off. The system was wired through the ignition switch, so the lights wouldn’t drain the battery by switching on and off with the engine off.
Buick had high hopes for this option, urging dealers to install both Twilight Sentinel and Guide-Matic on their demonstrators. However, the feature didn’t really find its audience until Cadillac adopted it for 1964.
The Cadillac version of Twilight Sentinel added a new wrinkle: a time-delay control that allowed the headlights (and the cornering lamp, if you activated the turn signal) to remain on for up to 90 seconds after the ignition was turned off. The idea was that this would light the way from the driveway to the door.
Cadillac got a lot of mileage out of the delay timer, which enabled them to pitch Twilight Sentinel as a safety feature. This was featured so prominently in advertising and promotion that a casual observer could forget the main purpose of this gadget was to turn the lights on automatically at night or on an overcast rainy day.
On cars with Twilight Sentinel, the timer knob was located under the dash to the left of the steering column, below the wiper controls.
The Twilight Sentinel photocell housing on the dashboard had its own sensitivity control dial, marked “LATE / EARLY,” which controlled how dark it had to be before the lights would come on automatically.
The actual value of these features was still arguable, but they weren’t terribly expensive — by 1972, Cadillac charged $49 for Guide-Matic and $40 for Twilight Sentinel, less than cruise control or an AM radio — and luxury car buyers had come to expect them. Both features remained common on high-end domestic cars well into the ’90s, and from 1999, Twilight Sentinel even became an option for the Corvette.
