One tends to forget how much experimentation was done by those early automotive pioneers; for example, take the clutch. Although most of the industry eventually settled on the single-disc “dry” clutch that so many of us have replaced in the driveway, Hudson used a system of corks bathed in “Hudsonite” oil and pressed into a thin metal clutch disc to drive the car.

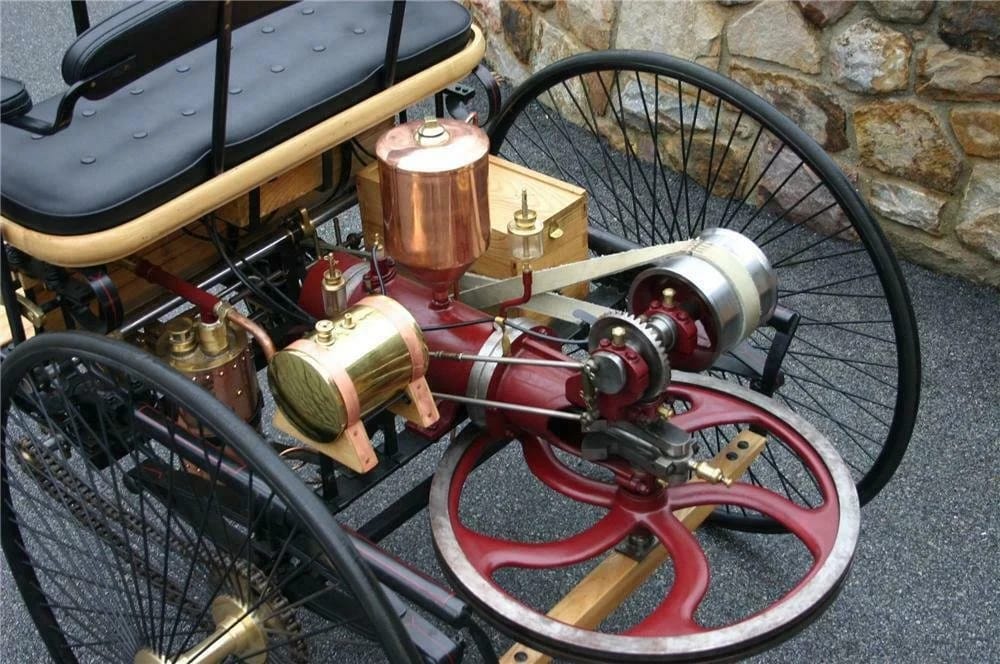

Those early pioneers quickly figured out that a driver needed to disengage the car’s engine from its transmission; otherwise, they would have to turn off the engine and restart it every time they needed to come to a stop, which was impractical and potentially deadly. Additionally, as transmissions became more complex, drivers needed to be able to shift between gears without fighting the engine’s load; the clutch handled both tasks. The clutch started out as a simple twisted leather belt, as seen here on a replica of Karl Benz’s 1886 Patent Motorwagen. It had no gears to shift, but a hand lever forced the belt to act somewhat like a modern CVT, powering a differential and drive chains to the rear wheels. It was simple but effective for the job it was doing.

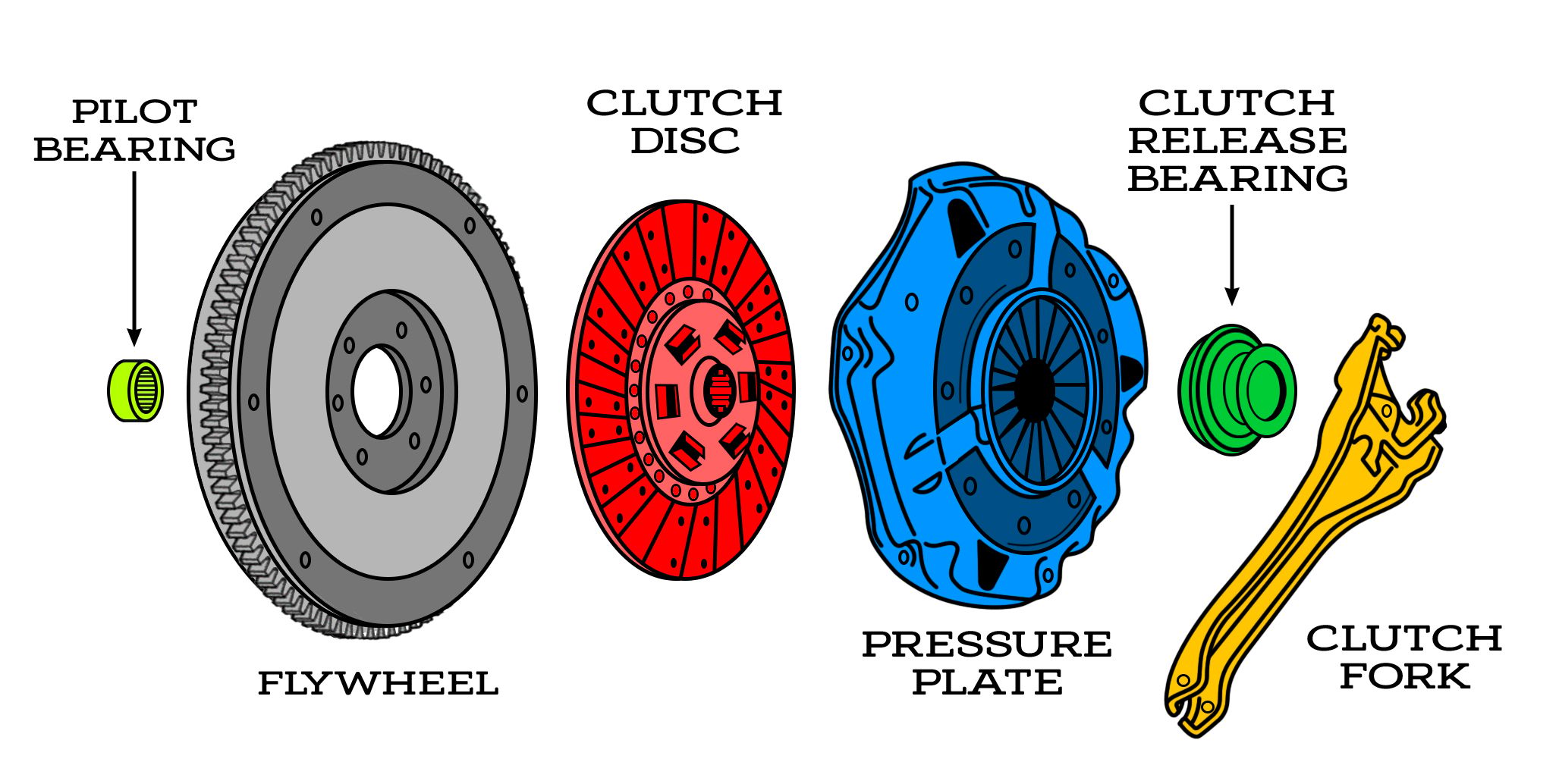

However, as engines became more powerful and there were more gears to shift, the leather belt just wasn’t going to cut it. Eventually, most of the industry settled on the modern “dry” clutch, whose components are seen here. The flywheel is bolted to the engine’s crankshaft and spins with the engine. The pressure plate is bolted to the flywheel itself, and sandwiched between the two is the clutch disc, which is splined to the input shaft of the transmission. When the transmission is installed, the input shaft passes through the clutch fork, throwout bearing, pressure plate, clutch disc, and flywheel, and is supported on the front end by a pilot bearing or bushing, which is driven into a void in the crankshaft itself.
When you push the clutch pedal down, the clutch fork pushes the throwout bearing into the pressure plate, which uses a series of springs and levers to disengage the clutch disc. Remember, the clutch disc is the only part of this system that is splined to the transmission’s input shaft. Once the driver’s foot is on the clutch, the crankshaft and flywheel are spinning independently of the stationary input shaft; therefore, without the pilot bushing, the fairly long input shaft would tend to “whip” around.

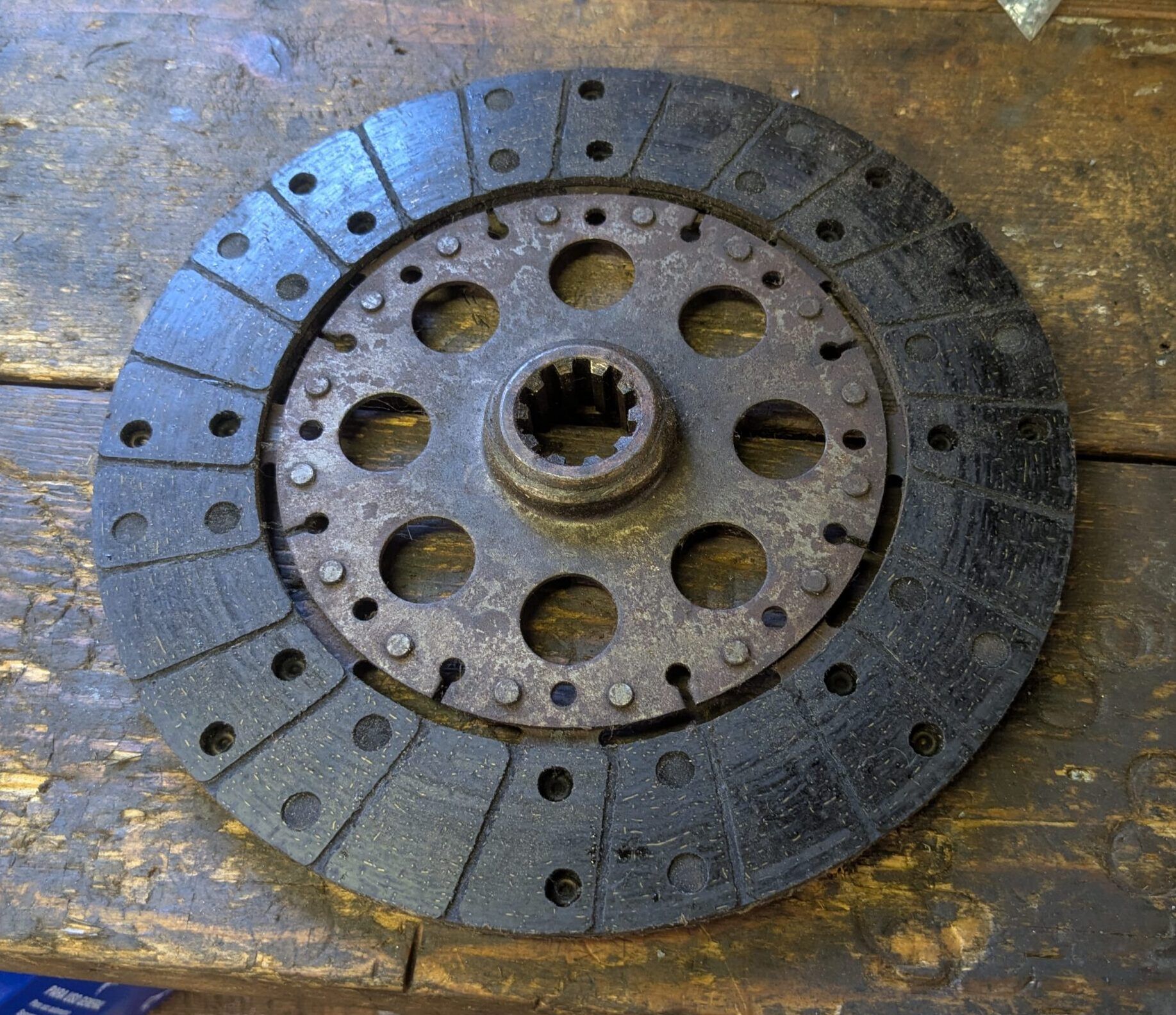

After some evolutionary dead ends, most of the industry eventually adapted a dry disc clutch as seen above. The friction facings themselves were long made of asbestos, although other materials are now used. The splines in the center of the clutch hub are connected to the transmission’s input shaft, which is what drives the car. The reason that a friction face is needed is for smooth clutch engagement; if the clutch were like an on/off switch, the engine would stall trying to take off or parts would break, and certainly, nobody would want to ride in your car. Therefore, the clutch lining acts almost like a brake lining in reverse; instead of gently stopping the car, the clutch starts the car off.

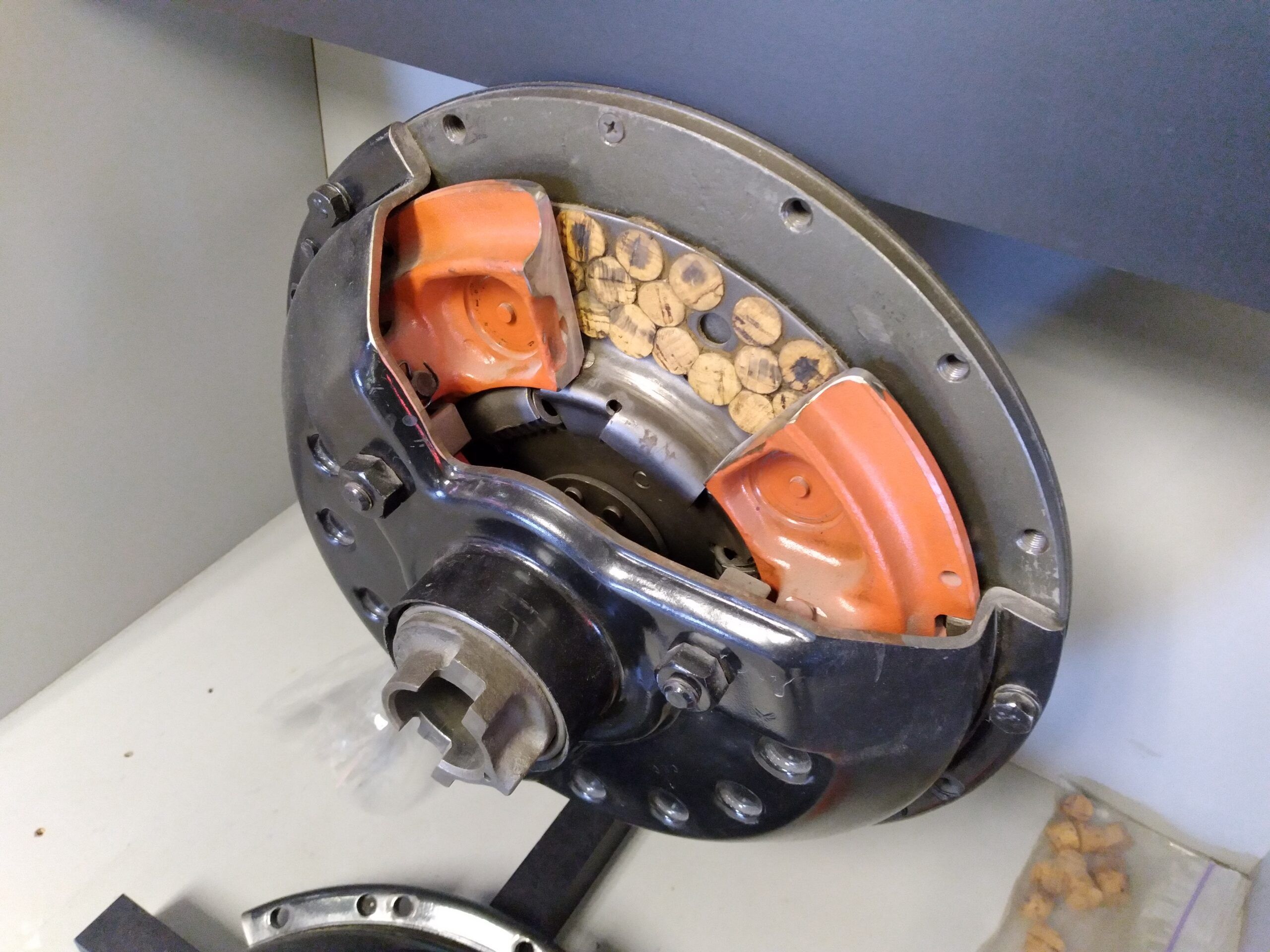

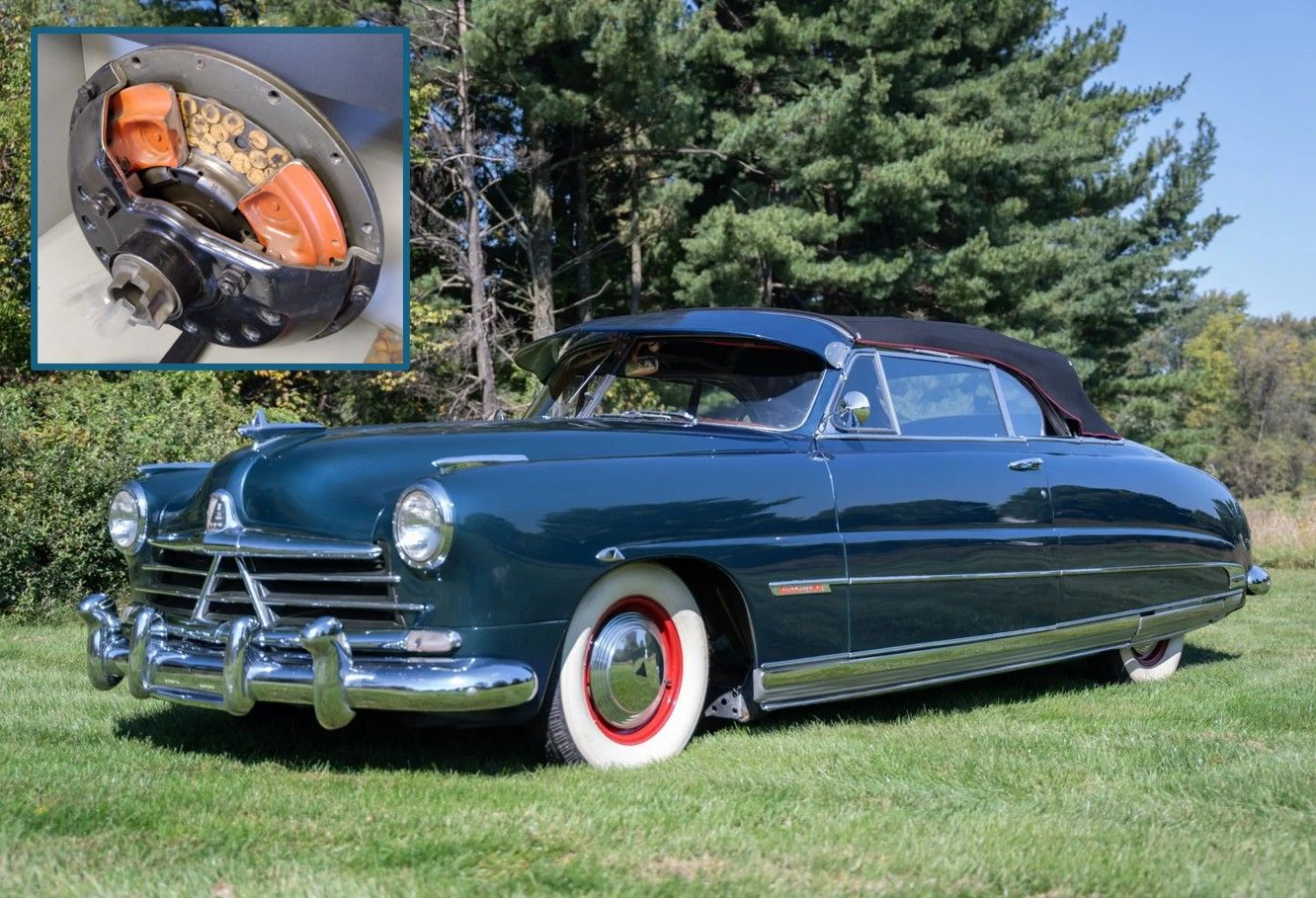

Being that the early days of the automobile were filled with innovation, not everybody handled declutching in the same way. For most of its existence as a going concern, Hudson Motor Car Company used a wet clutch, which consisted of a thin metal clutch disc with around a hundred corks pressed into it.

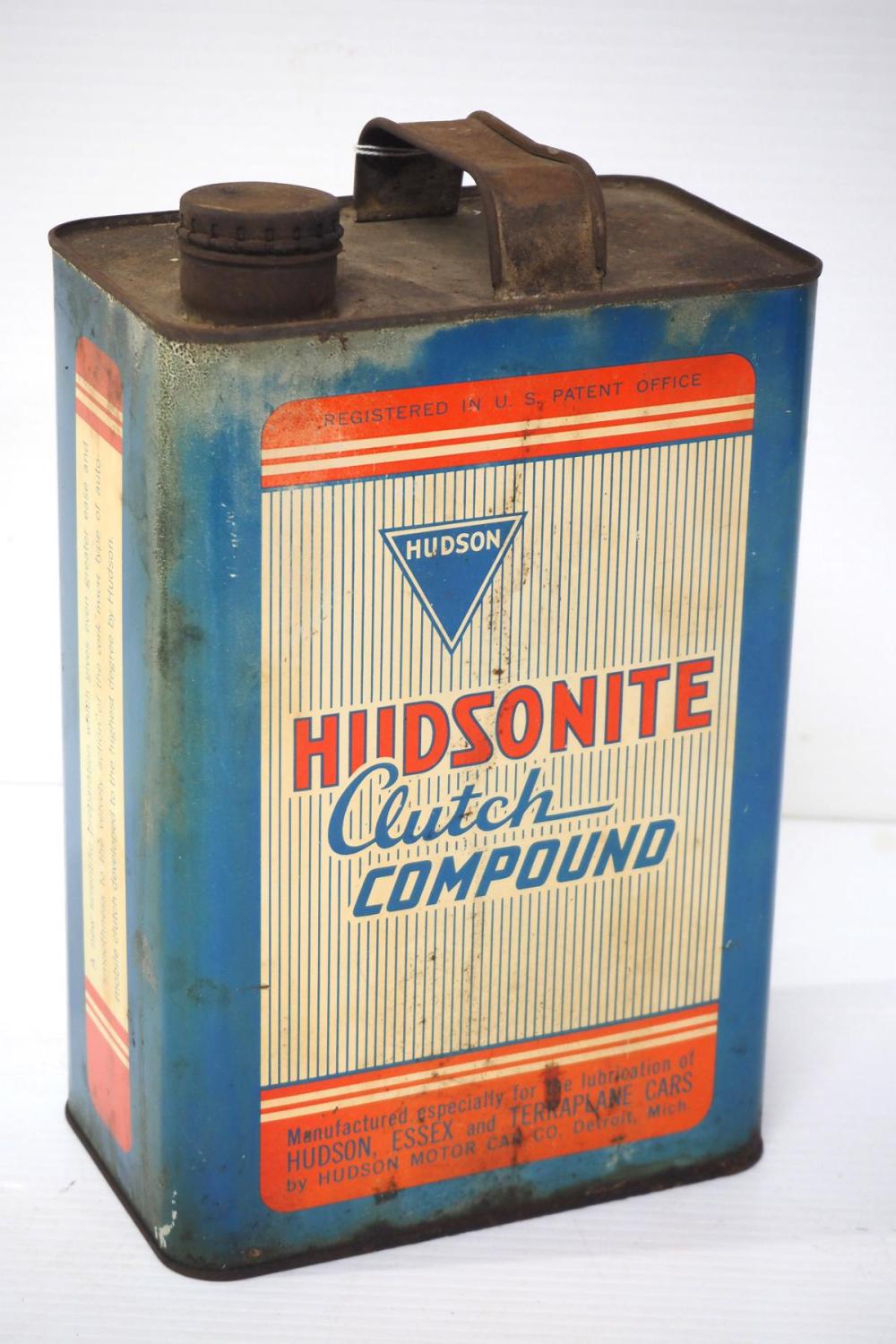

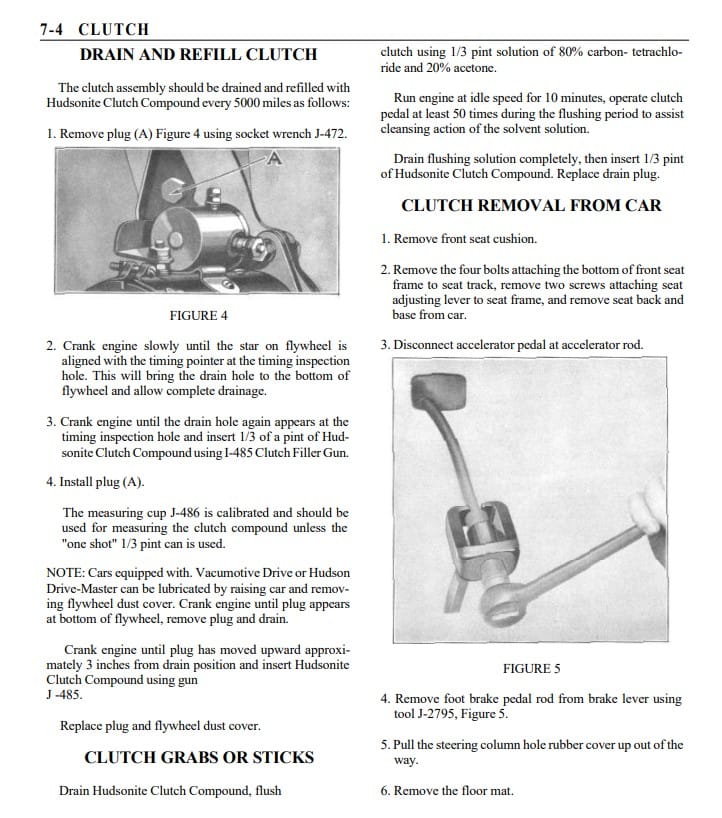

The system is sealed and filled with one-third of a pint of “Hudsonite” clutch compound, which is changed every 5,000 miles. An empty gallon container of Hudsonite was my motivation to explore these clutches, as a friend of mine found one in the attic of an old house he bought. These days, Wildrick Restorations sells clutch fluid, but some owners use their own concoctions, including Dexron-Mercon II or III transmission fluid.

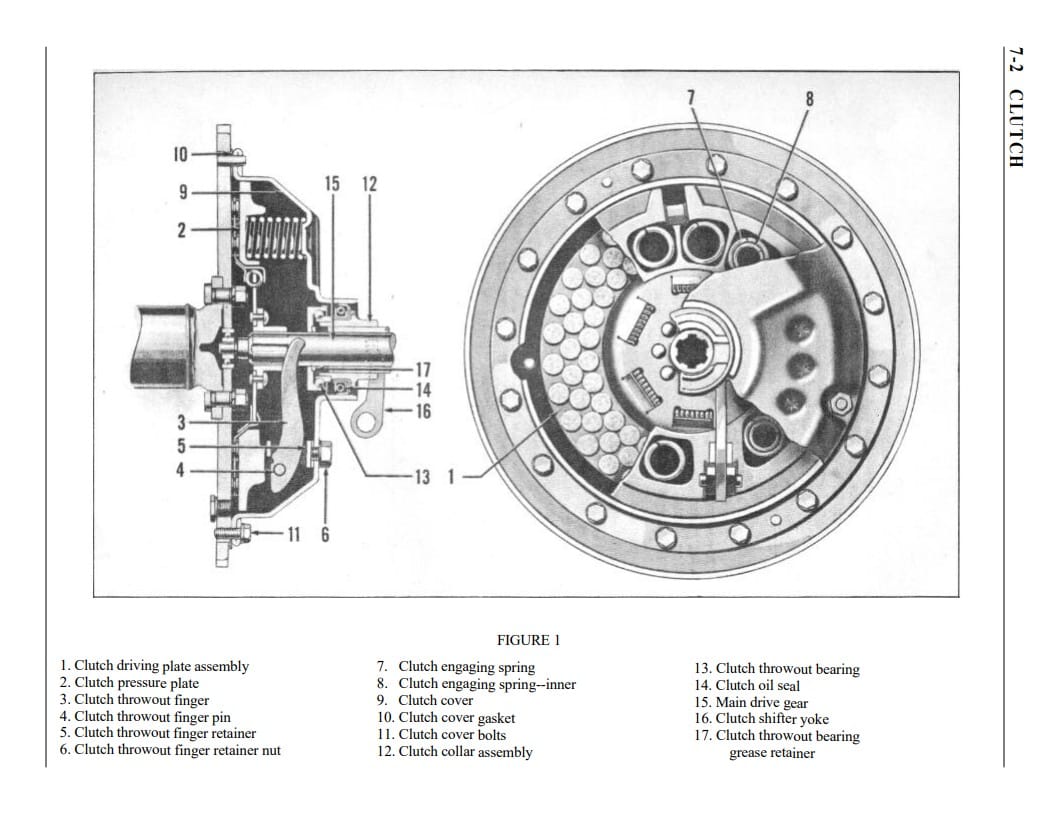

As I mentioned, to contain the Hudsonite, the clutch has to be sealed. Generally, this means using sealer on the crankshaft flange and the bolt threads for the pressure plate and flywheel, a gasket where the pressure plate bolts to the flywheel, and a seal where the throwout bearing enters the pressure plate. Otherwise, the system’s concept is the same as it is for a dry clutch.
What are the pros and cons of using a corked clutch? One downside is the maintenance, but even that’s not a big deal. Considering how little collector cars are driven, you’d end up draining and refilling the clutch housing once every few years; back when Hudsons were daily drivers, it was probably done once every oil change or two (or never, considering how many people take care of their cars). Also, cork clutches tend to anecdotally “stick” to the flywheel and pressure plate when a car is not driven for a length of time, and longtime Hudson owners recommend wedging a broomstick against the clutch pedal when the car isn’t going to be driven for more than a week. The problem was common enough even back in 1948 that the service manual above suggested a method for flushing the clutch housing.
The upside? When the clutch is working as it should, the engagement is about as smooth as it gets, as the cork readily absorbs the Hudsonite Clutch Compound and is naturally compressible. The clutch itself is also durable.

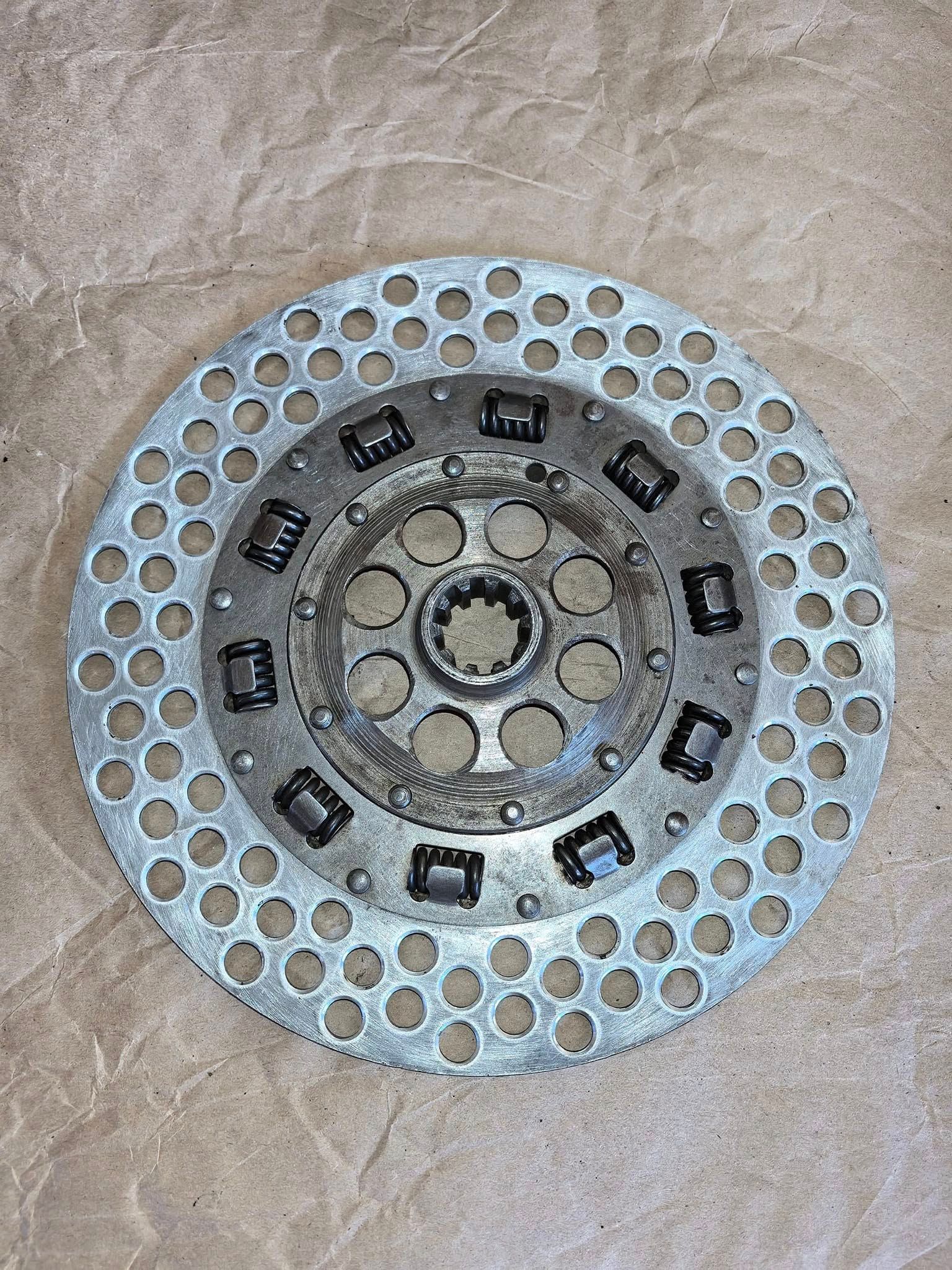

In the forums, some have asked if they can substitute a dry clutch for the sake of simplicity and parts availability, and the general consensus is that it’s a bad idea. The flywheel itself is apparently much thinner than that used with a traditional dry clutch, and therefore has a hard time standing up to the heat of that friction surface. Plus, there’s really no need to upgrade, as Hudson clutch parts are readily available (if not a little expensive), and some enterprising souls even reline their clutches themselves. This picture is a Hudson clutch disc that is temporarily devoid of its corks.

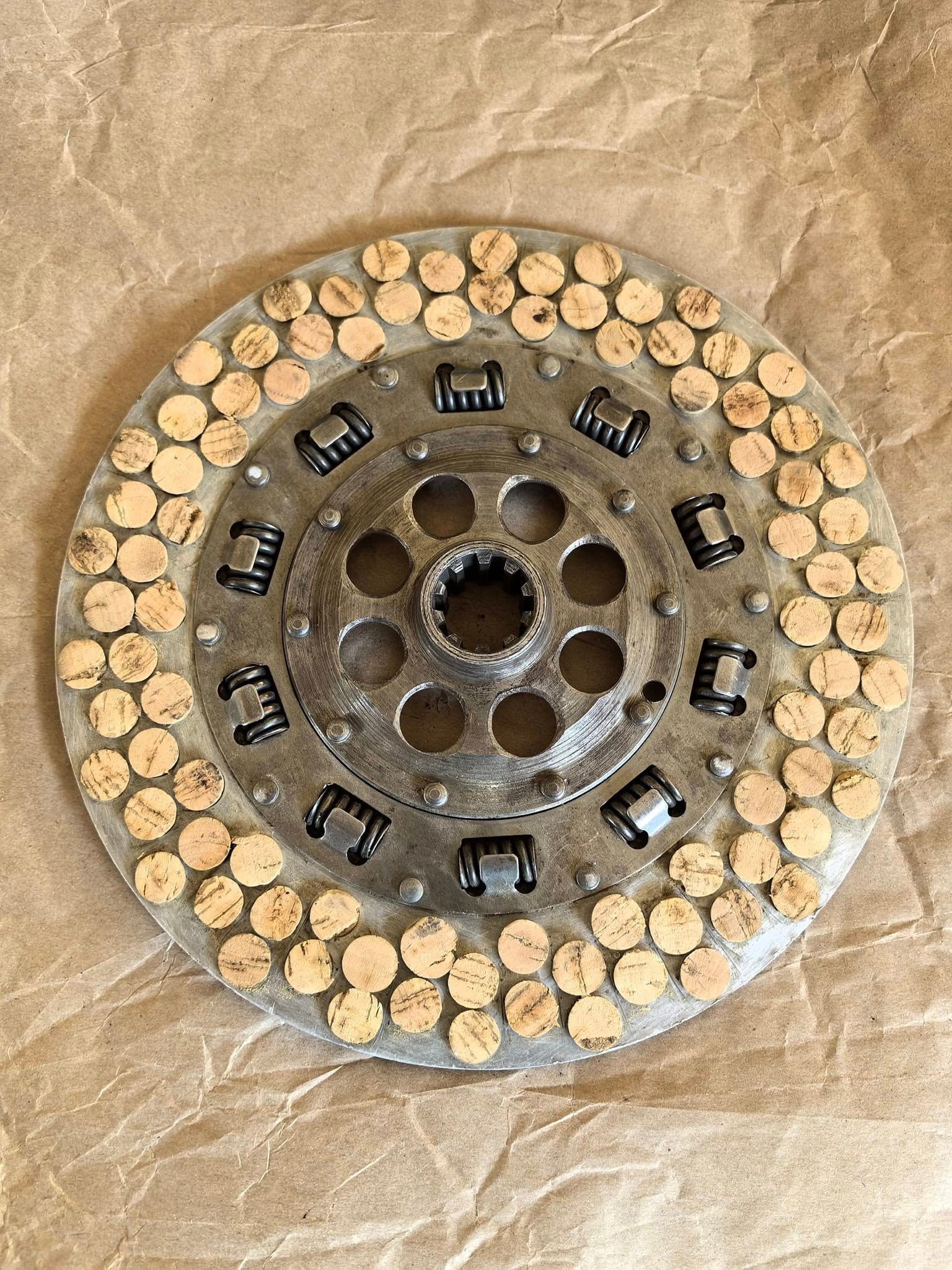

Here is the same clutch “relined”; as you might expect, it is a labor-intensive operation that is easy to screw up. Here’s a detailed writeup on how one Hudson enthusiast does the job.

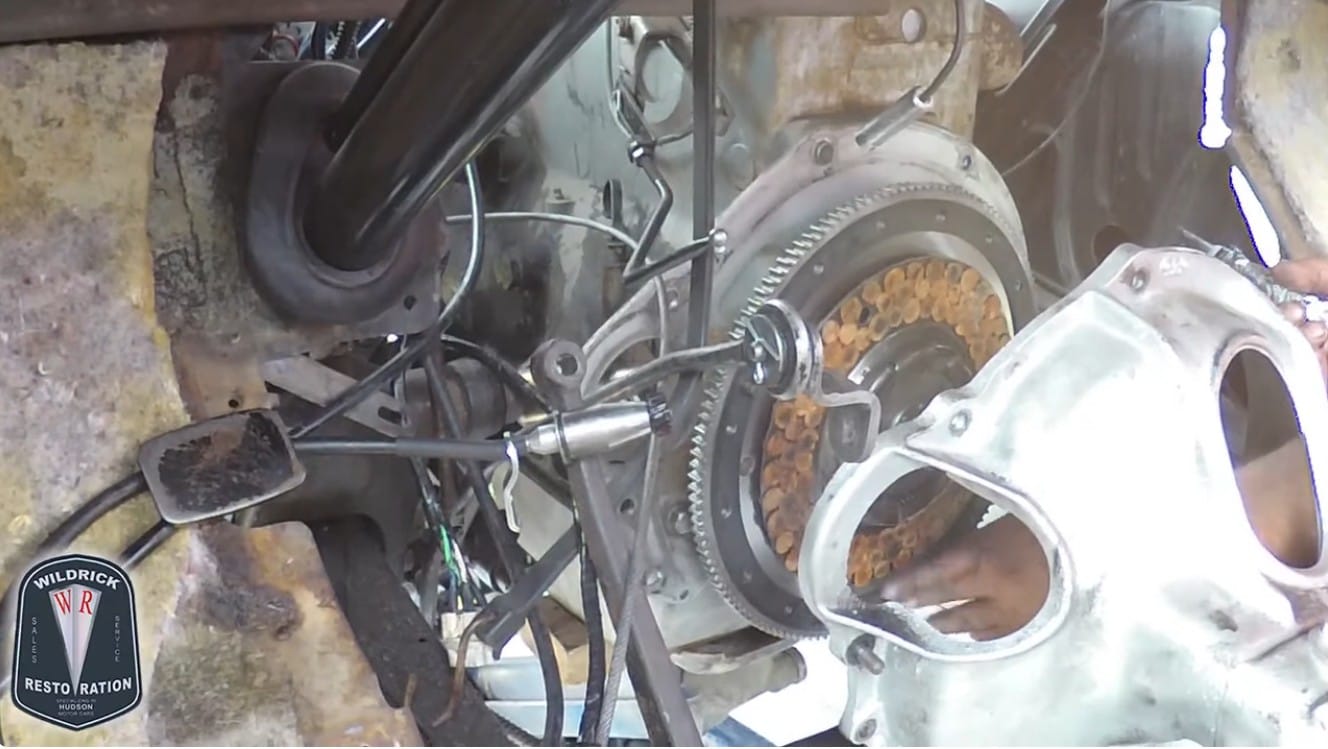

Wildrick Restoration in Shelbyville, Indiana, sells a lot of the parts Hudson enthusiasts need, and they posted this fascinating video of an impromptu clutch replacement at a Hudson gathering. Those Hudson engineers really made the job a little easier on the mechanic; most of a clutch job can be done from up top by removing the front seat and a portion of the floorpan, which bolts in. The sound on the video is quiet, but the technician makes a point of reminding viewers how crucial it is to line up the transmission using special dowels; a misaligned transmission can cause problems with starter engagement and clutch chatter.
Maybe the most important thing about the Hudson’s wet clutch is that it’s unique. Sure, some British cars used a similar system, but in America at least, Hudson is known for it. It’s one of those features that makes an independent so independent. Aside from the Hudson Jet, all manual-transmission Hudsons used their cork clutches until the end of the Step-Down line in 1954; the last three model years (1955-57, when Hudson became a rebadged Nash) used a traditional dry clutch, which is too bad. Only a few people will care, but when you’re working on your Hornet, Wasp, or Commodore, filling the clutch housing with Hudsonite every few years, you’ll be doing something that few other people in the world will be doing at that moment. And there’s always a certain amount of pride in that.
