Remember automatic seatbelts, those weird door-mounted or motorized belts some automakers adopted in the early 1990s to meet federal passive requirements more cheaply than airbags? The first manufacturer to offer them in regular production was Volkswagen, which introduced them as an option for the VW Rabbit in 1975. Here’s why Volkswagen developed these belts and how they worked.
Although federal safety regulations didn’t require passive restraint devices on all U.S. passenger cars until the 1990 model year, the National Highway Safety Bureau (predecessor of the modern NHTSA) first proposed such a requirement back in 1969. The passive restraint rule, which became part of Federal Motor Vehicles Safety Standard (FMVSS) 208, was originally supposed to take effect for 1974, but court challenges and political wrangling pushed the effective date back to 1976, then into the ’80s.
Why did regulators want passive restraints? By the end of the 1960s, federal safety standards required new cars to provide seatbelts, but fewer than 20 percent of Americans actually used them. “We feel that we want to protect that 80 per cent of the population who won’t do anything,” NTSB director Douglas W. Toms explained in 1970. “If we thought we could depend upon people to fasten their seatbelts, we’d be delighted to go to a lap belt, airbag system.”
Safety advocates still thought “passive restraint” should mean airbags, but federal regulators wanted manufacturers to have the flexibility to find alternatives or better technological solutions. So, rather than explicitly requiring airbags, the FMVSS 208 standard set out a series of requirements for injury protection in a 30 mph barrier crash and specified that vehicles had to be able to provide that protection “by means that require no action by vehicle occupants.”
Volkswagen research director Ulrich Seiffert was wary of airbags for passive restraint — he believed they “can only be supplemental to a lap belt or a three-point belt.” The NHTSA had indicated that automatic seatbelts would be an acceptable passive protection system if it met the injury protection criteria, so VW decided to go that way rather than develop airbags for its production cars.
VW originally called its automatic seatbelts the VWRA (Volkswagen Restraint Automatic) system. This had four parts:
- Front torso belts with the buckles on the front door frames

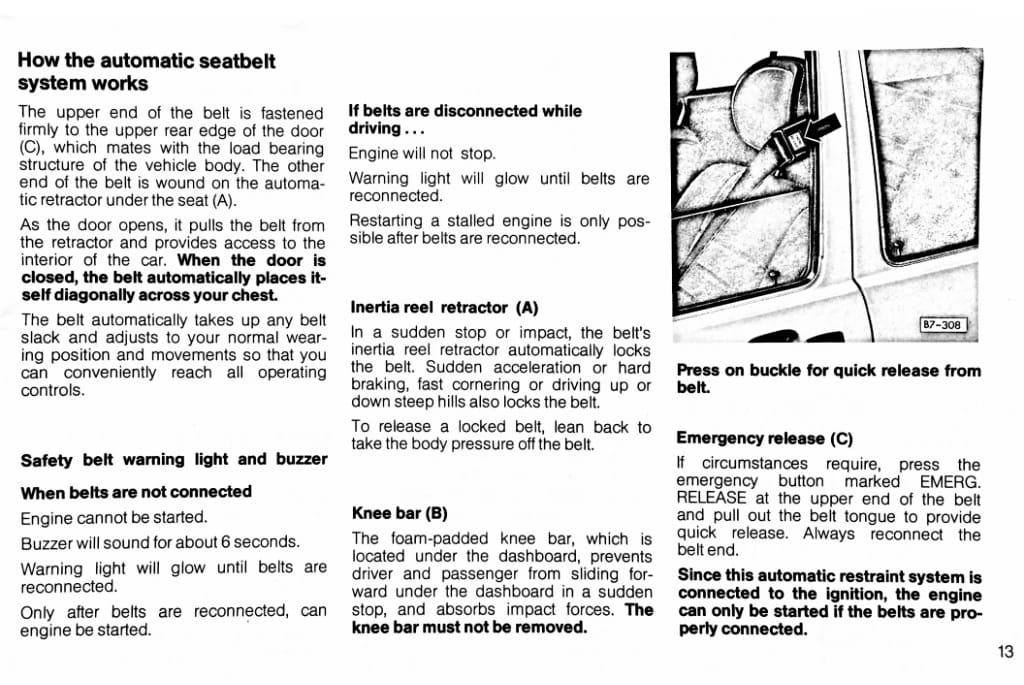

- Seat-mounted belt retractors with a two-stage inertia reel that would lock with any sudden movements that exceeded a certain acceleration
- An impact-absorbing foam-padded aluminum knee bolster
- An ignition interlock that would prevent the engine from starting if the front belts were not buckled, and a warning light that would come on if a belt was unbuckled with the engine running. (The engine would not stall if a belt was unbuckled.)
The system did not include front lap belts. Volkswagen did ask the NHTSA in 1974 if including separate manually buckled lap belts would cause the system to be considered active rather than passive; the NHTSA said it wouldn’t, provided the system met the FMVSS 208 requirements without manual belts. VW decided to forgo lap belts anyway, contending that the knee brace would prevent “submarining” under the torso belt without the risk of secondary injuries an improperly placed lap belt could cause.

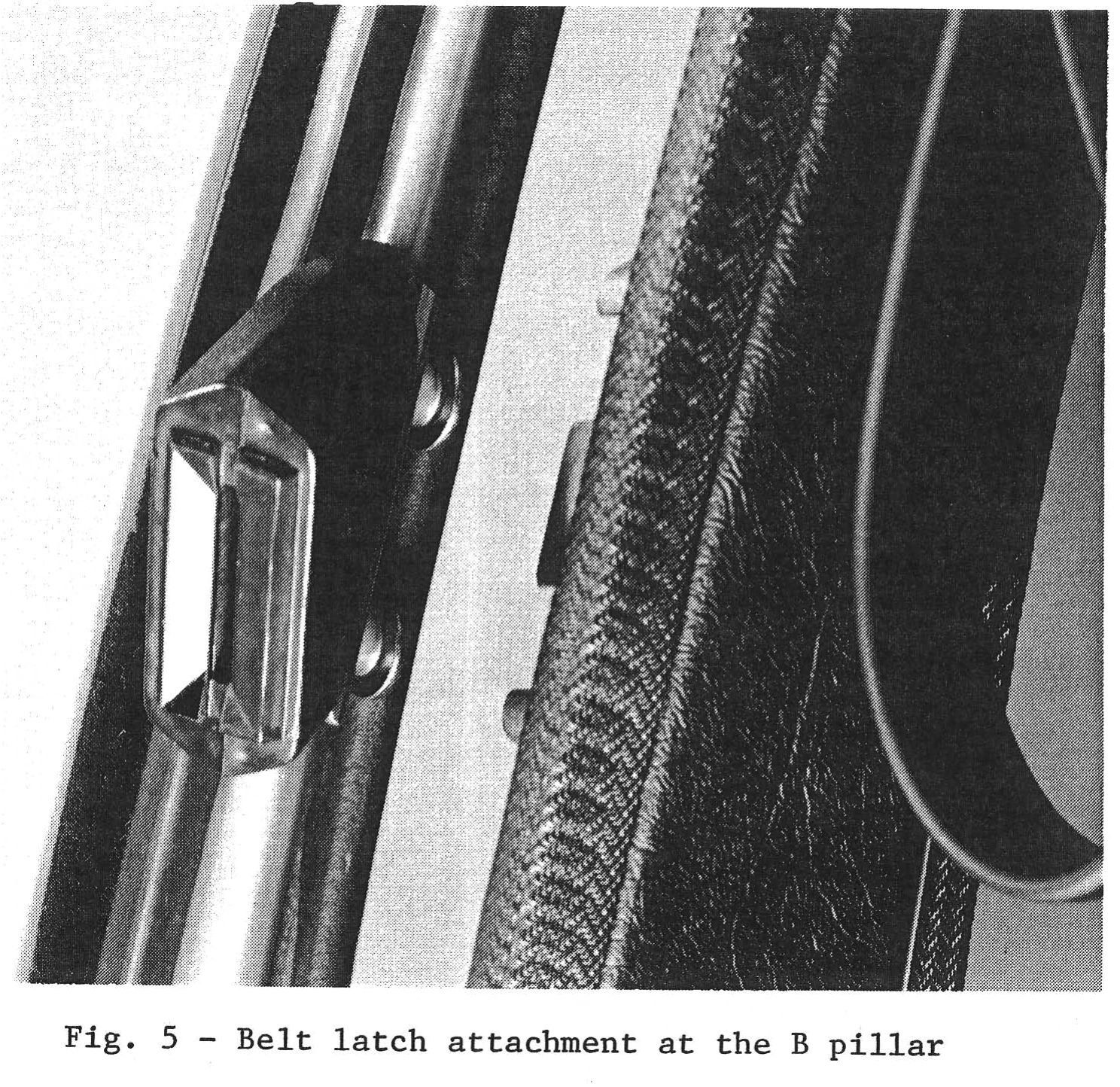

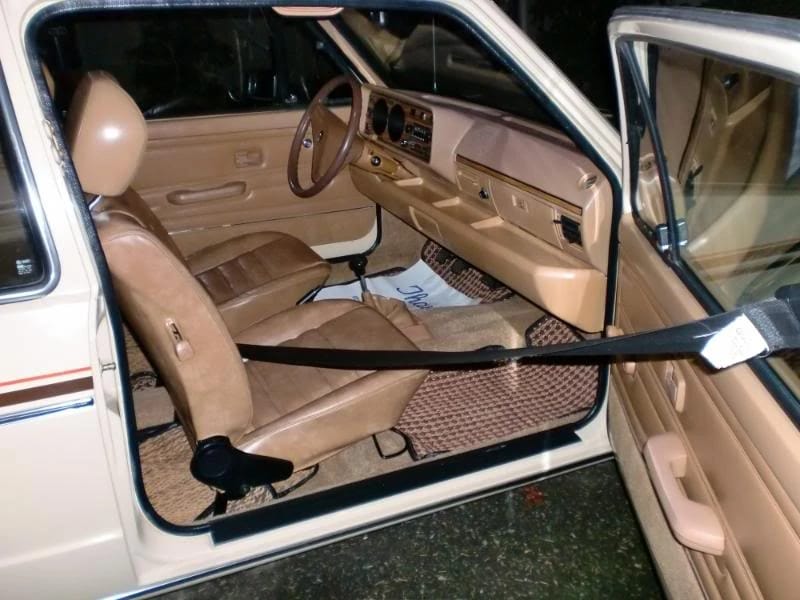

VW arranged the latch for each shoulder belt so that with the door closed, it engaged an anchorage plate on the center roof pillar, which used the same backing plates as cars with regular three-point belts. Thus, as long as the door was closed, any loads on the belt would go into the unit body structure rather than the door itself.
Volkswagen initially installed the VWRA system on 50 1973–1974 Beetle sedans for fleet evaluation, and then offered the passive belts on the new VW Rabbit for 1975. The system was initially a $30 option. In subsequent years, the automatic seatbelts were sometimes standard on the Rabbit “L” (Deluxe) and optional on other models; at other times, they were optional on all models; and VW eventually offered them as a no-cost option for the Mk2 Golf and Jetta.
How many Volkswagens got the automatic seatbelt system? Quite a few. Volkswagen apparently didn’t have a lot of luck selling the passive belts as an extra-cost option, but making them standard equipment on the more expensive Rabbit and Jetta models eventually put a lot of them on the road. By 1979, Volkswagen had built about 110,000 cars with the door-mounted belts, by far the highest-volume passive restraint system anyone had yet offered.
If you wanted to, you could buckle and unbuckle the shoulder belts manually (the NHTSA required them to have a single-point emergency release latch), but the idea was that you would just leave them attached all the time. Volkswagen insisted that the belts were unobtrusive when used as intended, and in contemporary surveys, owners found them easier to live with than the similar but more convoluted passive belt system Chevrolet offered on the Chevette in the late ’70s. However, modern owners seem to prefer to buckle the belts manually — I had to scour the Internet to find photos of cars with the belts engaged. With the belts unlatched, the easiest way to spot a 1975–1980 Rabbit with the VWRA system is to look for the massive shelf-like knee bolster bar under the dashboard.
Volkswagen of America announced on April 30, 1981 that it had installed the system on 400,000 cars, and said that 42 percent of U.S.-built cars were now coming off the assembly line with automatic belts.
For 1981, Volkswagen redesigned the knee bolsters to make them less obtrusive than before.

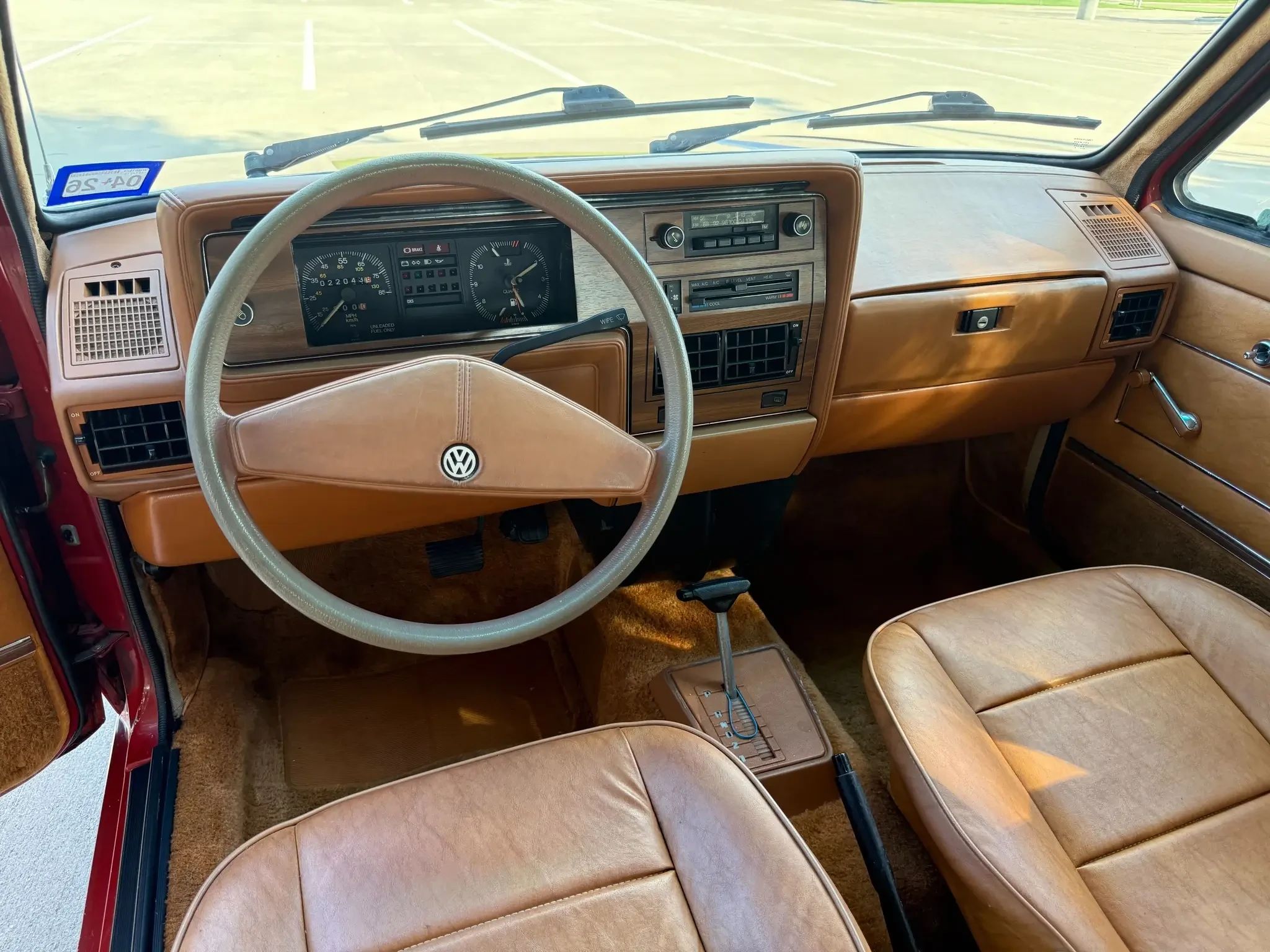

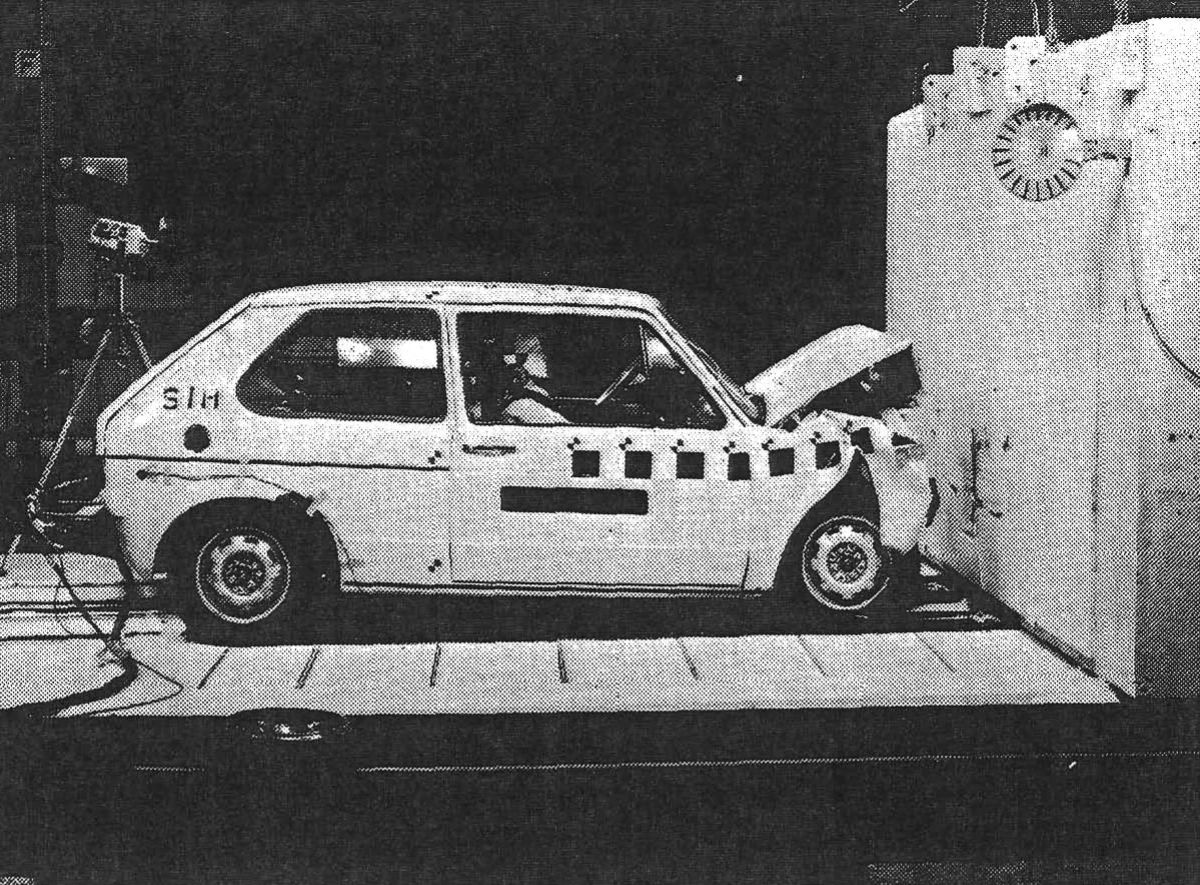

Did the automatic seatbelts work? For the most part, yes. A 1981 Highway Safety Research Center study concluded that the automatic belts were somewhat less effective than a conventional three-point harness at preventing serious injuries or fatalities. However, because people were substantially more likely to use the automatic belts, they reduced accident injuries by 20 to 30 percent and cut the accident fatality rate in half compared to conventional seatbelts. The driver of the totaled Rabbit pictured above survived a 35 mph frontal impact with serious but not life-threatening injuries.

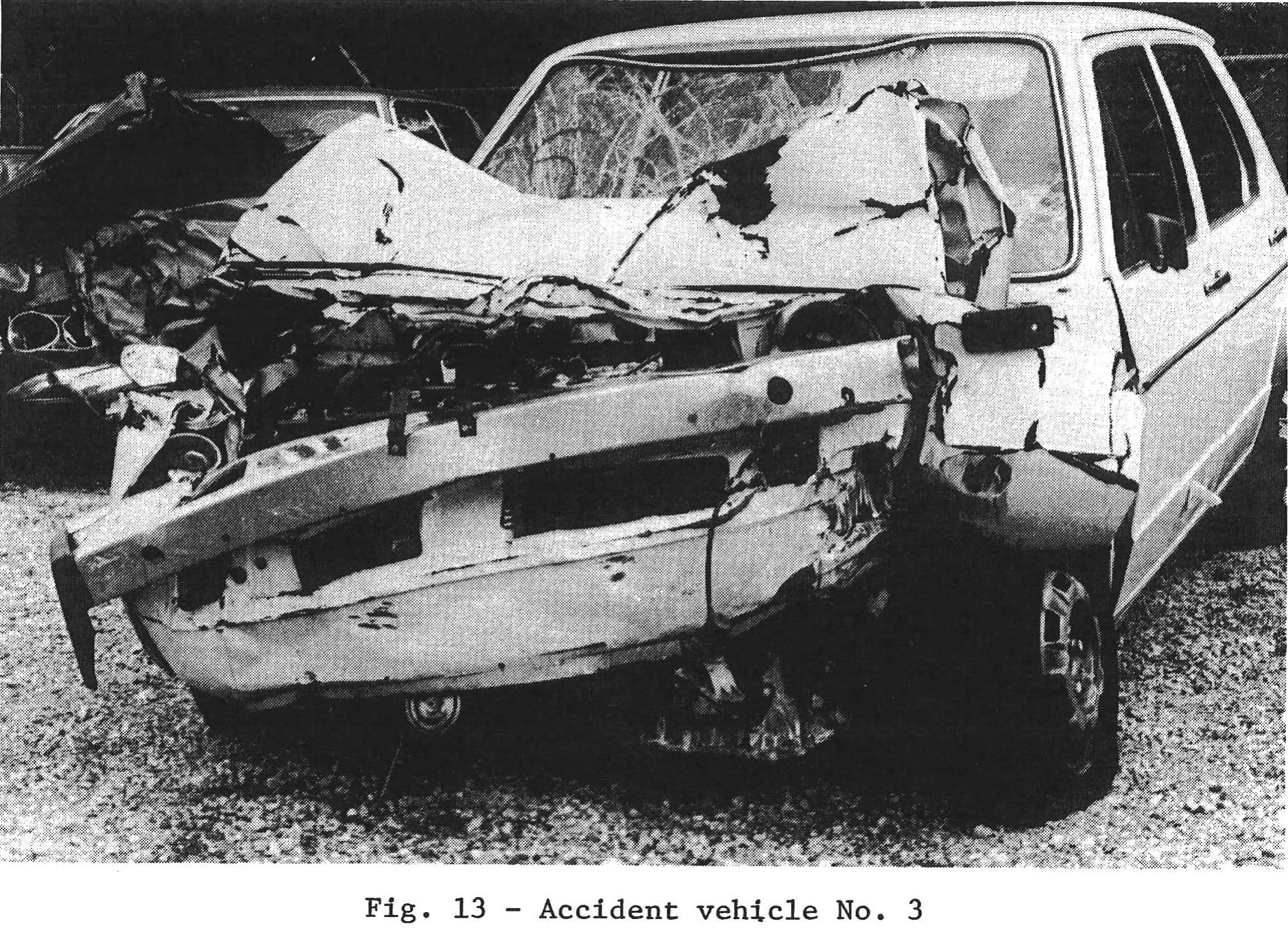

It wasn’t all rosy, however. Volkswagen eventually faced a series of high-profile lawsuits from victims of side-impact or rollover accidents who contended that their injuries wouldn’t have happened (or would have been less severe) if the automatic belt system had included lap belts, and argued that VW was negligent for not providing them.

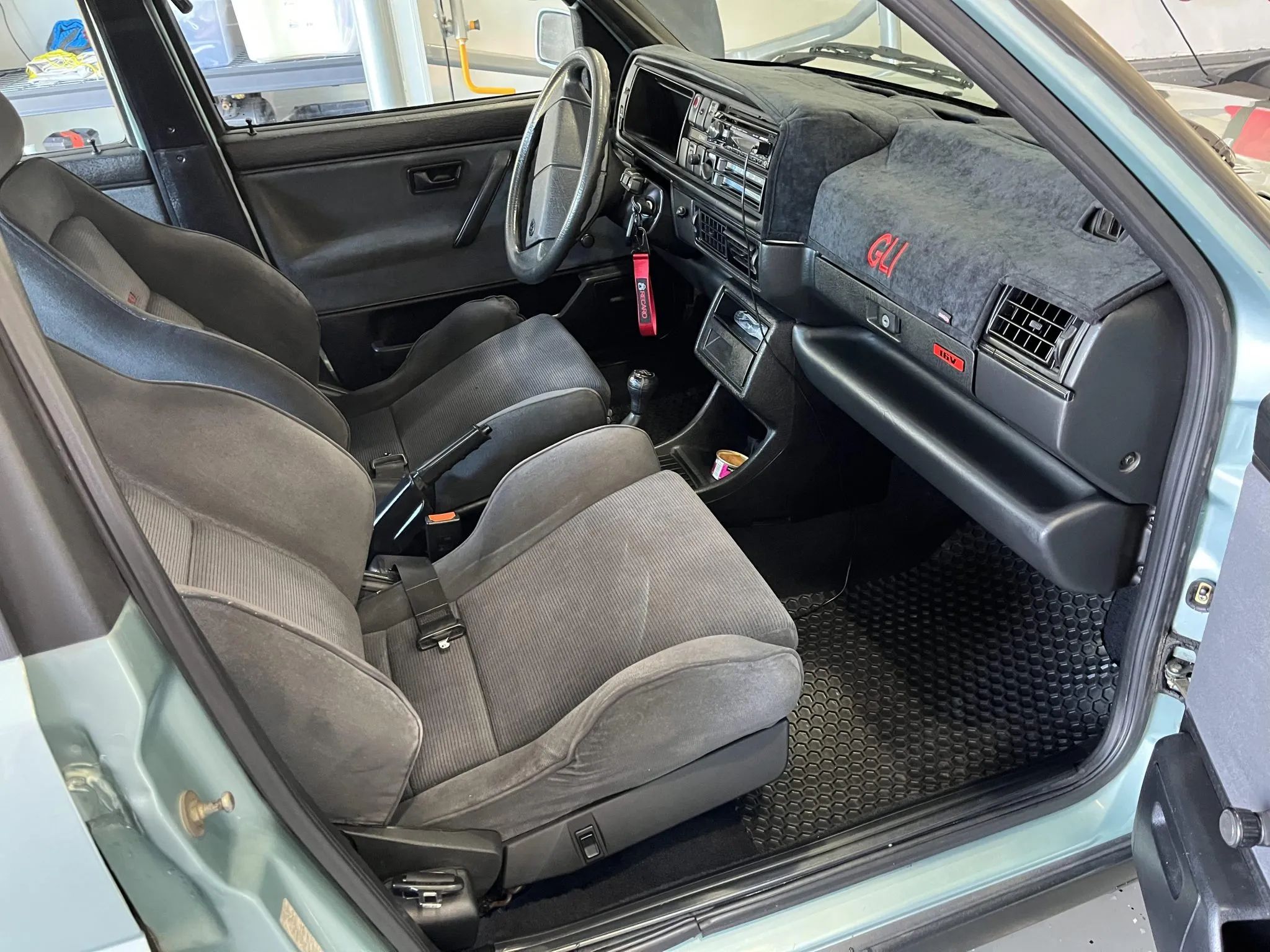

Volkswagen lost several of those cases at trial, but appealed all the way to the U.S. Supreme Court to argue that the plaintiffs had no right to sue because VW’s compliance with federal safety regulations preempted state tort claims. Nonetheless, Volkswagen modified the automatic seatbelt system for the 1990 Golf and Jetta to incorporate separate manually buckled front lap belts.
Like most of the auto industry, Volkswagen lobbied hard against the federal passive restraint standard. However, after yet another round of court battles, NHTSA issued rules in 1984 that finally phased in the requirement between 1987 and 1990. Volkswagen was slow to adopt airbags — the Cabriolet got a driver’s side airbag for 1990, but the Golf and Jetta continued to use the updated door-mounted belt system through 1992, and the Corrado, Fox, and Passat adopted motorized front shoulder belts with manual lap belts. In late 1991, a new federal law finally, unequivocally required all new cars to have both manual three-point belts and dual front airbags by the 1998 model year. All U.S.-market VW cars adopted them by 1995, finally consigning the old automatic seatbelt systems to the history books.
Related Reading
Curbside Classic: 1975 VW Golf Mk1/Rabbit – The Most Influential Global Compact Car Of The Past 50 Years (by Paul N)
1979 Volkswagen Rabbit: VW Jumps The Shark With A Baby Blue Rabbit Made In the USA (by me)
Our 1991 Subaru Loyale wagon had them. We called them “mouse” belts for the way they skittered along the door frame.
Fascinating. We never had these in Europe.
Hope a next installment will be about motorised seat belts. Something that was quite common in the early 90s but vanished when the airbag became the standard. I know many (most) people despised of the motorised seat belts but I would love to have a Jaguar XJ40 equipped with that.
When you talk Seat (Safety) belts, it was Australia (down under) who have to be the world leaders when it comes to safety belts and using them.
Australia was the first country in the world to mandate the installation and use of safety belts in cars. This law took effect nearly 60 years ago, in January 1969. From that date all cars sold in Australia had to be fitted with safety belts and the seat belts had to be used. This was and still is strictly enforced with heavy fines for those who elect to not ‘buckle up’.
Accordingly today in Australia there are at least two generations who never experienced driving without wearing a safety belts. In addition to this Australia has very strictly enforced speed limits. Many divided freeways have a maximum speed of 80KPH (45 MPH) and no where in Australia can you exceed 110KPH.
While many are critical of the above it does save thousands of lives each year. Australia’s annual death (road) toll is incredibly small when compared with other developed countries. The United States kills an average of 45,000 Americans in road accidents every year. This is a shocking number, but reflects the high speeds that Americans routinely drive on their interstate highways. The posted speed limits are treated as being ‘advisory speeds’ and the commonly held view is that its o.k. To do a limit over the limit, but that “little bit” frequently turns out to be a lot.
In more recent times, the popular use of even ‘hands free’ phones in cars is becoming a major cause of accidents. Australia has introduced laws banning the use of hand held phones in cars which is a good thing. Hopefully this will eventually develop into a total ban of mobile (Cell) phone use in cars. The sooner the better.
Airbags, particularly forward facing airbags are not ideal for short drivers or front seat passengers who are under 5 feet tall. They do pose a risk for shorter people and are only useful for an occupant wearing a correctly adjusted safety belt. No safety belt and the airbag can kill you!
I will never understand why anyone would travel in a car, any car without a seat belt. Great article.
The U.S. was astonishingly resistant to seat belt laws for a very long time. In the 1970s, even proposals to offer extra highway funding for states that passed seat belt use laws got nowhere. The final U.S. passive restraint rule actually had an escape clause that would have nullified it if a certain number of states had passed laws to require seat belts by a certain date; they didn’t make it. Today, I think all states here have seat belt use laws, but it took more than 20 years, and politicians at both the state and federal levels were terrified of them, assuming they would be horrendously unpopular with constituents.
I would love to see a interlock system where your car won’t start unless your phone is OFF.
Wow…I had forgotten about these. I had a car with the motorized belts and knew about the GM mousebelts. And I recall in the 90’s there were cars that had both the inferior belts and one airbag (if not two)…probably not a good combination.
My ’93 Fox had this passive system, and I remember the knee bar and separate lap belts. Got used to the shoulder strap fairly quickly. Now, the motorized ones on my friend’s Escort tried to strangle me…
I remember these belts, a friend of mine had a ’75 Rabbit-you had to be something of a contortionist to get in the car.
““We feel that we want to protect that 80 per cent of the population who won’t do anything,” NTSB director Douglas W. Toms explained”
Pity, that. A gradual, self-induced cull of that 80% wouldn’t have harmed the joint. They sure as hell couldn’t have voted, for instance.
To be a little bit kinder, the constancy of car industry lobbying, and lying, and prevaricating, and law-suiting on anything to do with safety (or health) for the protection of their profits, so mightily abused those admirable US foundation principles of freedom that it was bound to leave a legacy of confusion in the community (that is, confusion between something being a terrible personal imposition and it being a communally commonsense thing to do).
I get your point, but I would actually say that to a significant extent the car makers were also reflecting the strong inherent bias against safety features. Ford launched a major safety campaign in 1956, offering padded dashes, breakaway mirrors, reinforced door locks and seat belts (for $9) supported by a major ad campaign. Buyers shunned it like the plague. The campaign ended after two years. The 80% just didn’t want to hear about car safety, with their heads well planted in the sand.
It took a younger generation of Americans, buyers as well as regulators, to accept the need for safety features.
I remember my mother telling me about how, when she was in college in the 1950s, she and her roommate went on a double date with 2 guys. One of the guys owned a Ford equipped with seatbelts and when he drove them to the date, he insisted that they use the seatbelts and buckle themselves in the car. My mother says the she and her roommate decided that the guy was a “weirdo” and they never went out with him again.
I remember these quite well.

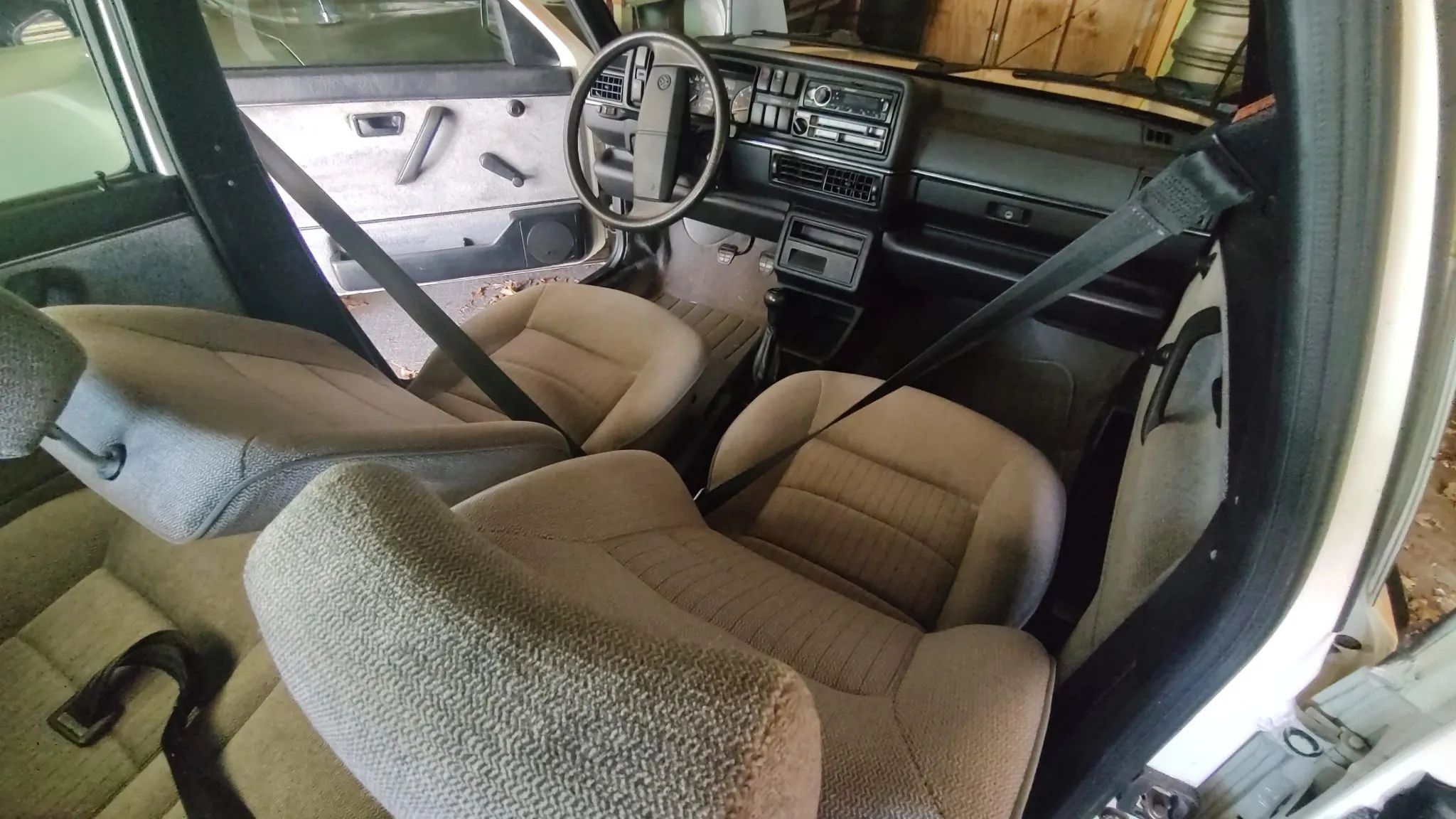

Minor detail: I’m quite sure the interior shot of the 1981 with the redesigned dash is not a passive belt version, as there aren’t any knee bolsters at all. The pictures of the 1990 Jetta clearly show them to still be there, even if a bit less intrusive than before.
