Since the mid-1990s, all gasoline sold in the U.S. has been required to contain detergent additives to control deposits on the intake valves and fuel injectors. Here’s how detergent gasoline was originally developed back in the 1950s, what it’s supposed to do, what TOP TIER gasoline is, and why adding too much detergent can be as bad as not having enough.
The First Detergent Gasolines
Although detergent lubricating oils were developed for heavy-duty diesel engines before World War 2 and were widely adopted for gasoline engines after the war, detergent additives for gasoline date back only to the early 1950s.
The first detergent gasolines were developed to tackled the problem of carburetor gumming. An engine needs air as well as fuel for combustion; even with a high-quality air filter, there will be some contaminants in the intake air, which tend to leave sticky deposits around the edges of the throttle plate and in the idle air passages. Deposit formation is usually worst at idle, when the throttle plate is mostly closed and air around it is moving at high speeds. As deposits build up in those areas, they interfere with idle speed and vacuum spark advance, causing rough running.
In the early ’50s, carburetor deposits still weren’t a big problem for the average driver, but they were becoming a huge headache for taxicab companies. Taxis spend a lot of time idling and in heavy traffic, where their intake air becomes contaminated by exhaust fumes and crankcase blowby. Carburetor gumming became so bad for urban taxi fleets that they were having to adjust idle mixture settings every 5,000 miles and overhaul or replace carburetors as often as every 15,000 miles — way too often for high-mileage taxicabs.
In 1951–1952, the research arm of Standard Oil of California (Chevron), then called the California Research Company, did extensive work on combating carburetor deposits with different fuel blends and additives. After various unsuccessful experiments, researcher Jack MacGregor suggested that they try adding oil-soluble detergents to the fuel to wash away throttle body deposits. Experiments using the same detergents added to lubricating oil didn’t work very well, but the idea seemed promising, so researcher Maury Barusch devised a different type of detergent, long-chain alkyl amines, that proved to be remarkably effective at cleaning and preventing carburetor deposits. They then refined the chemistry to get the best results at very low concentrations, around 30 ppm.
Standard Oil of California began marketing its first Chevron “Detergent-Action” gasoline in spring 1954. They brought in several members of the California Research Company team to demonstrate the principle to sales executives using an 8-foot-tall transparent carburetor equipped with a smoke machine and vacuum generator to demonstrate how throttle deposits formed.
Chevron was followed by several other oil companies, including Texaco, which also introduced its own “Petrox” detergent additive for Texaco Sky Chief premium fuel in 1954.
Petrox was probably developed concurrently with the Chevron detergent, but Texaco was much less forthcoming about its development or even how it worked, describing it as a “petroleum-based” additive and a “new element.”
By the mid-1960s, many U.S. premium gasolines and some regular grades had detergent additives, although the composition and concentrations (“treat rates”) of those additives varied quite a bit, as did their effectiveness. Until the late 1980s, cheaper U.S. regular gas often had little or no detergent; in some other countries, regular fuel still doesn’t.
Different Types of Intake System Cleaning
It became clear even by the early ’60s that while detergent gasoline was useful, there was a lot of room for improvement. Early low-concentration detergent gasolines helped to prevent new carburetor deposits (which the oil industry calls “stay clean” or “keep clean”), but were of limited value in removing existing ones (“clean-up”), especially with the changes in average driving patterns. More Americans were now spending more time idling in stop-and-go traffic, and were running into the kinds of problems that previously had only been seen by cab companies and delivery drivers.
Emissions control measures created additional challenges. Positive crankcase ventilation, adopted by most U.S. cars in some form by 1963, reduced hydrocarbon emissions and crankcase sludge, but routed corrosive crankcase blowby back into the intake manifold, the air cleaner, or both, which tended to produce more intake system deposits.
So did exhaust gas recirculation, which was adopted on some cars from the early ’70s to reduce nitrogen oxide emissions.

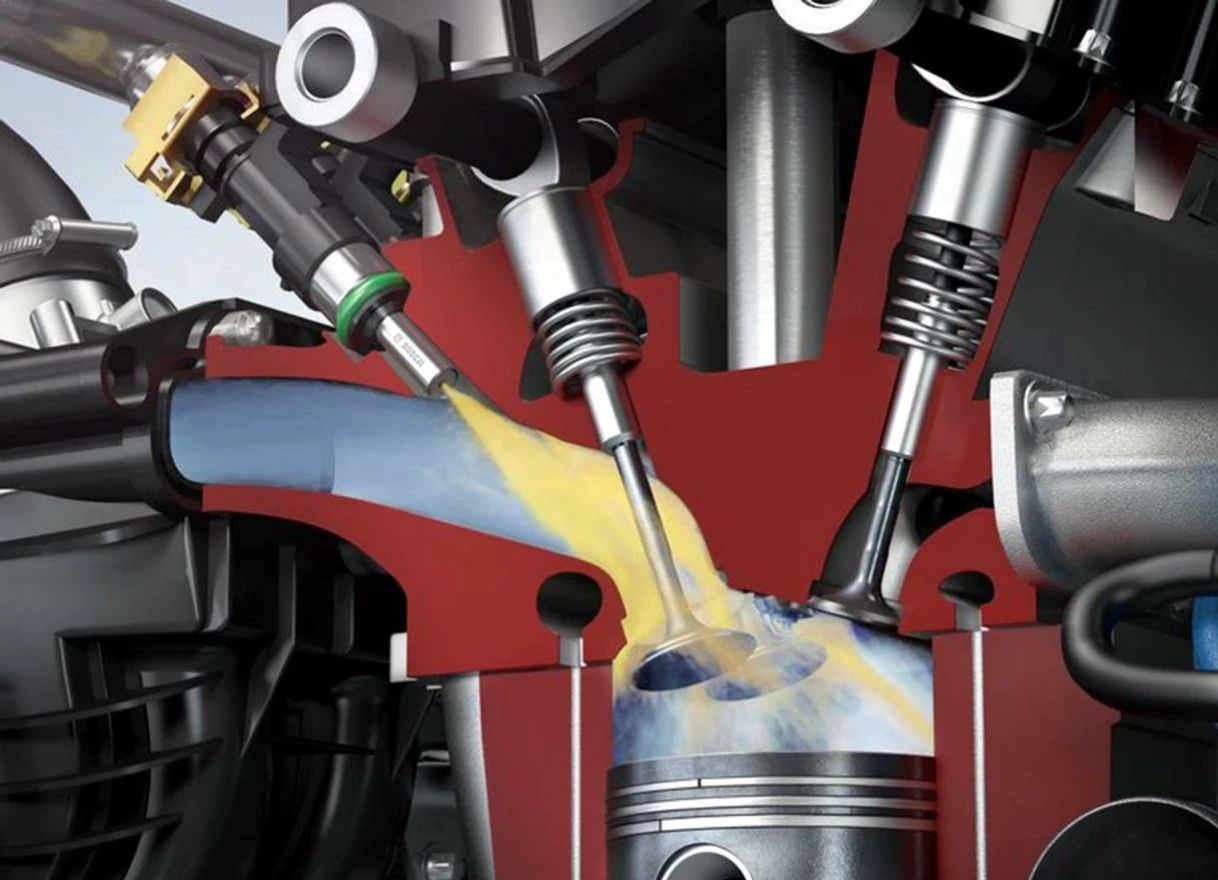

While early detergent gasolines were developed specifically to reduce carburetor deposits, there was growing interest in using detergent additives to reduce the other types of intake system deposits to which gasoline engines were prone. In addition to throttle body deposits, many cars suffered deposit buildup in their intake manifolds, intake valves, and intake ports, which robbed performance, increased fuel consumption, and caused driveability problems that could be hard to fix. (One taxi fleet suffered such severe manifold deposits that the company resorted to removing the manifolds and trying to burn out the deposits with gas flame!)
Tackling these problems has required a succession of new engine-cleaning fuel additives. Although these are still often generically called “detergents,” since about 1970, the industry has also used the broader term “deposit control additives” (DCAs), since some additives are not technically detergents in a chemical sense. DCAs are usually part of an additive package that also includes rust inhibitors and fuel system icing inhibitors.
Developing suitable deposit control additives has been an ongoing balancing act. Fuel detergents and their carrier oils need to be storable and not react with rubber or plastic fuel system components. The ideal detergent additive needs to remain chemically stable all the way to the intake valves, but then needs to break down as immediately and completely as possible during combustion, without leaving residue in the combustion chambers or fouling catalysts or oxygen sensors. On top of that, gasoline distributors would really like all this to be accomplished at as low a concentration as possible, since high-concentration additives are more expensive.
As if that wasn’t challenging enough, the “additized” fuel needs to be compatible with a wide range of different engine designs and fuel systems, which have changed a lot over the years. Additives that worked well enough to for carbureted engines weren’t always well-suited to port fuel injection systems. Newer detergents that more effectively prevented injector deposits with port injection could increase intake valve deposits. Since the 1990s, detergent additives have done a better job of reducing intake valve deposits, but sometimes at the expense of increasing combustion chamber deposits, which (like “carbon buildup” in older engines) raise a gasoline engine’s octane requirements and can cause detonation and piston knock.
Regulated Detergents and TOP TIER
Considering that intake system deposit buildup can increase exhaust emissions as well as hurting performance and fuel economy, it took a surprisingly long time for detergent gasoline to be regulated in the United States. Even the California Air Resources Board (CARB) didn’t implement its gasoline deposit control additive rules until 1990.
By 1990, more than 90 percent of U.S. pump gasoline contained some amount of detergent or deposit control additives, and the federal Clean Air Act amendments of 1990 gave the EPA a statutory mandate to set regulations for detergent additives in gasoline. Even so, the first interim EPA standard didn’t take effect until 1995, and the EPA didn’t issue a final rule until July 1996.
The EPA now requires that manufacturers register all fuel additives, describing their ingredients and establishing “lowest additive concentration” (LAC) levels for fuel distributors to use. For detergent additives, the LAC is the concentration needed to keep intake valve and port fuel injector deposits below certain specified levels, as measured in standardized tests. The EPA still hasn’t established limits for combustion chamber deposits (although the current CARB rules do).
Gasoline sold in the U.S. for on-road or off-road use must contain at least the LAC of a registered detergent additive; it can have more than that, but not less. (There are exceptions for racing fuel, avgas, and R&D projects.) Contrary to popular belief, the EPA doesn’t mandate how much detergent gasoline must contain — the lowest additive concentration is determined by the detergent manufacturer. However, even in the 1990s, the EPA was criticized for setting the required performance standards too low, which allegedly led some additive manufacturers to specify lower detergent treat rates than they had been using before the regulations went into effect.
The EPA has since tightened the intake valve deposit limit, but they have yet to set limits for injector deposits in gasoline direct injection engines, even though four out of every five of new U.S.-market cars and trucks now use GDI.
In the early 2000s, several automakers decided the EPA standards were not strict enough to adequately protect their newer engines and established their own voluntary deposit control performance standards, administered through a licensing program called TOP TIER. The TOP TIER standards meet EPA and CARB requirements, but also have some additional performance standards, including ones limiting combustion chamber deposits. TOP TIER distributors have to meet these standards for all octane grades their stations sell, not just premium fuels, but the TOP TIER rules do allow retailers to specify higher additive concentrations for higher octane grades, at up to three times the approved minimum rate.
Is More Detergent Better?
Auto enthusiasts have a tendency to assume that if a little of something is good, more must be even better. The companies that sell fuel additives have enthusiastically exploited that knee-jerk assumption for years, but it’s not necessarily true when it comes to fuel detergent and deposit control additives.
Over the years, there’s been ample evidence that excessive detergent concentration can cause unintended harm. For example, in 1970, a Chevron study found that high concentrations of certain detergents caused serious damage to piston rings — some tests had to be stopped because of stuck rings or plugged oil control rings. In 2021, a GM study found that very high detergent concentrations — well above the allowable TOP TIER limits — significantly increased the risk of stochastic preignition (also known as low speed preignition) in turbocharged gasoline direct injection engines, which can cause severe engine damage. (Some researchers have disputed those findings, but it’s obviously a matter of concern, and the latest TOP TIER+ standards now incorporate additional GDI “no-harm” requirements.)
Even the TOP TIER Program FAQ emphasizes, “Merely adding more detergent doesn’t necessarily mean a fuel is better.” Different detergents may need different concentrations to achieve the same results: For example, the GM study reported that one common additive, polyether amine (PEA), needed a concentration of 85 pounds per 1,000 barrels to meet the TOP TIER standards, but another, polyisobutylene amine (PIBA), needed only 58 pounds per 1,000 barrels. What’s most important is not the detergent concentration, but how well the additives actually perform.
The chemistry of these additives and the deposits they’re supposed to control is complex (and is still not as well understood as you’d expect). However, a useful analogy might be liquid hand soap: Using soap and water to wash your hands is much better than water alone, but using three or four times as much soap won’t get your hands three or four times cleaner, and it might plug up the drain.

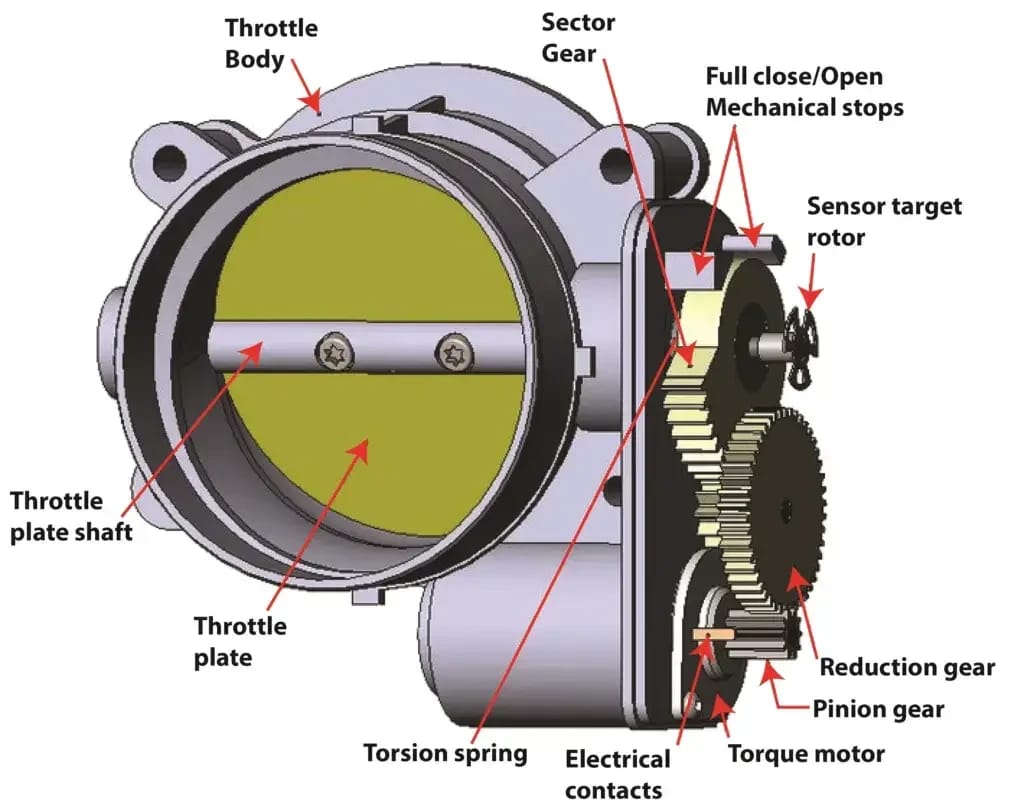

Ironically, modern engines are still susceptible to the kind of throttle plate deposits detergent gasolines were originally developed to clean up. Even with port or direct fuel injection, dirt will tend to build up around the edges of the throttle plate at idle speed. Modern engine computers will compensate for the flow restriction (at least to a point), but since the throttle body and manifold are “dry” (with fuel added at the intake port or directly injected into the combustion chambers), detergent gasolines and fuel system additives can no longer do anything to clean it up.
