In 1957, eight years after the Van Doorne crew started the production of rolling chassis, DAF introduced their first heavy-duty chassis-cab, known as the 2000-series of trucks and tractors. The first model was the 2000 DO, rated at a gross combination weight of 35 tonnes (77,162 lbs).
The new heavy cabover was immediately recognizable as a DAF, as the truck and trailer manufacturer simply widened their existing all-steel cab and gave it a small snout to house a serious inline-six diesel engine.
At first, only 4×2 truck and tractor chassis were available. In the course of 1959, the 2000-series got an in-house drive axle with an axle weight rating of 10 tonnes (22,046 lbs). The six-speed constant mesh transmission was sourced from ZF, synchromesh was optional. Air brakes were standard.
The ‘serious inline-six diesel engine’ I mentioned was the Leyland O.680 (11.1 liter) from the UK, good for 165 SAE-hp and designated as the DO engine by DAF.

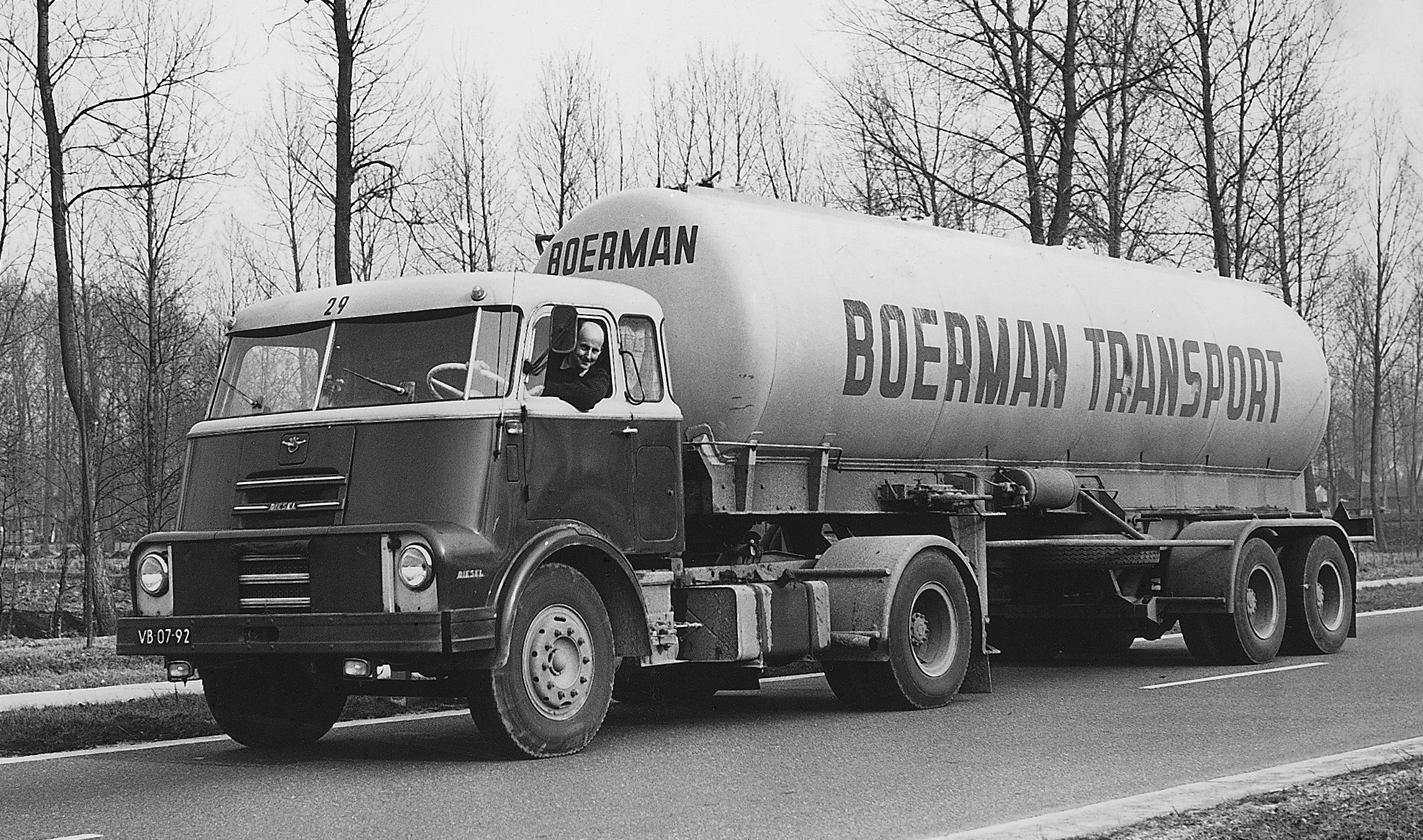

A factory sleeper cab was also offered. After all, heavy-duty commercial vehicles tend to cross borders. The seemingly contented driver in the picture is sitting behind the wheel of a DAF T 2000 DO (the letter T for a 4×2 tractor), towing a dry bulk tanker semi-trailer. And what a wonderful picture it is!

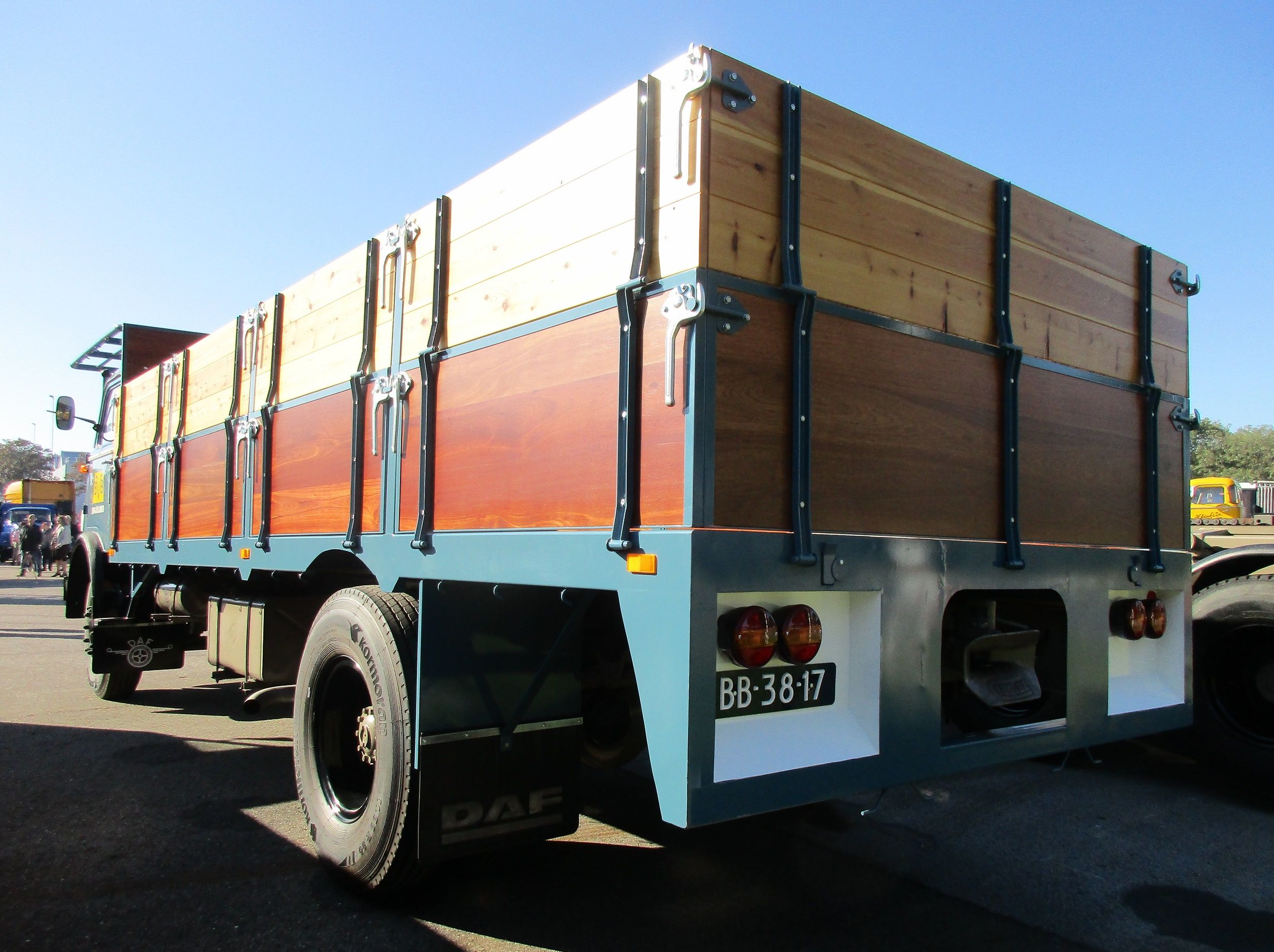

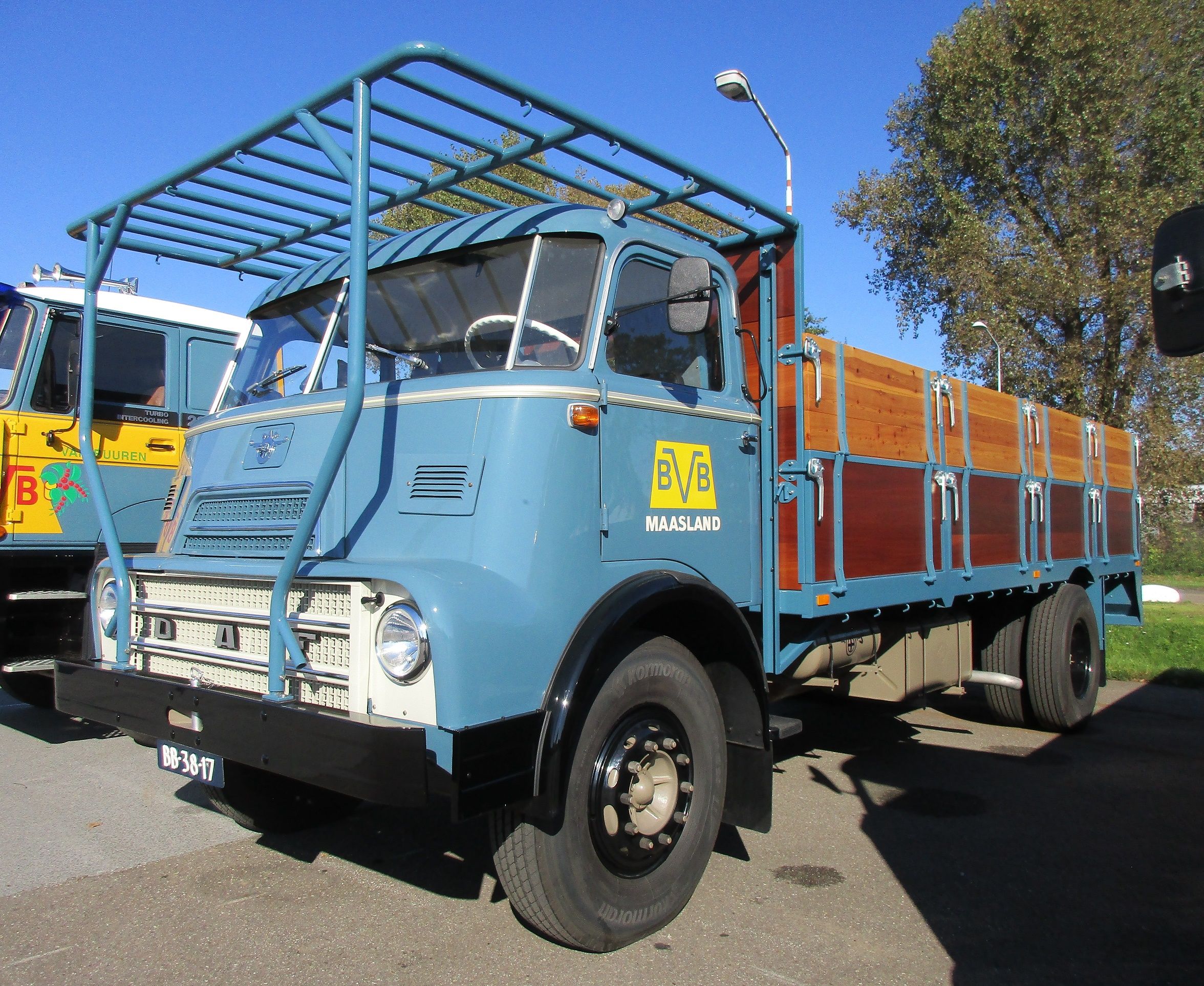

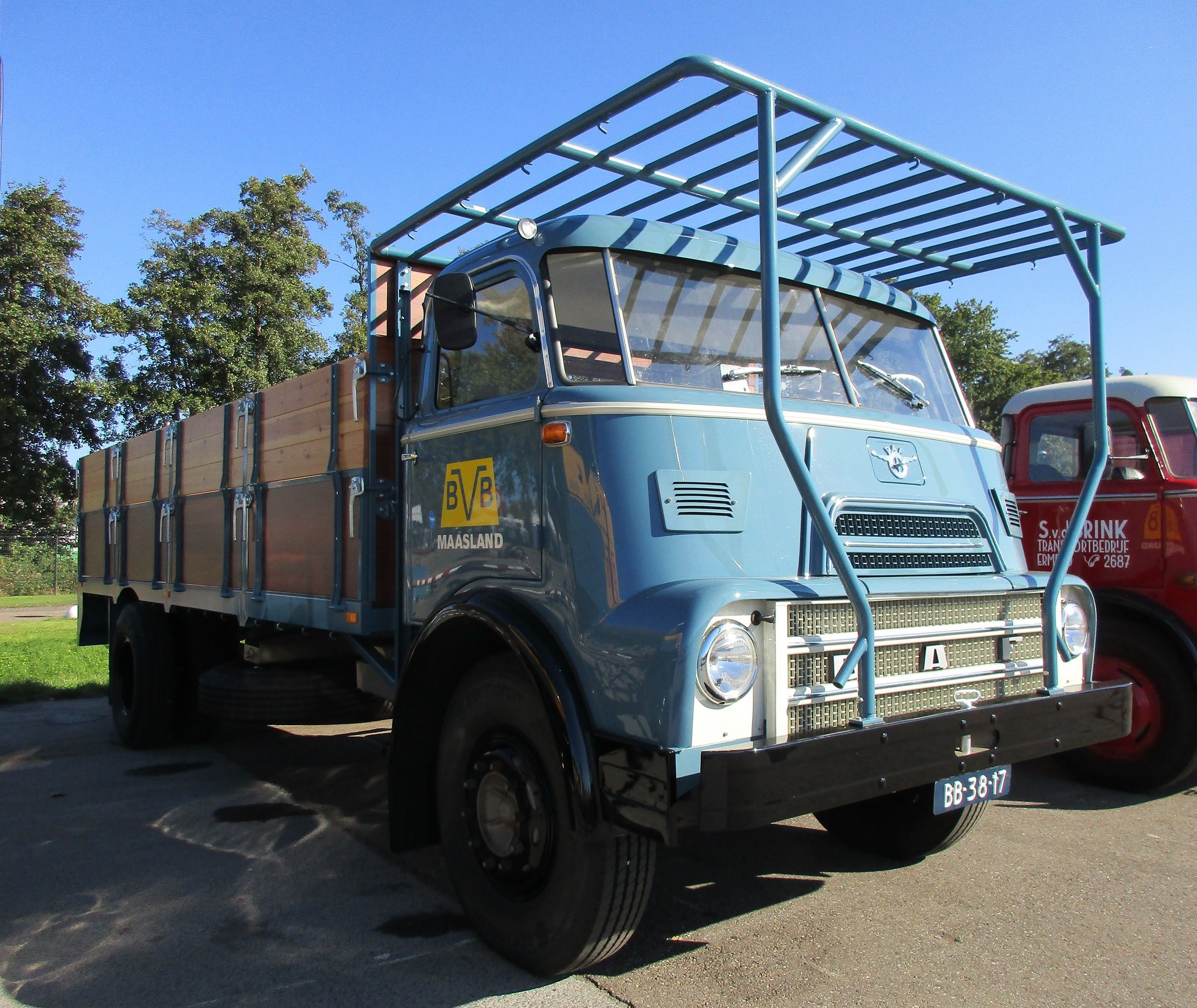

The outstanding flatbed truck I caught in October 2024 is a 1967 DAF A 2200 DO 505, the number 505 refers to the vehicle’s wheelbase in centimeters. By then, the O.680 diesel had a maximum power output of 180 SAE-hp. Such a straight truck was typically used to haul hay, straw, or bagged goods; its GVWR is 15.4 tonnes (33,951 lbs).
The year 1968 marked a turning point in the production of DAF engines, as the license-built Leyland 680 evolved into the long-standing DAF 1160-series of diesels, turbodiesels and turbo-intercooling diesels, all of them with 11.6 liter displacement. Initially, there were three variants: the DKD 1160 (180 SAE-hp), the DK 1160 (230 SAE-hp), and the DKA 1160 (250 SAE-hp). As per usual, the letters were part of the vehicle’s model designation.

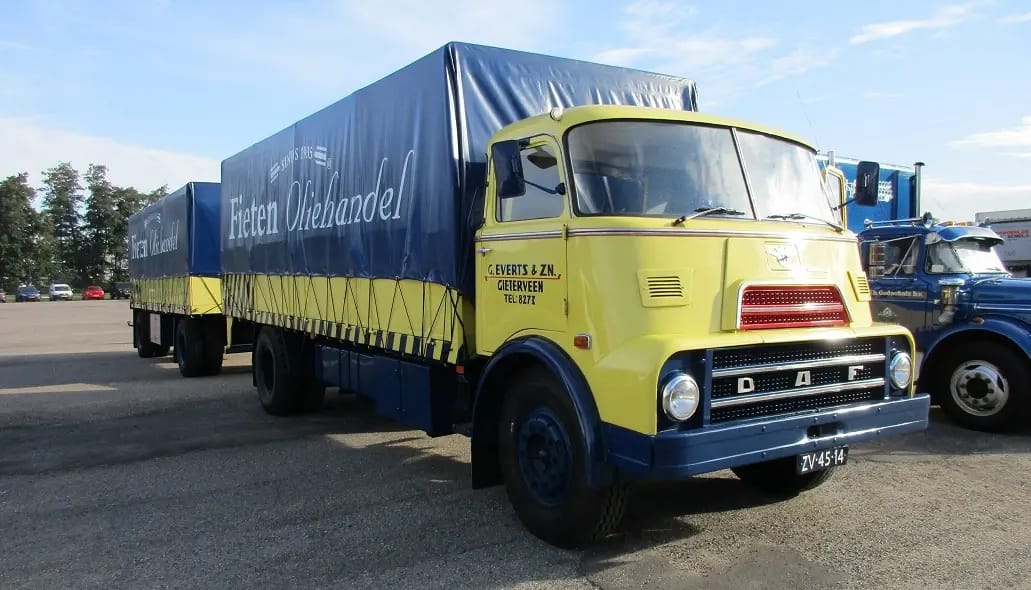

Naturally, the 2000-series got the in-house engines too, like this 1969 DAF A 2200 DKD 548 flatbed truck with a full trailer.

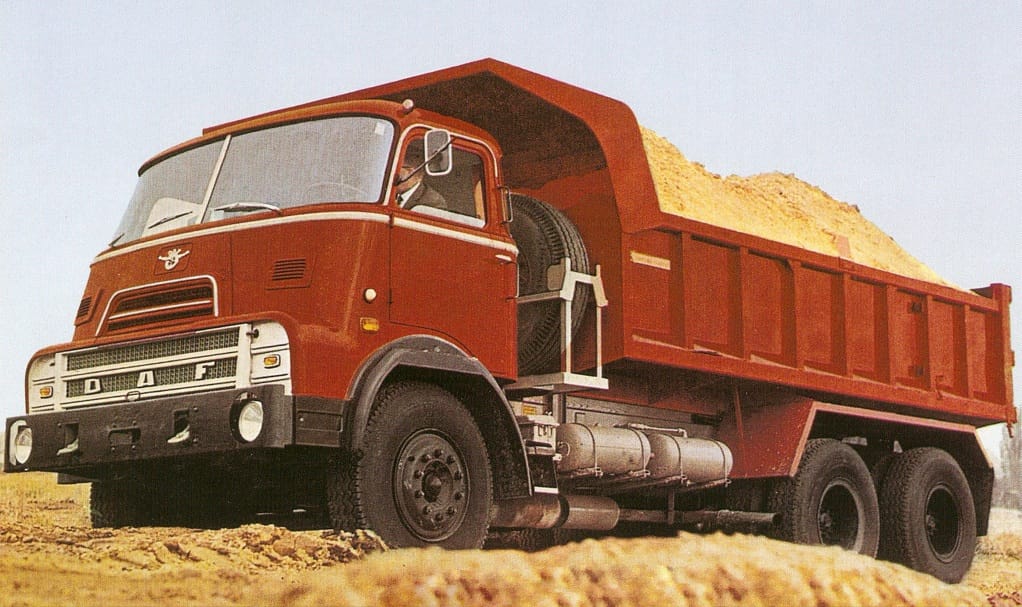

The roughest and toughest of them all was the 226 SAE-hp, DAF ATE 2400 DP with a 6×4 drivetrain, introduced in 1965. From the late sixties onwards, these brutes were known as the ATE 2400 DK, so powered by the DAF DK 1160 engine with 230 SAE-hp. They were built until 1980, yet at that point only for export markets (read: the African continent), and were superseded by the conventional DAF N2800-series.
At the October 2024 DAF event, the 1967 truck was accompanied by an equally splendid 1989 DAF FAS 2800 Turbo Intercooling with a 6×2 drivetrain.
Let’s end with a 1968 DAF T 2400 DK in its element, the owner is taking his 4×2 tractor with a sleeper cab out for a spin. Enjoy the ride and the scenery.
The smoothness with which the driver in the video changes gear is wonderful!
