Transit operators today have a wide selection of choices with regards to the type of energy to power their fleets; gas, clean diesel, diesel-electric hybrid, CNG, hydrogen fuel-cell, electric (trolley), battery-electric, capacitive-electric, with more to come in the future. One technology absent from that list is “electro-mechanical flywheel storage” – using a large, gyroscopic flywheel to capture, store, and release electricity that then powers an electric motor. One manufacturer and several nations tried that method in the 1950s – let’s take a look at the Gyrobus.
While I’m sure most CC readers understand how flywheel energy storage works, here’s a short video for those that may need a refresher.

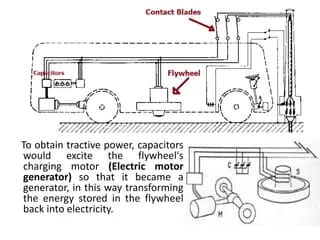

The initial origins of the flywheel-electric bus (FEB) began in the late 1940s in Switzerland with the manufacturer Oerlikon. The Swiss were looking for alternatives for their trolley bus routes where due to geography or cost, continual overhead wiring wasn’t viable. With a typical range of between four and six kilometers, Gyrobuses would recharge at overhead stations along the way. Three-poles would extend from the front roof to connect to an overhead gantry which ran three-phased 500 volt AC. The integral electric motor/generator would then spin the flywheel up to 3,000 rpm. The average charging time was 30 seconds to 3 minutes to top off or recharge. Regenerative braking could also return energy to the flywheel. A full recharge from a complete flywheel stop took around 40 minutes, however standard procedure was for the flywheel to never run completely down. A plug-in port allowed for continuous charging at night for quick operation in the morning.
The Gyrobus was built by a consortium of Swiss manufacturers; Oerlikon made the flywheel and drive system, FWB (Franz Brozincevic & Cie, Wetzikon) made the chassis, and coachbuilder CWA (Carrosseriewerke Aarburg) manufactured the aluminum body. Length varied but the typical model was 10.4 meters (34 ft) long and seated 30. The huge flywheel weighed 1.5 metric tonnes (3300 lbs), was 1.6 meters in diameter, and was situated in the middle of the bus, spinning in a horizontal axis. With that much mass spinning, the flywheel needed to be in the exact center of the bus to ensure stable handling. Even then, drivers stated it handled “quirky.”
The first full commercial service began in October 1953, linking the Swiss communities of Yverdon-les-Bains and Grandson using two buses. The concept proved successful technically but less so commercially. Electrical consumption from the grid to power the heavy flywheels was considered excessive and with such limited production, parts were prohibitively expensive. The two Gyrobuses remained in service until 1960, when the route was converted to diesel.
In 1955, the city of Leopoldville in the Belgian Congo (Now Kinshasa, Republic of the Congo) purchased 12 Gyrobuses to use on various routes. They operated for four years before the poor roads took their toll. With war breaking out in 1959, service was ended.

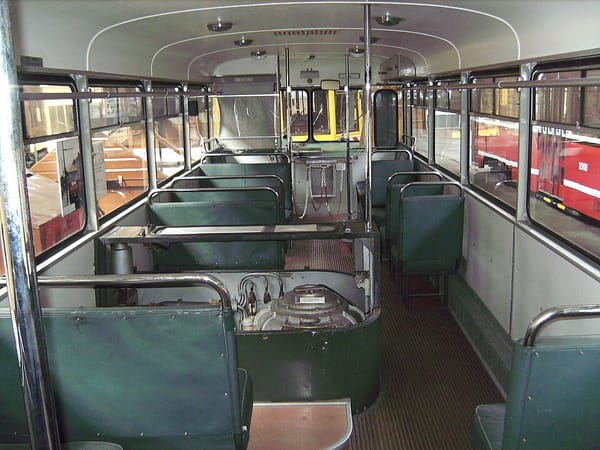

Ghent Belgium was the third location to use Gyrobuses beginning operations in 1956 on a route linking Ghent and Merelbeke. They stayed in service for three years, being withdrawn in 1959. The operator concluded they were unreliable, “spending more time off the road than on.” City officials also noted their weight increased road damage. Fortunately, one Ghent 1955 model Gyrobus G3 was spared from the crusher – it’s on display at the Flemish Tram and Bus Museum in Antwerp, Belgium.
Could flywheel technology be used in buses today? Possibly, but not likely. Today’s ultra-capacitor buses, in use in cities like Shanghai, Tel Aviv, Belgrade and Sofia, have single-charge ranges of up to 40 km (26 miles). But who knows, with today’s much lighter and stronger metals, smaller more powerful motors, and electronic controls, maybe someone will come up with a completely new “spin” on things.
Fun Fact: Though not used in buses, flywheel technology is found today in a variety of applications, from a backup energy tool to an intermediate “smoother” for electric sources that fluctuate such as solar and wind. Further, a flywheel-electric tram is currently in service in the West Midlands of the UK – flywheel-powered “Parry People Movers” (designated as British Rail Class 139 railcars) operate on the Stourbridge Town branch line, running a shuttle service between Stourbridge Junction and Stourbridge Town. A short video for those interested is here.
