You might be wondering what kind of person switches his 390-powered 1963 Thunderbird from a dual-exhaust system to a single-exhaust system, but the idea isn’t as crazy as it sounds, and my car (shown above) isn’t exactly as it seems in the image on the left.
That’s because in 1963, Ford installed a single-exhaust system on all Thunderbirds except the extremely rare triple-carbureted, 340-horsepower “M-Code” cars. In 1964, dual exhausts were once again standard on all Thunderbirds, making the 1963 model the only year (from 1955-66) with a single exhaust system. My copy of Thunderbird Restoration Guide 1958-66 by William Wonder claims that Z-Code four-barrel cars “came from the factory with a dual exhaust system as standard equipment…after approximately March or April of 1963,” but Thunderbird fans are in no way in agreement about this. In fact, my car was built in late May of 1963, and as you can see, it has a traditional single exhaust system. But what about those dual exhausts we saw in the opening picture?
They were all a ruse pieced together by a previous owner. The car had the transverse muffler it should have, and there was a tailpipe exiting the passenger side as was standard equipment on the 1963 models.
However, someone had installed a muffler with two outlets; therefore, the inlet pipe entered the muffler at a modified flange and exited on both sides of the muffler casing. I will say that my car seems to have a driver-side rear hanger that looks factory(ish), but that very well could have been added later.
There is nothing that screams “you’re a poser” like a fake dual-exhaust system, but I was willing to let it go because I try not to fix what isn’t broken. The problem was, however, that it was broken. The muffler had rust perforations, and it was starting to rattle because things were coming loose inside, making the car sound like it was missing and backfiring at various times on cold starts. Actually, it might have been backfiring a little bit; the inlet pipe didn’t even match up to the muffler because the outlet pipe was keeping it from doing so. Because of this misalignment, the flange gasket eventually blew out, causing a pretty fair exhaust leak. Needless to say, the car didn’t sound great.

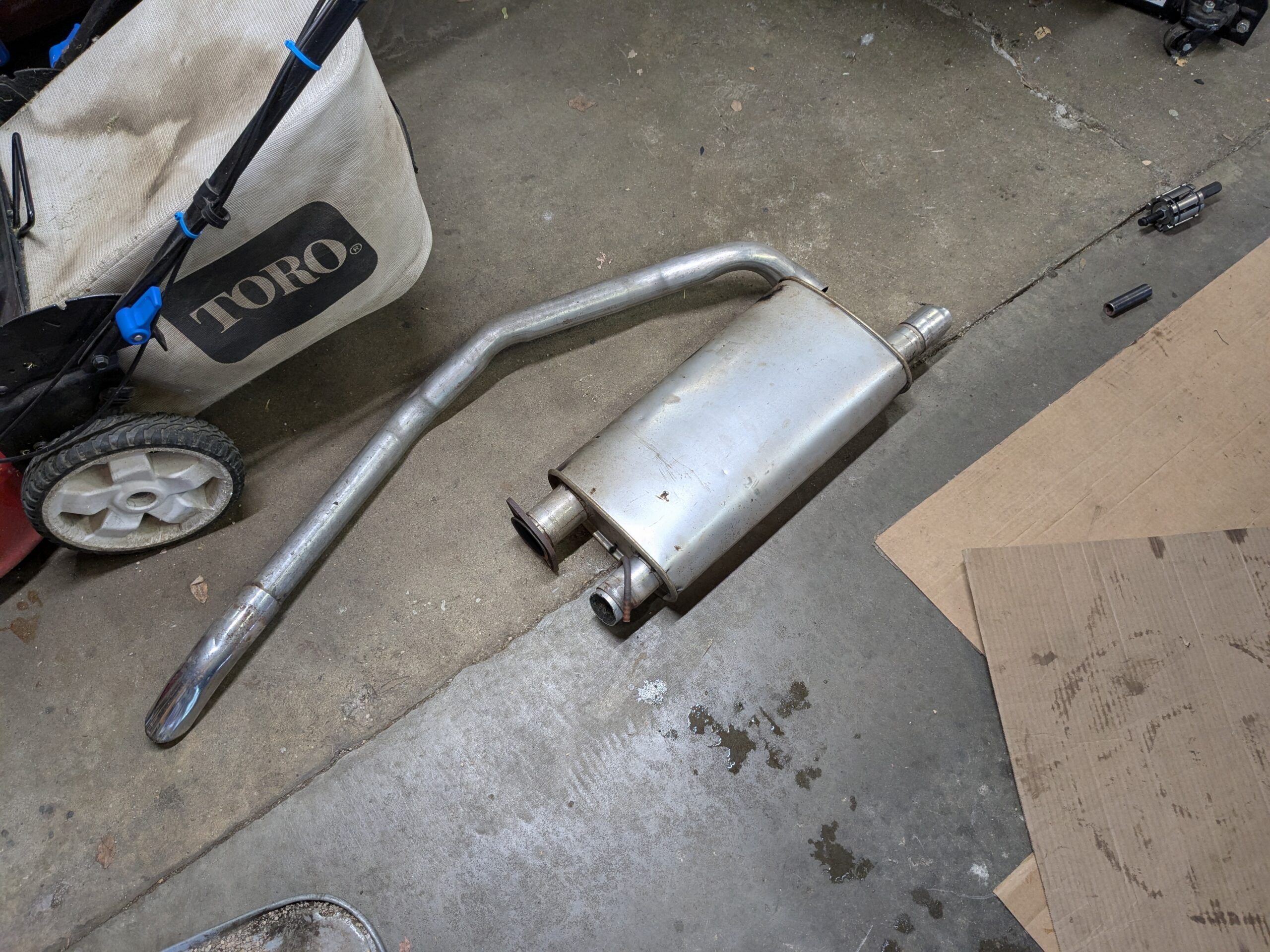

Because I have ten cars, and that doesn’t happen to a middle-class guy if he habitually wastes money, I decided that my car would be returned to factory specification in the cause of ease and frugality. I pulled out the cutting wheel and reciprocating saw and hacked out the driver-side tailpipe and muffler.
I will say at this point that I really don’t like doing exhaust work. Everything’s rusty and heat-welded together, and it’s just a dirty job, kind of like changing transmission fluid.
The original exhaust system was 2 1/4″ in diameter, but whoever installed the tailpipes on my car used 2″ pipe after the muffler. Because of this, I had to find a muffler with a 19″ case, an offset 2 1/4″ inlet, and an offset 2″ outlet if I wanted to reuse the remaining exhaust system (which I did). That’s a big ask, but Summit Racing had this one in stock for $29. I drilled a 1/8″ hole on the outlet side to drain condensation because the old muffler’s lack of a weep hole may have contributed to its demise. Cars create an unreal amount of condensation in their exhaust systems.
The 2″ outlet matched up well to the tailpipe, so I welded it together all the way around.
Unfortunately, I had to use a connector for the inlet side, and they have a fairly loose fit. I tried to use a clamp to join the connector to the old inlet pipe, but it didn’t seal.

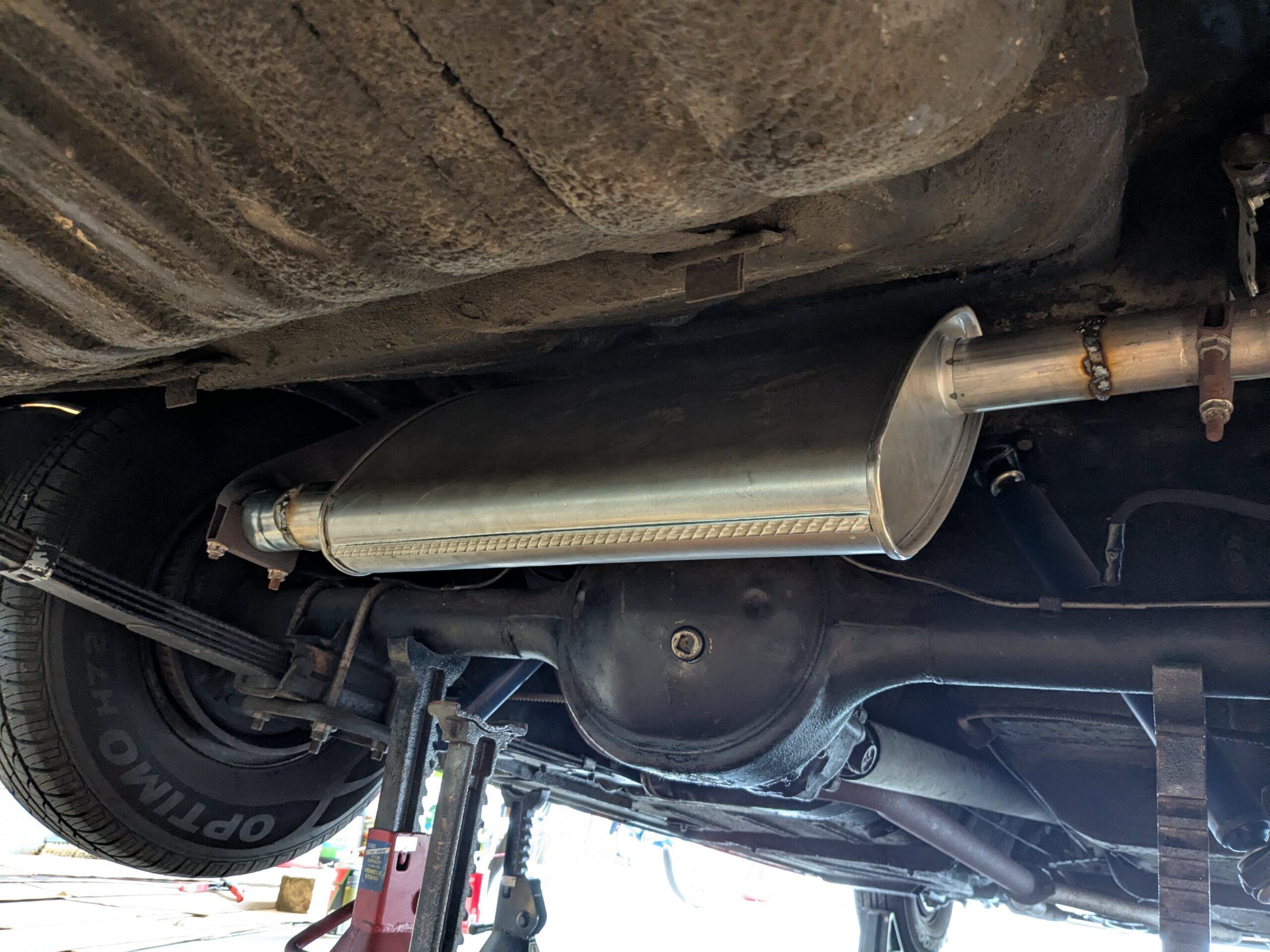

Because the old pipe was a little rusty, I pulled out the trusty cheap Harbor Freight flux-core MIG welder and welded it up as well as I could given the material I was working with. I didn’t have to use any new hangers, and I hit all the joints with some VHT high-temperature paint.
Now I have a single-exhaust system, but since I really had a single-exhaust system already, the car doesn’t sound any different. And since it’s almost impossible to find a truly quiet aftermarket muffler these days, it’s a little louder than I’d like, even though it’s much quieter than the old rusty, leaky muffler (and very quiet inside the car). I don’t love the chrome turndown, especially when there is only one of them, but it’s welded to the pipe, so I will live with it.
For about $40 in materials and a few hours under the car, I have a nice, quietish exhaust system that roughly matches what came off the line in Wixom 63 years ago. The best part? My T-Bird is no longer living a lie, and that’s not a bad thing at all.
