This week marks my 23rd anniversary with my first classic car purchase (my 1965 Mustang is a family heirloom), this 1965 Buick Skylark, and since then, I’ve driven it 45,000 miles with fewer repairs than you might expect for a 61-year-old car. But things wear out and jobs long put-off sometimes need to be reckoned with, and this latest batch involved things that backyard mechanics hate to do: crawl under the dash and reach inside the doors.
I did these jobs over the course of two days, and the first was one that I’ve been putting off for years—replacing this mechanical oil pressure gauge with an electric unit. I actually have no problem with idiot lights for oil pressure, but the holes were cut into the dashboard and the gauges installed by a previous owner. So why did I want to replace it?

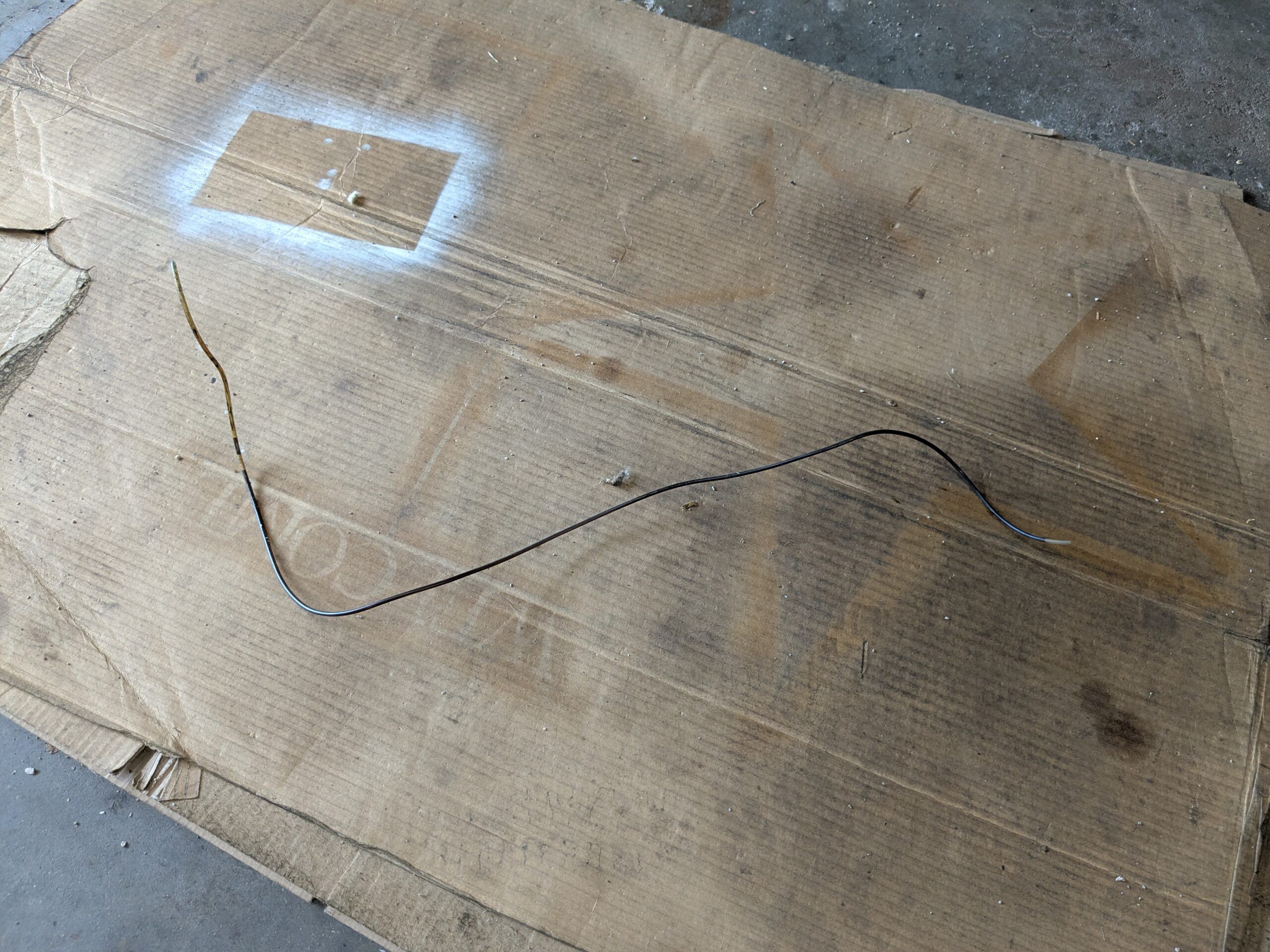

It’s because of this plastic oil line. A mechanical gauge reads pressure at the gauge itself, and oil is fed to it through a cheap plastic line (or a copper equivalent for those who are more enterprising) that passes through the firewall from the engine itself. This is the Skylark’s line after I removed it, and you can see that the plastic has “taken a set,” as you might expect after a quarter-century or more. If this plastic piece decided to quit, there would be no getting that oil out of the carpet, or my clothing.

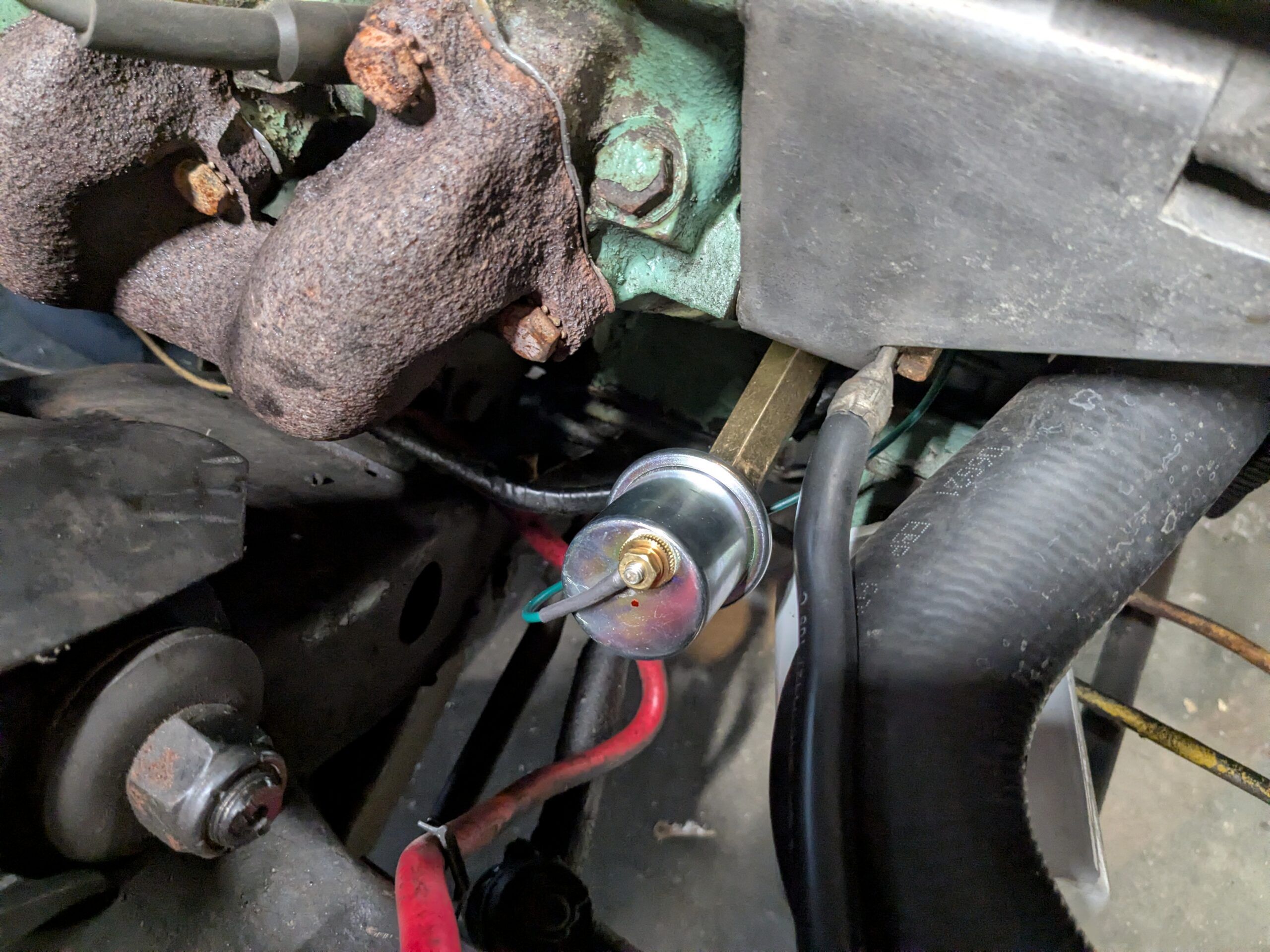

Electric oil pressure gauges read through a (large) sender, which sends a signal to the gauge, so the only thing you need to run through the firewall is a wire. The sender itself wouldn’t physically fit into the cavity on the passenger bank of the engine block where the original sender for the dashboard light picked up oil pressure, so I used a trick that Ford used on cars with oil pressure gauges rather than lights back in the sixties, an oil pressure sender extension. It was a $20 part on Amazon and did exactly what it promised.

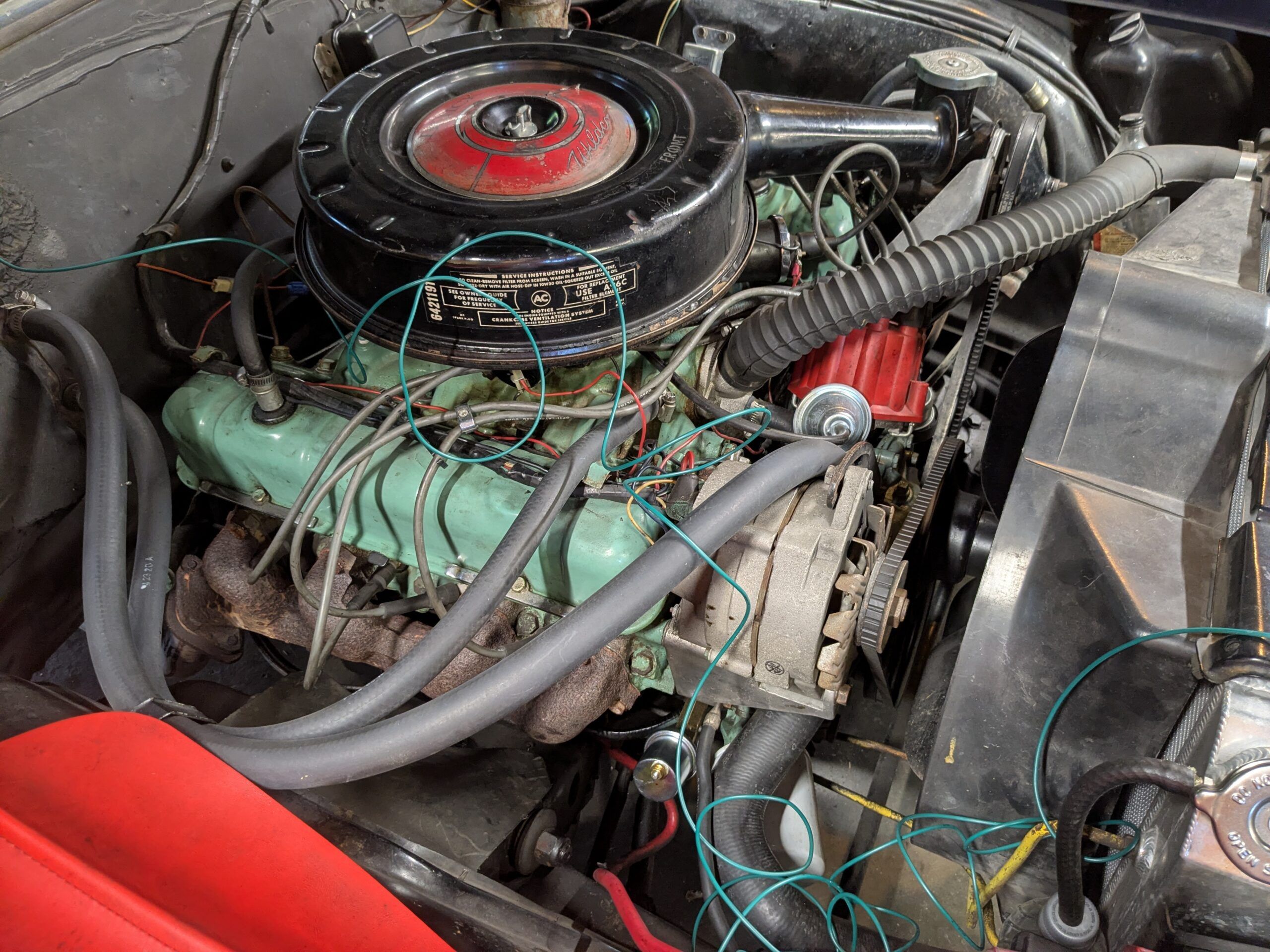

As I said, I did have to run some wiring, and that’s what took the most time, aside from removing both radios from the dashboard (I installed an aftermarket radio in its own binnacle beneath the dashboard). I decided to use a green wire from the gauge to the sender.

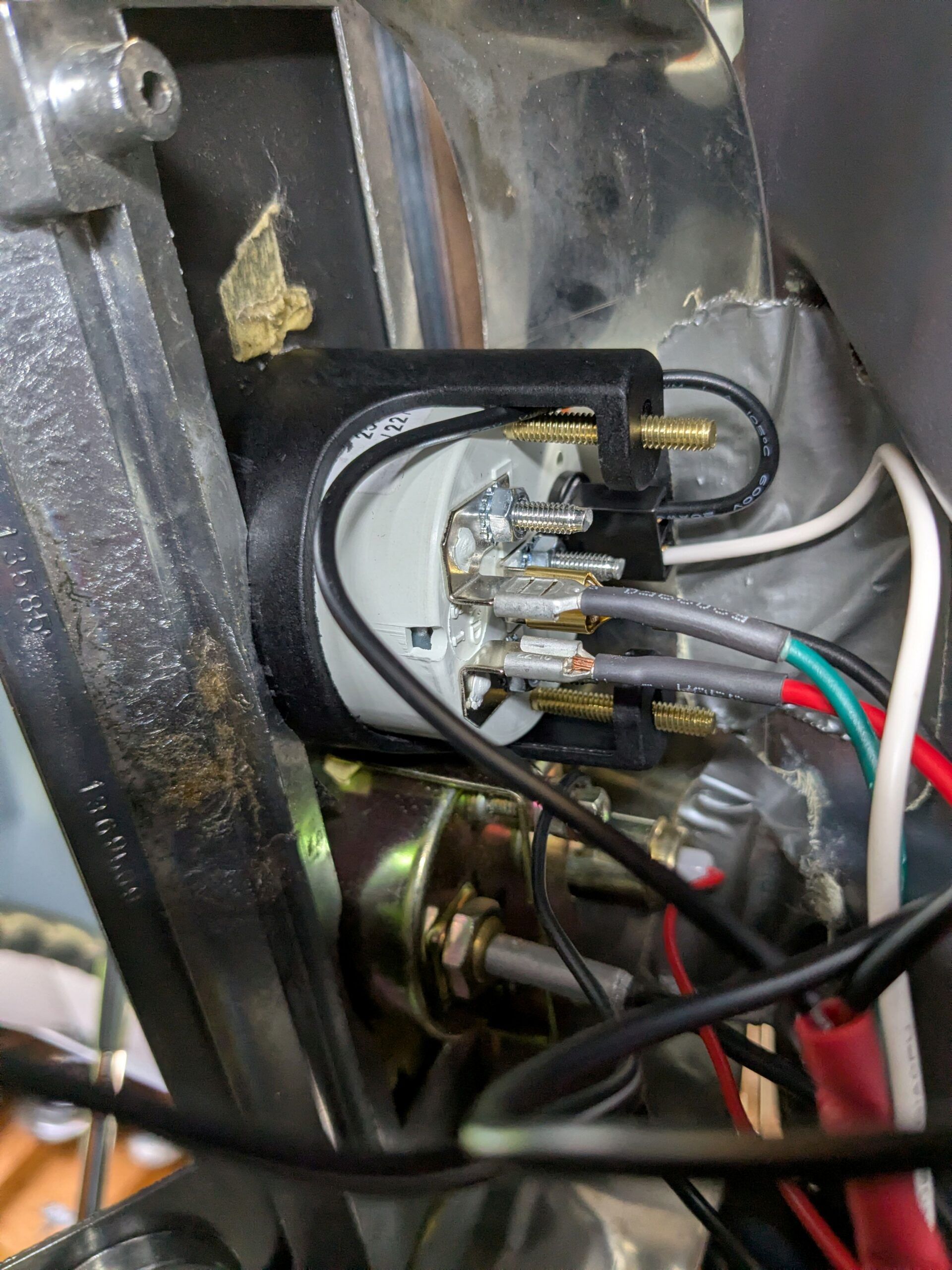

When I’m connecting wiring, I generally remove the plastic crimping insulator and use marine heat shrink instead. Here, you can see where my green wire is connected to the gauge, but there’s also a red wire for power, a black wire for ground, and a couple wires for the LED light. I made a mistake by trying to save time, sharing a ground wire between the gauge and the light; however, the gauge would peg all the way to the right when I turned on the lights. Therefore, I ran a dedicated ground for each circuit, solving my self-created problem.

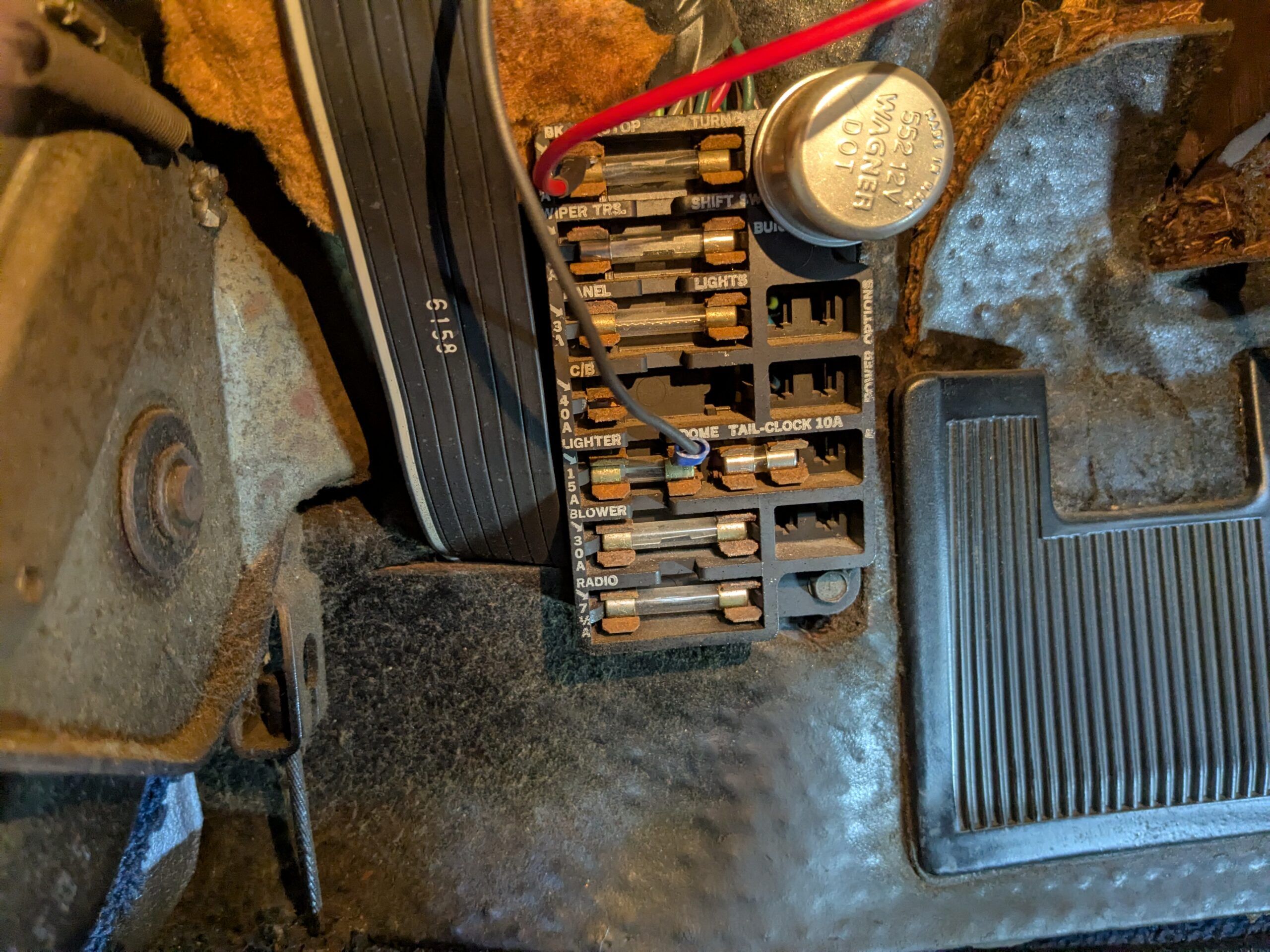

I ran the power wire to a switched source on the fuse box, the brake light/turn signal circuit in this case. It looks like my fuse box could use a good cleaning; I’ll have to put that on the list.

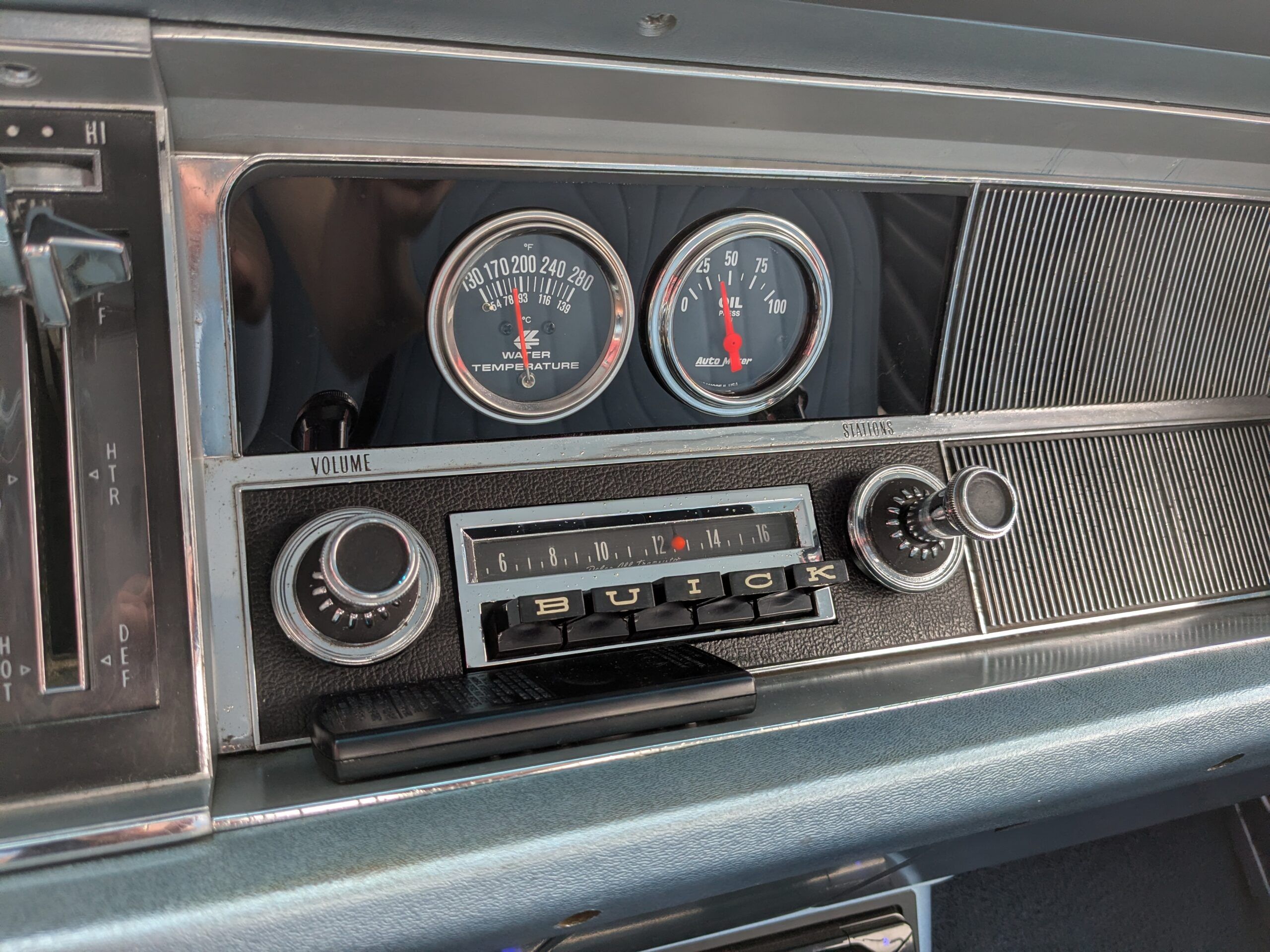

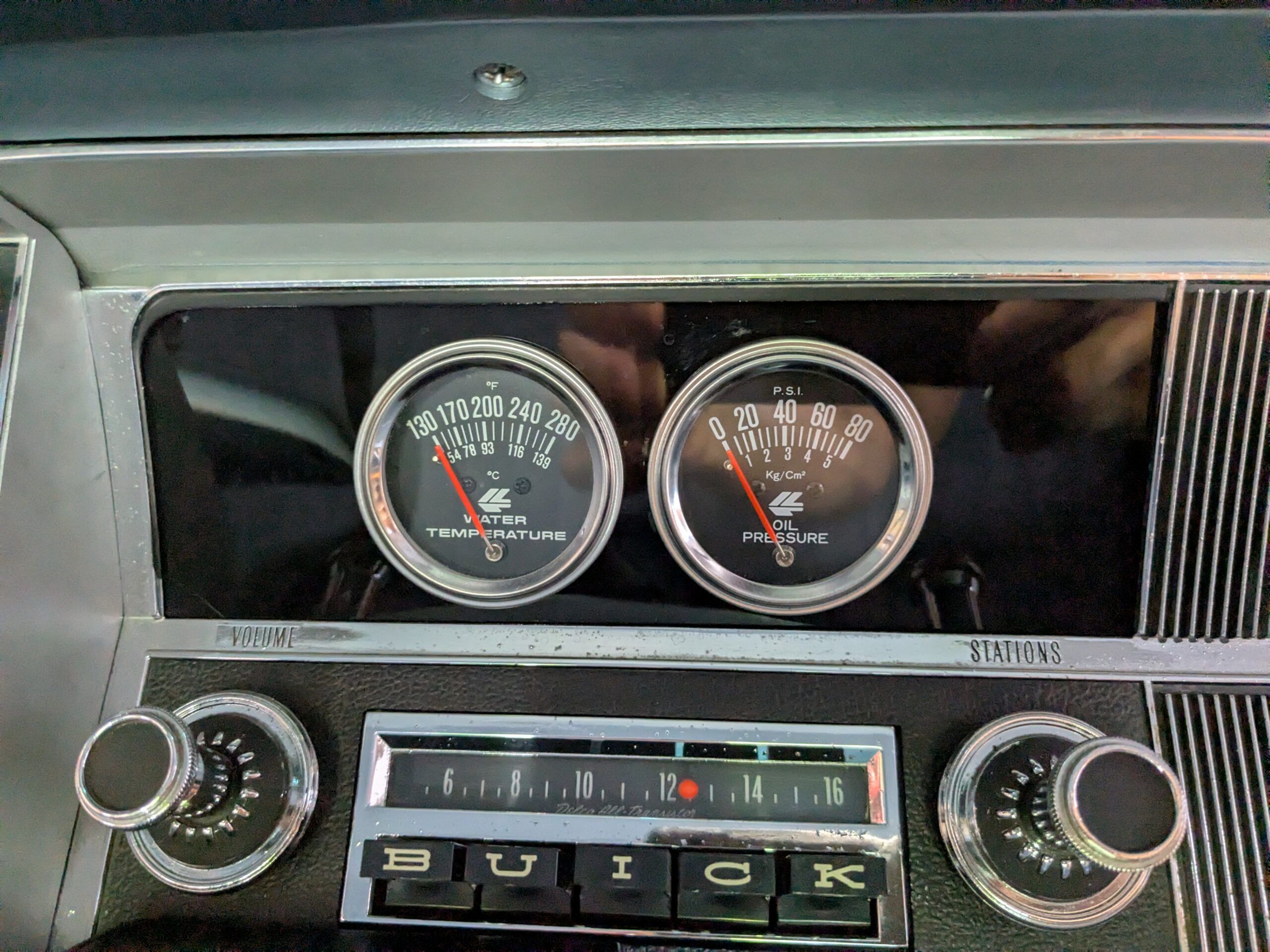

And after putting everything back together, this is what the dashboard looks like. I know that the slightly mismatched gauges would drive some people crazy, but I’m lucky enough to not be very anal retentive, so I’ll forget about it in a week. And if I get really ambitious, I can buy a matching Auto Meter temperature gauge, but there’s really no need. The new oil pressure gauge cost about $100 and came from Summit Racing; I wanted a quality unit so I wouldn’t have to do the job twice.

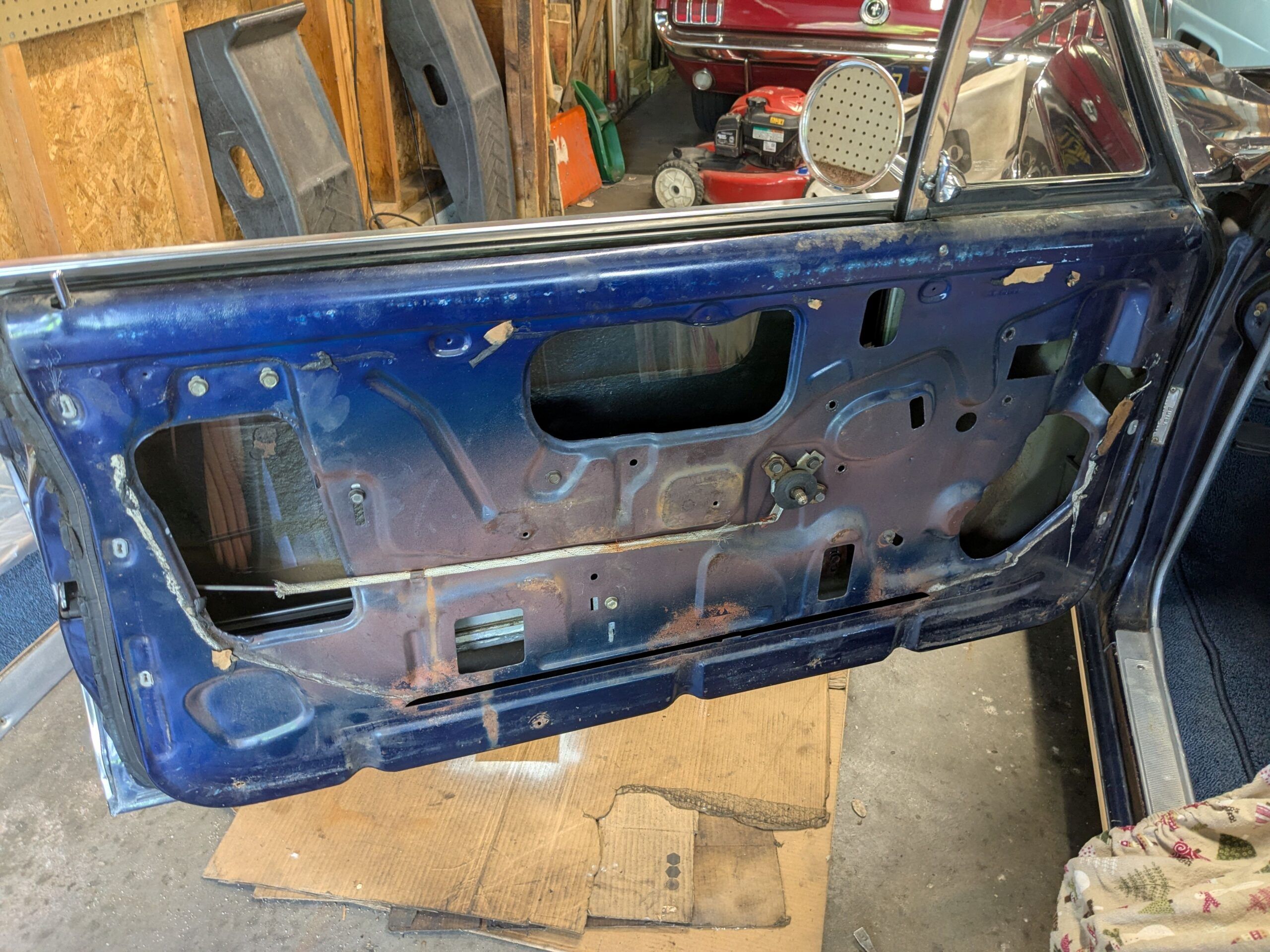

Next, to the window regulator, which is the component that actually raises and lowers the door glass (the window crank is attached to it). About a year ago, I noticed that the window would regularly bind when I tried to raise or lower it, and I narrowed it down to the regulator itself (the rivets holding the crank assembly to the body of the regulator seemed to be loose). My Fisher Body manual says to remove the glass to weasel the regulator assembly out through the holes in the inner door, but I tried a short cut and duct taped the glass to the vent window frame so it would stay in its raised position. (Once the regulator is unbolted, there’s nothing holding up the glass.) In this picture, the regulator has already been removed; notice that there’s no window crank.

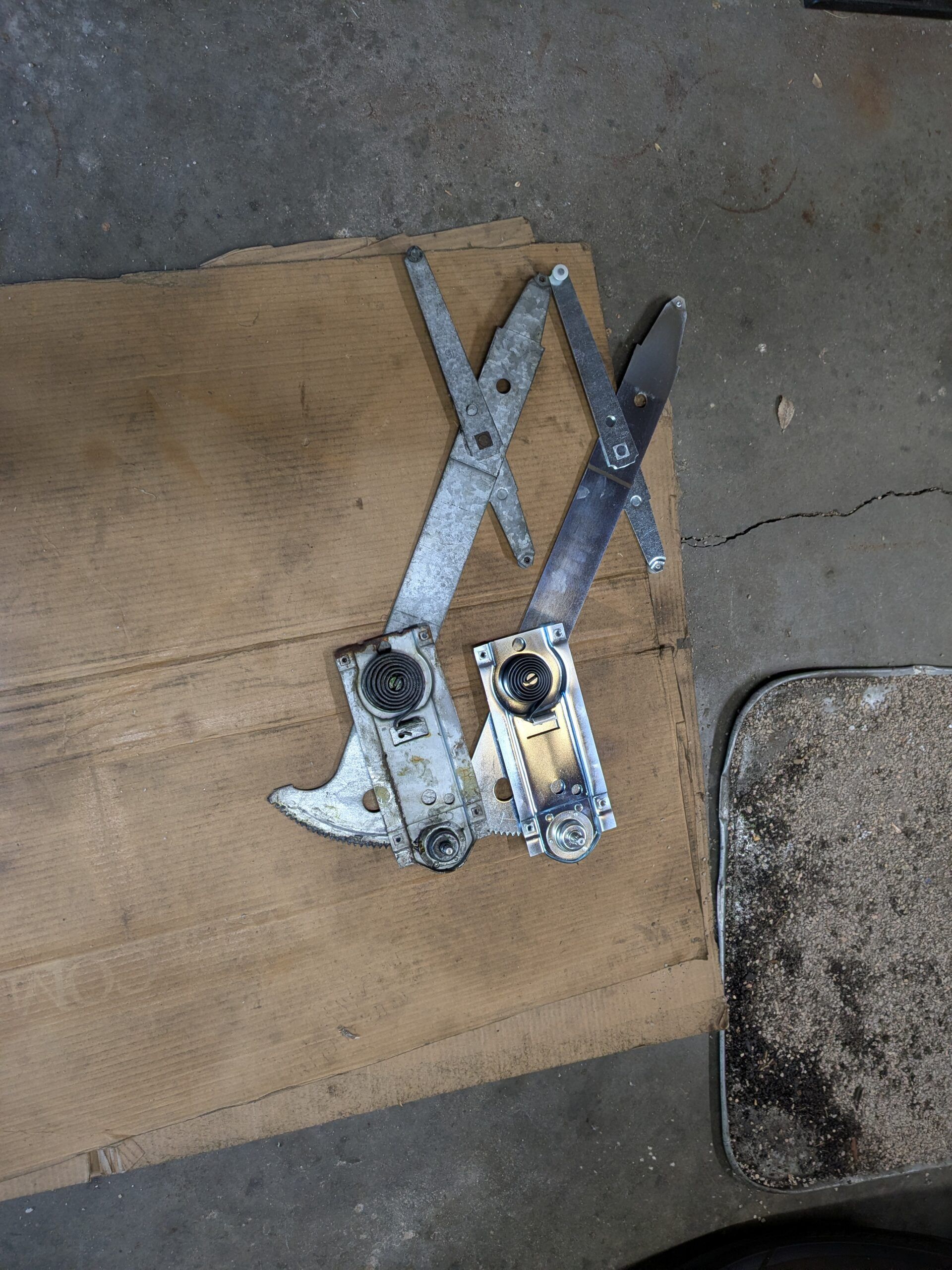

Here are the old and new regulators, side by side. I’ve put off this job not only because it’s finicky but also because I couldn’t find a new window regulator; they were backordered for at least six months, and used regulators are likely to be as worn out as mine. I have to admit that it’s foreboding to have such a hard time finding such a common part for such a common car; this regulator fits any 1964-67 General Motors A-Body hardtop, including Chevelles and GTOs.

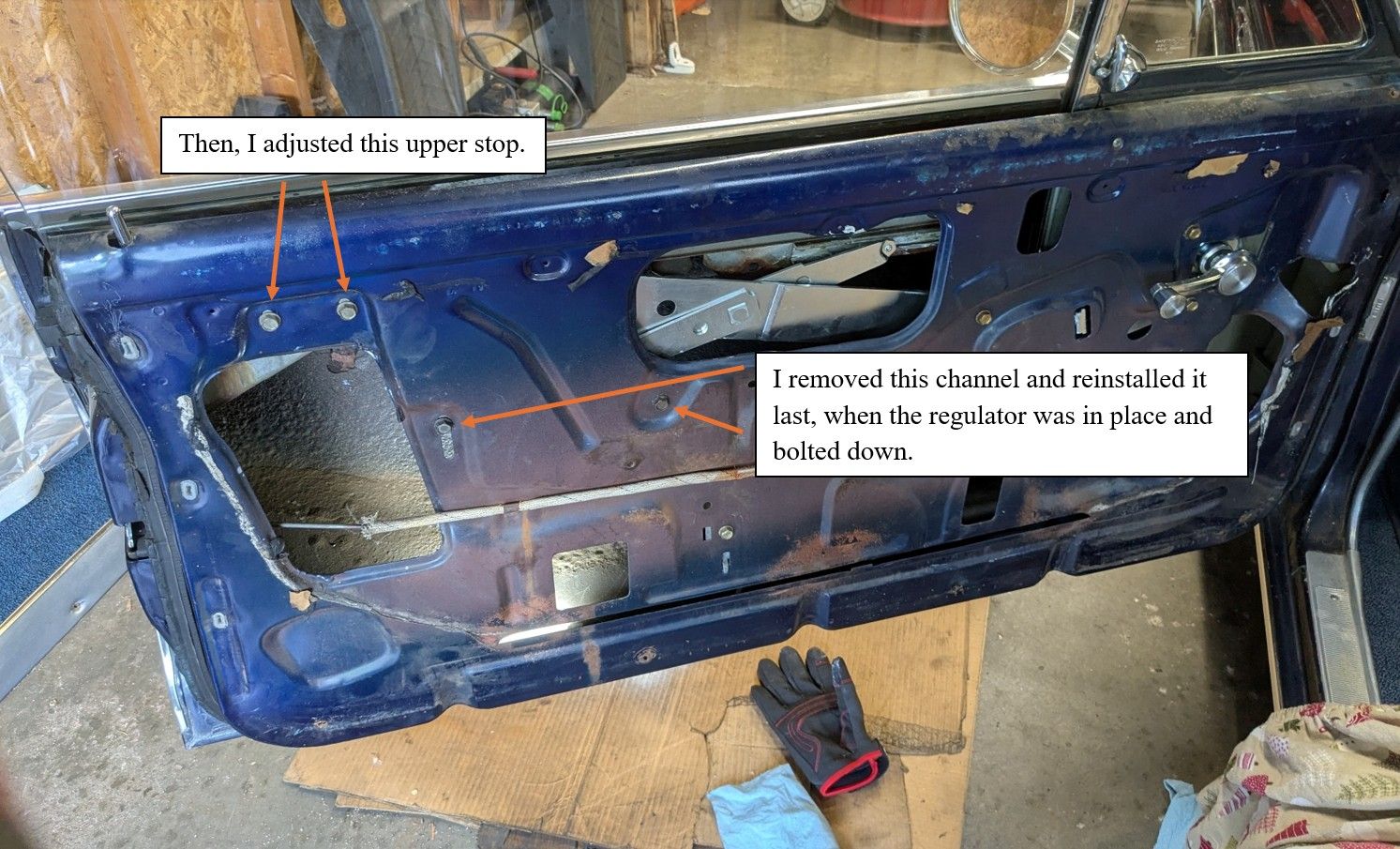

Getting that big regulator with its swinging arms back into place required a specific order of operations that I had to work out on the fly given that I wasn’t strictly following the service manual’s instructions. The trick was to unbolt the channel that bolts to the inner door and faces outside (it’s held in place by two bolts). Then, I inserted the front and rear window rollers into the glass channel, which allowed me to operate the window crank to put the “gear” in the right position and maneuver the regulator past the vent window channel so I could then bolt it to the door (using four short bolts). Finally, I slid the inner door channel over the last roller and bolted it to the door in its original position to maintain adjustment. It wasn’t as complicated as it sounds, but I did wish for an extra hand or two more than once.
The glass did need a couple adjustments since the new part isn’t worn out. I had to lower the back of the “bolt-on” channel to orient the glass a little lower in the rear, and I also adjusted the upper door stop. The good news? My diagnosis was correct, and now the window seems to work as well as you’d expect considering that it has a reproduction part behind the curtain.
Two days of working under the dashboard and in the door left a few marks, so if you’re game to try any of these jobs, keep that in mind. Those door edges are sharp.
But now, I can roll my window up and down with ease while not worrying that I’ll get 10W-30 on my shoes at a rate of 40 psi, and aside from maybe adding a small electric pusher fan, the Skylark’s list is mostly complete for the summer. (It’s always run warm sitting at lights, but not to the point of overheating.) That will most likely be put off for another year while I tend to the rest of the fleet, which if nothing else, needs maintenance such as radiator draining and refilling, oil changes, lubrication, and brake flushing. And there’s always that Volvo to deal with. I have a floorpan to patch so I can attach the fourth bolt holding the passenger seat down. No kidding. The list never ends.
