The Thunderbird lost its original sporting pretense in steps, the final one (for decades) being in 1960. That was the last time a customer could walk through the doors of his Ford store and emerge with a manual-transmission Thunderbird until the introduction of the 1983 Turbo Coupe.
The sadness among enthusiasts was palpable when the Baby Bird said goodbye in late 1957, but the new “Squarebird” was clearly the correct business decision. They sold like crazy.
Furthermore, the Squarebird could still stake its claim as a performance car, with its optional 350-horsepower 430 Lincoln V8. The T-Bird’s standard three-speed manual transmission was unfortunately only available with the base 352, although its column shifter and lack of synchromesh on first wasn’t very sporting. Supporting the Squarebird’s racing pedigree was its NASCAR presence. The picture above shows Johnny Beauchamp’s 430-powered 1959 Thunderbird almost winning the inaugural Daytona 500; after much deliberation, however, Lee Petty’s #42 Oldsmobile was declared the champion (the Chevy in the top lane wasn’t on the lead lap).
Even today, you’ll see an occasional Squarebird getting its elbows out; here’s an example driven by LeMans hero Tom Kristensen at the Goodwood Revival.

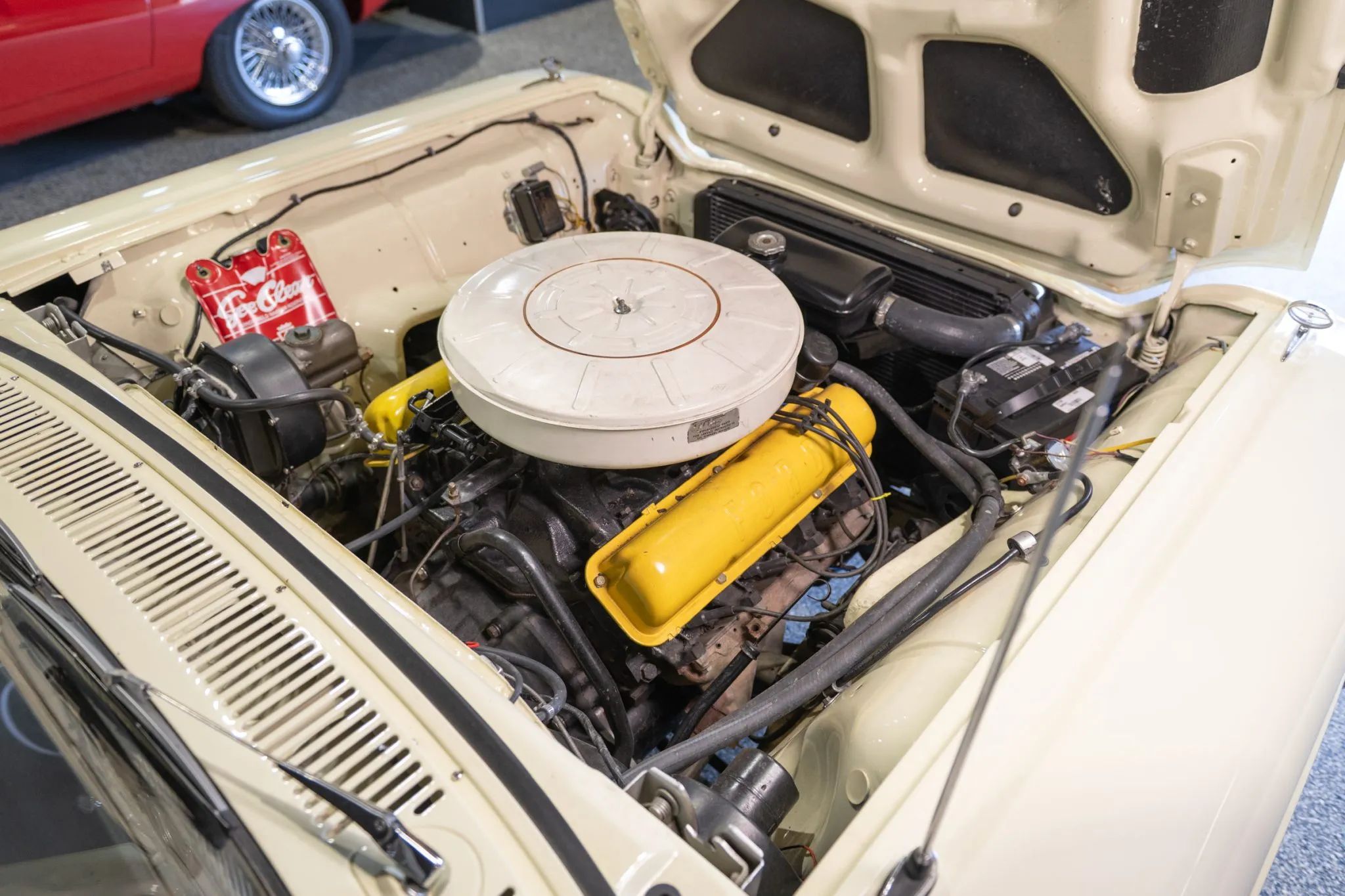

The Squarebird was also the last Thunderbird that was apparently designed to be easy on mechanics; just look at the access to the engine. After removal of the reverse-opening hood, this might be the easiest engine removal/installation in automotive history, a far cry from the cramped engine compartment of its successor.

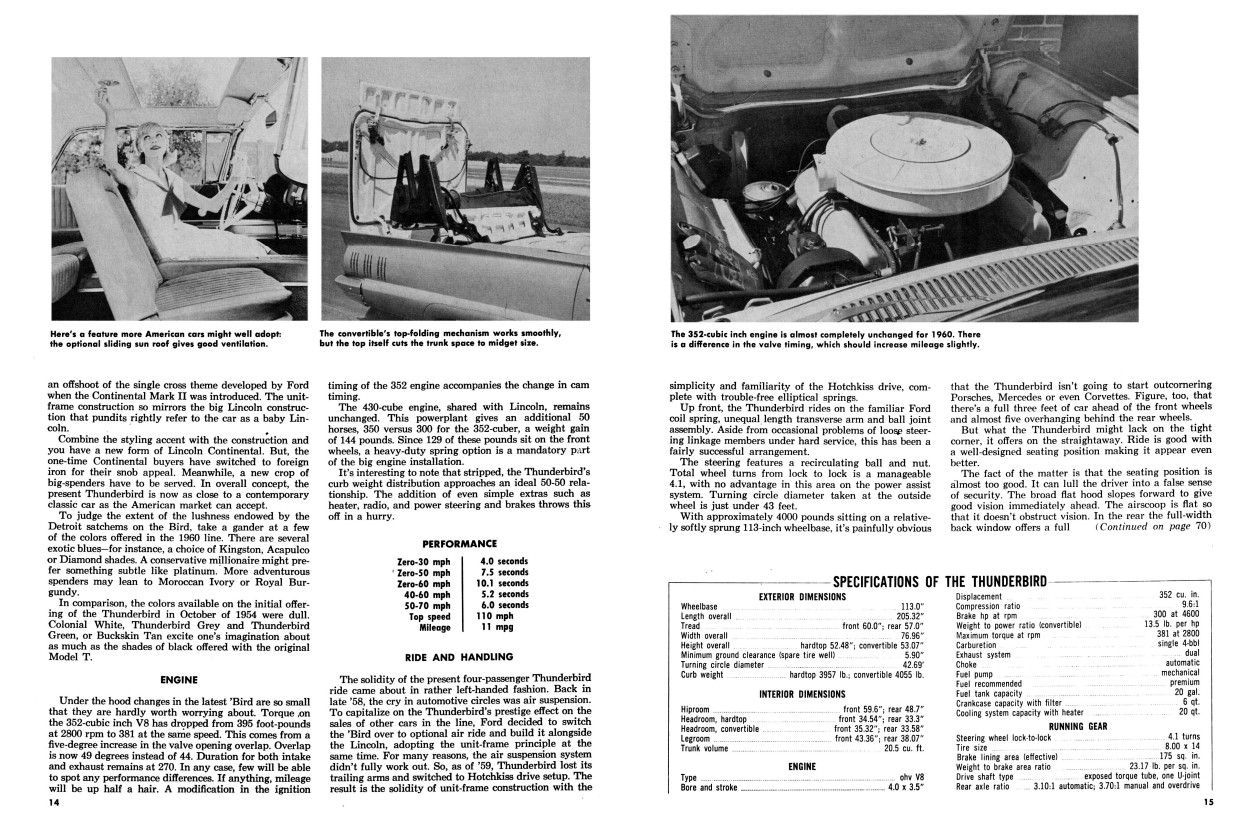

Unfortunately, without the optional 430, the Squarebird didn’t quite live up to its flagging performance image. Road & Track tested a Lincoln-powered convertible in June of 1959, and they found that it could accelerate to 60 in 8.2 seconds before finishing the quarter-mile in 16.2 seconds at 84 miles per hour. However, the CARS test of a 1960 T-Bird with a 352 and Cruise-O-Matic (shown above) was more representative of the average car, with a 0-to-60 time of 10.1 seconds. (By the way, automatic-equipped cars used a 3.10:1 rear axle ratio.)
Hot Rod Magazine strapped a 352-powered ’58 T-Bird to a chassis dyno in its June 1958 issue, and they reported a mere 144 horsepower to the rear wheels, a time-zone away from its advertised 300 gross horsepower, leading writer Bob Russo to comment that horsepower ratings among all brands had more to do with the marketing department than the dyno cell.

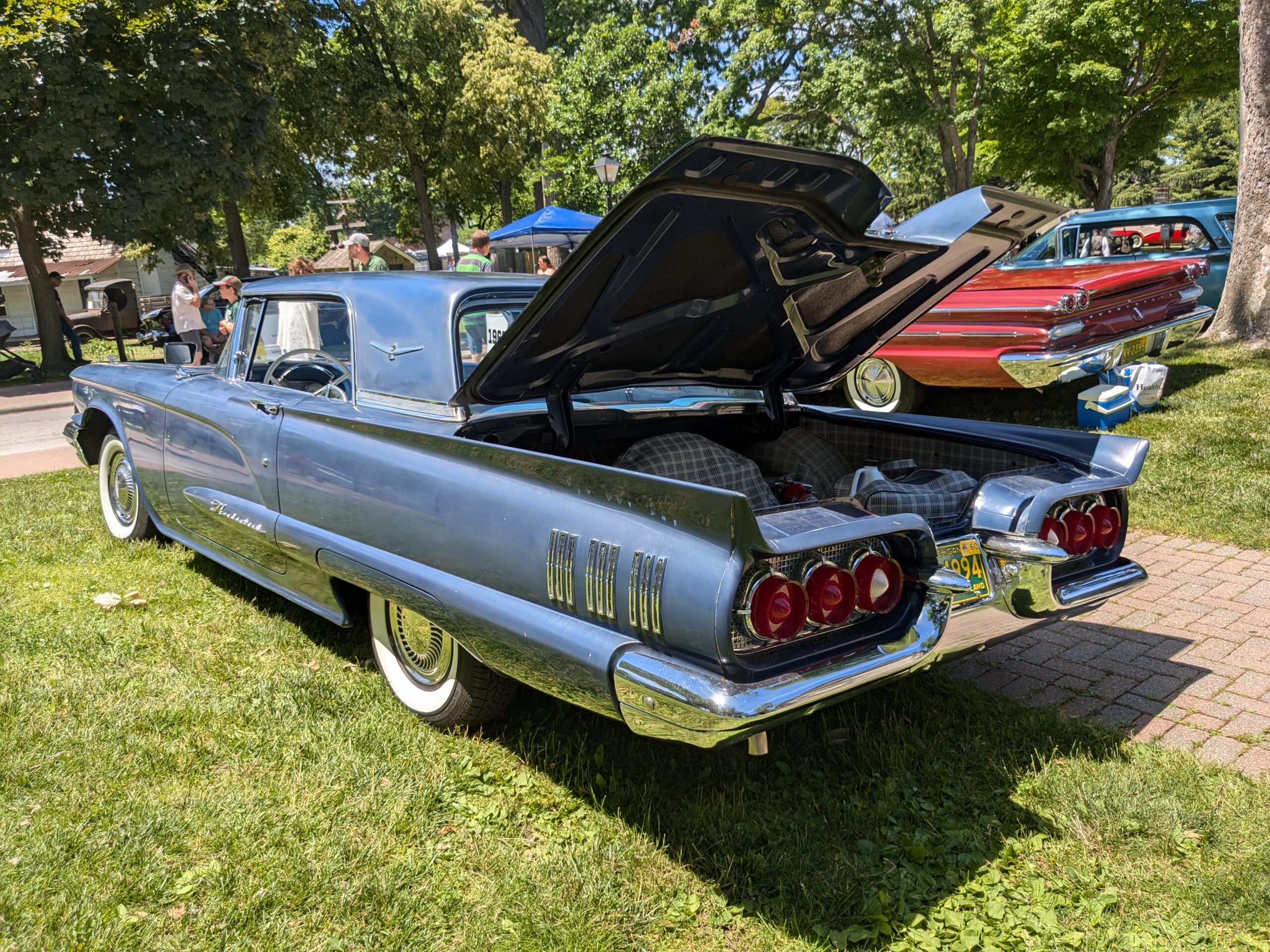

Yes, the 430 car was the one to have if a buyer was interested in performance; however, it’s quite possible that a 352 car with the rare standard three-speed manual could perform a lot better than its automatic-equipped brethren. I found this original three-speed 1960 Thunderbird at a car show in Dearborn, Michigan, and its original data plate information tells us that it had the 3.70:1 axle ratio that was standard with the manual transmission. While that is a steep gear for highway cruising, especially in a car that was considered a personal-luxury car, it would have certainly cut a fair amount from the Squarebird’s acceleration times.

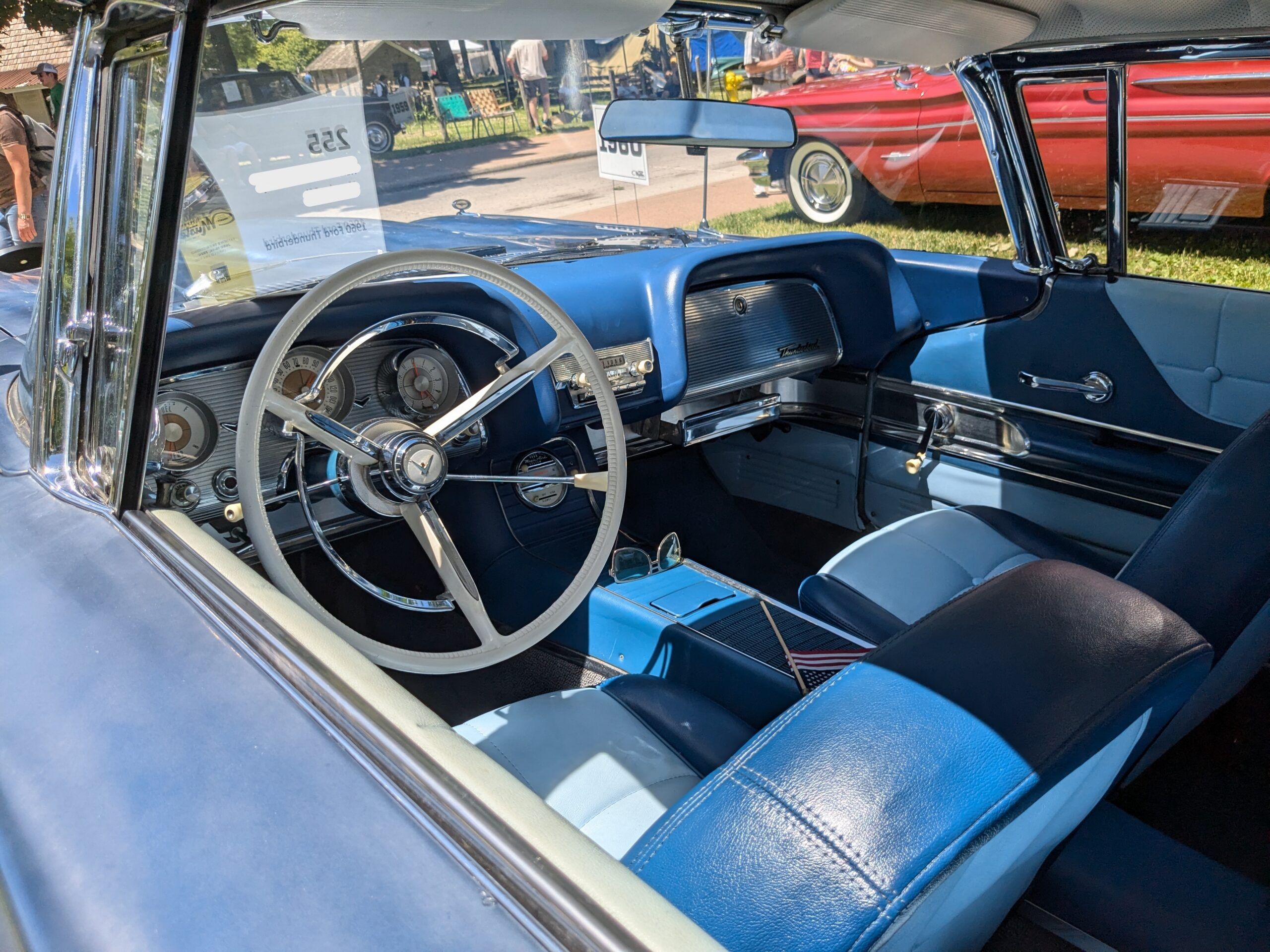

The third pedal is just visible in this picture, but the location of the gear selector is right out in the open. One might wonder why the stick-shift ‘Bird didn’t benefit from a floor shifter, and the answer is surely cost. Few T-Birds were so equipped, and the column shift mechanism could be shared with more mundane Fords.
By 1960, you’d think that the Thunderbird’s “inspired by the 1958 Ford” styling would be showing its age, but buyers certainly disagreed: 1960 turned out to be the best sales year of the decade.

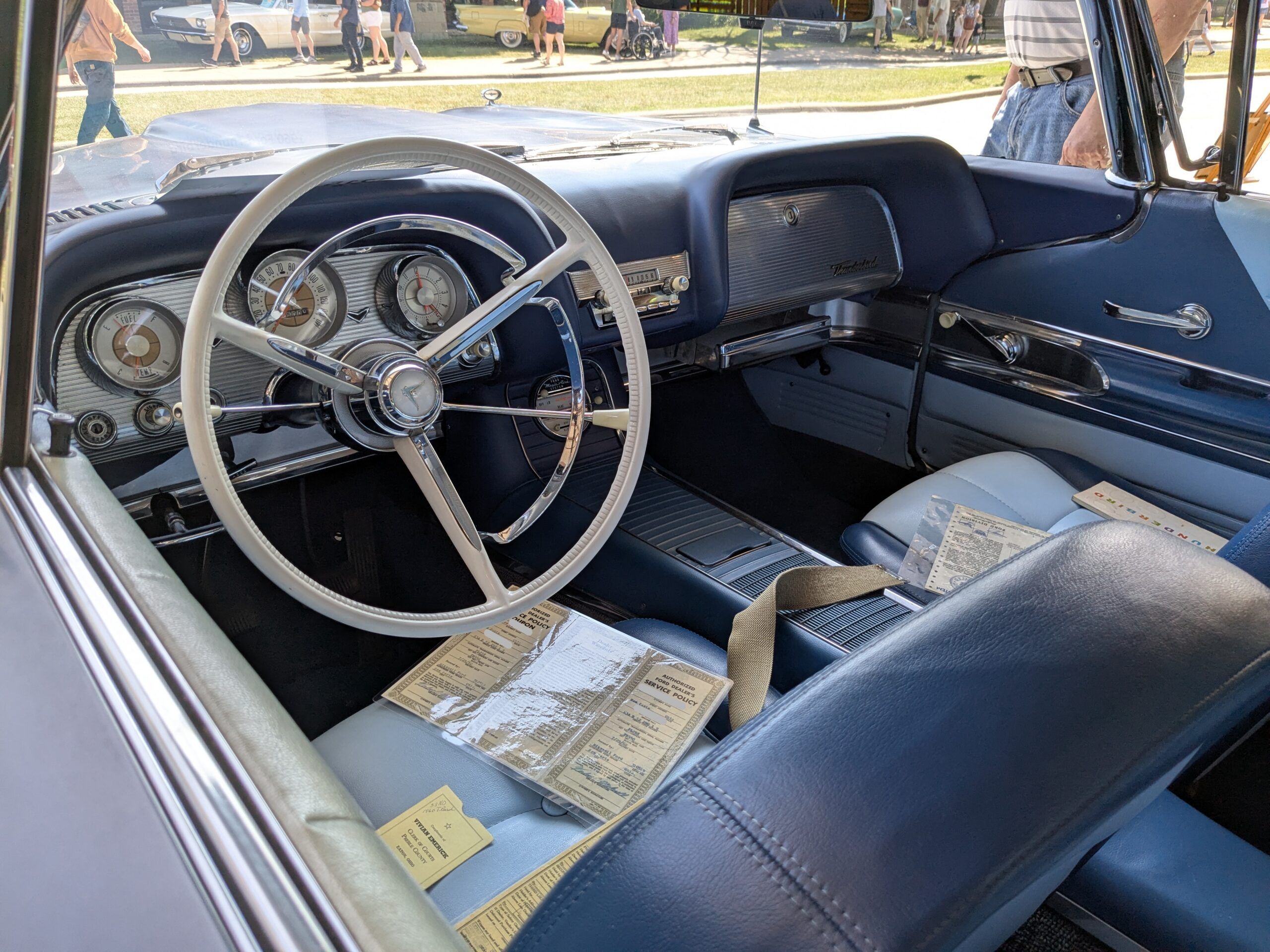

While the Squarebird’s exterior is sometimes fodder for disagreement among modern car enthusiasts, there can be little argument about its interior. The 1958 model ushered in what would be a Thunderbird tradition for several years, interiors that were as style-forward as the T-Bird’s exterior. Individual coves in the dashboard, bright trim, bucket seats, a console, and a high transmission tunnel to accentuate the personal-luxury theme all became cues for other manufacturers to copy.
The little details are the most fun, such as the little round climate control bezel at the top of the console; it wasn’t the most convenient in terms of reach, but it looked as chic as anything. Also notice that this car must have been ordered by someone who either could barely afford it or who simply liked the T-Bird’s looks but didn’t need the optional amenities; it has manual windows in addition to its manual transmission.

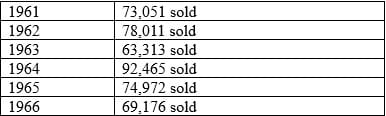

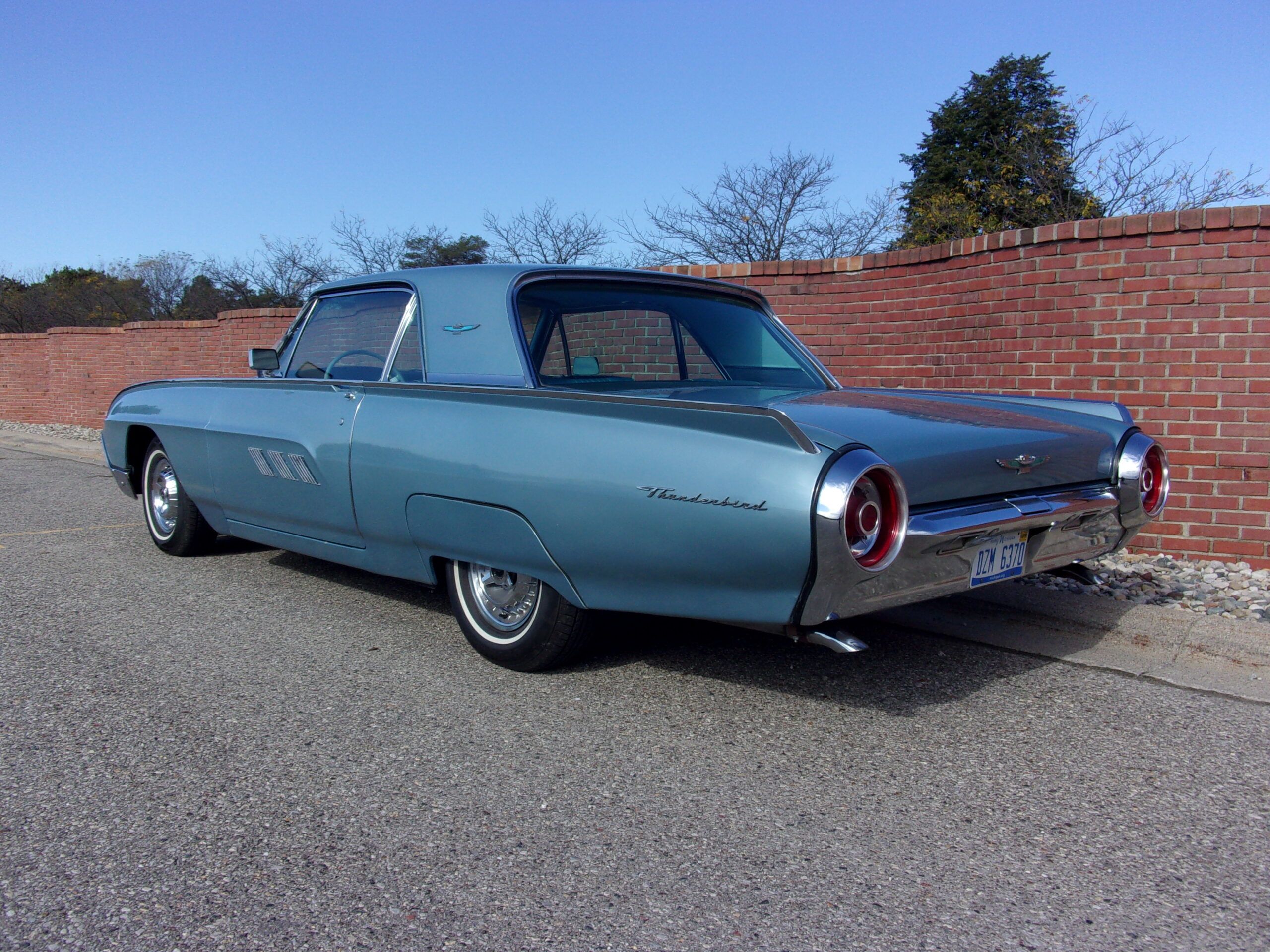

While four-seat T-Birds are fairly affordable today, many fans seem to prefer the styling of the T-Bird’s successors, the Bullet Bird of 1961-63 (my 1963 model is shown above) and the Flair Bird of 1964-66. When new, the numbers suggest that the buying public didn’t see it that way. Aside from the new 1964 model, sales never came close to that last year of the Squarebird, 1960. Sales took a huge hit for 1961; see the sales numbers for 1961-66 below.
Additionally, the standard manual transmission disappeared for decades in 1961. Ford rightly saw that almost nobody ordered it, and the new Bullet Bird did away with any last vestige of the T-Bird’s NASCAR image. The Lincoln 430 was dropped, leaving the new-for-1961 390 as the only available engine, and it was no faster than the outgoing 352-powered T-Bird. It wasn’t until the introduction of the Turbo Coupe in 1983 that a Thunderbird buyer could get a manual transmission again.
While road tests of stick-shift-equipped Squarebirds are thin on the ground, it’s fair to say that a zero-to-sixty time in the high-eights wouldn’t be outside the realm of possibility, even with less than 150 horsepower making its way to the rear wheels. And while the styling of the 1960 model might seem outlandish to some eyes today, that’s what makes it great; it’s a product of its time and an innovator in its field. For its engine accessibility alone, I’m kind of wishing I would have picked one of these up instead of a 1963 model, and a rare manual transmission example like the Kingston Blue car above would make it that much better.
