Deciphering The Build Sheets Of A 1960s Ford Thunderbird And Lincoln Continental

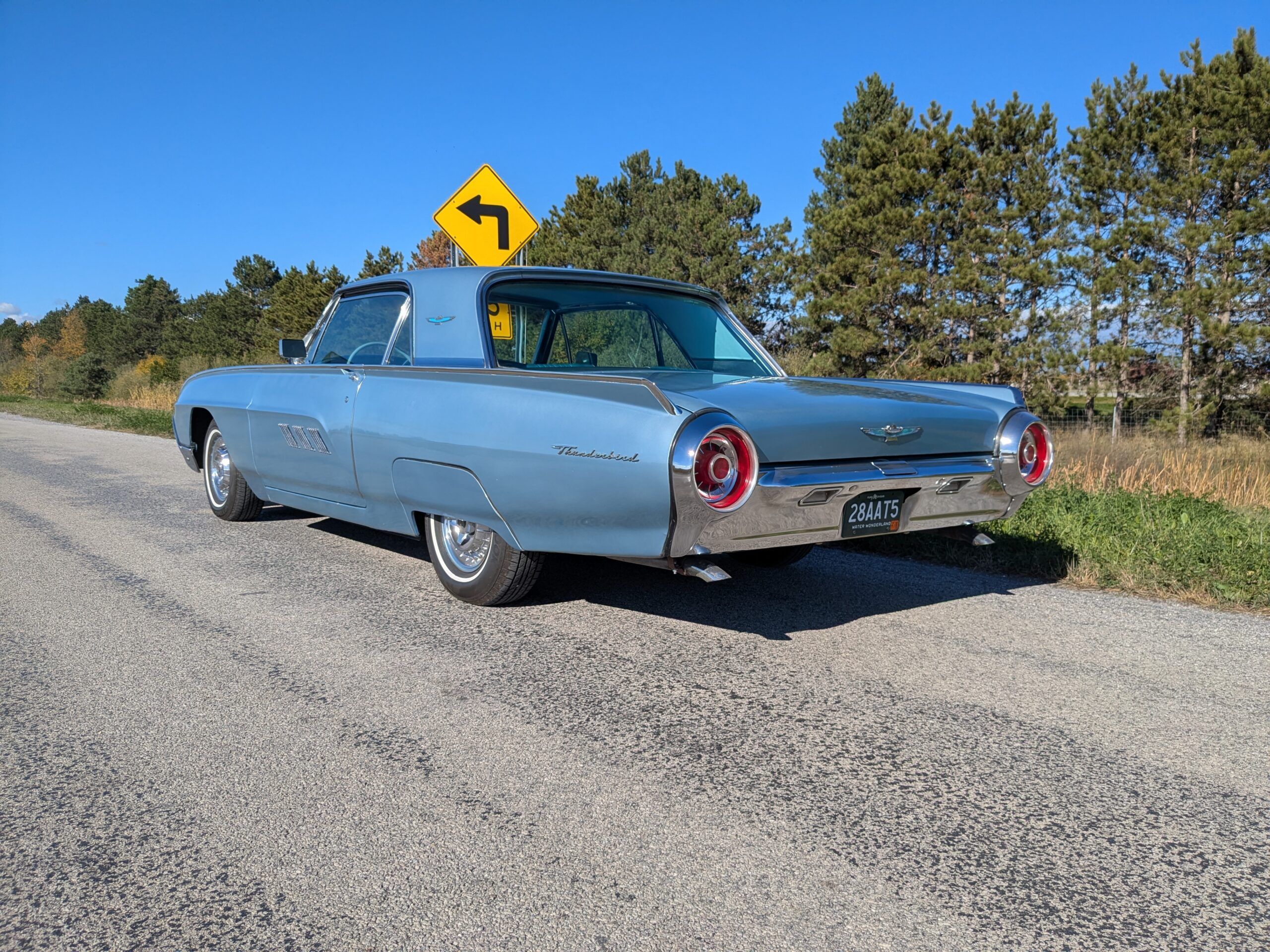

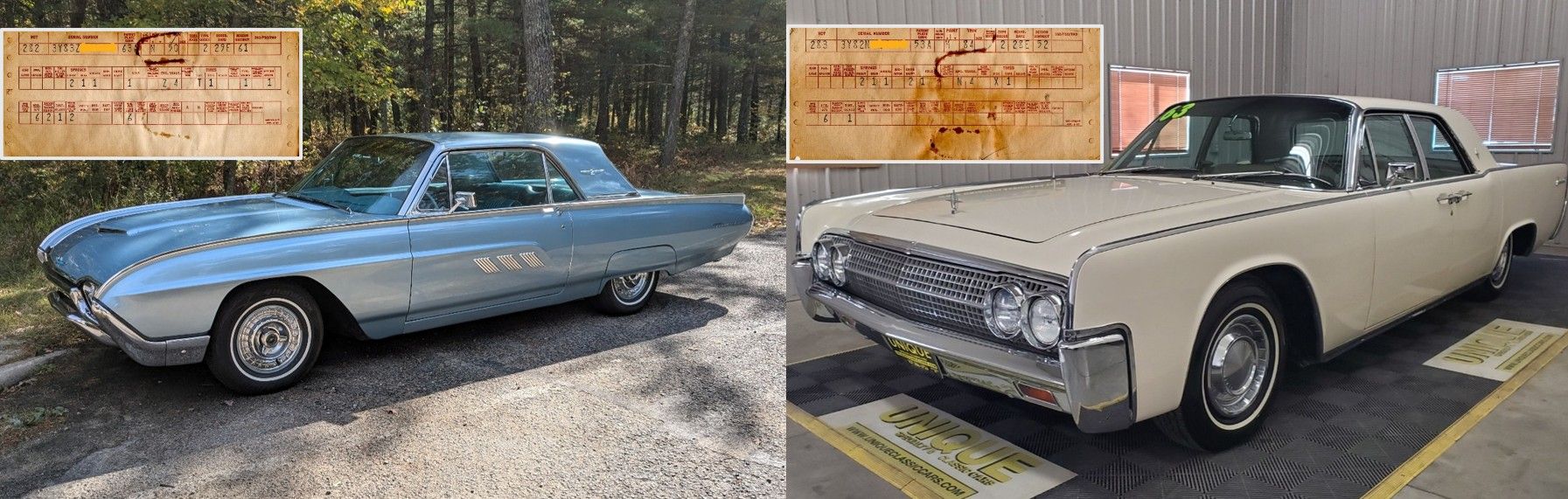

One of the best ways to learn about your classic car is to find its build sheet, which is often located under the seats or even above the fuel tank on some cars. Unfortunately, it’s sometimes discarded or accidentally destroyed by previous owners or mechanics; however, sometimes you get lucky and find the build sheet for two cars, and that’s exactly what happened with my 1963 Ford Thunderbird. Attached to its build sheet was the document for the car directly behind it on the assembly line, a 1963 Lincoln Continental. What can we find out about my T-Bird and its assembly-line pal?

A build sheet is a tag that is assigned to a car moving down the assembly line, showing its VIN, option load, and other important facts about the soon-to-be car. It is not uncommon to find a build sheet for a Continental in a Thunderbird or vice versa, because from 1958 through 1976, T-Birds were assembled alongside Lincolns at Wixom Assembly in southeast Michigan. Owners of Thunderbirds and Continentals have therefore reported finding build sheets for neighboring cars in the assembly rotation on the day their car was built.

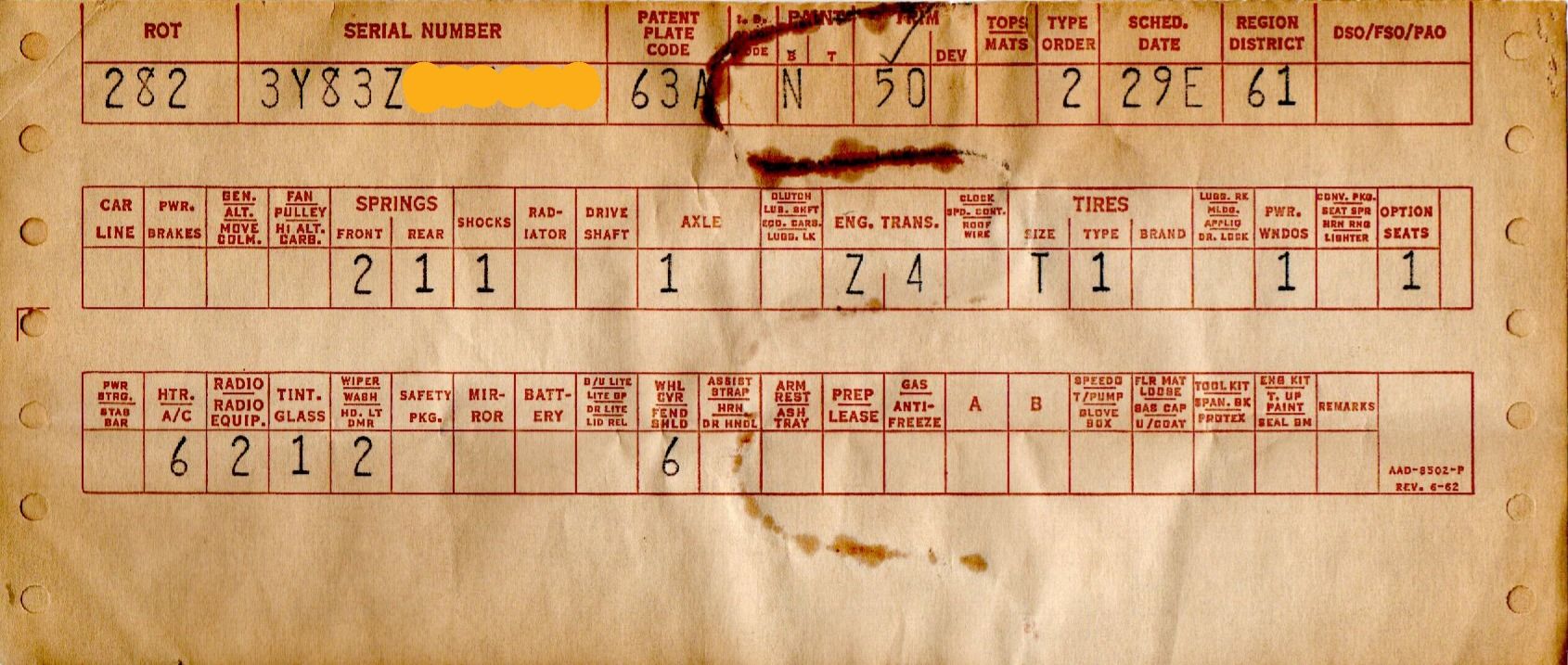

This is the build sheet for my car; it was clearly stuffed into the seat springs, which left their rusty stamp (a previous owner had found it and stored it in the car’s console bin). The “ROT” in the upper-left corner is short for “Rotation”; in other words, my car was the 282nd car built in its rotation of 999. I’m not certain if the rotation started anew on any given day, but once 999 was reached, “ROT” reset to 001. Much of this data can also be found on this car’s door tag, but it offers some interesting insights. First, the scheduled build date of my car was May 29th (29E), but the scheduled date is often a couple days off from the actual build date. The door tag on my car indicates the build date as May 27th (27E). Given that the Continental’s build sheet below shows a scheduled date of May 28th (28E), I have to assume that these cars were both actually assembled on May 27th, 1963. Some of these codes are obscure enough that it will be tough to nail them down accurately, but we can guess on others.

First Row

The row starts with the VIN, which begins with “3Y83Z”: “3” means a 1963 model; “Y” means the Wixom assembly plant; “83” is the body style (two-door hardtop); and “Z” is the engine code (390-4V); a Wixom-built, 390-powered 1963 Thunderbird Hardtop. The paint code of “N” is Diamond Blue, a blue that is so light that it looks almost white; while my car is on its third old paint job (in Acapulco Blue), there’s evidence of the original color inside the doors. The trim code of “50” is Light/Medium Silver Blue Metallic Vinyl, and the order type of “2” is probably a customer order, as “1” stands for a standard dealer order. The Region District (also known as District Sales Office) of “61” means that my car was headed for the Dallas, Texas, area.

Second Row

Given that my car has air conditioning, I assume the “2” under front springs denotes that a car comes with the springs designed for the extra weight up front. The “1” axle is the standard open 3.00:1 rear end (a Ford 9″), while “4” is the Cruise-O-Matic transmission, the only transmission available in 1963 T-Birds (although a heavy-duty Cruise-O-Matic was apparently installed in some M-Code triple carbureted cars). The standard tires are 8.00×14 (whitewalls optional). Power windows are an option that my car has, so cars with that option have “1” in the box, while nothing in the box at all would mean that the car has crank window regulators. The “1” under “option seats” is certainly a power driver’s seat.

Third Row

Because my car has air conditioning, we can assume that “6” stands for an AC car, while my car’s optional AM/FM radio is likely the “2” in that box. I’m not certain about the others, but I’d guess that “1” is a tinted windshield, while the second “6” probably identifies my car’s optional “spinner” wheel covers.

Since my car’s been well-documented on CC, I’ll move on to the Continental.

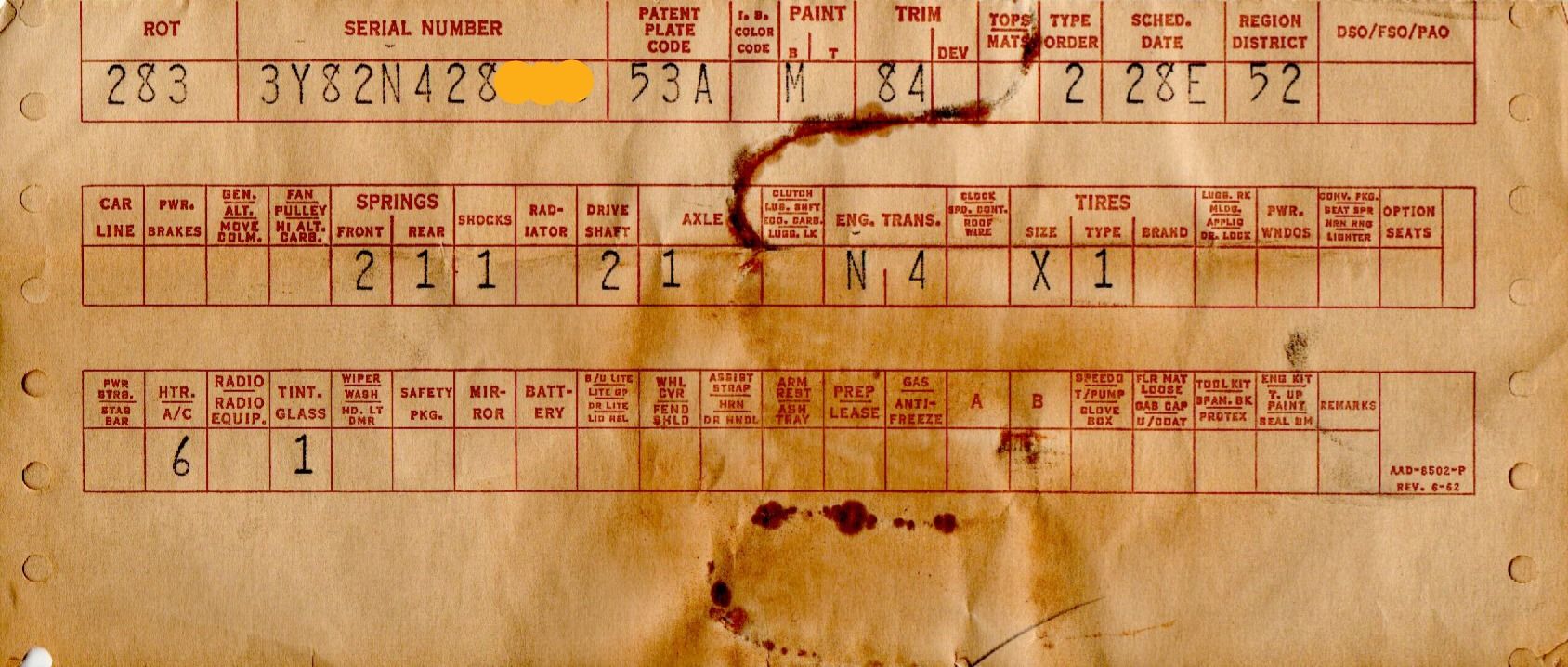

Since the Continental was “283” in the rotation, it would have been directly behind the T-Bird as it made its way down the line. The build sheet makes the car appear as if it were lightly optioned, but it’s important to remember that the Continental came with more standard features than the Thunderbird did, and those boxes are apparently left blank.

First Row

The Continental VIN begins “3Y82N”: “3” means a 1963 model; “Y” is Wixom Assembly; “82” is the body style (four-door sedan); and “N” is the engine code (430-4V). The paint code “M” stands for Ermine White, while a trim code of “84” tells us that this car has a Honey Beige Leather and Vinyl interior. The order type of “2” is the same as it is for my T-Bird (probably a customer order, but I’m not certain of that). The region district of “52” is Los Angeles, California, whose climate might have helped the Lincoln survive the past 63 years. Who knows?

Second Row

Most of these numbers are similar to my T-Bird’s, but the axle code of “1” in this case indicates a 2.89:1 axle ratio rather than the T-Bird’s 3.00:1 (more on that later). The engine code of “N” once again means that a MEL 430 is under the Lincoln’s hood, and the only transmission option is “4,” the Lincoln “Twin-Range Turbo-Drive” automatic. The Continental has larger 9.00×14 tires than the T-Bird, so the letter “X” is a couple sizes larger than the T-Bird’s “T.” White sidewall tires were standard on the Lincoln, so perhaps they are the “1” under “Type.”

Third Row

Air conditioning was not standard on the Continental, so “6” certainly means that car “283” in the rotation has AC as my T-Bird does, and all that’s left in this row is “1” under “Tint. Glass,” which is probably a tinted windshield. Given that the box under “Radio” is empty, we can assume that the car has an AM radio.

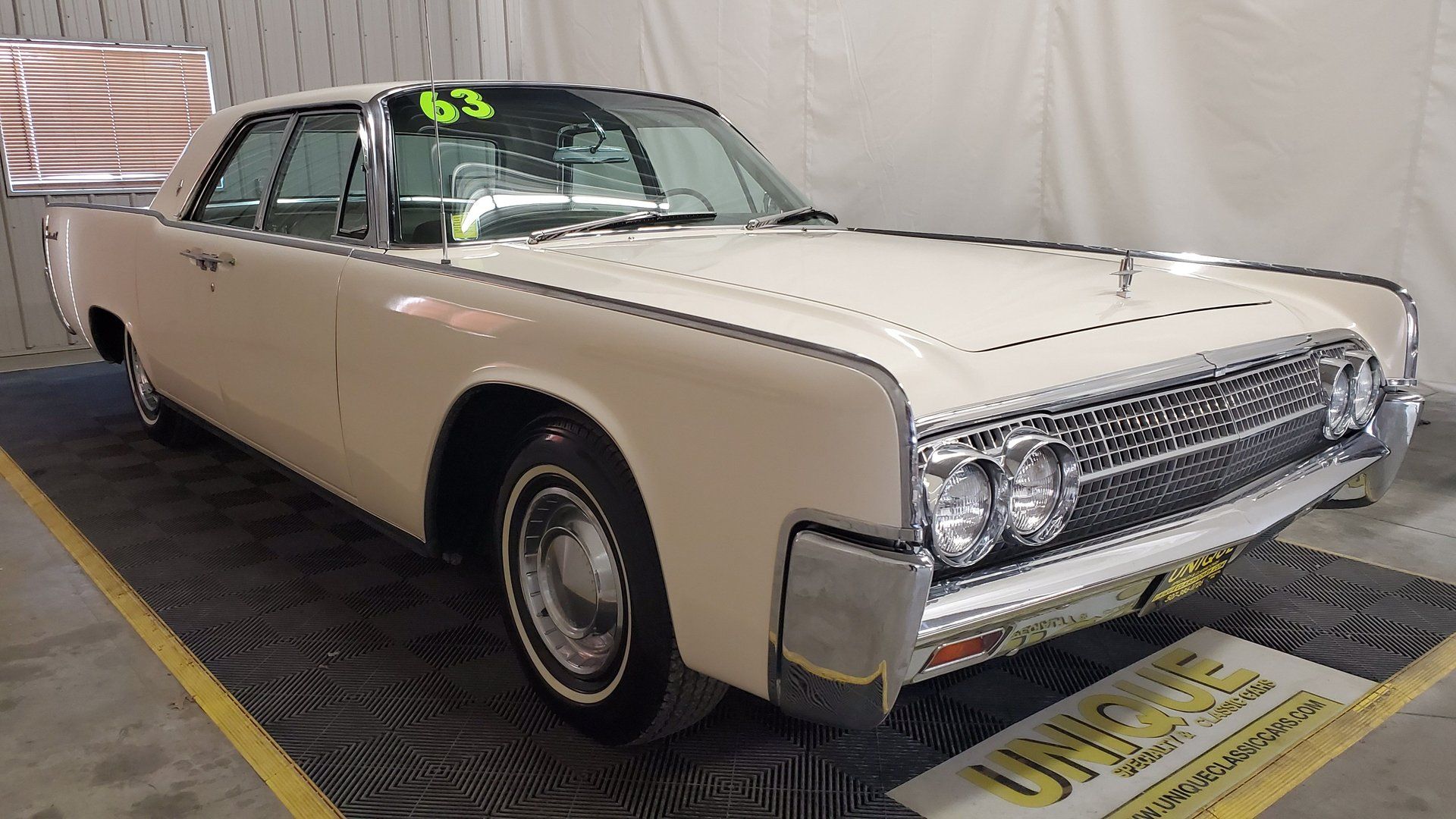

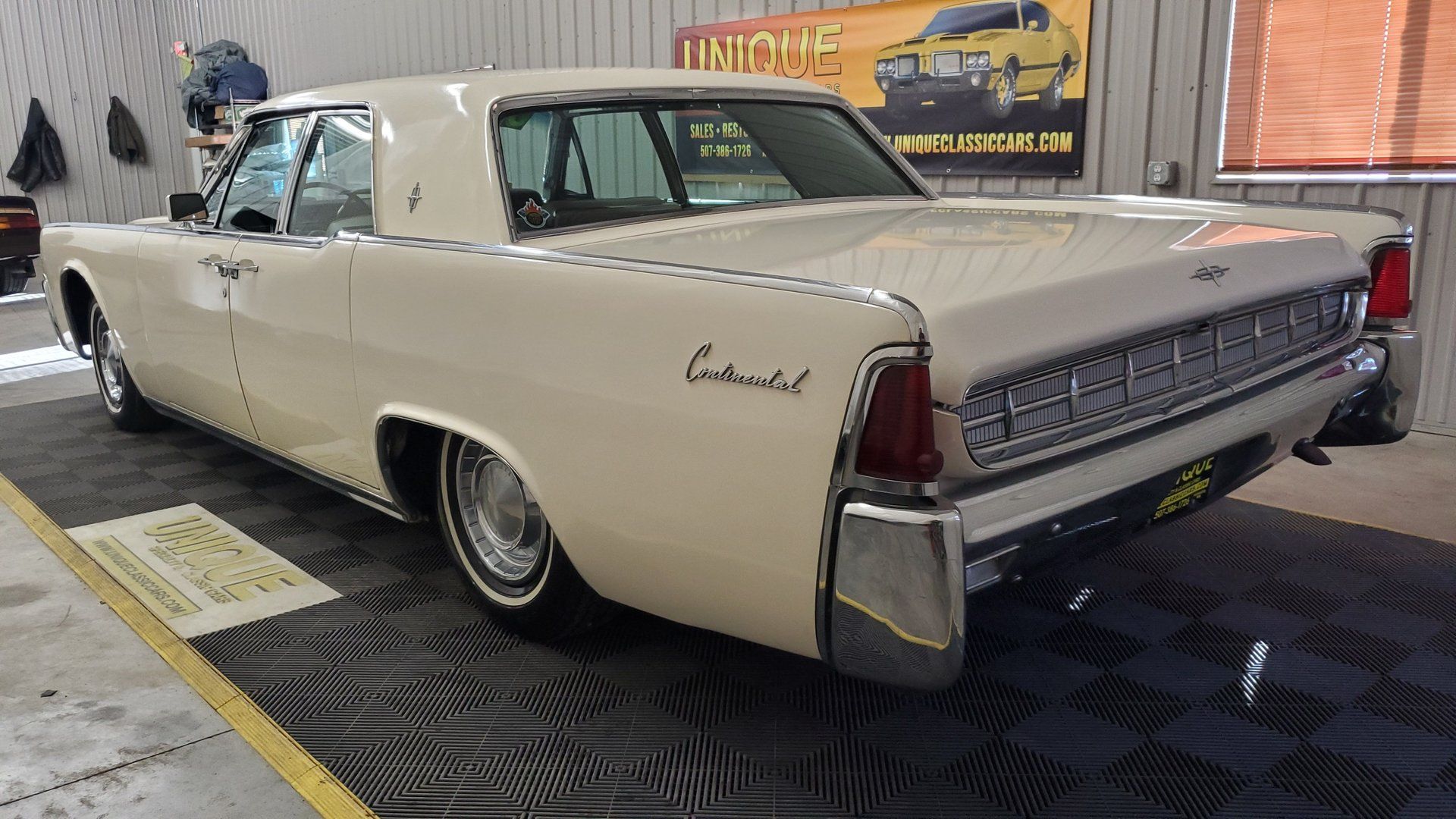

I was able to find several Ermine White 1963 Continental Sedans online, and this example even has a similar, but not identical, interior as the car that shared those precious few hours coming into being behind my Thunderbird.

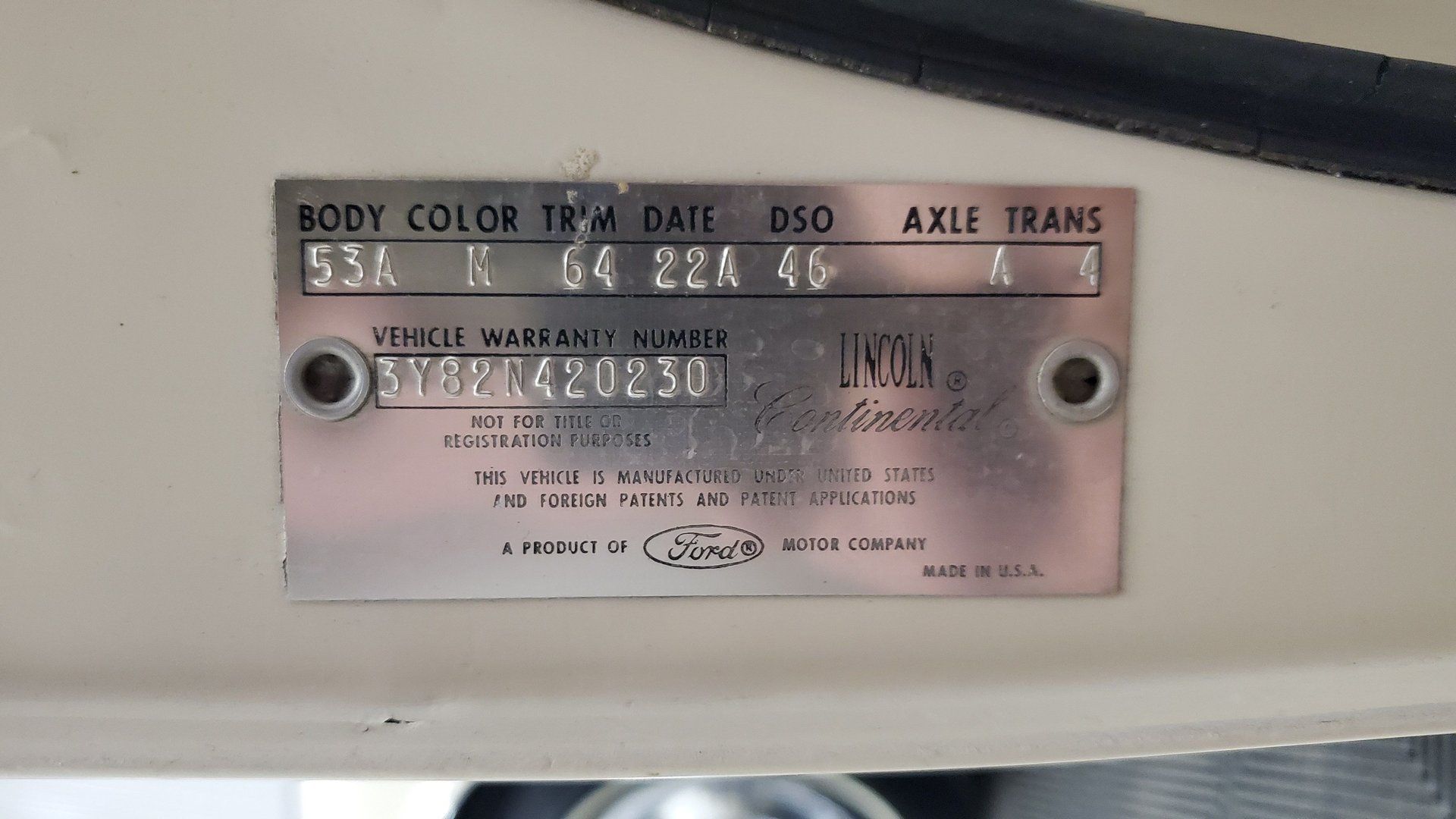

This is definitely not that car, as the 22A date code means that it was assembled on January 22, 1963. This car also has a locking differential (cars so equipped use letters rather than numbers under “AXLE” on the door tag) and a DSO of 46, which is the Twin Cities, Minnesota. Unsurprisingly, the dealer that offered this car for sale is in Minnesota.

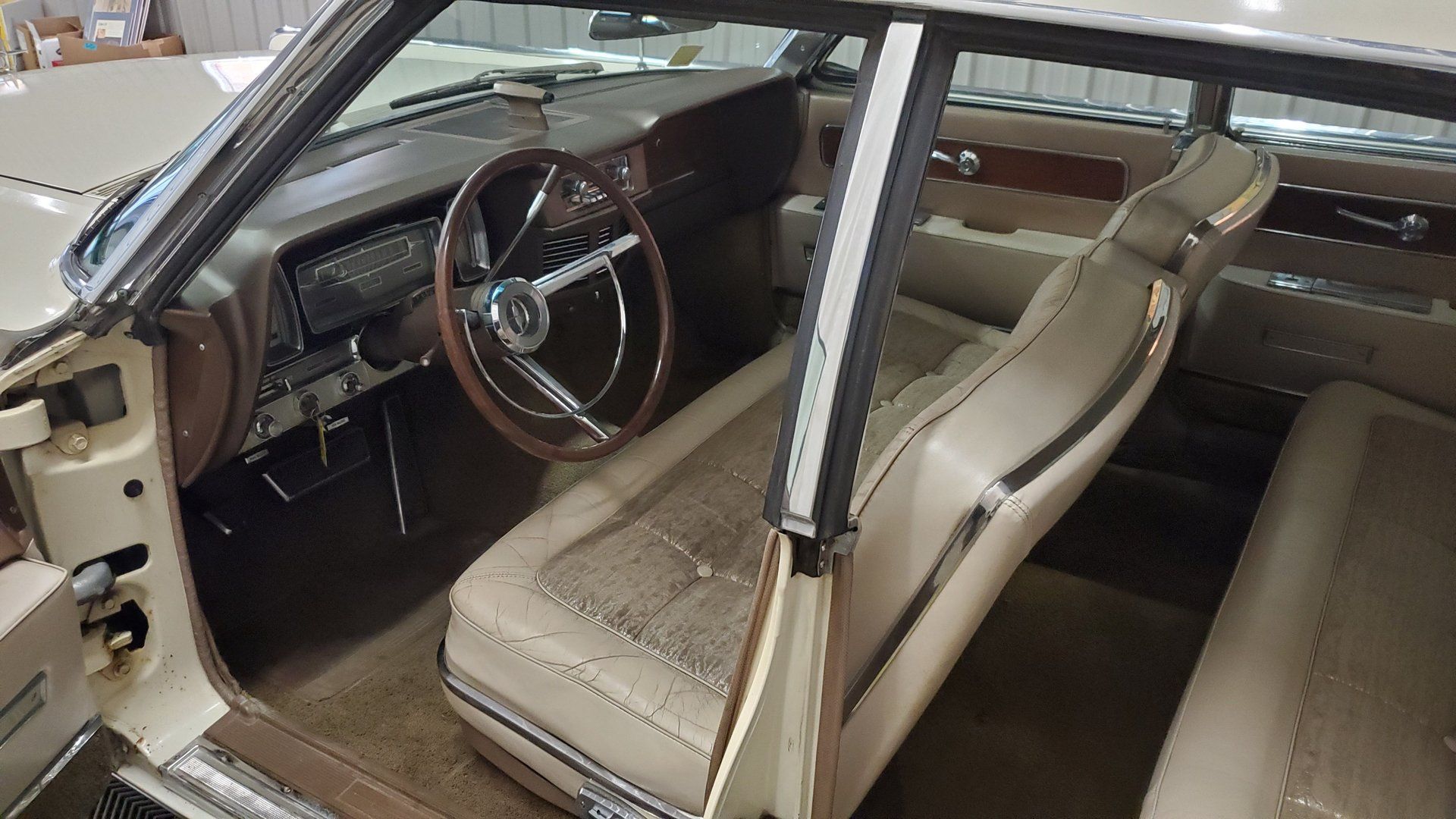

The interior is also a little different from my T-Bird’s rotation buddy, as this car has Code 64 fabric. It’s the same color, Honey Beige, but instead of being upholstered in leather and vinyl, it uses leather and “silver cloud” fabric.

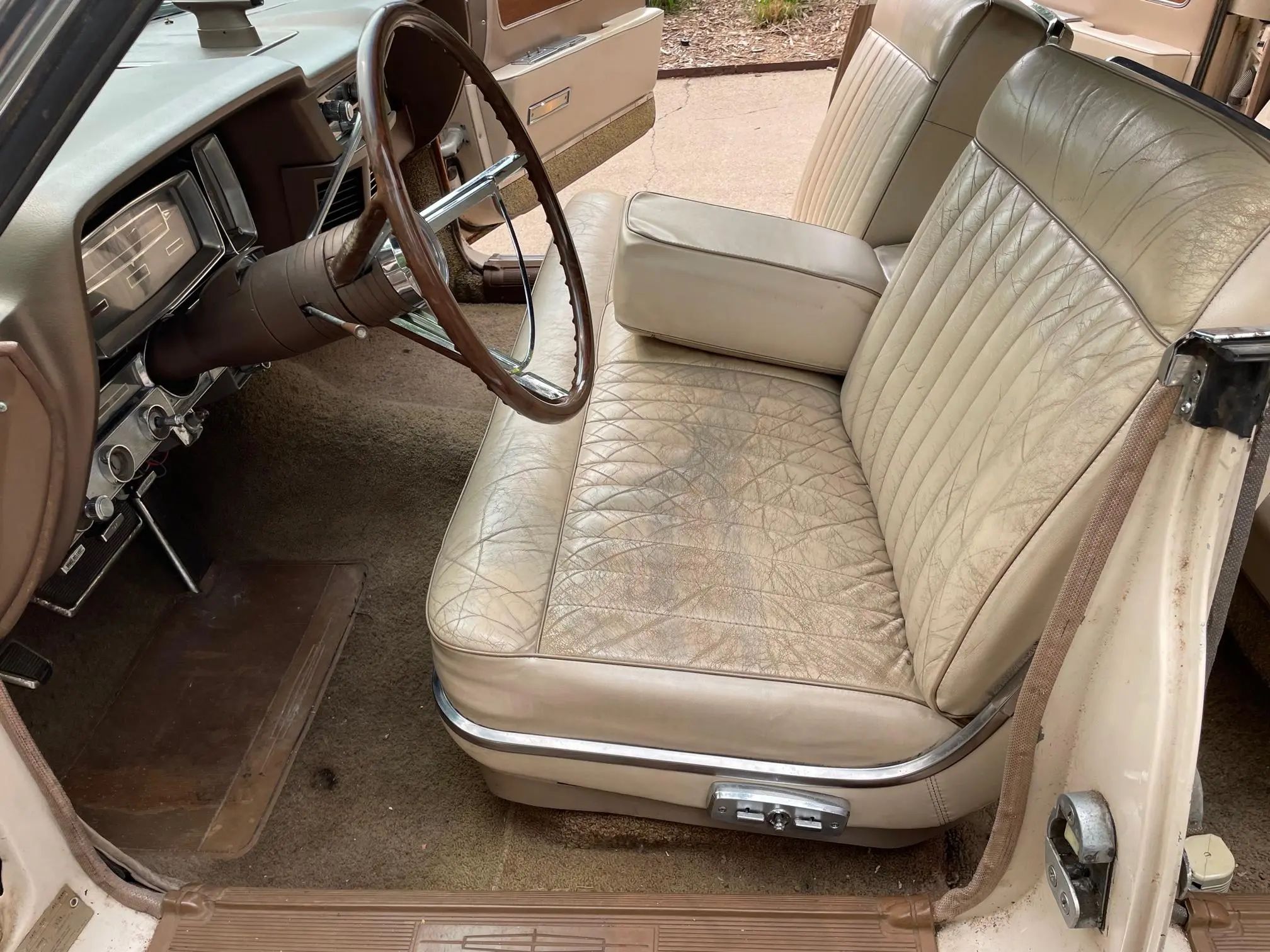

This Continental Convertible that sold on Bring a Trailer in 2023 has the Code 84 interior, a little worse for wear.

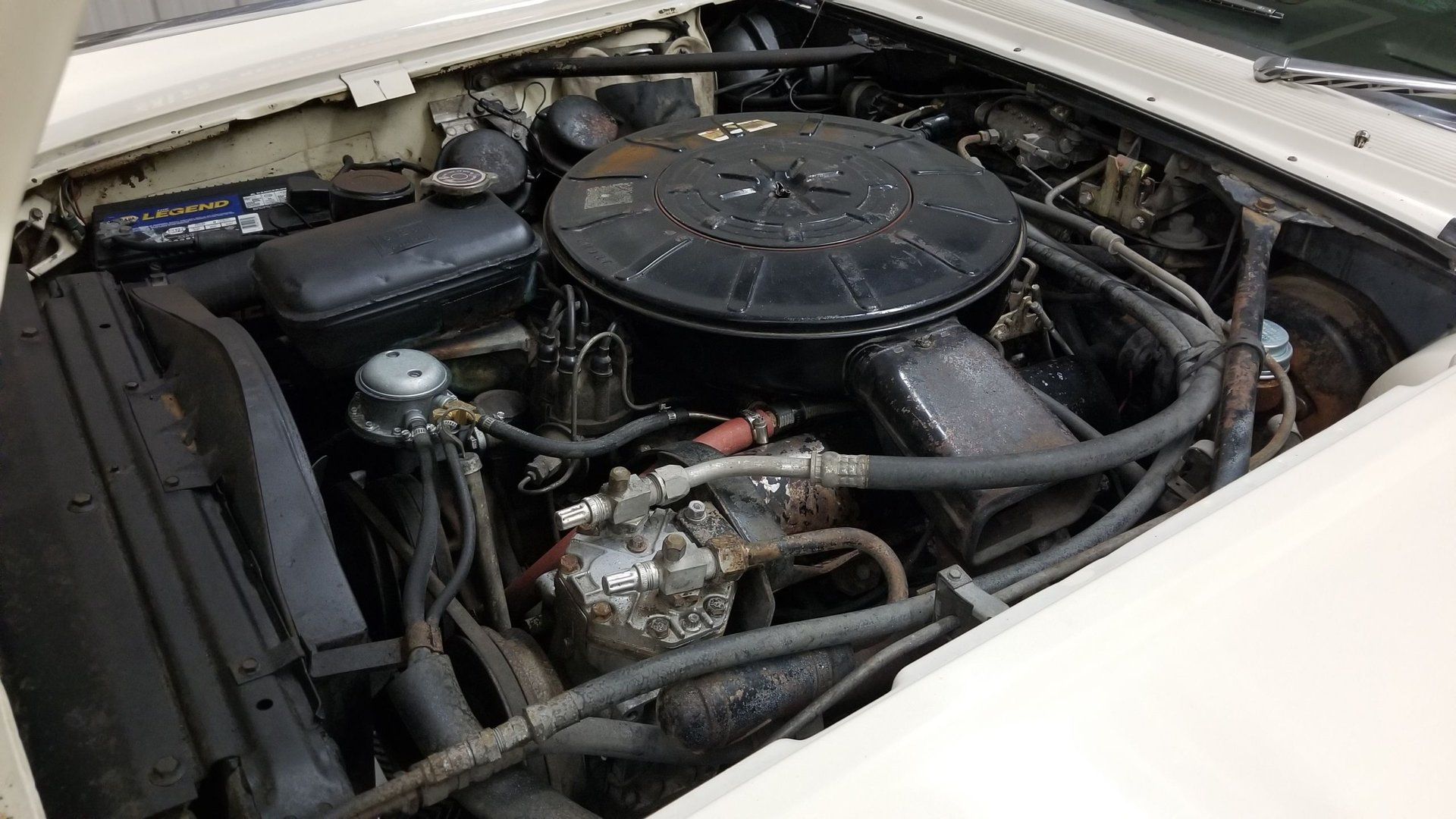

All Continentals were equipped with the same 320-horsepower MEL 430 engine, whose prodigious torque helped move the Continental’s prodigious weight. Although the FE-powered T-Bird is no flyweight at over two tons, the Continental sedan is closer to two-and-a-half.

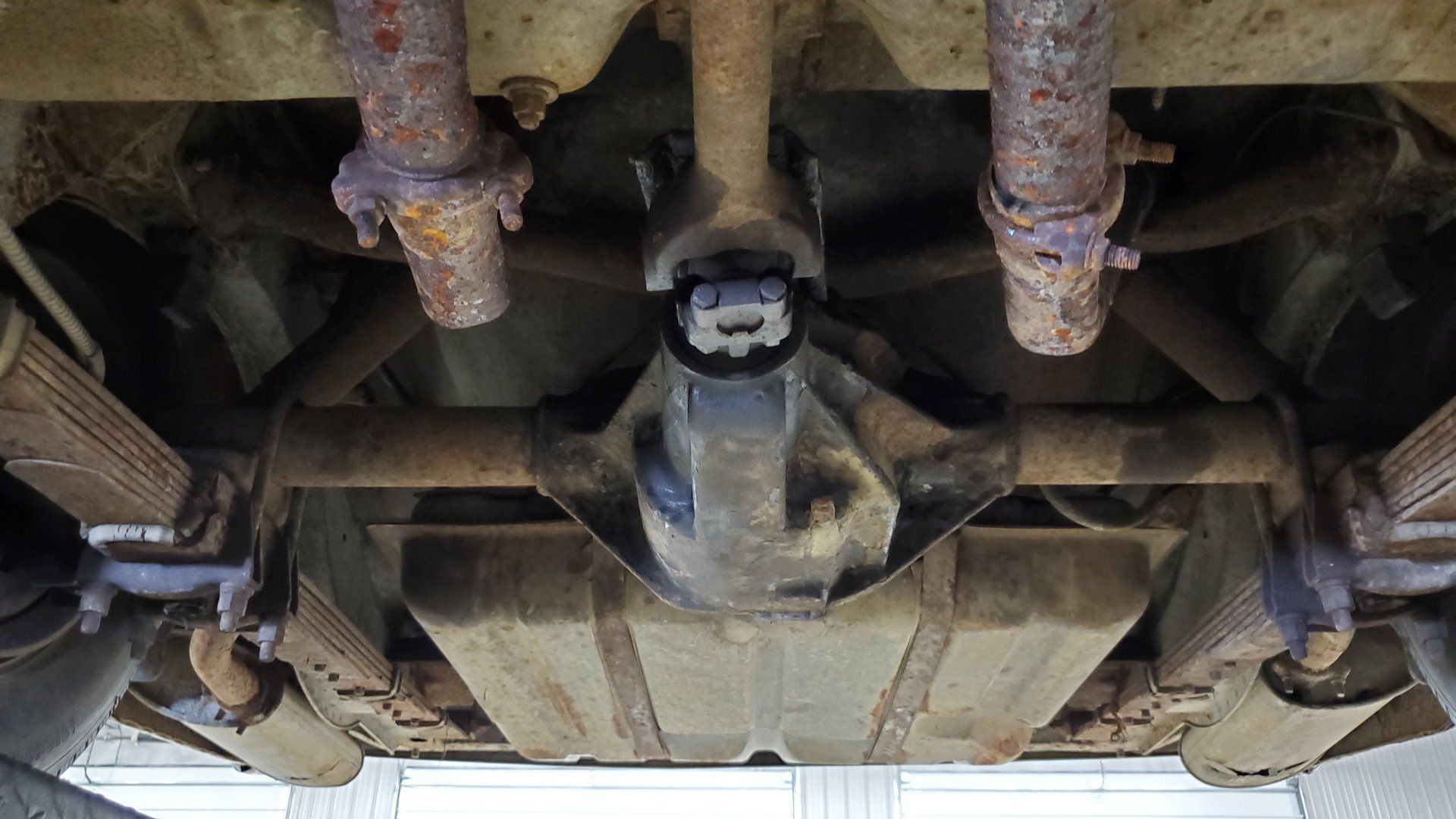

Interestingly, instead of using the famous Ford 9″ rear end, Lincoln instead specified a Dana 53, which is why the Continental’s 2.89:1 axle ratio doesn’t seem familiar to those who know their way around Ford spec sheets. It’s easy to tell that this isn’t a 9″ because it doesn’t have a removable carrier.

Having a build sheet for a car you don’t own can’t help but raise a question or two, such as “What happened to it?” Being shipped to sunny Southern California might have been a boon for the luxurious Lincoln, but two gas crises and six decades can cause all kinds of calamities. Still, we’ll hope for the best, because if any car deserves to still exist, it’s a classically styled Kennedy-era Continental.
