The (Lincoln) Continental Mark VII was arguably Ford’s best attempt at building a luxury grand tourer in the German sense, and for two model years (1984 and 1985), Ford brass figured that if you can’t beat ’em, you might as well buy an engine from them. In this case, it was BMW’s fine “M21” turbo diesel six.
When the Mark VII was introduced as a 1984 model, America was just coming down from its fascination with automotive diesels; General Motors still offered a 4.3-liter V6 diesel in some of its sedans, and the 5.7-liter Oldsmobile V8 diesel was still kicking around as well, but the clock was ticking. Ford must have decided that they needed a competitor for the diesel-powered Cadillacs, but rather than spending an enormous amount of money designing and tooling up for their own diesel, they bought BMW’s new 2.4-liter turbocharged inline six. It actually looks right at home under the Mark’s hood.

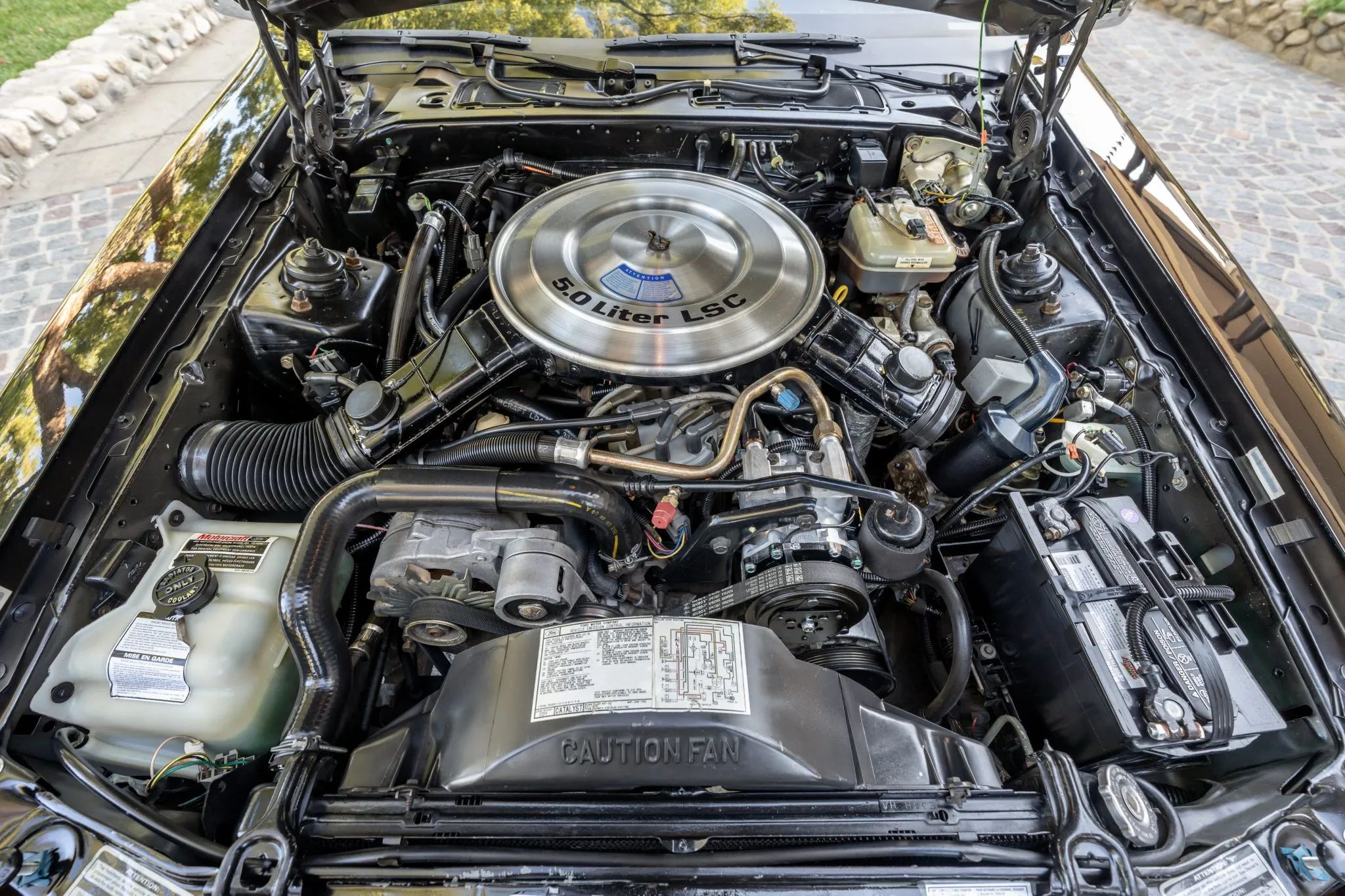

In 1984 and 1985, the Mark VII’s standard 5.0-liter V8 wasn’t the muscular “High Output” unit used in Mustangs (and later Mark VIIs), but rather the fairly pedestrian 140-horsepower version one would find under the hood of a Town Car or a Grand Marquis. It certainly takes up a little more space than the six, although the engine compartment required some shuffling of components to accommodate the diesel.

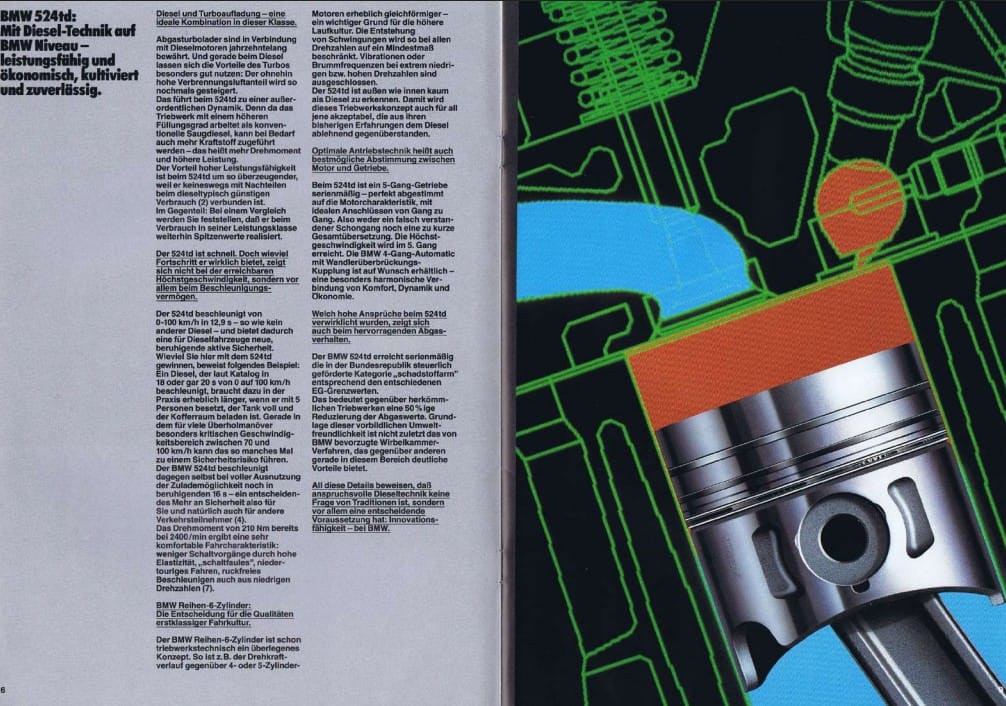

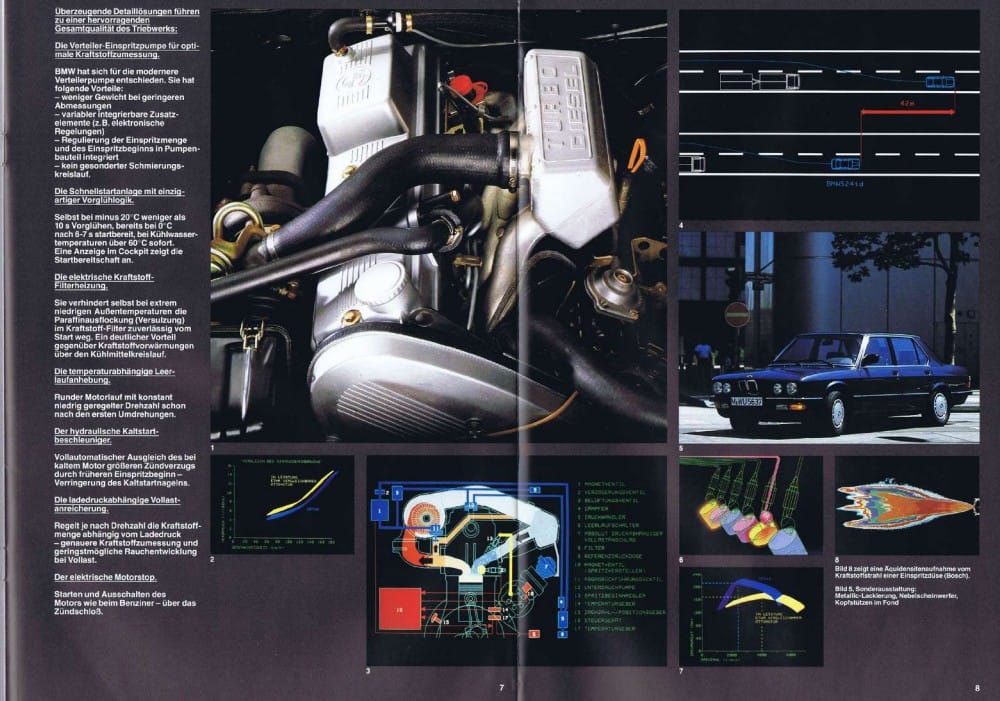

The engine itself was designed for a BMW, of course. In this case, it was the 524td, which Paul N. wrote about here. The M21 turbo diesel was an almost square design, with an 80 millimeter bore and an 81 millimeter stroke (3.15 inches x 3.19 inches), and with a 22:1 compression ratio, it produced 115 horsepower and 155 lb.-ft. of torque. Yes, that would make for a slower Mark VII, but it was only 25 horsepower away from the five-liter, and Lincoln compensated for that by specifying a 3.73:1 axle ratio in diesel cars (compared to a 3.08:1 ratio in other Bill Blass Mark VIIs).

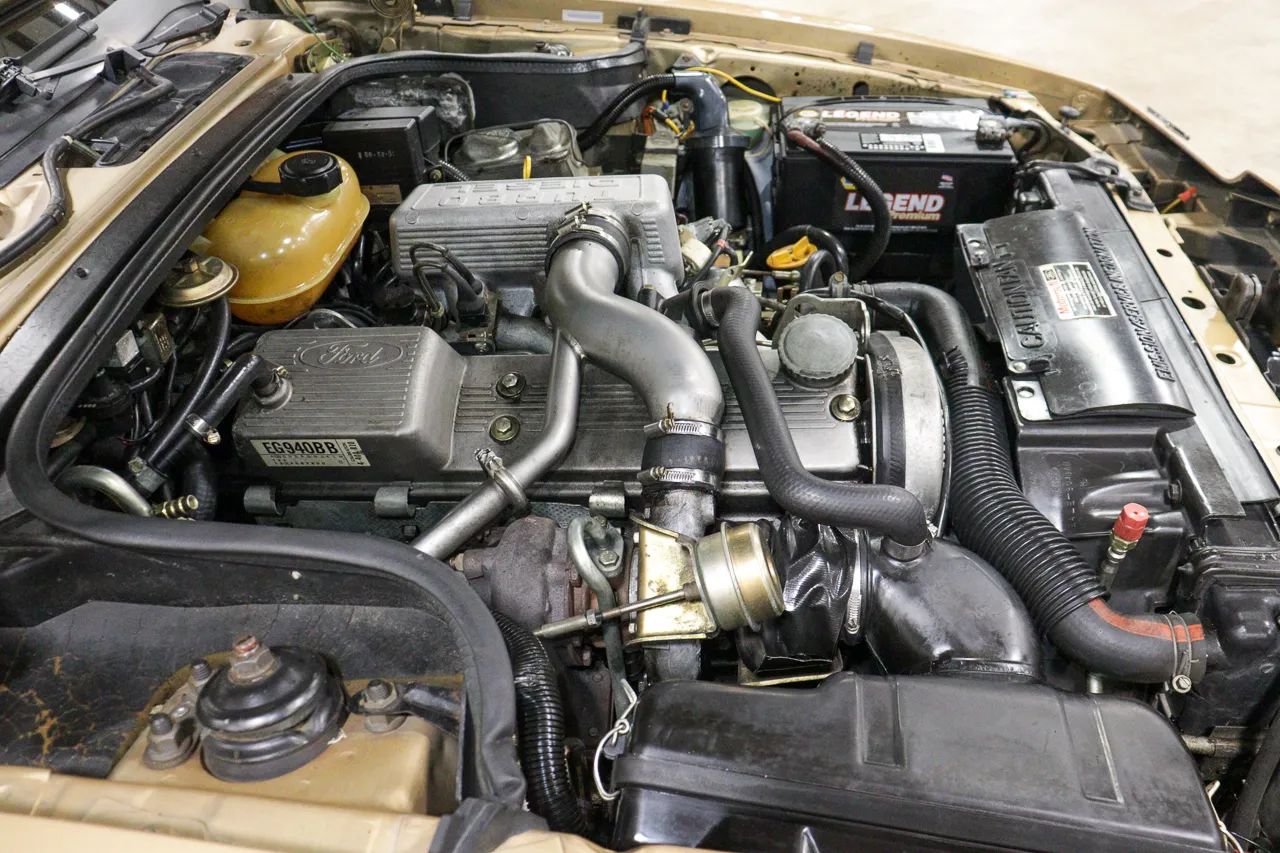

The engine itself is based on the M20 gas six, and used a cast-iron block with an aluminum single-overhead-cam cylinder head, which had a swirl-inducing prechamber, which apparently quieted the racket that diesels are known for.

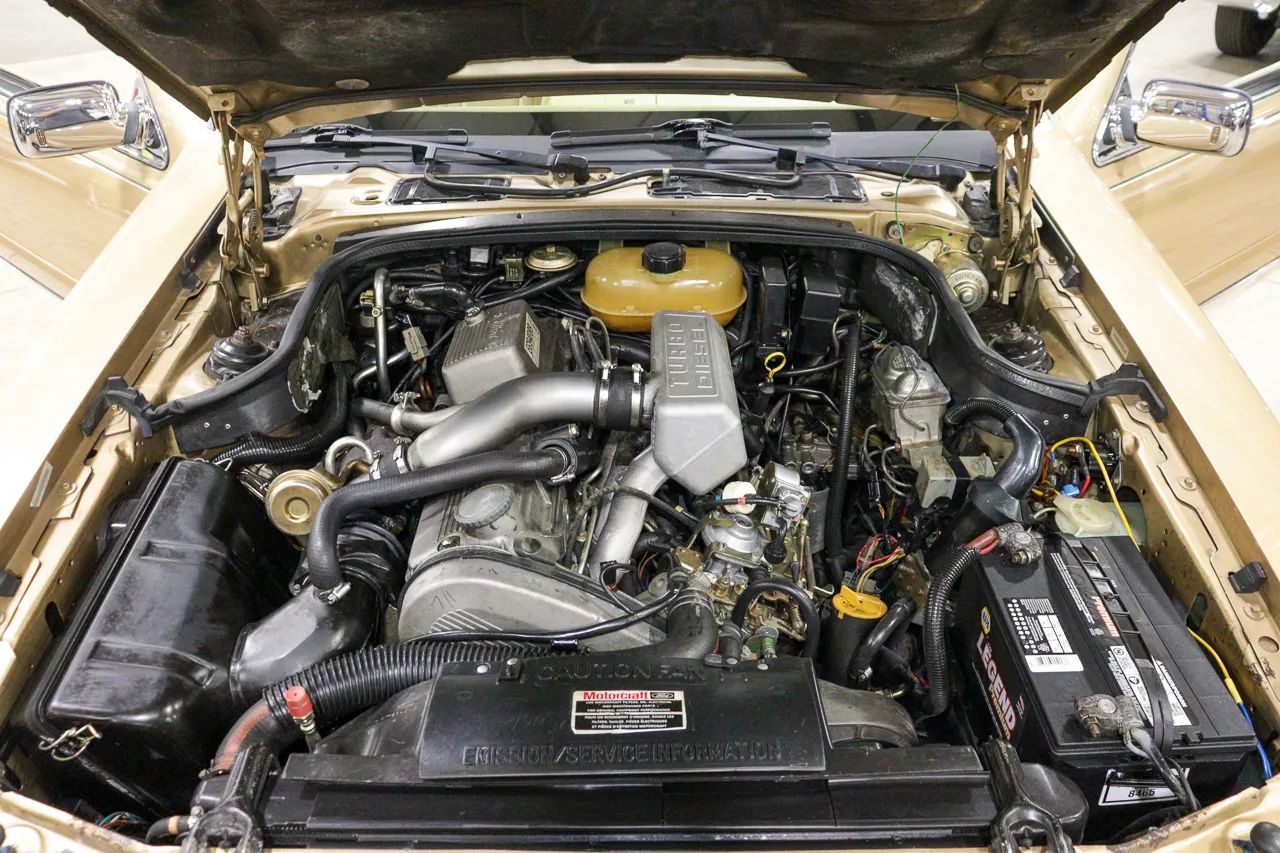

Ford even got its own valve cover so it wasn’t obvious to buyers that this was a BMW engine, not that that would have dissuaded anyone who was willing to pay more than $1200 for the option.

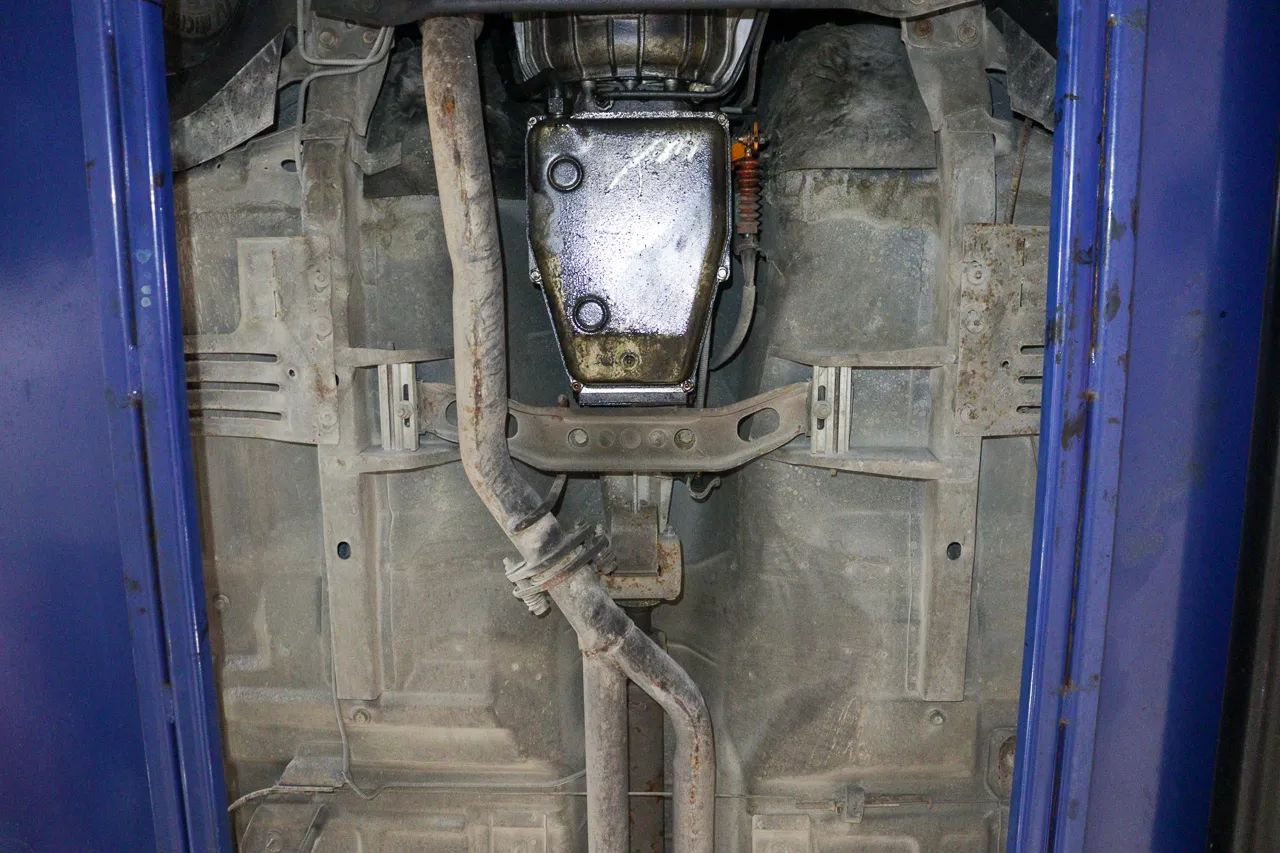

The turbo diesel Lincoln used a ZF four-speed automatic with the following gear ratios: 2.73:1 for first, 1.56:1 for second, 1:1 for third, and 0.73:1 for fourth.

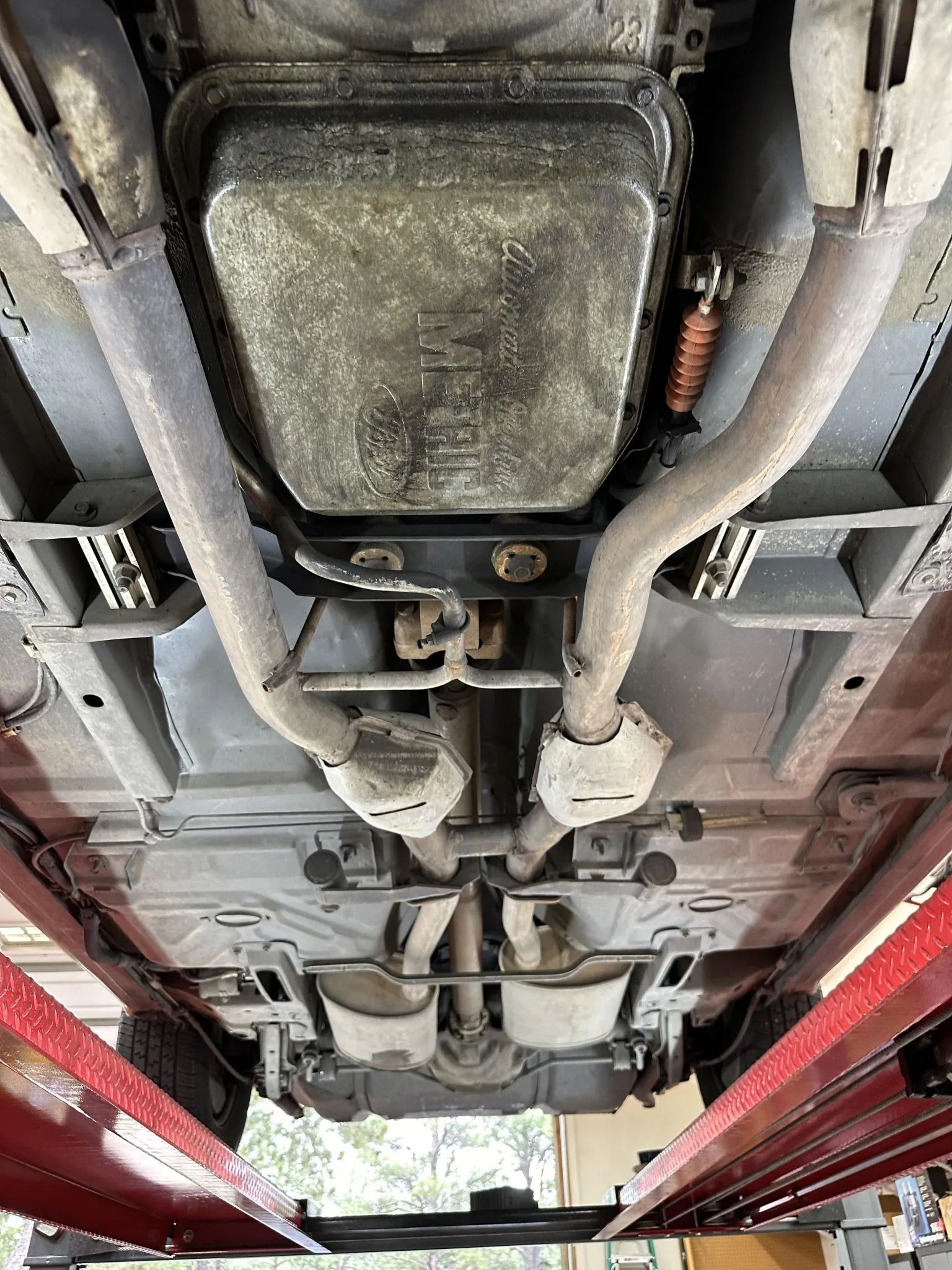

Gas-engined Marks had Ford’s own AOD, which was also a four-speed automatic with the following ratios: 2.40:1 for first, 1.47:1 for second, 1:1 for third, and a taller 0.67:1 for fourth. Therefore, the diesel cars had extra ratio help in first in addition to their deeper rear gears, but it wasn’t enough. Hemmings reports that the diesel accelerated to sixty in around thirteen seconds, while the gas-engined car only took about 11. Neither were speedsters, but paying extra to go slower wasn’t a trade many were willing to make. The diesel’s mileage, however, was outstanding: the EPA rated it at 23 city and 29 highway, while the V8 cars were rated at 17 city and 27 highway. Anecdotal evidence online suggests that a diesel Lincoln can approach 40 miles per gallon on the highway.

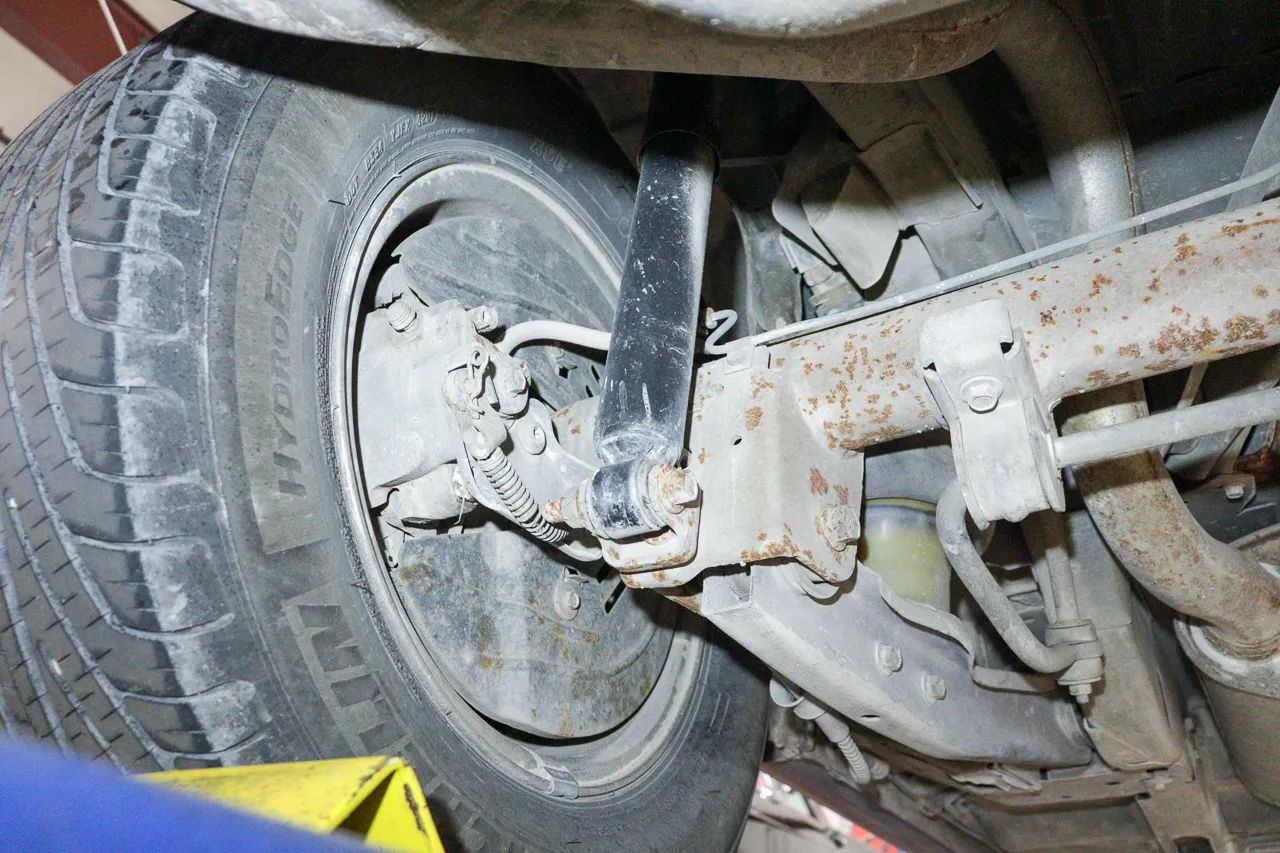

One feature that all Mark VIIs had, regardless of engine choice, was “Electronic Air Suspension with automatic level control.” I’m old enough to remember more than a few Mark VIIs riding on the bump stops, an ignominious look for such a regal luxury car. Coil spring conversion kits are still available, but the air systems can also be repaired today if you are willing to put in the diagnostic time.
Diesel cars were introduced late in the model year, in December, according to the sales brochure. The extra money for the diesel paid for extra sound deadening, an oil cooler, fuel and engine block heaters, an “integral fuel filter/water separator,” and an upgraded charging system.

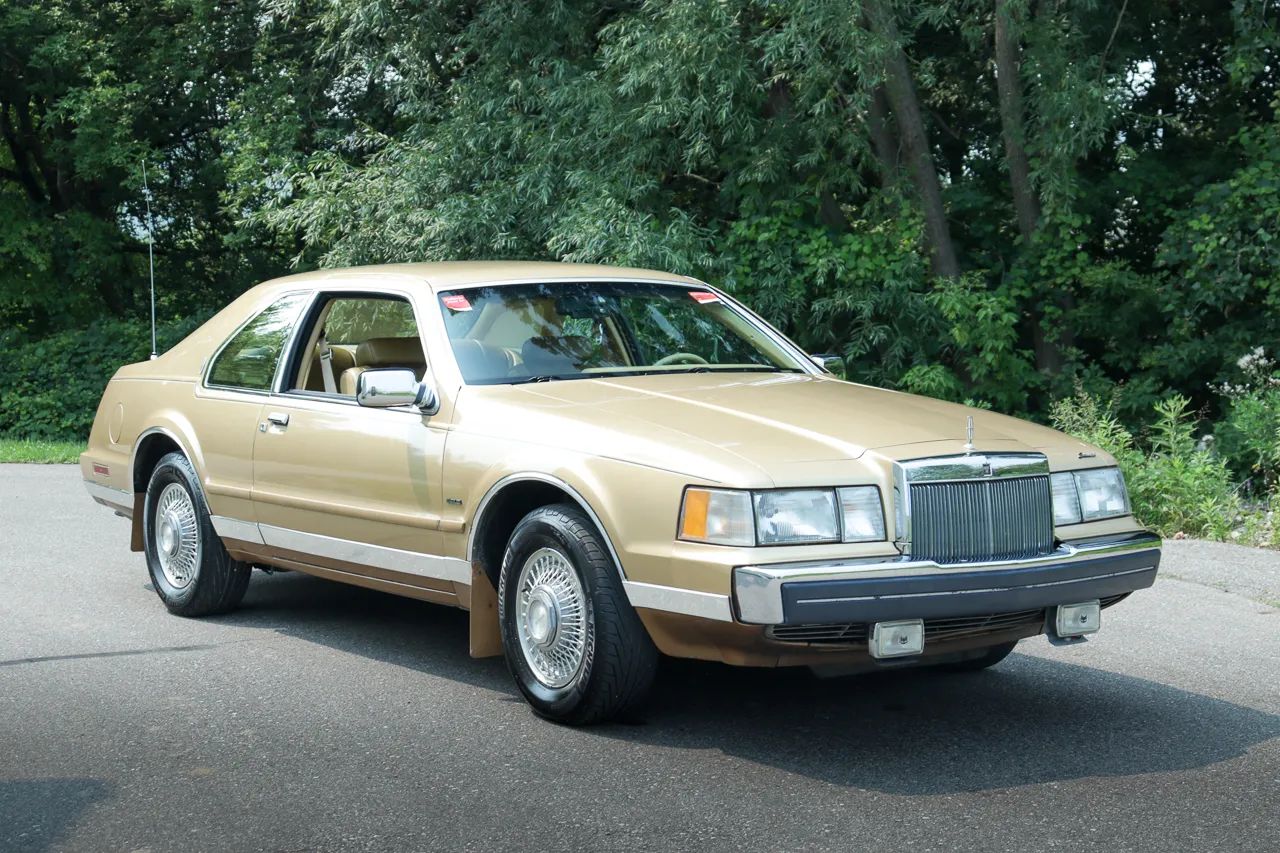

Bill Blass series cars were only available in one color combination in 1984: “Goldenrod Glamour Clearcoat Metallic over Harvest Wheat Clearcoat Metallic” with a “Flaxen Gold interior.” For those who don’t know, Bill Blass was a fashion designer, and Lincoln had a long association with various design houses, which is why you might stumble onto a Cartier Town Car or a Versace Mark VII in addition to a Bill Blass Edition car.

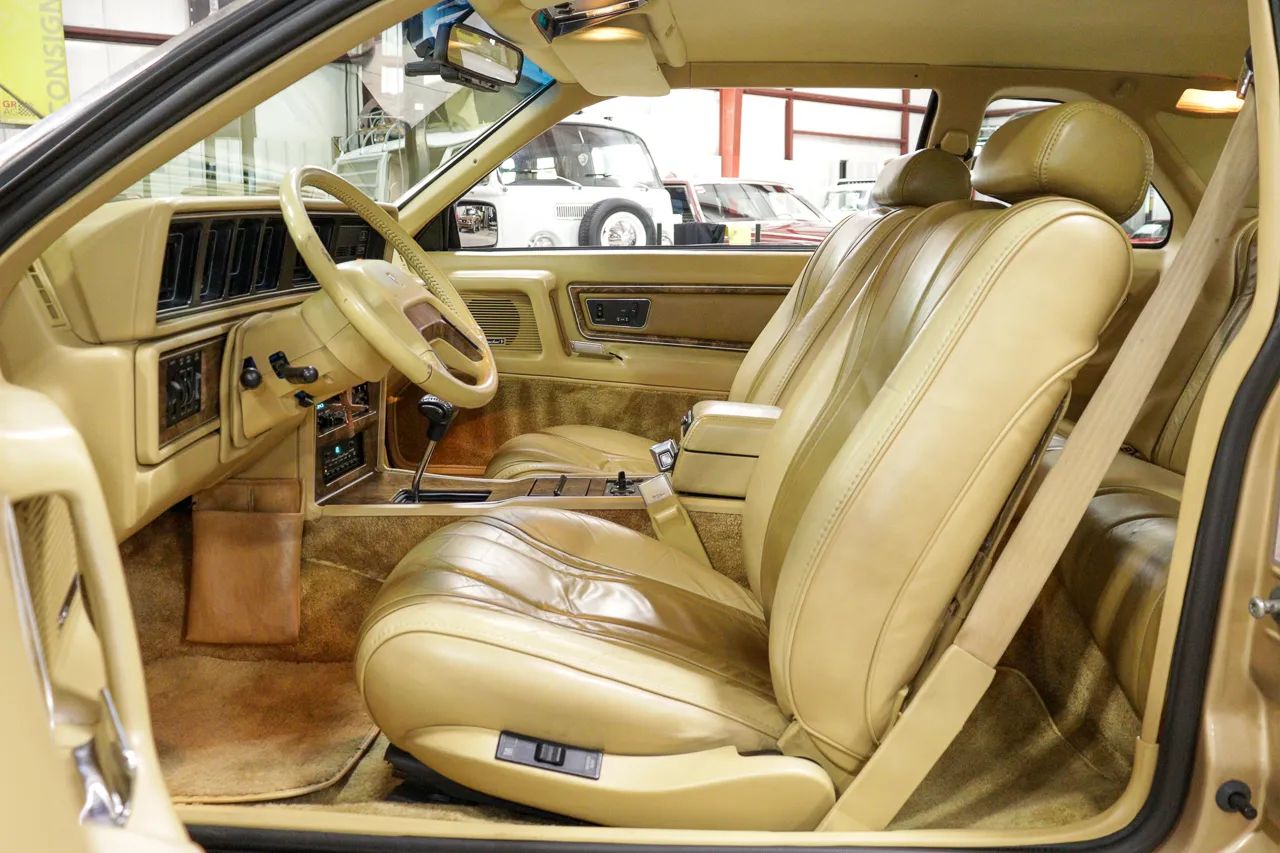

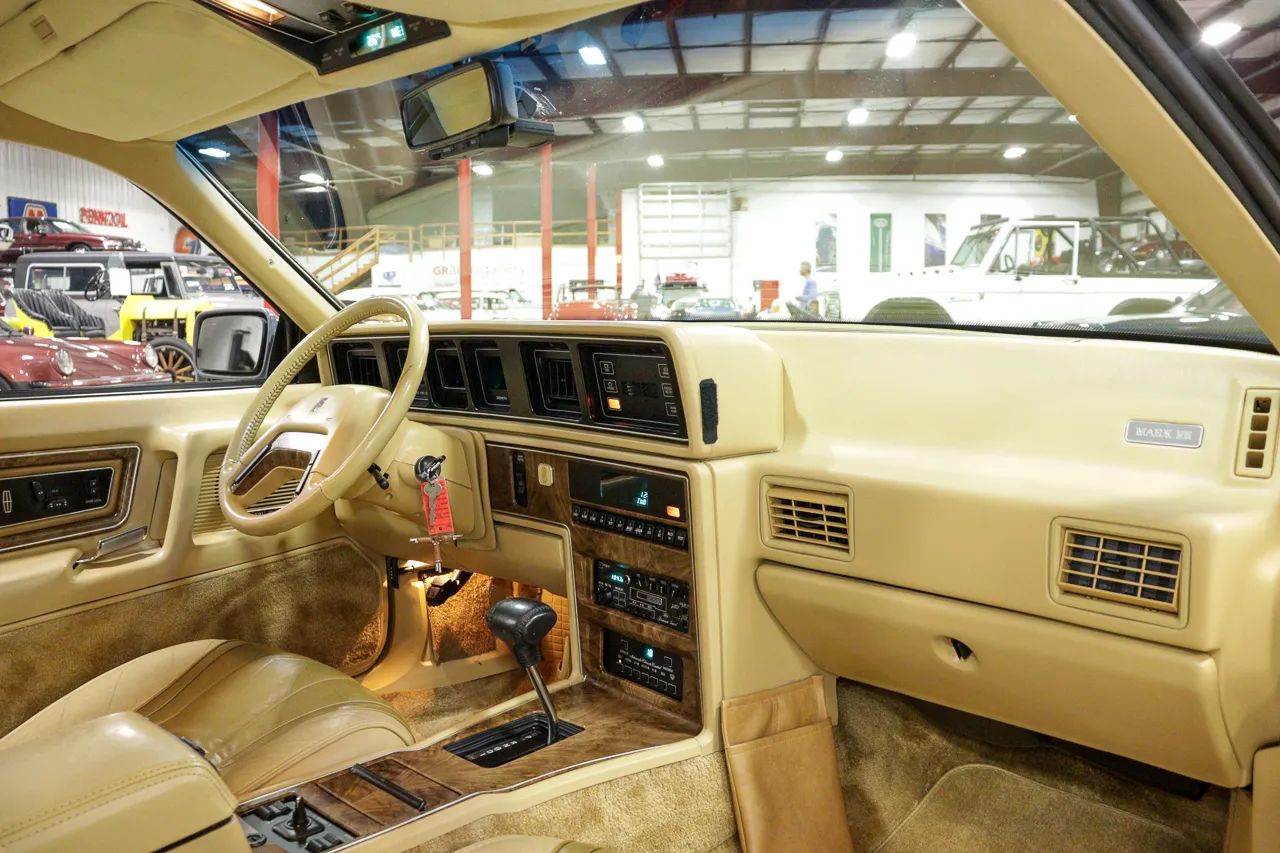

The Mark VII in any case was an extremely luxurious coupe, with leather seating, power everything, and standard electronic instrumentation. The interior didn’t have the same cold quality as a BMW; it was still a Ford all the way, with a traditional Ford-style dashboard and plenty of wood graining, but nobody would complain about the amenities.
Truly, the Mark VII was about as close as America got to a true grand touring coupe in the 1980s, especially as its performance improved over the course of the decade. It’s possible, however, that the short-lived diesel example was more representative of the genre. It’s certainly a footnote in automotive history, and its rarity (no more than 2,500 were built in 1984, and probably fewer than that) does not equate to high prices on the collector market; this one sold for just over $6,000 in 2021, and it had 55,000 miles on it.
It is, however, one of those cars that you vaguely remember, one of those cars that sends you to your childhood brochure collection to check. It was a good idea; it just came at the wrong time. Who knows. If Lincoln would have offered a BMW diesel in 1980 or so, maybe things would have turned out a little differently for the oil burner in America. But probably not.
