Being a man more interested in cars from the 1970s on back, I’m accustomed to pulling a speedometer cable out in minutes for a quick cleaning and greasing; however, the job isn’t quite so straightforward for “new” cars from the 1980s. The noisy speedometer in my dad’s 1988 Mustang GT convertible had long been an annoyance, and the most common repair is to replace the entire cable assembly. While a complete new cable is a bargain at right around $25, replacing it takes up more of your day than you might expect.
My parents live nearby, so I drove down to their house and picked up the Mustang to bring it back to my garage where all my tools live (and where my parents couldn’t hear my cursing at their car). Pulling a speedometer cable out for greasing isn’t a practical task on a Mustang of this vintage, which is why I learned that it’s a smart play to install a new one, but that requires disassembly of the gauge cluster (and more).
There were a few points in the job where I was too engrossed, or too alone, to take pictures, so I’ve substituted photos from Late Model Restoration’s website.

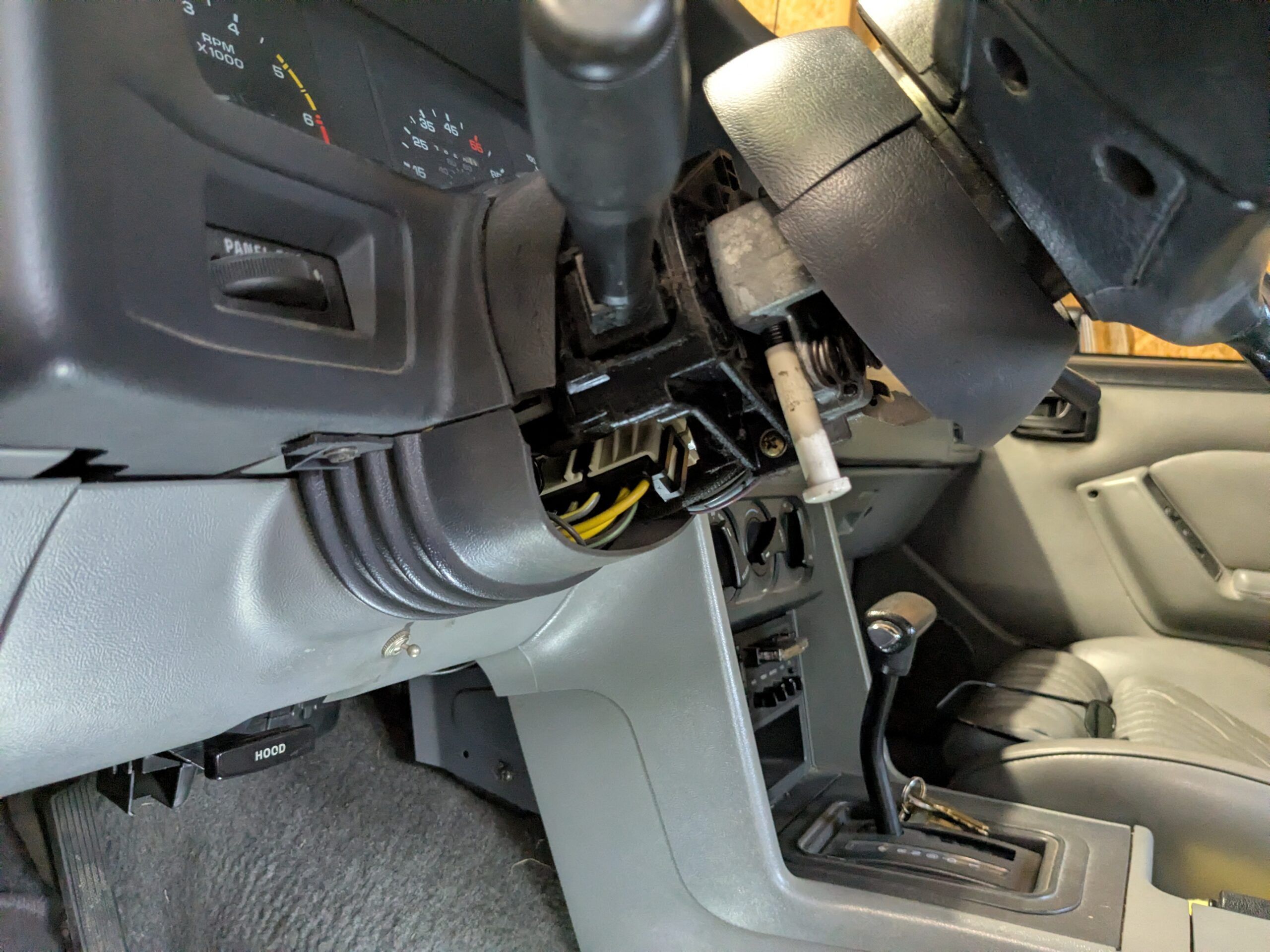

Fortunately, the Fox Body Mustang is so popular that this is one of those rare times when a YouTube video could help me out. Late Model Restoration, the online store where I bought the cable itself, posted a succinct six-minute video that taught me the basics without getting into too many details that I could figure out on my own. First, I removed the collar around the steering column, which involves three screws that engage in plastic. It’s not the best system because 38-year-old plastic is brittle.

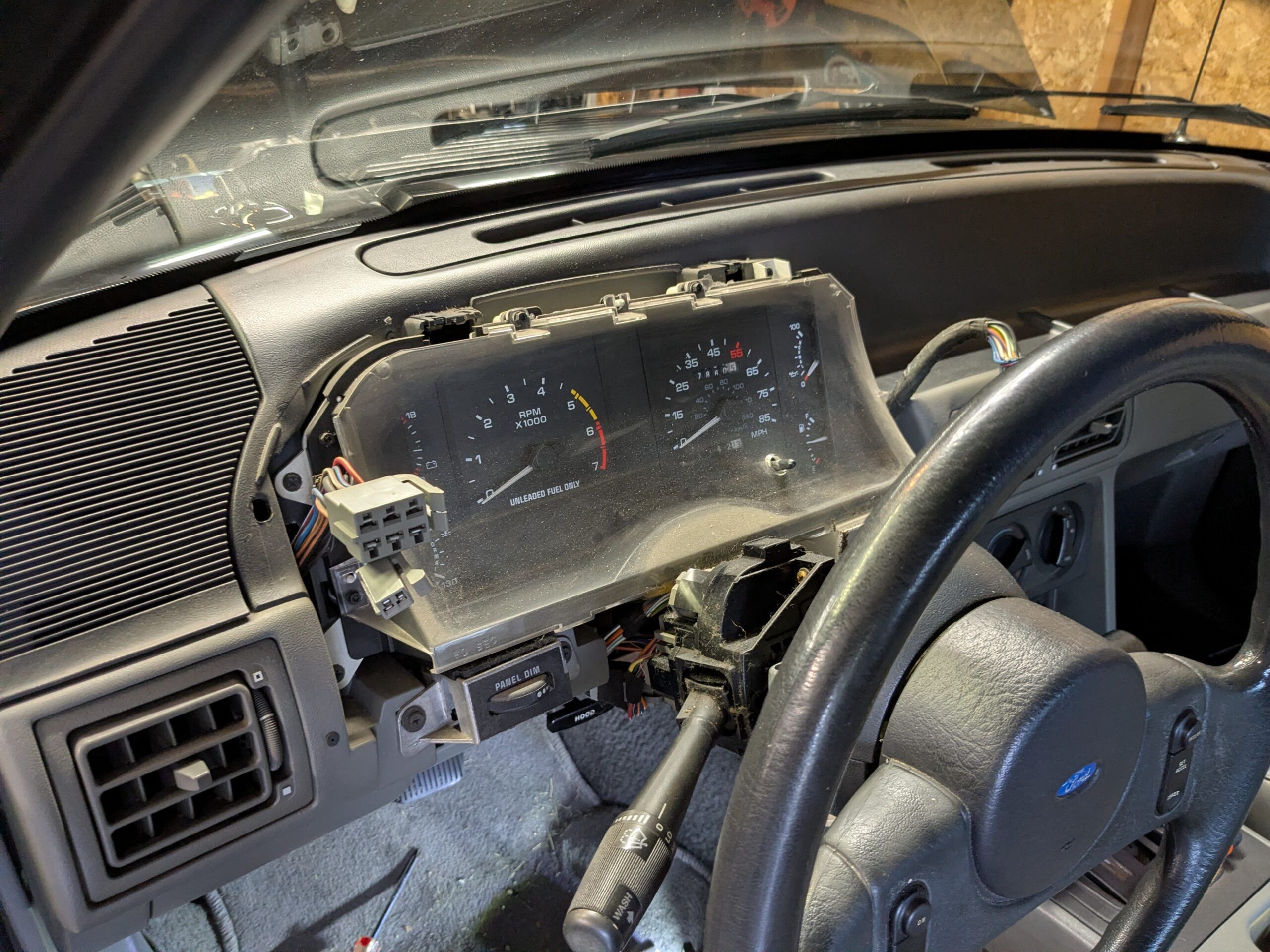

Then, I removed the underdash plastic to reveal some of the screws that hold on the gauge cluster fascia.

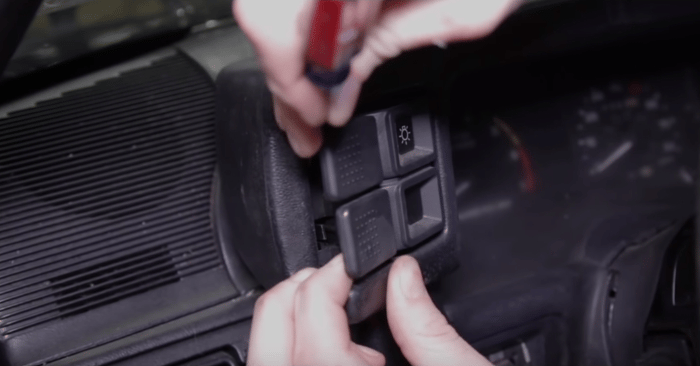

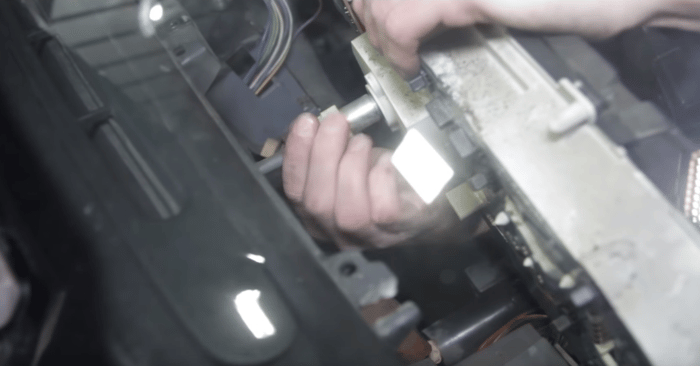

Before removing all the fascia’s screws, I used a flat-blade screwdriver to gently unclip the switches for headlights, fog light, four-way flashers, and the convertible top. It’s all made of plastic, folks.

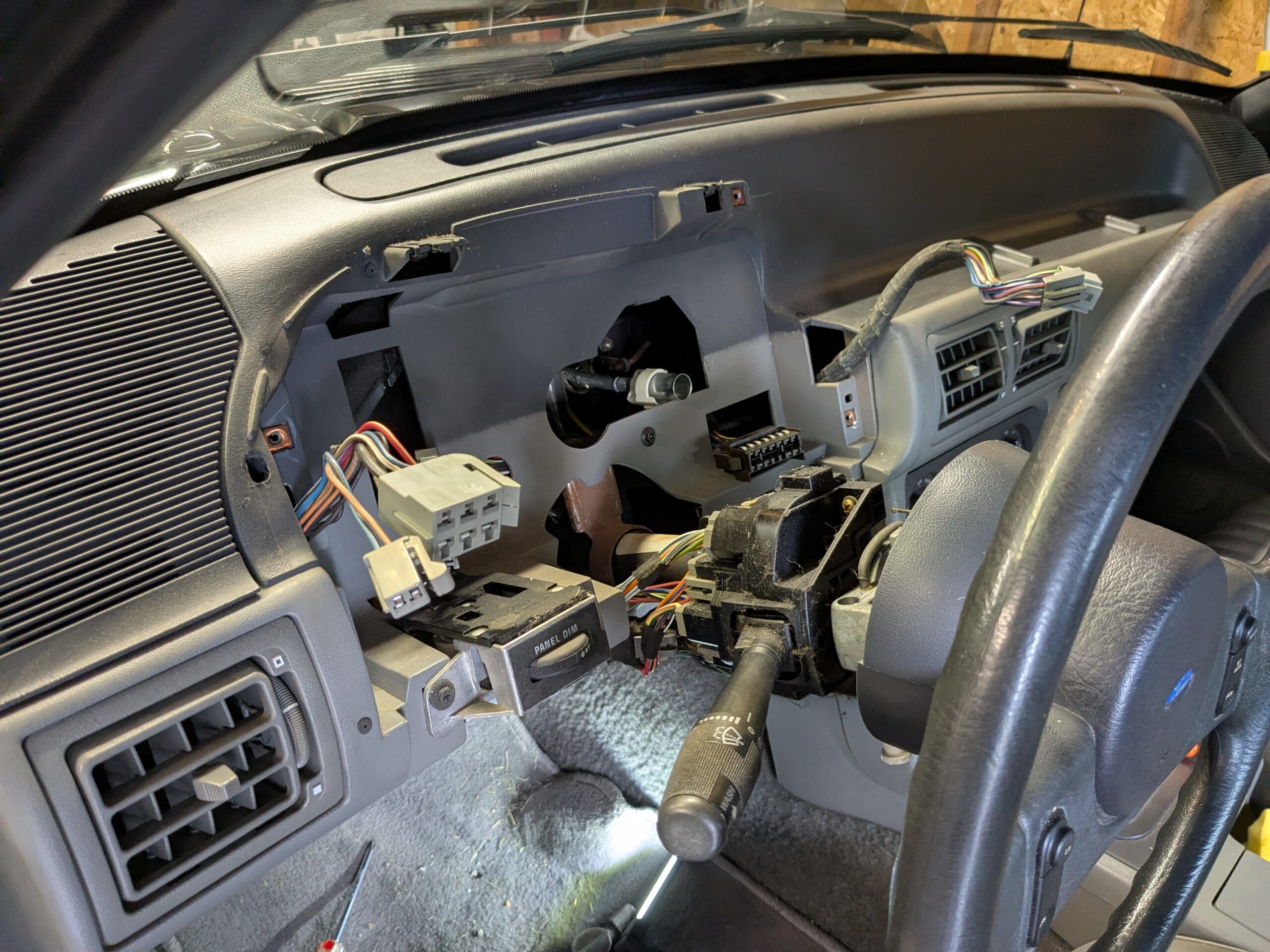

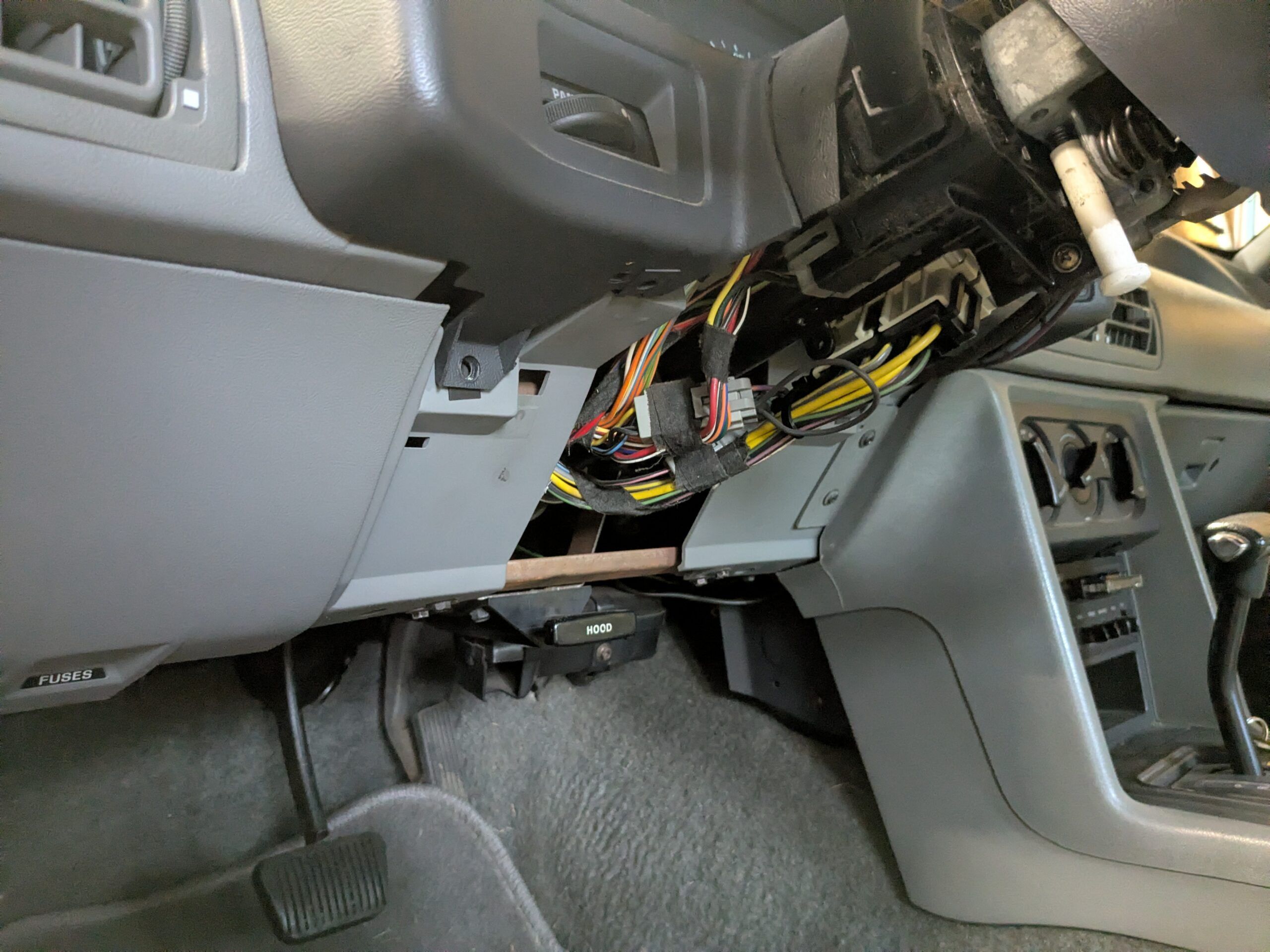

Once the switches and the fascia were removed, this is what remained, the instrument cluster itself.
The speedometer cable isn’t held to the head by the old-fashioned screw-on barrel, but rather a plastic clip that requires a squeeze to remove.

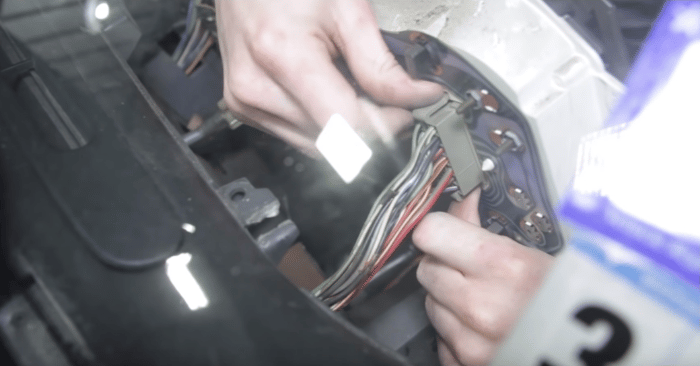

Then, there are two wiring harnesses that connect to the printed circuit behind the cluster that also require removal. The wires weren’t quite as long as I would have liked, so I couldn’t get a really good look at them; working by feel was the only way to do it.
Once the cluster was out, there was that momentary sinking feeling that I’d taken the car apart more than I had bargained for.

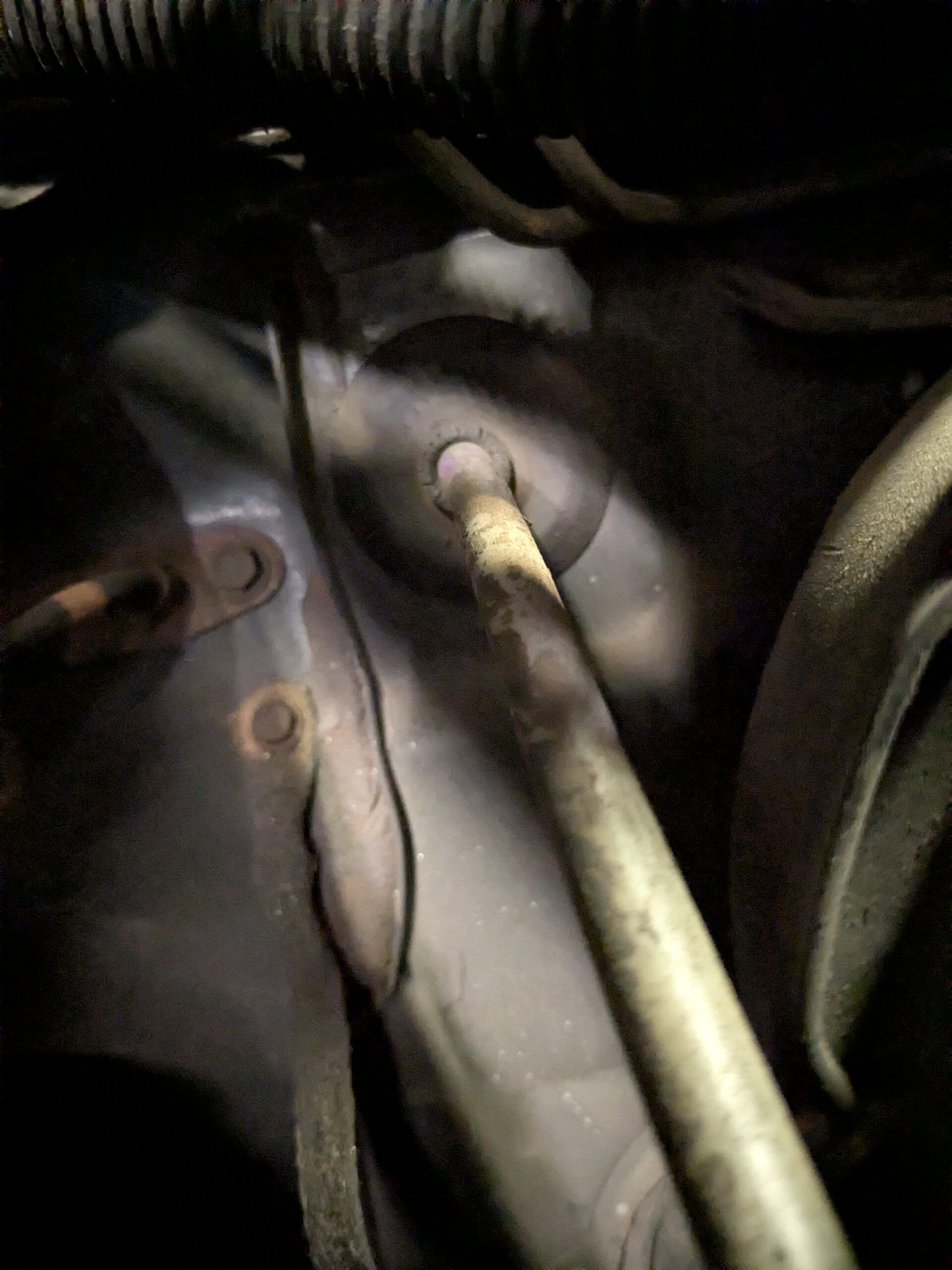

The cable itself is attached to the firewall with a big grommet. The new cable came with the grommet for a manual-transmission car, which passes through a different hole in the firewall than it does on an automatic-equipped car like my father’s. On stick cars, the clutch cable passes through this hole, so I had to buy the grommet for AOD cars, which costs about six dollars.

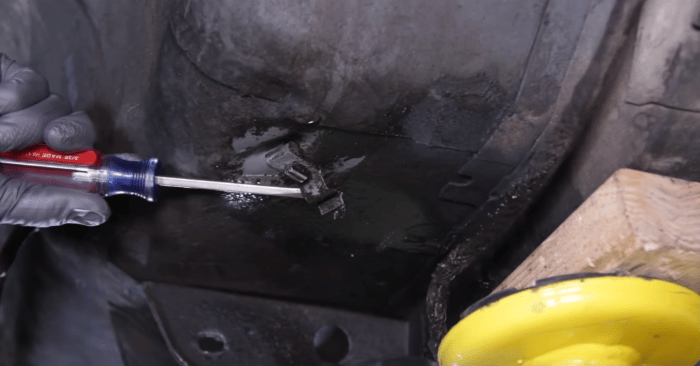

The cable is held to the front subframe with a clip and a sheetmetal screw, and to the floor with this spring clip.

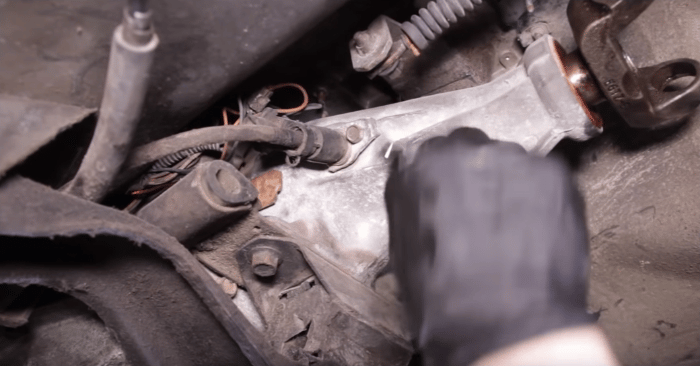

Finally, the speed sensor enters the back of the transmission and is held down by a clip that’s attached to the transmission with a small bolt.

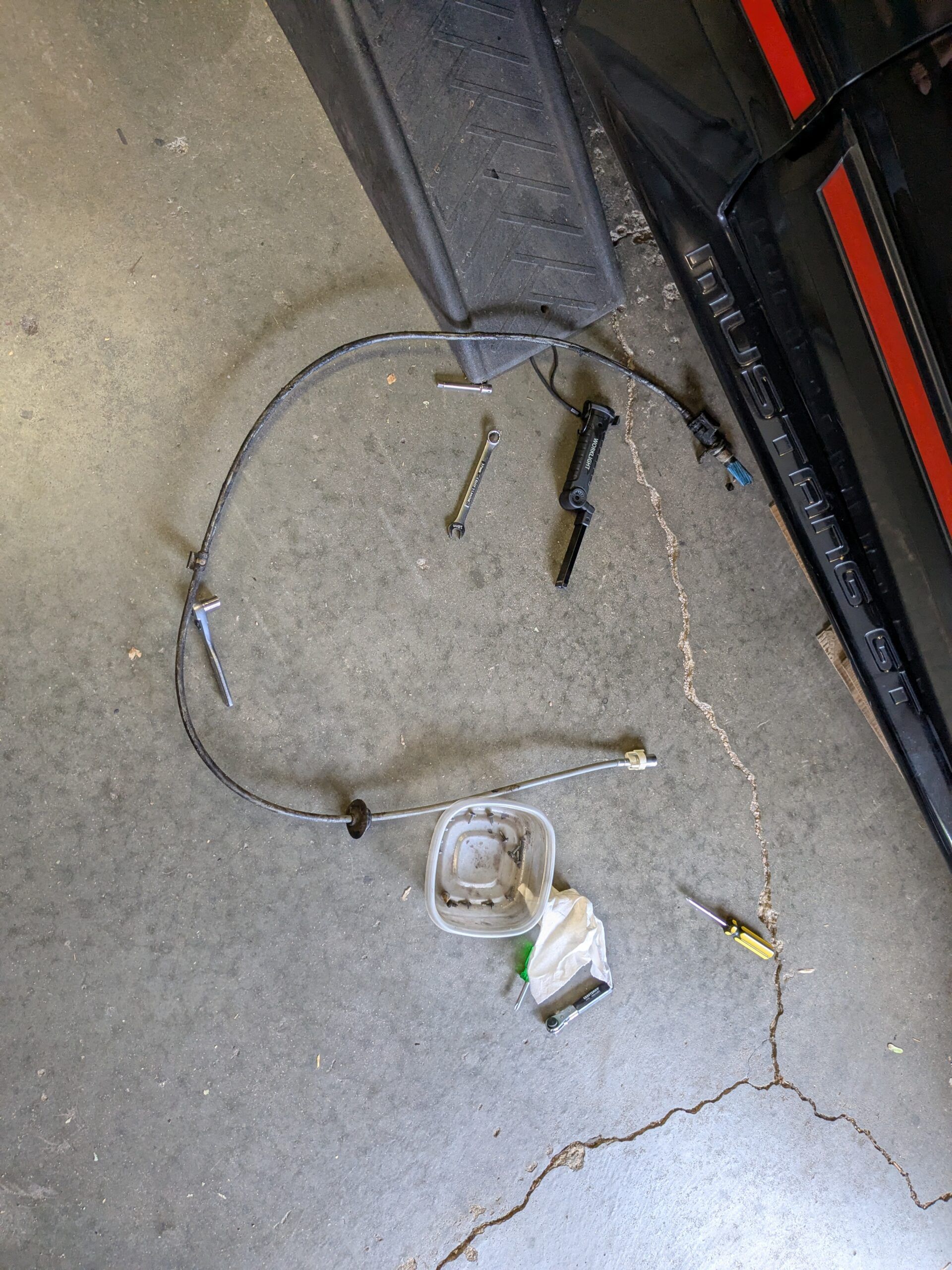

After all that, I was able to extract the greasy old cable from underneath the car and go about swapping little bits over.

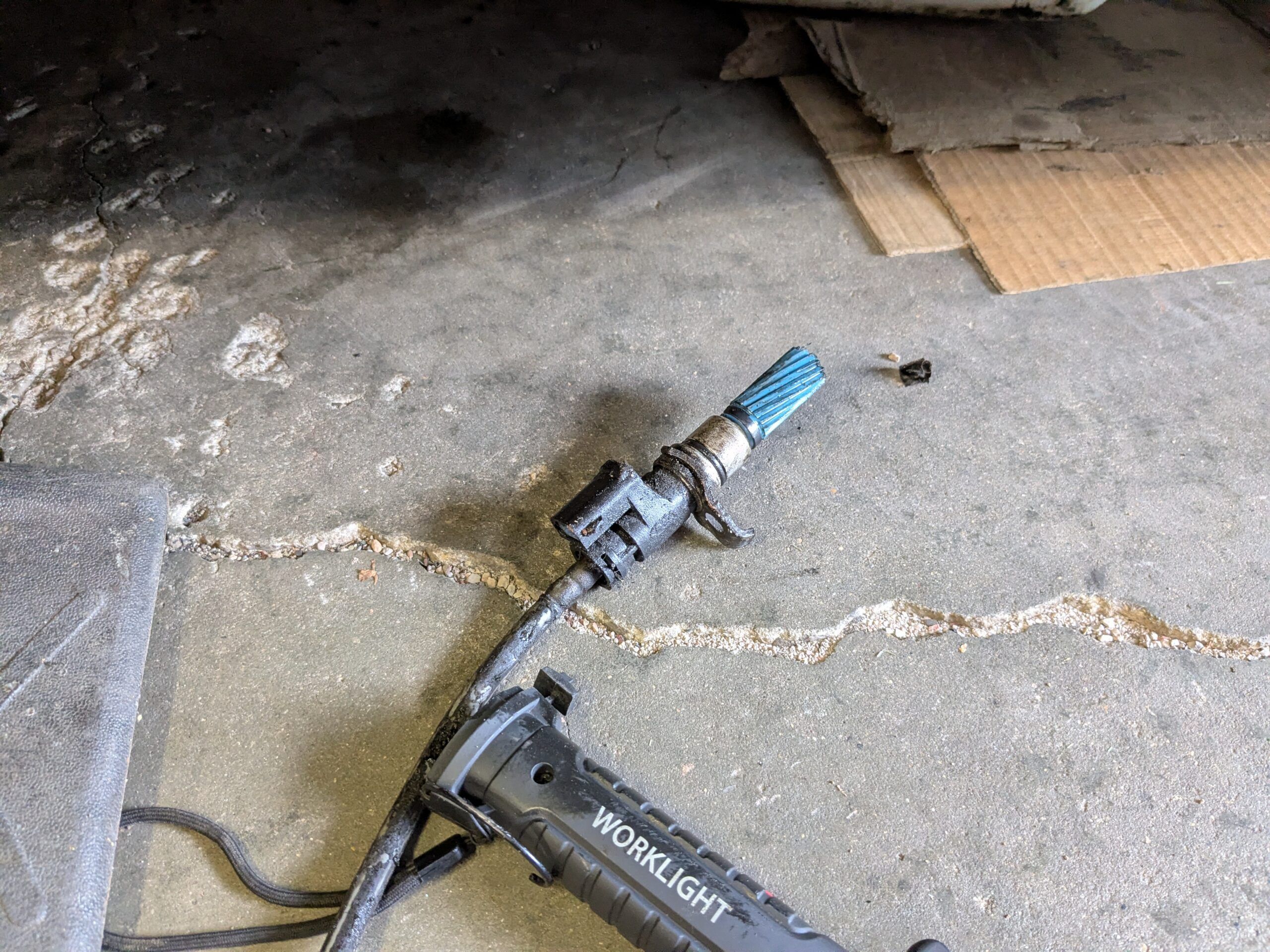

A funny little clip holds the speed sensor and speedometer gear to the cable, so I removed them to transfer them to the new cable.

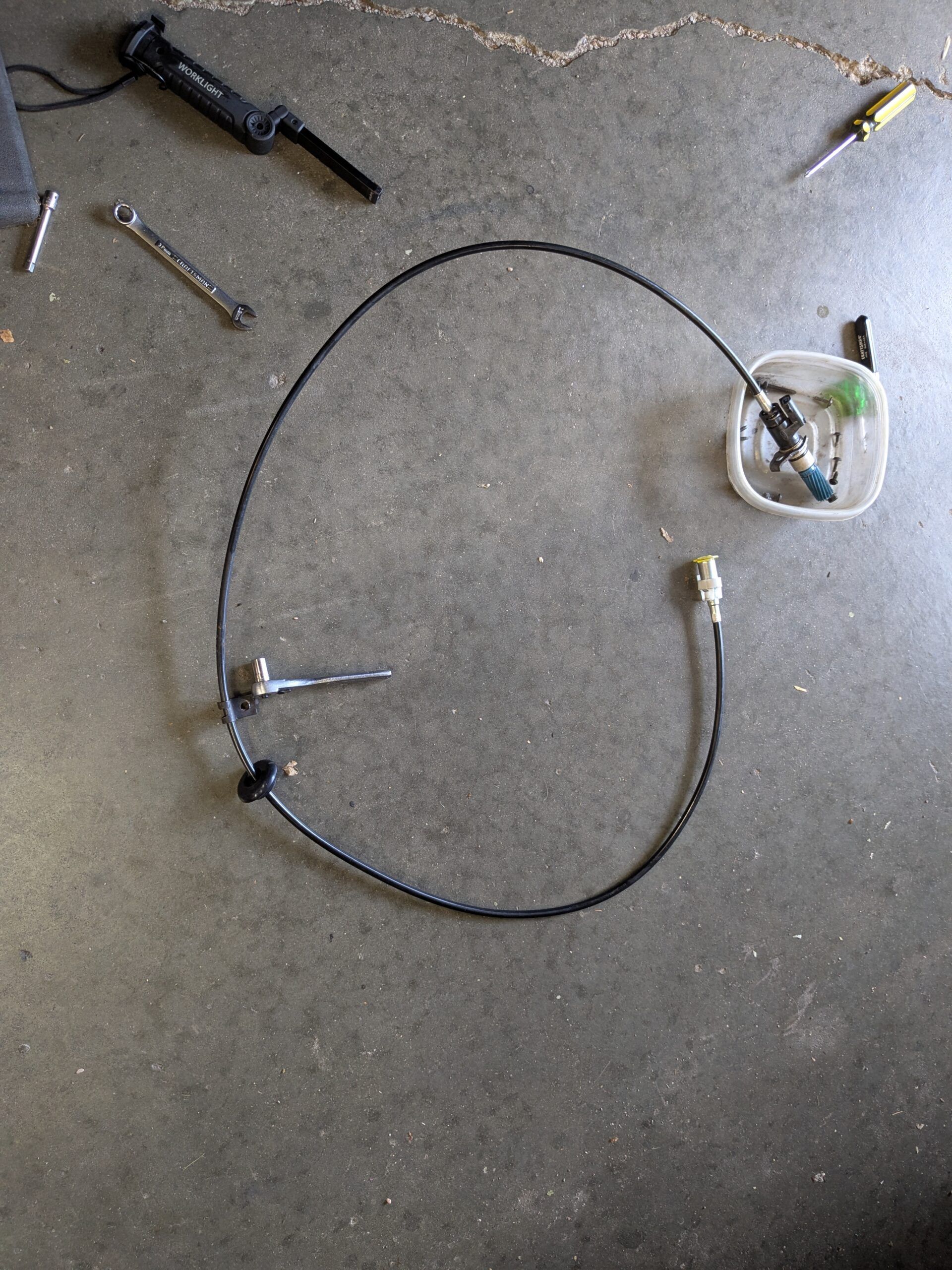

I also had to slip the new grommet over the new cable before attaching the speed sensor, and I also swapped over the subframe clip. I cleaned up the speed sensor and wrapped the job up; installation, as they say, was the reverse of removal, so there were no big surprises.
This is a greasier-than-he-expected-to-be backyard mechanic who is happy that he got the job done.
I took the Mustang out for a trip up the highway to make sure the speedometer was quiet, and thank goodness it was, because the only other culprit would be the speedometer head itself. The needle still has a little bounce at low speeds, but it’s accompanied by silence, at least from that corner of the car. Now about some of that other deferred maintenance…maybe next year.
