Many auto enthusiasts are very familiar with the 1968 and later Chevrolet Nova, which was essentially a sedan version of the Chevrolet Camaro. In structure and engineering, the early Chevy II/Nova was much more like the rival Ford Falcon, with a few unique tricks of its own, like single-leaf Mono-Plate rear springs. Let’s take a closer look at the Chevy II and how it compared to its Ford rival (which I’ve previously covered in detail).
If the 1960 Corvair was the pet project of Chevrolet general manager Ed Cole, the 1962 Chevy II was very much a calculated commercial response, aimed at beating the popular Ford Falcon at its own game. The Chevy II was slightly bigger than the Falcon and had what even Chevrolet conceded was mostly conventional engineering, which compact economy car buyers had proven to favor.
Here’s how the major dimensions of the Falcon and Chevy II compared:
| Dimension | 1962 Chevrolet Chevy II | 1962 Ford Falcon |
|---|---|---|
| Overall length, in. | 183.0 | 181.1 |
| Wheelbase, in. | 110.0 | 109.5 |
| Overall width, in. | 70.8 | 70.6 |
| Track, front, in. | 56.8 | 55.0 |
| Track, rear, in. | 56.5 | 54.5 |
| Overall height (unladen), in. | 56.5 | 56.3 |
| Overall height (laden), in. | 55.0 | 54.5 |
Unlike the later Nova and Camaro, which had conventional double wishbone suspension with the coil springs carried on the lower wishbone, the front suspension of the early Chevy II mounted its coil spring and shock absorber on a pivoting spring seat atop the upper control arm, like Falcon. (Rambler had also used high-mounted coil springs since 1950, although Ford and Chevrolet used upper and lower ball joints rather than the AMC trunnions.)

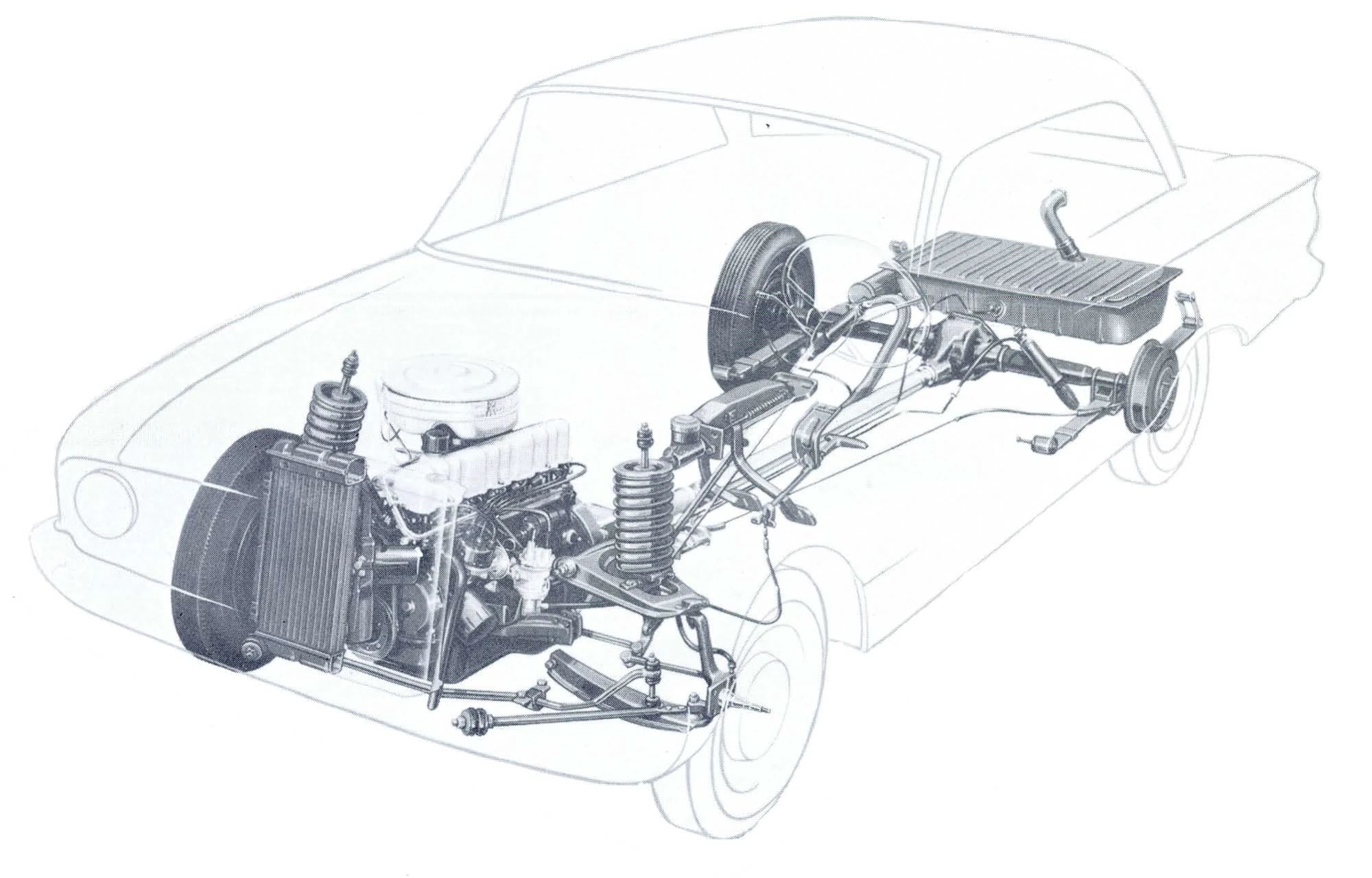

Could you tell these two layouts apart without the captions?
On the Chevy II, like the Falcon, each high-mounted coil spring acted against a compression joint upper ball joint, which was mounted in a suspension tower welded to the steel skirt that formed the side of the engine bay. The upper wishbone pivots were arranged to resist brake dive. To reduce suspension tower intrusion into the engine bay, Chevrolet made the control arms fairly short, although that meant bigger camber and toe changes as the wheels moved up and down.
Both the bulky spring tower and the surrounding skirt had to be quite strong, not only to be able to take the forces exerted by the springs, but also to resist braking torque: Front suspension anti-dive geometry used the upper wishbone as a lever to resist downward motion of the front end under braking, so in a panic stop, the force on the suspension tower was substantial. During the development of the Chevy II, Chevrolet had problems with braking forces loosening or stripping the upper control arm bolts, requiring additional reinforcement and different manufacturing procedures.
Each lower wishbone was formed by a skinny lower control arm located by a diagonal drag strut. These looked very much like the ones on the early Falcon or Comet. The big difference was that where the Ford cars had a conventional anti-roll bar between the lower arms, Chevrolet decided that the front spring rates of the Chevy II were high enough that only the station wagon (and later V-8 cars) needed an anti-roll bar.
People often wonder why these cars used high-mounted front coil springs. There were a couple of reasons. First, it saved weight (and reduced unsprung weight) — because the spring loads went directly into the upper ball joints, the control arms didn’t have to be as beefy as they otherwise would. Second, this arrangement allowed room for much longer, softer coil springs, which was better for ride. The high-mounted coils were not ideal for suspension geometry (although a lot of conventional double wishbone suspensions of the time weren’t much better), but they gave better ride quality in smaller, lighter cars, which was what U.S. automakers were most worried about.

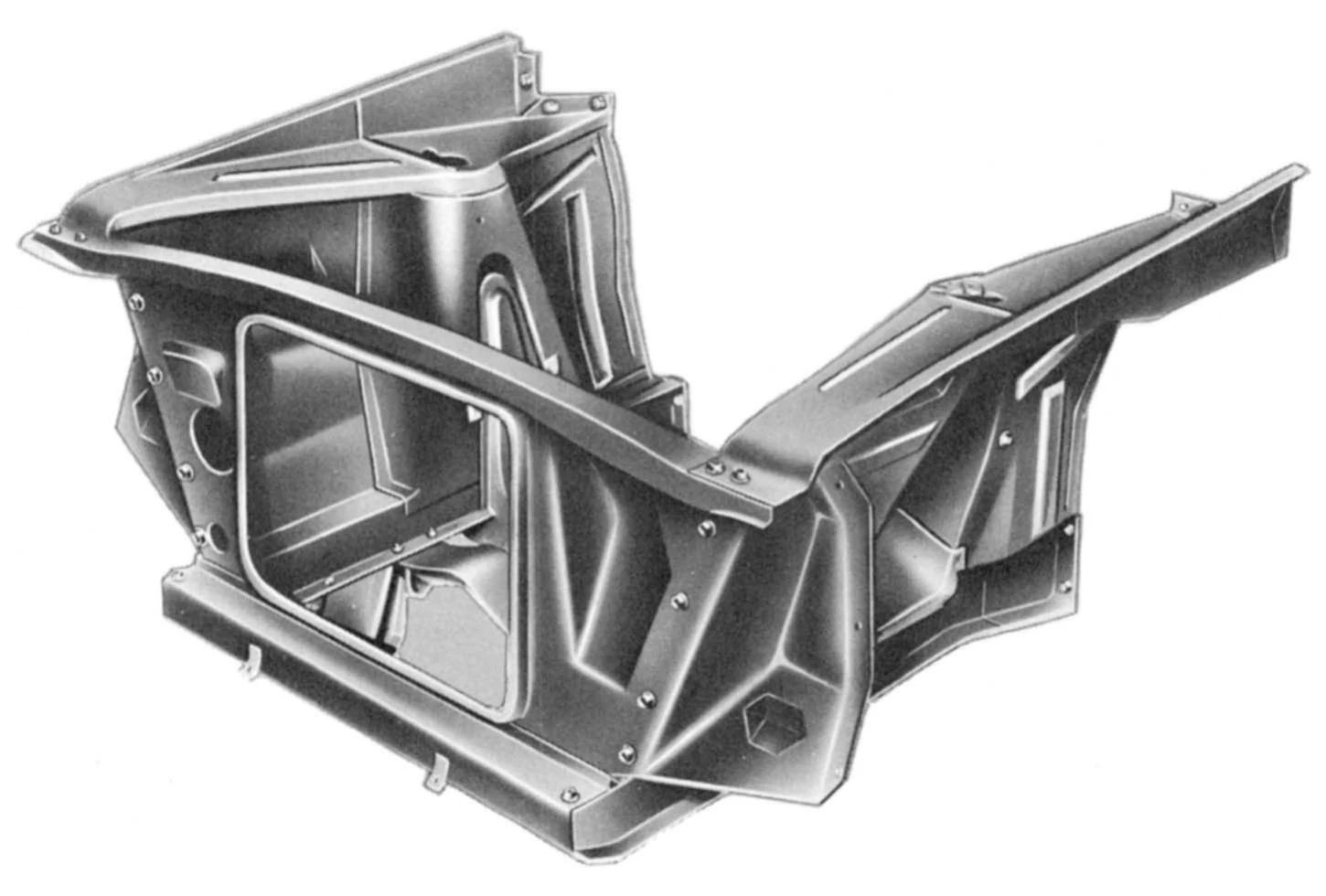

Like the Falcon, the Chevy II had a built-up front section created by welding the inner fender skirts and suspension towers to the front rails, braced by diagonal rails at the lower front corners and the radiator support panel at the front. The front fenders were bolted on over this structure.
Unlike the Falcon, the radiator support was screwed and bolted in rather than welded in place, and Chevrolet did without the diagonal braces the Falcon and Comet inserted between the suspension towers and the cowl.
While the Falcon front-end structure was welded to the body, the Chevy II front end was bolted on, attached at four points. This seems to have been a compromise between Chevrolet and Fisher Body Division that was more suited to normal Fisher production methods. With the Corvair, the front end structure and wheel houses were an integral part of the underbody, so the Corvair took up more space on the Fisher assembly lines than a full-size Chevrolet and required Fisher Body to supply front end sheet metal that wasn’t normally their responsibility.
With the Chevy II, Fisher Body supplied the complete body shell from the cowl back, as they did with larger GM body-on-frame cars. A gauging fixture automatically checked the dimensions and alignment of the mounting points and stamped each body mount with a number indicating how many shims needed to be added to get the proper alignment of the front end and the body shell when the front end was bolted in place.
Structurally, the rear of the Chevy II body was again similar to the Falcon, getting underbody strength from the integral sills and the two rear rails, which were joined by torque boxes (which absorbed rear-end flex). The transmission tunnel in the floorpan acted as a central “spine.” In back, the rear wheel houses and the riser behind the rear seat provided most of the strength.

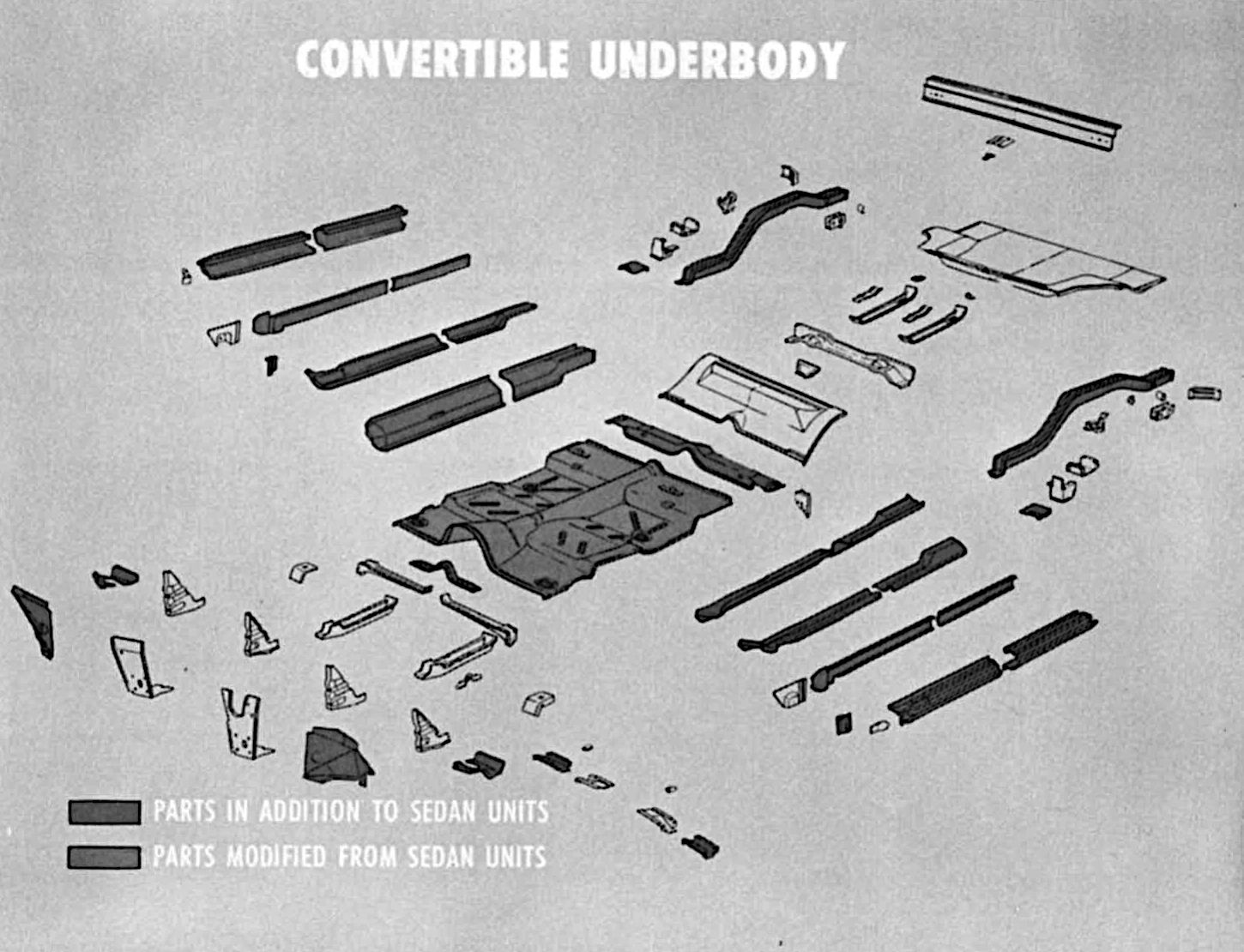

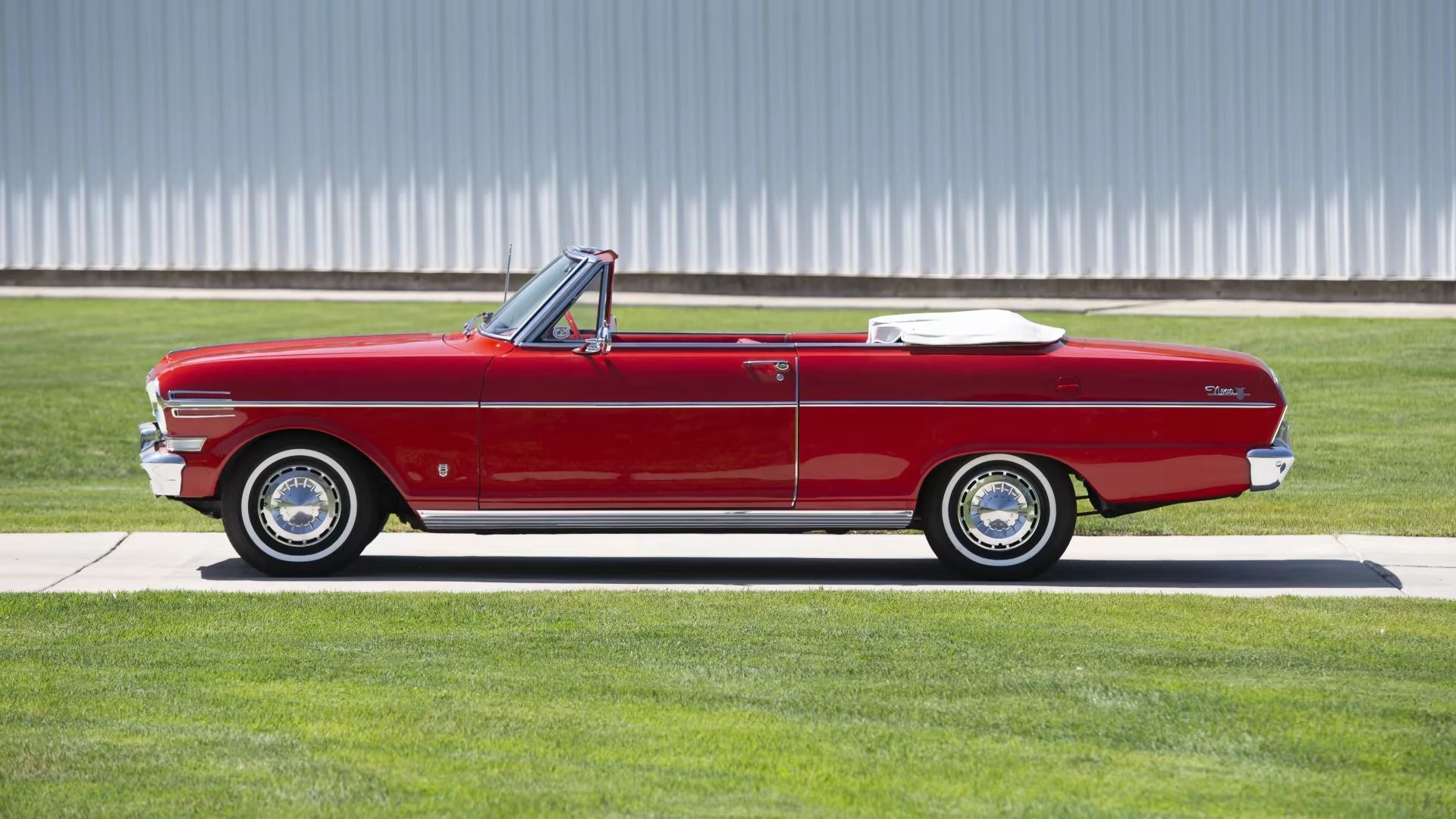

Unlike the Falcon, Chevrolet anticipated offering hardtop and convertible versions of the Chevy II/Nova from the start, although the convertible still needed quite a bit of underbody bolstering, as shown above.
Another area where the Chevrolet departed from Falcon practice — not necessarily for the better — was its “flush and dry” rocker panels. These allowed air and water to flow from the cowl vents through the kick panels and down into the rockers, exiting through drain holes at the trailing ends. In proving grounds testing, Chevrolet claimed this provided “very significant gains in corrosion protection.” In the real world, it allowed dirt, dust, dead leaves, insects, and the occasional hapless rodent to accumulate in the sills, particularly in climates where it only rained certain times of the year. Getting the accumulated junk out of the rockers then became a real challenge, also creating new opportunities for corrosion.

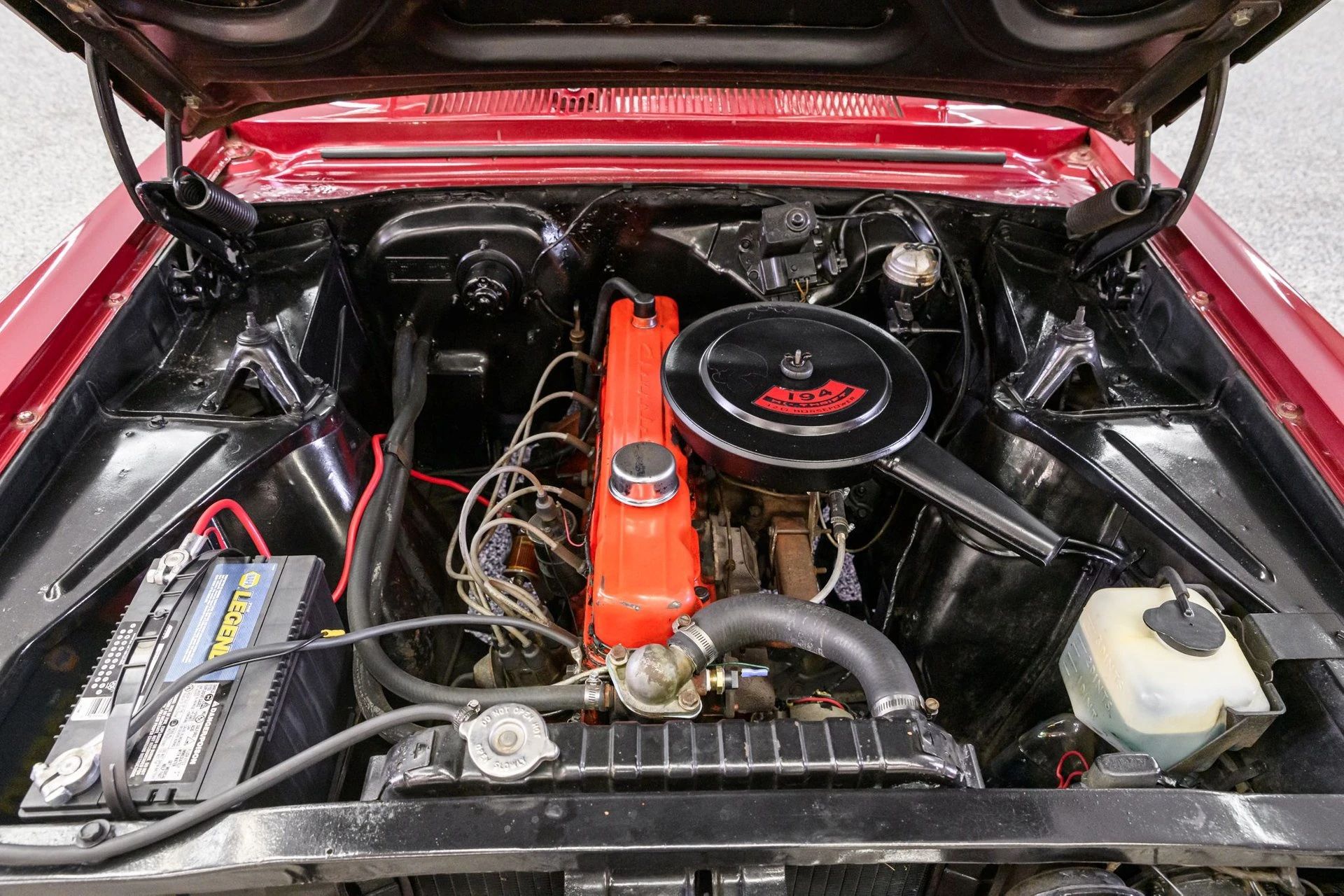

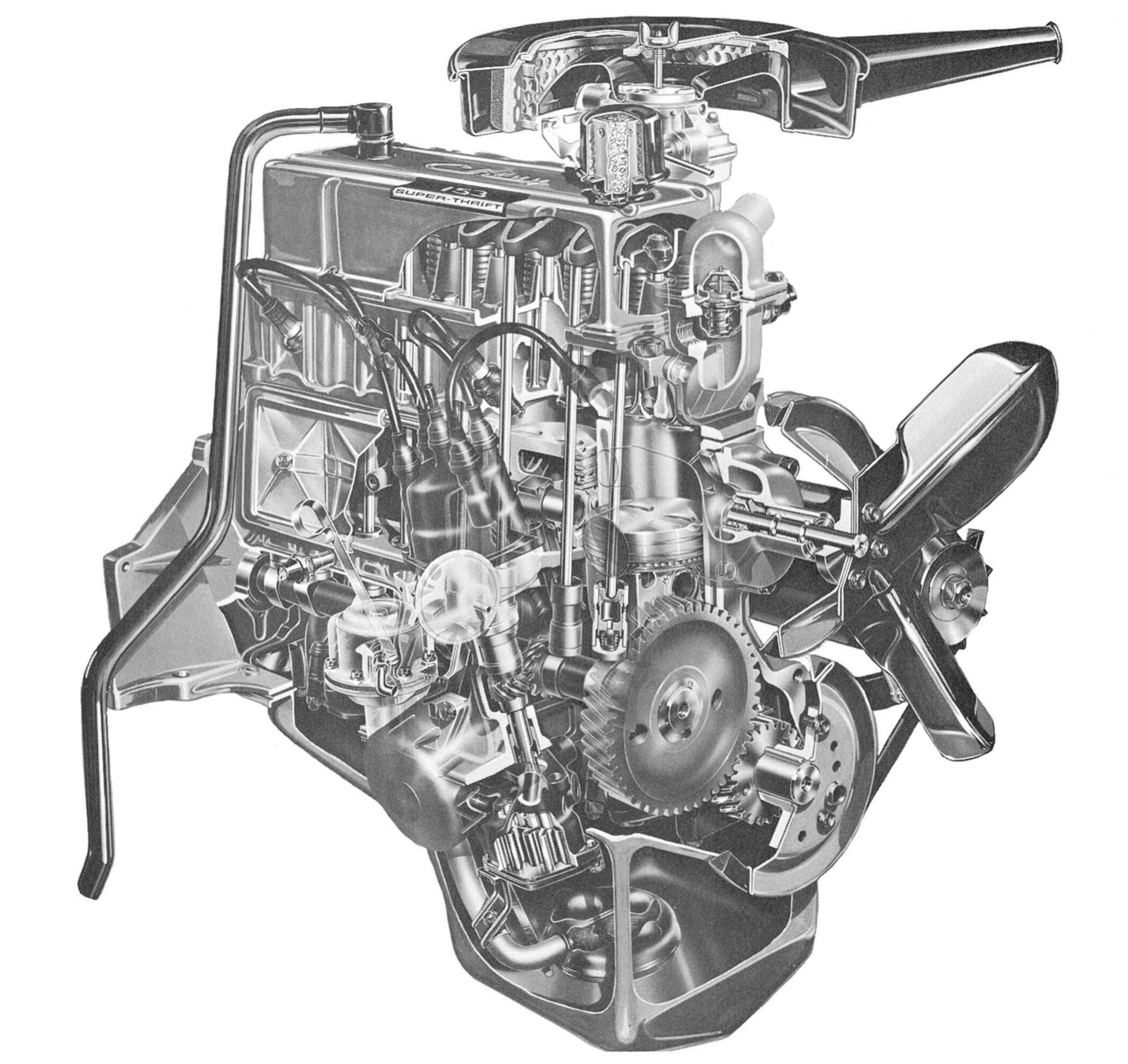

Chevrolet also took on some bigger challenges in engine mount and drivetrain design because the base engine of the Chevy II was a big inline-four, rather than an inline-six like the 144-cid base Falcon engine. The four-cylinder Chevy II got a thicker propeller shaft than sixes to try to keep the big four’s unbalanced vertical shaking force from exciting nasty resonant frequencies in the body and suspension.
This wasn’t entirely successful, especially with manual transmission. (Powerglide didn’t do performance any favors, but its torque converter damped some of the shake.) Car Life complained that the four-cylinder Chevy II rode rougher than the sixes, which was actually caused by the interaction between the engine vibration and the front suspension. Unsurprisingly, four-cylinder Chevy II sales were never very great — the six provided much better performance and was noticeably smoother.

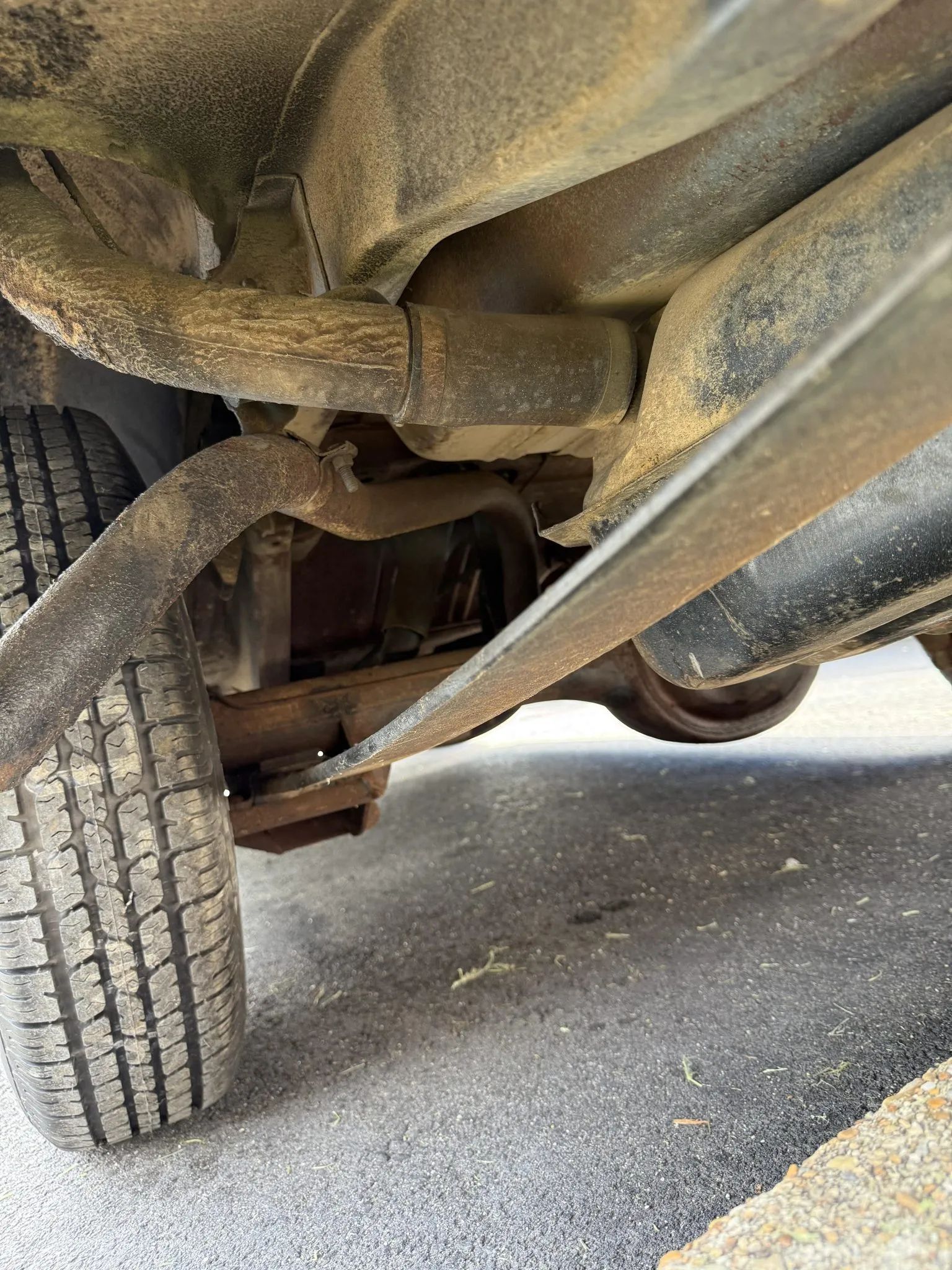

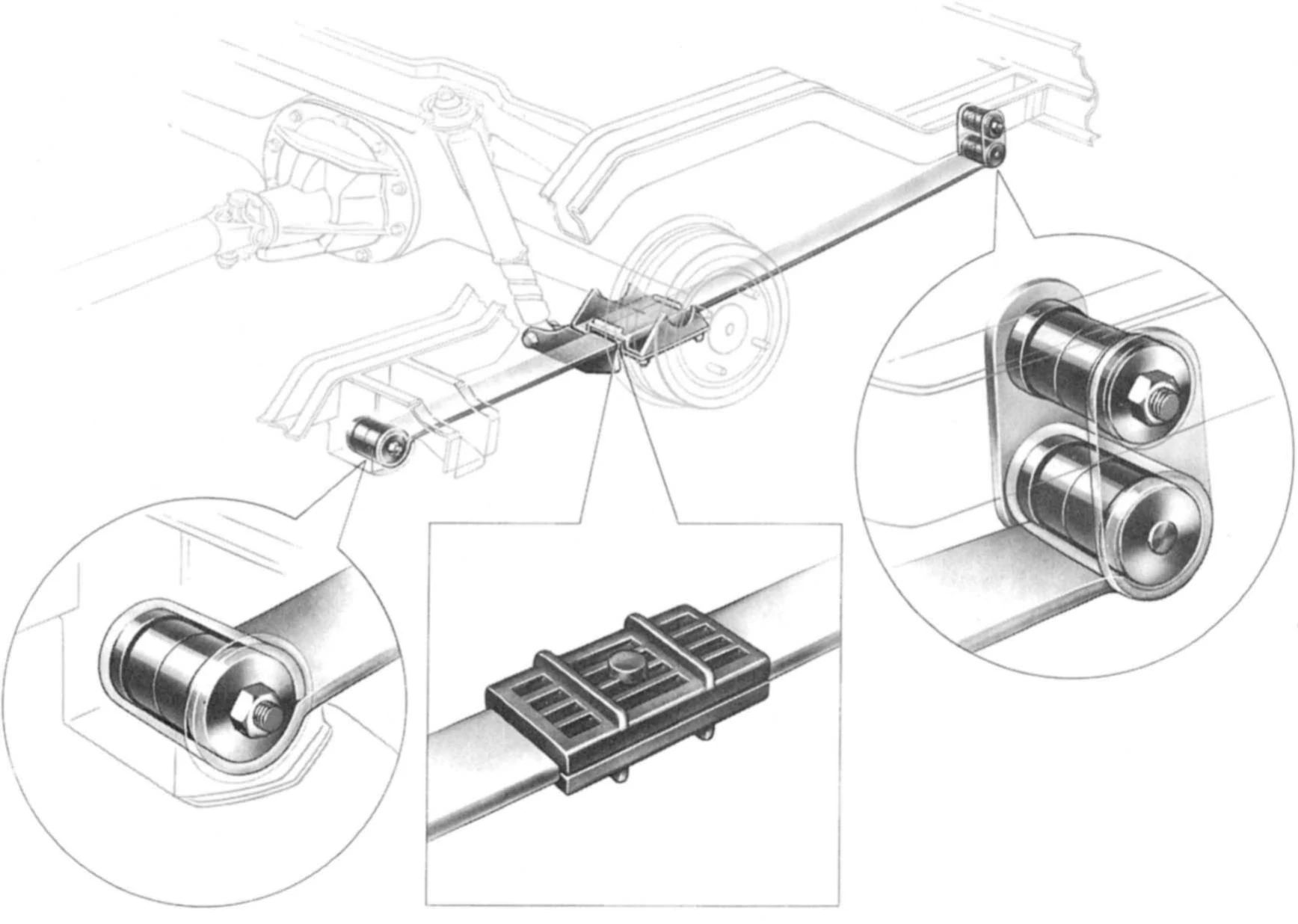

Finally, we come to the signature feature of these cars: their Mono-Plate rear springs. Like a lot of cars of its time, the Chevy II/Nova had Hotchkiss drive, which means that the rear leaf springs did double duty as springs and as rear suspension arms, locating the axle and transmitting acceleration and braking forces. Unlike other cars of its time, the Chevy II rear springs had only one blade per side rather than a stack of them; for comparison, the early Falcon, Comet, Fairlane, and Meteor had five leaves per side.
Why would anyone want to use single leaf springs? With multi-leaf springs, the friction of the spring blades rubbing together causes ride harshness and sometimes noise. This can be mitigated by adding liners between the springs (as Ford did with the Falcon, Fairlane, et al), but that adds cost and weight. A mono-leaf spring has no inter-leaf friction, it weighs less than a multi-leaf spring, and it can withstand greater stress levels because the material can be evenly stressed over its whole length. Many automakers were interested in mono-leaf springs and had been pursuing them since the 1940s.
There’s a common assumption that Chevrolet adopted the Mono-Plate springs because they were cheaper than multi-leaf springs, but I’m no longer so sure that was actually true. In theory, one blade ought to be cheaper than three to five, especially with no inter-leaf liners. However, Mono-Plate springs were costly to make because each spring had to be specially tapered throughout its length, with thickness and width varying from 0.625 inches by 2.25 inches at the center to 0.375 inches by 2.625 inches at the ends. Here’s how Chevrolet engineer Paul J. King described the Mono-Plate manufacturing process:
The basic design principle is to give the spring uniform stress from end to end. This is accomplished by rolling the spring stock in the final pass on cam shaped rolls to give a steel bar with section shape varying along its length in a manner dictated by the spring design. Steel rolled in this manner has the shape of perhaps, 20 to 25 springs impressed on one strip. The steel is then cut into individual spring sections, and the eyes are formed. The spring is quenched while held in a die. … The spring is stressed to an equivalent stress of 160,000 to 180,000 psi and peened with high intensity shot (10-12 almen C-2) on the tension side. The extra item here is the shot peening operation being done with the spring under great stress. The shot peening action takes about two inches out of the cambered height of the spring. After shot peening, the springs are preset at about 180-220,000 psi. This takes approximately an additional 1/2 inch out of the cambered height.
As far as I know, Chevrolet didn’t publish any specific cost claims, but I have a suspicion the high cost of making these springs may have eaten up a lot of the potential savings versus conventional multi-leaf springs.
The Mono-Plate springs were around 15 percent lighter than multi-leaf springs, so they reduced unsprung weight in back, which was good for ride quality. However, they weren’t great for axle location, and even with the smaller engines, Chevrolet admitted to problems with “flapping” of the rear portion of the springs. (The axle was positioned at about 40 percent of the spring length, so the rear part of the spring was longer and effectively softer than the front.) Chevrolet kept using these mono-leaf springs on the less-powerful X-body model into the early ’70s, and they showed up on some early Camaros and Firebirds, but I don’t think many people outside Chevrolet engineering were ever very happy with them, and hot-rodders and restomodders almost inevitably discard them in favor of multi-leaf springs or coil-overs. (Similar mono-leaf springs were used on the 1966–1970 Oldsmobile Toronado and 1967–1970 Cadillac Eldorado, FWD cars whose rear axle location needs were less strenuous.)
Chevrolet didn’t strain nearly as hard as Ford had at weight and cost reduction, so even a basic four-cylinder 1962 Chevy II two-door sedan was almost 150 lb heavier than a six-cylinder 1962 Falcon standard Tudor sedan. A four-door Nova 400 sedan like the one pictured above had a base curb weight of 2,680 lb. So did the two-door hardtop.
According to the factory specifications, a six-cylinder Nova convertible was 195 lb heavier than a two-door Nova sport coupe or four-door sedan.
However, Chevrolet had obviously anticipated the eventual installation of the small-block V-8 engines, which didn’t demand any of the frantic structural reengineering of the V-8 Falcon and Comet. The Turbo-Fire 283, when it became available, added less than 150 lb to Nova curb weight, roughly half the weight penalty suffered by a 1963½ Falcon Sprint.
Since many modern Chevy II/Nova fans regard the car as a mere vessel for hopped-up V-8 engines laden with aftermarket performance parts, they would probably argue that Chevrolet made the right choices, although in stock form, the Chevy II was no great step forward in structural engineering, packaging efficiency, or chassis design.
On the other hand, it wasn’t really intended to be. Chevrolet had belatedly realized that the more imaginative Corvair sold better as a sporty coupe than as an economy sedan. If domestic compact buyers wanted plain vanilla, Chevrolet was happy to serve it to them — to the tune of 326,607 cars for 1962 and 372,626 more for 1963.
