In late August 2000 I flew back to Michigan for my last year of university, having spent a couple of months in California trying to put my brain back together after my father died.

I was living near North Campus—good for access to the solar car office, shop, and workspace, and to UMTRI, but most of my classes were down Central Campus. I needed a car that would keep the snow off me to and from the nearest campus bus stop, about a mile from my apartment.

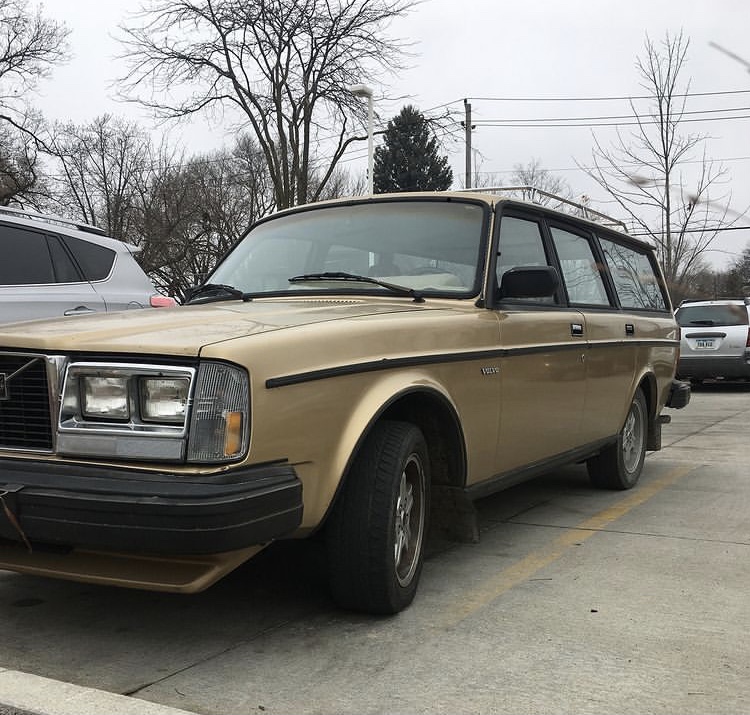

Southern Michigan is a difficult place to buy a good cheap used car. On eBay I won the bid for an 1985 Volvo turbo 245 (i.e., 240 station wagon) with 4-speed plus electric overdrive. The story was that it had body rust but was in excellent mechanical condition, had been owned for many years by a Volvo dealer tech, et cetera. It was in Grand Rapids, and I caught a ride there with a solar car teammate in his ’88 Mazda 626.

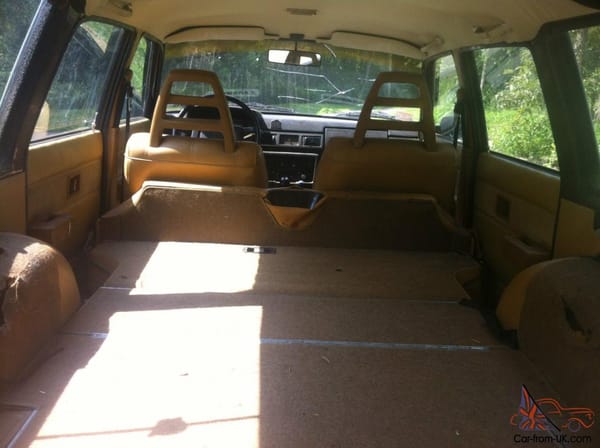

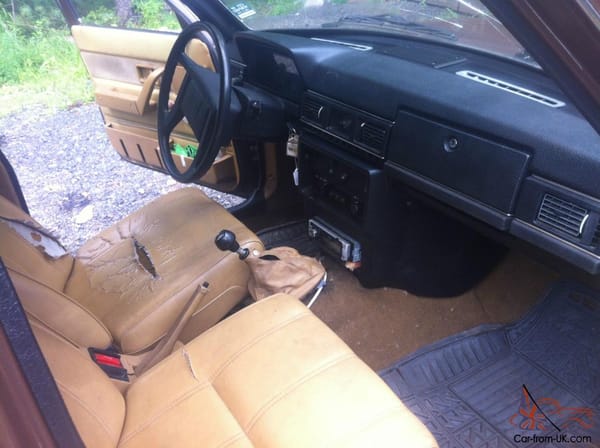

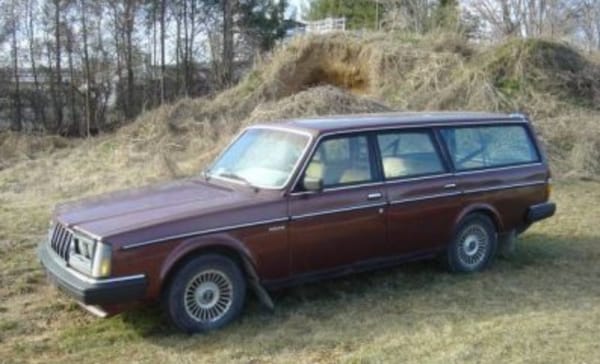

It was a polychromatic (i.e., rusty) brown car with working overdrive, four power windows and three power locks, a relatively nice leather interior, 15″ alloy wheels, and 153K miles showing. Got a ride up to Grand Rapids, paid $700, and drove it 140 miles back to Ann Arbor. It ran well, but when I say I had a blast on that drive, I mean it; the car’s exhaust system was rather less than intact (and the seller hadn’t mentioned that slight steering wheel shimmy at 90 mph).

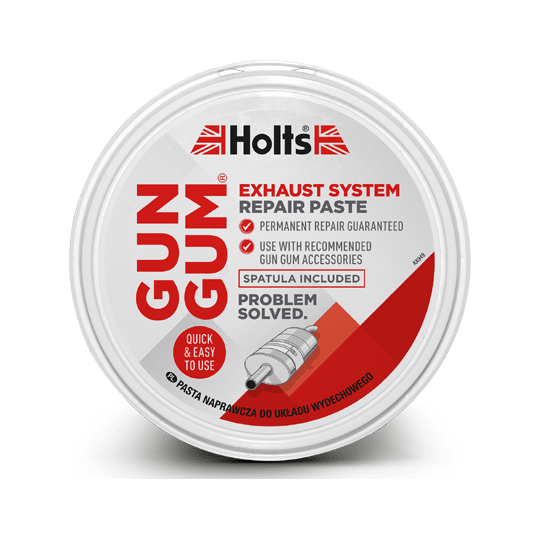

I put a couple hundred dollars into it straightaway: a new windshield, and I had to have three feet of exhaust pipe welded in, as the headpipe had pulled apart at the flange under the floor. That fixed the giant leak, which made it possible to hear the big leak up front, right where the elbow off the turbo attached to the catalytic converter. I tried gooping the joint with exhaust system repair paste, but it was no use; after a day or so the stuff just cracked and fell off.

So I called for a quote on a new catalytic converter for an ’85 Volvo 240 wagon with 2.1 turbo. The lowest quote I got was $185 from a shop in a run-down part of one of Detroit’s run-down tentacles. A few days later I drove over. The shop owner/tech/bookkeeper/chief cook/bottle washer seemed unfazed by the crusty condition of the car. “Does this car have to have a catalytic converter on it?” I asked.

He replied “What year is this car?”

I said “It’s a nineteen…seventy-four.”

He said: “Then no, you don’t need one.”

I said “Oh, fine! Can you bend me a plain headpipe instead?”

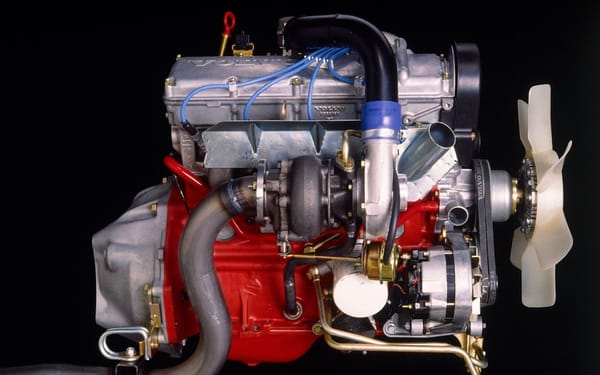

And that’s how the car came to have a headpipe that looked like this what Volvo installed on cars built for countries that still used leaded gasoline in 1985:

My engine was nowhere near this clean (I took no pics of the car; these are all found images)

The car still had a catalytic converter, mind you, but now it was in the cargo area. The muffler was still anointed (holy), but at least now pretty much all the exhaust made it pretty much all the way to the back of the car.

I noticed no L-Sonde (Oxygen Sensor) light on the dash when cranking, so I pulled apart the dash to find there was no bulb in that socket. I installed one, and then the light stayed lit full time. This didn’t surprise me, really, because of what else I was finding under the hood: vacuum hoses cut and plugged with random screws (or oil-rotted and open to the air). Random wires missing or dangling. The idle was unstable, hunting around all over the place, and closing the throttle meant a slow drift eventually back down to idle speed.

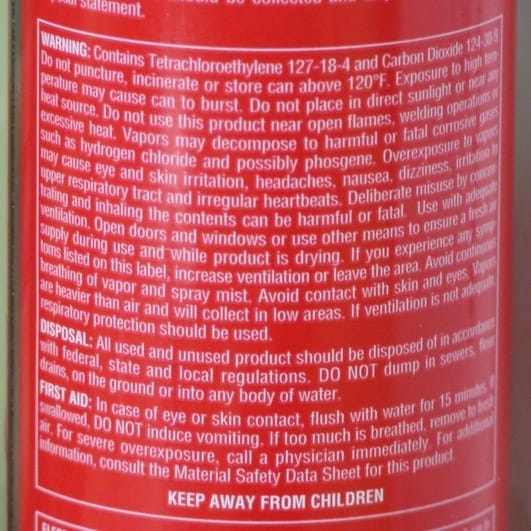

I disconnected the hose running from the throttle body down to the idle air motor and squirted a bunch of red-label brake cleaner down it. Waited a few minutes, then cranked the engine. It sputtered mightily and came to life for a few seconds, then died. White smoke out the back and the frightful stench of burnt brake cleaner indicated there was at least some travel possible through the idle motor. This was a stupid, foolhardy stunt, for red-label brake cleaner is—or at that time was— tetrachloroethylene; burning it produces hydrogen chloride (very toxic) and phosgene (unbelievably toxic, and there’s no antidote). Add this to the list of chemicals I wish I hadn’t messed with.

Howe’er it was, I repeated the trick a few times with carburetor cleaner, then reattached the hose. The idle was much more stable, though return to idle was still very slow.

I’d had the intercooler-to-throttle-body-elbow hose off, and at that time noticed that a microswitch attached to the throttle body was missing one of its wires, which was dangling adjacent to the switch. The terminals on the switch were crusty; I cleaned them up, ox-garded them and re-secured the wires. It made no discernible difference.

But the car started without much fuss and ran and drove passably well. The handbrake didn’t work; the cables had rusted away long ago, so I just parked it in Reverse and hoped for the best. Certainly it was adequate to get me to and from the bus stop, to and from the grocery—little short errandy stuff like that. Oil pressure was indicated as damn near zero at idle—by which I mean about 1,500 rpm. Good job it wasn’t any lower or the oil pressure really would have been zero.

Duct, Magnum, duct!

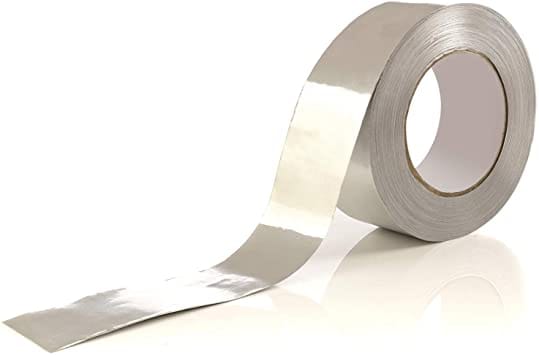

While fiddlefutzing around with the car, I made a neat discovery about Volvo option codes: my car was equipped with the Michigan flow-thru ventilation package, option code Fe02! I emptied out the wayback, and hosed down the rusted-through spare tire wells with brake cleaner to get rid of the oil, rust dust, and dirt. I covered the big rust holes with aluminum tape, then repeated this step on the outside, sticking tape to tape. I sprayed over the tape with rubberised undercoating to create a –good and durable– better-than-nothing seal in this crucial area of the body near the holes in the muffler and tailpipe. It looked a lot better, too. I squirted spray foam in the rust gaps at the bottom of the doors and in the sills, then once it set up, I encapsulated it with the rubberised undercoating.

The tailgate wiper didn’t work, and the backglass defogger barely did. Neither did the cruise control, or the air conditioning. The power steering was semi-retired until I found the pump mount was missing one of its front-to-back through bolts, which allowed the belt to slack off and slip on the pulley. I remedied that, after a fashion, with a pencil crammed through the bolt hole. The heater blower motor was noisy, which meant it was past due, and the ’73-up Volvo 100-200 series cars were built around the blower motor. Replacement is a notoriously difficult and complicated job, though I’m told with practise and ingenuity it was possible to get very quick at it and make excellent money beating the hell out of the flat-rate allowance on that job. Me, I just left the blower always on second speed, which centrifugally minimised the noise from the dead motor bearings.

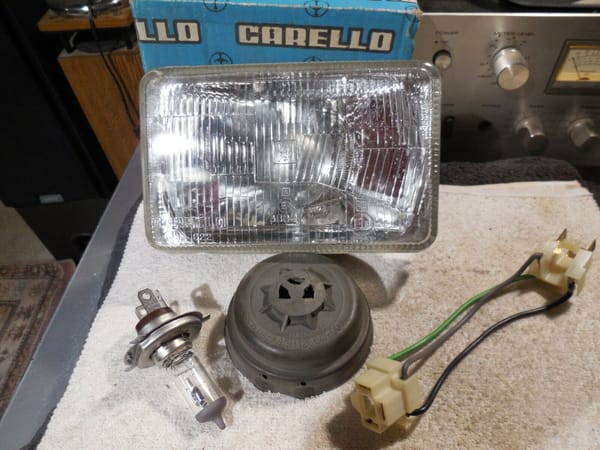

The Carello H4 lamp in this size used a Hella reflector and bulb shield with a Carello-made lens.
They didn’t do this on any other lamp.


I promise I’ll put up a post about yellow headlamps soon.

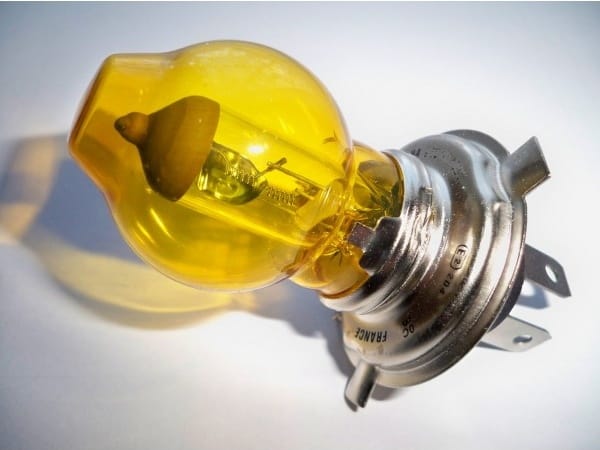

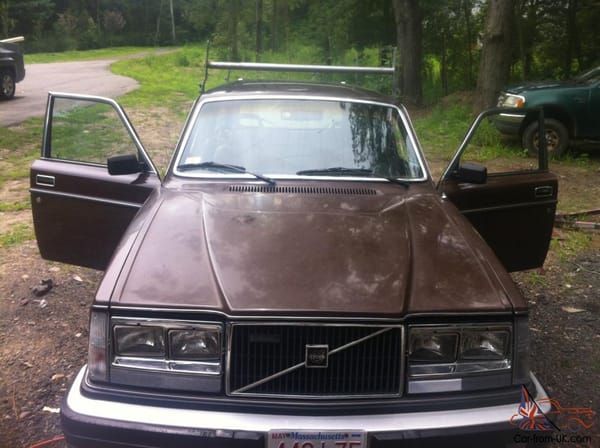

I removed the four wet previously-sealed beams and installed a very nice pair of Carello H4 outboard lamps with French-spec yellow bulbs and white Cibié H1 inboard lamps, which is kind of amusing given the condition of the rest of the electrical system. The car was severely corroded; it was a rolling faulty ground. Repairs were futile, but the effort started out as a mission to figure out why the left front turn blinker was intermittent in more than just the usual way. Cleaning the lamp’s ground wire running to the fender had helped before, but didn’t work this time. With the ignition switched off, I found 50 ohms between the fender ground point and battery negative. With ignition switched on, I got 180 ohms(!) at the same place. Yee! I pulled the many ground wires off the three fender attachment points, cleaned them all up, gooped Ox-Gard on all of them, cleaned and Ox-Garded the battery cables.

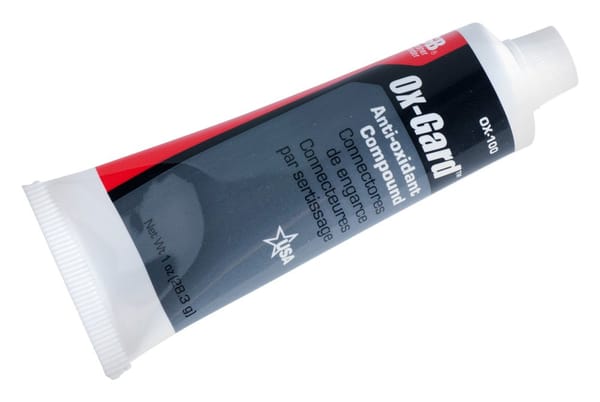

Ox-Gard also protects against cows, donkeys, mountain goats, and plain goats. Not for use against moose.

Now I was seeing only about 2 or 3 ohms between fender and battery negative regardless of whether the car was switched on or off—much better, but still no left front turn blinker. Couldn’t suss out any faulty components, but in exasperation I yanked the entire lamp-and-wiring assembly and installed my spare, which happened to be a European-spec item. Presto, the left front blinker now worked. The car looked a little lopsided, with one US and one European front corner lamp assembly, but…eh! It worked.

Then I lost both right high beam headlamps. I pried apart the 2-wire headlamp disconnect and found its red and blue wires were mostly green inside. I chopped off the disconnect, cut back the wires until I hit copper, and bridged them with some bits of what was probably speaker wire.
