It’s hard not to panic when you push down the clutch pedal and get nothing but a loud “POP” as your foot hits the floor. It’s even worse when you’re 20 miles from home and approaching a busy four-way stop at 55 miles per hour. Nonetheless, that’s what happened to me in my 1965 Dodge Dart a few months ago, and in keeping with the theme I had set with my Volvo 1800S over the winter, I made a faulty diagnosis that led to a lot of needless work. For the most part.
At least the experience was a chance for a new adventure; I had never driven a car home with no clutch, and now I have. I can tell you that it’s nerve-wracking at first. Luckily, the Dart starts fairly readily, so I put the car in first, put my foot down on the accelerator slightly and cranked the starter until the Slant Six caught. Then, I waited until just the right speed, eased off the gas, muscled the shifter into the next gear as gently as I could, and kept going. It was jerky getting started, but after that, it was no big deal. But I wouldn’t want to do it again.

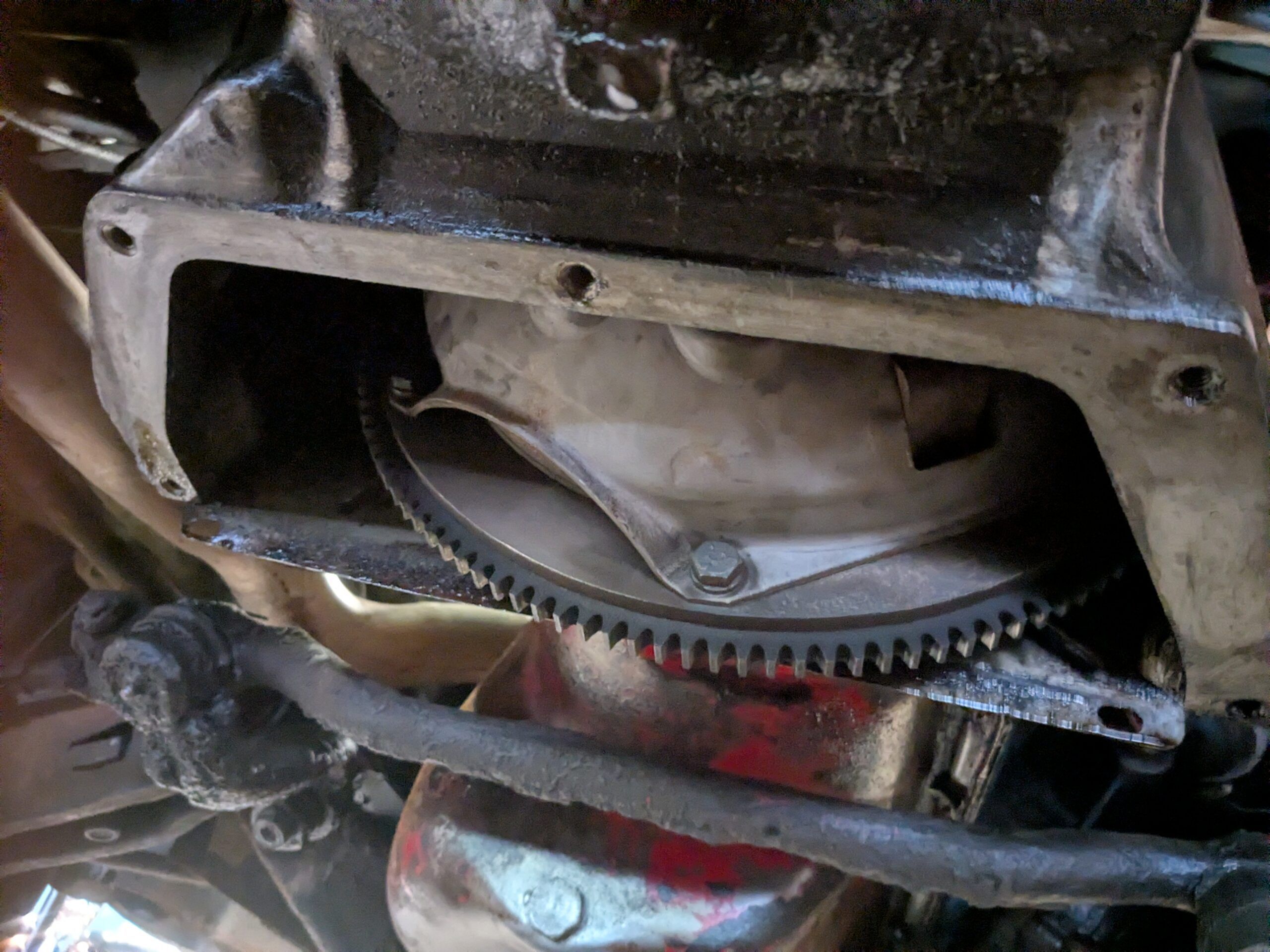

At my first opportunity, I took off the bellhousing “inspection” plate and looked over everything I could under the car, including the clutch linkage. Unfortunately, the real problem was stubbornly either hiding in a shadow or behind another component. Furthermore, I thought that the pressure plate levers looked a little low, and that low-mileage (sadly) throwout bearing was noisy, so…

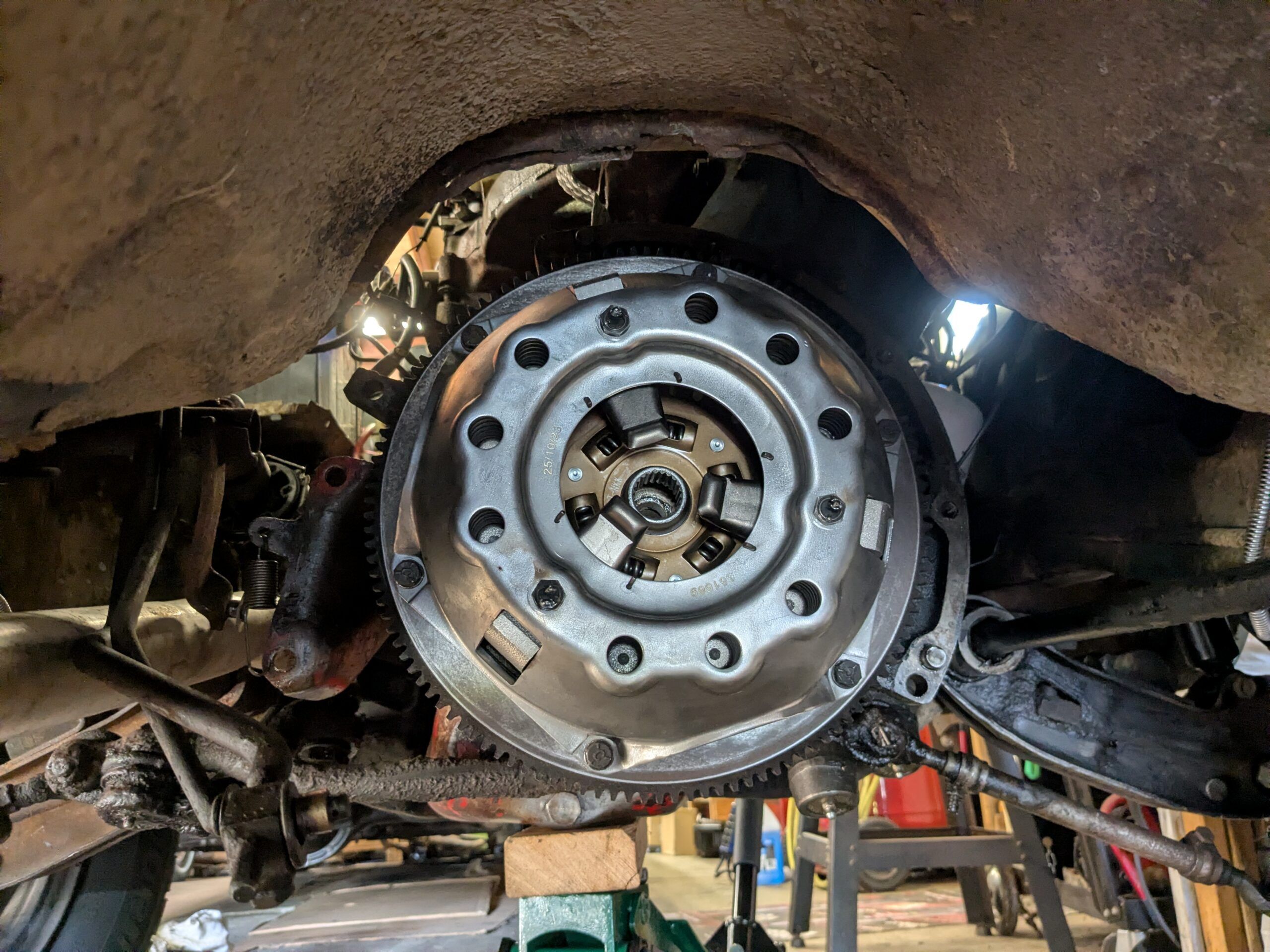

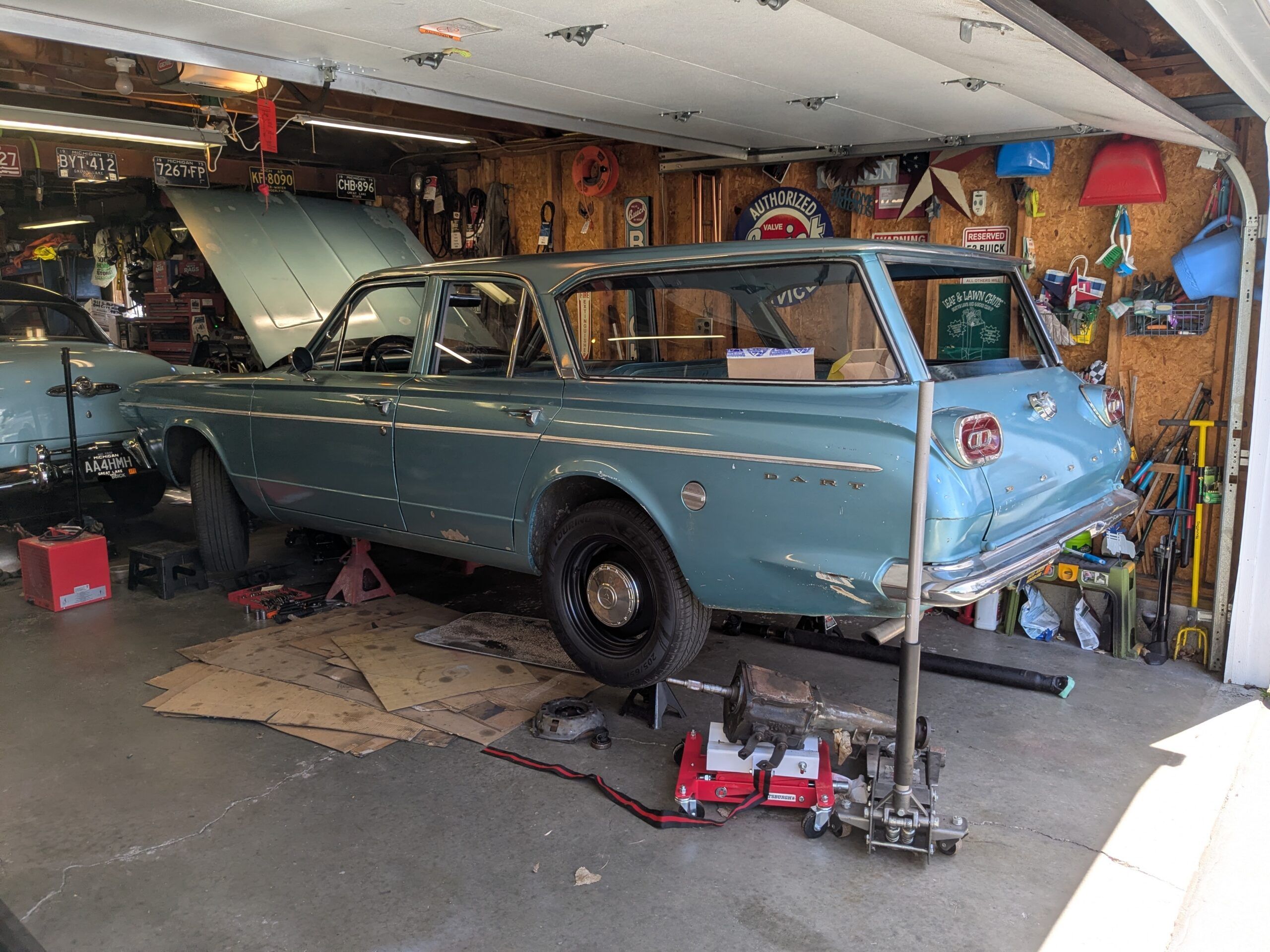

I decided to spend a Saturday in the garage doing a leisurely clutch job. The clutch that was in the Dart came with the 1974 225 that I installed in the car back in 2014, just after I bought it from Wildcat Auto Wrecking in Sandy, Oregon. The engine, which was sitting on the floor of a machine shop for years, reportedly had only about 45,000 miles, and the clutch looked fine (still does, as a matter of fact).
I have few regrets in life. One is not hiring the guy to tear down and rebuild the back half of my garage for $13,000 back in 2007 (a lot of money for me at the time). Another is not leaving the pilot bushing (that I installed in 2014) in the car as I did this clutch job. It was a bear: The bread trick didn’t work, the grease trick didn’t work, and the rented puller from the parts store didn’t work. It was too late to go back at this point.

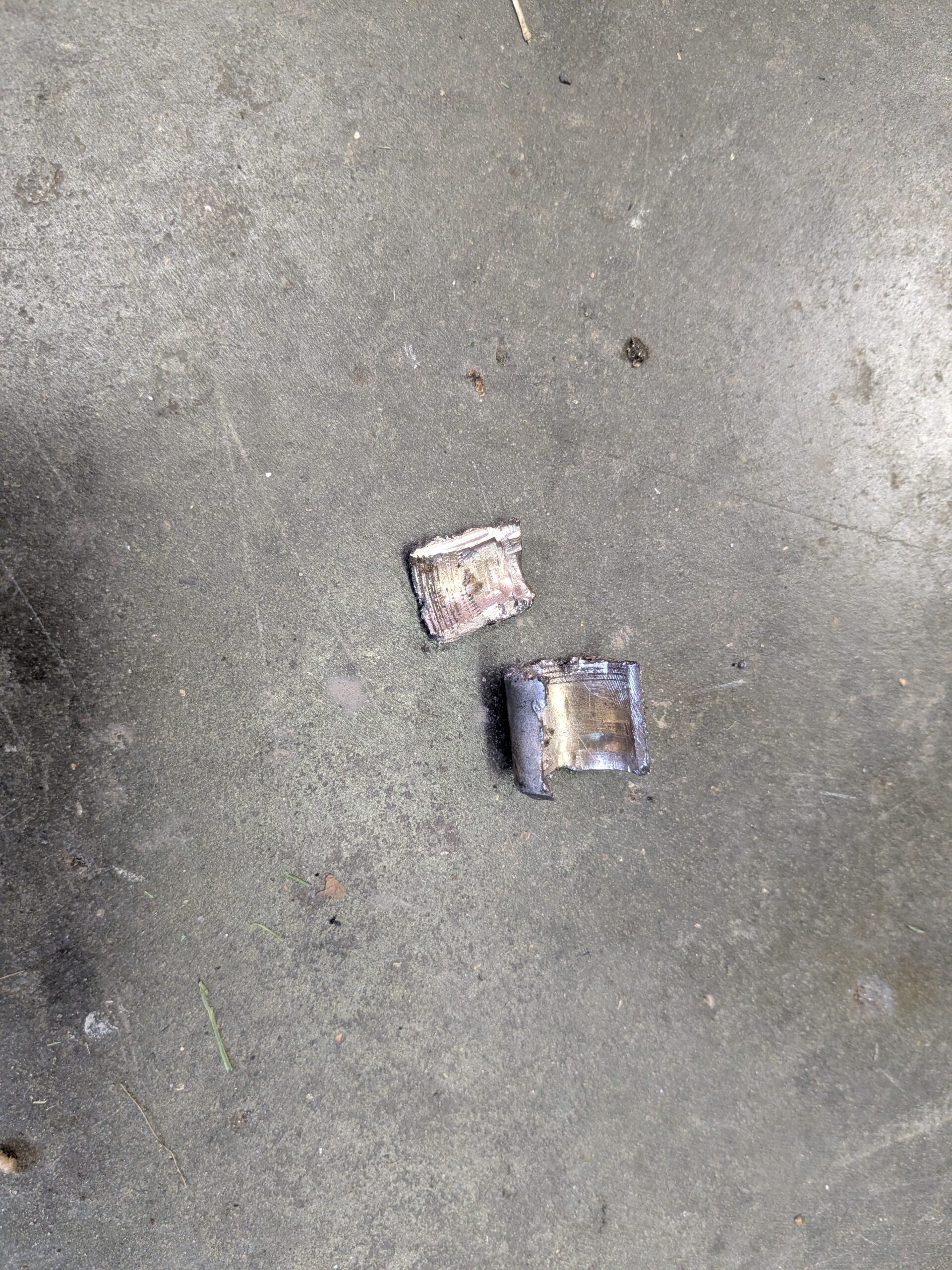

I’ve never had a pilot bushing give me trouble, but I had to chisel this one out, which means that I had to pull the bellhousing, making the entire job even more miserable.

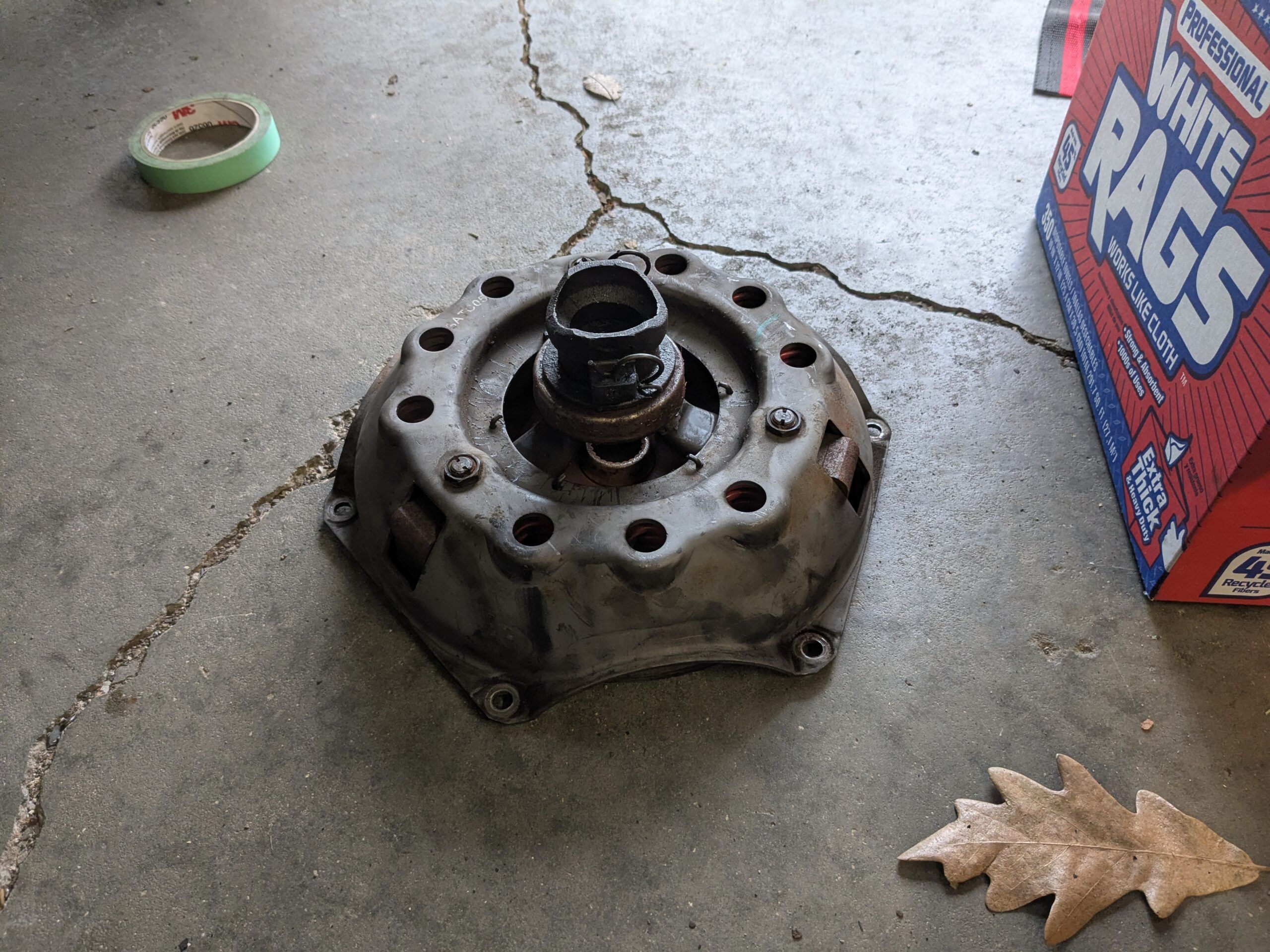

I’m obviously opening myself up to ridicule when I reiterate that I did this all for almost nothing (my only solace is that, once again, the throwout bearing was going to need replacing sooner or later), so I’ll save any more of the details of the clutch swap.

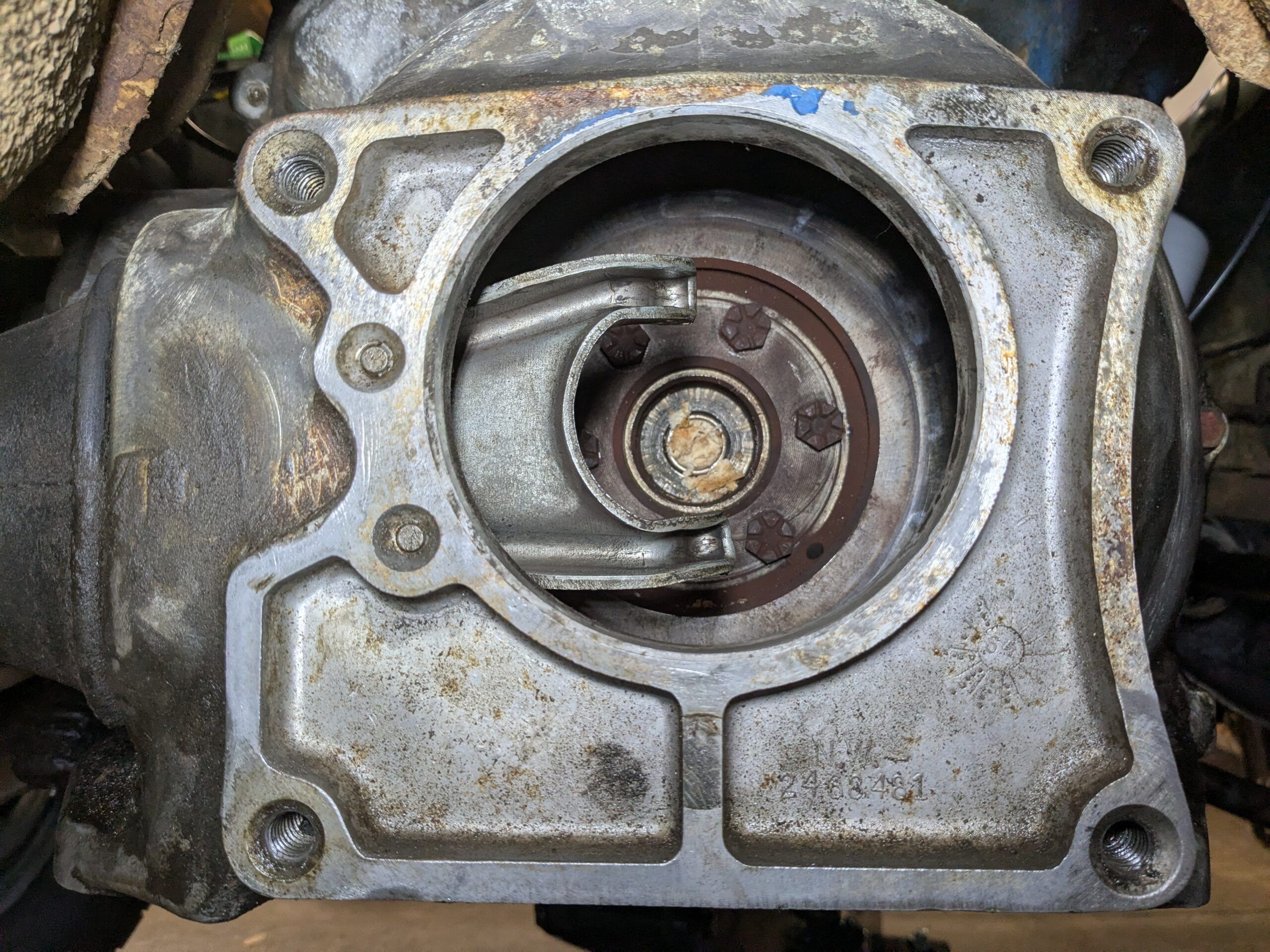

(By the way, you can just see the real problem that I missed in this picture.)

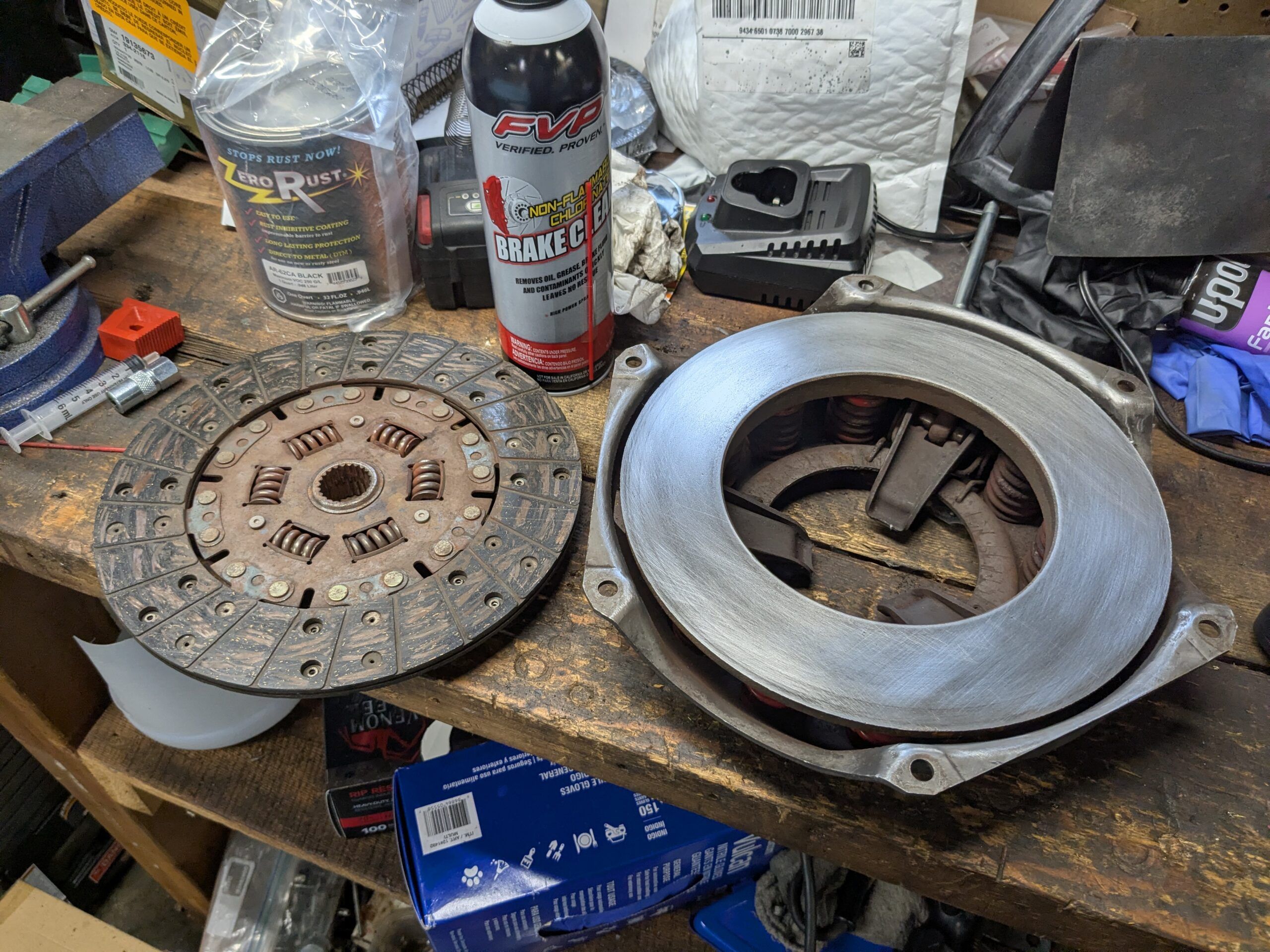

I will mention this: I recently had to do the job again because the new pressure plate I bought online sounded like a barn door that needed the hinges greased. When I took it back out again, I found the offending lever by stepping on it in the garage; therefore, I cleaned up those 52-year-old Mopar parts and reinstalled them (the clutch now works fine by the way).

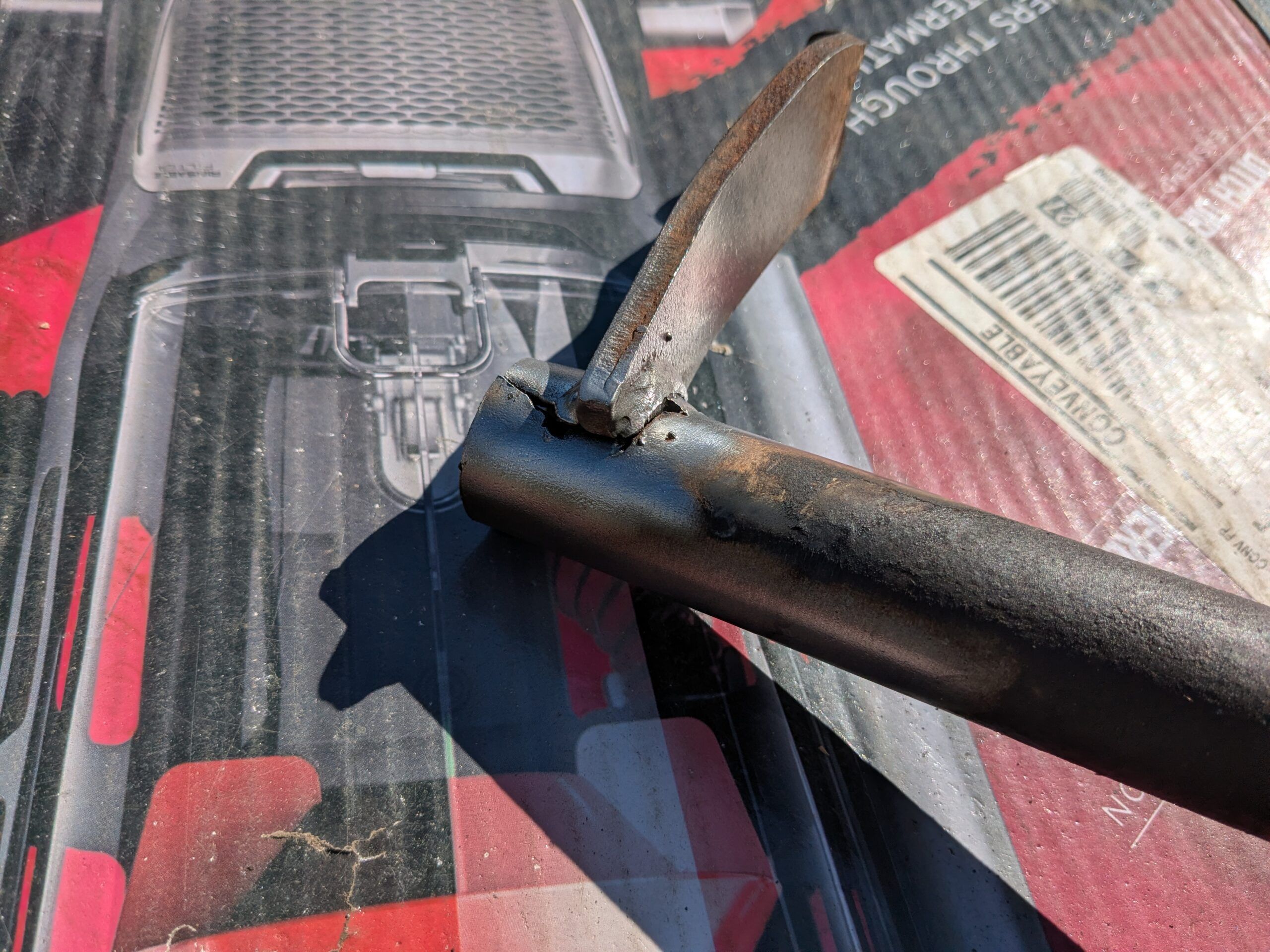

After making a long story short (truly), I can now reveal the real cause of my “clutch” problem, and if I spent more time on slantsix.org, I would have saved myself a lot of time in the garage. The clutch Z-bar ripped, a problem so common on early A-body cars that it probably should be a chapter in the non-existent handbook for owning one. Unfortunately, I don’t own more than one of any car, so sometimes a common problem will pop up that I’ve never dealt with before.
Still, I should have known; I had to adjust the clutch twice in the weeks before this happened.
After finally seeking out the expertise of those on slantsix.org, I formulated a plan for ensuring that the Z-bar won’t tear again in my lifetime (as long as my mediocre welds hold). I called Brewer’s Performance, Inc. in Ohio, a well-known source of Mopar transmission parts, and asked if they could hook me up with a Z-bar. They didn’t have one for a 1965 Dart with a Slant Six, but they did have a much-more-substantial tube of the correct length; all I had to do was cut the arms off the old one and weld them back on the new tube. This required some fairly precise measurements.

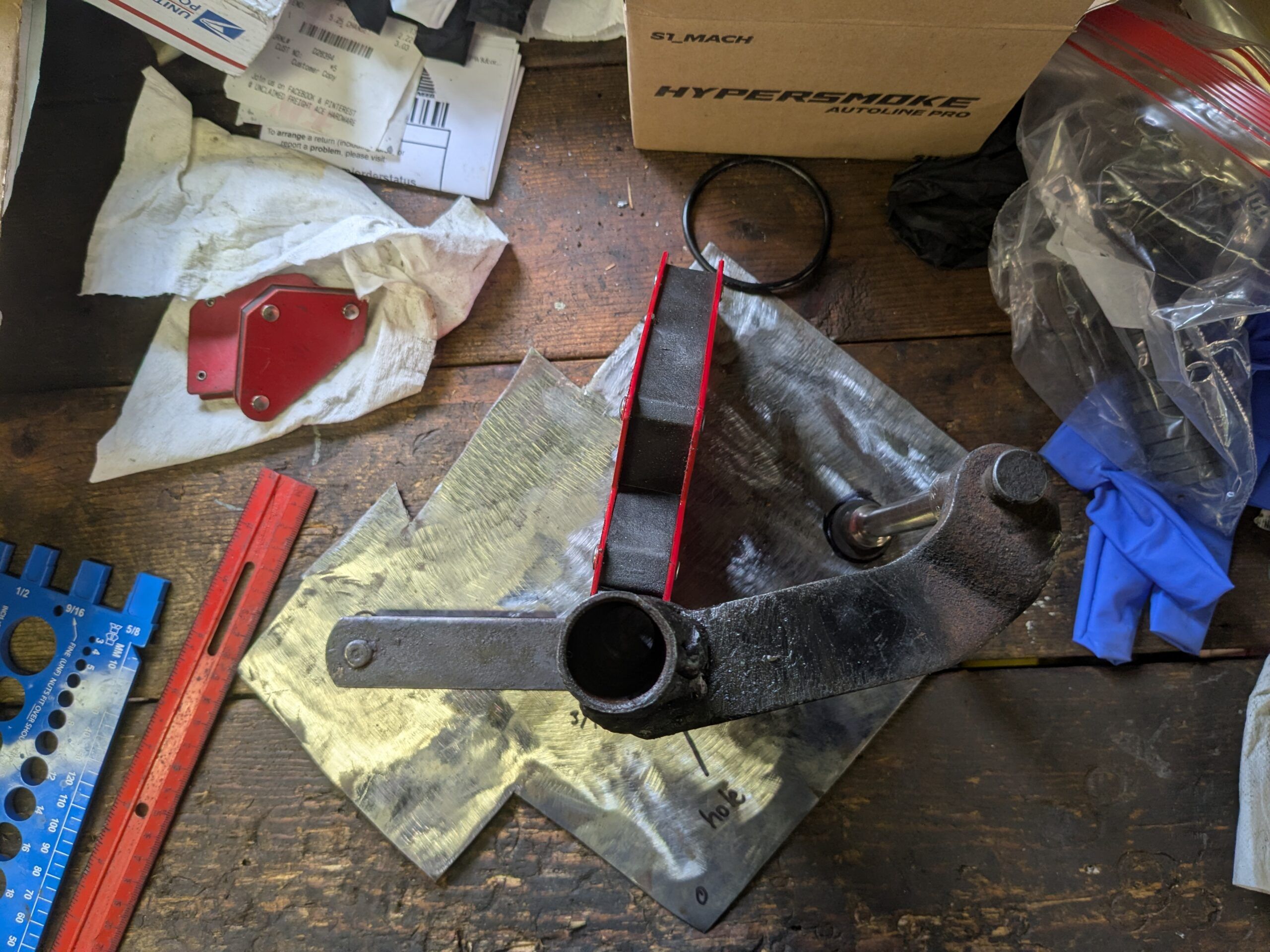

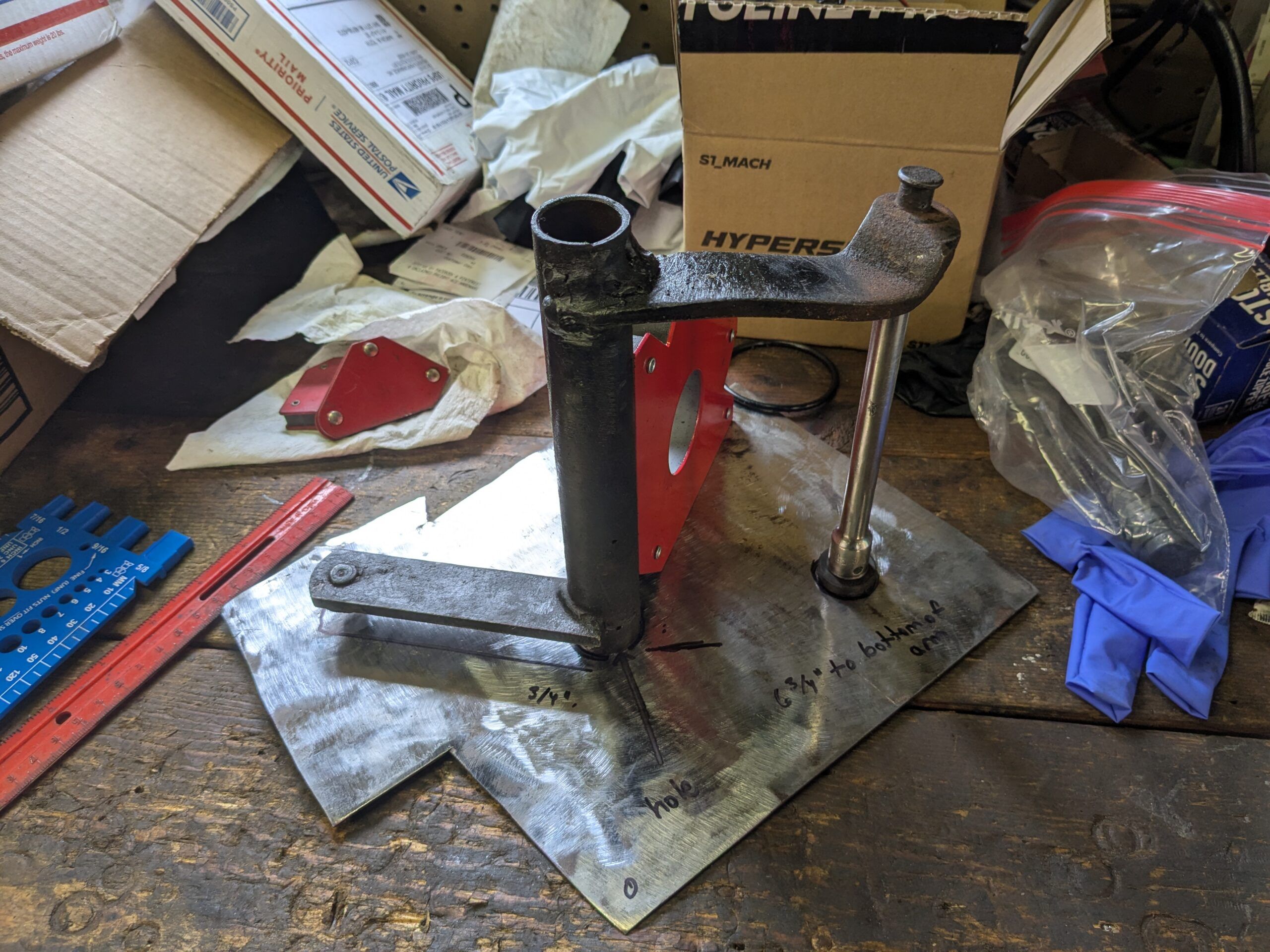

To do this, I cleaned up a piece of scrap metal and affixed the old Z-bar to it with strong welding magnets. Then, I marked all the measurements and outlines with a Sharpie so I could reattach the arms in the same locations relative to the tube itself (which also has holes for a clip that secures the plastic bushings that the Z-bar rides on).
In this picture, you can see how much beefier the new tube from Brewer’s is; I can’t imagine that this will ever have trouble with a stock Slant Six pressure plate.

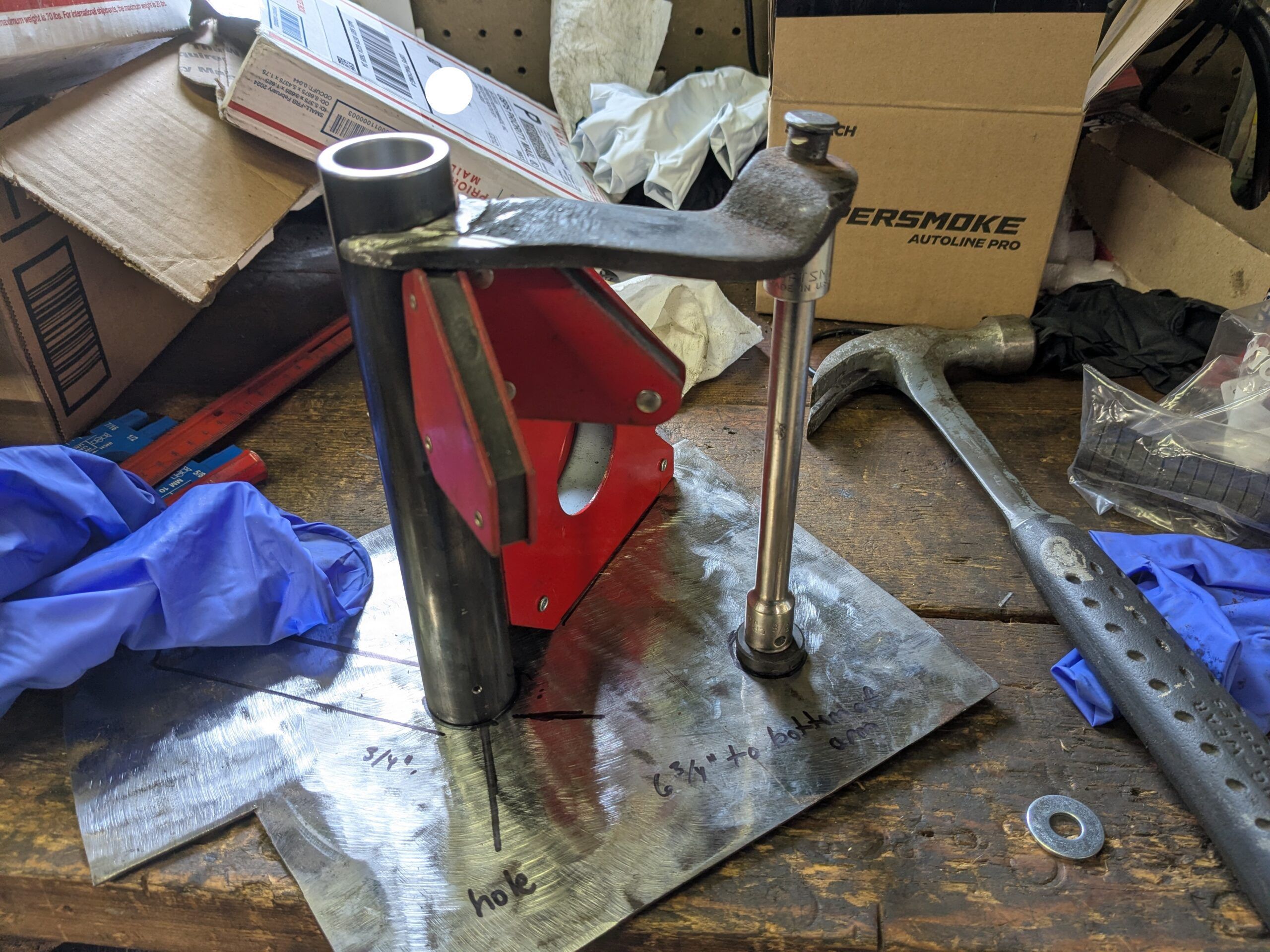

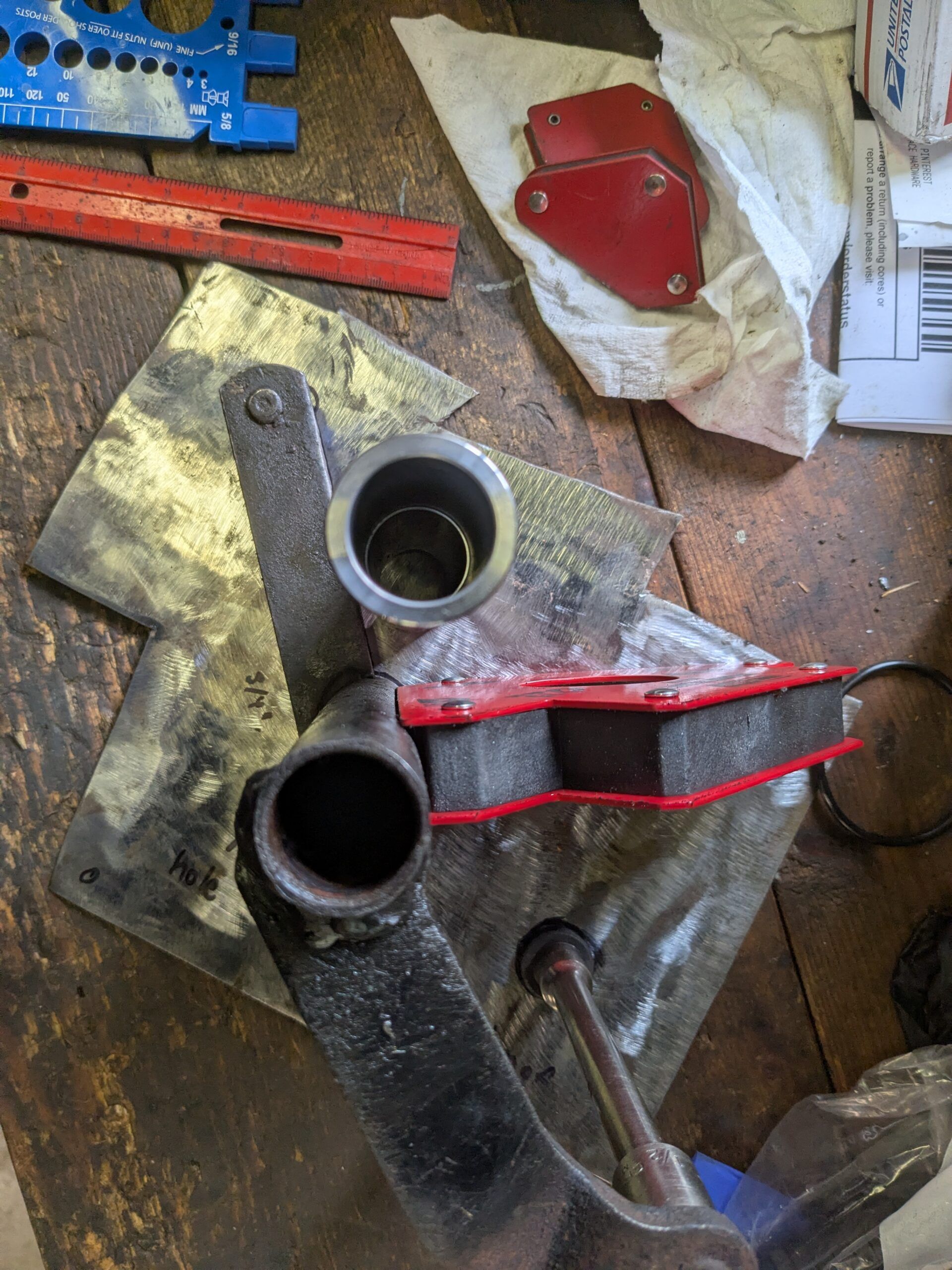

After cutting the arms off the old Z-bar with a cutoff wheel, the next step was aligning them to the new one using my “fixture.”

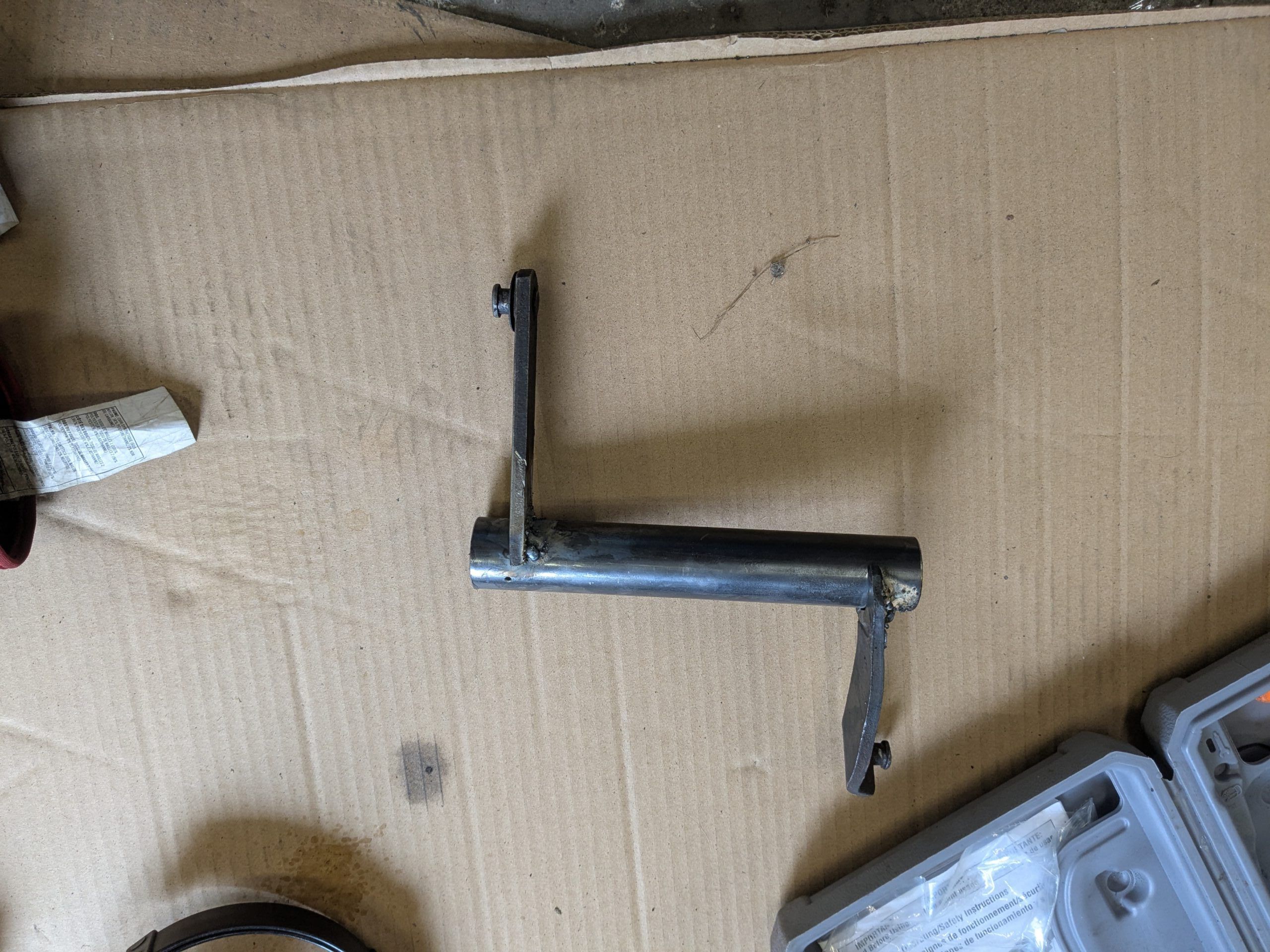

After making a few tacks to hold the arms in place, I then welded them up with about the same amount of skill and concern for aesthetics as the guy who welded them up at the factory. Yeah, I’m not going to show you the finished welds I made with the old $100 Harbor Freight flux core that I use when old, dirty metal is involved (I’ve embarrassed myself enough already). Needless to say, it’s not going anywhere…I hope.
So after some fits and starts, the Dart is back to Darting around the Michigan landscape, being the best all-around beater wagon from a Mopar salvage yard that one could hope for. Mistakes were certainly made on my part, and indeed it was a rough winter/spring in the garage as I tackled this issue while trying to make heads-or-tails out of all my Volvo’s problems. Needless to say, these were some dark hours where I wondered why I do all this, but not all days are wins when you’re a shadetree mechanic keeping a bunch of old, worn-out stuff on the road.
But there are worse ways to spend one’s time, and besides, it’s good to stay humble, even if it hurts your ego.
