It’s no good trying to be everything to everyone. We all know that instinctively, but I guess nobody told Honda that about 30 years ago. How did they figure that a tall mid-engined AWD automatic 660cc turbocharged kei car was a sound concept? Someone should have said: “Honda-san, with the utmost respect, I think there are at least two or three features too many in there.” Since nobody piped up, we got the UM-4.
First, there is the question of the name. The use of the letter Z, among Japanese carmakers, is split between Nissan and Honda, but Nissan applied it to their Fairlady sports cars in 1969 and never stopped. Honda used it for their 360cc kei cars between 1970 and 1974, but then ditched the name, and pretty soon stopped making kei cars altogether for a little over a decade.
For whatever reason, Honda resurrected the Z nameplate for this pseudo-MPV, but not their other late ‘90s / early ‘00s kei cars (the Today, the Life, the That’s and the Acty/Street truck/van). Because the memory of the original Z360 has remained quite vivid, nobody really took to calling this unrelated Frankencar “Honda Z;” they are universally known as the UM-4.

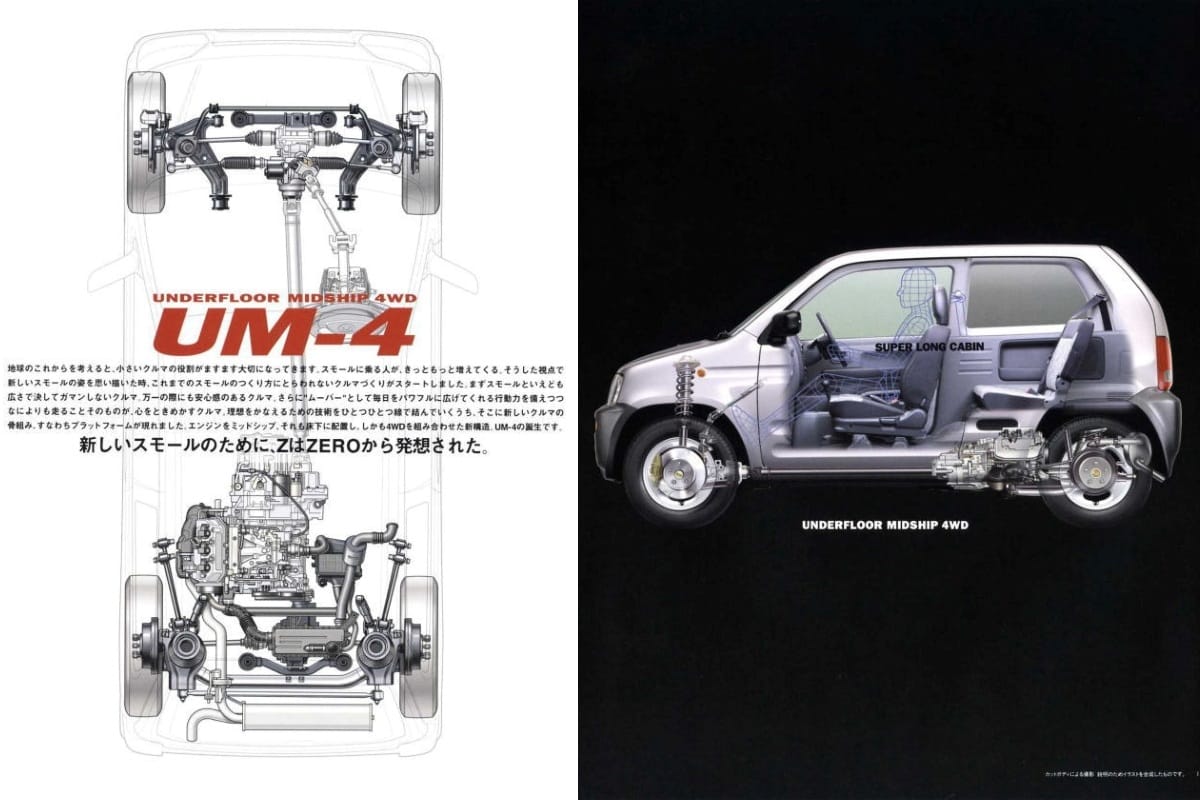

UM-4 stands for “Underfloor Midship 4WD” – clearly one of the car’s more unorthodox technical features. Except in the world of kei trucks, where this was pretty common: the Honda Acty, the Suzuki Carry and Daihatsu Hijet all used this solution. Honda had pioneered the concept back in the ‘60s in the TN360. Modern (i.e. ‘90s) mid-engined kei trucks were often offered in AWD variants, too. Still, for a non-truck kei vehicle, this layout was unconventional.
This was not a case of Honda merely using a kei truck chassis, slapping 15-in. wheels on it and calling it UM-4, though. Truck chassis had pretty basic suspension, not something that would be acceptable for a regular car. So the UM-4 had its own thing, with MacPherson struts up front and a sophisticated multilink and coil-suspended De Dion axle in the back – similar to the HR-V, albeit scaled down to kei dimensions.
The UM-4 appeared in October 1998 and was marketed as a “Small Super Mover.” Clearly, Honda themselves didn’t really know what it was. The AWD drivetrain, large tyres and high stance made it a natural fit for mountainous terrain, but the car’s relatively heavy body (950kg is a lot for a kei car) meant that the 3-cyl. engine, in standard 51hp spec, was barely sufficient. The 64hp turbo version was almost a requirement, especially since the 4-speed automatic was the only transmission available.
But then, being underpowered was not necessarily unexpected with a kei car. There were a number of other issues with the UM-4 as a concept, starting with interior space utilization. The front seats were fine, but the ones in the rear, located right above the engine, were impossibly cramped for anyone over kindergarten age. Folding those rear seats down to turn the rear into pure cargo space made a lot more sense: there is just enough space to fit two bicycles back there.

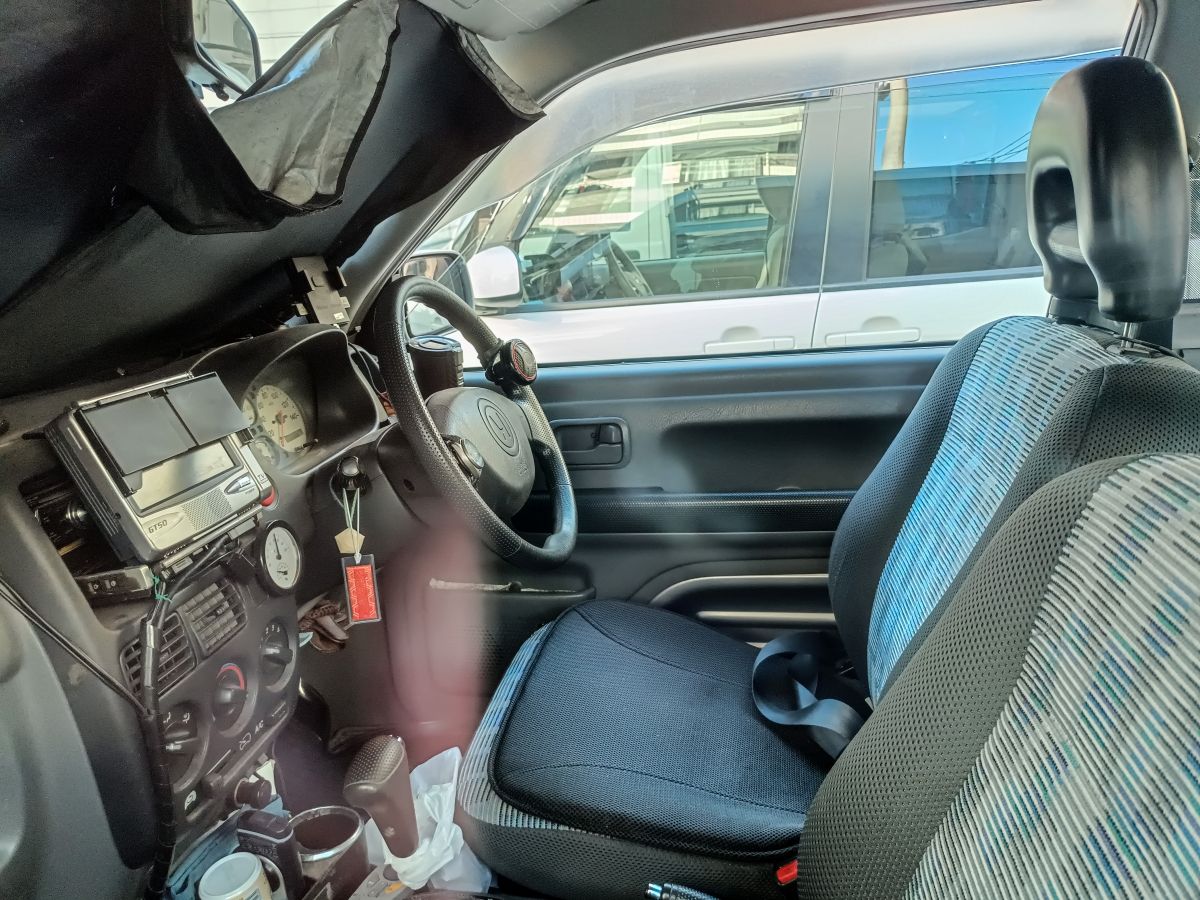

Daily life with a UM-4 was no bed of roses, though. According to one former owner, the front seats were way too firm. The suspension, sophisticated though it was, was also noted as being quite stiff, making long-distance trips something of a chore.
According to another former owner, another hindrance to long-distance travel by way of UM-4 was the tendency of the transmission to overheat and slip when driving the car at speeds of 100kph (about 60mph) over a long time. The level of engine noise when driving pedal to the metal, which is often necessary with kei cars, is also very high. To compound everything else, the UM-4 was noted as being quite thirsty, for a car of its class.
Honda realized pretty quickly that they had a dud on their hands with the UM-4. Prices for the turbo version came down a shade in 2000, so virtually all cars sold after that point had the 64hp engine, but the UM-4’s goose was already cooked by this point in time. Production was ended in January 2002; inventory took until the month of August to be liquidated, just weeks shy of the model’s fourth birthday. With about 40,000 units made, the UM-4 was one of Honda’s worst-selling keis of the 660cc era.
It turned out there was a reason why nobody had ever done a mid-engined AWD kei car: it’s a bad idea. Toyota just about managed a mid-engined minivan, but even they had to ultimately concede that placing the engine within the wheelbase made little sense, from a packaging (and servicing) point of view. Honda’s UM-4 demonstrated that sticking an engine amidships works for sports cars and some trucks, but not mini-MPVs.
