Enzo Ferrari was renowned for his many great qualities: he was driven, competitive, decisive, proud and passionate. Or, if you happened to be on his bad side, he could appear obstinate, unfair, dictatorial, narcissistic and irrational. Sticking to the front-engine/RWD formula – the tried and true traditional layout, the one that made Ferrari a success – was a virtue that quickly became a sign of outmoded thinking. And being outmoded is potentially fatal to a supercar marque.
Almost kicking and screaming, the Commendatore had to concede that the future of high-performance cars would necessarily mirror what had happened on the racetrack. The engine was going to have to take centre stage and sit behind the driver, not in front of them.
The change had taken place in the late ‘50s for grand prix cars, spearheaded by the likes of Porsche, Cooper, BRM and Lotus. Feeling the heat, Ferrari made the jump to a mid-engine layout in 1961 with the V6-powered 156.

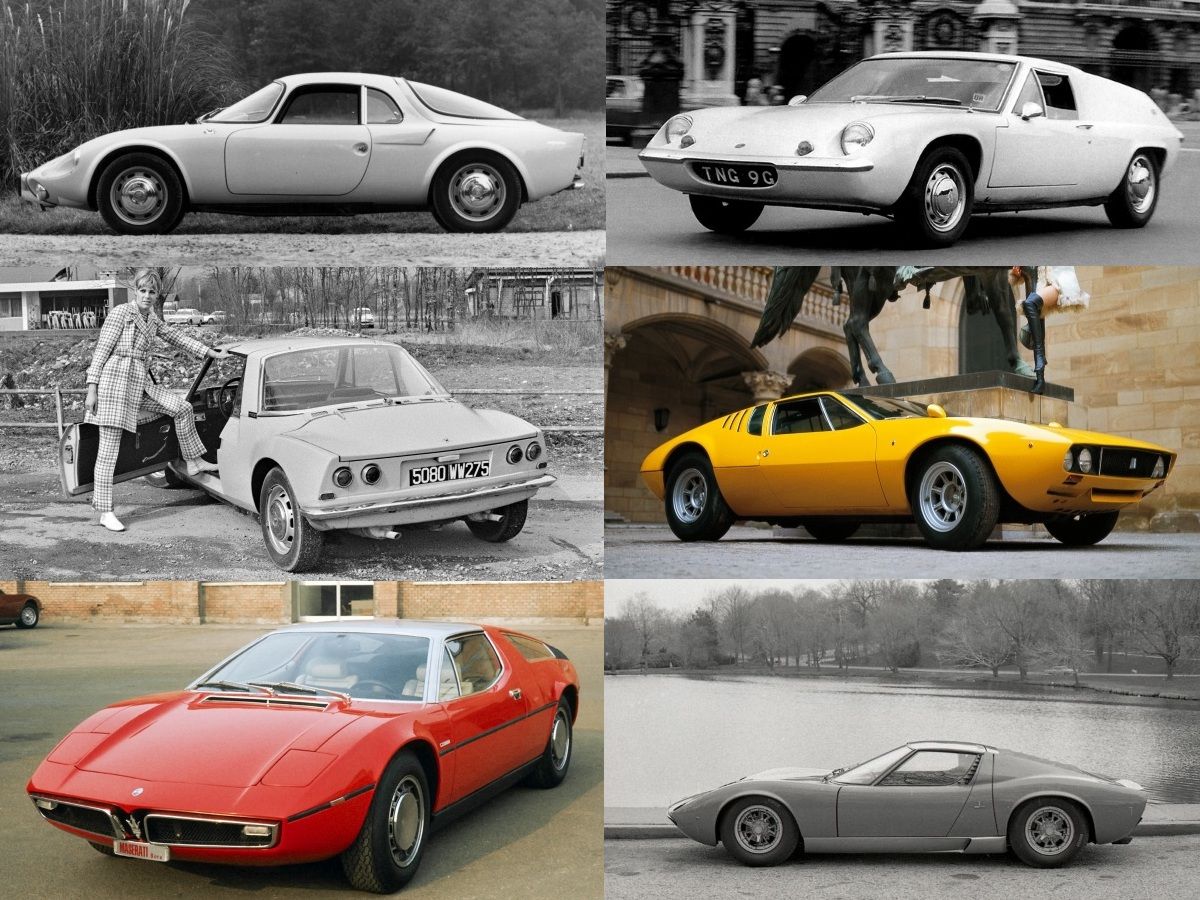

It did not take long for this new-fangled concept to migrate to civilian production. The first, in 1963, was the René Bonnet Djet (top left), joined by a budding De Tomaso in 1964 and the Lotus Europa (top right) in 1966. From that point, the floodgates opened. For MY 1967, De Tomaso dropped the Mangusta (middle right), Matra launched the 530 (middle left) and, crucially, Lamborghini stunned the world in general and Italy in particular with the Miura (bottom right). Even Maserati eventually joined the fray with the Bora (bottom left) in 1971, right after Porsche and slightly ahead of Fiat. But Ferrari remained aloof.

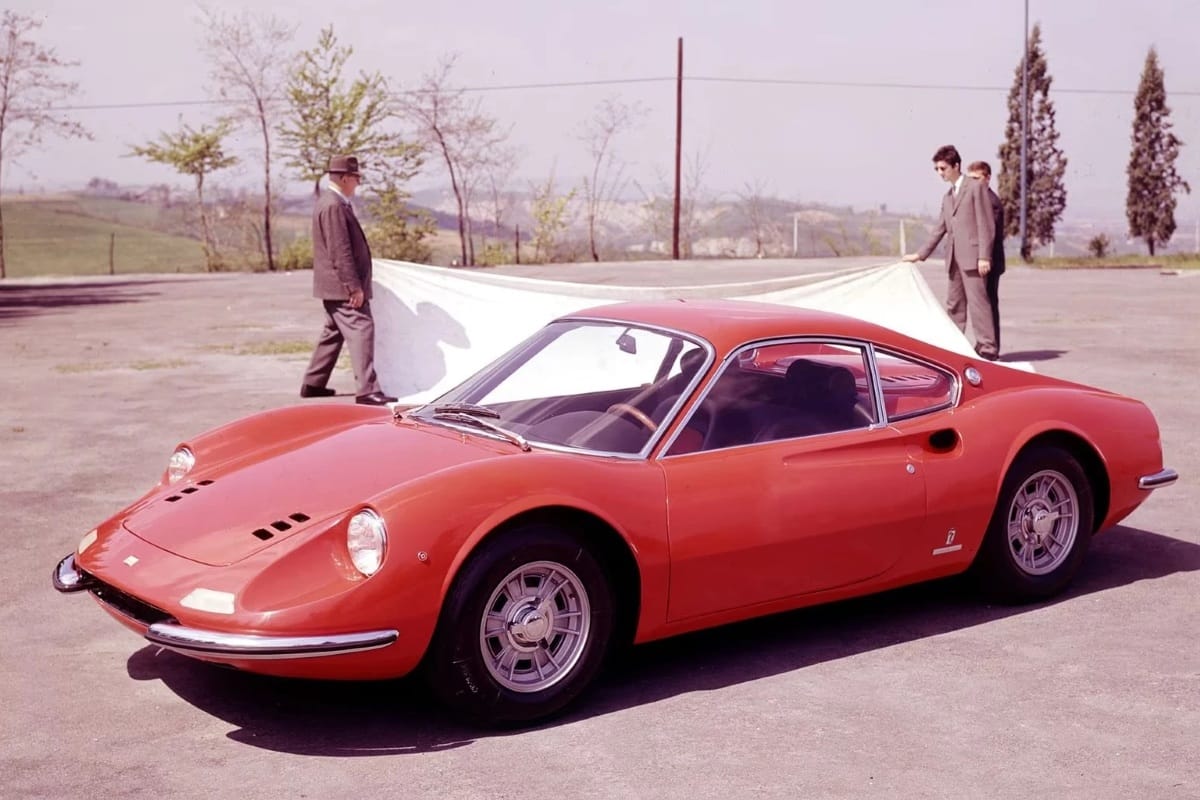

Well, Ferrari did not blindly follow the trend technically, but in practice, Maranello went ahead with the Dino GT project. It was launched in 1967, just like the Miura, but under the novel Dino marque and with a much smaller 2-litre V6. Enzo Ferrari felt that any car that bore a prancing horse had to have twelve cylinders, and said motor needed to be in front. The 365 GTB/4 Daytona, launched in 1968, exemplified this philosophy.
The Daytona did quite well in terms of sales. It was a beautiful machine and, though the engine remained up front, it had a very sophisticated transaxle IRS, at least. But Lamborghini had completely changed the ball game. There was no going back, there was only going amidships. Ferrari relented and work began on a true Miura rival.
Ferrari could have just dropped the Colombo V12 used in the Daytona in the new Dino-derived chassis, but instead they looked to their Formula 1 cars for inspiration and motorization. The first “flat-12” seen in a Ferrari was the 1.5 litre Tipo 207 used in the 1964-65 single-seaters, but this design was not particularly successful.
A completely new Tipo 001 twelve, this time in 2- and 3-litre form, was devised in 1968 and would power Ferrari race cars through to 1980. This was the engine that was to be the basis for the new mid-engined Ferrari.
Given that the new 12-cyl. was identical in displacement (i.e. 4.4 litre) to the Colombo V-12 used on the Daytona, the car was again to use the 365 numeral as its name. This reflected the displacement of one cylinder in cubic centimetres, and that was Ferrari’s practice for identifying their models at the time. The issue was that there were now a bunch of cars called 365, and this new one was completely different from all the others.

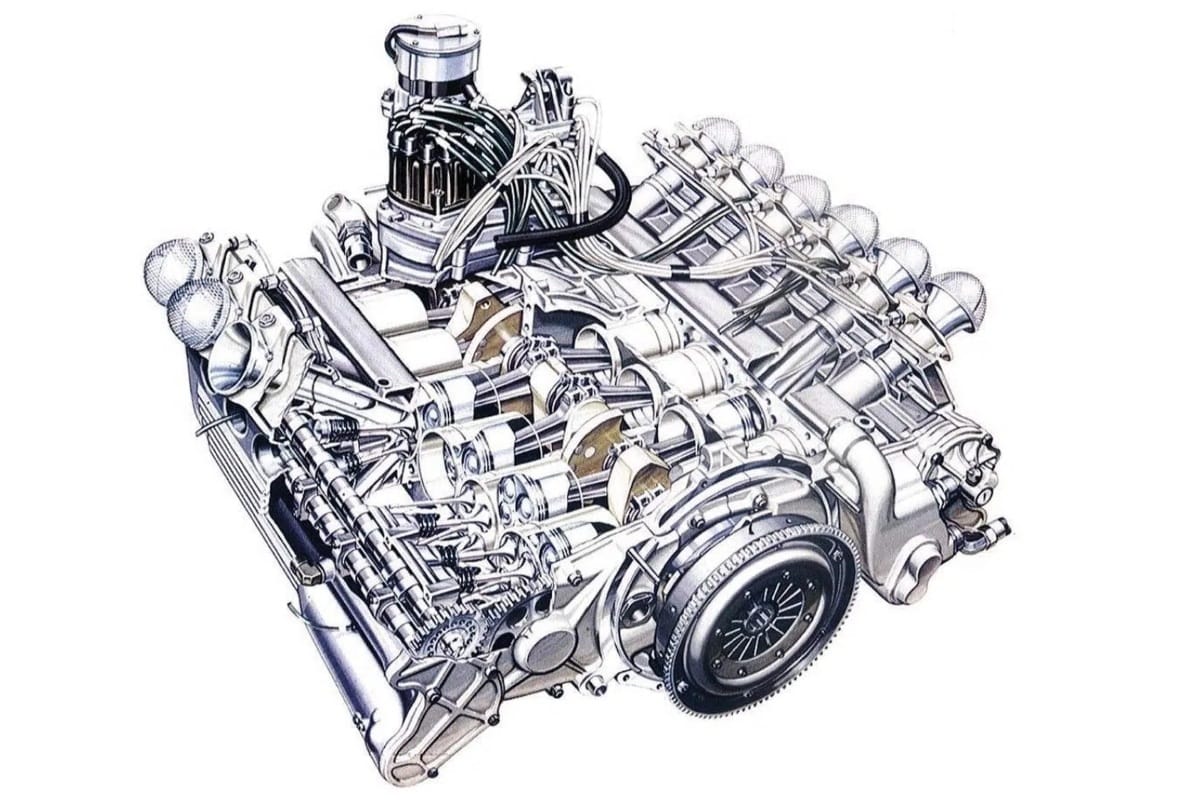

As is often repeated, it’s not a boxer or “flat” (as in horizontally opposed) engine, but rather a 180° V-12. It’s the opposite of a boxer, piston-wise. But that never made much of an impression on Ferrari’s PR department, who called the new car the “Berlinetta Boxer.” That BB appellation may have been more tongue-in-cheek than deliberately wrong, as at the time, “BB” was a very commonly used acronym for Brigitte Bardot. It was even a hit song.

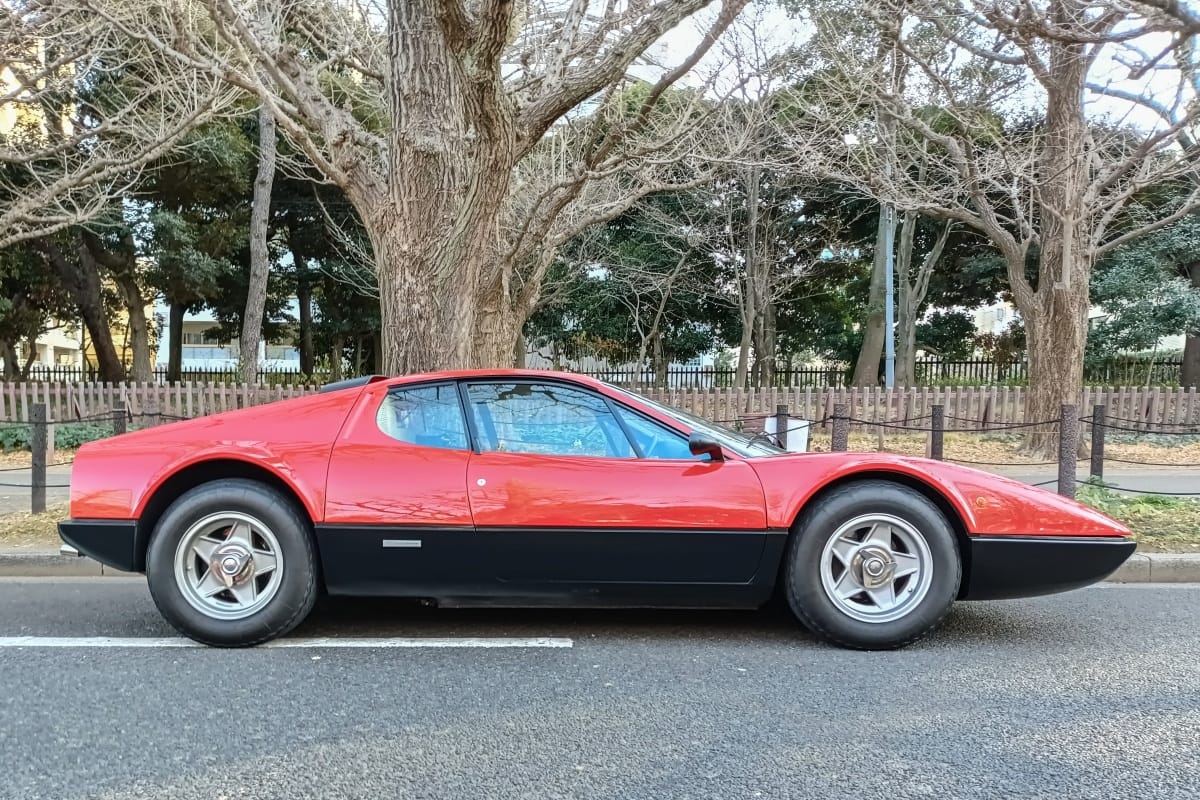

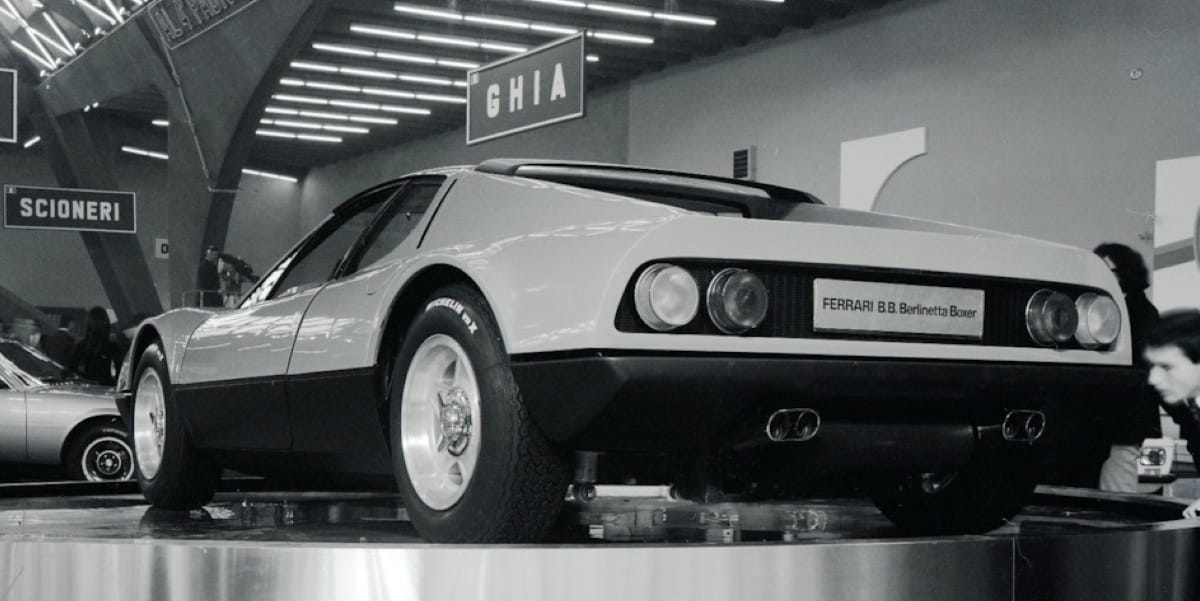

And that BB monicker was justified, as this was quite a sexy-looking car. Leonardo Fioravanti, working for Pininfarina, is credited as the main designer behind the first mid-12-cyl. Ferrari. The shape was as modern as could be when it was first exhibited to the public in 1971, and it managed to remain so for over a decade.

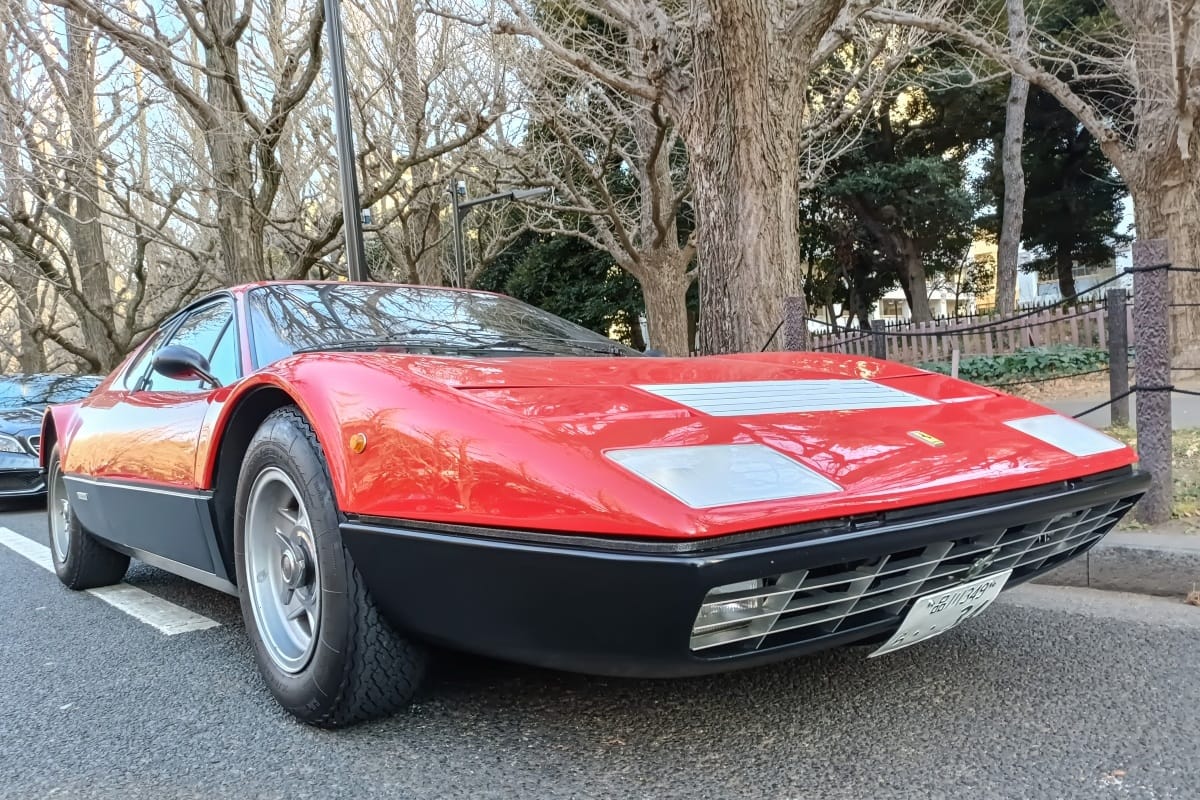

This was partly due to another novel feature: this was the first Ferrari with fully integrated reinforced-plastic bumpers, and very well done ones, at that. US-bound cars still had bigger ones, which harmed the look, but at least it wasn’t terminally ruined like some exotics (see the Maserati Khamsin, for example). Between the unveiling of the prototype and the actual launch date, which took two years, the BB was given a distinctive triple taillight and triple exhaust theme.
The output of the 4.4 litre 12-cyl. is subject to a lot of discussion on various websites. Ferrari initially claimed 380hp and a top speed of 300kph, but there are a lot of doubters out there. Many say the real number would be much closer to 300-320hp, and that anyone trying to push one of these cars beyond 250kph is taking a huge gamble.

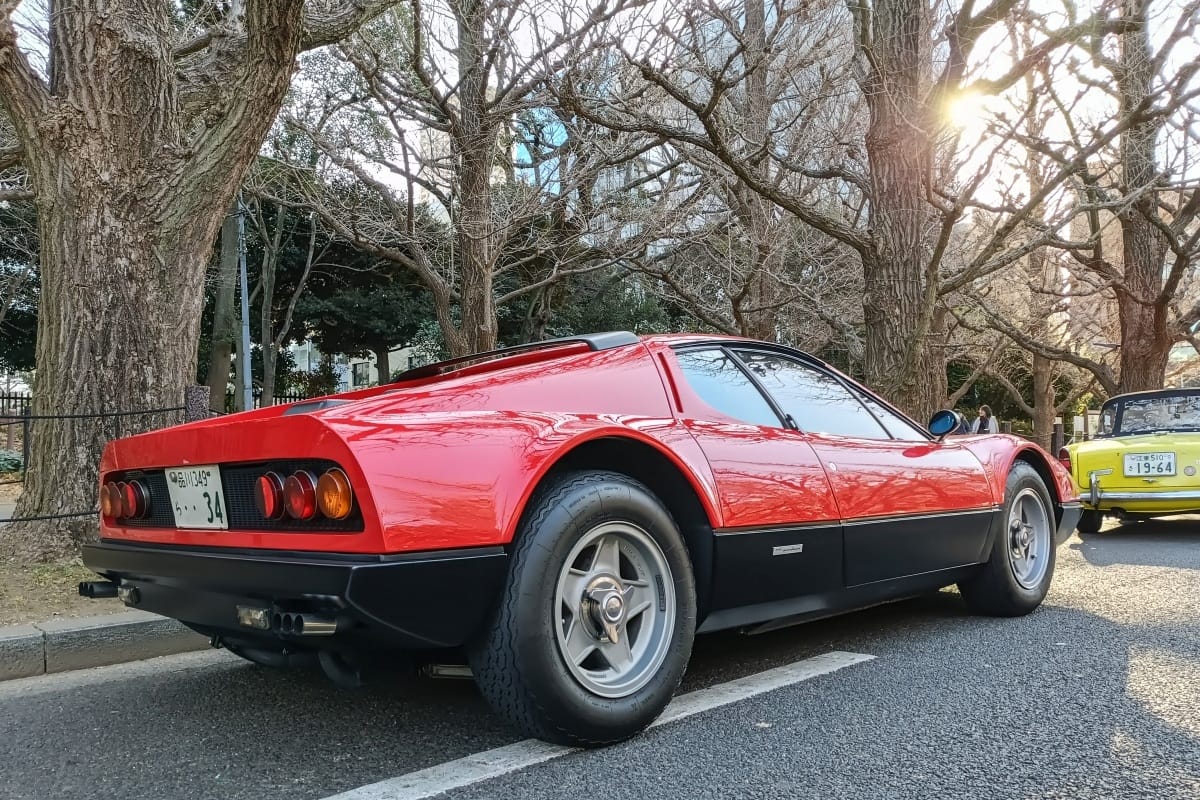

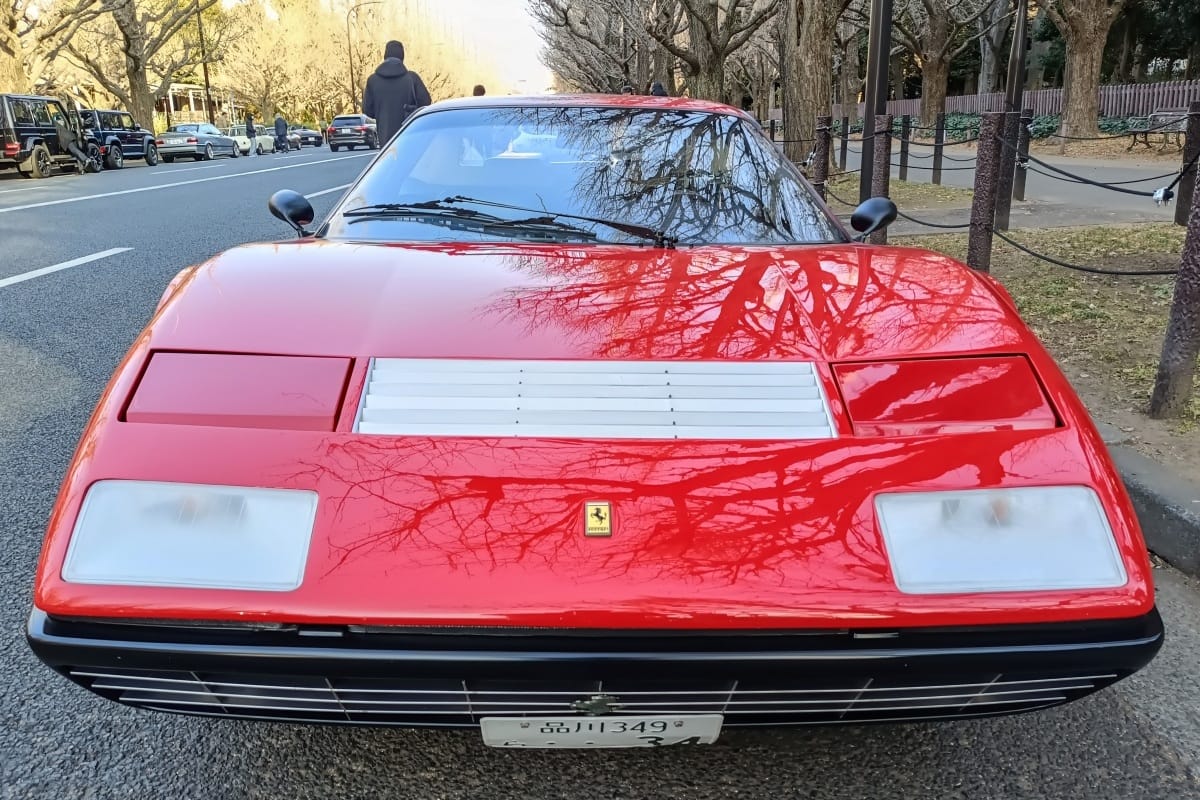

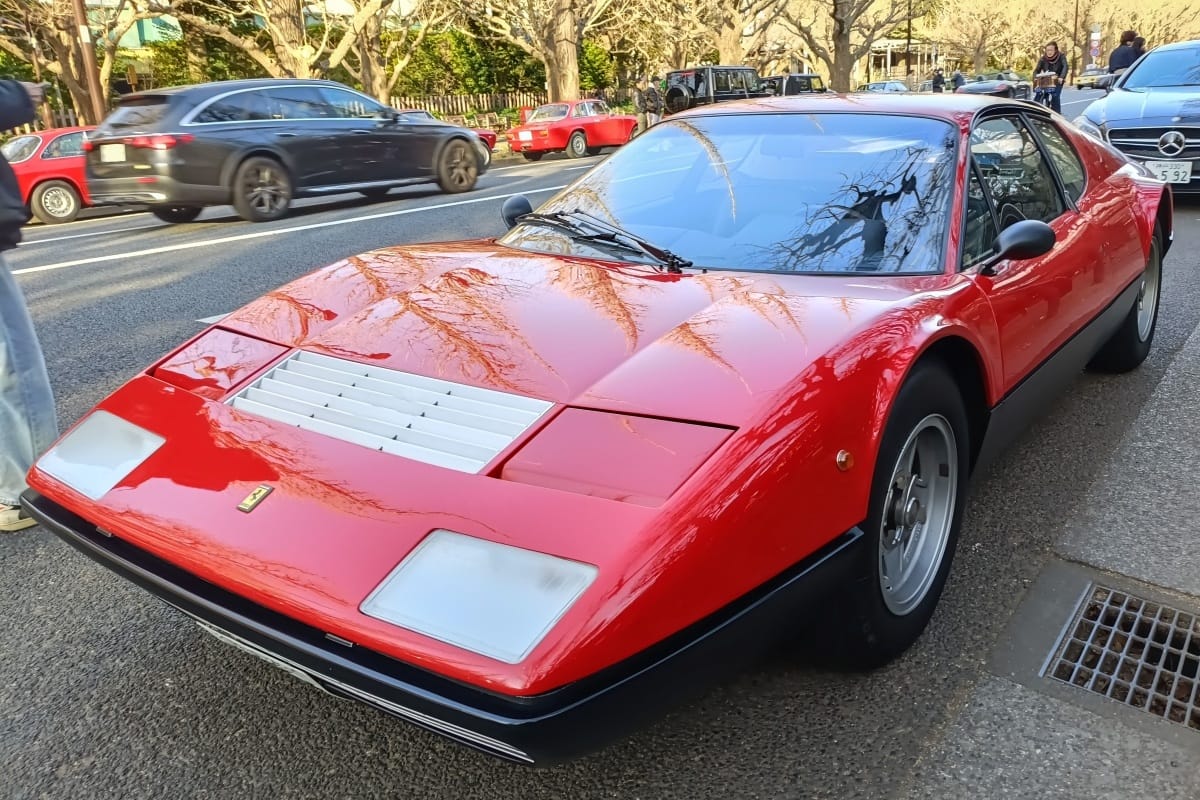

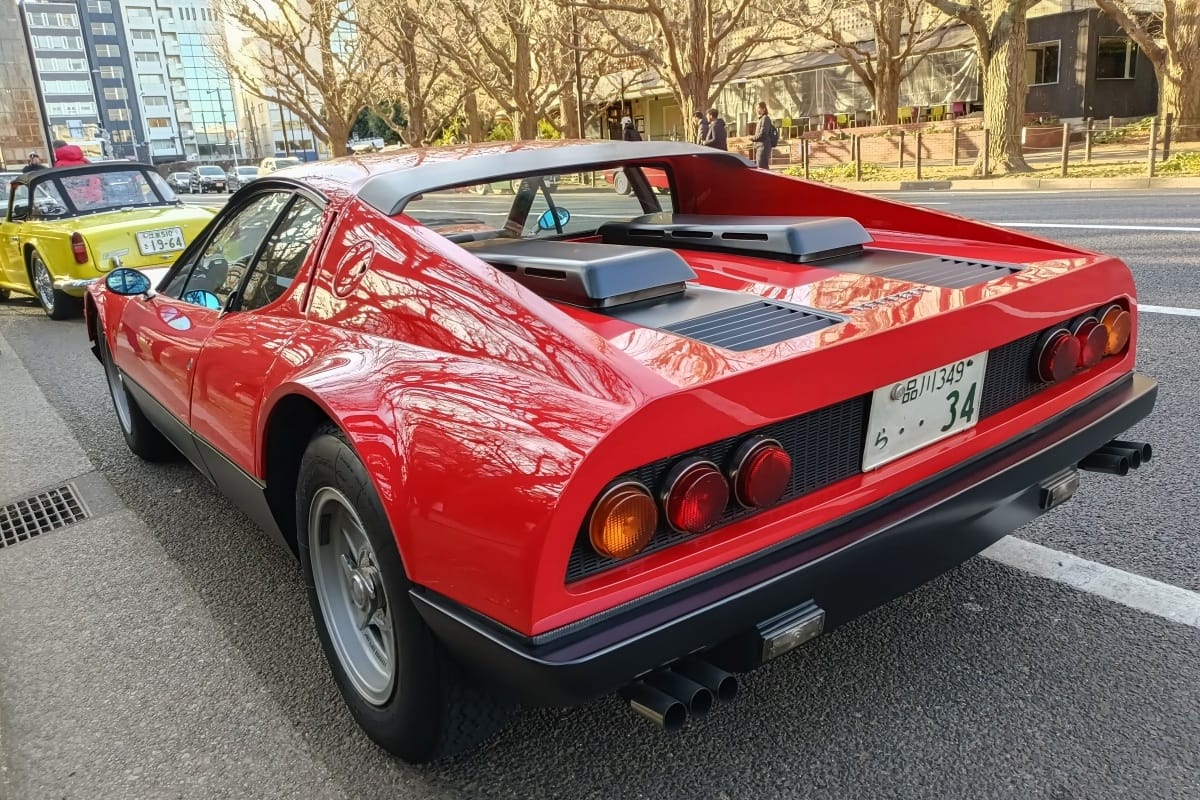

I actually found and photographed two 365 GT4 BBs. They were pretty much identical externally speaking, with the two-tone red over black paintwork that was quite popular with these cars. The most notable difference between the two cars was the season (one was caught in winter, the other in the summer) and the interior. The summer car had tan leather…

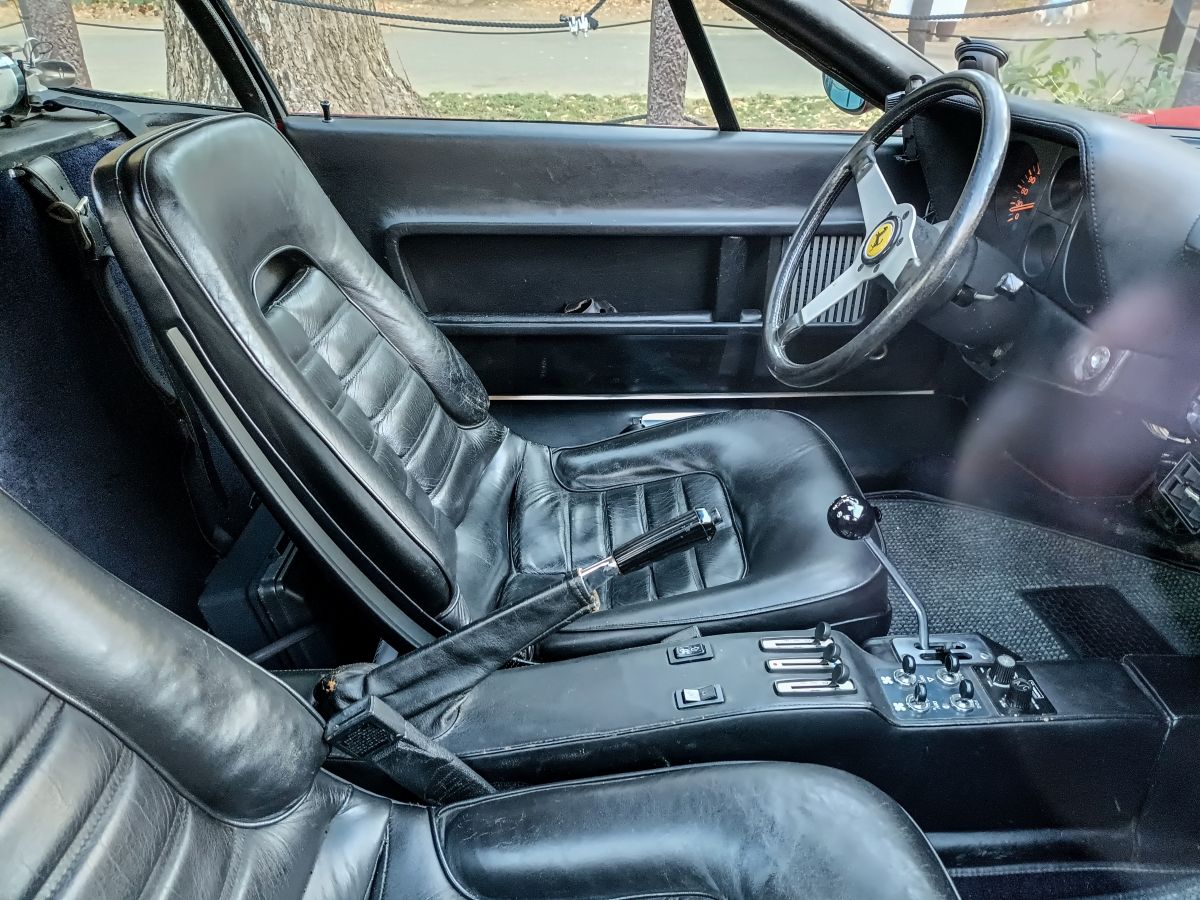

… while the winter car’s upholstery was black. The 5-speed transaxle is located right under the engine, not unlike the Miura. But the Ferrari’s gearbox, unlike the Lambo’s, does not share its oil with the rest of the engine.
Being launched right when the First Oil Shock was taking place cooled expectations for the BB. Additionally, the model would not be officially exported to the all-important North American market, as the engine could not pass emissions tests. A few enterprising folks managed to engineer a workaround, so a few did end up on that side of the Atlantic, but by and large, the new Ferrari did not sell all that well. When production stopped in 1976, the BB had only tallied 387 units.
Opinions are sharply divided online about the 365 GT4 BB. Some maintain it was the purest “Boxer,” its design unsullied by the flared wings and spoilers that would be used on its successor, the 512 BB. Others counter that these cars were far from perfect, being subject to twitchy handling at speed and pretty disastrous reliability.
Nevertheless, the 365 GT4 BB is a very important model in Ferrari’s history. The marque stuck with the “Berlinetta Boxer” formula for over 20 years with great success, especially with the legendary Testarossa. Not to mention the legions of mid-engined Ferraris that came after it, be they powered by 8- or 12-cyl. engines.
There is no question that this would be the best-looking flat-12 model of the bunch. But call me contrarian, it would be the last Ferrari bearing the 365 name on my personal list. A Daytona, on the other hand…
