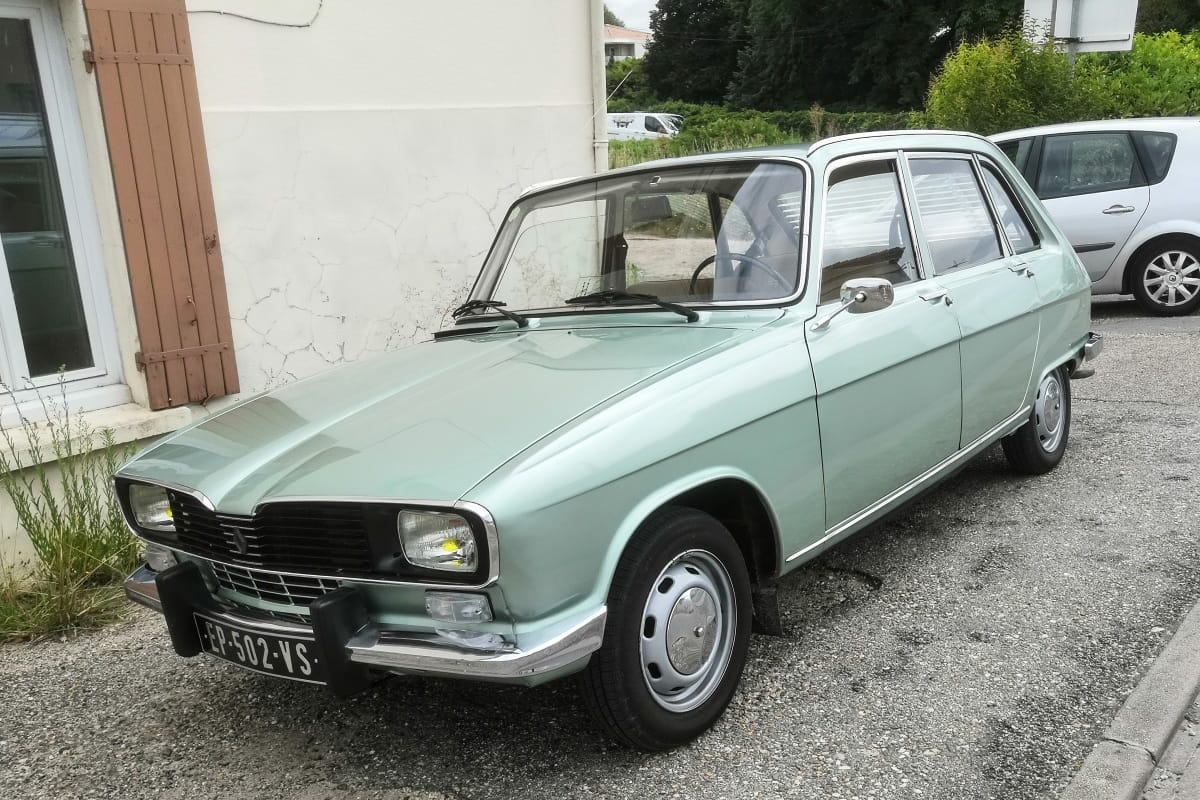

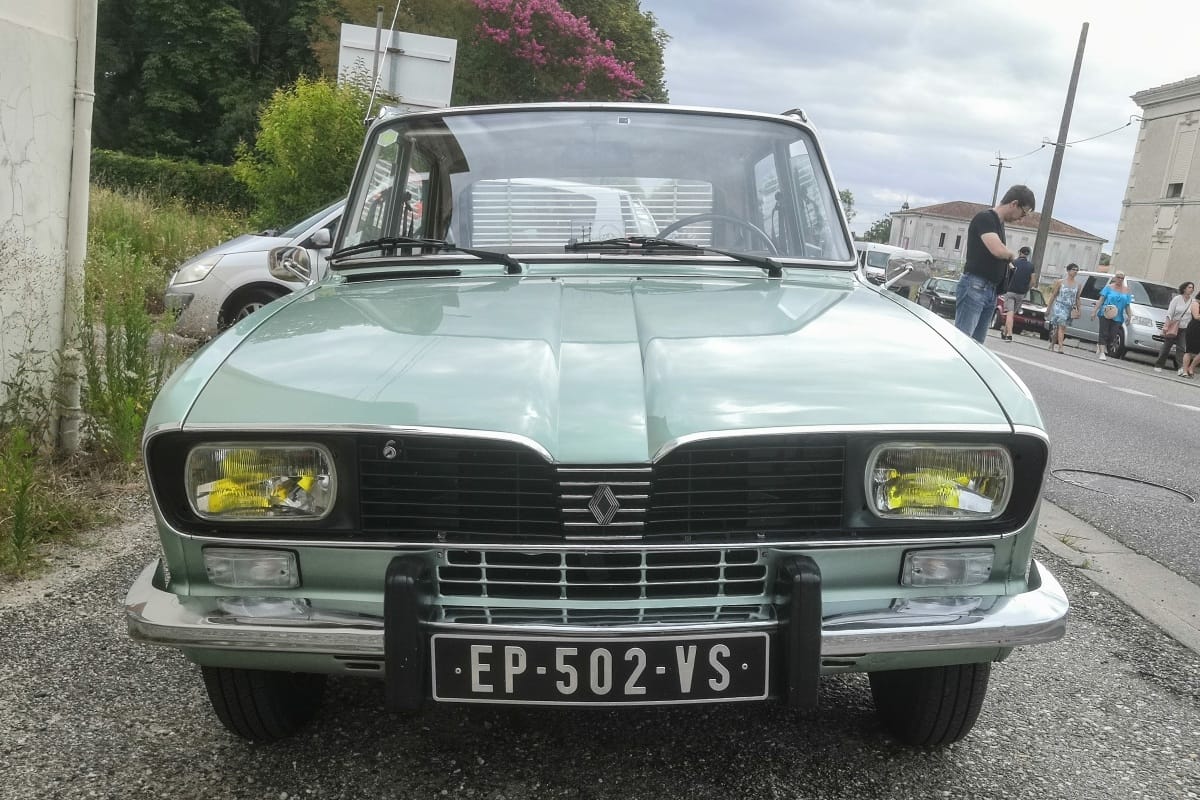

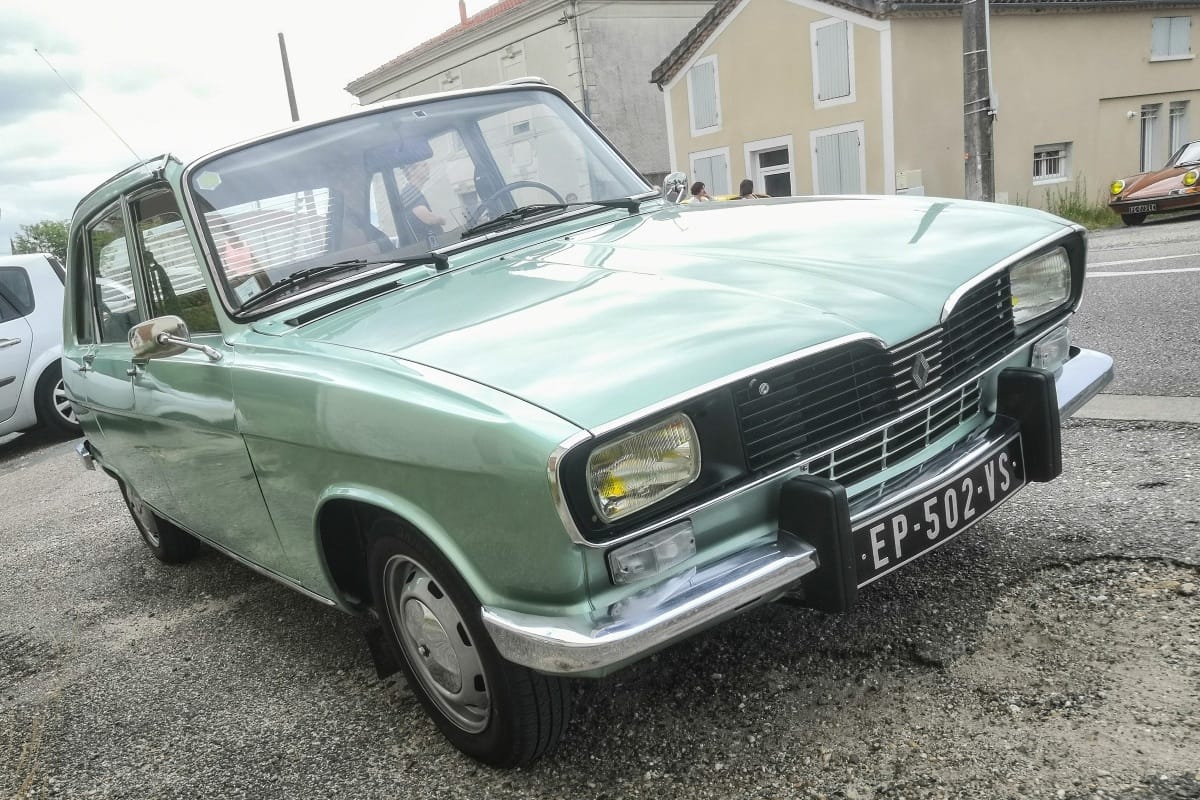

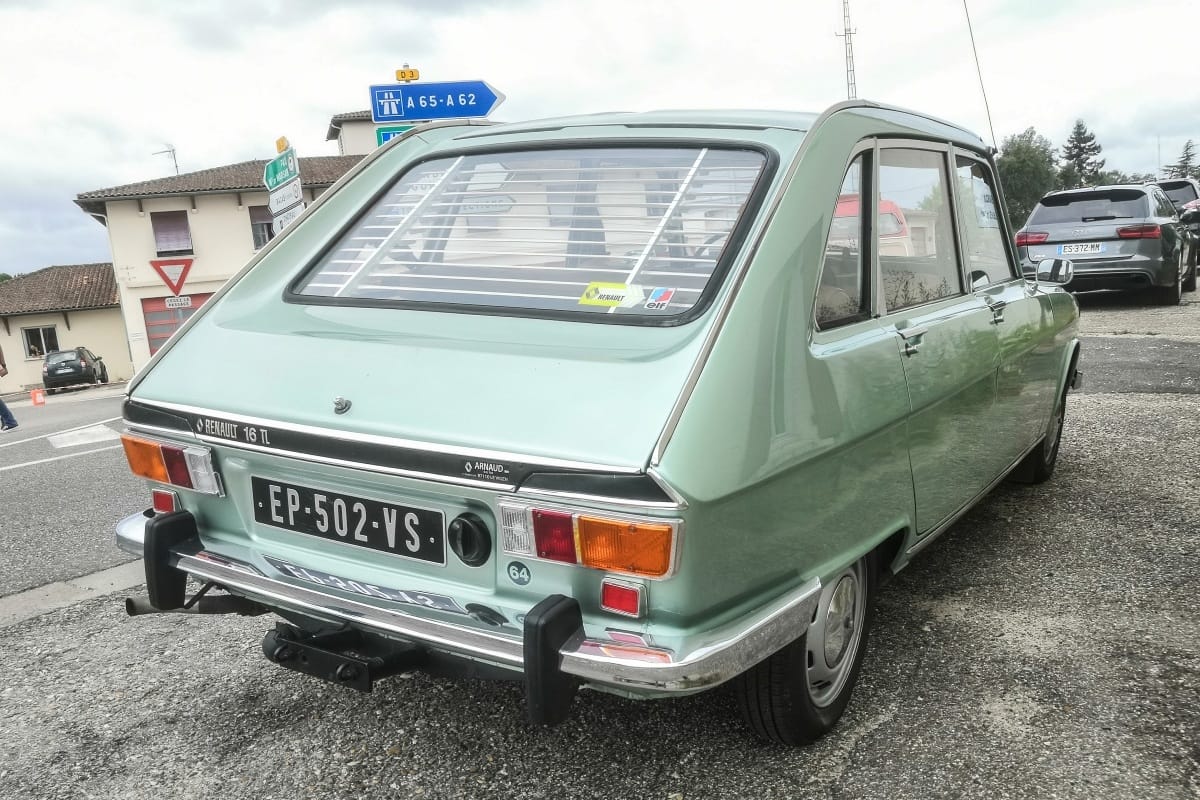

When it debuted in 1965, the Renault 16 was at the bleeding edge of mid-sized European family cars. This impeccable base model example, found in France last year, represents the tail end of the car’s production run. Fortunately, Renault messed very little with the design during a decade and a half. They just coasted and let the competition play catch up, slowly.
And, as we shall see in a bit, said competition took their sweet time – a few of them did catch up by the late ‘70s, but many did not. Sure, the 16 had a few wrinkles. It never got plastic bumpers, MacPherson struts, an OHC engine nor a floor shifter. Yet it did not look outdated the way, say, the Checker cab or the Trabant did by that point in time. That’s what happens when you initiate trends instead of following them.
In 1960, Renault had a problem at the top of their range called the Frégate (top left). It had been launched a bit precipitously nine years earlier and had never met its maker’s expectations. The large 2.2 litre RWD saloon was now taken off life support, but there was nothing in store to take over. Work carried on with “Projet 114,” an ambitious RWD 6-cyl. model (top & bottom right), but Renault’s top brass remained unconvinced. This was too big, too expensive and too much of a frontal assault against the Citroën DS, a formidable opponent. In late 1961, the 114 was definitely abandoned; in the meantime, Renault would sell AMC Ramblers (bottom left) assembled in Belgium, just to have something to field in the executive segment.
It was deemed a better bet to aim at the 1500cc class, i.e. against Peugeot and Simca, and gradually push the new car up. But that meant Renault could not play it too safe. A lot of the conceptual work on the new “Projet 115” was done by Gaston Juchet, who had been hired by Renault in 1958 from aircraft maker Sud Aviation and would have a hand in most Renaults until the late ‘80s. Juchet salvaged some aspects of the 114, but shifted to a more compact fastback. Some of these are quite fanciful, like the gullwing two-door (top left) or the curiously narrow rear doors on the red design.

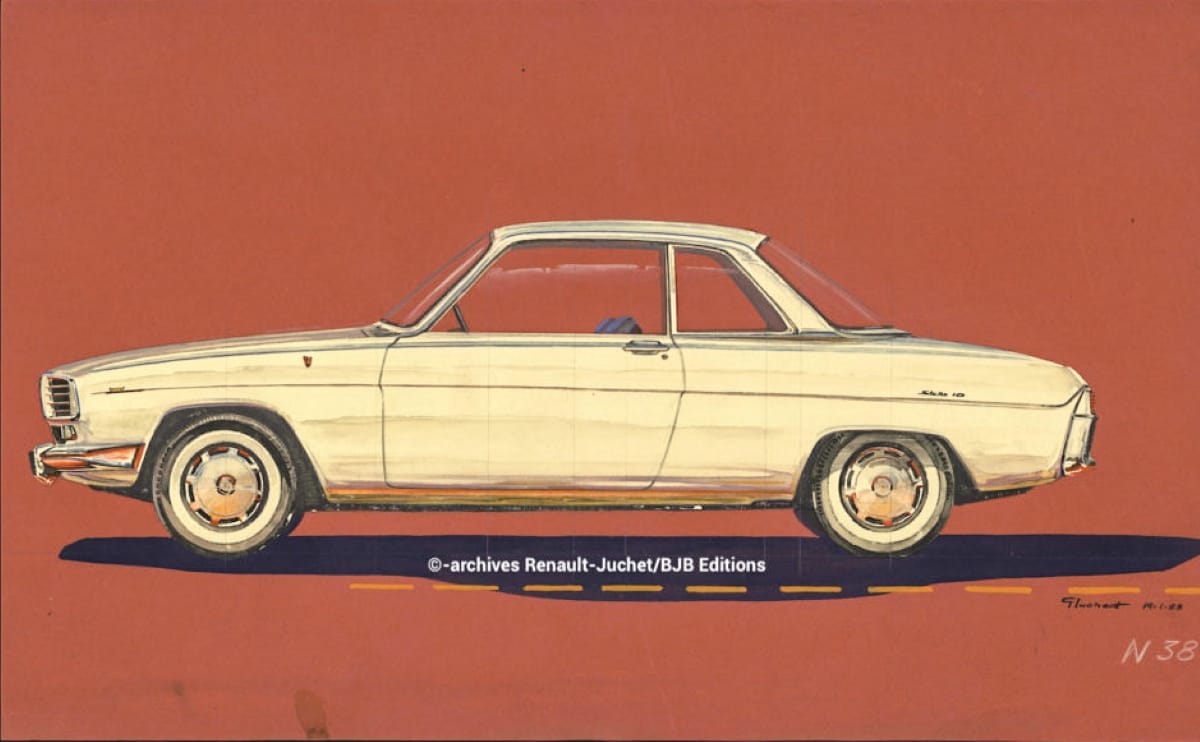

By early 1963, the clay was dry and prototypes were being made. Some styling decisions remained, but the overall shape of the car was final, with the very novel hatchback included. For quite a while, a coupé version was also mooted – it went to a full-sized mock-up. But in the end, the R16’s main ace in the hole, namely its exceptional interior modularity, would have been completely negated by this two-door variant.
In the early ‘60s, Renault’s main output were smaller rear-engined cars, but the carmaker was actually turning away from that layout and embracing front-wheel drive, starting with the Estafette van. The tried and tested layout and suspension of the Renault 4 (launched in 1961) were scaled up: a water-cooled 4-cyl. sitting lengthways behind the gearbox and the front wheels, à la Citroën, coupled with an all-independent torsion bar suspension – longitudinal up front, transverse in the back – that entailed the wheelbase being 6.7cm longer on the left side of the car.

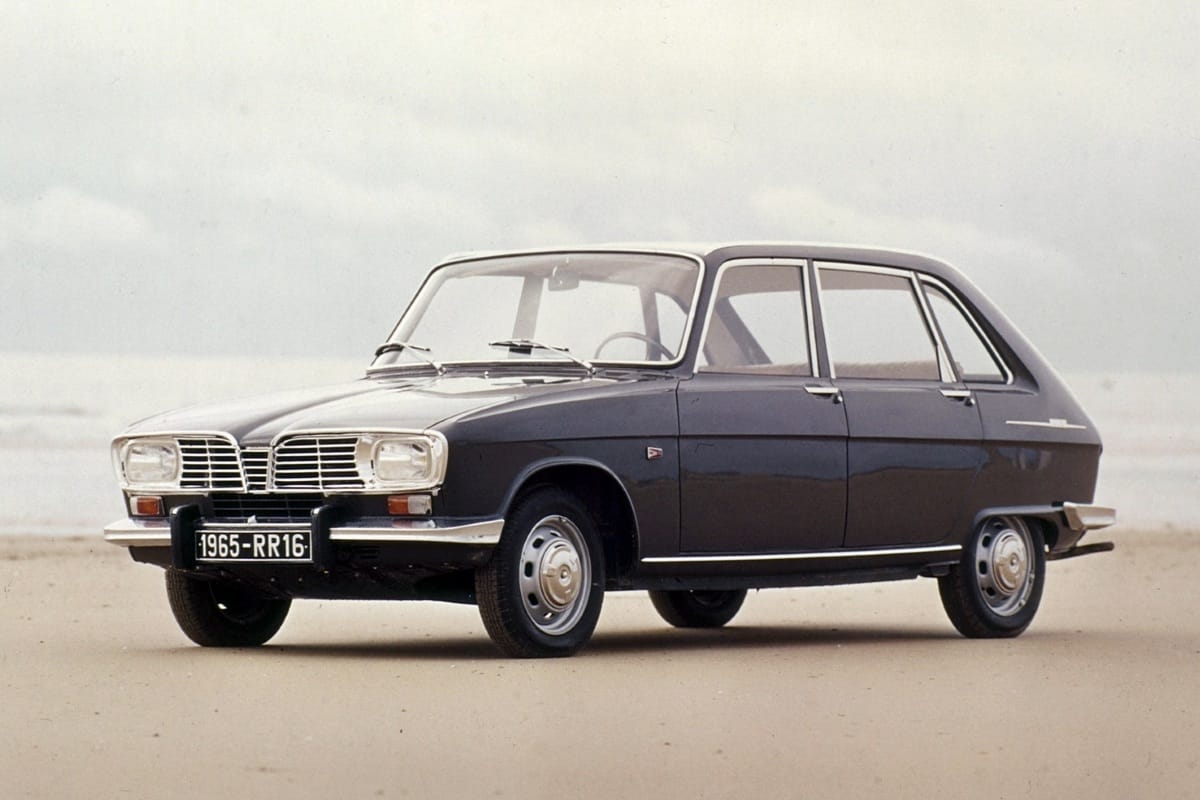

Renault figured a mid-year launch would help the car stick out; the press launch took place in January 1965 and sales started in March. The first model had a brand new all-alloy 1470cc engine that was entirely satisfactory, though the Renault engineers were criticised for not giving their motor an OHC head, unlike Peugeot’s also-new-for-1965 car, the 204.
And with only 55hp, the car wasn’t exactly fast. This was addressed with the TS version in 1968 (1565cc, 83hp) seen above and later with the TX (1647cc, 93hp), the latter also sporting a 5-speed manual transmission.
From the start, Renault decided to lean hard towards comfort and practicality. The suspension was set to be as soft as could be, which made the car take on a lot of body roll if pushed hard. That was the point: the R16 was not a sports car. Oddly enough, Lotus borrowed the 16’s engine for their Europa in 1966, and the 1565cc TS mill also made its way to the back of the Alpine A110.

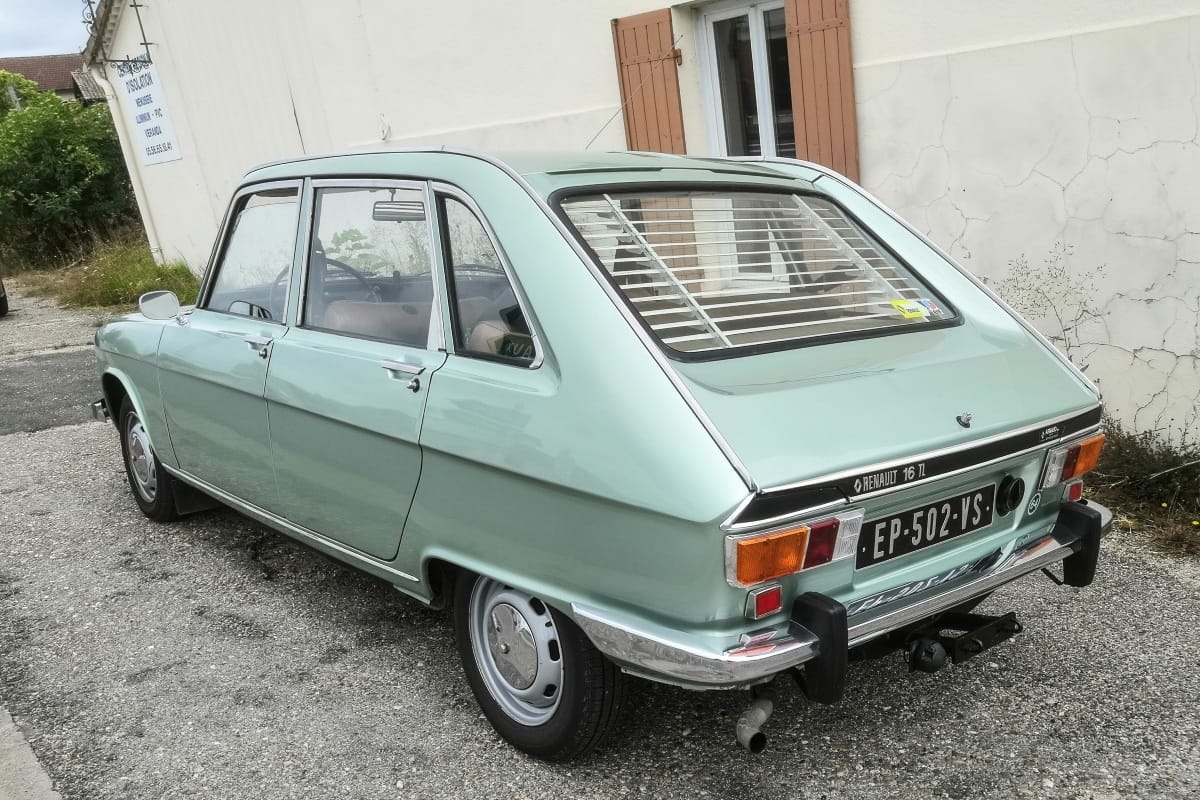

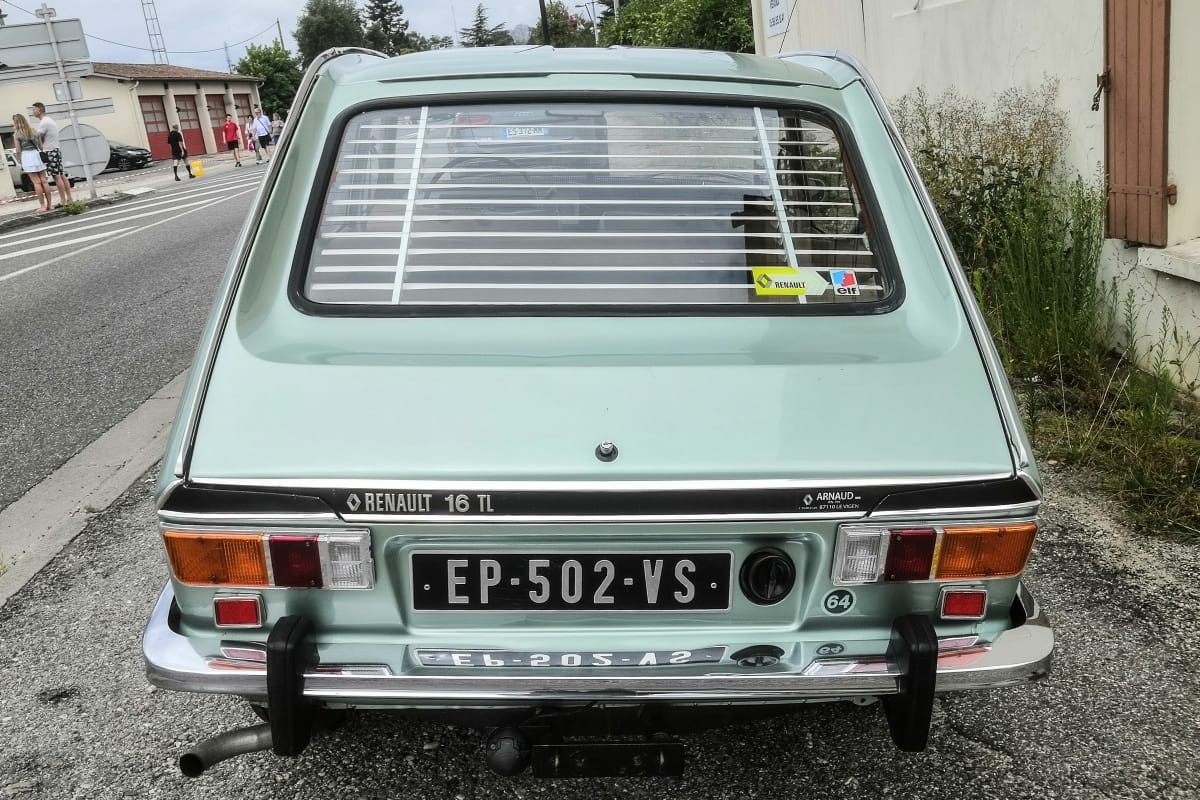

The practical aspect of the car was obvious, due to the rear hatch. It still took a little getting used to on this segment: only the Autobianchi Primula could boast a similar half-saloon/half-wagon body at the time. But the many and clever ways the siding and folding seats could be rearranged were a huge selling point, something that no carmaker had offered until then.

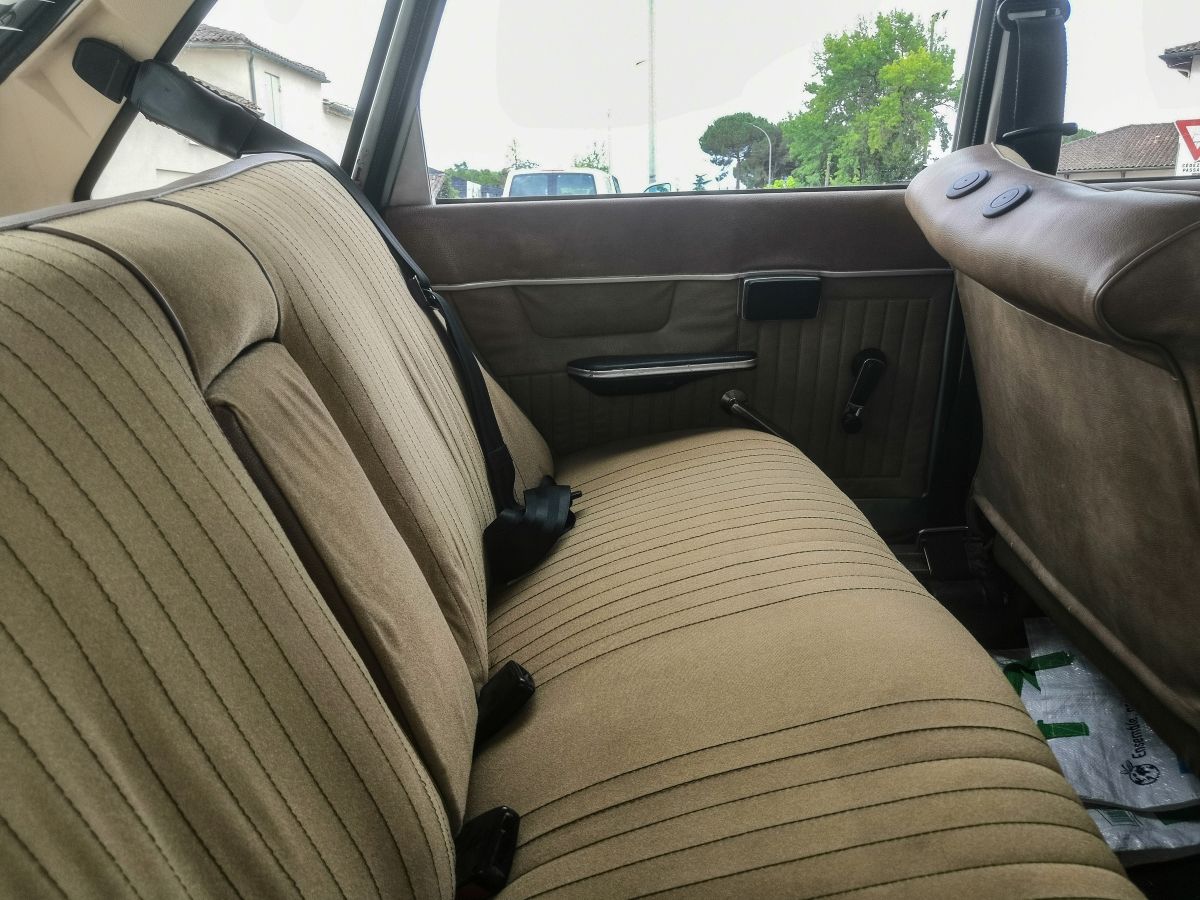

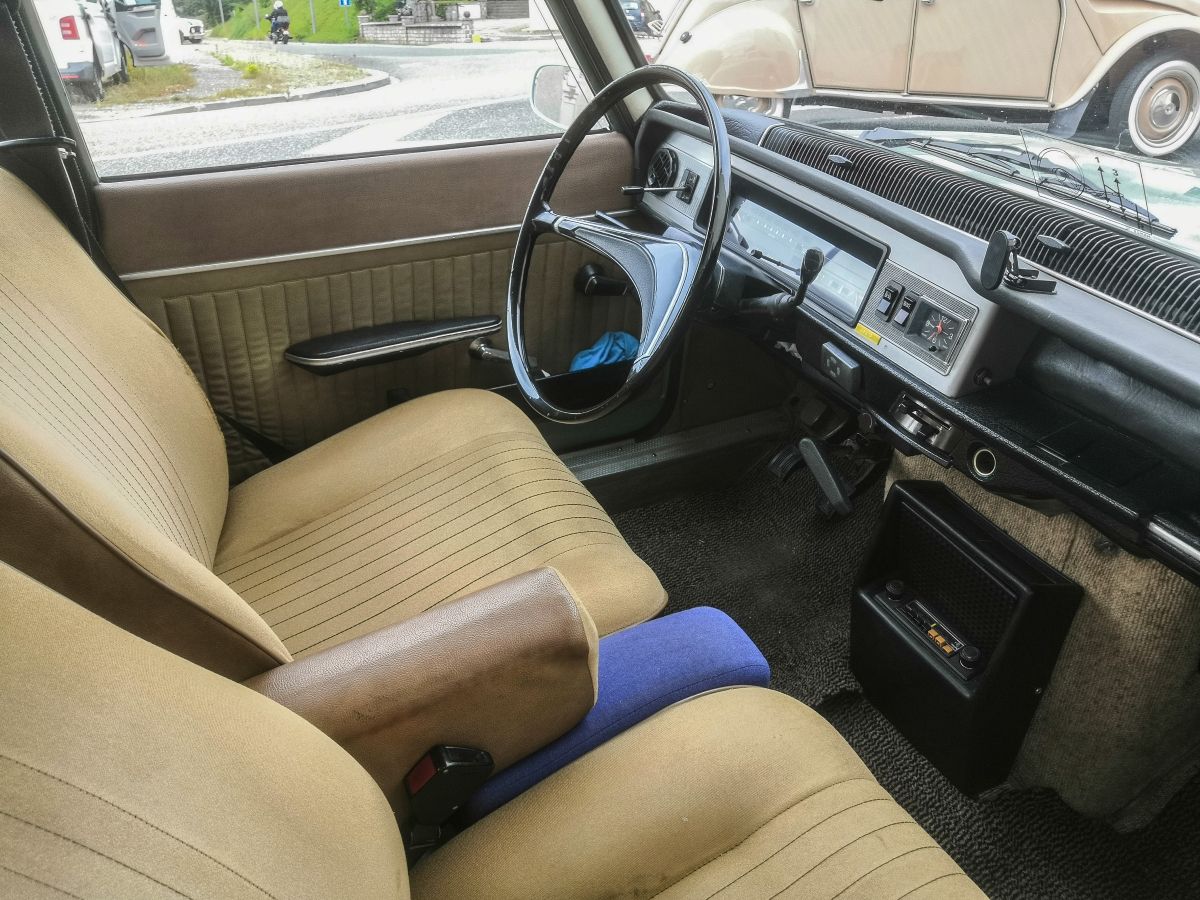

This modular interior was made possible by two features. One was a flat floor, thanks to the FWD layout and the torsion bar suspension. The other was a very high roofline, brought about by a novel way to manufacture the unit body: the roof panel was welded to the side/door frames and topped by a metal trim piece, turning the traditional roof gutters into a sort of upward-facing rail. Citroën had been working on a very similar system, which they unfortunately neglected to patent – unlike Renault. The Mercedes “pagoda” roofs of the W113 did not employ this construction method, but their effect and philosophy were in the same ball park.
The R16 was not a success in North America, despite Renault’s efforts. In Europe, though, it did very well. Another one of the car’s bag of tricks was a sophisticated HVAC system that performed a lot better and homogeneously than its contemporaries, apart from very high-end cars. Renault sort of had to go for a column gearchange, as it made it easier to reach the transmission, sat ahead of the engine. By the early ‘70s, this was anachronistic in European cars, but it could not be helped. The R16 TX is therefore one of the few cars that had a 5-on-the-tree, alongside some Alfas and the later model Citroën ID/DS.
Super-soft suspension and squishy seats made for a relaxing ride, which some said was almost equal to that of the Citroën DS. In 1971, the car had its only major styling change, which mostly affected the rear end, trading the original design’s thin cat’s eye taillights for larger rectangular bezels. There were a few little detailing evolutions elsewhere, but the only other noteworthy change was the grille becoming black plastic in 1975.
By the late ‘70s, the R16 was starting to lose steam. The lower-end TL version got a detuned version of the TS engine, said TS disappeared and the higher-trim TX carried on with its quad headlights. Automatic transmissions (an in-house design, not ZF or Borg-Warner) were available on both cars. This was to be the final range until production was halted in January 1980.

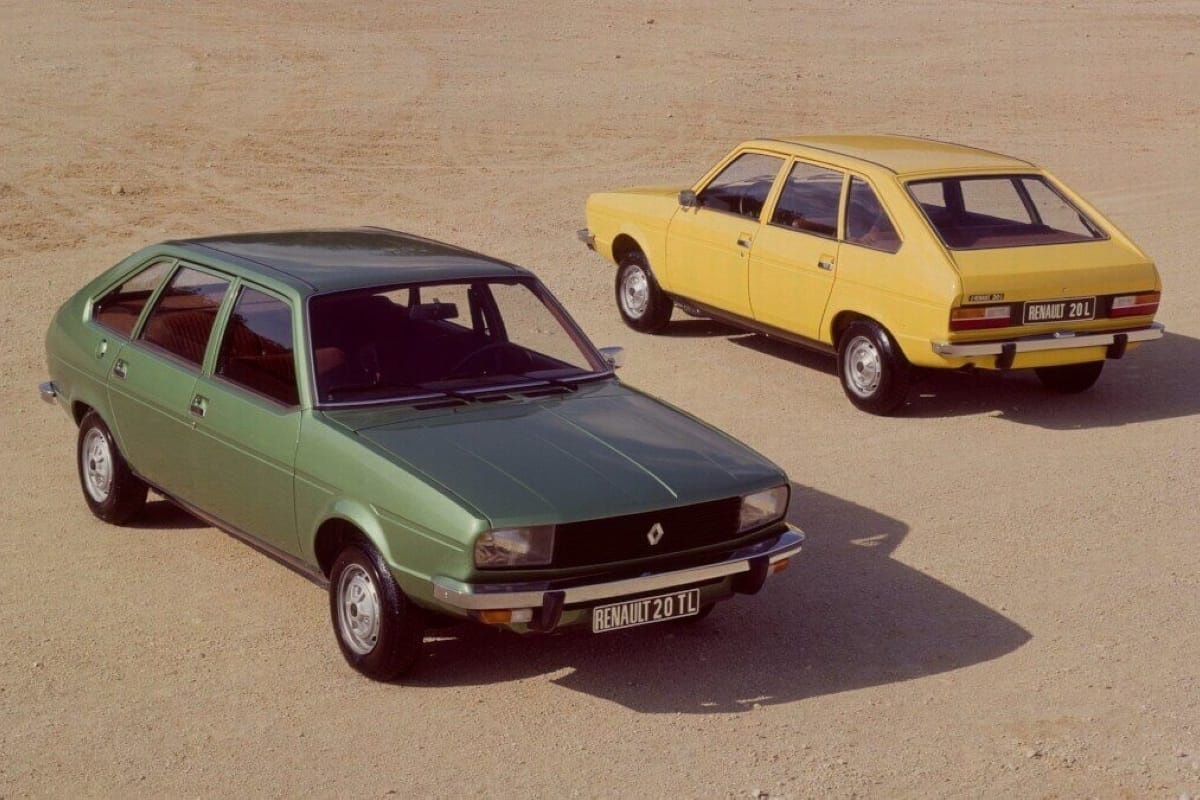

Why did Renault keep the R16 around for so long? Because they didn’t really replace it. Instead, the régie launched the R20 in 1975 – essentially a modernized R16 TX, but with ambitions in the 2-litre-and-up category. Then in 1978 they recycled the lower-end 1.5 litre engine in the R18, but that was a completely different animal, a three-box design. So there were still reasons to go for the R16, even though it was an older model. Let’s illustrate that in the usual way…

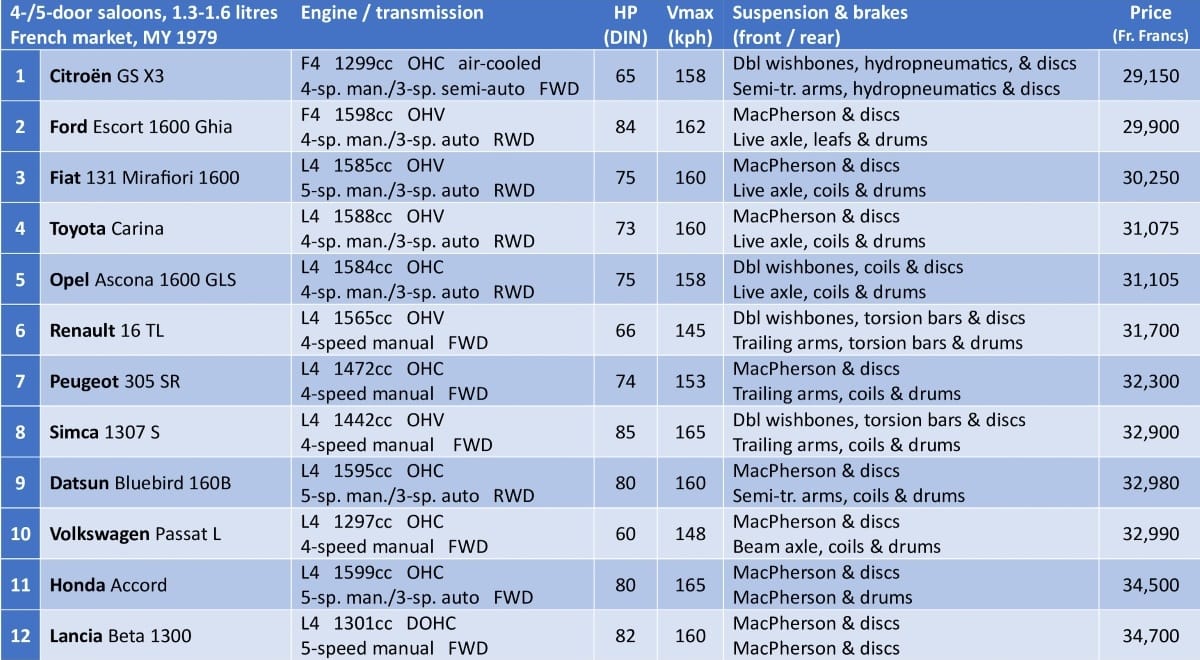

The hatch was becoming more common by 1979, but it was far from universal. The Citroën GS was going to get one the very next year. The Simca was also COTY and was probably the R16’s most dangerous rival in this market. Aside from its somewhat underwhelming figures performance-wise, the Renault still held it own in all other respects.
In 15 years, Renault manufactured almost 1.9 million of these rather amazing machines. Of course, that meant they were everywhere in the ‘80s, and their image at the time was absolutely terrible. These were known in France as “brother-in-law” cars, i.e. the kind of wheels you wouldn’t want to be seen dead in.
This lasted through to the late ‘90s at least. The overwhelming majority of R16s had disappeared by the turn of the Millennium, devoured by rust and mockery. Nowadays, though, the model is feted as one of the best designs Renault ever made. It’s not easy to be right before everyone else.
