In any given era, most cars are basically similar in both looks and engineering. Only a small handful are brave enough (or foolhardy enough) to swim against the tide and say, “What if instead of A, we tried B?” One example was the 1963–1977 Rover P6, a British near-luxury sedan brimming with novel features, including a very curious front suspension that took the typical double wishbone/coil spring layout and rotated it 90 degrees, with the springs set horizontally rather than vertically. If your reaction is, “Wait — what? Why?” then read on.
The 1963–1977 Rover 2000/2200/3500 — commonly known as “P6,” its factory project number — is one of those landmark cars whose relevance to the U.S. market was pretty close to nil. It was sold here for part of its run, but it wasn’t a commercial success, and its reliability problems made a bad impression on the few affluent American buyers who’d been intrigued enough by the Rover’s design and engineering to pay more than $4,200 for one.
The development and history of the P6 have been covered at greater length elsewhere, so I’m not going to try to recount it here except to note that the P6 had many advanced features, including four-wheel disc brakes (inboard in back), a De Dion rear suspension (which is worth its own post), unit construction with Citroën-like unstressed body panels bolted onto a sturdy welded “base unit,” and an unusual front suspension.

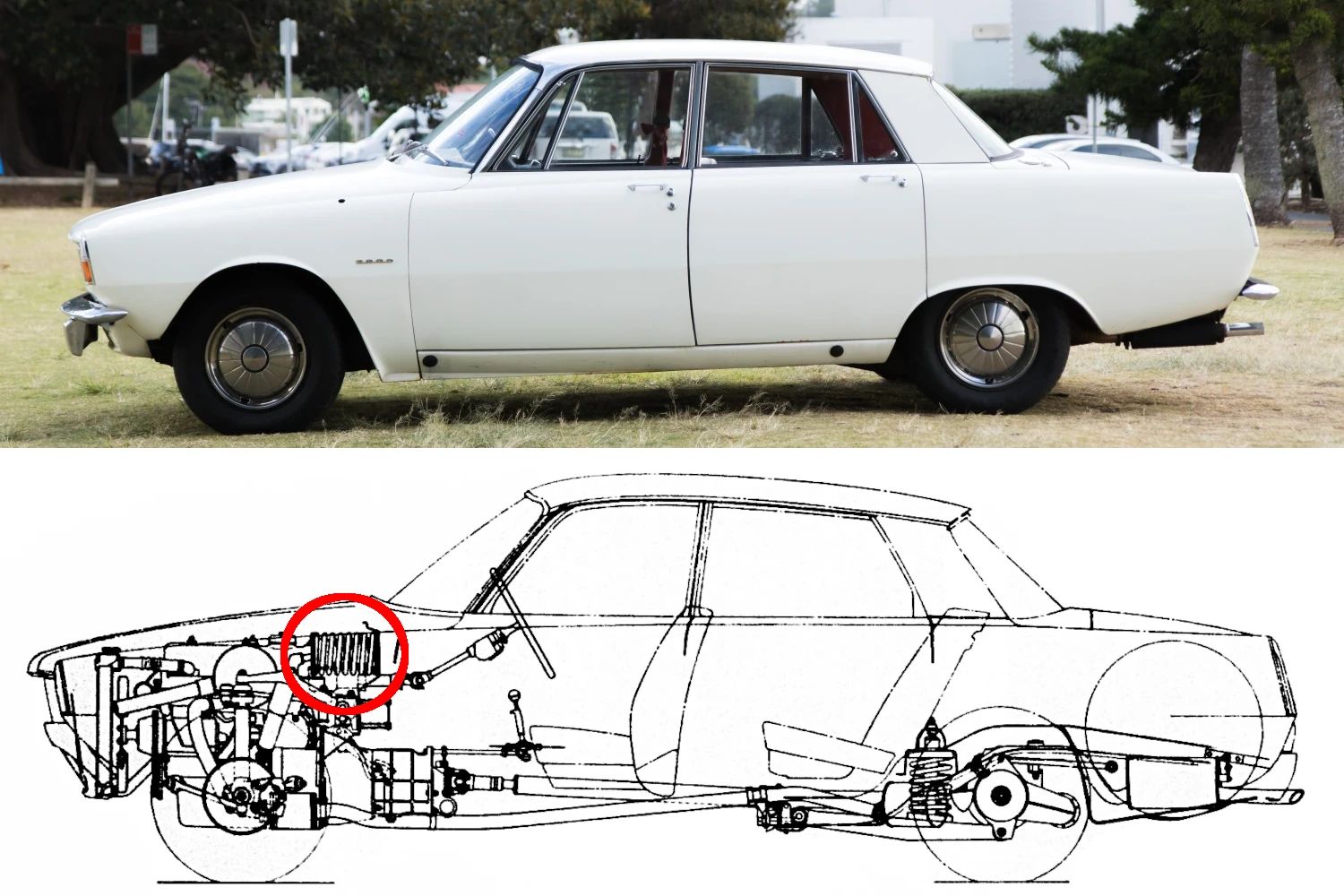

A dry tabulation of the major specifications of the Rover P6 would probably say that it had double wishbone front suspension with coil springs — which was true, and in no way novel in 1963. However, Rover did something quite peculiar: Instead of arranging each coil spring vertically, acting against a structural crossmember or the front fender apron, they turned the springs sideways, mounting them high and horizontally so they would act against the cowl/dashboard bulkhead (which the British call the “scuttle”).

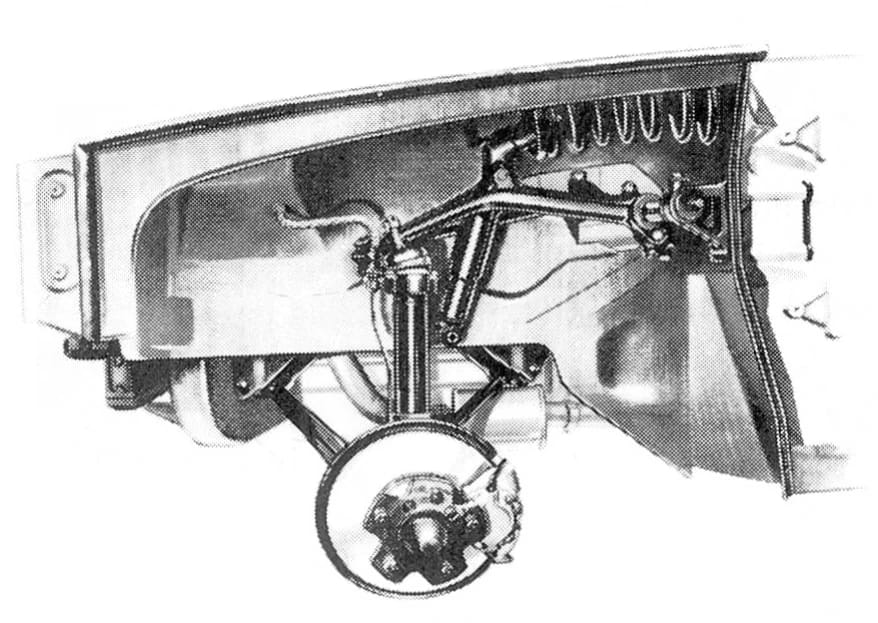

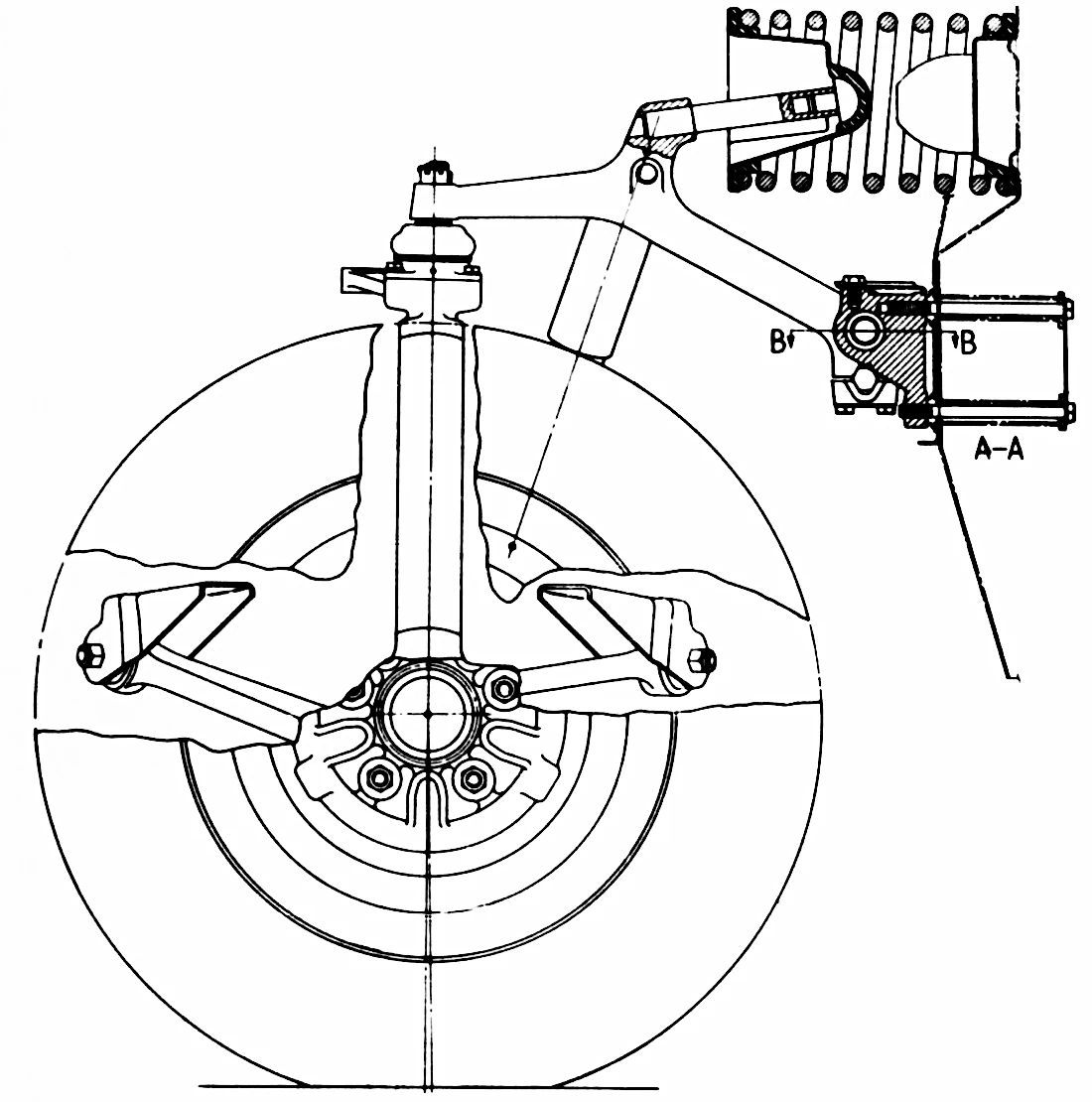

Making sense of this layout from diagrams and cutaway illustrations is challenging: Aside from its horizontal springs, it appears at a glance to have a whole array of arms and links pointing in different directions to no obvious purpose. The American magazine Road Test (whose technical editorship was not strong) mistakenly thought it was some kind of weird derivative of the MacPherson strut, which it’s not. (The P6 DOES have an upper wishbone, although it’s arranged in an unusual way.)

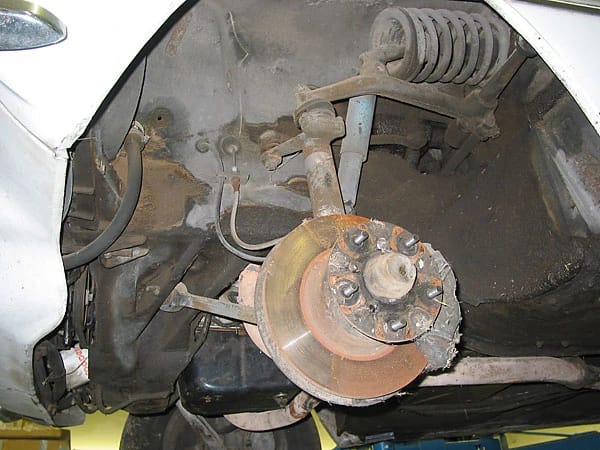

Let’s start with the easy part. The lower “wishbone” is formed by two forged steel arms, connected by a greaseless ball joint. Their inner pivots have flexible rubber bushings that allow them to shift fore and aft to help absorb bumps. The outer end of the more forward of these two lower arms carries a socket for the lower ball joint of a tubular swivel pillar (sometimes called a “kingpost”), which carries the wheel spindle and serves as the steering knuckle. At the top of that pillar are the upper ball joint and the steering arm, which is an integral part of the forged ball joint housing. The steering tie rods move the arm, which causes the pillar to swivel on its ball joints and turns the wheel.
The role of the upper wishbone is played by a forged steel control arm, which pivots on a rubber-bushed fulcrum pin, bolted to the cowl with two forged steel brackets. The inside end of each control arm has a slot for the end of the hexagonal anti-roll bar, which is carried between the arms along the very back of the engine bay. (You can just make out the anti-roll bar under the left control arm pivot in the photo above.) If one upper control arm pivots more than the other, it twists the anti-roll bar.
The leading branch of the upper control arm extends forward to the top of the swiveling pillar, above the steering arm and upper ball joint. Roughly in the middle of that leading branch, there’s a lug that carries a steel pushrod. In essence, suspension loads cause the upper arm to rock so that the pushrod actuates the coil spring, which compresses against a spring seat on the cowl bulkhead. There’s a rubber bump stop that sits inside the rearmost coils.
Underneath the lug on the upper control arm, there’s an upper anchorage pin for the telescopic shock absorber (whose lower anchor is on the engine bay apron). The shock absorber works “backwards” compared to the shocks in a conventional wishbone or strut suspension, since it extends rather than compressing as the spring compresses.

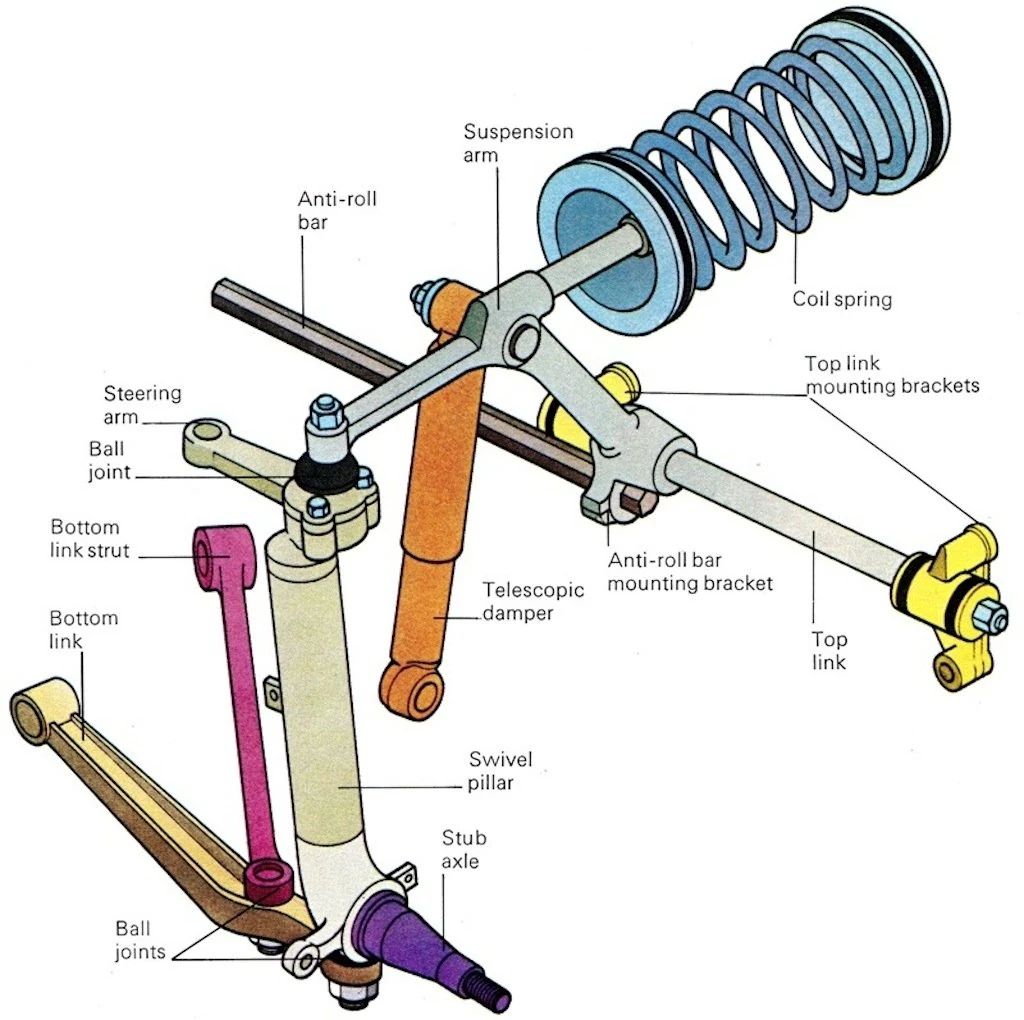

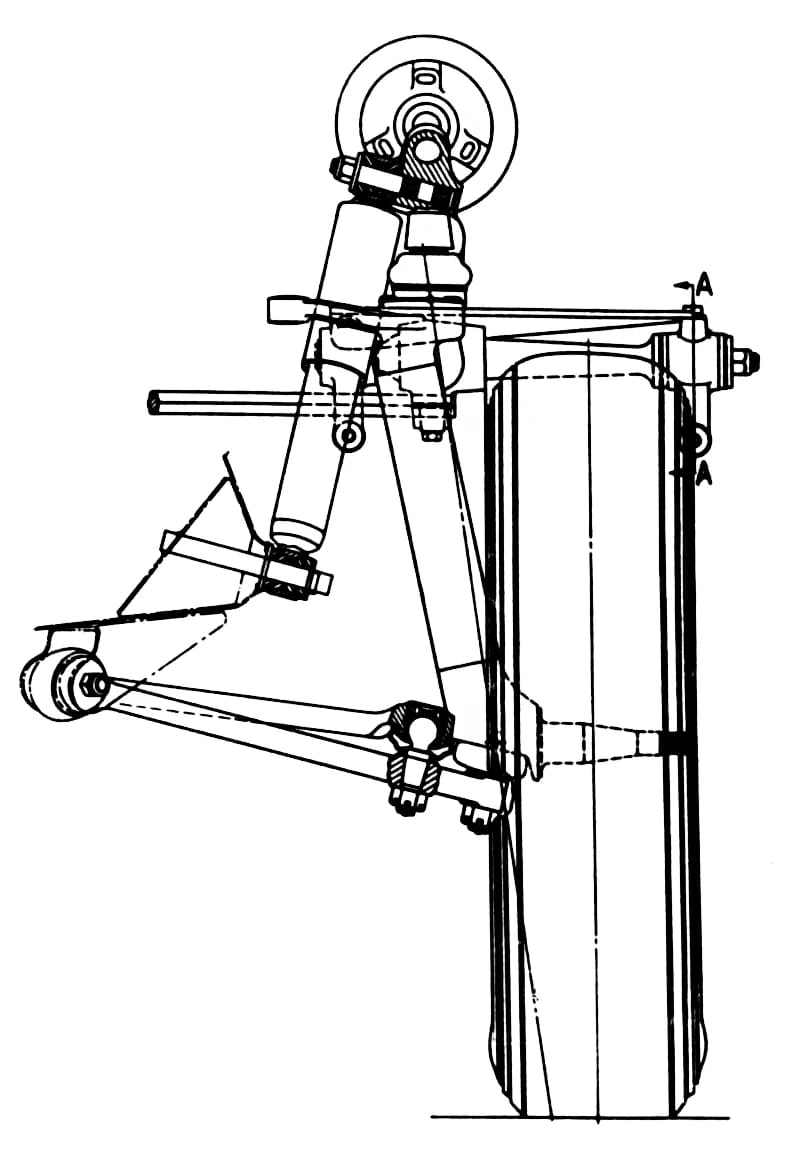

All this will probably become easier to understand with this color-coded diagram. I unfortunately don’t know the provenance of this image (the site where I found it wasn’t sure where it came from other), but it makes the interrelationship of the components much clearer. I confess that trying to visualize the motion of the arms still gives me a terrible headache, but suffice it to say that this is still a double wishbone suspension, even though the wishbones are in different planes and the spring is lever-actuated.
The range of relative motion of the control arms is enough to provide 8 inches of wheel travel. The British journal Automobile Engineer noted in their 1964 analysis that the static roll center height of the P6 front suspension is 7 inches and that the arrangement of the control links provides some anti-dive in braking by increasing the front castor angle in bump, but I’m afraid I’ll have to take their word for it. (There’s that headache again …)
I promised at the outset that I would try to explain WHY Rover adopted this curious though effective arrangement. There were several reasons for it. The first was that in this era, Rover was doing a lot of work on gas turbine engines, and in fact some aspects of the P6 design came from their experimental turbine cars. Although the P6 initially offered only an inline four-cylinder engine, Rover was still thinking that they might eventually want to install a gas turbine in this car, and the front suspension design offered lots of space for the bulky turbine power pack.

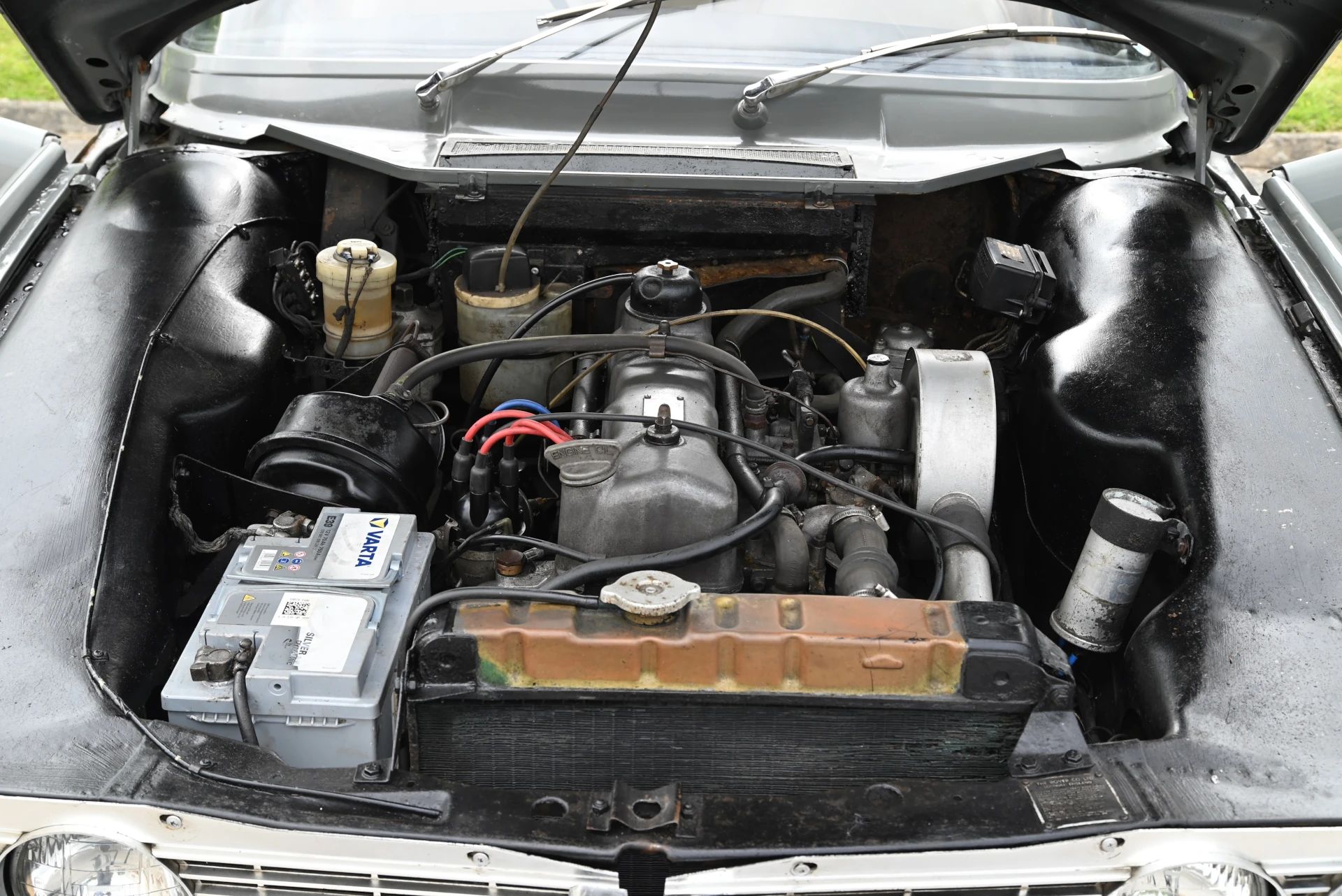

The turbine never made it to production, but Rover later installed its license-built version of the Buick 3.5-liter aluminum V-8 in the P6, whose largely unobstructed engine bay made that relatively straightforward.
The second reason for this arrangement was that it was structurally advantageous. In a unit-body car, the front suspension loads typically have to be distributed to the body structure through the front rails (either through a crossmember or through big suspension towers), which requires those members to be stronger and heavier, and tends to transmit more force through the floorpan into the interior of the car.

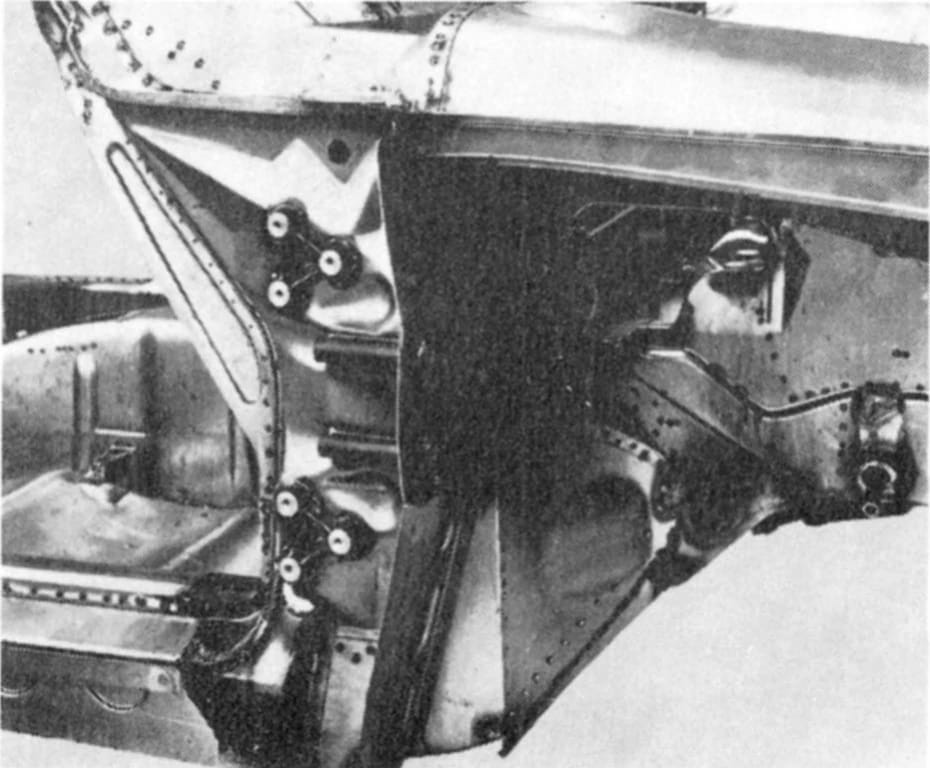

With the Rover arrangement, the spring loads are applied directly to the cowl bulkhead, the strongest and stiffest part of the whole “base unit” structure. This suspension imposes no loads on the unstressed front fenders, and all the engine bay apron structure and front crossmember have to do is support the weight of the engine, support the inner pivots of the lower control arms, and carry the lower anchor of each shock absorber. Nearly all of the vertical loads created by the wheels and suspension go straight back into the cowl.
Third, Rover argued that arranging the front suspension in this way was better for safety. The front and rear sections of the P6 were designed for controlled crush in a collision, with the engine arranged to “submarine” under the car rather than crash through the firewall. This makes it advantageous to have most of the suspension components up, back, and out of the way, which also reduces their vulnerability in minor collisions. (The cam-and-roller steering gear is mounted on the cowl for the same reason.)
Did this curious knee-and-lever arrangement actually work? Surprisingly, yes. I’ve never had the opportunity to drive a P6, but the general consensus is that it provided an excellent blend of ride and handling, especially by ’60s standards. The suspension was set up soft, with a modest average front wheel rate of 91 lb/inch, but if you accepted that the car was going to lean quite a bit in turns, the P6 would stick tenaciously while delivering a very supple ride, in the manner of the better French cars. As far as I’ve ever heard, the unusual front suspension layout presents no unusual wear or service issues, although of course the rubber bushings and tubular shocks do eventually wear out.
So, if this layout worked well and offered packaging advantages, why wasn’t it more widely adopted? The usual reasons: $$$ (or rather £££) — remember all those forged steel components I mentioned? MacPherson struts or Rambler/Falcon/Mustang-style high-mounted coil springs require bulky suspension towers, but they can get away fine with simple stamped steel control arms, with fewer parts and less complexity. Even the P6 successor, the Rover SD1, switched to conventional MacPherson struts in front.
The eternal question for most clever or promising technologies is not whether they work, or even whether they offer significant benefits, but whether those benefits are enough to justify departing from the tried-and-true formula. Too often, the answer is “no,” which might be better for shareholder value, but tends to squelch the engineering creativity that went into cars like the Rover P6. That has unfortunately made for a far more monotonous automotive scene.
