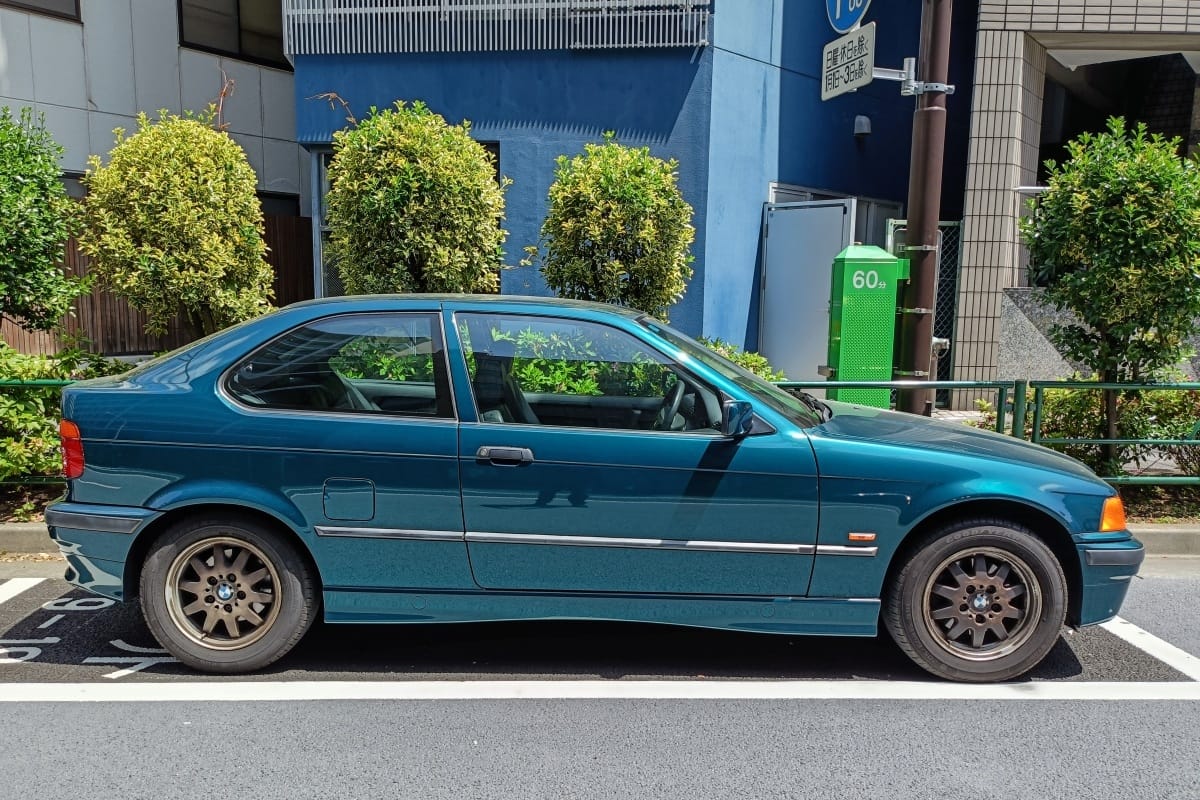

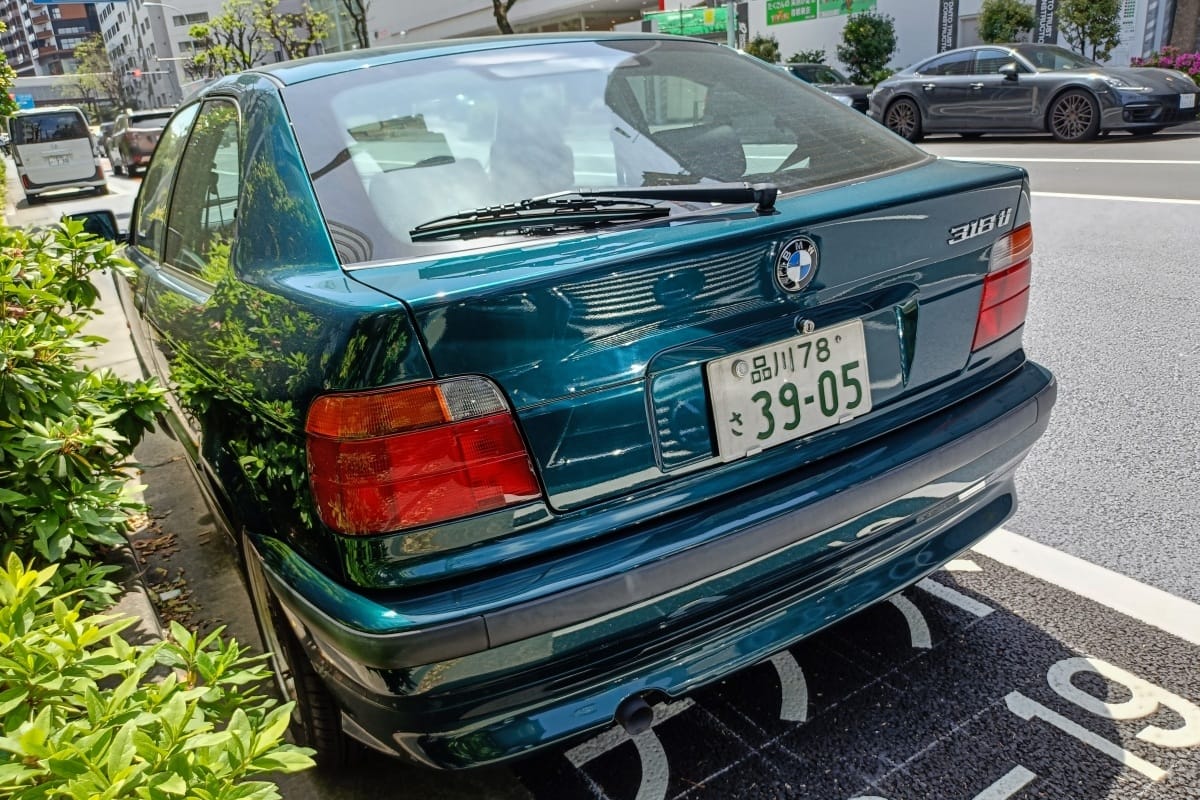

Ever looked at the E36 3-Series BMW and thought it could use a lot less rear overhang? Well, neither did I, but someone down in Munich obviously did. And ever since this car was launched in 1994, a lot of head-scratching has taken place to figure out why it looks so strange from certain angles. But from a financial/sales point of view, it was certainly attractive.
The market case behind the baby BMW was a sound one. The 3-Series had grown quite a bit by the ‘90s and BMW were in danger of leaving behind a lot of the bottom end of their clientele, whom they had carefully cultivated since the launch of the Neue Klasse in the early ‘60s. That meant a smaller car, with an engine below 2 litres, but keeping the same layout as the standard 3-Series. Chopping the rear end off was one reasonably efficient way to solve this conundrum.

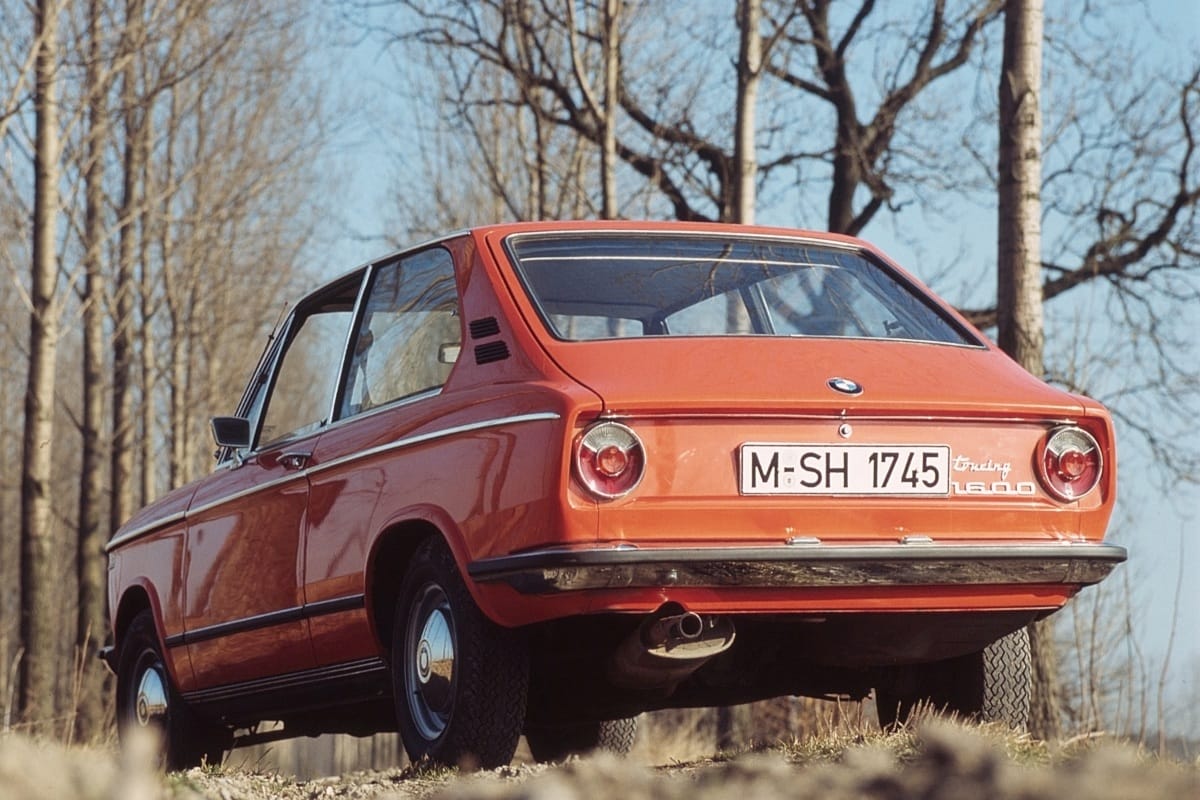

This wasn’t BMW’s first hatchback, either. That would have been the 1600/1800/2000 Touring of the early ‘70s – a car I remember fondly from childhood, as a neighbour of ours had one for ages, long after rust had claimed the overwhelming majority of them.

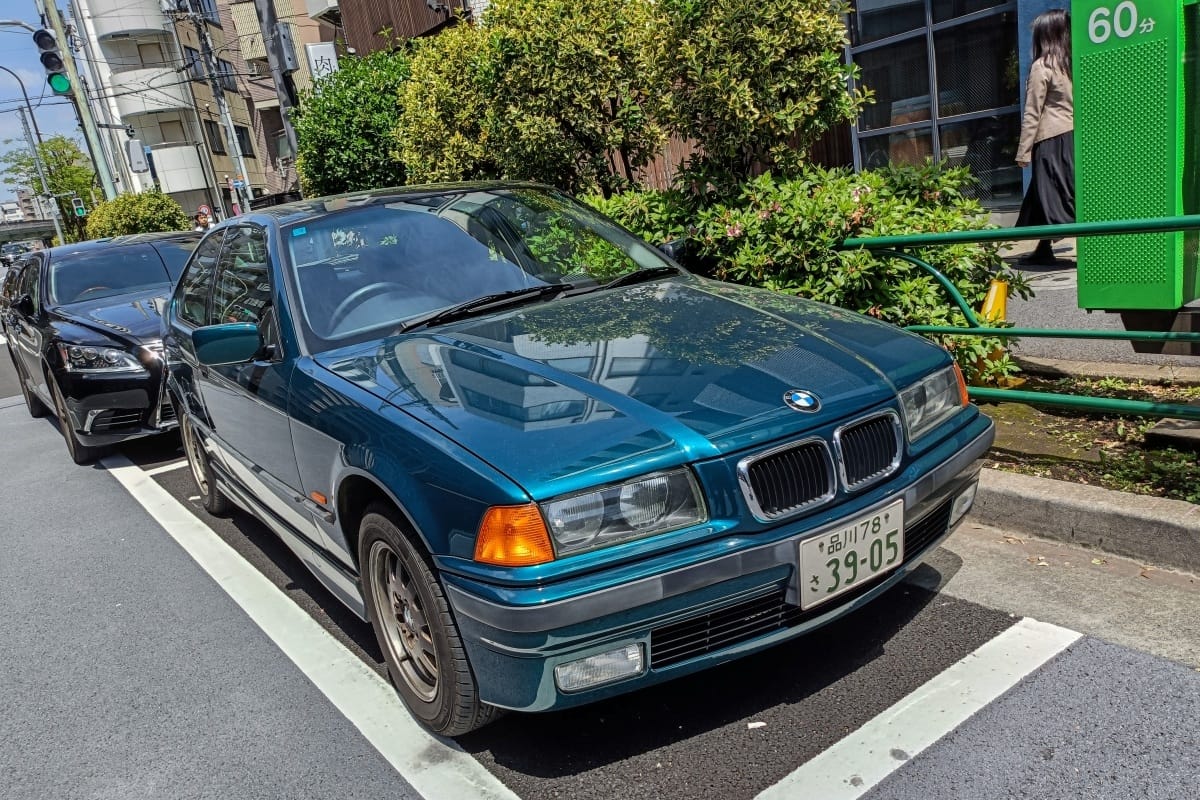

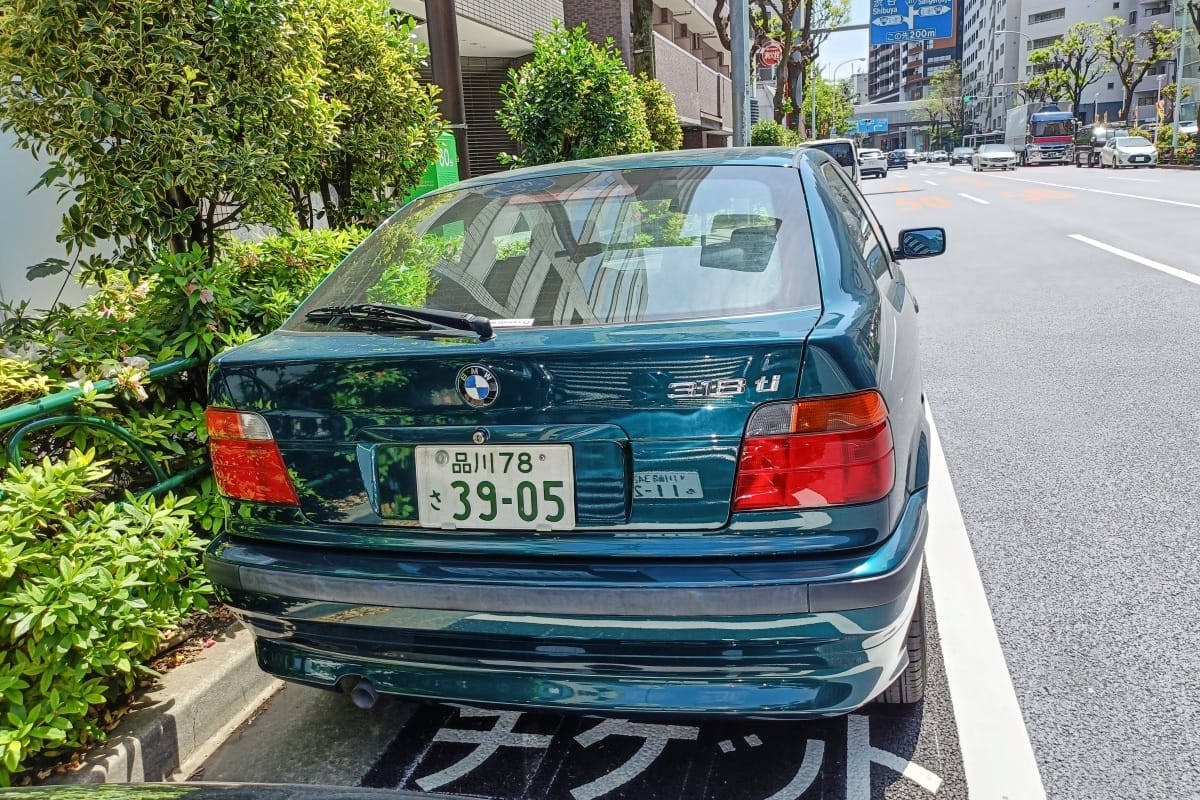

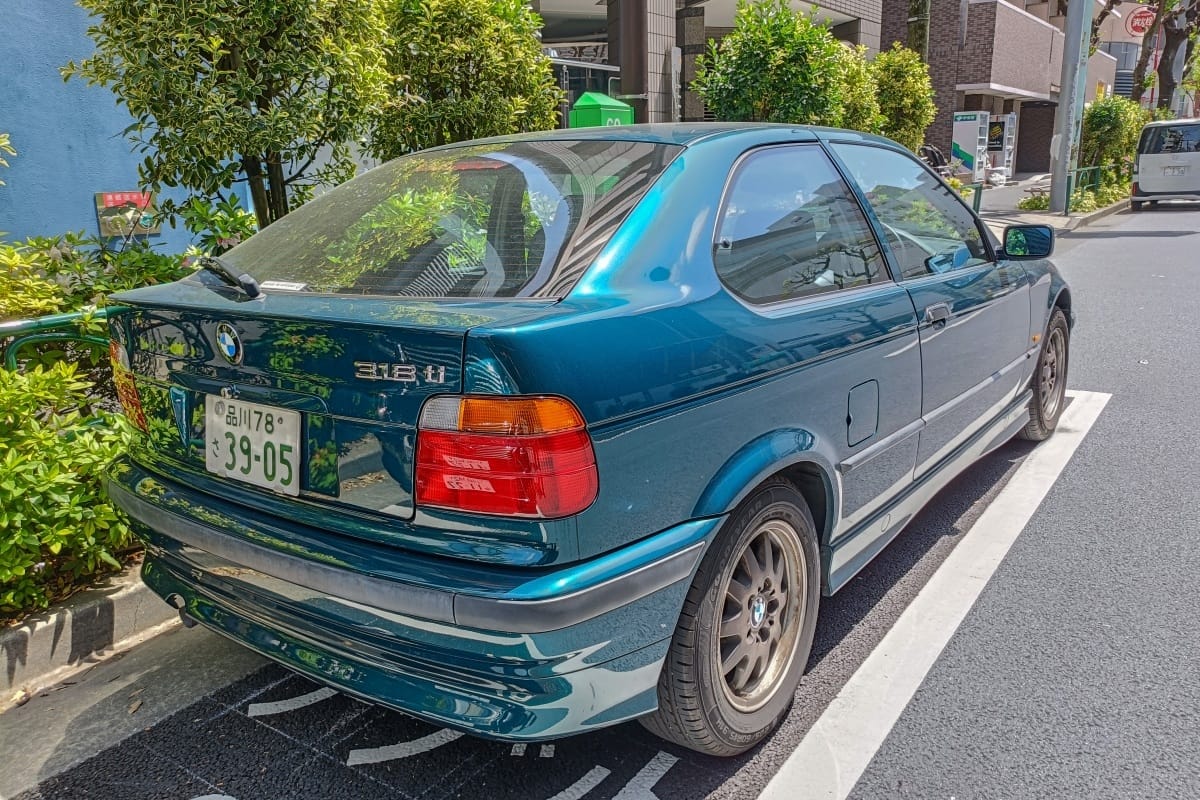

Admittedly, the compact E36 was a somewhat different animal, in that the old Touring was not shorter than the -02 it was based on, it just had a fastback roofline. The E36 Compact, as it became known, was a rather more Frankensteinesque contraption. Everything up to the B-pillar was pure E36. Aft of that, things got a little weird: the rear of the body was obviously novel, but it went deeper than that.
The E36’s brand-new multilink rear suspension (a.k.a the “Z-axle”) was ditched in favour of the previous generation’s semi-trailing arms setup. BMW’s claim that it was a space-saving measure is a little suspicious, as said measure was not used for the E36 wagon, but only for the compact hatchback. It was likelier a cost-saving measure, as the real aim of the baby Bimmer was the lower end of the market, lest we forget. Less car, less space and less weight for a smaller price.

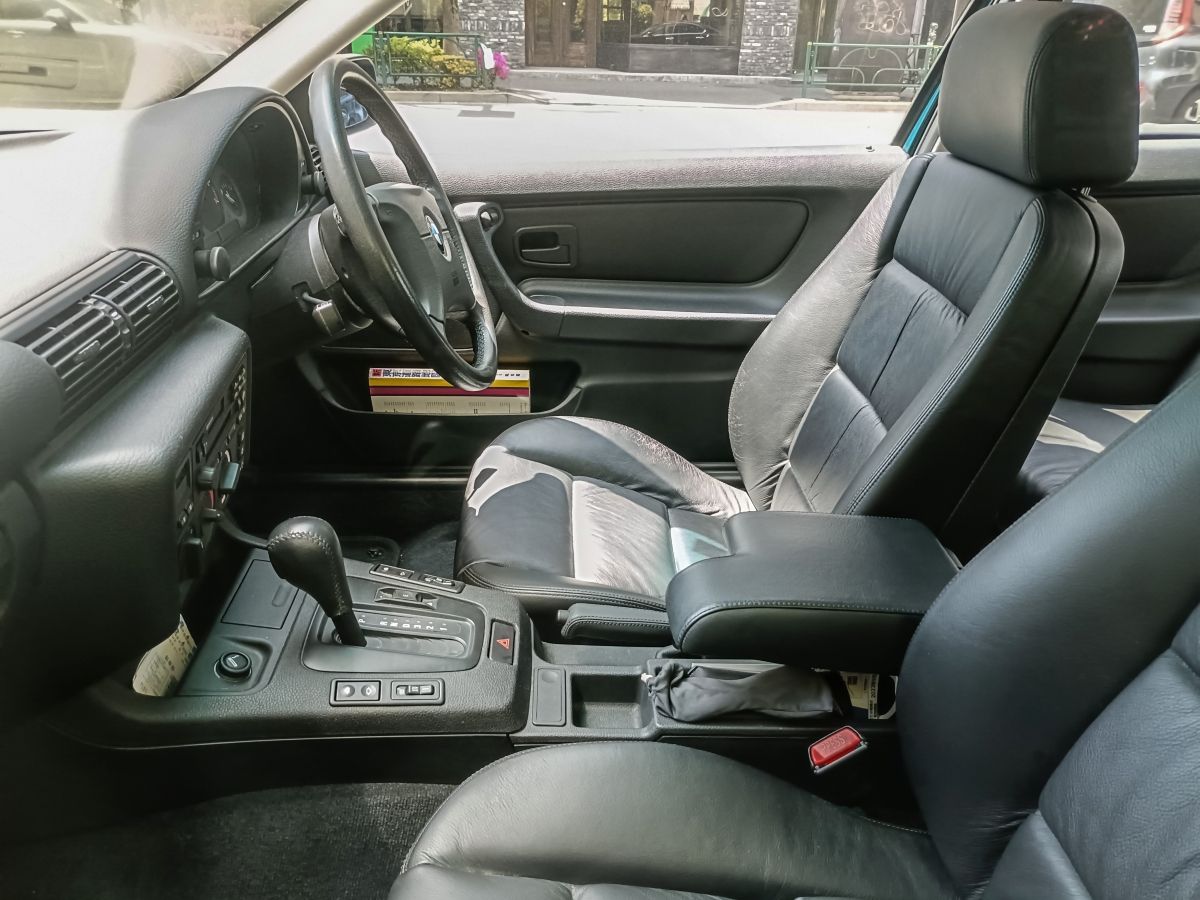

This philosophy is plainly illustrated by the interior, which has a more Volkswagen ambiance to it than the typical BMW, though this particular car, being a Japanese market model, is pretty well-optioned. European E36 Compacts were usually a lot more basic inside than this, most being ordered with manual transmission, no A/C, cloth seats and keep-fit windows.

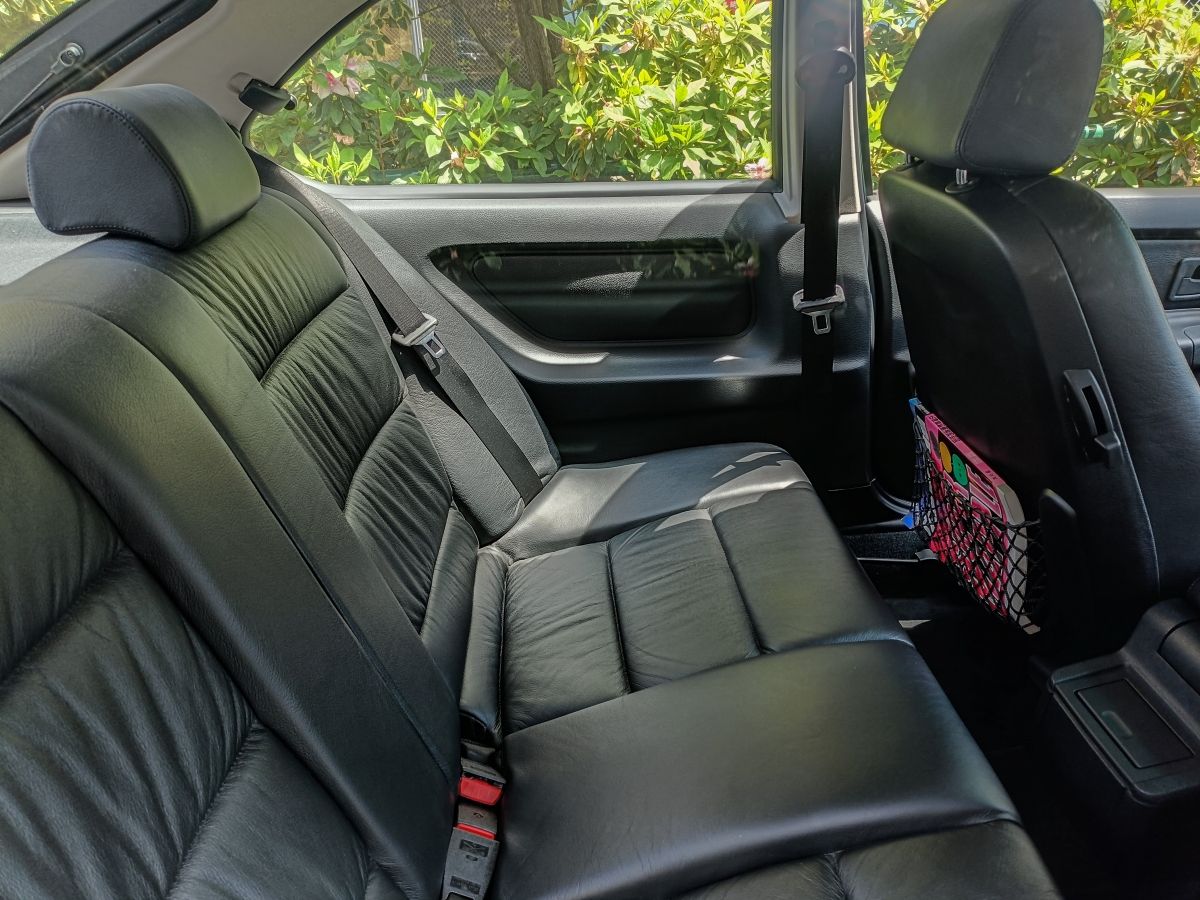

No matter how many boxes one ticked on the option sheet though, the rear passengers were going to be short on legroom. That’s ok, it was part of the Compact’s compact, if you’ll pardon the feeble pun.

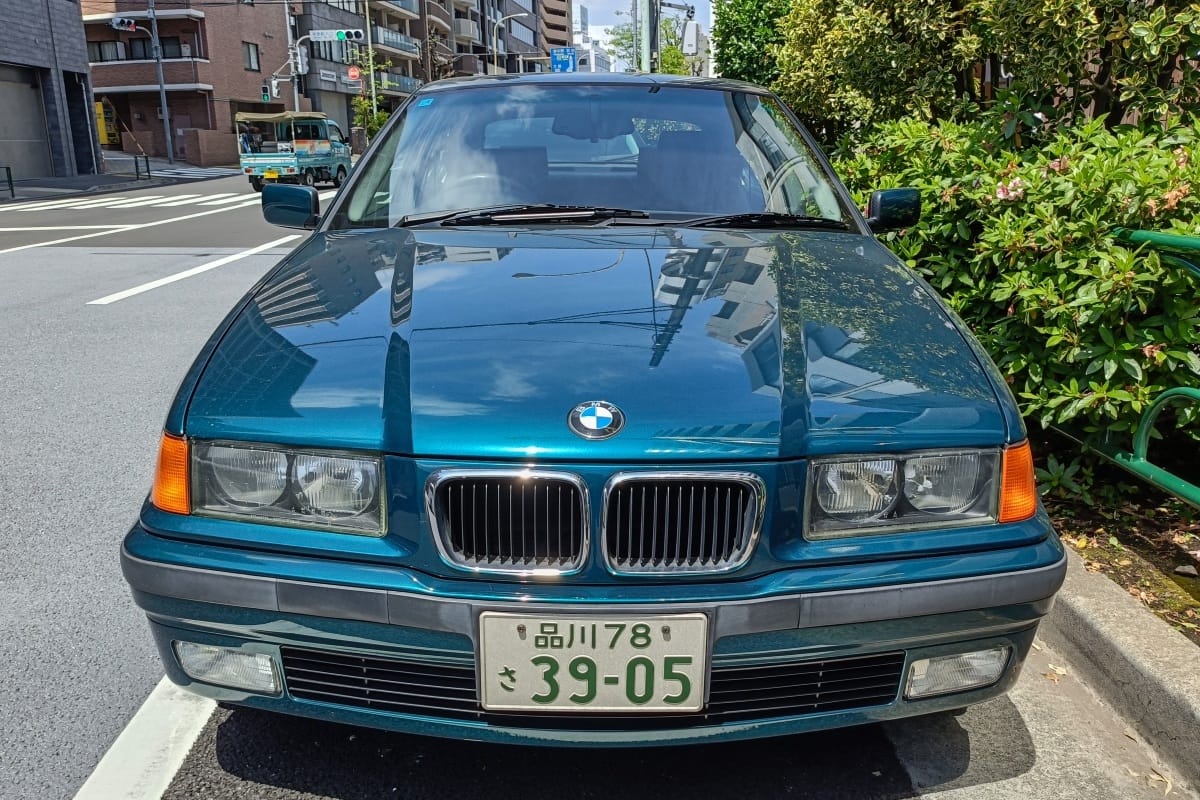

The issue with the E36 Compact was more that it failed to gain traction in North America, where it was a notable sales dud. But that was not unexpected by BMW themselves. Their ambitions in that market were very low. The E36 Compact was aimed at the likes of the VW Golf / Audi A3, the Alfa 145 or Peugeot 306. It competed with those rivals directly with its choice of engines (1.6 and 1.8 litre 4-cyl. petrol – 100hp and 140hp, respectively, or the 90hp 1.7 litre turbo-Diesel), though the spicier hatches outgunned the BMW in the power department. BMW’s answer to that was its RWD drivetrain and, well, pure kidney grille prestige.

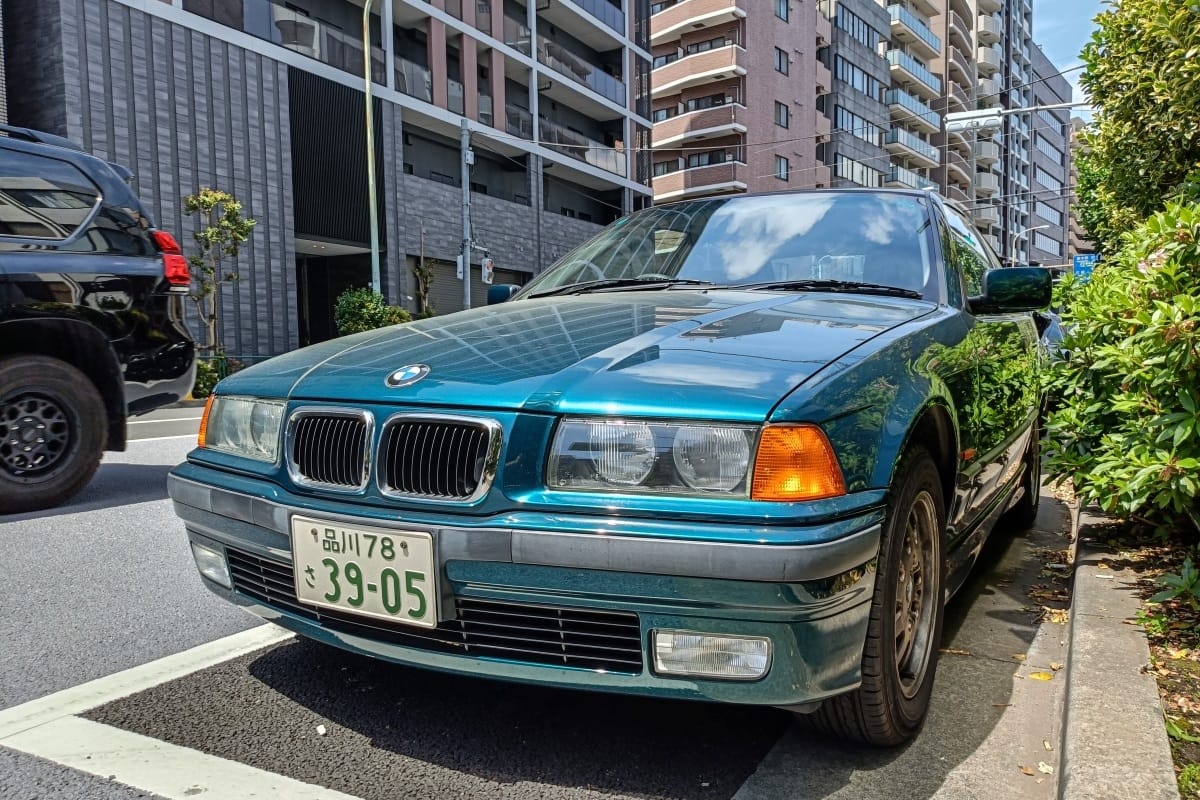

Our feature car is a post-facelift 318ti, so under that long hood lies a 1.9 litre, still good for 140hp; the 316 got a de-tuned 105hp version of the same engine in 1999. There was a high-performance model in the (stubby) shape of the 323ti, which had a 170hp 2.5 litre straight-6, but that really was a harder sell in places like Japan, where anything over 2000cc has to be taxed quite heavily. At least the E36 Compact was able to fit within the smaller ”5-number” car regulation here.
To be honest, I’m not sure that calculation was much of a factor in the average Japanese BMW client’s purchase decisions thirty-odd years ago. Size is an important factor here – more so than tax, I believe – and the shortened body may have enabled the E36 to be up for consideration in some cases. After all, if your car has to be under 4.3 meters long because that’s all the space you have in your garage, that’s a parameter that will necessarily impact your shortlist. Not a problem commonly faced in North America, I guess… But in Europe and Japan, a small BMW makes sense. Hence why the E46 that followed in the 2000s also sprouted a Compact hatch, though this time it was not exported across the Atlantic.
The 318ti was deleted from the range in 1999, whereas the 316 and 323ti carried on through the 2000 model year. The E36 Compact was notable as being the last BMW saloon to feature the classic semi-trailing arm suspension that was a direct descendant of the Neue Klasse. The Compact’s platform was also used for the Z3 roadster/coupé, which outlived the E36 by a few years and was a genuine global hit. With the Z3 and nearly 400k hatchback saloons sold worldwide, the whole Compact program was a net positive for its maker, lacklustre US sales notwithstanding. Butt reduction surgery is rarely pretty, but it apparently can be successful.
