In my recent posts about the structural design of the Falcon and Fairlane and Mustang, Cougar, and Maverick, I mentioned that (until about 1971) all these cars used the top of the fuel tank as part of the trunk floor. This type of “drop-in” gas tank has been frequently criticized as a safety hazard. Here’s why Ford originally adopted it, and why this type of tank might increase fire danger in a rear impact.
Building a Lighter Falcon (and Comet, and Fairlane, and …)
To understand why Ford adopted this type of gas tank, we must step back to the development of the original Ford Falcon in the late 1950s. As I’ve said previously, the Falcon program had extremely aggressive weight controls, something that became a Ford Motor Company fixation in the ’60s, particularly for low-end models. For context, I think it’s helpful to look briefly at how that worked.

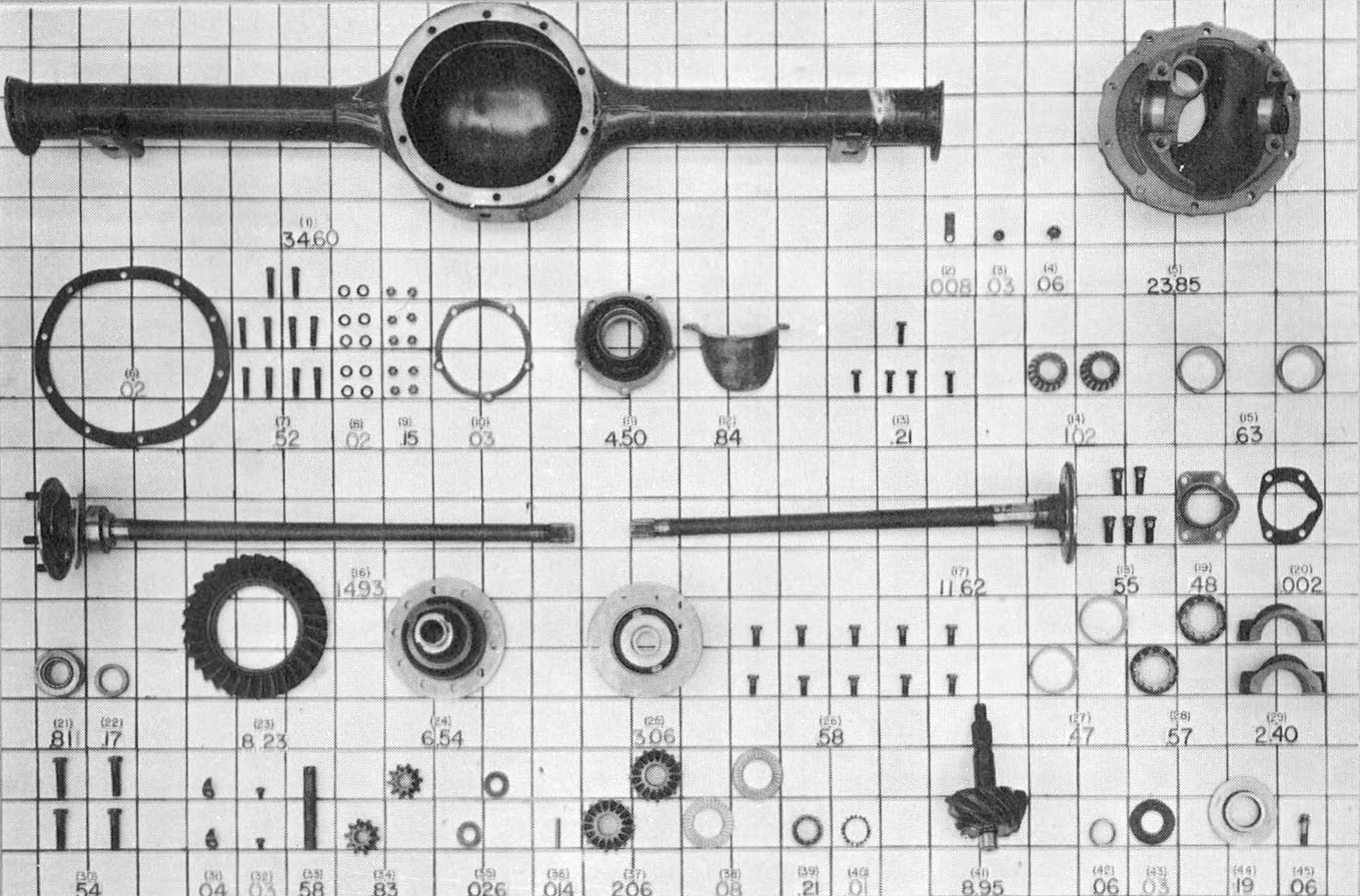

Ford’s strategy for weight control in this era involved breaking down each area of a vehicle’s design into a series of Uniform Parts Classification groups. Each part in each group would be laid out, classified, weighed, labeled, and photographed. The weight of each component and each subgroup would be then closely scrutinized by design engineers, stress analysts, and weight analysts, looking for opportunities to simplify and cut weight, down to things like reducing paint thickness and eliminating chrome garnish moldings. Ford disassembled and analyzed competitors’ cars in the same way; the early stages of the Falcon program included a detailed weight analysis of several existing compact and subcompact vehicles.
Ford then did a paper study to set target weights for all of the car’s components. These were added up to produce the target weight for the whole car, which for the Falcon was originally 2,244.3 lb.
As Ford engineers H.L. Browne and John D. Collins explained later, “The weights were a commitment, not an opinion.” Any deviation from the target had to be explained in writing. Engineers could only change a target if management decided to change the “package,” such as by changing the styling or exterior dimensions. (For instance, during development, the Falcon was widened several inches to provide six-passenger capacity.) If testing and development showed that certain parts needed to be heavier for durability or functional reasons, there was intense pressure to find other areas where a little weight could be saved, to make up the difference.

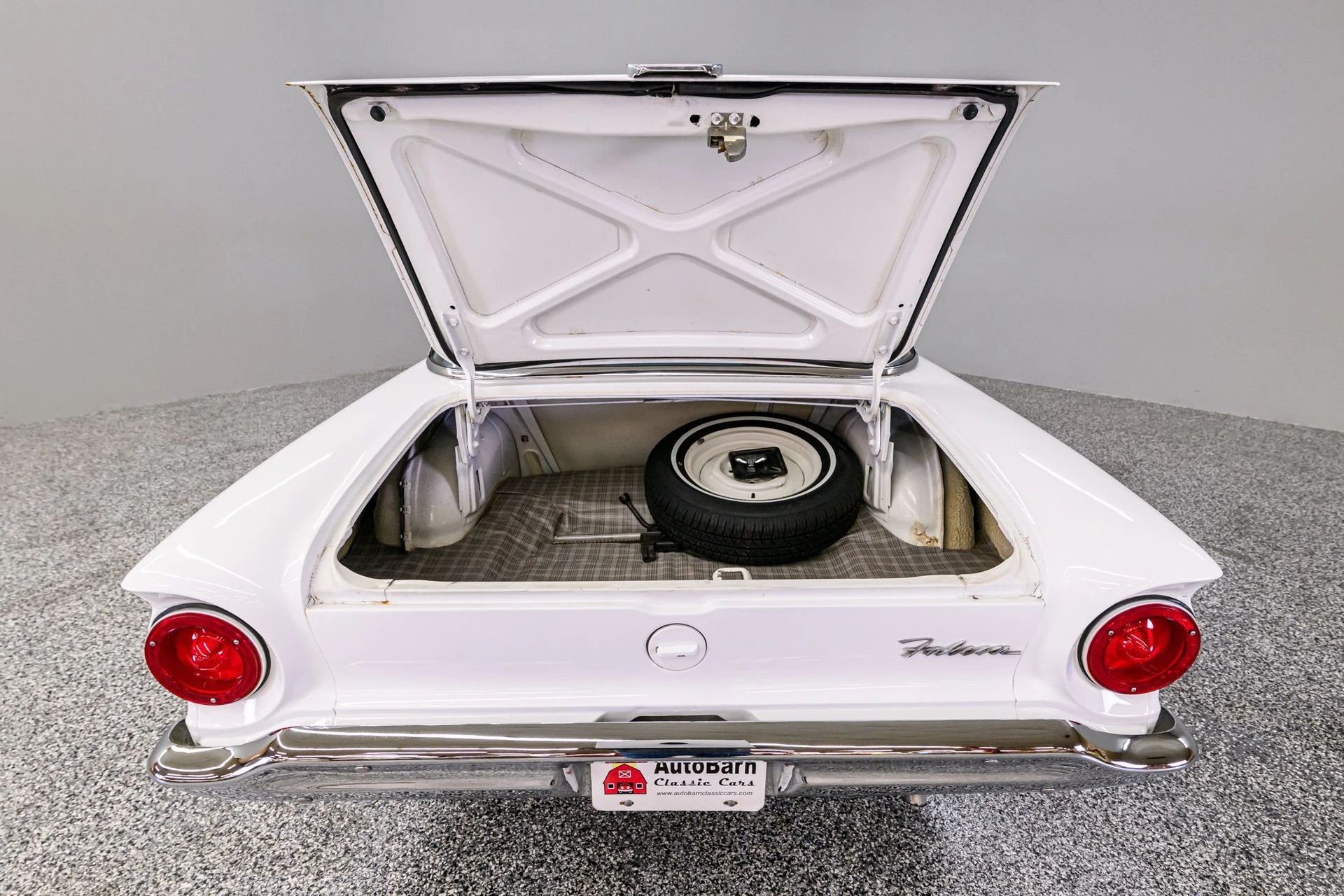

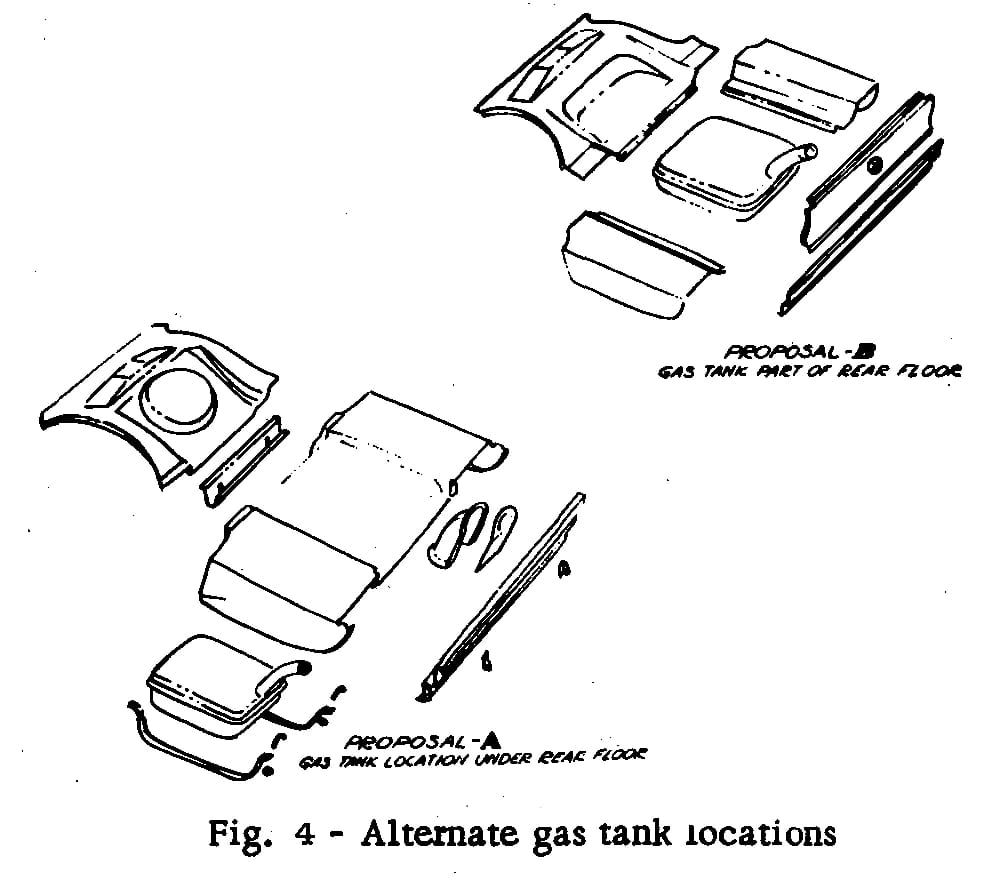

Ford considered two proposals for the Falcon fuel tank location: one with the tank mounted under the floor, held in place by straps, and one with a “drop-in” fuel tank that formed part of the trunk floor, bolted in place. In both proposals, the fuel filler was at the rear, extending through the back panel.

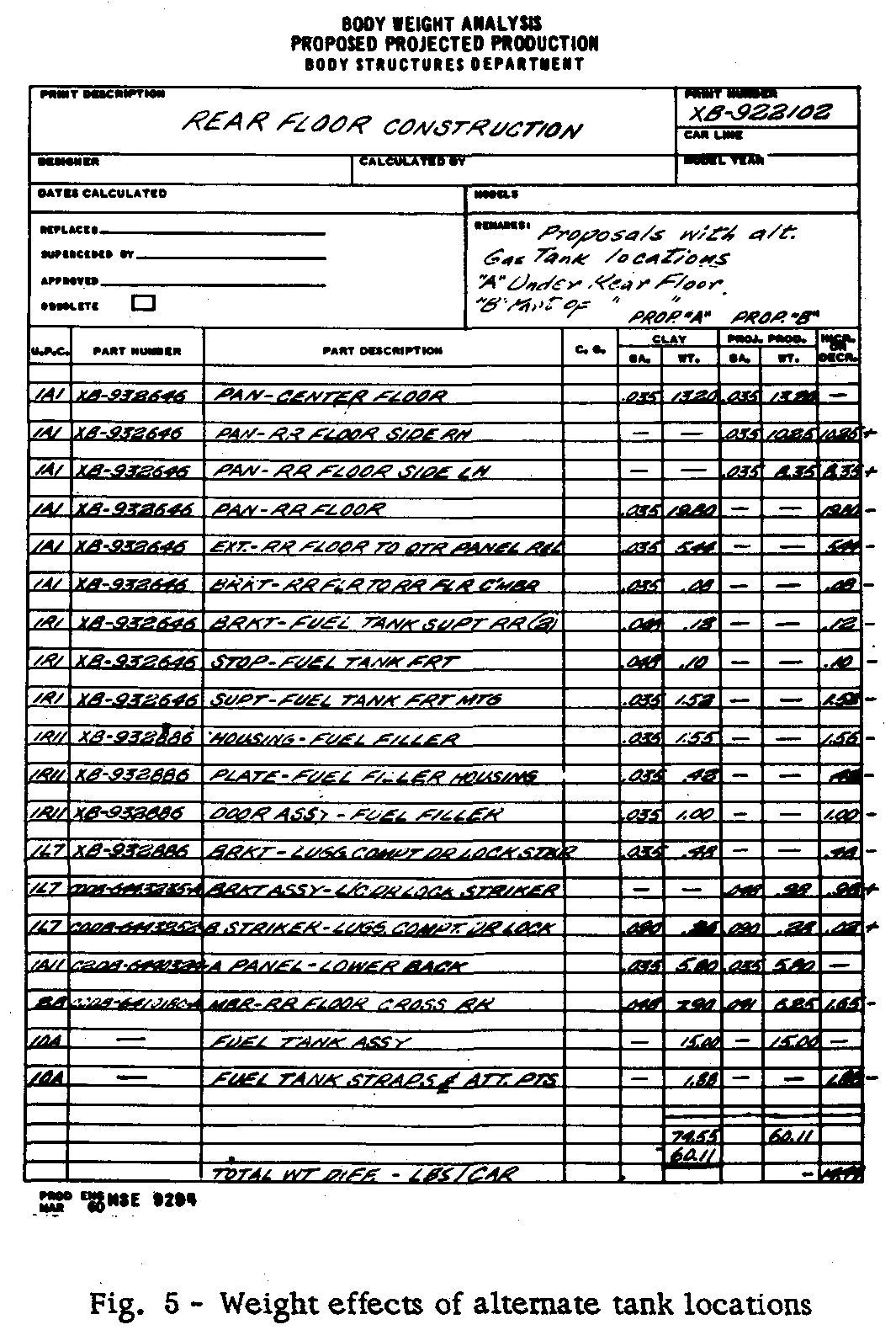

Here’s the body structures department weight analysis report for these proposals. The handwritten text is not very legible, but it shows a total weight of 74.55 lb for the under-trunk tank (Proposal A) and 60.11 lb for the bolt-in tank (Proposal B), a difference of 14.44 lb. This was not a small savings when Ford engineers were fighting and clawing to save even a pound or two.
Although the above analysis doesn’t show it, the drop-in tank also had an additional benefit of helping to stiffen the trunk floor. The Falcon didn’t have a rear crossmember between the two rear rails other than the back support panel. So, even though the fuel tank was bolted in place, not welded, the metal fuel tank added to the rigidity of the rear end, which may also have saved a few pounds elsewhere.
Given the priorities of the Falcon program, I don’t think the selection of this option was a very difficult one. It was partly a matter of cost, but it was also very much about weight, which directly affected the Falcon’s fuel economy and performance goals.

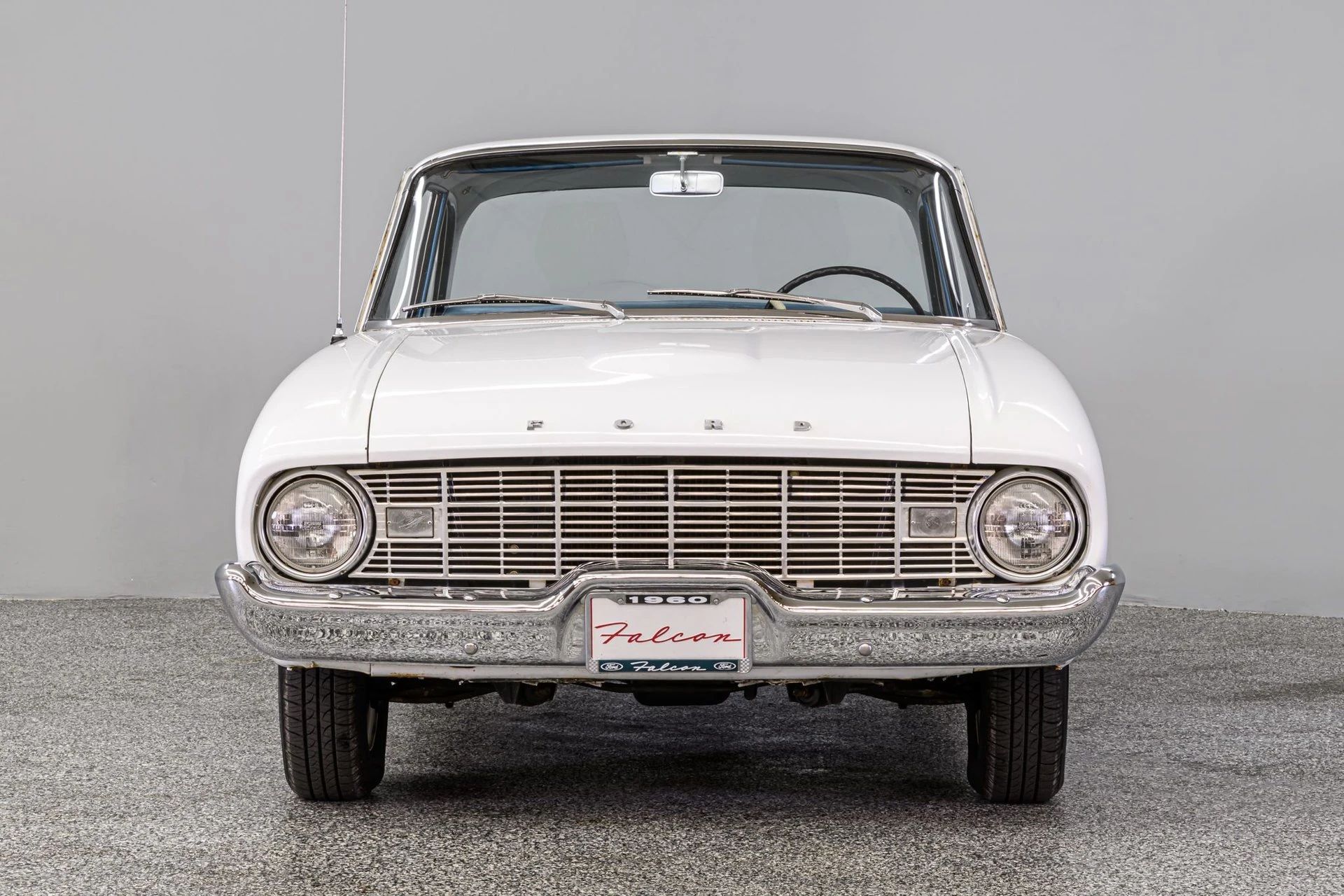

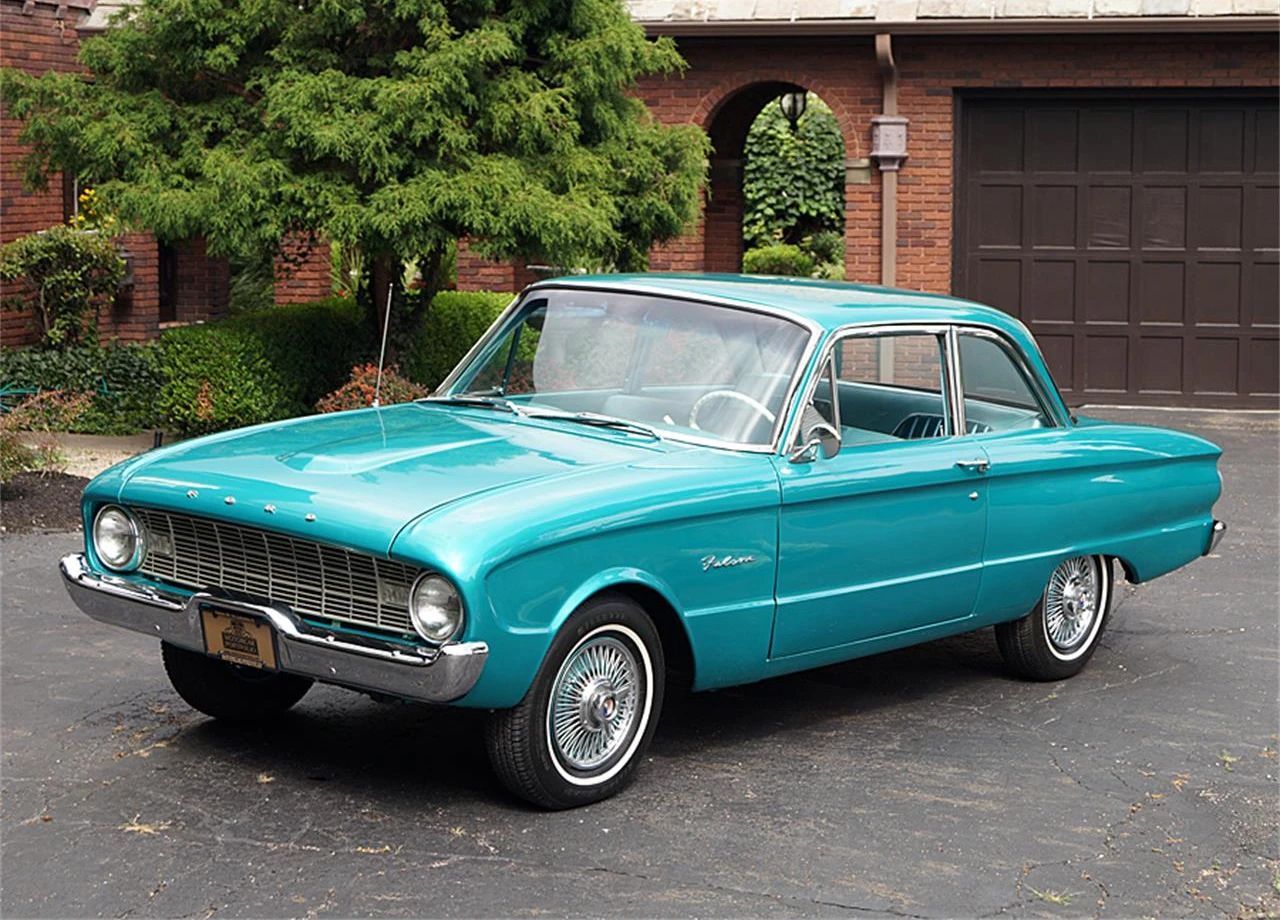

Although the package weight of the 1960 Falcon eventually increased due to design and styling changes, the 1960 Ford Falcon Tudor sedan arrived with a base curb weight of only 2,387 lb, 500 lb lighter than a 2026 Honda Civic LX, whose overall dimensions are very similar to the old Falcon. The Falcon was almost 370 lb lighter than a 1960 Valiant V-100 sedan, about 300 lb lighter than a 1960 Lark VI two-door sedan, and 148 lb lighter than a four-cylinder 1962 Chevy II 100 two-door sedan. That weight advantage was due in part to weight-saving features like the drop-in gas tank. Obviously, the gas tank wasn’t solely responsible for that, but it played a minor but significant part.

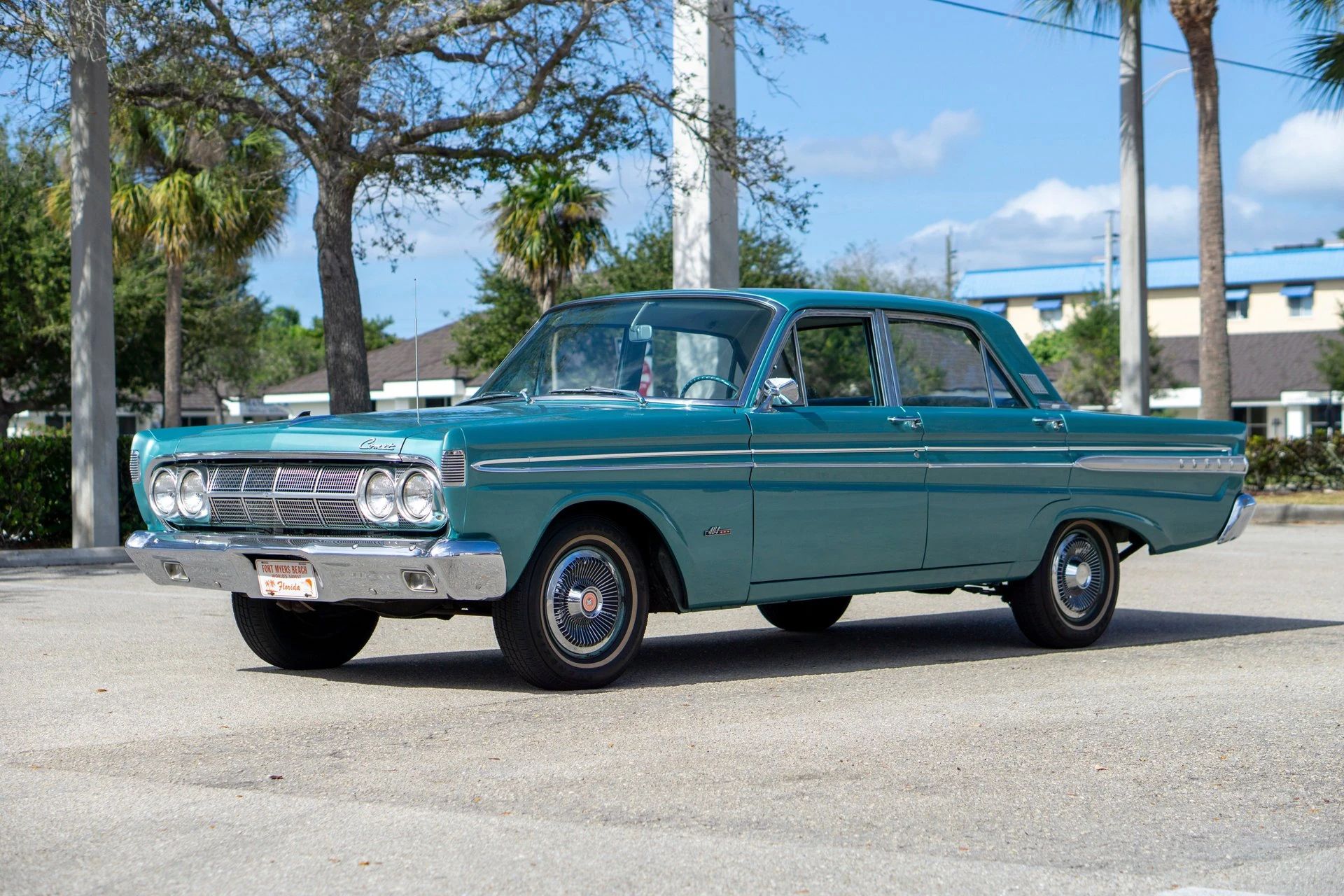

After the Falcon, Ford then carried over the drop-in fuel tank to the new Comet sedan, which was originally just a Falcon with a longer tail and a different roof.

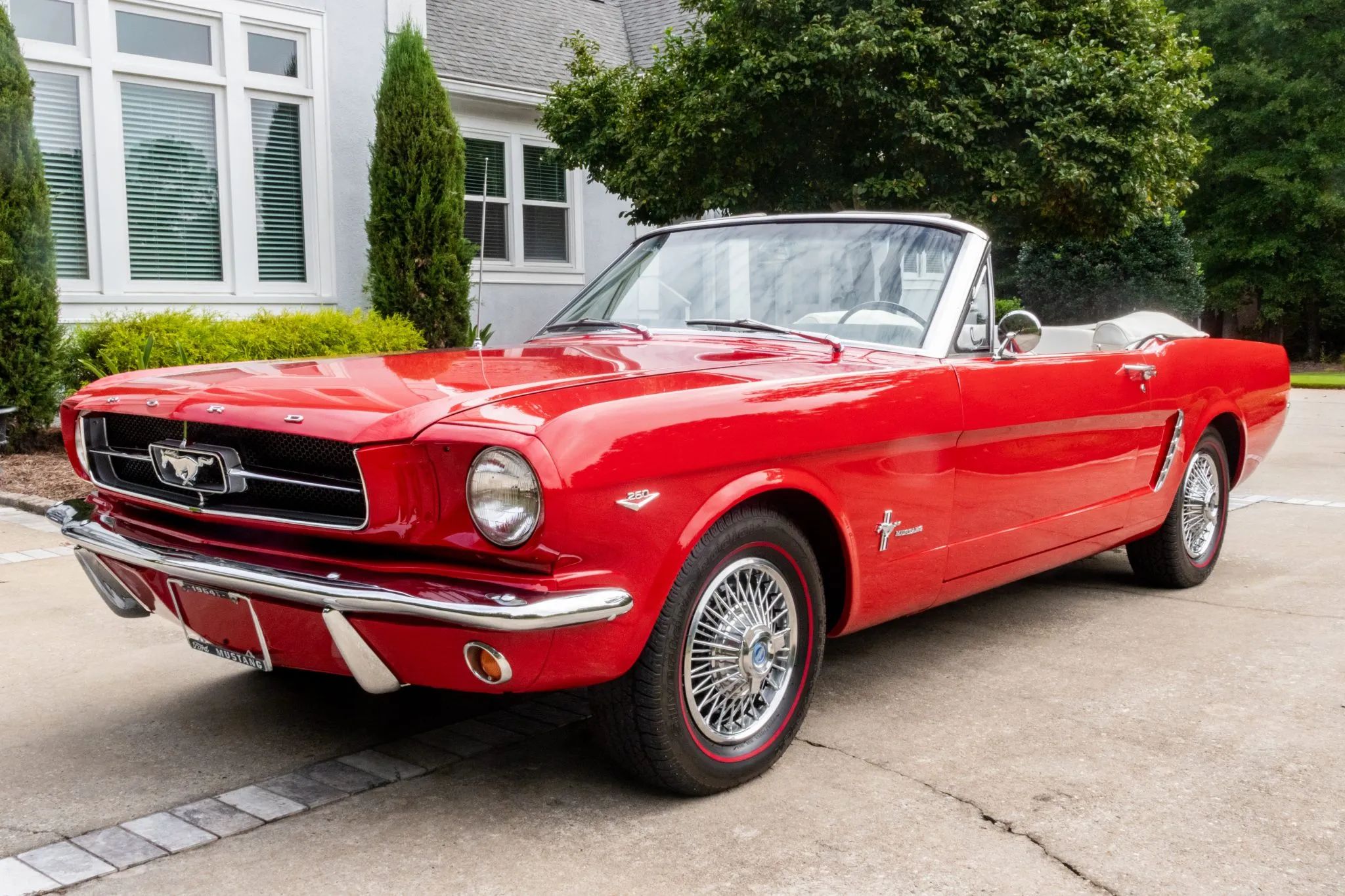

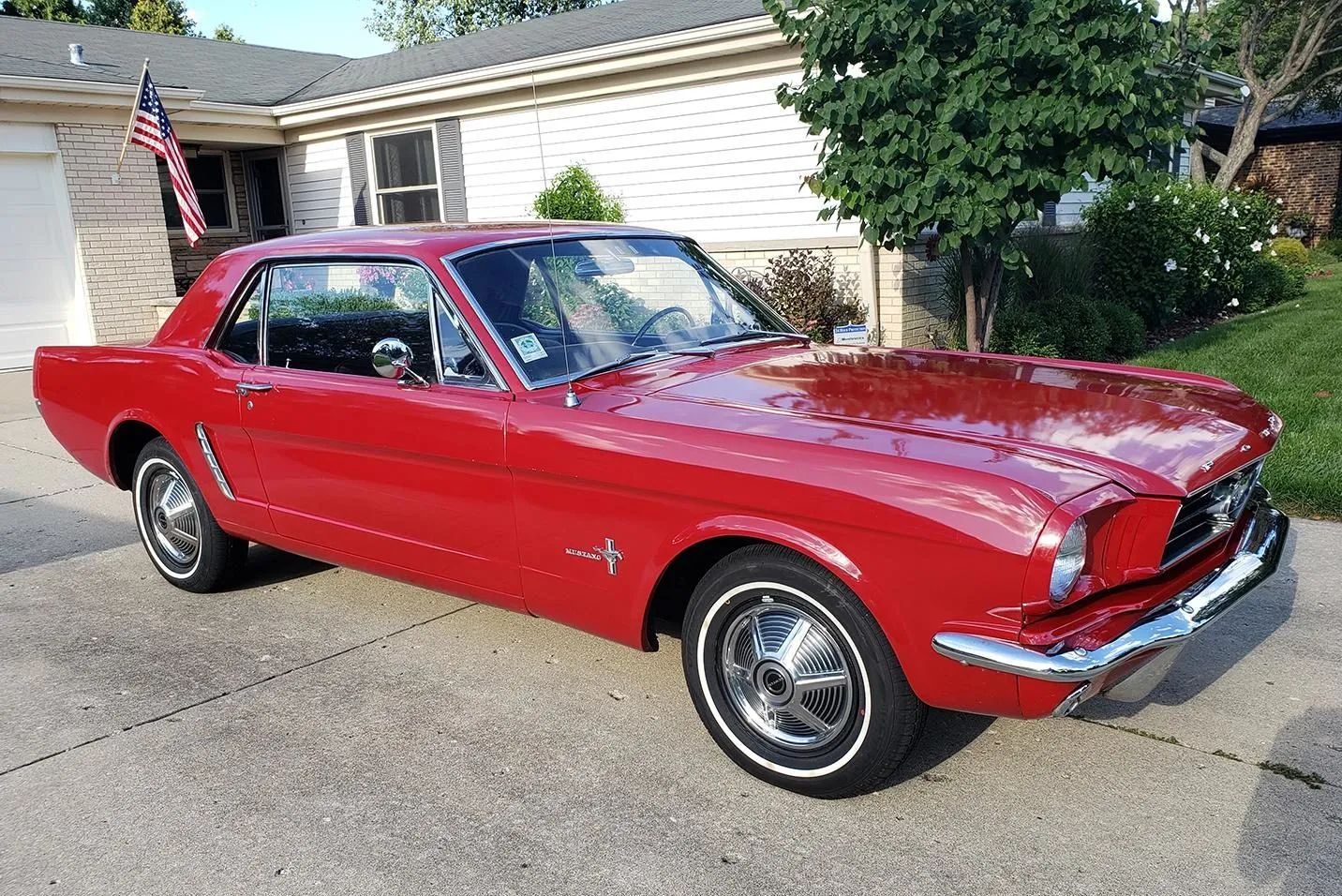

Having demonstrated the weight-saving and structural benefits of the drop-in tank, Ford subsequently adopted it for other cars, including the Mustang and Cougar, the 1966–1970 Fairlane/Falcon/Comet/Torino, and finally the 1970 Maverick. The drop-in gas tank was probably a bit cheaper than an under-trunk tank, but just as importantly, it was lighter and it stiffened the trunk floor, which remained useful even in somewhat bigger and more expensive vehicles than the penny-pinching early Falcon.

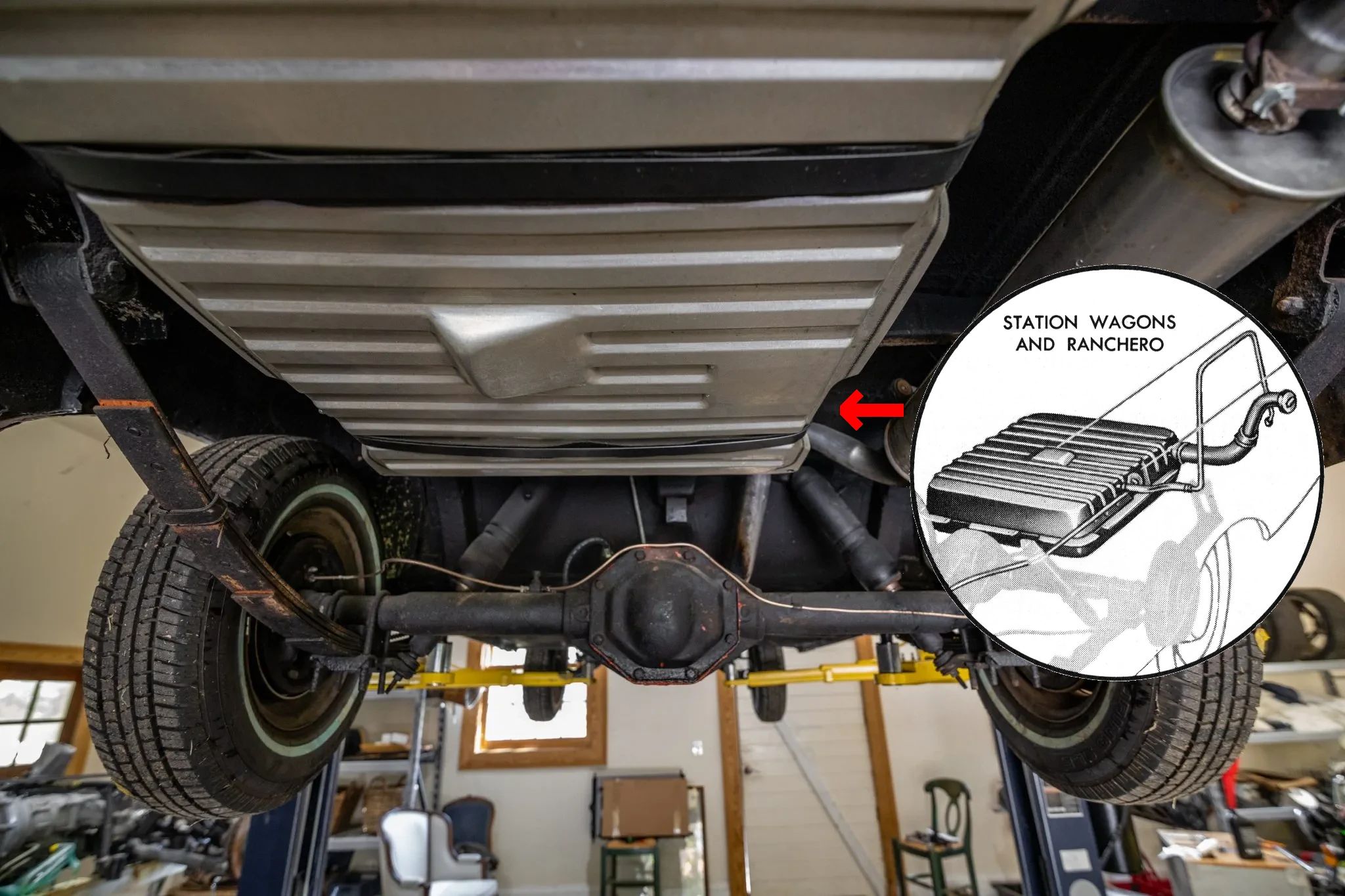

Two important excepts were station wagons and the Ranchero, which used a different style of tank strapped under the cargo area, with the filler on the left side.

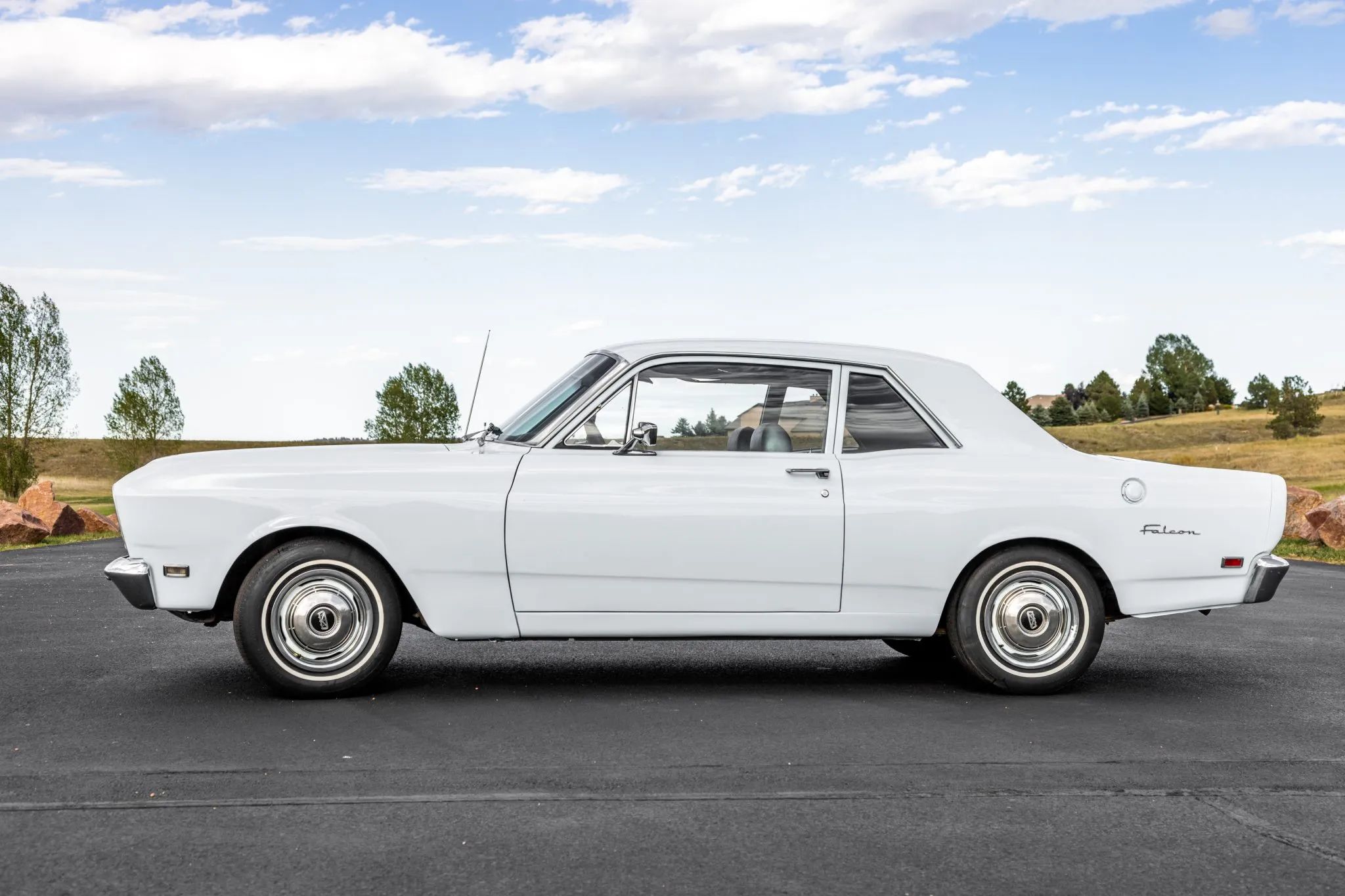

Curiously, from 1966 through early 1970, when the Falcon sedan and coupe became cut-down Fairlanes, their fuel filler was relocated to the left side of the trunk, like the station wagons and Ranchero, although the tank was still bolted into the trunk floor as in earlier sedans.

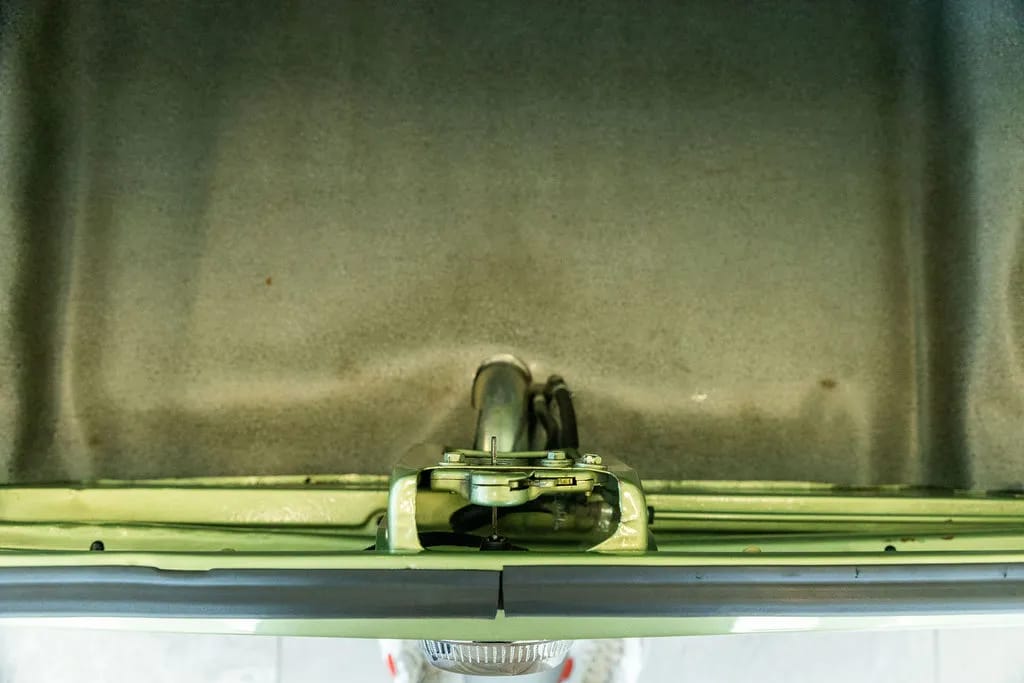

In the Fairlane/Torino and Montego/Cyclone intermediates, the fuel filler remained in back, as on the Mustang and Cougar.

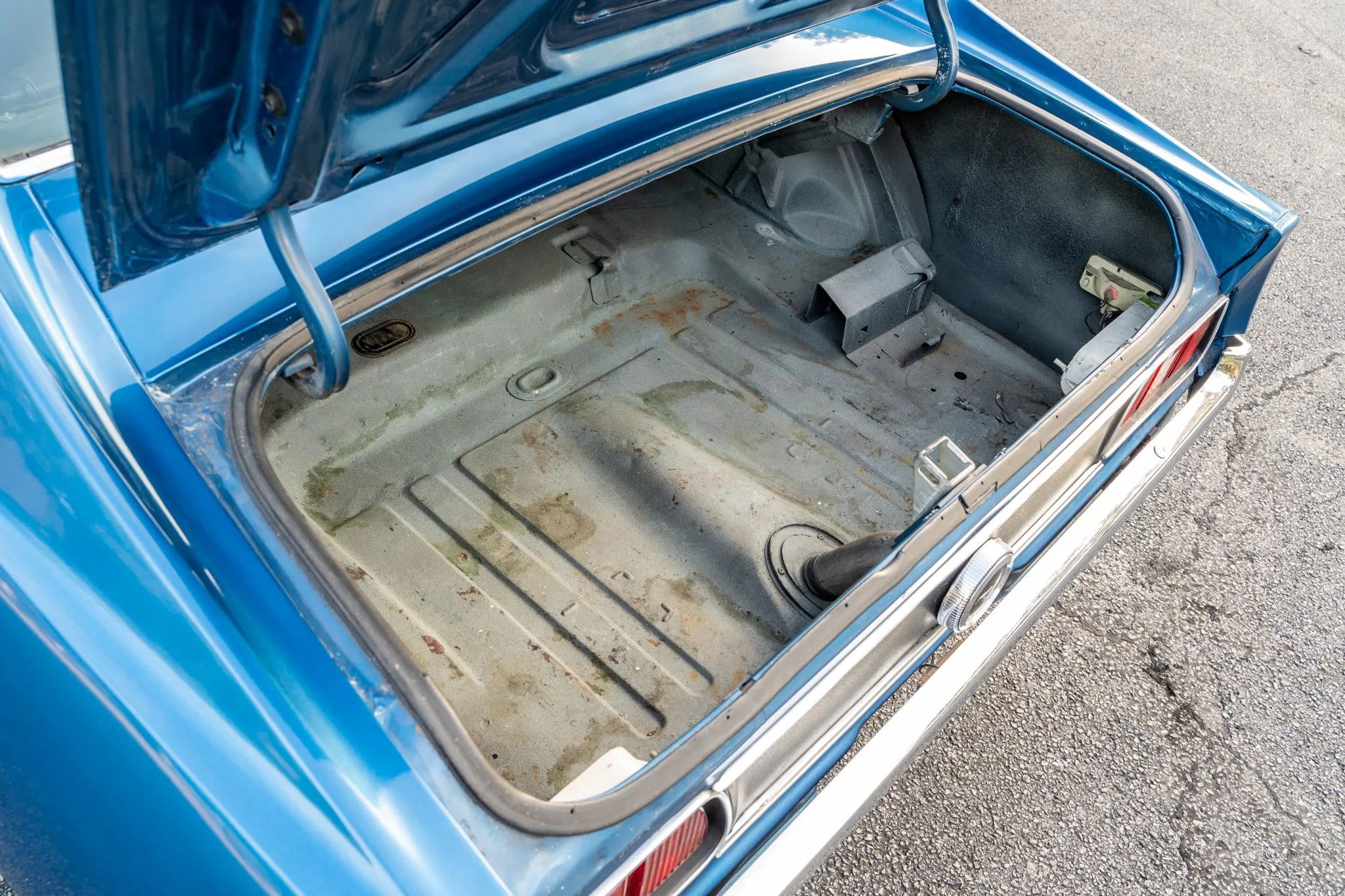

The Mustang, Cougar, and Maverick abandoned the drop-in fuel tank after 1970 in favor of an under-trunk gas tank, as seen above. The intermediate Torino and Montego followed suit after 1971.

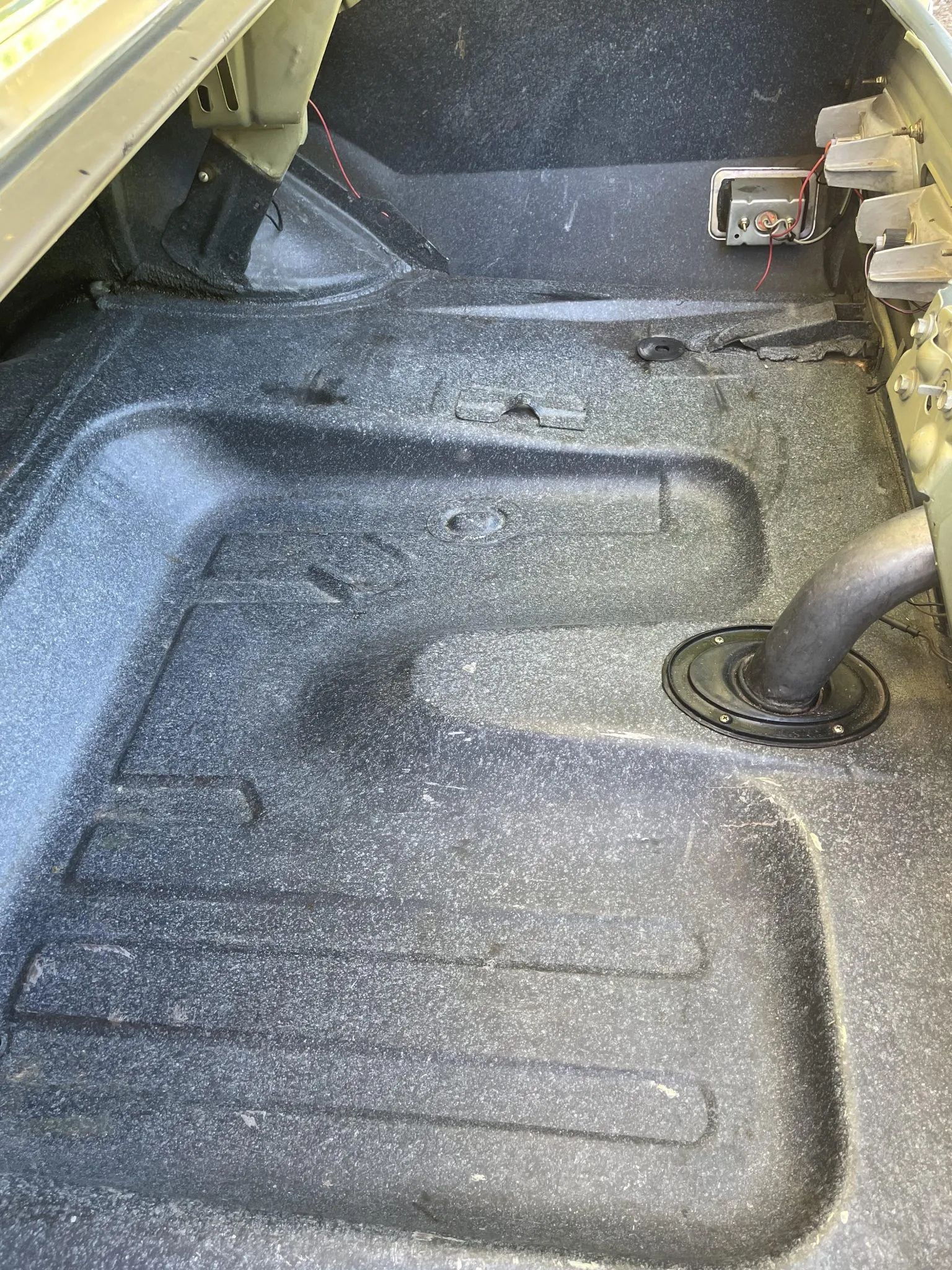

The Maverick’s Comet sibling, which arrived for 1971, never used the drop-in tank.

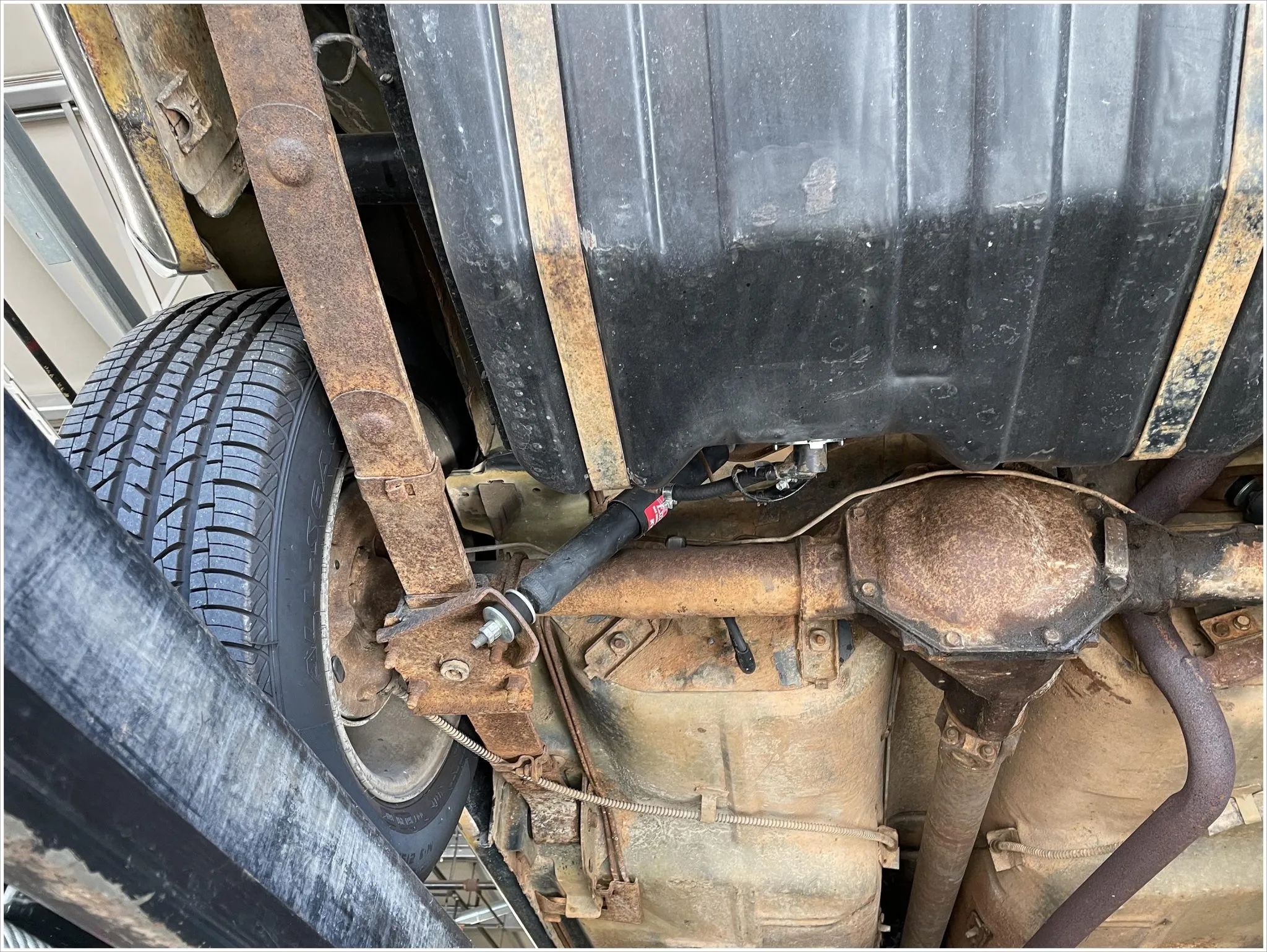

If you’re wondering, the Ford Pinto DID NOT use a drop-in gas tank. On the Pinto, the fuel tank was attached with straps under the trunk floor, behind the axle, with the fuel filler on the left side. The much-publicized Pinto fuel system hazards were NOT related to the kind of fuel tanks I’m discussing here.
Drop-In Tanks a Fire Hazard?
All this background is secondary to the big question, which is whether the drop-in design was intrinsically less safe and more susceptible to fire than other fuel tank installations. The safety complaints made about the Ford drop-in gas tank boil down to four separate issues — let’s look at each of them.

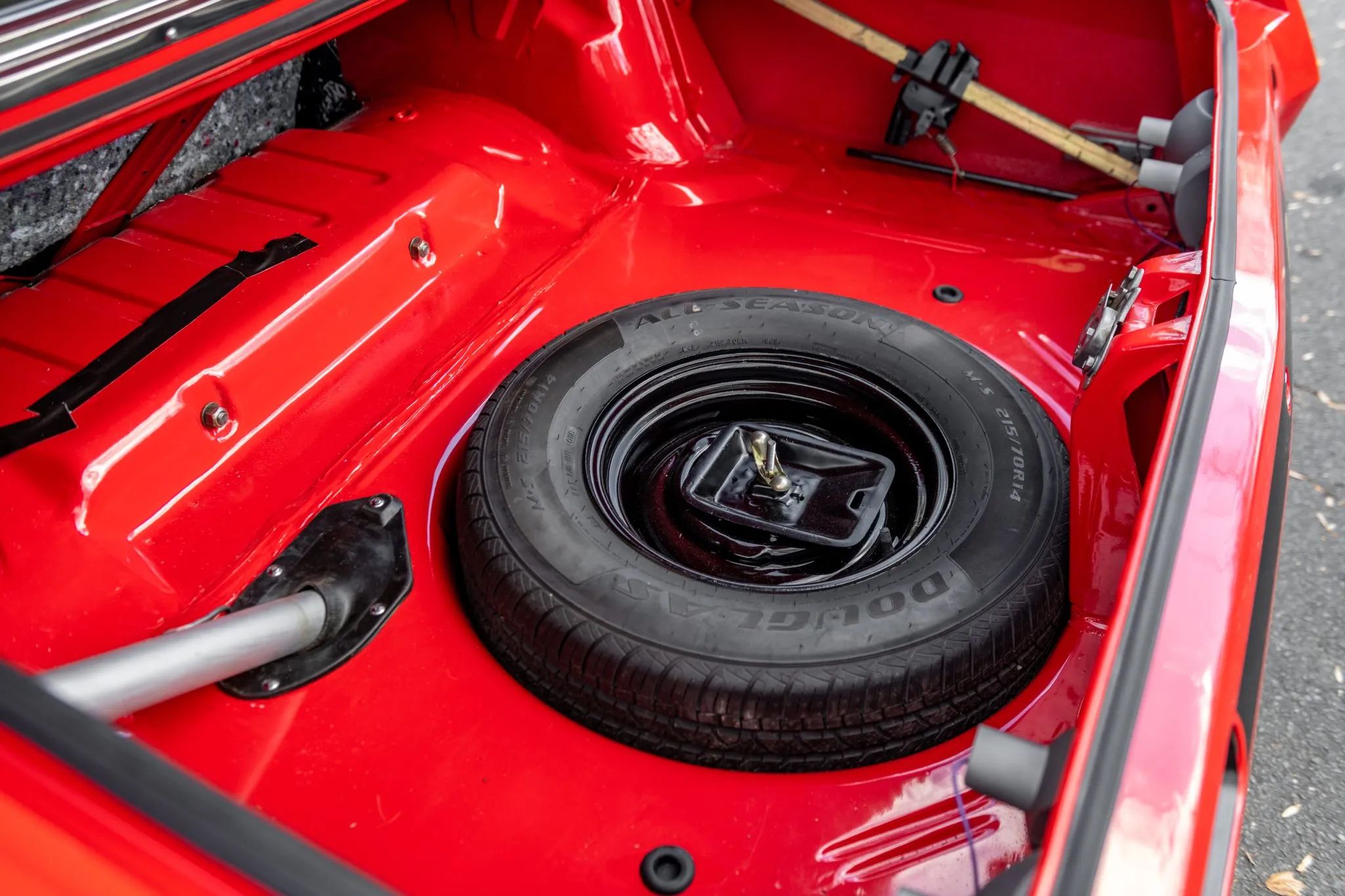

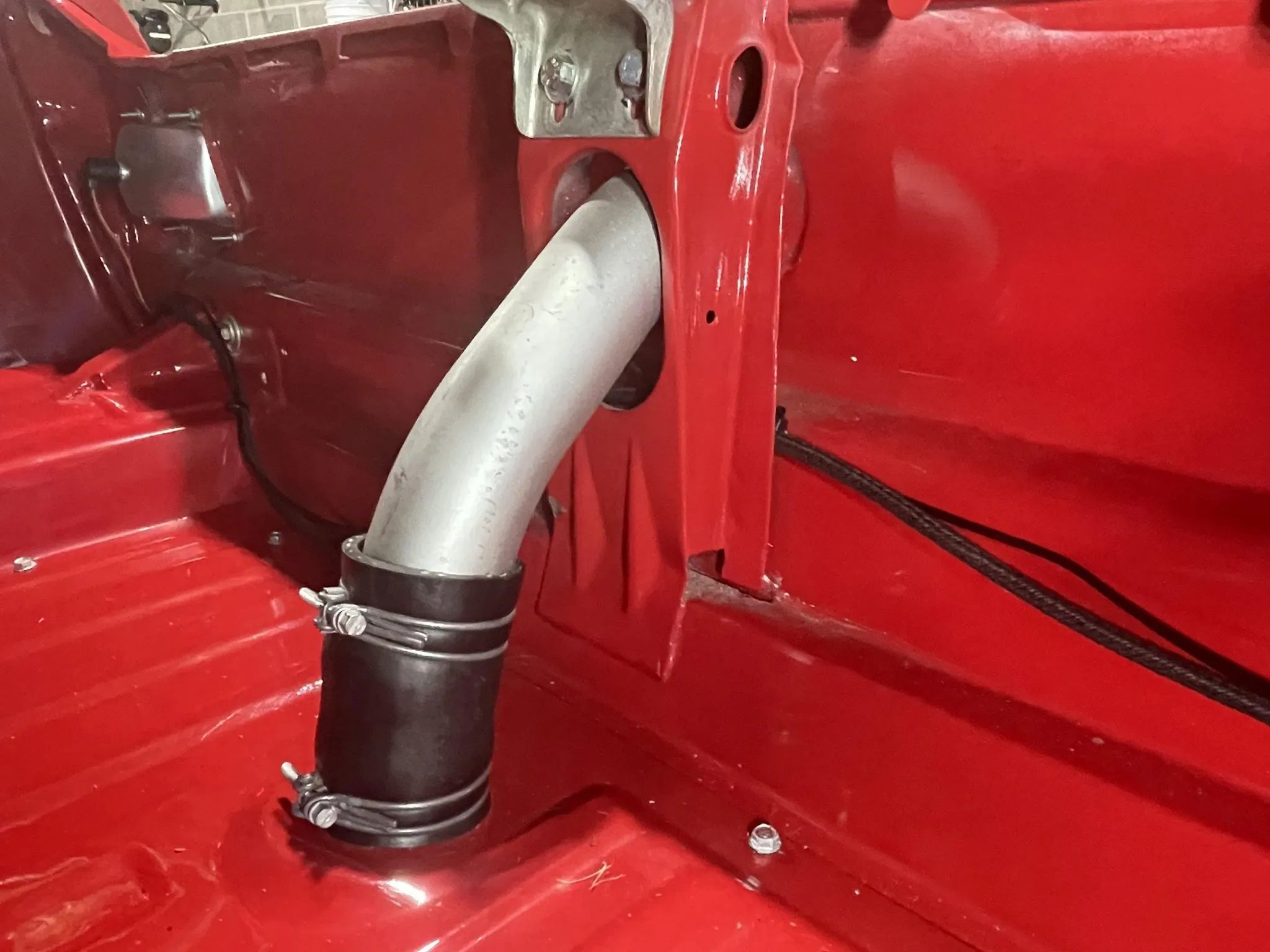

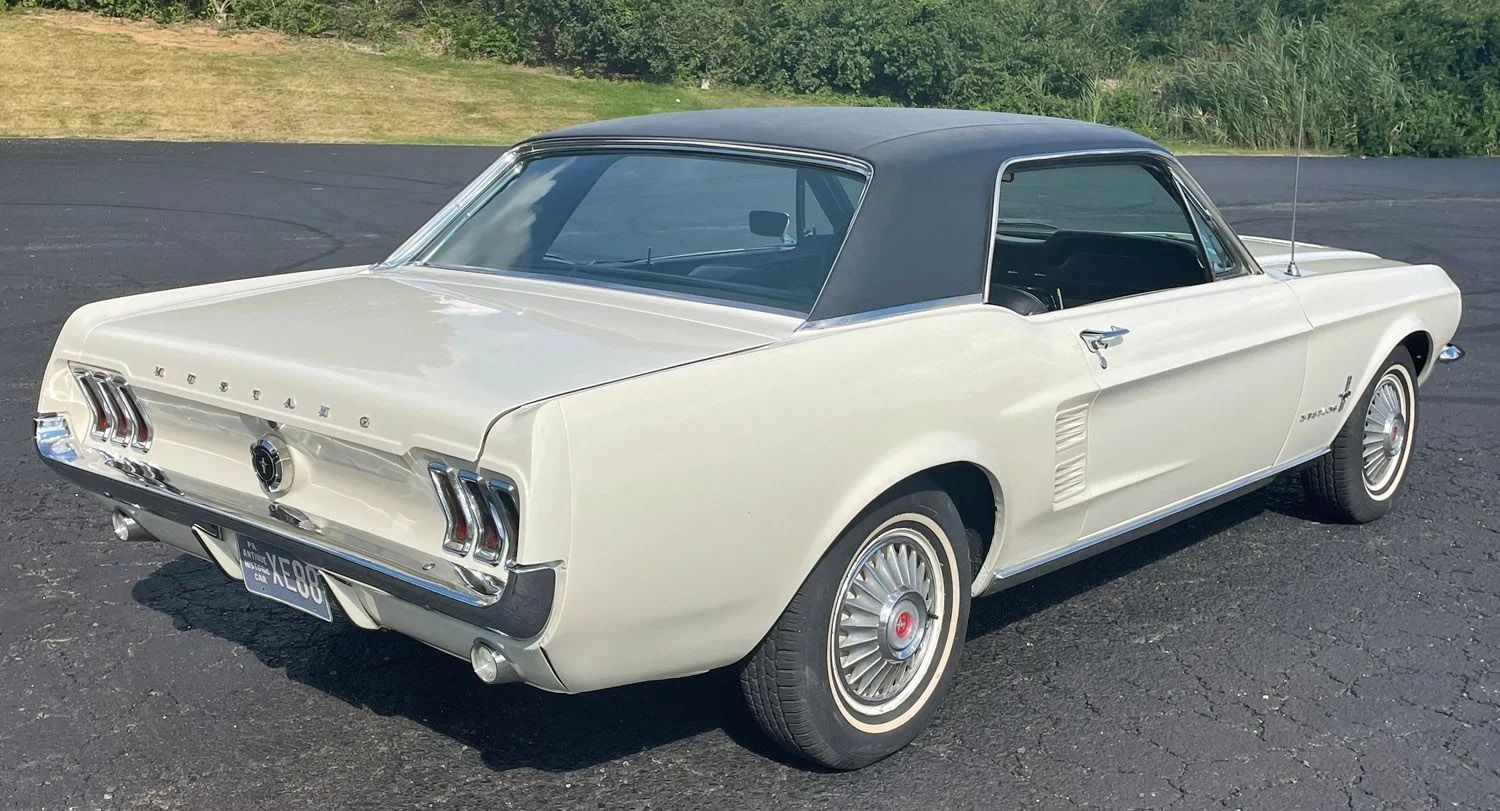

First, there’s the issue that the fuel filler in the most common applications of the drop-in tank is located at the rear, extending through the back support panel, where it’s quite vulnerable in any but the slowest rear impacts.

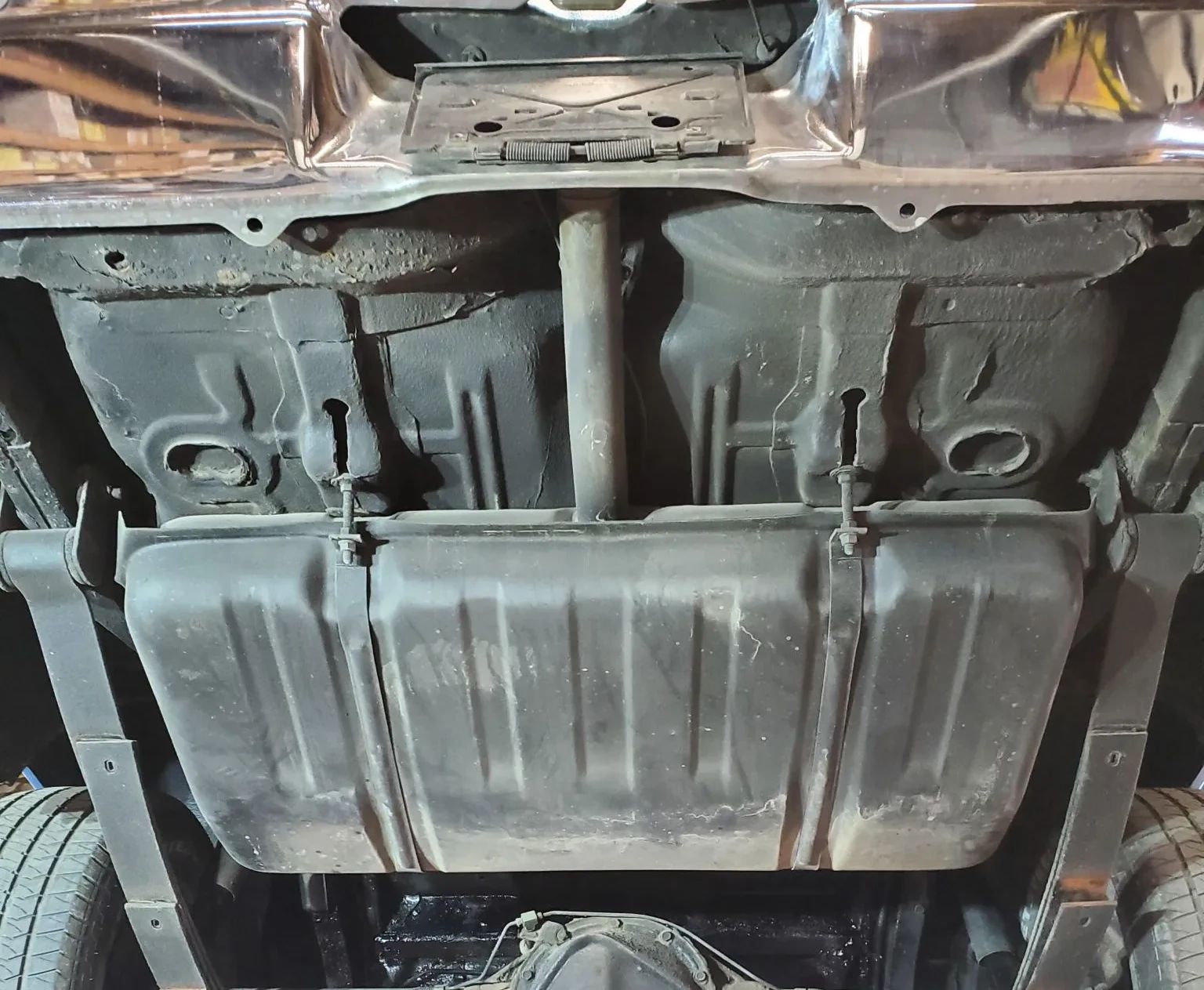

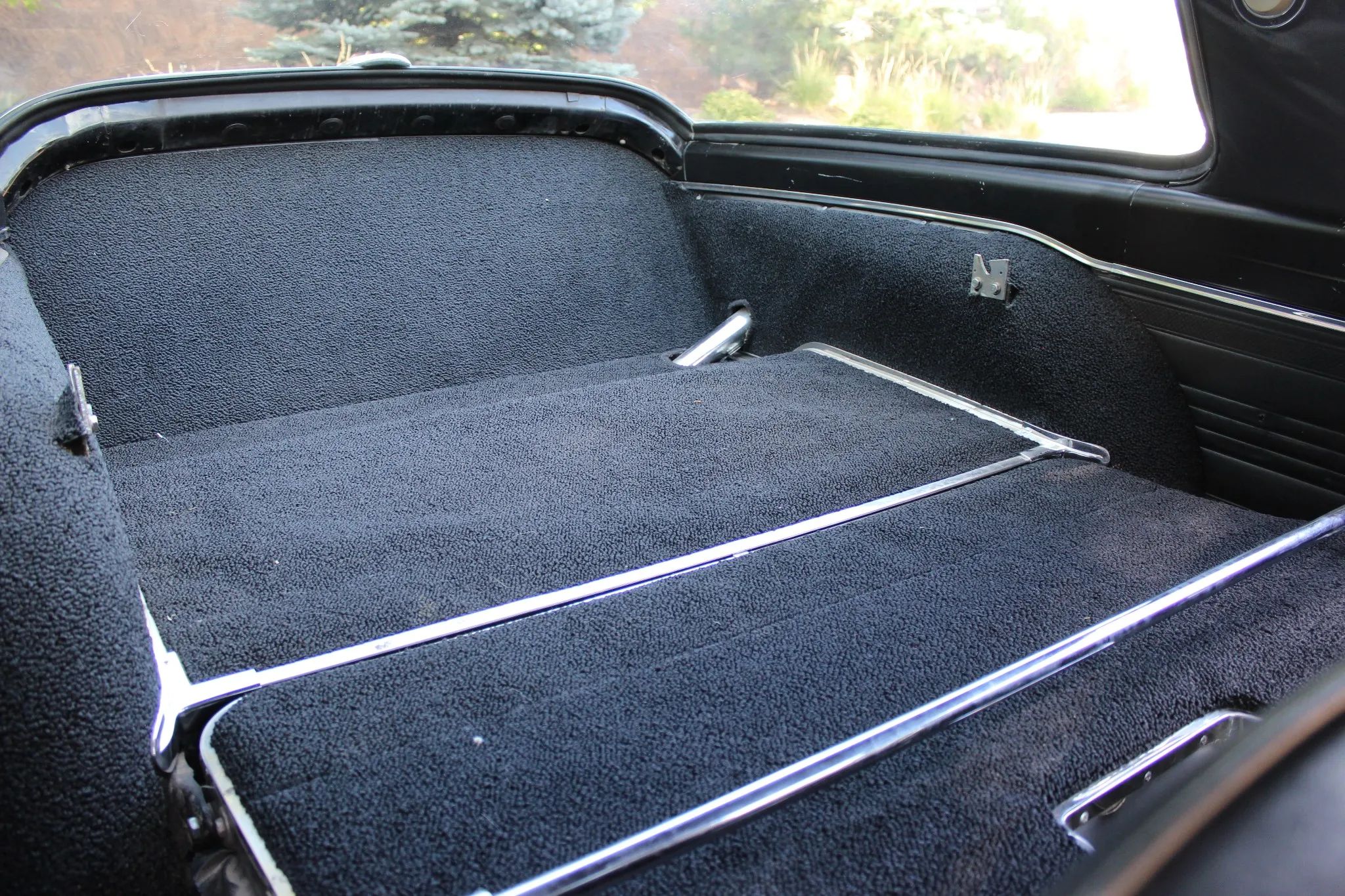

This is a very reasonable concern, although a great many American cars of the ’60s, even ones that put the tank under the trunk floor, also had a centrally located rear filler — the ’68 Nova pictured above was typical. If Ford had gone with Proposal A for the Falcon gas tank, putting it under the trunk, sedans would still have had a rear-mounted fuel filler, which Ford considered more convenient, since you could fill up from a pump on either side of the car.
A second issue is that because the filler of the Ford drop-in tank is not shrouded at all, it’s vulnerable to damage from objects in the trunk as well as from collisions. This is also a very reasonable concern, and one that I often fret about when I see the exposed filler pipes in the trunks of other low-end American cars of the ’60s and ’70s. Here again, though, a lot of non-Ford cars that didn’t use drop-in fuel tanks posed similar problems, as illustrated by the Plymouth Duster pictured above. Even with its removable trunk floor in place to conceal the spare, the Valiant/Duster fuel filler pipe remained exposed.

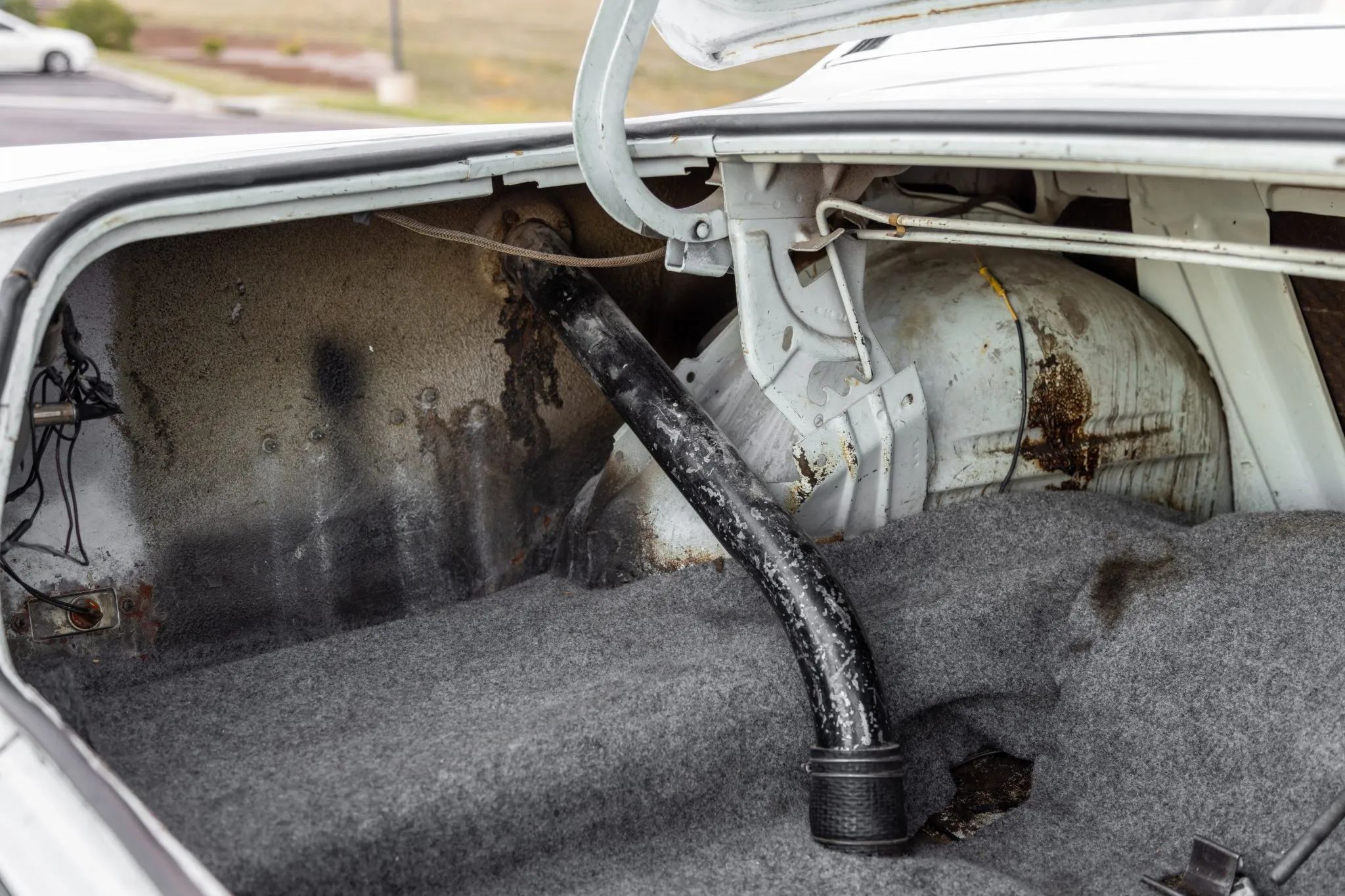

The fuel filler of the 1966–1970 Falcon sedan and the Falcon/Fairlane/Comet wagons, mounted on the left side, might have been a bit less vulnerable in rear impacts, but in the later sedan and coupe models, the fuel filler pipe was even more exposed within the trunk, which doesn’t seem like a great improvement.
A third point is the contention, often raised in lawsuits, that Ford should have provided some kind of protective bulkhead between the trunk and the rear seat to keep the fuel tank from being pushed forward into the passenger compartment in a rear impact. This one is really a stretch for me because very, very few passenger vehicles then or now have such a barrier — nearly all hatchbacks and many sedans and coupes have folding rear seats, sometimes with a folding or removable package shelf. Also, even if the rear seats are fixed, installing a barrier behind the rear seat seems unlikely to provide much protection against either splashed gasoline or a fire starting in the trunk.
The fourth and most troublesome question is whether being bolted into the trunk floor makes the drop-in tank itself more vulnerable to damage. There are two facets to this: One is the possibility that using the top of the tank as part of the trunk floor may increase the risk of the tank being punctured, and the other is the risk that in a rear collision, stresses on the tank could cause it to separate and/or rupture, splashing its contents forward into the passenger compartment.

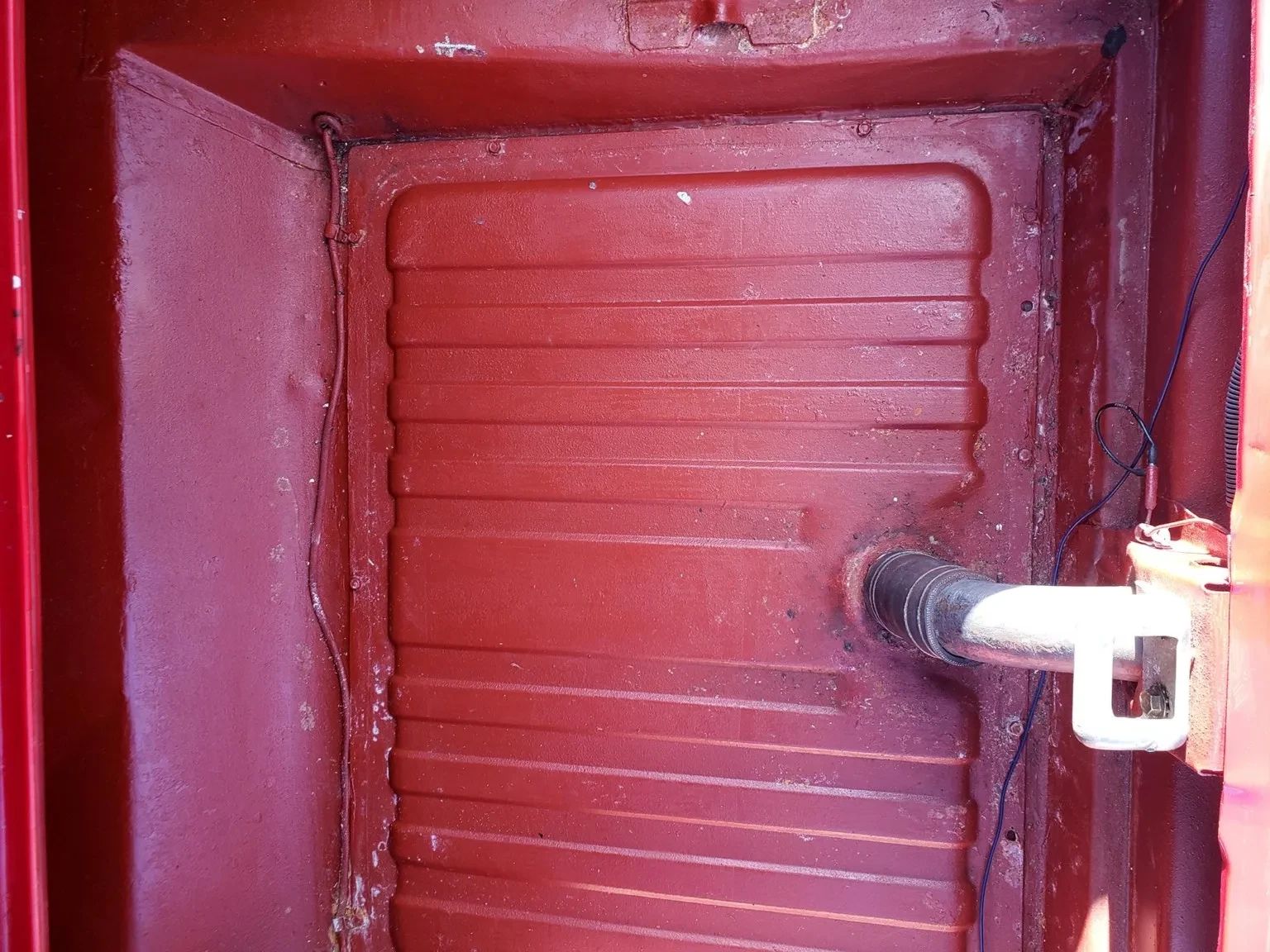

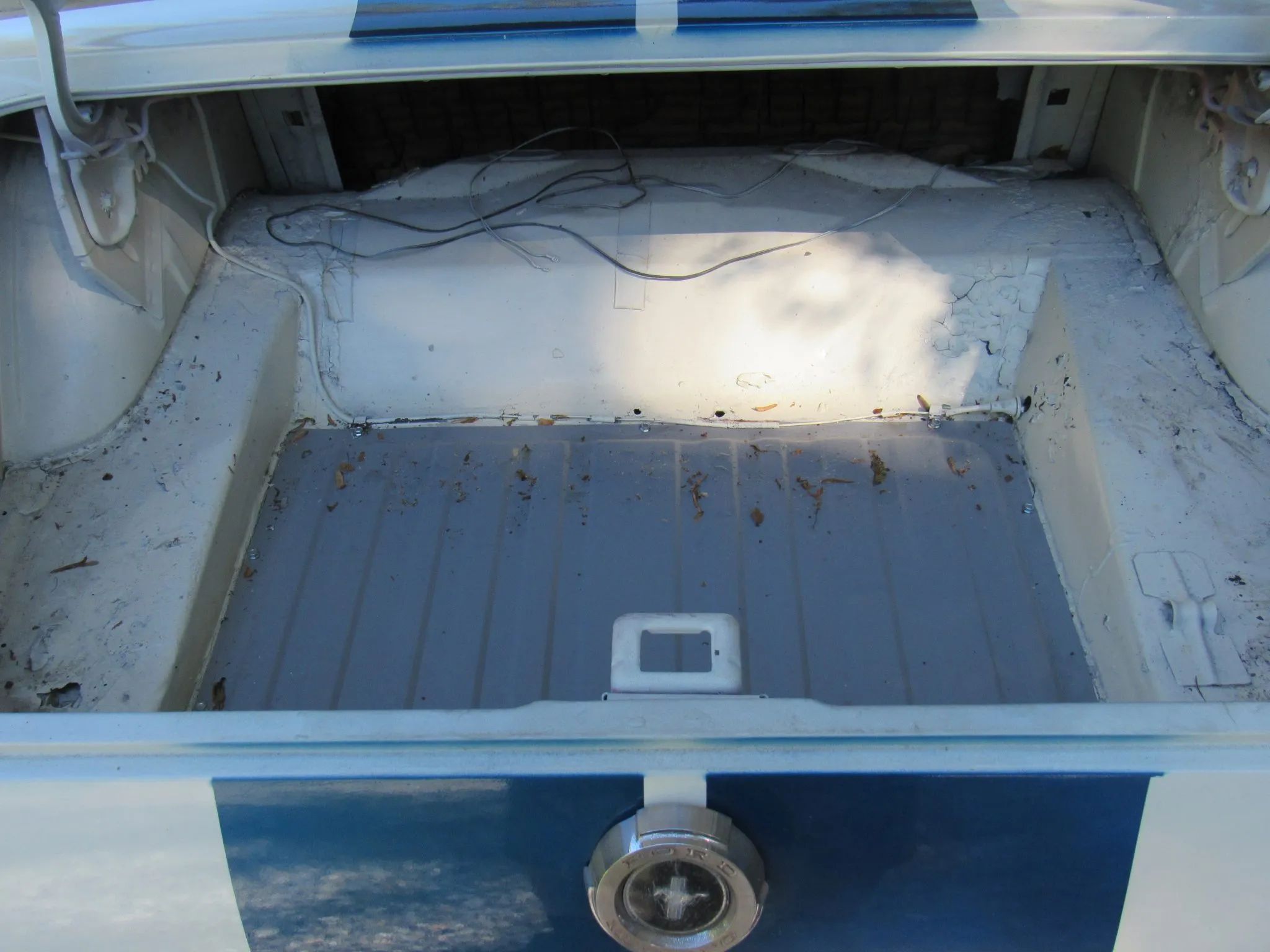

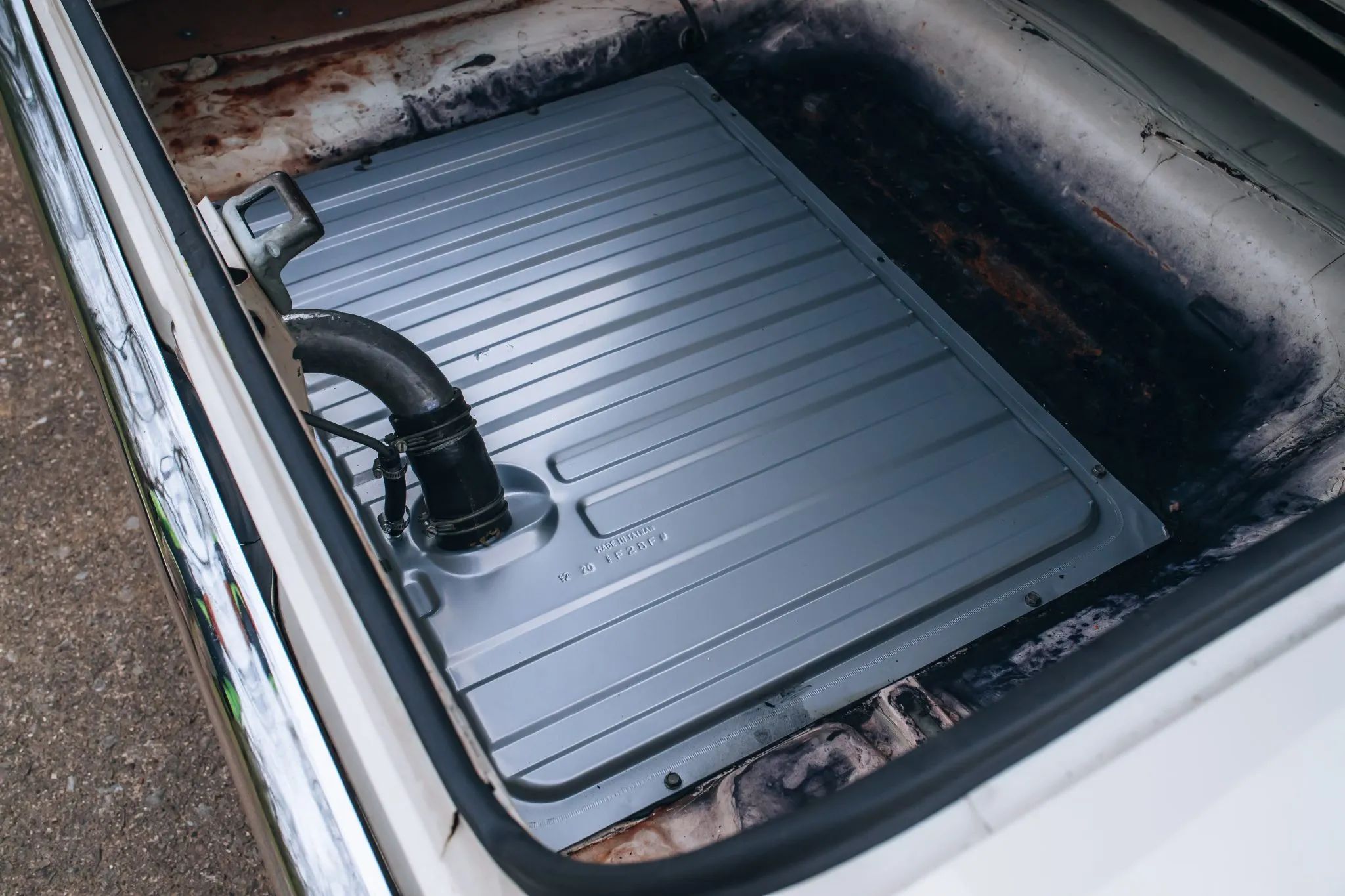

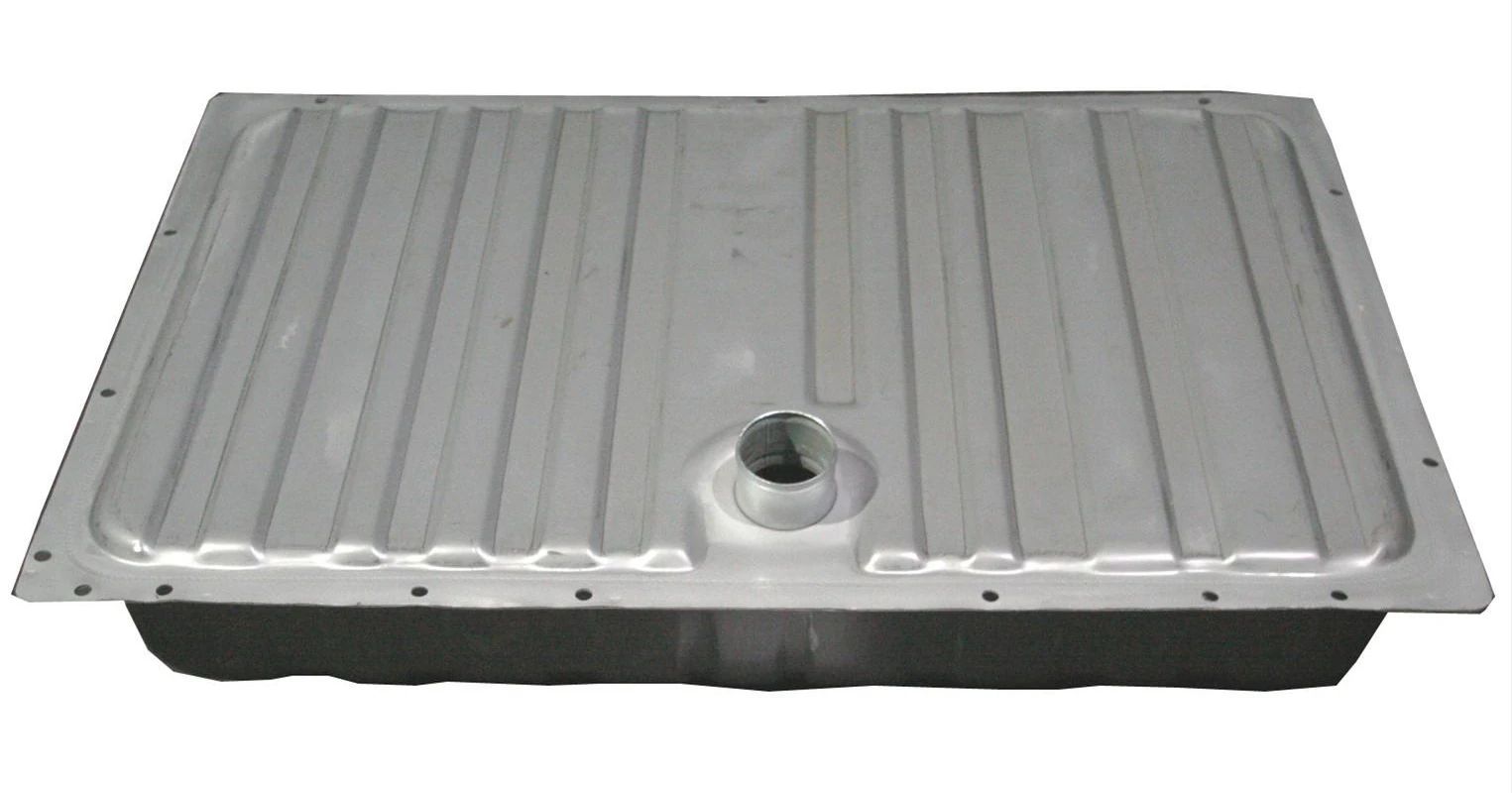

The drop-in fuel tank, which is fairly rigid, is bolted into the trunk floor between the rear side rails. If a collision violently distorts the structure to which the tank is firmly bolted, something’s gotta give — either the tank mounting bolts (leading to tank separation), the top of the tank itself (leading to rupture), or both. This seems to me the principal area where these tanks might be MORE hazardous than other contemporary gas tank arrangements. Unfortunately, it’s also the most difficult area to independently evaluate, since that would involve structural analysis of how the unit-body structure of these cars behave in a rear collision, and would probably require actual crash testing.
Accidents and Lawsuits
Over the years, Ford has been sued many times by people who had been burned when their Mustang, Falcon, Comet, Fairlane, or Maverick caught fire during a rear-impact accident. Many of those suits have been settled out of court, but some have gone to trial (and sometimes multiple appeals). Plaintiffs have produced various expert witnesses to testify that the drop-in tank was a defective design, and inherently dangerous.
Courts and juries have sometimes agreed. In 1971, for example, a federal jury awarded $400,000 in damages to a New York man who sued Ford after his then-new 1967 Mustang burned and exploded in an accident on the Queensboro Bridge. Although Ford Motor Company was not a party to Buehler v. Whalen, an Illinois lawsuit involving the crash of a 1966 Ford Fairlane (which also used the drop-in fuel tank), the Supreme Court of Illinois eventually ruled (374 N.E.2d 460 (1978)), based on previous liability case precedents, that “cars equipped with a fuel system of the type used on the Fairlane represent a design defect because of the vulnerability to impact and the risk of fire spreading into the passenger compartment.”
An NHTSA investigation in the mid-’70s concluded that the Ford drop-in fuel tanks “present no fire hazard which does not also exist in … other fuel tank systems.” Even assuming that was true, it wasn’t exactly a confidence-inspiring conclusion, and well into the 1990s, some safety advocates continued vainly trying to force Ford to recall and retrofit every single surviving car originally fitted with these tanks.
In 1975, the federal General Services Administration (GSA) pointed out that Mustangs and Falcons were involved in five of the eight fuel system leakage accidents the GSA had recorded that involved gas tank separation, and proposed that the NHTSA investigate more thoroughly. NHTSA staff engineers responded that they didn’t think the accidents were relatable to the federal fuel tank integrity standard (FMVSS 301) — which at the time didn’t yet apply to rear impacts — and contended that the Falcon and Mustang shouldn’t be considered in the same breath because they were “structurally unrelated” (a very arguable point!).
Ford Motor Company apparently had internal evidence that the drop-in gas tank was susceptible to rupture in rear impacts. The late Harold C. MacDonald, chief of Ford Division product engineering in the ’60s, admitted as much in a deposition, and auto safety consultant Byron Bloch claimed that there were half a dozen internal Ford crash test results reporting fuel tank leakage or rupture in rear impacts. Former Ford engineer Peter Bertelson later told CBS News that by 1966, “all the engineering executives were aware of the problems of the drop-in tank.” Safety advocate and lobbyist Joan Claybrook, who headed the NHTSA during the Carter administration, claimed that during the early ’70s NHTSA investigation (completed before her appointment), Ford had deliberately withheld crash test results showing fuel tank rupture in medium-speed (21 to 31 mph) rear impacts. Ford denied that it had done anything wrong, or that it had withheld any relevant information from the NHTSA.
When interviewed by CBS in 1999, Lee Iacocca scoffed at the idea that his Mustang “had more problems or severity of problems than any other car in its class,” although he admitted that safety “wasn’t the priority” in its design.
A Hazard, But Maybe Not a Unique Hazard?
Evaluating automotive safety hazards or defects is challenging. The circumstances of each accident are unique, with lots of moving parts and contributing factors. There’s really no neutral point of view: Manufacturers are usually very reluctant to do any more than the bare minimum the law requires (and not even always that much), and are violently allergic to even tacit admissions of liability. Safety experts will happily testify under oath than any car that doesn’t submerge each occupant in impact-absorbing, fire-retardant foam surrounded by armor plate is obviously defective. Then, there’s the contingent of third-party apologists who will insist that even the most obvious hazard is just nanny-state propaganda and no big deal if you’re as smart and talented as THEY are (maybe because that helps them reassure themselves that they’re in no danger). Meanwhile, accident victims or their survivors, who may have suffered truly grievous losses, are eager for justice and recompense.
When it comes to the Ford drop-in gas tank, I think there are really two questions: 1) Did the drop-in tank design present a safety hazard, and 2), did it present more of a safety hazard than other gas tanks of the time? For what it’s worth, my take goes something like this:
- Was this gas tank design a safety hazard? Certainly — at the very least, both the rear-mounted filler and the exposed filler pipe were vulnerable in ways that were pretty manifestly hazardous, even though those hazards were by no means unique to this design, or to Ford products.
- Was this gas tank installation MORE hazardous than other gas tanks of the time? Maybe — as I said above, the possibility that the way the tank is bolted to the trunk floor might make it more vulnerable to being punctured or ruptured in a rear impact is hard to really quantify without crash testing, but I certainly wouldn’t discount it, especially if Ford had confidential crash test reports demonstrating the risk.
In 2004, the NHTSA revised the FMVSS 301 fuel system integrity standard (which you can see at 49 CFR 571.301), adding much stricter requirements for fuel leakage in rear and side impacts, beginning with the 2007 model year. Of course, that doesn’t help owners of older cars, whatever kind of fuel tanks they have.
Statistically, fires resulting from passenger car accidents are rare — a 1981 analysis cited estimates of about one fire per 1,000 accidents overall and about one fire per 500 police-reported accidents. However, when vehicular fires do occur in an accident, they can be truly horrific. For example, in 1985, Florida teenager Marlo Mahne was badly burned when the 1967 Mustang in which she was riding suffered a fuel tank rupture and caught fire after being rear-ended. She survived, but suffered third- and fourth-degree burns over 70 percent of her body and ended up blind in one eye.

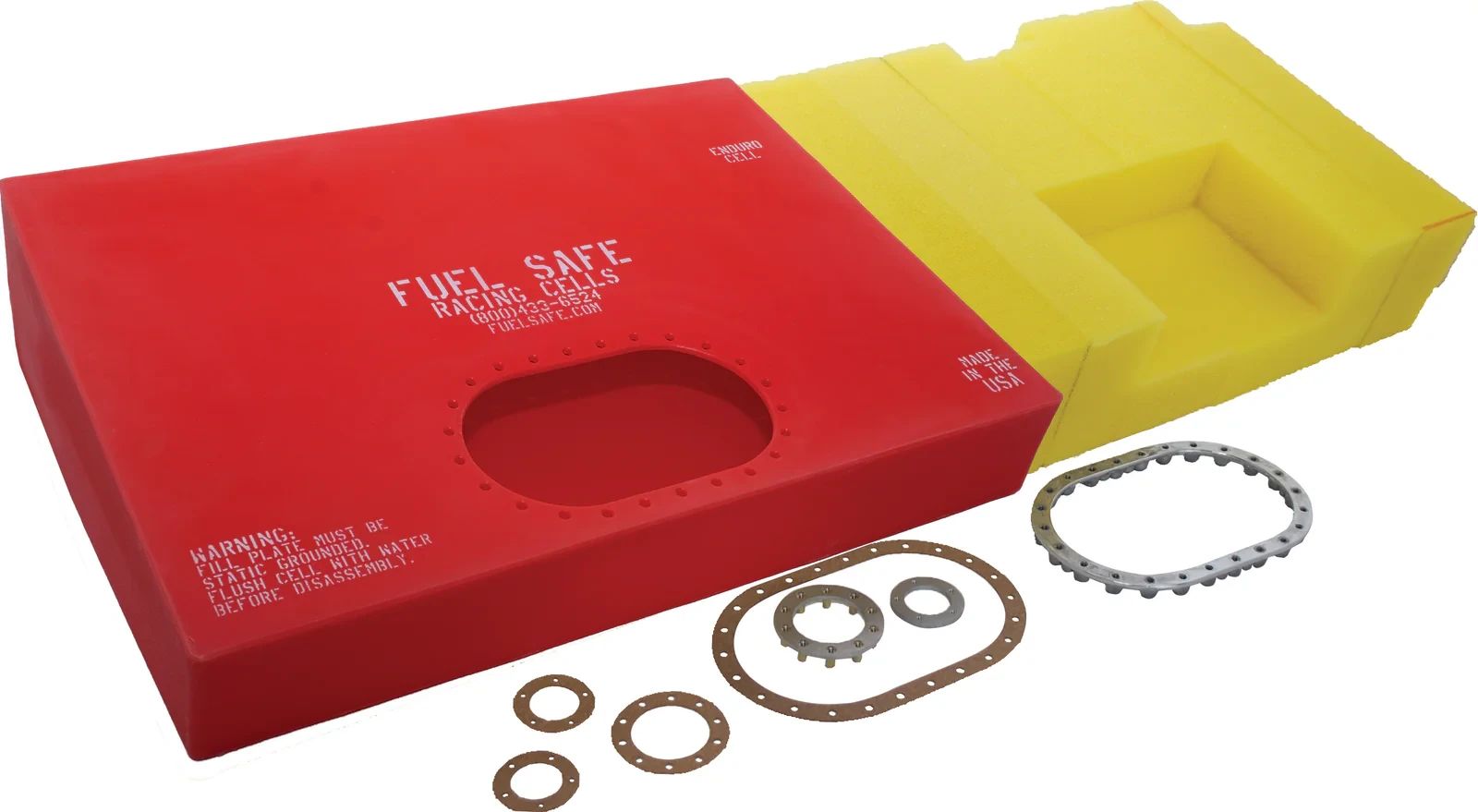

There are aftermarket add-ons that are supposed to help protect the drop-in tank, including fuel tank cover plates and steel bulkheads, although how beneficial those may be in an accident is hard to say. (If I owned one of these cars, I’d be tempted to add some kind of cage around the filler pipe to protect it from objects sliding around in the trunk, but that wouldn’t do much good if the car was rear-ended.) There’s also the option of replacing the tank with a racing-style fuel cell with rubber fuel bladders surrounded by foam baffles, limiting the amount of fuel that leaks even if the tank ruptures — probably a more effective solution from a safety standpoint, but also a very expensive one. Whether it’s worth it isn’t something I can say.
